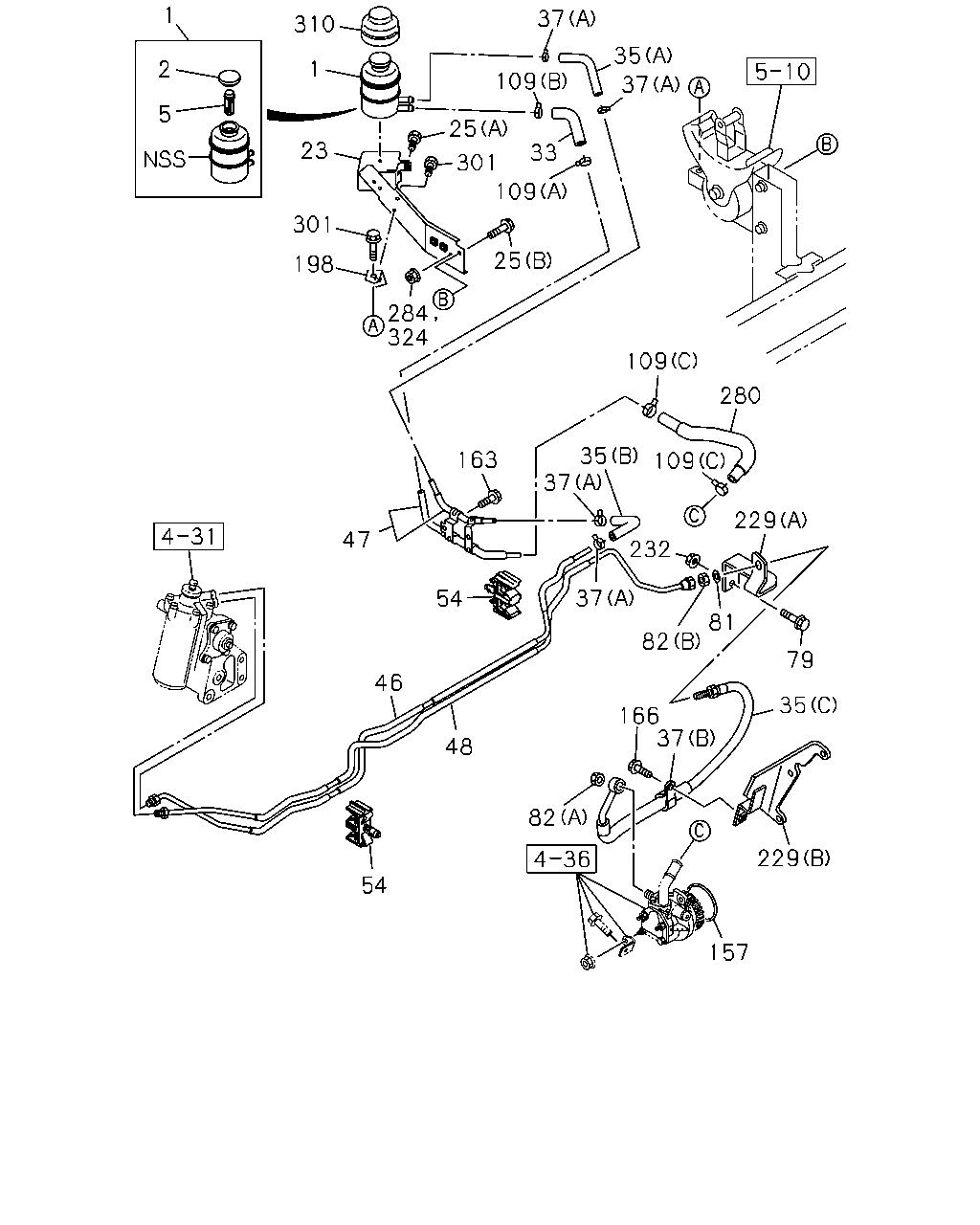

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#50875) — 90 parça

1 37 310 35 2 1 109 37 5 25 23 33 301 109 301 25 198 284 324 109 280 35 37 163 109 229 47 232 37 54 81 82 79 46 35 166 37 48 82 229 54 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	0804-	●	●	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	0804-	●	●	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0804-	●	●	●
23	BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	0804-	●	●	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28450-620-0	01	1	0804-	●	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	0804-	●	●	●
33	HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	0804-	●	●	●
35	HOSE; RETURN,P/S TANK (C)	8-97389-832-2	01	1	0804-	●	●
35	HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	0804-	●	●	●
35	HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	0804-	●	●	●
35	HOSE; RETURN,P/S TANK (C)	8-98092-679-0	01	1	0804-			●
37	CLIP; HOSE,P/S (A) ID=16 SOU	8-94238-568-0	04	1	0804-0911	●	●	●
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	04	1	0912-	●	●	●
37	CLIP; HOSE,P/S (B) ID=26 L=26	1-09701-236-0	01	1	0804-	●	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK	8-98041-184-3	01	1	0804-	●	●	●
47	PIPE; RETURN	8-98083-166-1	01	1	0804-	●	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98041-185-4	01	1	0804-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98069-442-4	01	1	0804-			●
54	CLIP; OIL PIPE ID=10X2 H=37.5	8-97018-546-0	02	1	0804-	●	●	●
79	BOLT; BRKT M10X30 FLANGE SOU	0-28651-030-0	01	1	0804-			●
81	WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0804-	●	●	●
82	NUT; FLEX HOSE,P/S (A) M12 SELF LOCK	8-97028-390-1	01	1	0804-	●	●	●
82	NUT; FLEX HOSE,P/S (B) M16	8-94370-339-0	01	1	0804-	●	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0804-0911	●	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	01	1	0912-	●	●	●
109	CLIP; RUBBER HOSE (B) ID=22 SOU	8-94382-401-0	01	1	0804-1003	●	●	●
109	CLIP; RUBBER HOSE (B) ID=22	8-97359-141-0	01	1	1004-	●	●	●
109	CLIP; RUBBER HOSE (C) ID=21	8-94242-034-0	02	1	0804-0911	●	●	●
109	CLIP; RUBBER HOSE (C) ID=21	8-98150-355-0	02	1	0912-	●	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	0804-	●	●	●
163	BOLT; OIL PIPE M8X25 FLANGE SOU	0-28650-825-0	02	1	0804-	●	●	●
166	BOLT; CLIP M8X25 FLANGE SOU	0-28650-825-0	01	1	0804-	●	●	●
198	STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	0804-	●	●	●
229	BRACKET; HOSE,POWER STRG (A)	8-98079-341-0	01	1	0804-	●	●
229	BRACKET; HOSE,POWER STRG TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98034-114-2	01	1	0804-1106	●	●	●
229	BRACKET; HOSE,POWER STRG TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98011-639-1	01	1	1107-	●	●	●
229	BRACKET; HOSE,POWER STRG (A)	8-98043-418-2	01	1	0804-			●
232	NUT; BRKT M10 FLANGE SOU	0-91180-110-0	01	1	0804-	●	●	●
280	HOSE; P/S OIL PUMP,INL HYDRO BRAKE BOOSTER(7QQ)	8-98082-972-0	01	1	0804-	●
280	HOSE; P/S OIL PUMP,INL	8-98082-972-0	01	1	0804-		●	●
280	HOSE; P/S OIL PUMP,INL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98082-973-0	01	1	0804-	●
284	NUT; PIPE M8 FLANGE SOU	0-91180-108-0	01	1	0804-	●	●	●
301	BOLT; STAY,OIL TANK M8X25 FLANGE SOU	0-28650-825-0	02	1	0804-	●	●	●
310	COVER; OIL TANK	8-97103-394-0	01	1	0804-	●	●
324	NUT; OIL PIPE M8 FLANGE SOU	0-91180-108-0	01	1	0804-			●

1 37 310 35 2 1 109 37 5 25 23 33 301 109 301 25 198 284 324 109 280 35 37 163 109 229 47 232 37 54 81 82 79 46 35 166 37 48 82 229 54 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	0804-	●	●	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	0804-	●	●	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0804-	●	●	●
23	BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	0804-	●	●	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28450-620-0	01	1	0804-	●	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	0804-	●	●	●
33	HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	0804-	●	●	●
35	HOSE; RETURN,P/S TANK (C)	8-97389-832-2	01	1	0804-	●	●
35	HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	0804-	●	●	●
35	HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	0804-	●	●	●
35	HOSE; RETURN,P/S TANK (C)	8-98092-679-0	01	1	0804-			●
37	CLIP; HOSE,P/S (A) ID=16 SOU	8-94238-568-0	04	1	0804-0911	●	●	●
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	04	1	0912-	●	●	●
37	CLIP; HOSE,P/S (B) ID=26 L=26	1-09701-236-0	01	1	0804-	●	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK	8-98041-184-3	01	1	0804-	●	●	●
47	PIPE; RETURN	8-98083-166-1	01	1	0804-	●	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98041-185-4	01	1	0804-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98069-442-4	01	1	0804-			●
54	CLIP; OIL PIPE ID=10X2 H=37.5	8-97018-546-0	02	1	0804-	●	●	●
79	BOLT; BRKT M10X30 FLANGE SOU	0-28651-030-0	01	1	0804-			●
81	WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0804-	●	●	●
82	NUT; FLEX HOSE,P/S (A) M12 SELF LOCK	8-97028-390-1	01	1	0804-	●	●	●
82	NUT; FLEX HOSE,P/S (B) M16	8-94370-339-0	01	1	0804-	●	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0804-0911	●	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	01	1	0912-	●	●	●
109	CLIP; RUBBER HOSE (B) ID=22 SOU	8-94382-401-0	01	1	0804-1003	●	●	●
109	CLIP; RUBBER HOSE (B) ID=22	8-97359-141-0	01	1	1004-	●	●	●
109	CLIP; RUBBER HOSE (C) ID=21	8-94242-034-0	02	1	0804-0911	●	●	●
109	CLIP; RUBBER HOSE (C) ID=21	8-98150-355-0	02	1	0912-	●	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	0804-	●	●	●
163	BOLT; OIL PIPE M8X25 FLANGE SOU	0-28650-825-0	02	1	0804-	●	●	●
166	BOLT; CLIP M8X25 FLANGE SOU	0-28650-825-0	01	1	0804-	●	●	●
198	STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	0804-	●	●	●
229	BRACKET; HOSE,POWER STRG (A)	8-98079-341-0	01	1	0804-	●	●
229	BRACKET; HOSE,POWER STRG TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98034-114-2	01	1	0804-1106	●	●	●
229	BRACKET; HOSE,POWER STRG TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98011-639-1	01	1	1107-	●	●	●
229	BRACKET; HOSE,POWER STRG (A)	8-98043-418-2	01	1	0804-			●
232	NUT; BRKT M10 FLANGE SOU	0-91180-110-0	01	1	0804-	●	●	●
280	HOSE; P/S OIL PUMP,INL HYDRO BRAKE BOOSTER(7QQ)	8-98082-972-0	01	1	0804-	●
280	HOSE; P/S OIL PUMP,INL	8-98082-972-0	01	1	0804-		●	●
280	HOSE; P/S OIL PUMP,INL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98082-973-0	01	1	0804-	●
284	NUT; PIPE M8 FLANGE SOU	0-91180-108-0	01	1	0804-	●	●	●
301	BOLT; STAY,OIL TANK M8X25 FLANGE SOU	0-28650-825-0	02	1	0804-	●	●	●
310	COVER; OIL TANK	8-97103-394-0	01	1	0804-	●	●
324	NUT; OIL PIPE M8 FLANGE SOU	0-91180-108-0	01	1	0804-			●
