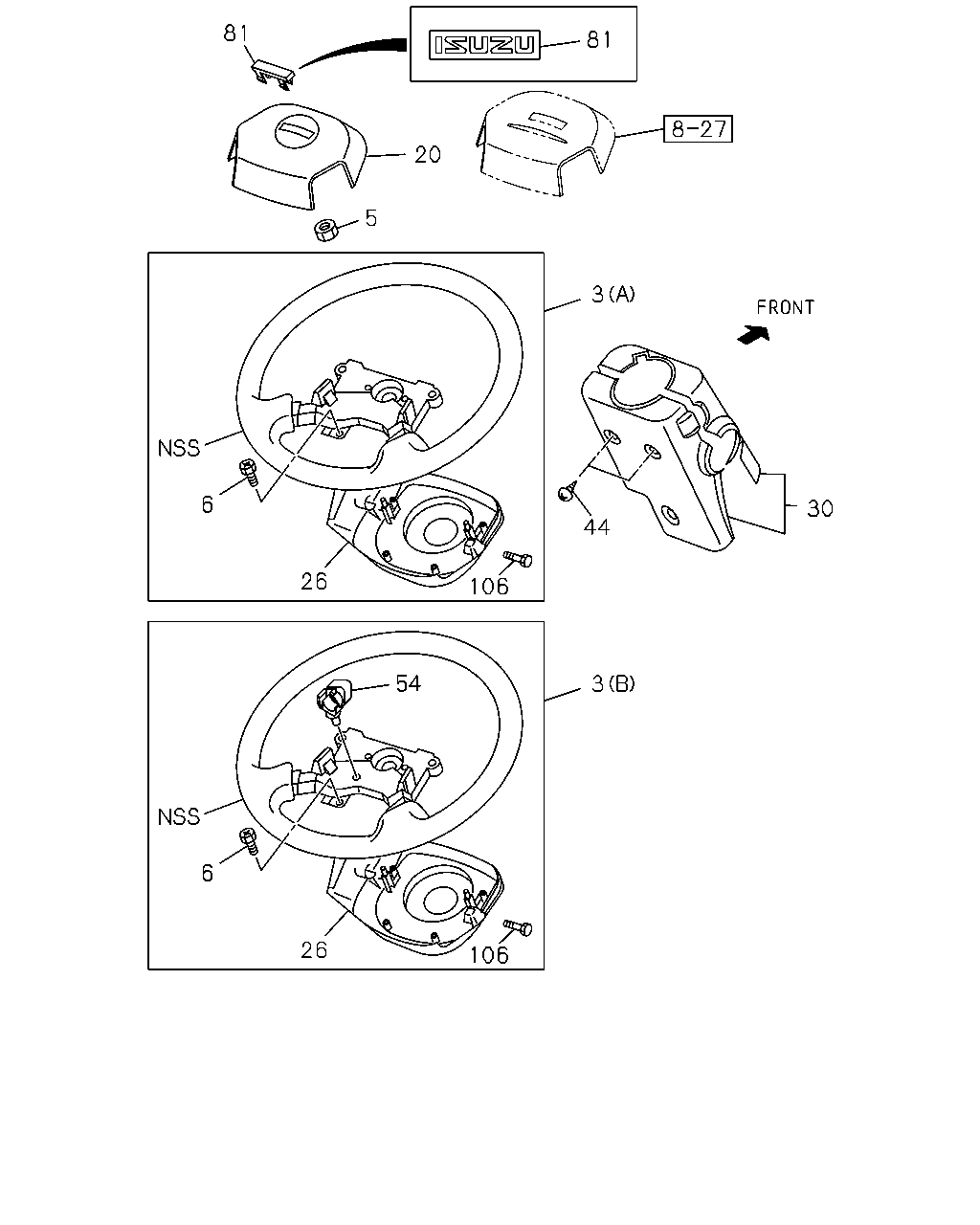

4-30 — STEERING WHEEL AND COWL (#50872) — 16 parça

81 3 20 5 81 6 26 106 44 30 54 3 106 26 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97405-726-1	01	1	0804-1006	●	●	●
3	WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97421-977-0	01	1	1007-1210	●	●	●
3	WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) DARK GRAY	8-97423-997-0	01	1	1211-	●	●	●
3	WHEEL; STRG EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97412-556-1	01	1	0804-	●	●	●
5	NUT; STRG WHEEL TO SHAFT M14 SOU	0-91111-514-0	01	1	0804-	●	●	●
6	SCREW; HORN SPR CONTACT M4X12	8-97167-588-0	04	1	0804-	●	●	●
20	SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97405-985-1	01	1	0804-	●	●	●
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97405-841-0	01	1	0804-1006	●	●	●
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97421-978-0	01	1	1007-	●	●	●
26	COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97409-275-2	01	1	0804-	●	●	●
30	COWL; STEERING DARK GRAY	8-97405-356-5	01	1	0804-1110	●	●	●
30	COWL; STEERING DARK GRAY	8-97418-761-1	01	1	1111-	●	●	●
44	SCREW; STRG COWL M5X12	0-38050-512-0	03	1	0804-	●	●	●
54	CLIP; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98165-703-0	01	1	1211-	●	●	●
81	EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97405-986-0	01	1	0804-	●	●	●
106	BOLT; TORX	8-98231-397-0	02	1	0804-	●	●	●
