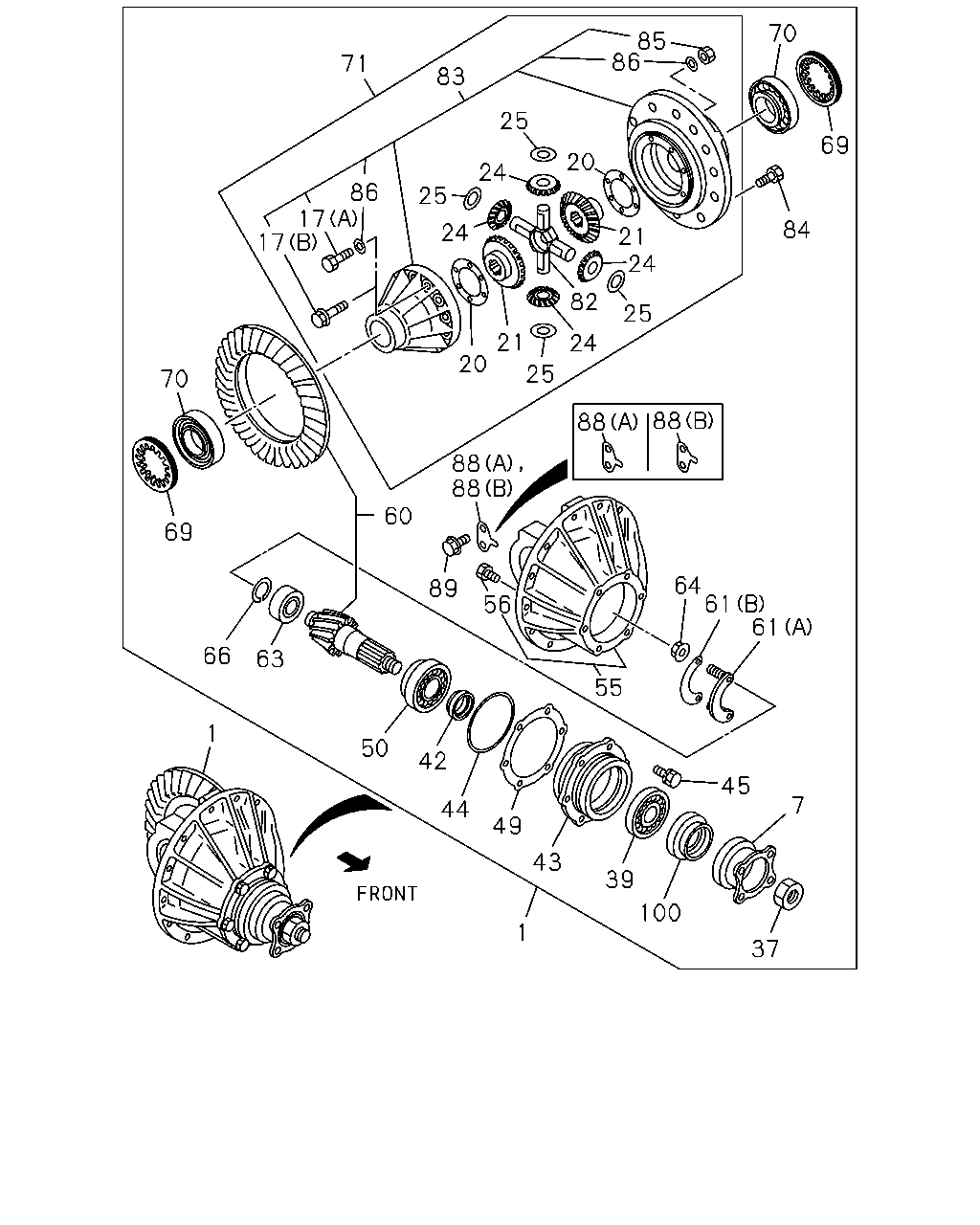

4-25 — REAR FINAL DRIVE (#50871) — 71 parça

69 70 85 86 25 83 71 86 17 17 25 24 20 21 25 24 84 24 21 20 24 82 25 88 88 88 88 89 60 64 61 61 7 45 55 56 42 50 44 49 43 1 39 100 37 1 63 66 69 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-97388-703-0	01	1	0804-	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-97388-702-0	01	1	0804-	●
1	DRIVE ASM; FINAL,RR 41/9	8-97388-702-0	01	1	0804-		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97388-701-0	01	1	0804-	●
1	DRIVE ASM; FINAL,RR 41/8	8-97388-704-0	01	1	0804-			●
7	FLANGE; FINAL	8-97047-095-2	01	1	0804-	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M12X90	8-97047-295-0	12	1	0804-1208	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M12X90	8-98219-448-0	12	1	1209-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	0804-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	0804-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	0804-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	0804-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	0804-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	0804-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	0804-	●	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-093-0	02	1	0804-1004	●	●	●
21	GEAR; SIDE,DIFF Z=16	8-98165-935-0	02	1	1005-	●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-024-0	04	1	0804-1004	●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1005-	●	●	●
25	WASHER; THRUST,PINION	1-41552-020-0	04	1	0804-	●	●	●
37	NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	0804-	●	●	●
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1002-	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-026-0	01	1	0804-1002	●	●	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1003-	●	●	●
42	COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	0804-	●	●	●
43	CAGE; FINAL PINION	8-97047-098-0	01	1	0804-	●	●	●
44	GASKET; PINION CAGE	8-97048-053-0	01	1	0804-	●	●	●
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50071-240-0	06	1	0804-0909	●	●	●
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-1209	●	●	●
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	8-98220-227-0	06	1	1210-	●	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	0804-	●	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	0804-	●	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	0804-	●	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	0804-	●	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.50	8-97048-419-0	AR	1	0804-	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	0804-	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0804-	●	●	●
55	CARRIER; DIFF	8-97094-637-0	01	1	0804-	●	●	●
56	BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	0804-	●	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-97061-850-0	01	1	0804-1505	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-98092-146-0	01	1	1506-	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-97078-635-1	01	1	0804-	●
60	GEAR SET; FINAL DRIVE,RR 41/9	8-97078-635-1	01	1	0804-		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97047-115-0	01	1	0804-	●
60	GEAR SET; FINAL DRIVE,RR 41/8	8-97174-099-0	01	1	0804-1505			●
60	GEAR SET; FINAL DRIVE,RR 41/8	8-98092-137-0	01	1	1506-			●
61	RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	0804-	●	●	●
61	RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	0804-	●	●	●
63	BEARING; PINION PILOT NSK	8-97047-296-0	01	1	0804-	●	●	●
63	BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	0804-	●	●	●
64	NUT; RET M6 FLANGE SOU	0-91180-106-0	02	1	0804-	●	●	●
66	RING; SNAP,PILOT BRG	8-97047-297-0	01	1	0804-	●	●	●
69	NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	0804-	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0804-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-97047-099-4	01	1	0804-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-97047-100-4	01	1	0804-			●
82	SPIDER; DIFF PINION	1-41521-035-2	01	1	0804-1004	●	●	●
82	SPIDER; DIFF PINION	1-41521-062-0	01	1	1005-1309	●	●	●
82	SPIDER; DIFF PINION	1-41521-035-2	01	1	1310-	●	●	●
83	CAGE ASM; DIFF	8-97047-101-2	01	1	0804-1208	●	●
83	CAGE ASM; DIFF	8-98219-705-0	01	1	1209-	●	●
83	CAGE ASM; DIFF	8-97047-117-2	01	1	0804-1208			●
83	CAGE ASM; DIFF	8-98219-707-0	01	1	1209-			●
84	BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	0804-	●	●	●
85	NUT; DIFF CAGE SETTING M12	8-97065-214-0	12	1	0804-	●	●	●
86	WASHER; PL,DIFF CAGE SETTING ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0804-1208	●	●	●
86	WASHER; PL,DIFF CAGE SETTING ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1209-	●	●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	8-97087-821-0	AR	1	0804-	●	●	●
88	PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	AR	1	0804-	●	●	●
89	BOLT; LK PLATE M8X16 FLANGE SOU	0-28050-816-0	04	1	0804-	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0804-	●	●	●
