◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10722 - CXH RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85A - POWER TAKE OFF CONTROL ▶
2-85A — POWER TAKE OFF CONTROL (#5087) — 17 parça

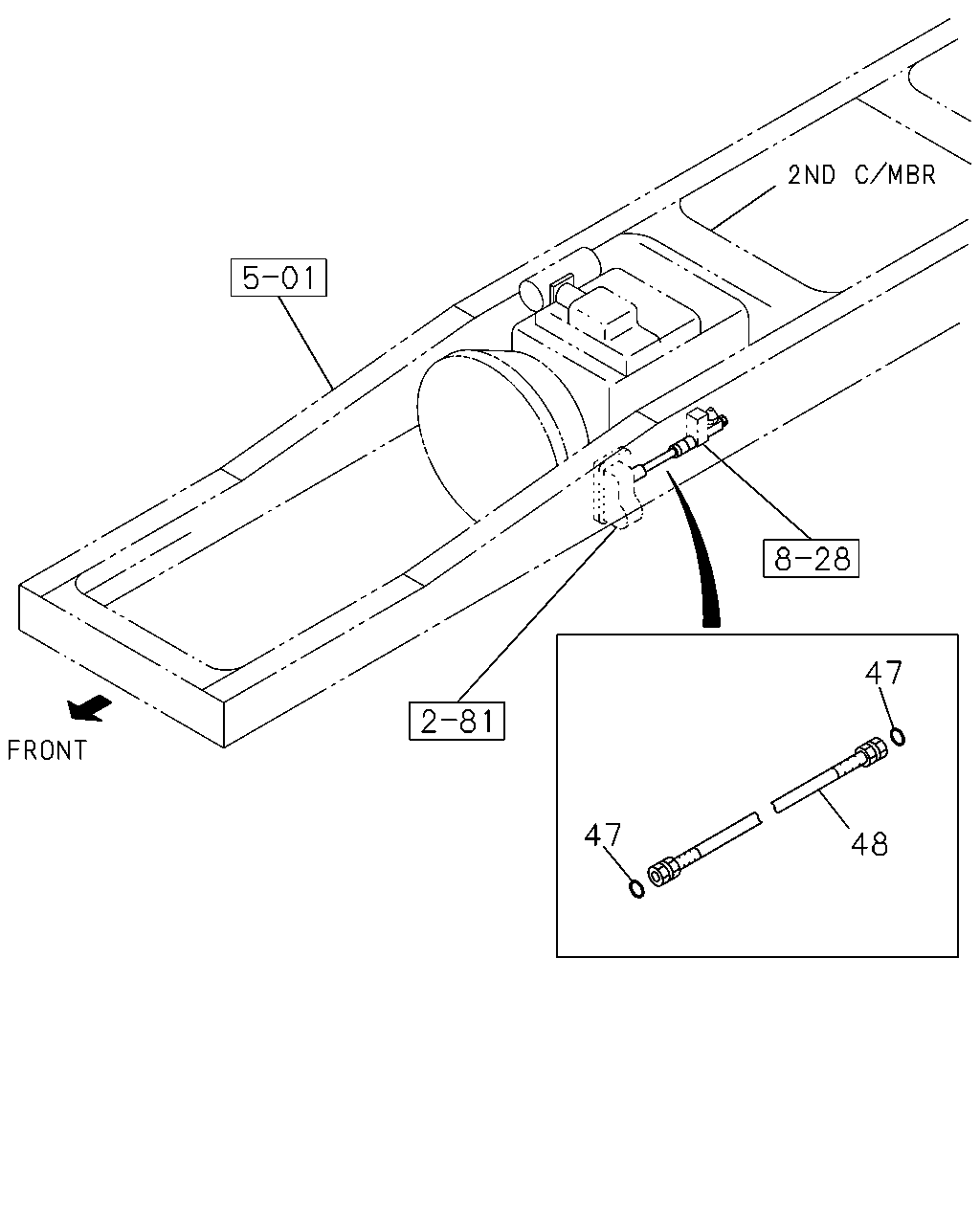

çizim 3325
47 47 48
BalonParca AdiParca NoAdetTipApplied Date
47 GASKET; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=11 OD=18 		9-09572-510-0 02 1 9606-9702
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER<SH5> L=360 		0-07150-360-0 01 1 9606-9606
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER<SH5> '960610- L=390 		0-07150-390-0 01 1 9606-9702
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER<SH5> L=390 		1-09363-616-0 01 1 9703-
çizim 39747
1 3 3 3 132 1 139 55
BalonParca AdiParca NoAdetTipApplied Date
1 LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> (B) 		1-79996-244-0 01 1 9606-9905
1 LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> (B) 		1-79996-244-0 01 1 9906-
1 LEVER ASM; PTO & DUMP CONT
PTO CONTROL<SV6> (A) 		1-79907-048-1 01 1 9606-9905
1 LEVER ASM; PTO & DUMP CONT
PTO CONTROL<SV6> (A) 		1-79907-048-1 01 1 9906-
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9606-9905
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9906-
3 BOLT; BRKT,DUMP CONT LEVER
PTO CONTROL<SV6> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 9606-9905
3 BOLT; BRKT,DUMP CONT LEVER
PTO CONTROL<SV6> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 9906-
55 GROMMET; CABLE
EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL<SV6> 		1-09983-068-0 01 1 9606-
132 COVER; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79997-376-0 01 1 9606-9905
132 COVER; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79997-376-0 01 1 9906-
139 BRACKET; CONT BOX
PTO CONTROL<SV6> 		1-79907-044-0 01 1 9606-9905
139 BRACKET; CONT BOX
PTO CONTROL<SV6> 		1-79907-044-0 01 1 9906-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
