4-11 — FRONT HUB AND DRUM OR ROTOR (#50869) — 75 parça

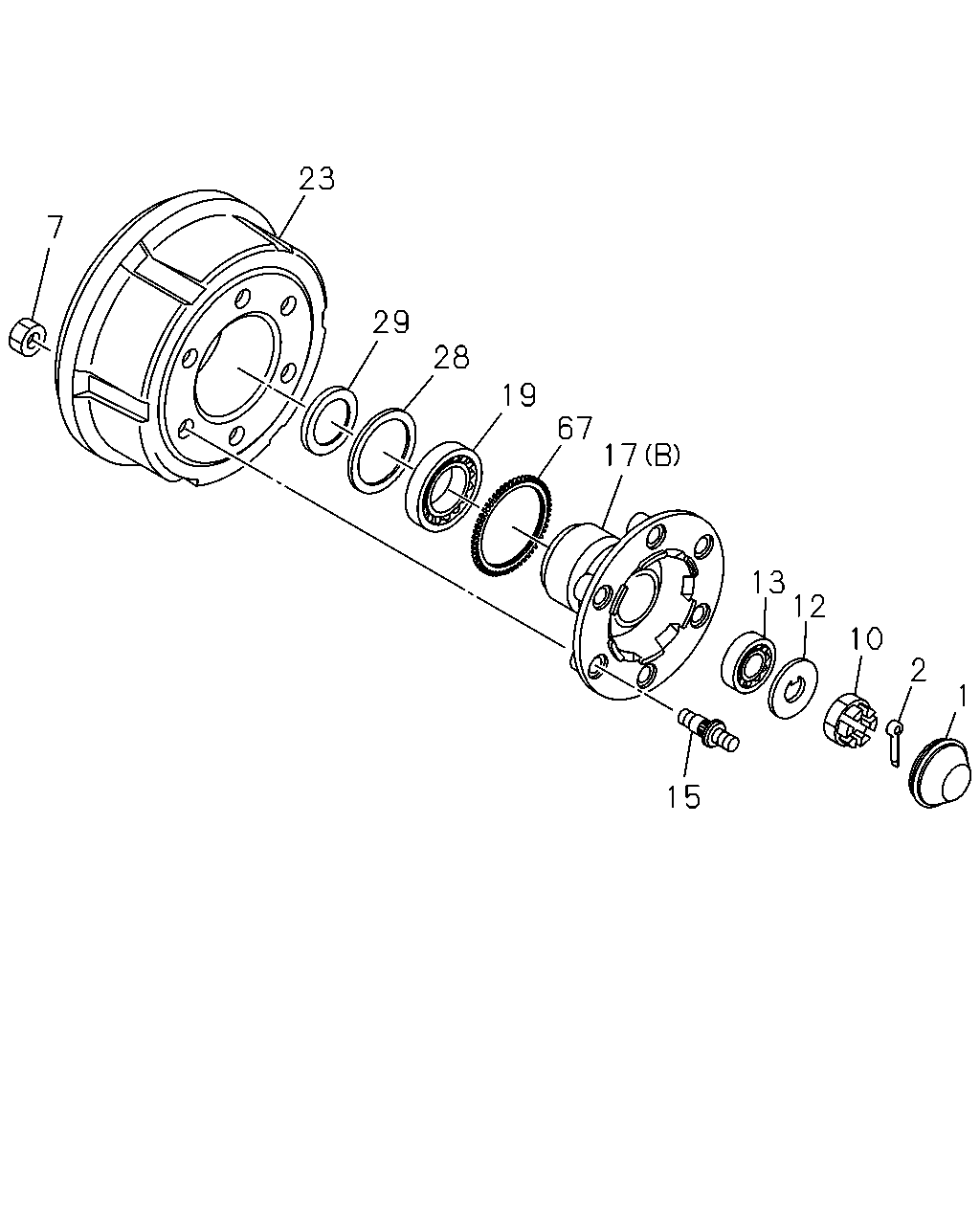

23 7 29 28 19 67 17 13 12 10 2 15 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CAP; HUB,FRT AXLE	8-97360-101-0	02	1	0804-1407	●	●	●
1	CAP; HUB,FRT AXLE	8-98276-604-0	02	1	1408-	●	●	●
2	PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	0-81125-040-0	02	1	0804-	●	●	●
7	NUT; FRT HUB EXC. DISC BRAKE FRT<J52> M22	0-91110-522-0	12	1	0804-	●	●
7	NUT; FRT HUB M22	0-91110-522-0	12	1	0804-			●
10	NUT; FRT HUB BRG	8-94247-357-1	02	1	0804-	●	●	●
12	WASHER; LK,FRT HUB BRG	8-94247-356-1	02	1	0804-1502	●	●	●
12	WASHER; LK,FRT HUB BRG	8-98282-435-0	02	1	1503-	●	●	●
13	BEARING; HUB OUTER,FRT AXLE NSK	9-00093-172-0	02	1	0804-	●	●	●
13	BEARING; HUB OUTER,FRT AXLE BEST VALUE PARTS	5-87610-134-0	02	1	0804-	●	●	●
15	PIN; WHEEL,FRT AXLE EXC. DISC BRAKE FRT<J52> M20X28 LH THREAD,M22X50 RH THREAD	8-97131-284-3	06	1	0804-	●	●
15	PIN; WHEEL,FRT AXLE M20X28 LH THREAD,M22X50 RH THREAD	8-97131-284-3	06	1	0804-			●
15	PIN; WHEEL,FRT AXLE EXC. DISC BRAKE FRT<J52> M20X28,M22X50 RH THREAD	8-97131-283-3	06	1	0804-	●	●
15	PIN; WHEEL,FRT AXLE M20X28,M22X50 RH THREAD	8-97131-283-3	06	1	0804-			●
15	PIN; WHEEL,FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> M20X53 LH THREAD	8-97168-457-2	06	1	0804-	●	●
15	PIN; WHEEL,FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> M20X53 RH THREAD	8-97168-456-2	06	1	0804-	●	●
17	HUB; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (A)	8-97168-460-0	02	1	0804-	●	●
17	HUB; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B)	8-97349-911-0	02	1	0804-	●	●
17	HUB; FRT AXLE (B)	8-97349-911-0	02	1	0804-			●
17	HUB; FRT AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B)	8-97131-236-0	02	1	0804-		●
19	BEARING; HUB INNER,FRT AXLE JTEKT	8-94248-088-2	02	1	0804-1009	●	●	●
19	BEARING; HUB INNER,FRT AXLE JTEKT	8-98171-254-0	02	1	1010-	●	●	●
19	BEARING; HUB INNER,FRT AXLE NSK	9-00093-149-0	02	1	0804-1009	●	●	●
19	BEARING; HUB INNER,FRT AXLE BEST VALUE PARTS	1-87610-134-0	02	1	1010-	●	●	●
23	DRUM; BRK,FRT EXC. DISC BRAKE FRT<J52>	8-97188-115-0	02	1	0804-	●	●
23	DRUM; BRK,FRT	8-97188-115-0	02	1	0804-			●
28	SEAL; OIL,FRT HUB	8-94248-117-1	02	1	0804-	●	●	●
29	DISTANCE PIECE; HUB BRKT NTN	8-97234-513-0	02	1	0804-	●	●	●
67	ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52>	8-97387-159-0	02	1	0804-	●	●
67	ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>	8-97387-158-0	02	1	0804-	●	●
67	ROTOR; SENSOR	8-97387-158-0	02	1	0804-			●

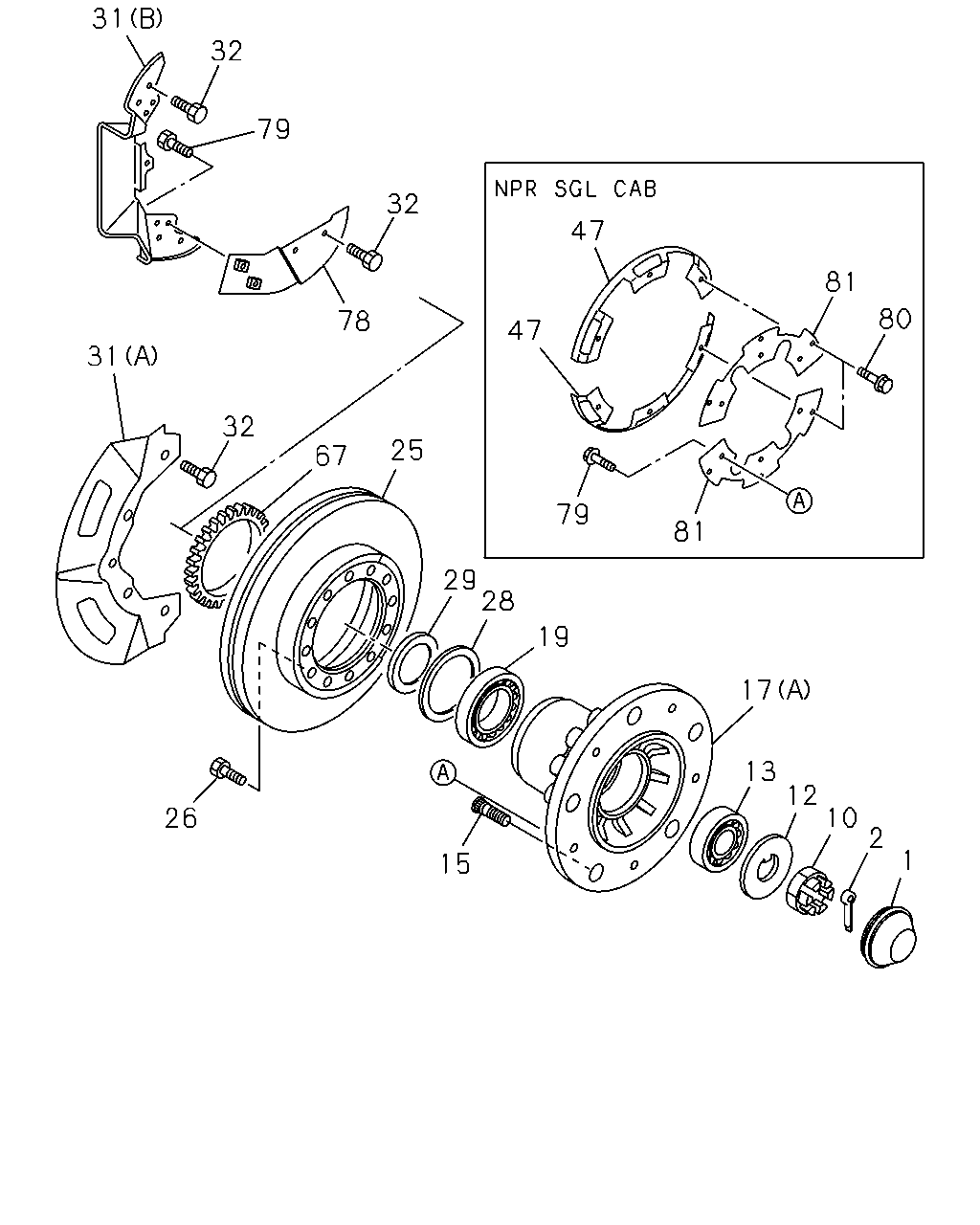

31 32 79 32 47 81 80 78 47 31 32 25 67 79 81 29 28 19 17 13 12 10 2 26 1 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CAP; HUB,FRT AXLE	8-97360-101-0	02	1	0804-1407	●	●	●
1	CAP; HUB,FRT AXLE	8-98276-604-0	02	1	1408-	●	●	●
2	PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	0-81125-040-0	02	1	0804-	●	●	●
10	NUT; FRT HUB BRG	8-94247-357-1	02	1	0804-	●	●	●
12	WASHER; LK,FRT HUB BRG	8-94247-356-1	02	1	0804-1502	●	●	●
12	WASHER; LK,FRT HUB BRG	8-98282-435-0	02	1	1503-	●	●	●
13	BEARING; HUB OUTER,FRT AXLE NSK	9-00093-172-0	02	1	0804-	●	●	●
13	BEARING; HUB OUTER,FRT AXLE BEST VALUE PARTS	5-87610-134-0	02	1	0804-	●	●	●
15	PIN; WHEEL,FRT AXLE EXC. DISC BRAKE FRT<J52> M20X28 LH THREAD,M22X50 RH THREAD	8-97131-284-3	06	1	0804-	●	●
15	PIN; WHEEL,FRT AXLE M20X28 LH THREAD,M22X50 RH THREAD	8-97131-284-3	06	1	0804-			●
15	PIN; WHEEL,FRT AXLE EXC. DISC BRAKE FRT<J52> M20X28,M22X50 RH THREAD	8-97131-283-3	06	1	0804-	●	●
15	PIN; WHEEL,FRT AXLE M20X28,M22X50 RH THREAD	8-97131-283-3	06	1	0804-			●
15	PIN; WHEEL,FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> M20X53 LH THREAD	8-97168-457-2	06	1	0804-	●	●
15	PIN; WHEEL,FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> M20X53 RH THREAD	8-97168-456-2	06	1	0804-	●	●
17	HUB; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (A)	8-97168-460-0	02	1	0804-	●	●
17	HUB; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B)	8-97349-911-0	02	1	0804-	●	●
17	HUB; FRT AXLE (B)	8-97349-911-0	02	1	0804-			●
17	HUB; FRT AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B)	8-97131-236-0	02	1	0804-		●
19	BEARING; HUB INNER,FRT AXLE JTEKT	8-94248-088-2	02	1	0804-1009	●	●	●
19	BEARING; HUB INNER,FRT AXLE JTEKT	8-98171-254-0	02	1	1010-	●	●	●
19	BEARING; HUB INNER,FRT AXLE NSK	9-00093-149-0	02	1	0804-1009	●	●	●
19	BEARING; HUB INNER,FRT AXLE BEST VALUE PARTS	1-87610-134-0	02	1	1010-	●	●	●
25	ROTOR; DISC BRK,FRT DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV)	8-97387-229-0	02	1	0804-	●
25	ROTOR; DISC BRK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52>	8-98006-395-0	02	1	0804-		●
25	ROTOR; DISC BRK,FRT DISC BRAKE FRT<J52> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) REFER TO PERIODICAL PCN86	8-98105-058-0	02	1	0804-	●
26	BOLT; BRK,DISC TO HUB 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52>	8-94474-923-0	24	1	0804-	●	●
28	SEAL; OIL,FRT HUB	8-94248-117-1	02	1	0804-	●	●	●
29	DISTANCE PIECE; HUB BRKT NTN	8-97234-513-0	02	1	0804-	●	●	●
31	COVER; DUST,FRT BRAKE DISC BRAKE FRT<J52> (A)	8-98037-377-0	02	1	0804-	●
31	COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B)	8-97333-376-0	01	1	0804-1107		●
31	COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B)	8-98152-301-0	01	1	1108-		●
31	COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B)	8-97333-375-0	01	1	0804-1107		●
31	COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B)	8-98152-300-0	01	1	1108-		●
32	BOLT; DUST COVER TO KNUCKLE 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> M8X12 FLANGE	0-28050-812-0	08	1	0804-	●	●
47	HOLDER; TIRE VALVE,FRT HUB DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV)	8-97213-660-0	04	1	0804-	●
67	ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52>	8-97387-159-0	02	1	0804-	●	●
67	ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>	8-97387-158-0	02	1	0804-	●	●
67	ROTOR; SENSOR	8-97387-158-0	02	1	0804-			●
78	BRACKET; DUST COVER 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52>	8-97207-173-1	01	1	0804-		●
78	BRACKET; DUST COVER 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52>	8-97207-172-1	01	1	0804-		●
79	BOLT; BRKT DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) M8X12 FLANGE	0-28050-812-0	12	1	0804-	●
79	BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> M8X12 FLANGE	0-28050-812-0	04	1	0804-		●
80	BOLT; VALVE HOLDER DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) M10X16 FLANGE	0-28051-016-0	12	1	0804-	●
81	BRACKET; VALVE HOLDER DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV)	8-97214-247-0	04	1	0804-	●
