◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51172 - NPR/NQR(SOUTHAFRICA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#50868) — 79 parça

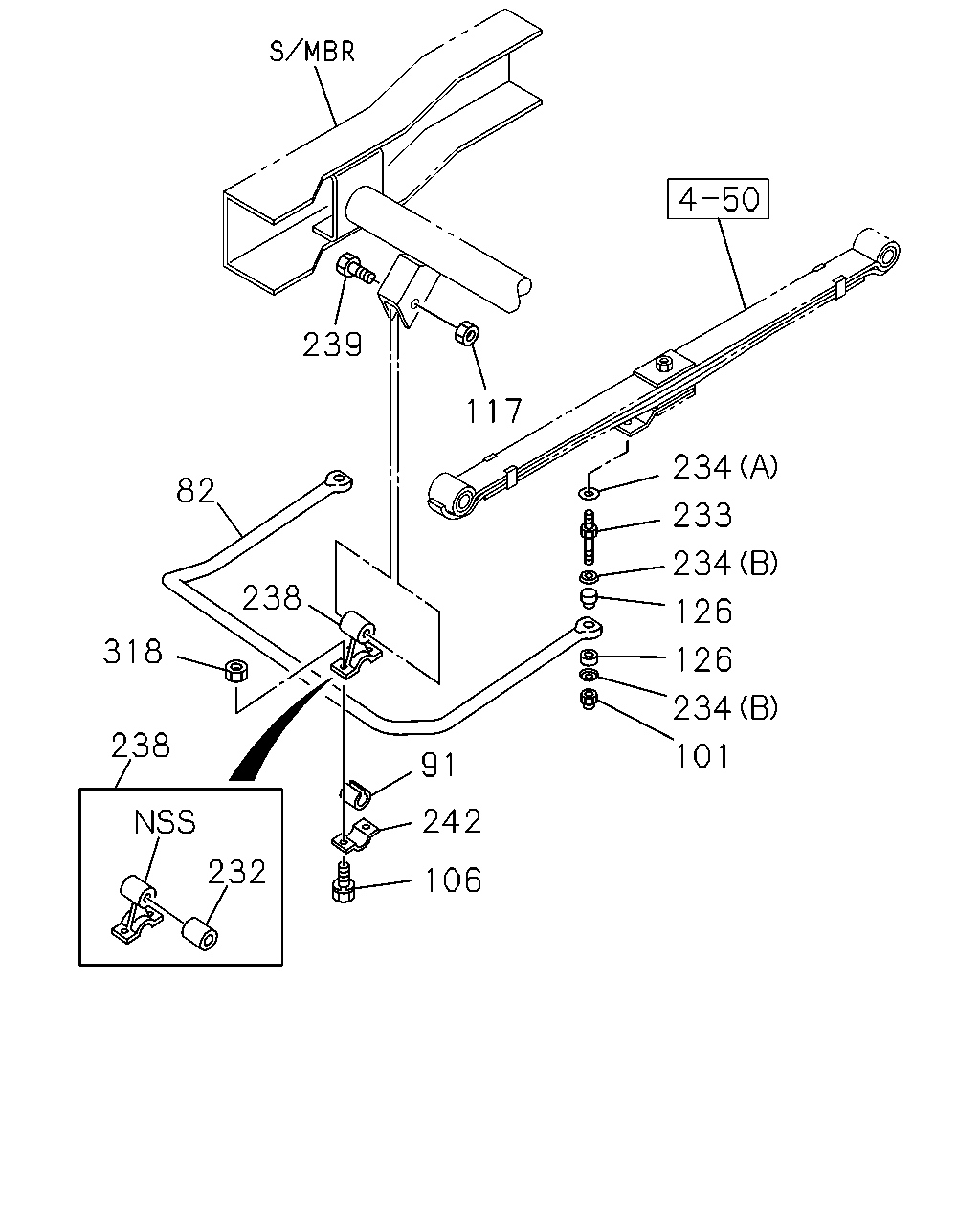

çizim 157435
239 117 234 82 233 234 238 126 318 126 234 238 101 91 242 232 106
BalonParca AdiParca NoAdetTipApplied Date A B C
82 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		8-98006-957-0 01 1 0804-0901 ● ●
82 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		8-98006-957-0 01 1 0902- ● ● ●
91 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		8-94342-187-0 02 1 0804-0901 ● ●
91 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		8-94342-187-0 02 1 0902- ● ● ●
101 NUT; STAB BAR
FRONT STABILIZER SHAFT<F59> M12 LOCK NUT 		0-91370-012-0 02 1 0804-0901 ● ●
101 NUT; STAB BAR
FRONT STABILIZER SHAFT<F59> M12 LOCK NUT 		0-91370-012-0 02 1 0902- ● ● ●
106 BOLT; CAP FIX
FRONT STABILIZER SHAFT<F59> M10X25 FLANGE SOU 		0-28651-025-0 04 1 0804-0901 ● ●
106 BOLT; CAP FIX
FRONT STABILIZER SHAFT<F59> M10X25 FLANGE SOU 		0-28651-025-0 04 1 0902- ● ● ●
117 NUT; STAB BAR BUSHING
FRONT STABILIZER SHAFT<F59> M14 FLANGE 		8-97360-124-0 02 1 0804-0901 ● ●
117 NUT; STAB BAR BUSHING
FRONT STABILIZER SHAFT<F59> M14 FLANGE 		8-97360-124-0 02 1 0902- ● ● ●
126 RUBBER; MTG,STAB BAR
FRONT STABILIZER SHAFT<F59> 		8-94342-083-0 04 1 0804-0901 ● ●
126 RUBBER; MTG,STAB BAR
FRONT STABILIZER SHAFT<F59> 		8-94342-083-0 04 1 0902- ● ● ●
232 BUSHING; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-97239-911-0 02 1 0804-0901 ● ●
232 BUSHING; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-97239-911-0 02 1 0902- ● ● ●
233 STUD; STABILIZER
FRONT STABILIZER SHAFT<F59> 		8-97360-120-0 02 1 0804-0901 ● ●
233 STUD; STABILIZER
FRONT STABILIZER SHAFT<F59> 		8-97360-120-0 02 1 0902- ● ● ●
234 WASHER; STAB
FRONT STABILIZER SHAFT<F59> (A) ID=14.2 SOU 		0-91510-514-0 02 1 0804-0901 ● ●
234 WASHER; STAB
FRONT STABILIZER SHAFT<F59> (A) ID=14.2 SOU 		0-91510-514-0 02 1 0902- ● ● ●
234 WASHER; STAB
FRONT STABILIZER SHAFT<F59> (B) 		8-97360-055-0 04 1 0804-0901 ● ●
234 WASHER; STAB
FRONT STABILIZER SHAFT<F59> (B) 		8-97360-055-0 04 1 0902- ● ● ●
238 ROD LINK ASM; STABILIZER,FRT
FRONT STABILIZER SHAFT<F59> 		8-97239-907-0 02 1 0804-0901 ● ●
238 ROD LINK ASM; STABILIZER,FRT
FRONT STABILIZER SHAFT<F59> 		8-97239-907-0 02 1 0902- ● ● ●
239 BOLT; LINK ROD
FRONT STABILIZER SHAFT<F59> M14X70 FLANGE 		0-28851-470-0 02 1 0804-0901 ● ●
239 BOLT; LINK ROD
FRONT STABILIZER SHAFT<F59> M14X70 FLANGE 		0-28851-470-0 02 1 0902- ● ● ●
242 CAP; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-94178-430-2 02 1 0804-0901 ● ●
242 CAP; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-94178-430-2 02 1 0902- ● ● ●
318 NUT; CAP FIX
FRONT STABILIZER SHAFT<F59> M10 FLANGE SOU 		0-91180-210-0 04 1 0804-0901 ● ●
318 NUT; CAP FIX
FRONT STABILIZER SHAFT<F59> M10 FLANGE SOU 		0-91180-210-0 04 1 0902-1006 ● ● ●
318 NUT; CAP FIX
FRONT STABILIZER SHAFT<F59> M10 FLANGE SOU 		0-91180-110-0 04 1 1007- ● ● ●

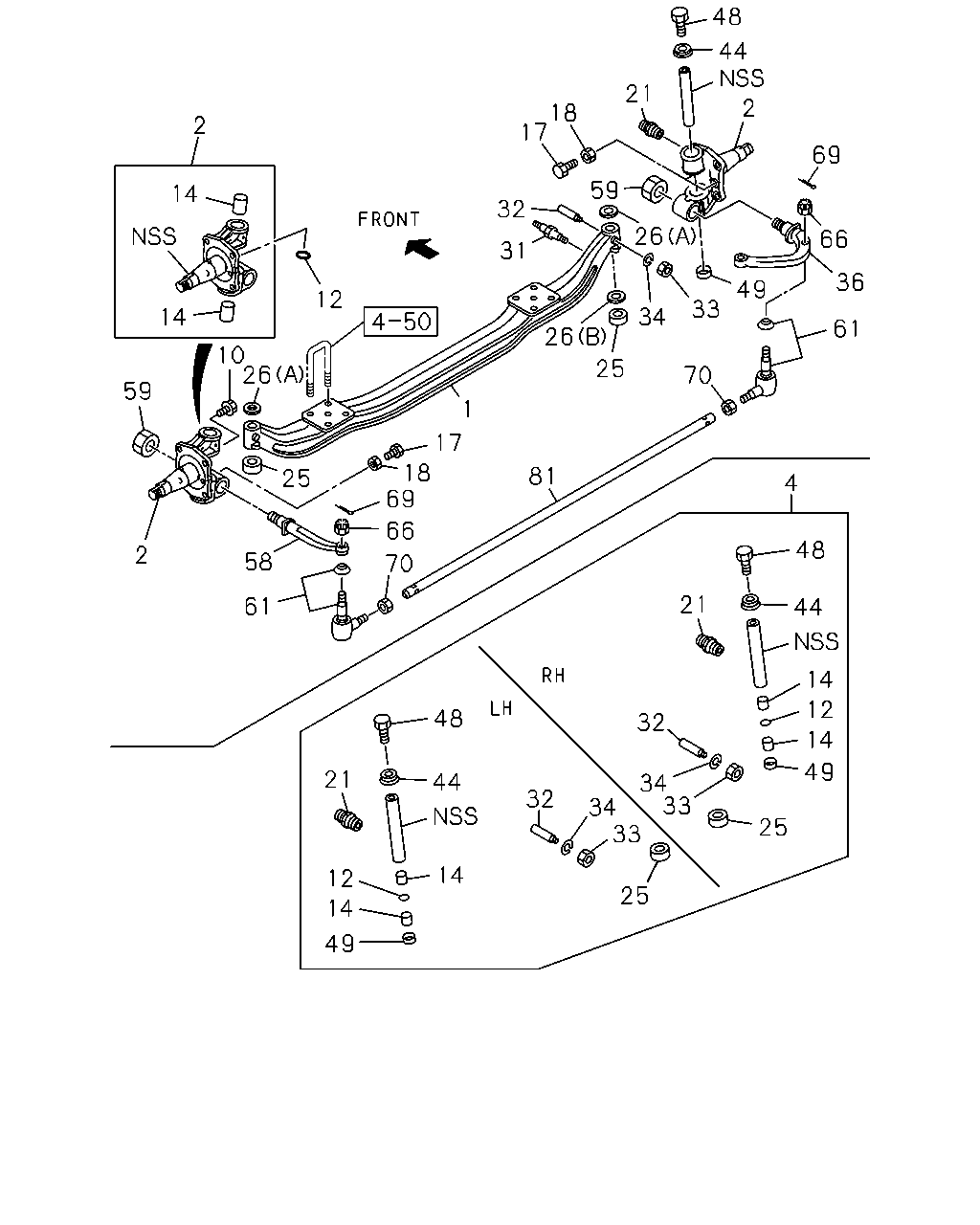

çizim 157438
48 44 2 21 18 17 2 69 59 4 32 26 66 31 26 36 49 12 33 34 14 61 10 26 25 70 59 1 17 18 69 81 25 4 66 48 2 58 70 21 61 44 14 12 48 32 14 49 21 44 34 33 32 34 33 25 14 12 25 14 49
BalonParca AdiParca NoAdetTipApplied Date A B C
1 AXLE; FRT 8-98038-384-3 01 1 0804- ● ● ●
2 KNUCKLE; FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		8-97261-550-2 01 1 0804- ● ●
2 KNUCKLE; FRT AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> 		8-97261-550-2 01 1 0804- ●
2 KNUCKLE; FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		8-97261-549-2 01 1 0804- ● ●
2 KNUCKLE; FRT AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> 		8-97261-549-2 01 1 0804- ●
2 KNUCKLE; FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 		8-98009-942-1 01 1 0804- ● ●
2 KNUCKLE; FRT AXLE 8-98009-942-1 01 1 0804- ●
2 KNUCKLE; FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 		8-98009-941-1 01 1 0804- ● ●
2 KNUCKLE; FRT AXLE 8-98009-941-1 01 1 0804- ●
4 KING PIN KIT 5-87832-219-2 01 1 0804-1402 ● ● ●
4 KING PIN KIT 5-87832-220-2 01 1 1403- ● ● ●
10 PLUG; PLATE,KNUCKLE 8-97360-117-0 01 1 0804- ● ● ●
12 GASKET; KNUCKLE 8-98084-500-0 02 1 0804- ● ● ●
14 BUSHING; KING PIN
JBK 		8-94127-925-2 04 1 0804-0809 ● ● ●
14 BUSHING; KING PIN
DAIDO WO/NOTCH 		8-94107-672-3 04 1 0804- ● ● ●
17 BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT 		8-97360-059-0 03 1 0804- ● ● ●
18 NUT; STOPPER BOLT,KNUCKLE
M12 		0-91111-512-0 03 1 0804- ● ● ●
21 NIPPLE; GREASE,KING PIN
M6 STRAIGHT SOU 		0-90301-406-0 04 1 0804- ● ● ●
25 BEARING; THRUST,KING PIN 8-97141-943-1 01 1 1403- ● ● ●
25 BEARING; THRUST,KING PIN 8-94248-883-2 02 1 0804-1402 ● ● ●
25 BEARING; THRUST,KING PIN 8-94248-883-3 01 1 1403- ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.50 		8-94162-574-0 AR 1 0804- ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.55 		8-94162-575-0 AR 1 0804- ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.60 		8-94162-576-0 AR 1 0804- ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.65 		8-94162-577-0 AR 1 0804- ● ● ●
26 SHIM; KING PIN,BRG
(B) T=1.95 		8-94168-490-0 02 1 0804- ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.70 		8-94174-352-0 AR 1 0804- ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.80 		8-94174-354-0 AR 1 0804- ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.90 		8-94174-356-0 AR 1 0804- ● ● ●
31 PIN; S/ABS,LWR 8-97145-460-0 02 1 0804- ● ● ●
32 BOLT; KEY,KING PIN 8-97141-945-2 02 1 0804- ● ● ●
33 NUT; KEY BOLT
M10 SOU 		0-91110-510-0 02 1 0804- ● ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 SOU 		0-91510-510-0 02 1 0804- ● ● ●
36 ARM; KNUCKLE 8-97202-776-4 01 1 0804- ● ● ●
44 COVER; KING PIN
OD=36 		8-97360-023-0 02 1 0804- ● ● ●
48 BOLT; COVER
M10X12 FLANGE 		0-28051-012-0 02 1 0804- ● ● ●
49 CAP; KNUCKLE 8-97360-024-0 02 1 0804- ● ● ●
58 ARM; TIE ROD 8-97138-304-1 01 1 0804- ● ● ●
59 NUT; TIE ROD ARM 8-97360-123-0 02 1 0804- ● ● ●
61 ROD END; TIE ROD 8-97107-349-2 01 1 1311- ● ● ●
61 ROD END; TIE ROD 8-97142-101-1 01 1 0804-1310 ● ● ●
61 ROD END; TIE ROD 8-97142-100-1 01 1 0804-1310 ● ● ●
61 ROD END; TIE ROD 8-97107-348-2 01 1 1311- ● ● ●
66 NUT; TIE ROD END
M16 SLOTTED 		0-91116-516-0 02 1 0804-1204 ● ● ●
66 NUT; TIE ROD END
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ● ●
69 PIN; SPLIT,TIE ROD END
OD=3.7 L=20 		0-81124-020-0 02 1 0804- ● ● ●
70 NUT; TIE ROD END
M20 LH THREAD 		8-94254-726-0 01 1 1311- ● ● ●
70 NUT; TIE ROD END
M20 LH THREAD 		8-94254-726-0 01 1 0804-1310 ● ● ●
70 NUT; TIE ROD END
M20 		8-98043-530-0 01 1 0804- ● ● ●
81 ROD; TIE 8-97061-869-0 01 1 0804- ● ● ●
