Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#50866) — 787 parça

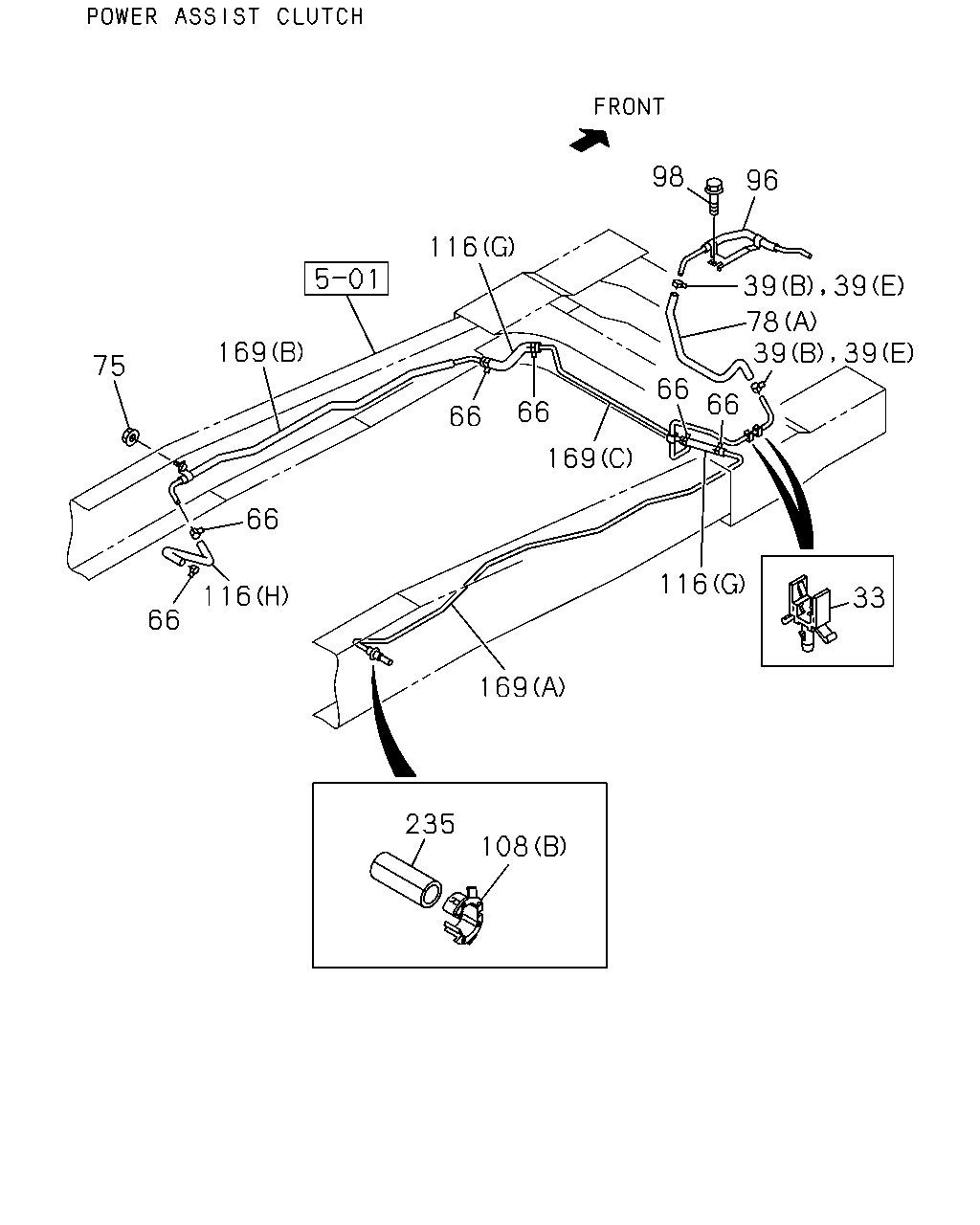

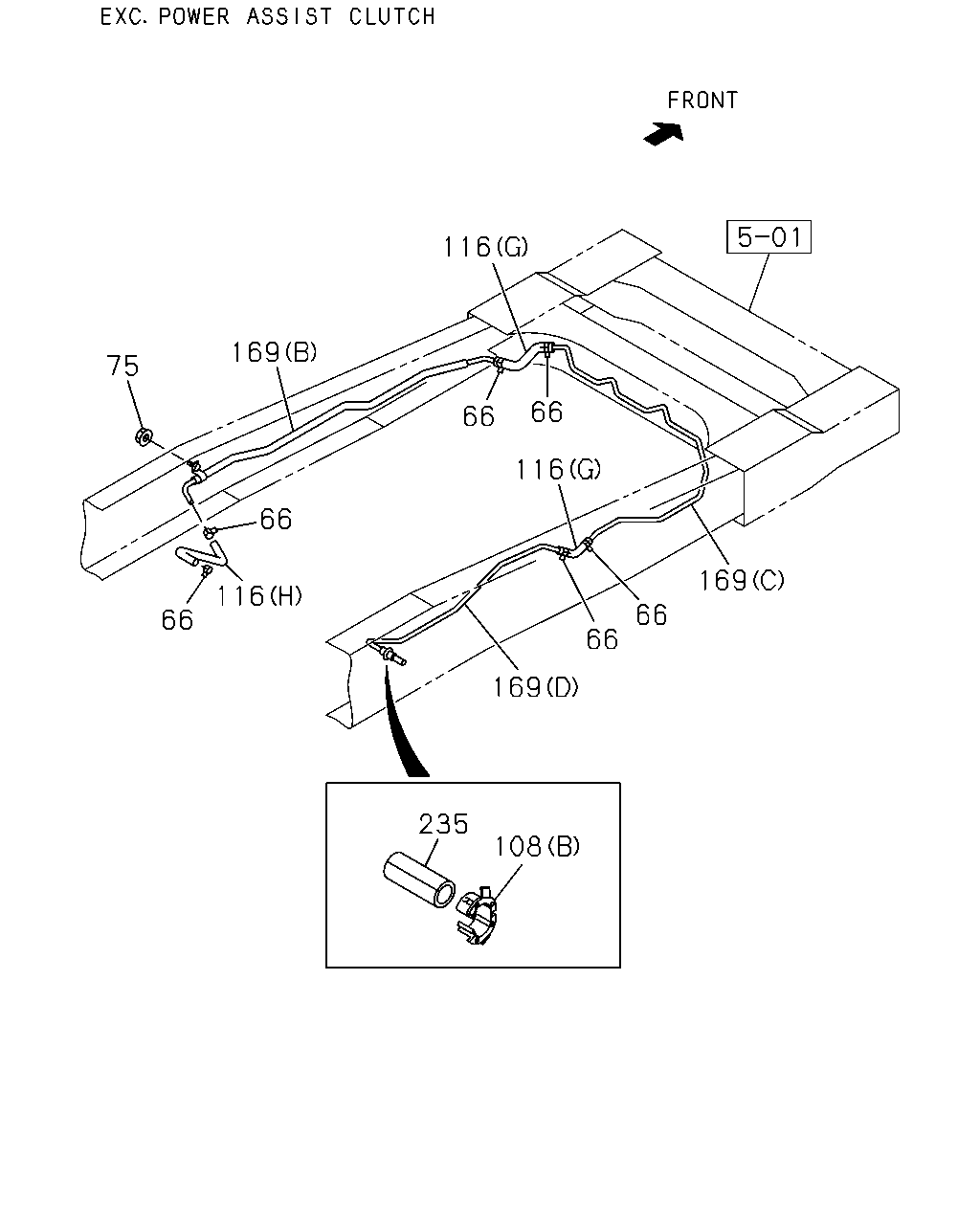

116 169 75 66 66 116 66 169 116 66 66 66 169 235 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
66	CLIP; VAC HOSE,M/VAC ID=16 SOU	8-94238-568-0	06	1	0804-0911	●	●	●
66	CLIP; VAC HOSE,M/VAC ID=16	8-98008-098-0	06	1	0912-	●	●	●
75	NUT; CLIP,VAC HOSE M8 FLANGE SOU	0-91180-108-0	01	1	0804-	●	●	●
108	GROMMET; PIPE (B) ID=17	8-94128-319-2	01	1	0804-	●	●	●
108	GROMMET; PIPE (B) ID=17	8-94128-319-2	01	1	0804-	●	●	●
108	GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A) SOU	9-09956-353-0	01	1	0804-	●	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E)	8-98067-702-0	01	1	0804-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (E)	8-98067-702-0	01	1	0804-		●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F)	8-98081-002-2	01	1	0804-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (F)	8-98081-002-2	01	1	0804-		●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97389-674-3	01	1	0804-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-97389-689-3	01	1	0804-	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B)	8-97389-690-3	01	1	0804-	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98094-547-0	01	1	0804-	●
116	HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	0804-	●	●	●
116	HOSE; VAC,M/VAC (H)	8-98034-276-2	01	1	0804-0911	●	●	●
116	HOSE; VAC,M/VAC (H)	8-98158-378-0	01	1	0912-	●	●	●
169	PIPE; VAC,BOOSTER SIDE HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98048-901-0	01	1	0804-	●
169	PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98048-901-0	01	1	0804-		●	●
169	PIPE; VAC,BOOSTER SIDE HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98048-903-0	01	1	0804-	●
169	PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98048-903-0	01	1	0804-		●	●
169	PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C)	8-98041-053-4	01	1	0804-	●
169	PIPE; VAC,BOOSTER SIDE EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98041-053-4	01	1	0804-	●
169	PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (C)	8-98041-053-4	01	1	0804-		●	●
169	PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98067-259-2	01	1	0804-	●
169	PIPE; VAC,BOOSTER SIDE EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98067-259-2	01	1	0804-	●
169	PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98067-259-2	01	1	0804-		●	●
169	PIPE; VAC,BOOSTER SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98033-805-0	01	1	0804-	●	●	●
169	PIPE; VAC,BOOSTER SIDE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-052-2	01	1	0804-	●	●	●
235	RUBBER; SUPPORT,PIPE OD=16.5 L=50	8-97214-235-0	01	1	0804-	●	●	●
235	RUBBER; SUPPORT,PIPE OD=16.5 L=50	8-97214-235-0	01	1	0804-	●	●	●

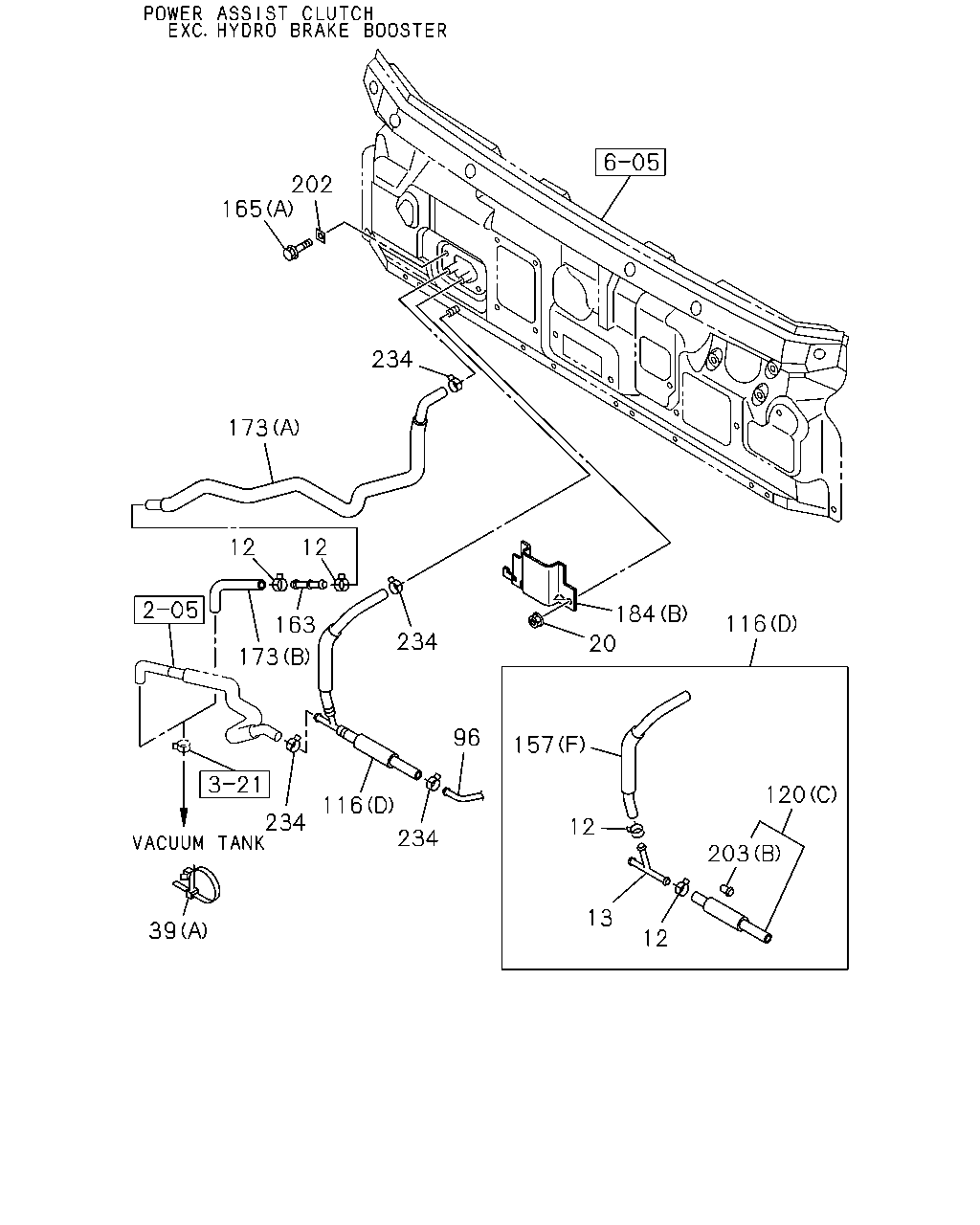

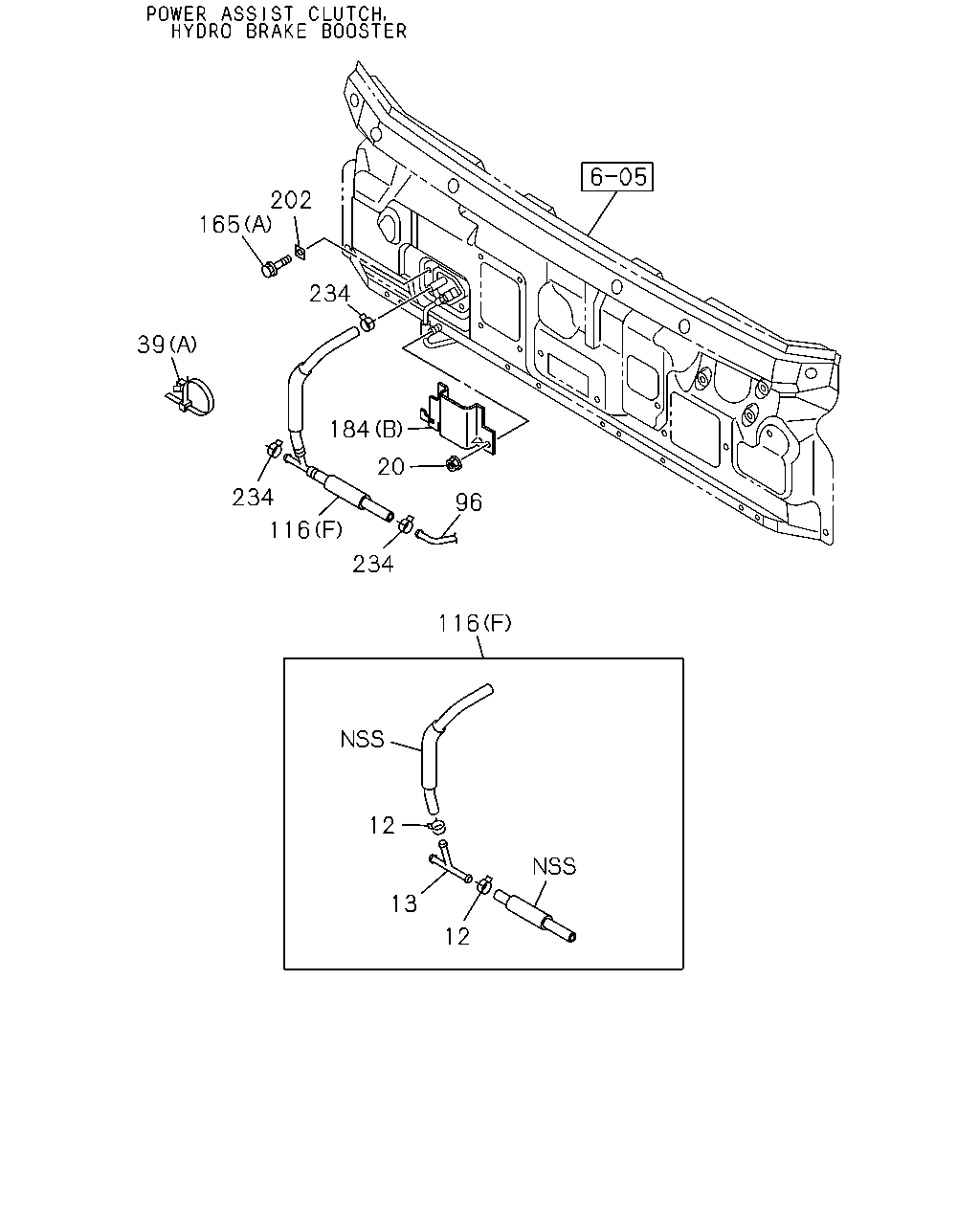

202 165 234 39 184 20 234 96 116 234 116 12 13 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) ID=15.5	8-98008-097-0	08	1	0804-	●
12	CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) ID=15.5	8-98008-097-0	02	1	0804-	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=15.5	8-98008-097-0	02	1	0804-	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	02	1	0804-		●	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98035-106-0	03	1	0804-	●
13	JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ)	8-98035-106-0	01	1	0804-	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98035-106-0	01	1	0804-	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	0804-		●	●
20	NUT; BRKT EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) M6 FLANGE SOU	0-91180-106-0	01	1	0804-	●
20	NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) M6 FLANGE SOU	0-91180-106-0	01	1	0804-		●	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-98008-098-0	02	1	0912-1205	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-98008-098-0	02	1	0912-1205	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (E) ID=16	8-98008-098-0	02	1	0912-1205		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-97329-628-0	02	1	1206-	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-97329-628-0	02	1	1206-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (E) ID=16	8-97329-628-0	02	1	1206-		●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-19.5 SOU	8-94426-597-0	08	1	0804-1005	●
39	CLIP; HOSE,VAC (C) ID=11-19.5 SOU	8-94426-597-0	08	1	0804-1005		●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	08	1	1006-	●
39	CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	08	1	1006-		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911		●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0912-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0912-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0912-		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	04	1	0804-	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	0804-0808	●	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	0809-	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	0809-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) L=170.3	1-09987-182-0	01	1	0809-		●	●
39	CLIP; HOSE,VAC (D) ID=21.7	8-97203-074-0	02	1	0804-			●
96	PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98046-550-0	01	1	0804-1205	●
96	PIPE; VAC,M/VAC TO VAC PUMP EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98046-550-0	01	1	0804-1205	●
96	PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T)	8-98046-550-0	01	1	0804-1205		●	●
96	PIPE; VAC,M/VAC TO VAC PUMP EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98220-579-0	01	1	1206-	●
96	PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98220-579-0	01	1	1206-	●
96	PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T)	8-98220-579-0	01	1	1206-		●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E)	8-98067-702-0	01	1	0804-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (E)	8-98067-702-0	01	1	0804-		●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F)	8-98081-002-2	01	1	0804-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (F)	8-98081-002-2	01	1	0804-		●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97389-674-3	01	1	0804-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-97389-689-3	01	1	0804-	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B)	8-97389-690-3	01	1	0804-	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98094-547-0	01	1	0804-	●
116	HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	0804-	●	●	●
116	HOSE; VAC,M/VAC (H)	8-98034-276-2	01	1	0804-0911	●	●	●
116	HOSE; VAC,M/VAC (H)	8-98158-378-0	01	1	0912-	●	●	●
165	BOLT; BRKT (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	0804-1001	●	●	●
165	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1002-	●
165	BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1002-	●
165	BOLT; BRKT (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1002-		●	●
165	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0804-	●	●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-541-0	01	1	1312-	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-541-0	01	1	1312-		●	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (H)	8-98255-548-0	01	1	1312-	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98155-991-0	01	1	1002-1102	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (E)	8-98155-991-0	01	1	1002-1102		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98183-472-1	01	1	1103-1103	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (E)	8-98183-472-1	01	1	1103-1103		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98193-145-0	01	1	1104-	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (E)	8-98193-145-0	01	1	1104-		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (F)	8-98156-526-0	01	1	1002-	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (F)	8-98156-526-0	01	1	1002-		●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-98155-345-0	01	1	1002-1102	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-98183-467-1	01	1	1103-	●
184	BRACKET; UNION FIX EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	0804-	●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	0804-		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98041-992-2	01	1	0804-1001	●
184	BRACKET; UNION FIX (C)	8-98041-992-2	01	1	0804-1001		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98041-992-2	01	1	1002-1102	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98041-992-2	01	1	1002-1102		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-470-1	01	1	1103-1103	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-470-1	01	1	1103-1103		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98193-144-0	01	1	1104-1311	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98193-144-0	01	1	1104-1311		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-539-0	01	1	1312-	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-539-0	01	1	1312-		●	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-686-1	01	1	0804-1001	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (A)	8-97389-686-1	01	1	1002-1102	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (A)	8-98183-462-1	01	1	1103-1311	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (G)	8-98255-535-0	01	1	1312-	●
202	SEAL SOU	8-97856-616-0	02	1	0804-	●	●	●
234	CLAMP; PIPE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) ID=16 SOU	8-94238-568-0	04	1	0804-	●
234	CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) ID=16 SOU	8-94238-568-0	03	1	0804-	●
234	CLAMP; PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=16 SOU	8-94238-568-0	03	1	0804-	●
234	CLAMP; PIPE POWER ASSIST CLUTCH(S2T) ID=16 SOU	8-94238-568-0	03	1	0804-		●	●

39 116 39 165 184 165 184 165 184 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-98008-098-0	02	1	0912-1205	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-98008-098-0	02	1	0912-1205	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (E) ID=16	8-98008-098-0	02	1	0912-1205		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-97329-628-0	02	1	1206-	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-97329-628-0	02	1	1206-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (E) ID=16	8-97329-628-0	02	1	1206-		●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-19.5 SOU	8-94426-597-0	08	1	0804-1005	●
39	CLIP; HOSE,VAC (C) ID=11-19.5 SOU	8-94426-597-0	08	1	0804-1005		●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	08	1	1006-	●
39	CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	08	1	1006-		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911		●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0912-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0912-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0912-		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	04	1	0804-	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	0804-0808	●	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	0809-	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	0809-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) L=170.3	1-09987-182-0	01	1	0809-		●	●
39	CLIP; HOSE,VAC (D) ID=21.7	8-97203-074-0	02	1	0804-			●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E)	8-98067-702-0	01	1	0804-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (E)	8-98067-702-0	01	1	0804-		●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F)	8-98081-002-2	01	1	0804-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (F)	8-98081-002-2	01	1	0804-		●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97389-674-3	01	1	0804-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-97389-689-3	01	1	0804-	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B)	8-97389-690-3	01	1	0804-	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98094-547-0	01	1	0804-	●
116	HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	0804-	●	●	●
116	HOSE; VAC,M/VAC (H)	8-98034-276-2	01	1	0804-0911	●	●	●
116	HOSE; VAC,M/VAC (H)	8-98158-378-0	01	1	0912-	●	●	●
165	BOLT; BRKT (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	0804-1001	●	●	●
165	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1002-	●
165	BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1002-	●
165	BOLT; BRKT (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1002-		●	●
165	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0804-	●	●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-541-0	01	1	1312-	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-541-0	01	1	1312-		●	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (H)	8-98255-548-0	01	1	1312-	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98155-991-0	01	1	1002-1102	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (E)	8-98155-991-0	01	1	1002-1102		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98183-472-1	01	1	1103-1103	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (E)	8-98183-472-1	01	1	1103-1103		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98193-145-0	01	1	1104-	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (E)	8-98193-145-0	01	1	1104-		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (F)	8-98156-526-0	01	1	1002-	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (F)	8-98156-526-0	01	1	1002-		●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-98155-345-0	01	1	1002-1102	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-98183-467-1	01	1	1103-	●
184	BRACKET; UNION FIX EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	0804-	●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	0804-		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98041-992-2	01	1	0804-1001	●
184	BRACKET; UNION FIX (C)	8-98041-992-2	01	1	0804-1001		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98041-992-2	01	1	1002-1102	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98041-992-2	01	1	1002-1102		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-470-1	01	1	1103-1103	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-470-1	01	1	1103-1103		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98193-144-0	01	1	1104-1311	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98193-144-0	01	1	1104-1311		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-539-0	01	1	1312-	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-539-0	01	1	1312-		●	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-686-1	01	1	0804-1001	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (A)	8-97389-686-1	01	1	1002-1102	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (A)	8-98183-462-1	01	1	1103-1311	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (G)	8-98255-535-0	01	1	1312-	●

98 96 116 78 169 75 66 66 66 66 169 66 116 116 33 66 169 235 108 39 39 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
33	CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40	8-94462-219-0	02	1	0804-	●
33	CLIP; VAC PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40	8-94462-219-0	02	1	0804-	●
33	CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) ID=10 H=40	8-94462-219-0	02	1	0804-		●	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-98008-098-0	02	1	0912-1205	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-98008-098-0	02	1	0912-1205	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (E) ID=16	8-98008-098-0	02	1	0912-1205		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-97329-628-0	02	1	1206-	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-97329-628-0	02	1	1206-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (E) ID=16	8-97329-628-0	02	1	1206-		●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-19.5 SOU	8-94426-597-0	08	1	0804-1005	●
39	CLIP; HOSE,VAC (C) ID=11-19.5 SOU	8-94426-597-0	08	1	0804-1005		●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	08	1	1006-	●
39	CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	08	1	1006-		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911		●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0912-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0912-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0912-		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	04	1	0804-	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	0804-0808	●	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	0809-	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	0809-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) L=170.3	1-09987-182-0	01	1	0809-		●	●
39	CLIP; HOSE,VAC (D) ID=21.7	8-97203-074-0	02	1	0804-			●
66	CLIP; VAC HOSE,M/VAC ID=16 SOU	8-94238-568-0	06	1	0804-0911	●	●	●
66	CLIP; VAC HOSE,M/VAC ID=16	8-98008-098-0	06	1	0912-	●	●	●
75	NUT; CLIP,VAC HOSE M8 FLANGE SOU	0-91180-108-0	01	1	0804-	●	●	●
78	HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (E)	8-97386-589-0	01	1	0804-	●
78	HOSE; VAC,PIPE TO PIPE (E)	8-97386-589-0	01	1	0804-		●	●
78	HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (F)	8-98041-427-3	01	1	0804-0808	●
78	HOSE; VAC,PIPE TO PIPE (F)	8-98041-427-3	01	1	0804-0808		●	●
78	HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (F)	8-98129-223-0	01	1	0809-0909	●
78	HOSE; VAC,PIPE TO PIPE (F)	8-98129-223-0	01	1	0809-0909		●	●
78	HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (F)	8-98136-613-0	01	1	0910-	●
78	HOSE; VAC,PIPE TO PIPE (F)	8-98136-613-0	01	1	0910-		●	●
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98080-833-1	01	1	0804-	●
78	HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98080-833-1	01	1	0804-	●
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98080-833-1	01	1	0804-		●	●
78	HOSE; VAC,PIPE TO PIPE (B)	8-98057-462-0	01	1	0804-	●	●
78	HOSE; VAC,PIPE TO PIPE (C)	8-98063-819-2	01	1	0804-1008	●	●
78	HOSE; VAC,PIPE TO PIPE (C)	8-98171-287-0	01	1	1009-	●	●
78	HOSE; VAC,PIPE TO PIPE (D)	8-98112-680-0	01	1	0804-	●	●	●
78	HOSE; VAC,PIPE TO PIPE (G)	8-98096-135-0	01	1	0804-			●
78	HOSE; VAC,PIPE TO PIPE (C)	8-98040-702-2	01	1	0804-1103			●
78	HOSE; VAC,PIPE TO PIPE (C)	8-98189-103-0	01	1	1104-			●
96	PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98046-550-0	01	1	0804-1205	●
96	PIPE; VAC,M/VAC TO VAC PUMP EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98046-550-0	01	1	0804-1205	●
96	PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T)	8-98046-550-0	01	1	0804-1205		●	●
96	PIPE; VAC,M/VAC TO VAC PUMP EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98220-579-0	01	1	1206-	●
96	PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98220-579-0	01	1	1206-	●
96	PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T)	8-98220-579-0	01	1	1206-		●	●
98	BOLT; VAC PIPE FIX M6X12 FLANGE SOU	0-28050-612-0	01	1	0804-	●	●	●
98	BOLT; VAC PIPE FIX POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) M6X12 FLANGE SOU	0-28050-612-0	01	1	0804-	●	●	●
98	BOLT; VAC PIPE FIX HYDRO BRAKE BOOSTER(7QQ) M8X25 FLANGE SOU	0-28650-825-0	01	1	0804-	●	●	●
98	BOLT; VAC PIPE FIX HYDRO BRAKE BOOSTER(7QQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8X25 FLANGE SOU	0-28650-825-0	01	1	0804-	●	●	●
98	BOLT; VAC PIPE FIX M6X12 FLANGE SOU	0-28050-612-0	02	1	0804-			●
108	GROMMET; PIPE (B) ID=17	8-94128-319-2	01	1	0804-	●	●	●
108	GROMMET; PIPE (B) ID=17	8-94128-319-2	01	1	0804-	●	●	●
108	GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A) SOU	9-09956-353-0	01	1	0804-	●	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E)	8-98067-702-0	01	1	0804-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (E)	8-98067-702-0	01	1	0804-		●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F)	8-98081-002-2	01	1	0804-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (F)	8-98081-002-2	01	1	0804-		●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97389-674-3	01	1	0804-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-97389-689-3	01	1	0804-	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B)	8-97389-690-3	01	1	0804-	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98094-547-0	01	1	0804-	●
116	HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	0804-	●	●	●
116	HOSE; VAC,M/VAC (H)	8-98034-276-2	01	1	0804-0911	●	●	●
116	HOSE; VAC,M/VAC (H)	8-98158-378-0	01	1	0912-	●	●	●
169	PIPE; VAC,BOOSTER SIDE HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98048-901-0	01	1	0804-	●
169	PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98048-901-0	01	1	0804-		●	●
169	PIPE; VAC,BOOSTER SIDE HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98048-903-0	01	1	0804-	●
169	PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98048-903-0	01	1	0804-		●	●
169	PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C)	8-98041-053-4	01	1	0804-	●
169	PIPE; VAC,BOOSTER SIDE EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98041-053-4	01	1	0804-	●
169	PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (C)	8-98041-053-4	01	1	0804-		●	●
169	PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98067-259-2	01	1	0804-	●
169	PIPE; VAC,BOOSTER SIDE EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98067-259-2	01	1	0804-	●
169	PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98067-259-2	01	1	0804-		●	●
169	PIPE; VAC,BOOSTER SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98033-805-0	01	1	0804-	●	●	●
169	PIPE; VAC,BOOSTER SIDE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-052-2	01	1	0804-	●	●	●
235	RUBBER; SUPPORT,PIPE OD=16.5 L=50	8-97214-235-0	01	1	0804-	●	●	●
235	RUBBER; SUPPORT,PIPE OD=16.5 L=50	8-97214-235-0	01	1	0804-	●	●	●

78 39 39 80 39 78 39 39 39 39 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-98008-098-0	02	1	0912-1205	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-98008-098-0	02	1	0912-1205	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (E) ID=16	8-98008-098-0	02	1	0912-1205		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-97329-628-0	02	1	1206-	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-97329-628-0	02	1	1206-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (E) ID=16	8-97329-628-0	02	1	1206-		●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-19.5 SOU	8-94426-597-0	08	1	0804-1005	●
39	CLIP; HOSE,VAC (C) ID=11-19.5 SOU	8-94426-597-0	08	1	0804-1005		●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	08	1	1006-	●
39	CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	08	1	1006-		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911		●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0912-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0912-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0912-		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	04	1	0804-	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	0804-0808	●	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	0809-	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	0809-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) L=170.3	1-09987-182-0	01	1	0809-		●	●
39	CLIP; HOSE,VAC (D) ID=21.7	8-97203-074-0	02	1	0804-			●
78	HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (E)	8-97386-589-0	01	1	0804-	●
78	HOSE; VAC,PIPE TO PIPE (E)	8-97386-589-0	01	1	0804-		●	●
78	HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (F)	8-98041-427-3	01	1	0804-0808	●
78	HOSE; VAC,PIPE TO PIPE (F)	8-98041-427-3	01	1	0804-0808		●	●
78	HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (F)	8-98129-223-0	01	1	0809-0909	●
78	HOSE; VAC,PIPE TO PIPE (F)	8-98129-223-0	01	1	0809-0909		●	●
78	HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (F)	8-98136-613-0	01	1	0910-	●
78	HOSE; VAC,PIPE TO PIPE (F)	8-98136-613-0	01	1	0910-		●	●
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98080-833-1	01	1	0804-	●
78	HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98080-833-1	01	1	0804-	●
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98080-833-1	01	1	0804-		●	●
78	HOSE; VAC,PIPE TO PIPE (B)	8-98057-462-0	01	1	0804-	●	●
78	HOSE; VAC,PIPE TO PIPE (C)	8-98063-819-2	01	1	0804-1008	●	●
78	HOSE; VAC,PIPE TO PIPE (C)	8-98171-287-0	01	1	1009-	●	●
78	HOSE; VAC,PIPE TO PIPE (D)	8-98112-680-0	01	1	0804-	●	●	●
78	HOSE; VAC,PIPE TO PIPE (G)	8-98096-135-0	01	1	0804-			●
78	HOSE; VAC,PIPE TO PIPE (C)	8-98040-702-2	01	1	0804-1103			●

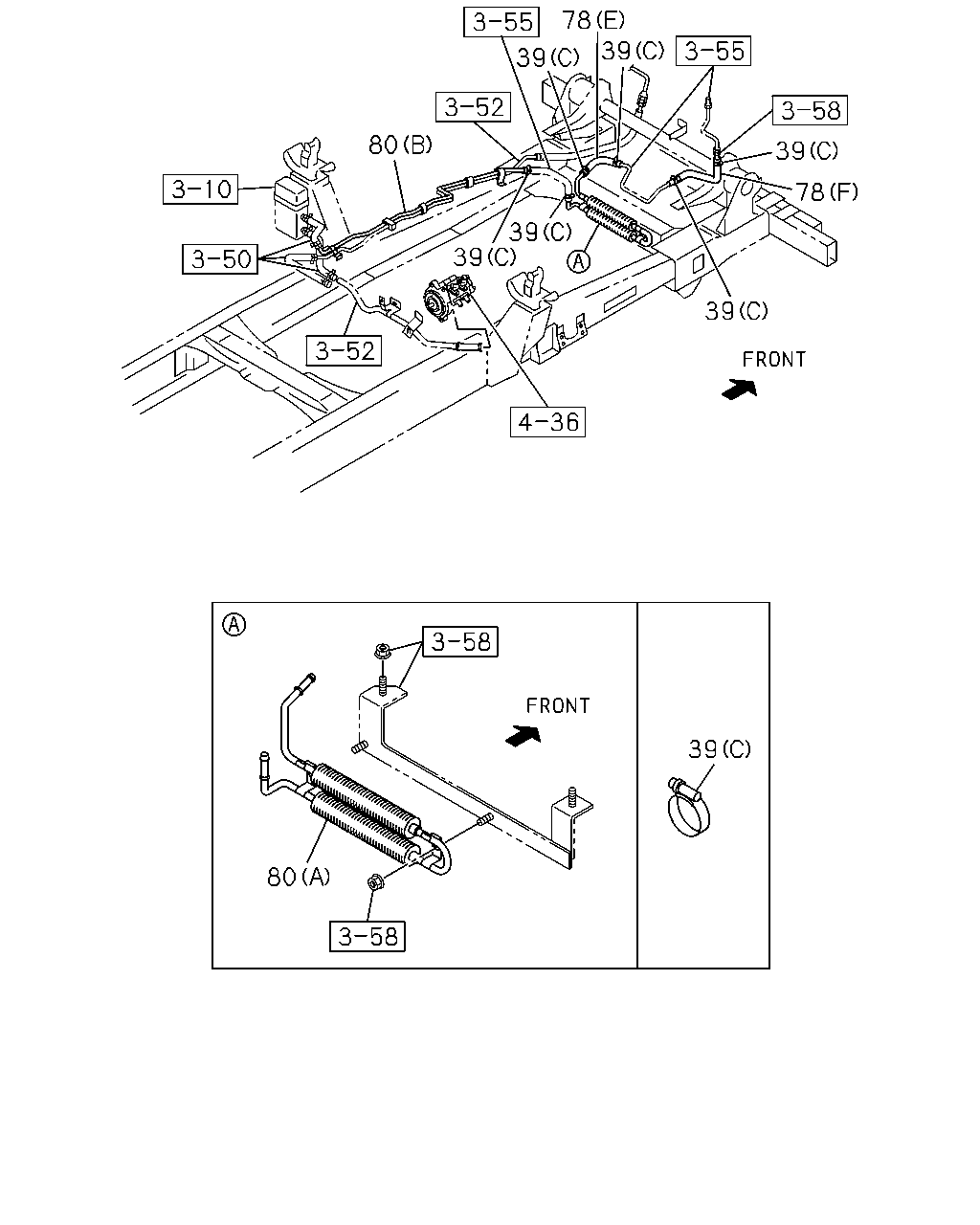

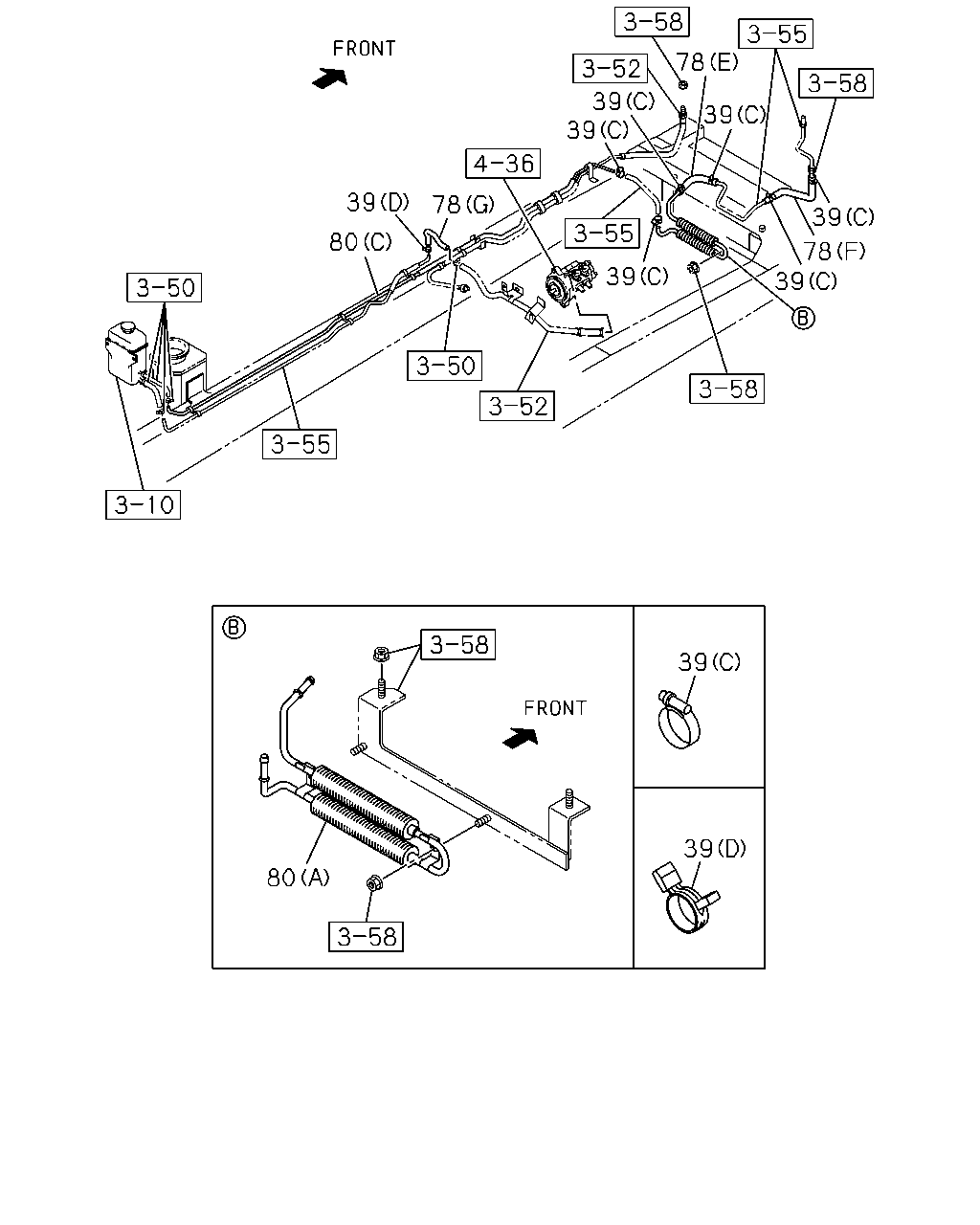

78	HOSE; VAC,PIPE TO PIPE (C)	8-98189-103-0	01	1	1104-			●
80	PIPE; VAC,ENG SIDE HYDRO BRAKE BOOSTER(7QQ) (A)	8-97386-605-0	01	1	0804-	●
80	PIPE; VAC,ENG SIDE (A)	8-97386-605-0	01	1	0804-		●	●
80	PIPE; VAC,ENG SIDE HYDRO BRAKE BOOSTER(7QQ) (B)	8-98097-788-0	01	1	0804-	●
80	PIPE; VAC,ENG SIDE (B)	8-98097-788-0	01	1	0804-		●
80	PIPE; VAC,ENG SIDE (C)	8-98092-258-1	01	1	0804-			●

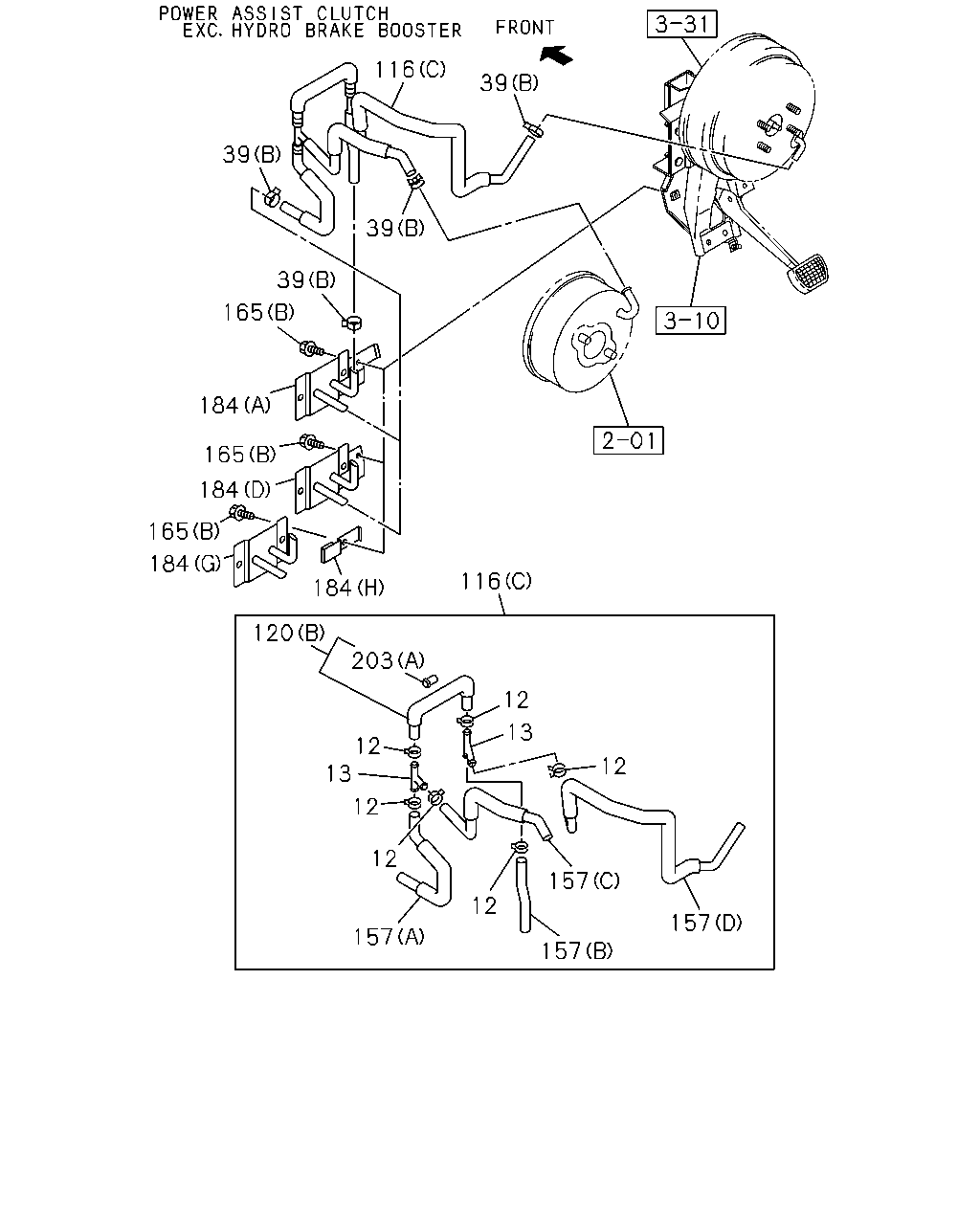

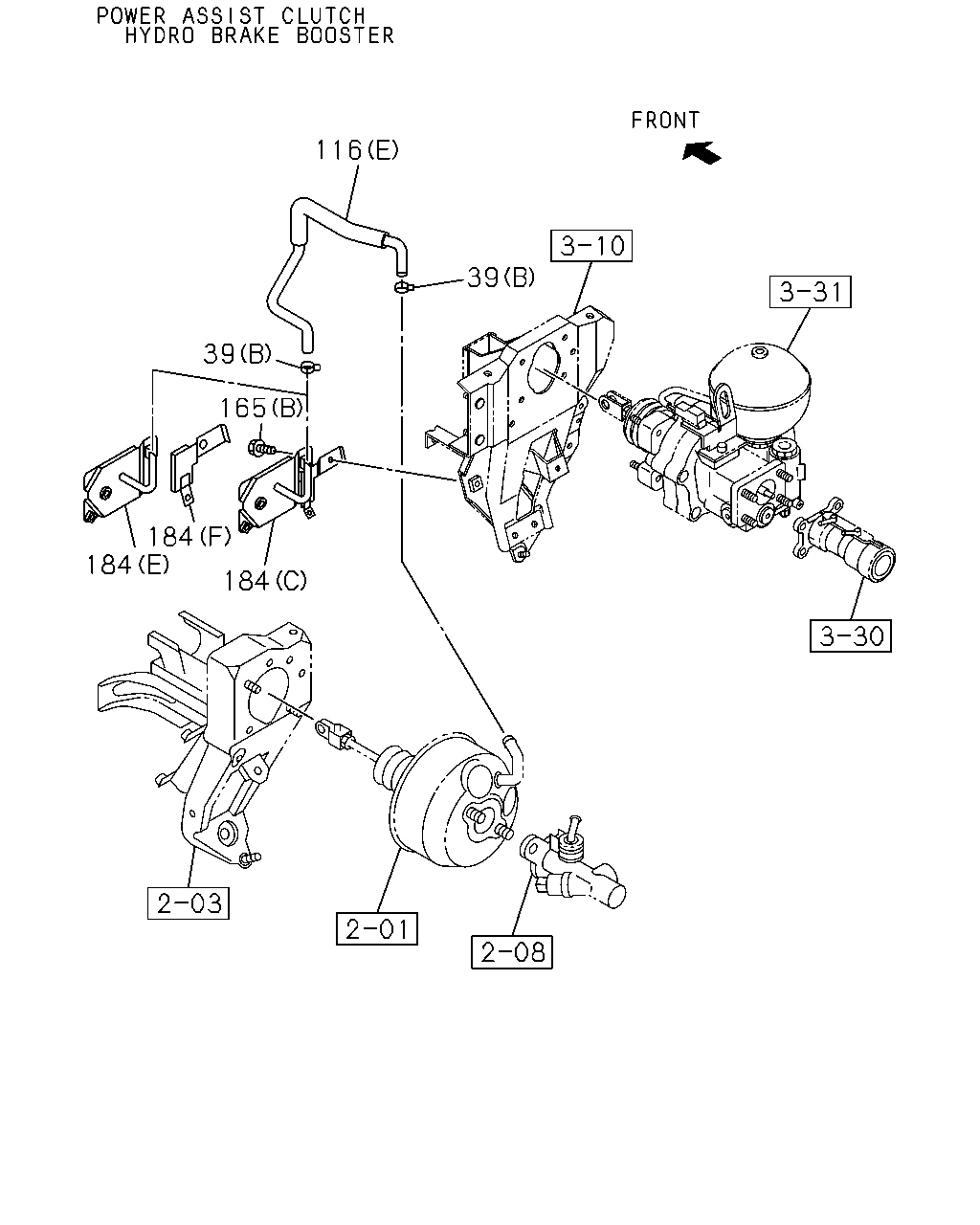

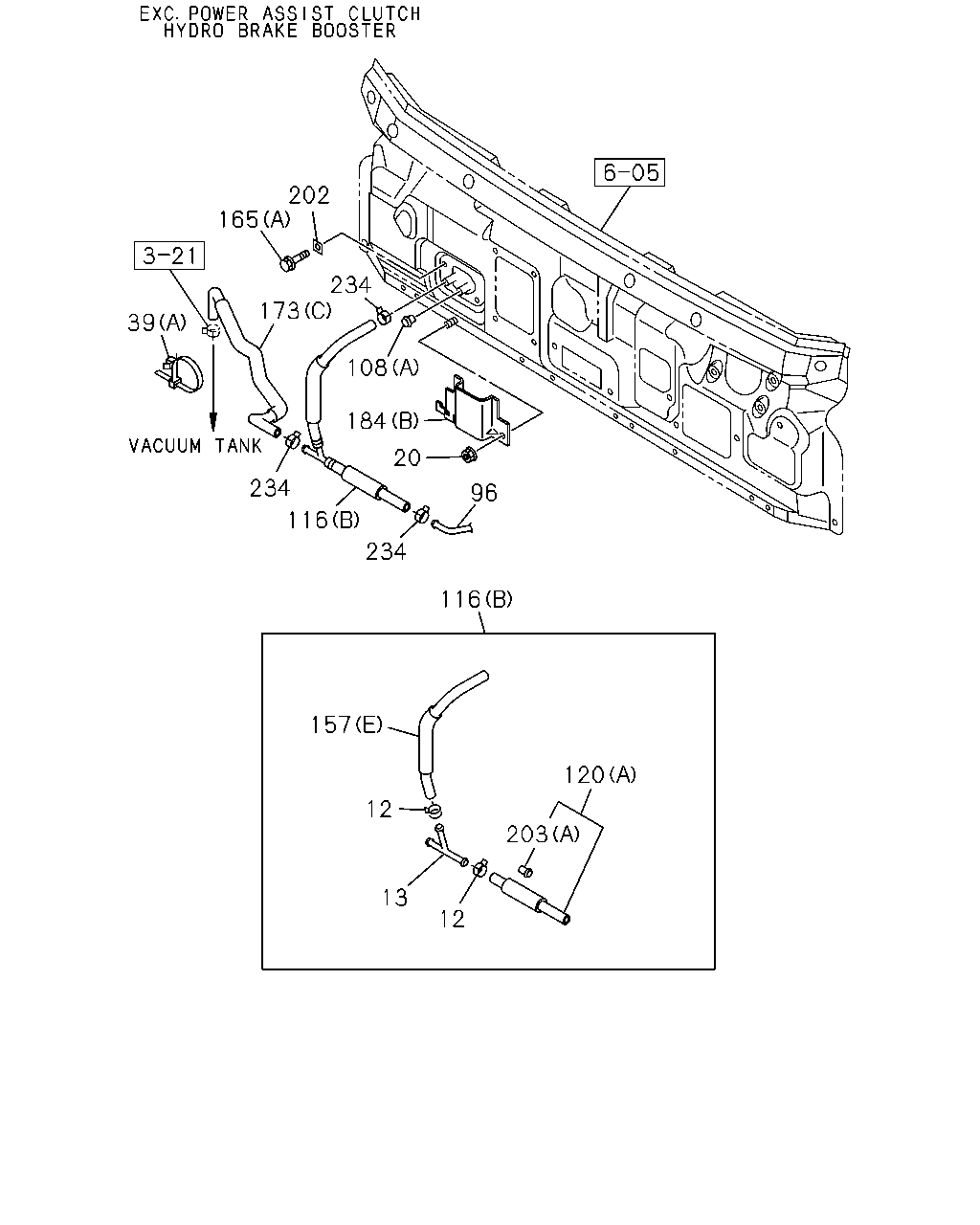

202 165 234 173 39 108 184 20 234 96 116 234 116 157 120 12 203 13 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) ID=15.5	8-98008-097-0	08	1	0804-	●
12	CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) ID=15.5	8-98008-097-0	02	1	0804-	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=15.5	8-98008-097-0	02	1	0804-	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	02	1	0804-		●	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98035-106-0	03	1	0804-	●
13	JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ)	8-98035-106-0	01	1	0804-	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98035-106-0	01	1	0804-	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	0804-		●	●
20	NUT; BRKT EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) M6 FLANGE SOU	0-91180-106-0	01	1	0804-	●
20	NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) M6 FLANGE SOU	0-91180-106-0	01	1	0804-		●	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-98008-098-0	02	1	0912-1205	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-98008-098-0	02	1	0912-1205	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (E) ID=16	8-98008-098-0	02	1	0912-1205		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-97329-628-0	02	1	1206-	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-97329-628-0	02	1	1206-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (E) ID=16	8-97329-628-0	02	1	1206-		●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-19.5 SOU	8-94426-597-0	08	1	0804-1005	●
39	CLIP; HOSE,VAC (C) ID=11-19.5 SOU	8-94426-597-0	08	1	0804-1005		●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	08	1	1006-	●
39	CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	08	1	1006-		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911		●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0912-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0912-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0912-		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	04	1	0804-	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	0804-0808	●	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	0809-	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	0809-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) L=170.3	1-09987-182-0	01	1	0809-		●	●
39	CLIP; HOSE,VAC (D) ID=21.7	8-97203-074-0	02	1	0804-			●
96	PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98046-550-0	01	1	0804-1205	●
96	PIPE; VAC,M/VAC TO VAC PUMP EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98046-550-0	01	1	0804-1205	●
96	PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T)	8-98046-550-0	01	1	0804-1205		●	●
96	PIPE; VAC,M/VAC TO VAC PUMP EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98220-579-0	01	1	1206-	●
96	PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98220-579-0	01	1	1206-	●
96	PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T)	8-98220-579-0	01	1	1206-		●	●
108	GROMMET; PIPE (B) ID=17	8-94128-319-2	01	1	0804-	●	●	●
108	GROMMET; PIPE (B) ID=17	8-94128-319-2	01	1	0804-	●	●	●
108	GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A) SOU	9-09956-353-0	01	1	0804-	●	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E)	8-98067-702-0	01	1	0804-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (E)	8-98067-702-0	01	1	0804-		●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F)	8-98081-002-2	01	1	0804-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (F)	8-98081-002-2	01	1	0804-		●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97389-674-3	01	1	0804-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-97389-689-3	01	1	0804-	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B)	8-97389-690-3	01	1	0804-	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98094-547-0	01	1	0804-	●
116	HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	0804-	●	●	●
116	HOSE; VAC,M/VAC (H)	8-98034-276-2	01	1	0804-0911	●	●	●
116	HOSE; VAC,M/VAC (H)	8-98158-378-0	01	1	0912-	●	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97389-695-2	01	1	0804-	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98027-352-3	01	1	0804-	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-696-2	01	1	0804-	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98017-168-3	01	1	0804-	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-98027-350-3	01	1	0804-	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98027-351-3	01	1	0804-	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98027-353-3	01	1	0804-	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98027-354-2	01	1	0804-	●
157	HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E)	8-98022-868-3	01	1	0804-	●
165	BOLT; BRKT (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	0804-1001	●	●	●
165	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1002-	●
165	BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1002-	●
165	BOLT; BRKT (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1002-		●	●
165	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0804-	●	●	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98055-936-1	01	1	0804-1012	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98121-941-0	01	1	1101-	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98055-937-1	01	1	0804-1012	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98121-940-0	01	1	1101-	●
173	HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (C)	8-98022-870-1	01	1	0804-1012	●
173	HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (C)	8-98107-558-0	01	1	1101-	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-541-0	01	1	1312-	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-541-0	01	1	1312-		●	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (H)	8-98255-548-0	01	1	1312-	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98155-991-0	01	1	1002-1102	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (E)	8-98155-991-0	01	1	1002-1102		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98183-472-1	01	1	1103-1103	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (E)	8-98183-472-1	01	1	1103-1103		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98193-145-0	01	1	1104-	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (E)	8-98193-145-0	01	1	1104-		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (F)	8-98156-526-0	01	1	1002-	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (F)	8-98156-526-0	01	1	1002-		●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-98155-345-0	01	1	1002-1102	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-98183-467-1	01	1	1103-	●
184	BRACKET; UNION FIX EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	0804-	●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	0804-		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98041-992-2	01	1	0804-1001	●
184	BRACKET; UNION FIX (C)	8-98041-992-2	01	1	0804-1001		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98041-992-2	01	1	1002-1102	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98041-992-2	01	1	1002-1102		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-470-1	01	1	1103-1103	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-470-1	01	1	1103-1103		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98193-144-0	01	1	1104-1311	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98193-144-0	01	1	1104-1311		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-539-0	01	1	1312-	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-539-0	01	1	1312-		●	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-686-1	01	1	0804-1001	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (A)	8-97389-686-1	01	1	1002-1102	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (A)	8-98183-462-1	01	1	1103-1311	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (G)	8-98255-535-0	01	1	1312-	●
202	SEAL SOU	8-97856-616-0	02	1	0804-	●	●	●
203	VALVE; CHECK EXC. HYDRO BRAKE BOOSTER(7QQ) (A) SOU	8-94386-540-0	01	1	0804-	●
203	VALVE; CHECK POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) SOU	8-94104-021-0	01	1	0804-	●
234	CLAMP; PIPE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) ID=16 SOU	8-94238-568-0	04	1	0804-	●
234	CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) ID=16 SOU	8-94238-568-0	03	1	0804-	●
234	CLAMP; PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=16 SOU	8-94238-568-0	03	1	0804-	●
234	CLAMP; PIPE POWER ASSIST CLUTCH(S2T) ID=16 SOU	8-94238-568-0	03	1	0804-		●	●

39 116 39 165 184 184 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-98008-098-0	02	1	0912-1205	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-98008-098-0	02	1	0912-1205	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (E) ID=16	8-98008-098-0	02	1	0912-1205		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-97329-628-0	02	1	1206-	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-97329-628-0	02	1	1206-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (E) ID=16	8-97329-628-0	02	1	1206-		●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-19.5 SOU	8-94426-597-0	08	1	0804-1005	●
39	CLIP; HOSE,VAC (C) ID=11-19.5 SOU	8-94426-597-0	08	1	0804-1005		●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	08	1	1006-	●
39	CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	08	1	1006-		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911		●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0912-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0912-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0912-		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	04	1	0804-	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	0804-0808	●	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	0809-	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	0809-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) L=170.3	1-09987-182-0	01	1	0809-		●	●
39	CLIP; HOSE,VAC (D) ID=21.7	8-97203-074-0	02	1	0804-			●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E)	8-98067-702-0	01	1	0804-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (E)	8-98067-702-0	01	1	0804-		●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F)	8-98081-002-2	01	1	0804-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (F)	8-98081-002-2	01	1	0804-		●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97389-674-3	01	1	0804-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-97389-689-3	01	1	0804-	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B)	8-97389-690-3	01	1	0804-	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98094-547-0	01	1	0804-	●
116	HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	0804-	●	●	●
116	HOSE; VAC,M/VAC (H)	8-98034-276-2	01	1	0804-0911	●	●	●
116	HOSE; VAC,M/VAC (H)	8-98158-378-0	01	1	0912-	●	●	●
165	BOLT; BRKT (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	0804-1001	●	●	●
165	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1002-	●
165	BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1002-	●
165	BOLT; BRKT (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1002-		●	●
165	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0804-	●	●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-541-0	01	1	1312-	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-541-0	01	1	1312-		●	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (H)	8-98255-548-0	01	1	1312-	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98155-991-0	01	1	1002-1102	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (E)	8-98155-991-0	01	1	1002-1102		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98183-472-1	01	1	1103-1103	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (E)	8-98183-472-1	01	1	1103-1103		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98193-145-0	01	1	1104-	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (E)	8-98193-145-0	01	1	1104-		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (F)	8-98156-526-0	01	1	1002-	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (F)	8-98156-526-0	01	1	1002-		●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-98155-345-0	01	1	1002-1102	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-98183-467-1	01	1	1103-	●
184	BRACKET; UNION FIX EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	0804-	●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	0804-		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98041-992-2	01	1	0804-1001	●
184	BRACKET; UNION FIX (C)	8-98041-992-2	01	1	0804-1001		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98041-992-2	01	1	1002-1102	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98041-992-2	01	1	1002-1102		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-470-1	01	1	1103-1103	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-470-1	01	1	1103-1103		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98193-144-0	01	1	1104-1311	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98193-144-0	01	1	1104-1311		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-539-0	01	1	1312-	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-539-0	01	1	1312-		●	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-686-1	01	1	0804-1001	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (A)	8-97389-686-1	01	1	1002-1102	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (A)	8-98183-462-1	01	1	1103-1311	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (G)	8-98255-535-0	01	1	1312-	●

78 39 39 39 39 78 39 80 78 39 39 39 39 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-98008-098-0	02	1	0912-1205	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-98008-098-0	02	1	0912-1205	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (E) ID=16	8-98008-098-0	02	1	0912-1205		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-97329-628-0	02	1	1206-	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-97329-628-0	02	1	1206-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (E) ID=16	8-97329-628-0	02	1	1206-		●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-19.5 SOU	8-94426-597-0	08	1	0804-1005	●
39	CLIP; HOSE,VAC (C) ID=11-19.5 SOU	8-94426-597-0	08	1	0804-1005		●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	08	1	1006-	●
39	CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	08	1	1006-		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911		●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0912-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0912-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0912-		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	04	1	0804-	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	0804-0808	●	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	0809-	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	0809-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) L=170.3	1-09987-182-0	01	1	0809-		●	●
39	CLIP; HOSE,VAC (D) ID=21.7	8-97203-074-0	02	1	0804-			●
78	HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (E)	8-97386-589-0	01	1	0804-	●
78	HOSE; VAC,PIPE TO PIPE (E)	8-97386-589-0	01	1	0804-		●	●
78	HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (F)	8-98041-427-3	01	1	0804-0808	●
78	HOSE; VAC,PIPE TO PIPE (F)	8-98041-427-3	01	1	0804-0808		●	●
78	HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (F)	8-98129-223-0	01	1	0809-0909	●
78	HOSE; VAC,PIPE TO PIPE (F)	8-98129-223-0	01	1	0809-0909		●	●
78	HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (F)	8-98136-613-0	01	1	0910-	●
78	HOSE; VAC,PIPE TO PIPE (F)	8-98136-613-0	01	1	0910-		●	●
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98080-833-1	01	1	0804-	●
78	HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98080-833-1	01	1	0804-	●
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98080-833-1	01	1	0804-		●	●
78	HOSE; VAC,PIPE TO PIPE (B)	8-98057-462-0	01	1	0804-	●	●
78	HOSE; VAC,PIPE TO PIPE (C)	8-98063-819-2	01	1	0804-1008	●	●
78	HOSE; VAC,PIPE TO PIPE (C)	8-98171-287-0	01	1	1009-	●	●
78	HOSE; VAC,PIPE TO PIPE (D)	8-98112-680-0	01	1	0804-	●	●	●
78	HOSE; VAC,PIPE TO PIPE (G)	8-98096-135-0	01	1	0804-			●
78	HOSE; VAC,PIPE TO PIPE (C)	8-98040-702-2	01	1	0804-1103			●
78	HOSE; VAC,PIPE TO PIPE (C)	8-98189-103-0	01	1	1104-			●
80	PIPE; VAC,ENG SIDE HYDRO BRAKE BOOSTER(7QQ) (A)	8-97386-605-0	01	1	0804-	●
80	PIPE; VAC,ENG SIDE (A)	8-97386-605-0	01	1	0804-		●	●
80	PIPE; VAC,ENG SIDE HYDRO BRAKE BOOSTER(7QQ) (B)	8-98097-788-0	01	1	0804-	●
80	PIPE; VAC,ENG SIDE (B)	8-98097-788-0	01	1	0804-		●
80	PIPE; VAC,ENG SIDE (C)	8-98092-258-1	01	1	0804-			●

116 116 39 39 39 39 165 165 165 184 184 184 184 120 12 12 12 12 12 12 13 13 157 157 157 157 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) ID=15.5	8-98008-097-0	08	1	0804-	●
12	CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) ID=15.5	8-98008-097-0	02	1	0804-	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=15.5	8-98008-097-0	02	1	0804-	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	02	1	0804-		●	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98035-106-0	03	1	0804-	●
13	JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ)	8-98035-106-0	01	1	0804-	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98035-106-0	01	1	0804-	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	0804-		●	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-98008-098-0	02	1	0912-1205	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-98008-098-0	02	1	0912-1205	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (E) ID=16	8-98008-098-0	02	1	0912-1205		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-97329-628-0	02	1	1206-	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-97329-628-0	02	1	1206-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (E) ID=16	8-97329-628-0	02	1	1206-		●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-19.5 SOU	8-94426-597-0	08	1	0804-1005	●
39	CLIP; HOSE,VAC (C) ID=11-19.5 SOU	8-94426-597-0	08	1	0804-1005		●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	08	1	1006-	●
39	CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	08	1	1006-		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911		●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0912-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0912-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0912-		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	04	1	0804-	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	0804-0808	●	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	0809-	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	0809-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) L=170.3	1-09987-182-0	01	1	0809-		●	●
39	CLIP; HOSE,VAC (D) ID=21.7	8-97203-074-0	02	1	0804-			●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E)	8-98067-702-0	01	1	0804-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (E)	8-98067-702-0	01	1	0804-		●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F)	8-98081-002-2	01	1	0804-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (F)	8-98081-002-2	01	1	0804-		●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97389-674-3	01	1	0804-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-97389-689-3	01	1	0804-	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B)	8-97389-690-3	01	1	0804-	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98094-547-0	01	1	0804-	●
116	HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	0804-	●	●	●
116	HOSE; VAC,M/VAC (H)	8-98034-276-2	01	1	0804-0911	●	●	●
116	HOSE; VAC,M/VAC (H)	8-98158-378-0	01	1	0912-	●	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97389-695-2	01	1	0804-	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98027-352-3	01	1	0804-	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-696-2	01	1	0804-	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98017-168-3	01	1	0804-	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-98027-350-3	01	1	0804-	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98027-351-3	01	1	0804-	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98027-353-3	01	1	0804-	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98027-354-2	01	1	0804-	●
157	HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E)	8-98022-868-3	01	1	0804-	●
165	BOLT; BRKT (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	0804-1001	●	●	●
165	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1002-	●
165	BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1002-	●
165	BOLT; BRKT (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1002-		●	●
165	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0804-	●	●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-541-0	01	1	1312-	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-541-0	01	1	1312-		●	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (H)	8-98255-548-0	01	1	1312-	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98155-991-0	01	1	1002-1102	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (E)	8-98155-991-0	01	1	1002-1102		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98183-472-1	01	1	1103-1103	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (E)	8-98183-472-1	01	1	1103-1103		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98193-145-0	01	1	1104-	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (E)	8-98193-145-0	01	1	1104-		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (F)	8-98156-526-0	01	1	1002-	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (F)	8-98156-526-0	01	1	1002-		●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-98155-345-0	01	1	1002-1102	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-98183-467-1	01	1	1103-	●
184	BRACKET; UNION FIX EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	0804-	●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	0804-		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98041-992-2	01	1	0804-1001	●
184	BRACKET; UNION FIX (C)	8-98041-992-2	01	1	0804-1001		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98041-992-2	01	1	1002-1102	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98041-992-2	01	1	1002-1102		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-470-1	01	1	1103-1103	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-470-1	01	1	1103-1103		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98193-144-0	01	1	1104-1311	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98193-144-0	01	1	1104-1311		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-539-0	01	1	1312-	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-539-0	01	1	1312-		●	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-686-1	01	1	0804-1001	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (A)	8-97389-686-1	01	1	1002-1102	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (A)	8-98183-462-1	01	1	1103-1311	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (G)	8-98255-535-0	01	1	1312-	●
203	VALVE; CHECK EXC. HYDRO BRAKE BOOSTER(7QQ) (A) SOU	8-94386-540-0	01	1	0804-	●
203	VALVE; CHECK POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) SOU	8-94104-021-0	01	1	0804-	●

202 165 234 173 12 12 184 116 163 234 20 173 96 157 120 116 234 12 234 203 13 39 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) ID=15.5	8-98008-097-0	08	1	0804-	●
12	CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) ID=15.5	8-98008-097-0	02	1	0804-	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=15.5	8-98008-097-0	02	1	0804-	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	02	1	0804-		●	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98035-106-0	03	1	0804-	●
13	JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ)	8-98035-106-0	01	1	0804-	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98035-106-0	01	1	0804-	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	0804-		●	●
20	NUT; BRKT EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) M6 FLANGE SOU	0-91180-106-0	01	1	0804-	●
20	NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) M6 FLANGE SOU	0-91180-106-0	01	1	0804-		●	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-98008-098-0	02	1	0912-1205	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-98008-098-0	02	1	0912-1205	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (E) ID=16	8-98008-098-0	02	1	0912-1205		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-97329-628-0	02	1	1206-	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (E) ID=16	8-97329-628-0	02	1	1206-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (E) ID=16	8-97329-628-0	02	1	1206-		●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-19.5 SOU	8-94426-597-0	08	1	0804-1005	●
39	CLIP; HOSE,VAC (C) ID=11-19.5 SOU	8-94426-597-0	08	1	0804-1005		●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	08	1	1006-	●
39	CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	08	1	1006-		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911		●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0912-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	0912-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0912-		●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	04	1	0804-	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	0804-0808	●	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	0809-	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	0809-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) L=170.3	1-09987-182-0	01	1	0809-		●	●
39	CLIP; HOSE,VAC (D) ID=21.7	8-97203-074-0	02	1	0804-			●
96	PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98046-550-0	01	1	0804-1205	●
96	PIPE; VAC,M/VAC TO VAC PUMP EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98046-550-0	01	1	0804-1205	●
96	PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T)	8-98046-550-0	01	1	0804-1205		●	●
96	PIPE; VAC,M/VAC TO VAC PUMP EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98220-579-0	01	1	1206-	●
96	PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98220-579-0	01	1	1206-	●
96	PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T)	8-98220-579-0	01	1	1206-		●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E)	8-98067-702-0	01	1	0804-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (E)	8-98067-702-0	01	1	0804-		●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F)	8-98081-002-2	01	1	0804-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (F)	8-98081-002-2	01	1	0804-		●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97389-674-3	01	1	0804-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-97389-689-3	01	1	0804-	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B)	8-97389-690-3	01	1	0804-	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98094-547-0	01	1	0804-	●
116	HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	0804-	●	●	●
116	HOSE; VAC,M/VAC (H)	8-98034-276-2	01	1	0804-0911	●	●	●
116	HOSE; VAC,M/VAC (H)	8-98158-378-0	01	1	0912-	●	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97389-695-2	01	1	0804-	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98027-352-3	01	1	0804-	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-696-2	01	1	0804-	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98017-168-3	01	1	0804-	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-98027-350-3	01	1	0804-	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98027-351-3	01	1	0804-	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98027-353-3	01	1	0804-	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98027-354-2	01	1	0804-	●
157	HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E)	8-98022-868-3	01	1	0804-	●
163	JOINT; VAC HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97353-668-0	01	1	0804-	●
165	BOLT; BRKT (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	0804-1001	●	●	●
165	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1002-	●
165	BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1002-	●
165	BOLT; BRKT (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1002-		●	●
165	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0804-	●	●	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98055-936-1	01	1	0804-1012	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98121-941-0	01	1	1101-	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98055-937-1	01	1	0804-1012	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98121-940-0	01	1	1101-	●
173	HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (C)	8-98022-870-1	01	1	0804-1012	●
173	HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (C)	8-98107-558-0	01	1	1101-	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-541-0	01	1	1312-	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-541-0	01	1	1312-		●	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (H)	8-98255-548-0	01	1	1312-	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98155-991-0	01	1	1002-1102	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (E)	8-98155-991-0	01	1	1002-1102		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98183-472-1	01	1	1103-1103	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (E)	8-98183-472-1	01	1	1103-1103		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98193-145-0	01	1	1104-	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (E)	8-98193-145-0	01	1	1104-		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (F)	8-98156-526-0	01	1	1002-	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (F)	8-98156-526-0	01	1	1002-		●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-98155-345-0	01	1	1002-1102	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-98183-467-1	01	1	1103-	●
184	BRACKET; UNION FIX EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	0804-	●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	0804-		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98041-992-2	01	1	0804-1001	●
184	BRACKET; UNION FIX (C)	8-98041-992-2	01	1	0804-1001		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98041-992-2	01	1	1002-1102	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98041-992-2	01	1	1002-1102		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-470-1	01	1	1103-1103	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-470-1	01	1	1103-1103		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98193-144-0	01	1	1104-1311	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98193-144-0	01	1	1104-1311		●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-539-0	01	1	1312-	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-539-0	01	1	1312-		●	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-686-1	01	1	0804-1001	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (A)	8-97389-686-1	01	1	1002-1102	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (A)	8-98183-462-1	01	1	1103-1311	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (G)	8-98255-535-0	01	1	1312-	●
202	SEAL SOU	8-97856-616-0	02	1	0804-	●	●	●
203	VALVE; CHECK EXC. HYDRO BRAKE BOOSTER(7QQ) (A) SOU	8-94386-540-0	01	1	0804-	●
203	VALVE; CHECK POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) SOU	8-94104-021-0	01	1	0804-	●
234	CLAMP; PIPE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) ID=16 SOU	8-94238-568-0	04	1	0804-	●
234	CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) ID=16 SOU	8-94238-568-0	03	1	0804-	●
234	CLAMP; PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=16 SOU	8-94238-568-0	03	1	0804-	●
234	CLAMP; PIPE POWER ASSIST CLUTCH(S2T) ID=16 SOU	8-94238-568-0	03	1	0804-		●	●

235 122 136 136 136 78 136 136 78 44 136 158 236 44 78 136 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
44	PIPE; VAC,MAG VLV (A)	8-98070-194-0	01	1	0804-	●	●
44	PIPE; VAC,MAG VLV (B)	8-98057-425-1	01	1	0804-	●	●	●
78	HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (E)	8-97386-589-0	01	1	0804-	●
78	HOSE; VAC,PIPE TO PIPE (E)	8-97386-589-0	01	1	0804-		●	●
78	HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (F)	8-98041-427-3	01	1	0804-0808	●
78	HOSE; VAC,PIPE TO PIPE (F)	8-98041-427-3	01	1	0804-0808		●	●
78	HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (F)	8-98129-223-0	01	1	0809-0909	●
78	HOSE; VAC,PIPE TO PIPE (F)	8-98129-223-0	01	1	0809-0909		●	●
78	HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (F)	8-98136-613-0	01	1	0910-	●
78	HOSE; VAC,PIPE TO PIPE (F)	8-98136-613-0	01	1	0910-		●	●
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98080-833-1	01	1	0804-	●
78	HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98080-833-1	01	1	0804-	●
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98080-833-1	01	1	0804-		●	●
78	HOSE; VAC,PIPE TO PIPE (B)	8-98057-462-0	01	1	0804-	●	●
78	HOSE; VAC,PIPE TO PIPE (C)	8-98063-819-2	01	1	0804-1008	●	●
78	HOSE; VAC,PIPE TO PIPE (C)	8-98171-287-0	01	1	1009-	●	●
78	HOSE; VAC,PIPE TO PIPE (D)	8-98112-680-0	01	1	0804-	●	●	●
78	HOSE; VAC,PIPE TO PIPE (G)	8-98096-135-0	01	1	0804-			●
78	HOSE; VAC,PIPE TO PIPE (C)	8-98040-702-2	01	1	0804-1103			●
78	HOSE; VAC,PIPE TO PIPE (C)	8-98189-103-0	01	1	1104-			●
122	HOSE; AIR,MAG VLV TO AIR PIPE	8-98034-103-2	01	1	0804-1103	●	●
122	HOSE; AIR,MAG VLV TO AIR PIPE	8-98189-104-0	01	1	1104-	●	●
122	HOSE; AIR,MAG VLV TO AIR PIPE	8-98040-701-1	01	1	0804-1103			●
122	HOSE; AIR,MAG VLV TO AIR PIPE	8-98189-105-0	01	1	1104-			●
136	CLIP; VAC HOSE ID=16 SOU	8-94238-568-0	02	1	0804-0911	●	●
136	CLIP; VAC HOSE ID=16	8-98008-098-0	02	1	0912-	●	●
136	CLIP; VAC HOSE ID=16 SOU	8-94238-568-0	06	1	0804-0911	●	●	●
136	CLIP; VAC HOSE ID=16	8-98008-098-0	06	1	0912-	●	●	●
158	CLIP; HOSE ID=14-20	8-97061-603-0	01	1	0804-	●	●
235	RUBBER; SUPPORT,PIPE OD=16.5 L=50	8-97214-235-0	01	1	0804-	●	●	●
235	RUBBER; SUPPORT,PIPE OD=16.5 L=50	8-97214-235-0	01	1	0804-	●	●	●
236	BOLT; PIPE M8X25 FLANGE SOU	0-28650-825-0	01	1	0804-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
