3-55 — BRAKE PIPING; OIL,REAR (#50864) — 78 parça

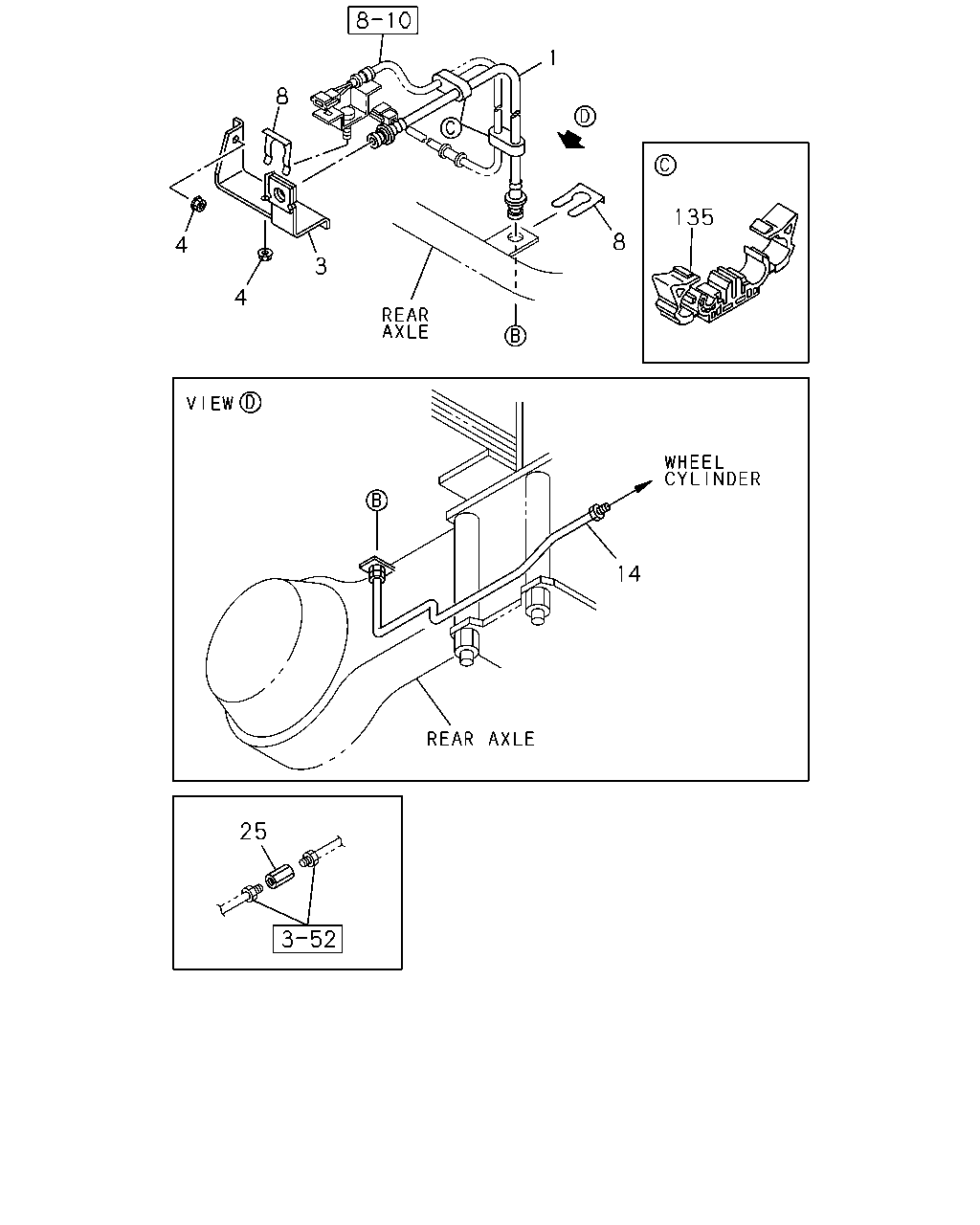

çizim 157412
8 4 4 3 1 8 135 14 25
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,RR BRK 8-97253-569-0 01 1 0804- ● ●
1 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97253-569-0 01 1 0804- ●
1 HOSE; FLEX,RR BRK 8-97253-570-0 01 1 0804- ● ●
1 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97253-570-0 01 1 0804- ●
1 HOSE; FLEX,RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> L=405 		8-97089-061-0 01 1 0804- ●
3 BRACKET; FLEX HOSE,RR BRK 8-97205-714-1 01 1 0804- ● ● ●
3 BRACKET; FLEX HOSE,RR BRK 8-97205-714-1 01 1 0804- ● ●
3 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97205-714-1 01 1 0804- ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE SOU 		0-91180-108-0 02 1 0804- ● ●
4 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> M8 FLANGE SOU 		0-91180-108-0 02 1 0804- ●
8 CLIP; RR BRK 8-97360-054-0 04 1 0804- ● ●
8 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 04 1 0804- ●
8 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 02 1 0804- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) 		8-97359-746-0 01 1 0804- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) 		8-97359-747-0 01 1 0804- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0804- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
MINI BUS CHASSIS VAR.2(6GQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 0804- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 0804- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 0804- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-749-0 01 1 0804- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98006-755-0 01 1 0804-0804 ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MINI BUS CHASSIS VAR.2(6GQ) 		8-98006-755-0 01 1 0804- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98006-757-0 01 1 0804-0804 ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MINI BUS CHASSIS VAR.2(6GQ) 		8-98006-757-0 01 1 0804- ●
25 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0804- ● ● ●
25 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0804- ● ● ●
135 CLIP; FLEX HOSE 8-97207-699-0 04 1 0804- ● ●
135 CLIP; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97207-699-0 04 1 0804- ●

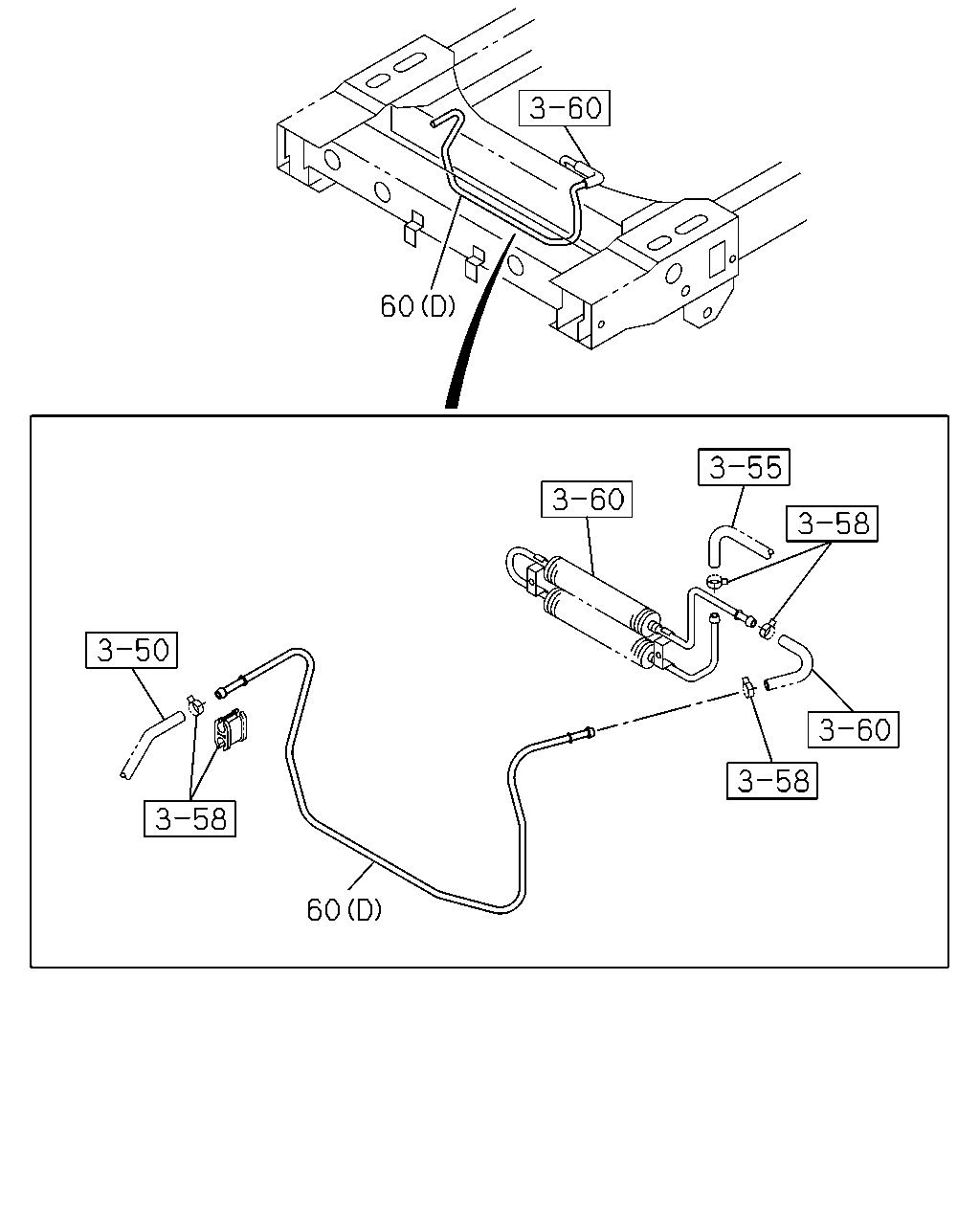

çizim 157417
60 60
BalonParca AdiParca NoAdetTipApplied Date A B C
60 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98041-326-1 01 1 0804- ●
60 PIPE ASM; BRK
(D) 		8-98041-326-1 01 1 0804- ● ●
60 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-549-0 01 1 0804- ●
60 PIPE ASM; BRK
(A) 		8-98080-549-0 01 1 0804- ● ●
60 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98088-313-1 01 1 0804- ●
60 PIPE ASM; BRK
(C) 		8-98088-313-1 01 1 0804- ● ●
60 PIPE ASM; BRK
(B) 		8-98092-259-1 01 1 0804- ●
çizim 157426
60 60
BalonParca AdiParca NoAdetTipApplied Date A B C
60 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98041-326-1 01 1 0804- ●
60 PIPE ASM; BRK
(D) 		8-98041-326-1 01 1 0804- ● ●
60 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-549-0 01 1 0804- ●
60 PIPE ASM; BRK
(A) 		8-98080-549-0 01 1 0804- ● ●
60 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98088-313-1 01 1 0804- ●
60 PIPE ASM; BRK
(C) 		8-98088-313-1 01 1 0804- ● ●
60 PIPE ASM; BRK
(B) 		8-98092-259-1 01 1 0804- ●

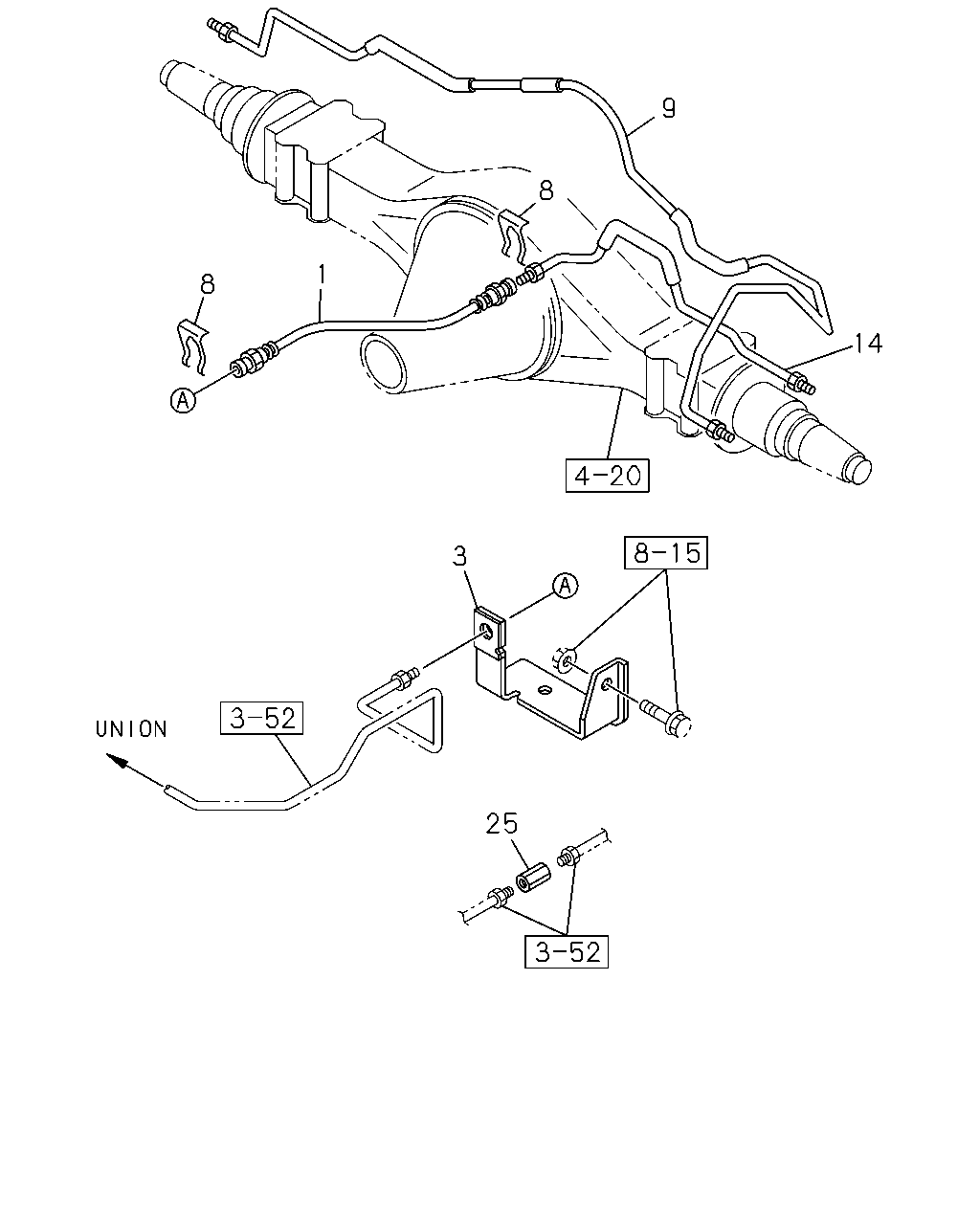

çizim 157430
9 8 1 8 14 3 25
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,RR BRK 8-97253-569-0 01 1 0804- ● ●
1 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97253-569-0 01 1 0804- ●
1 HOSE; FLEX,RR BRK 8-97253-570-0 01 1 0804- ● ●
1 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97253-570-0 01 1 0804- ●
1 HOSE; FLEX,RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> L=405 		8-97089-061-0 01 1 0804- ●
3 BRACKET; FLEX HOSE,RR BRK 8-97205-714-1 01 1 0804- ● ● ●
3 BRACKET; FLEX HOSE,RR BRK 8-97205-714-1 01 1 0804- ● ●
3 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97205-714-1 01 1 0804- ●
8 CLIP; RR BRK 8-97360-054-0 04 1 0804- ● ●
8 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 04 1 0804- ●
8 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 02 1 0804- ●
9 PIPE; BRK,RR AXLE
MINI BUS CHASSIS VAR.2(6GQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-057-0 01 1 0804- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) 		8-97359-746-0 01 1 0804- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) 		8-97359-747-0 01 1 0804- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0804- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
MINI BUS CHASSIS VAR.2(6GQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 0804- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 0804- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 0804- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-749-0 01 1 0804- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98006-755-0 01 1 0804-0804 ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MINI BUS CHASSIS VAR.2(6GQ) 		8-98006-755-0 01 1 0804- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98006-757-0 01 1 0804-0804 ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MINI BUS CHASSIS VAR.2(6GQ) 		8-98006-757-0 01 1 0804- ●
25 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0804- ● ● ●
25 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0804- ● ● ●

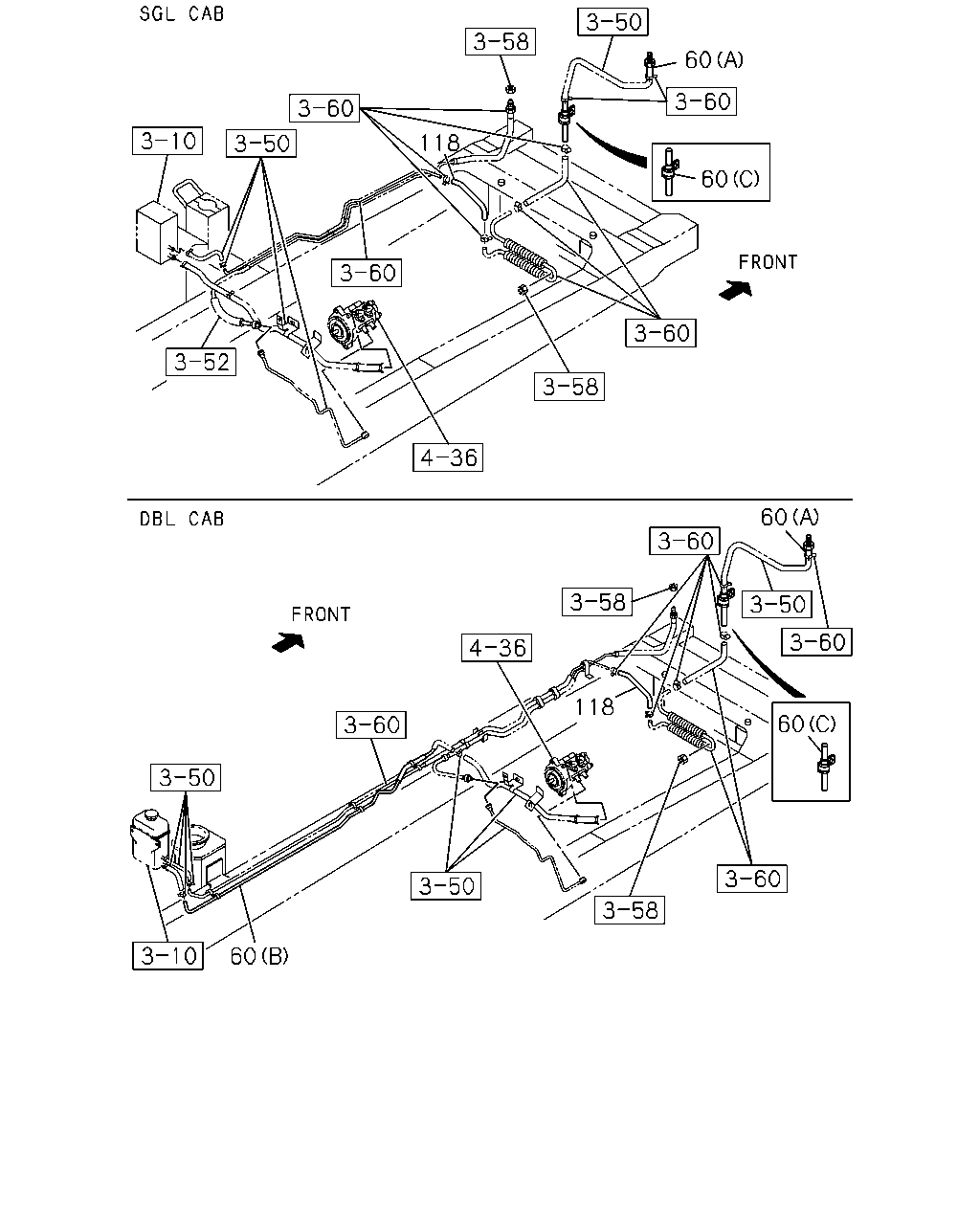

çizim 157442
60 118 60 60 118 60 60
BalonParca AdiParca NoAdetTipApplied Date A B C
60 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98041-326-1 01 1 0804- ●
60 PIPE ASM; BRK
(D) 		8-98041-326-1 01 1 0804- ● ●
60 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-549-0 01 1 0804- ●
60 PIPE ASM; BRK
(A) 		8-98080-549-0 01 1 0804- ● ●
60 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98088-313-1 01 1 0804- ●
60 PIPE ASM; BRK
(C) 		8-98088-313-1 01 1 0804- ● ●
60 PIPE ASM; BRK
(B) 		8-98092-259-1 01 1 0804- ●
118 HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 		8-97181-217-2 01 1 0804-1001 ●
118 HOSE; PIPE TO PIPE 8-97181-217-2 01 1 0804-1001 ● ●
118 HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 		8-98158-200-0 01 1 1002- ●
118 HOSE; PIPE TO PIPE 8-98158-200-0 01 1 1002- ● ●
