3-52 — BRAKE PIPING; OIL,FRONT (#50863) — 191 parça

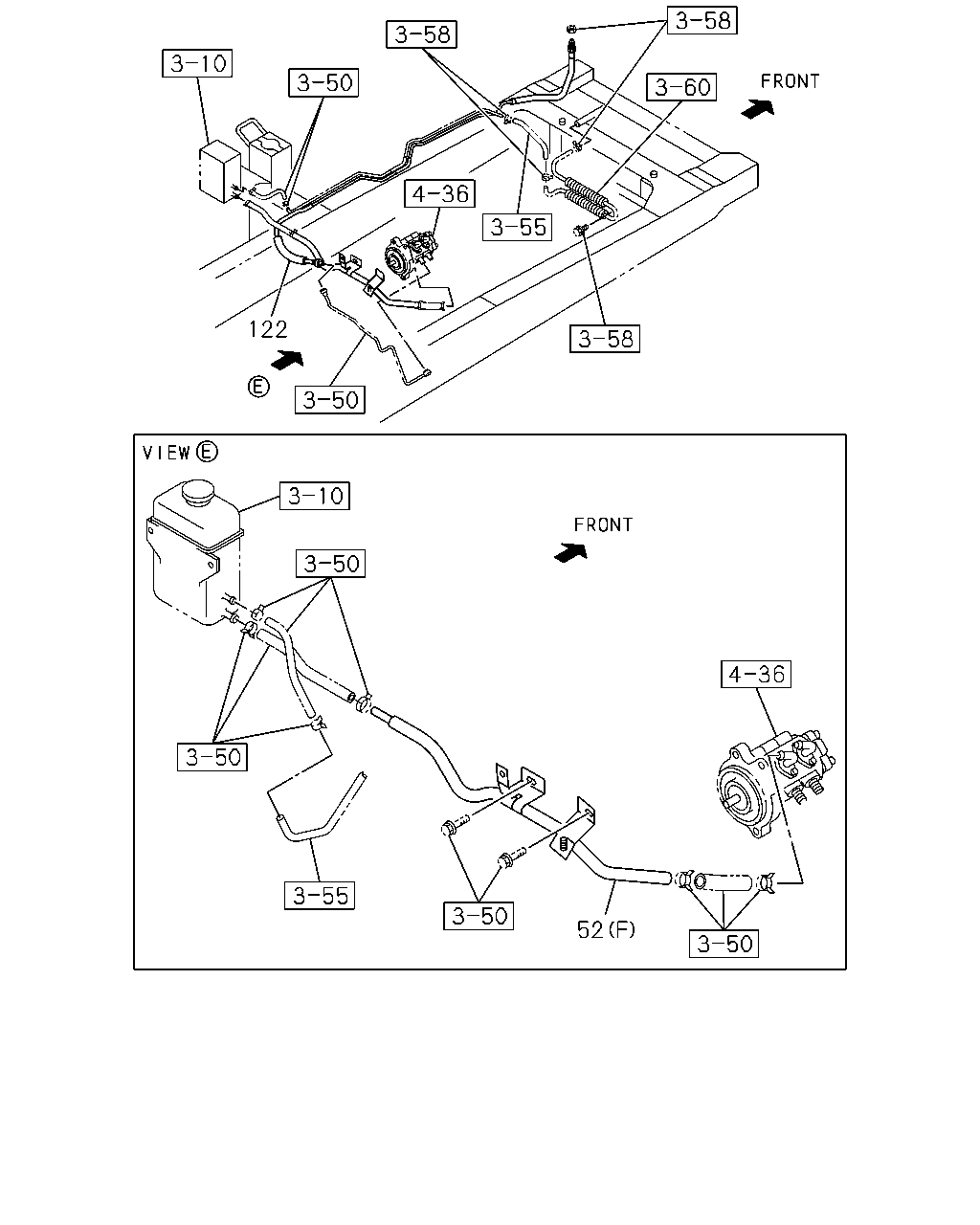

çizim 157414
122 52
BalonParca AdiParca NoAdetTipApplied Date A B C
52 PIPE; BRK
DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 0804- ●
52 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 0804- ●
52 PIPE; BRK
DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 0804- ●
52 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 0804- ●
52 PIPE; BRK
EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0804- ●
52 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0804- ●
52 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0804- ●
52 PIPE; BRK
EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0804- ●
52 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0804- ●
52 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0804- ●
52 PIPE; BRK
HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98036-162-0 01 1 0804- ●
52 PIPE; BRK
(F) 		8-98036-162-0 01 1 0804- ● ●
52 PIPE; BRK
(A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0804- ● ●
52 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0804- ●
52 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98057-265-0 01 1 0804- ●
52 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-98057-268-0 01 1 0804- ●
52 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONTLSPV<6PH> (C) 2WAY TO REAR 		8-98057-262-0 01 1 0804- ●
52 PIPE; BRK
WHEEL BASE 3800MM(38W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98057-266-0 01 1 0804- ●
52 PIPE; BRK
WHEEL BASE 3800MM(38W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-98057-269-0 01 1 0804- ●
52 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONTLSPV<6PH> (C) 2WAY TO REAR 		8-98057-263-0 01 1 0804- ●
52 PIPE; BRK
WHEEL BASE 4100MM(41W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98057-267-0 01 1 0804- ●
52 PIPE; BRK
WHEEL BASE 4100MM(41W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-98057-270-0 01 1 0804- ●
52 PIPE; BRK
WHEEL BASE 4100MM(41W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONTLSPV<6PH> (C) 2WAY TO REAR 		8-98057-264-0 01 1 0804- ●
122 PIPE ASM; BRK,2 WAY
HYDRO BRAKE BOOSTER(7QQ) 		8-98041-325-3 01 1 0804-0909 ●
122 PIPE ASM; BRK,2 WAY 8-98041-325-3 01 1 0804-0909 ●
122 PIPE ASM; BRK,2 WAY
HYDRO BRAKE BOOSTER(7QQ) L=1839 		8-98136-573-0 01 1 0910- ●
122 PIPE ASM; BRK,2 WAY
L=1839 		8-98136-573-0 01 1 0910- ●
122 PIPE ASM; BRK,2 WAY 8-98069-783-3 01 1 0804-0909 ●
122 PIPE ASM; BRK,2 WAY
L=1958 		8-98136-574-0 01 1 0910- ●

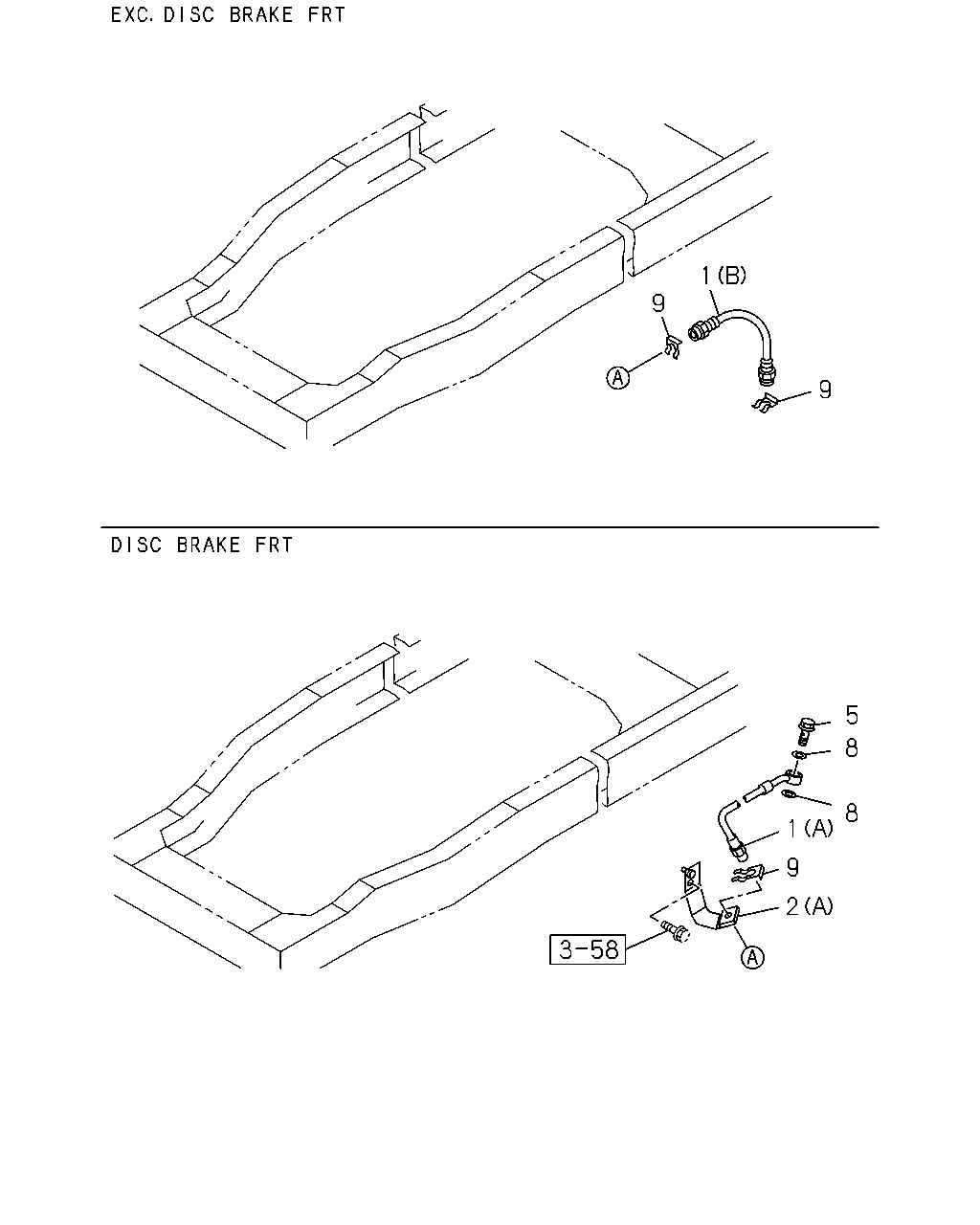

çizim 157420
1 9 9 5 8 8 1 9 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,FRT BRK
DISC BRAKE FRT<J52> (A) 		8-97365-481-1 02 1 0804- ●
1 HOSE; FLEX,FRT BRK
EXC. DISC BRAKE FRT<J52> (B) 		8-97039-543-1 02 1 0804- ● ●
1 HOSE; FLEX,FRT BRK
(B) 		8-97039-543-1 02 1 0804- ●
1 HOSE; FLEX,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (A) 		8-97365-482-1 02 1 0804- ●
2 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98042-478-1 02 1 0804-0906 ●
2 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98042-478-1 02 1 0804-0906 ● ●
2 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98042-478-1 01 1 0907-0907 ●
2 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98042-478-1 01 1 0907-0907 ●
2 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98042-478-1 01 1 0907-0907 ● ●
2 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98042-478-1 01 1 0907-0907 ● ●
2 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98042-478-1 01 1 0908-0909 ●
2 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98042-478-1 01 1 0908-0909 ● ●
2 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98136-577-0 01 1 0908-0909 ●
2 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98136-577-0 01 1 0908-0909 ● ●
2 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98136-577-0 01 1 0910- ●
2 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98136-577-0 01 1 0910- ●
2 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98136-577-0 01 1 0910- ● ●
2 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98136-577-0 01 1 0910- ● ●
2 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> (A) 		8-97365-778-3 01 1 0804- ●
2 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> (A) 		8-97365-776-3 01 1 0804- ●
2 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> (A) 		8-97365-779-3 01 1 0804- ●
2 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> (A) 		8-97365-777-3 01 1 0804- ●
5 BOLT; EYE,FLEX HOSE,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> M10X22 		8-98014-005-0 02 1 0804- ● ●
8 GASKET; FLEX HOSE,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> ID=10.2 OD=16.0 		9-09571-410-0 04 1 0804- ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0804- ● ● ●
9 CLIP; FLEX HOSE,FRT BRK
EXC. DISC BRAKE FRT<J52> 		8-97360-054-0 02 1 0804- ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0804- ●
çizim 157423
52 52 52
BalonParca AdiParca NoAdetTipApplied Date A B C
52 PIPE; BRK
DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 0804- ●
52 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 0804- ●
52 PIPE; BRK
DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 0804- ●
52 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 0804- ●
52 PIPE; BRK
EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0804- ●
52 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0804- ●
52 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0804- ●
52 PIPE; BRK
EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0804- ●
52 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0804- ●
52 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0804- ●
52 PIPE; BRK
HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98036-162-0 01 1 0804- ●
52 PIPE; BRK
(F) 		8-98036-162-0 01 1 0804- ● ●
52 PIPE; BRK
(A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0804- ● ●
52 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0804- ●
52 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98057-265-0 01 1 0804- ●
52 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-98057-268-0 01 1 0804- ●
52 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONTLSPV<6PH> (C) 2WAY TO REAR 		8-98057-262-0 01 1 0804- ●
52 PIPE; BRK
WHEEL BASE 3800MM(38W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98057-266-0 01 1 0804- ●
52 PIPE; BRK
WHEEL BASE 3800MM(38W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-98057-269-0 01 1 0804- ●
52 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONTLSPV<6PH> (C) 2WAY TO REAR 		8-98057-263-0 01 1 0804- ●
52 PIPE; BRK
WHEEL BASE 4100MM(41W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98057-267-0 01 1 0804- ●
52 PIPE; BRK
WHEEL BASE 4100MM(41W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-98057-270-0 01 1 0804- ●
52 PIPE; BRK
WHEEL BASE 4100MM(41W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONTLSPV<6PH> (C) 2WAY TO REAR 		8-98057-264-0 01 1 0804- ●
çizim 157782
51 51
BalonParca AdiParca NoAdetTipApplied Date A B C
51 PIPE; BRK
WHEEL BASE 2700MM(27W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-776-1 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 2700MM(27W) (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-545-0 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 3300MM(33W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 3300MM(33W) (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 3800MM(38W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 0804- ●
51 PIPE; BRK
(C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 3800MM(38W) (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 0804- ●
51 PIPE; BRK
(D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 4100MM(41W) (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-057-0 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-057-0 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 4100MM(41W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98041-058-0 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98041-058-0 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 4400MM(44W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-779-1 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 4400MM(44W) (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98047-143-0 01 1 0804- ●
51 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 4/6WAY TO 2WAY,FRONT 		8-98057-260-0 01 1 0804- ●
51 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0804- ●
51 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0804- ●

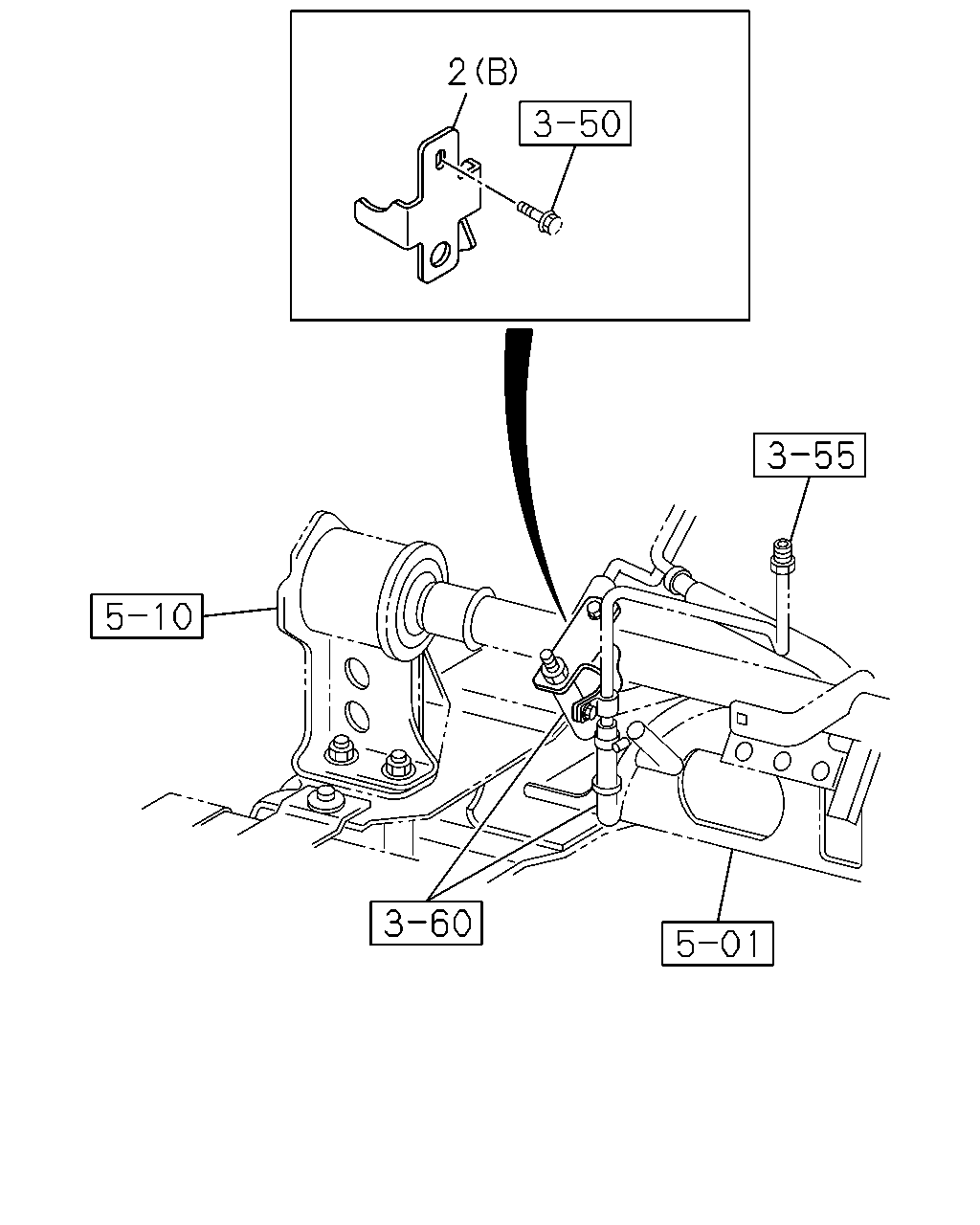

çizim 157789
2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98042-478-1 02 1 0804-0906 ●
2 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98042-478-1 02 1 0804-0906 ● ●
2 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98042-478-1 01 1 0907-0907 ●
2 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98042-478-1 01 1 0907-0907 ●
2 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98042-478-1 01 1 0907-0907 ● ●
2 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98042-478-1 01 1 0907-0907 ● ●
2 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98042-478-1 01 1 0908-0909 ●
2 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98042-478-1 01 1 0908-0909 ● ●
2 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98136-577-0 01 1 0908-0909 ●
2 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98136-577-0 01 1 0908-0909 ● ●
2 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98136-577-0 01 1 0910- ●
2 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98136-577-0 01 1 0910- ●
2 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98136-577-0 01 1 0910- ● ●
2 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98136-577-0 01 1 0910- ● ●
2 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> (A) 		8-97365-778-3 01 1 0804- ●
2 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> (A) 		8-97365-776-3 01 1 0804- ●
2 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> (A) 		8-97365-779-3 01 1 0804- ●
2 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> (A) 		8-97365-777-3 01 1 0804- ●

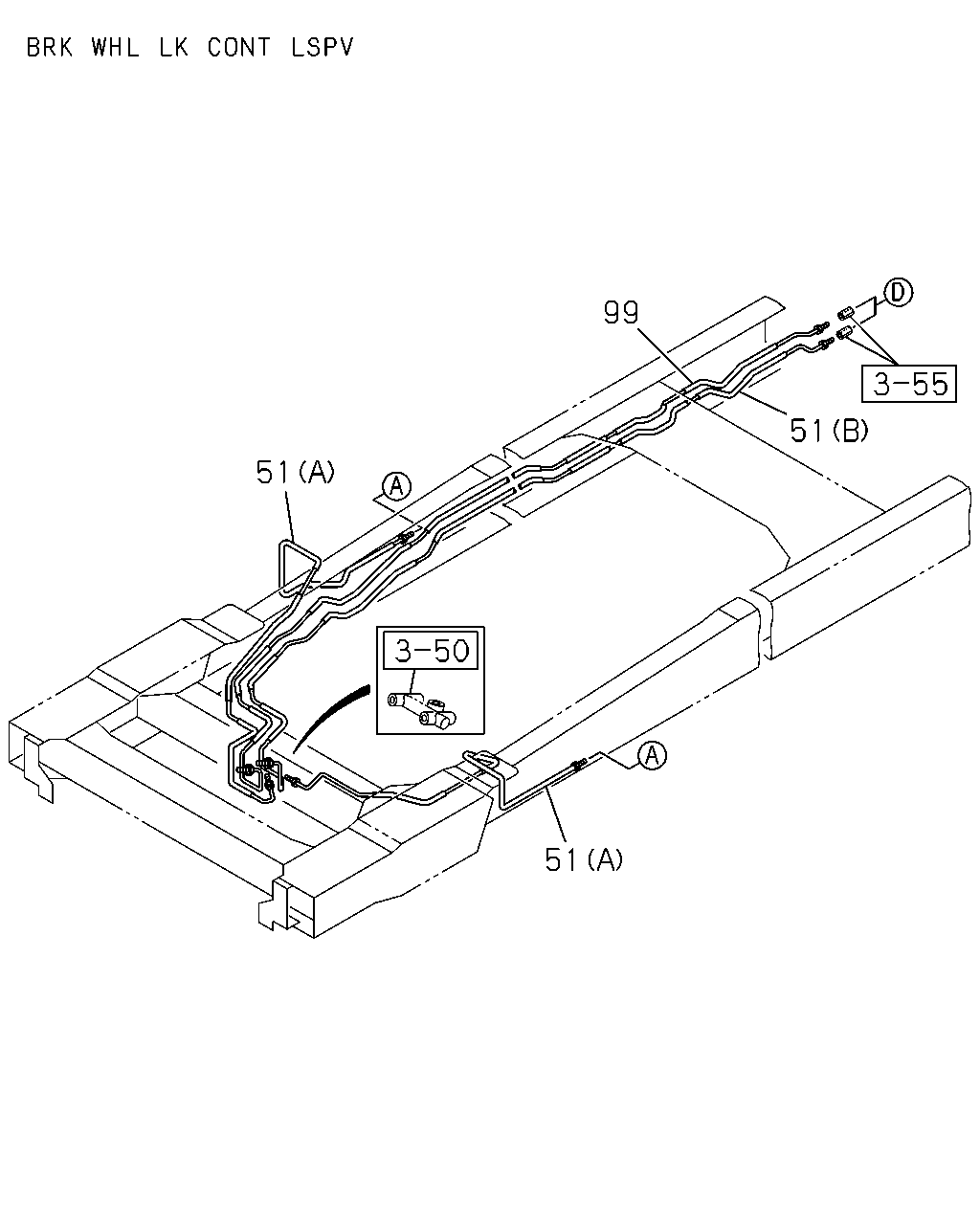

çizim 157791
99 51 51 51
BalonParca AdiParca NoAdetTipApplied Date A B C
51 PIPE; BRK
WHEEL BASE 2700MM(27W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-776-1 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 2700MM(27W) (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-545-0 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 3300MM(33W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 3300MM(33W) (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 3800MM(38W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 0804- ●
51 PIPE; BRK
(C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 3800MM(38W) (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 0804- ●
51 PIPE; BRK
(D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 4100MM(41W) (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-057-0 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-057-0 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 4100MM(41W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98041-058-0 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98041-058-0 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 4400MM(44W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-779-1 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 4400MM(44W) (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98047-143-0 01 1 0804- ●
51 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 4/6WAY TO 2WAY,FRONT 		8-98057-260-0 01 1 0804- ●
51 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0804- ●
51 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0804- ●
99 PIPE ASM; 4/5/6 WAY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 0804- ●

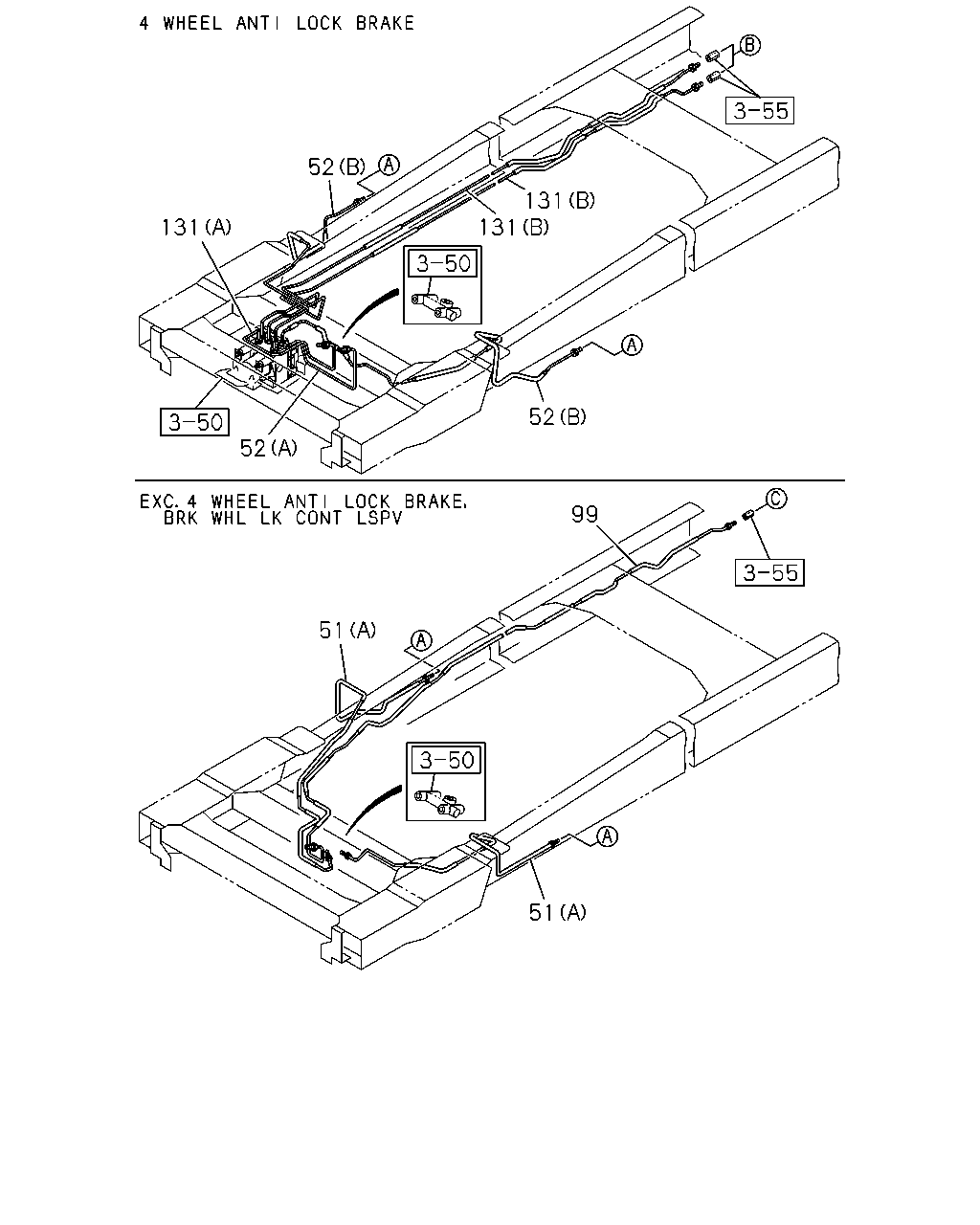

çizim 157795
52 131 131 131 52 52 99 51 51
BalonParca AdiParca NoAdetTipApplied Date A B C
51 PIPE; BRK
WHEEL BASE 2700MM(27W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-776-1 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 2700MM(27W) (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-545-0 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 3300MM(33W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 3300MM(33W) (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 3800MM(38W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 0804- ●
51 PIPE; BRK
(C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 3800MM(38W) (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 0804- ●
51 PIPE; BRK
(D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 4100MM(41W) (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-057-0 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-057-0 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 4100MM(41W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98041-058-0 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98041-058-0 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 4400MM(44W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-779-1 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 4400MM(44W) (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98047-143-0 01 1 0804- ●
51 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 4/6WAY TO 2WAY,FRONT 		8-98057-260-0 01 1 0804- ●
51 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0804- ●
51 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0804- ●
52 PIPE; BRK
DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 0804- ●
52 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 0804- ●
52 PIPE; BRK
DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 0804- ●
52 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 0804- ●
52 PIPE; BRK
EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0804- ●
52 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0804- ●
52 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0804- ●
52 PIPE; BRK
EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0804- ●
52 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0804- ●
52 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0804- ●
52 PIPE; BRK
HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98036-162-0 01 1 0804- ●
52 PIPE; BRK
(F) 		8-98036-162-0 01 1 0804- ● ●
52 PIPE; BRK
(A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0804- ● ●
52 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0804- ●
52 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98057-265-0 01 1 0804- ●
52 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-98057-268-0 01 1 0804- ●
52 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONTLSPV<6PH> (C) 2WAY TO REAR 		8-98057-262-0 01 1 0804- ●
52 PIPE; BRK
WHEEL BASE 3800MM(38W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98057-266-0 01 1 0804- ●
52 PIPE; BRK
WHEEL BASE 3800MM(38W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-98057-269-0 01 1 0804- ●
52 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONTLSPV<6PH> (C) 2WAY TO REAR 		8-98057-263-0 01 1 0804- ●
52 PIPE; BRK
WHEEL BASE 4100MM(41W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98057-267-0 01 1 0804- ●
52 PIPE; BRK
WHEEL BASE 4100MM(41W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-98057-270-0 01 1 0804- ●
52 PIPE; BRK
WHEEL BASE 4100MM(41W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONTLSPV<6PH> (C) 2WAY TO REAR 		8-98057-264-0 01 1 0804- ●
99 PIPE ASM; 4/5/6 WAY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 0804- ●
131 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(A) 4WAY TO HU,REAR 		8-97389-372-2 01 1 0804- ● ●
131 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,REAR 		8-97389-372-2 01 1 0804- ●
131 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98033-767-1 01 1 0804- ● ●
131 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98033-767-1 01 1 0804- ●
131 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98033-768-1 01 1 0804- ● ●
131 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98033-768-1 01 1 0804- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
