Sayfa 3-50 - Isuzu EPC

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#50862) — 234 parça

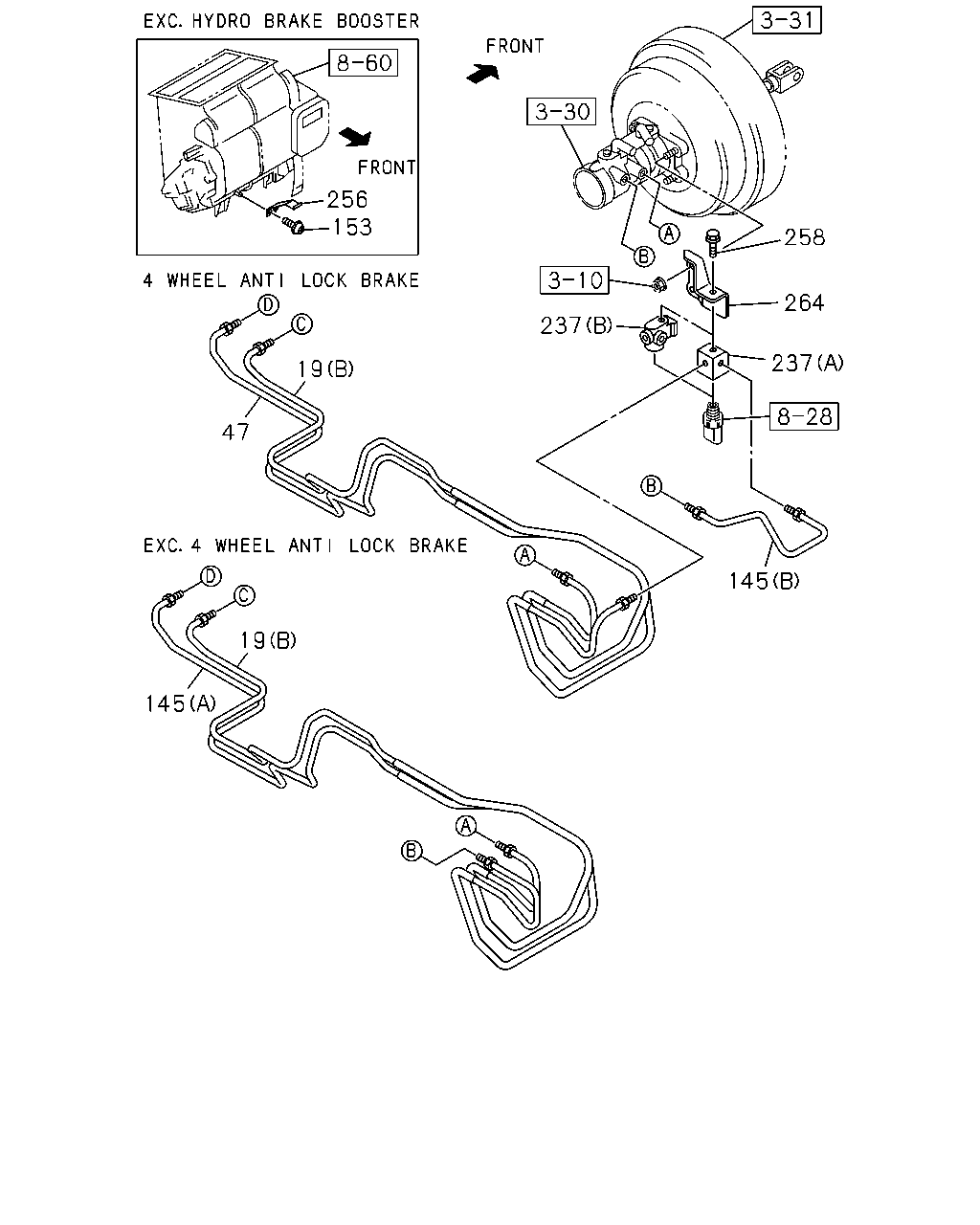

256 153 258 264 237 237 19 47 145 19 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (C)	8-98043-501-2	02	1	0804-	●
19	PIPE; BRK,M/CYL TO UNION (C)	8-98043-501-2	02	1	0804-		●	●
19	PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (D)	8-98070-478-1	01	1	0804-0812	●
19	PIPE; BRK,M/CYL TO UNION (D)	8-98070-478-1	01	1	0804-0812		●	●
19	PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (E)	8-98098-682-1	01	1	0901-	●
19	PIPE; BRK,M/CYL TO UNION (E)	8-98098-682-1	01	1	0901-		●	●
19	PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-97389-337-3	01	1	0804-	●
19	PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-366-1	02	1	0804-	●
47	PIPE; OIL,FRT BRK HYDRO BRAKE BOOSTER(7QQ)	8-98070-480-2	01	1	0804-0812	●
47	PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98070-480-2	01	1	0804-0812		●
47	PIPE; OIL,FRT BRK	8-98070-480-2	01	1	0804-0812			●
47	PIPE; OIL,FRT BRK HYDRO BRAKE BOOSTER(7QQ) L=1150	8-98098-681-0	01	1	0901-0906	●
47	PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> L=1150	8-98098-681-0	01	1	0901-0906		●
47	PIPE; OIL,FRT BRK L=1150	8-98098-681-0	01	1	0901-0906			●
47	PIPE; OIL,FRT BRK HYDRO BRAKE BOOSTER(7QQ) L=1148	8-98133-414-0	01	1	0907-	●
47	PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> L=1148	8-98133-414-0	01	1	0907-		●
47	PIPE; OIL,FRT BRK L=1148	8-98133-414-0	01	1	0907-			●
47	PIPE; OIL,FRT BRK EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98005-586-3	01	1	0804-0906	●
47	PIPE; OIL,FRT BRK EXC. HYDRO BRAKE BOOSTER(7QQ) L=1173	8-98133-413-0	01	1	0907-	●
145	PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) (C)	8-98075-345-0	01	1	0804-0906	●
145	PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98075-345-0	01	1	0804-0906		●
145	PIPE; BRK,METERING VLV TO UNION (C)	8-98075-345-0	01	1	0804-0906			●
145	PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) (C) L=268	8-98133-409-0	01	1	0907-	●
145	PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (C) L=268	8-98133-409-0	01	1	0907-		●
145	PIPE; BRK,METERING VLV TO UNION (C) L=268	8-98133-409-0	01	1	0907-			●
145	PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98042-422-0	01	1	0804-0906	●
145	PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B) L=201	8-98133-407-0	01	1	0907-	●
145	PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98070-482-2	01	1	0804-0812		●
145	PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98098-680-1	01	1	0901-		●
153	SCREW; BRKT FIX T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	0804-0808	●	●	●
153	SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	0809-1001	●	●	●
153	SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1002-	●	●	●
237	CONNECTOR; MODULATOR (A)	8-98007-865-3	01	1	0804-0906	●		●
237	CONNECTOR; MODULATOR 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98007-865-3	01	1	0804-0906		●
237	CONNECTOR; MODULATOR (B)	8-98111-748-1	01	1	0907-	●		●
237	CONNECTOR; MODULATOR 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98111-748-1	01	1	0907-		●
256	BRACKET; BRK PIPE	8-98034-784-1	01	1	0804-0808	●	●	●
256	BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98034-784-1	01	1	0809-1001	●	●	●
256	BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98034-784-1	01	1	1002-1005	●	●	●
256	BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1006-	●	●	●
258	BOLT; PIPE,BRK M8X12 FLANGE	0-28050-812-0	01	1	0804-	●		●
258	BOLT; PIPE,BRK 4 WHEEL ANTI LOCK BRAKE<JE5> M8X12 FLANGE	0-28050-812-0	01	1	0804-		●
264	BRACKET; SENSOR,PRESSURE	8-97387-683-2	01	1	0804-	●		●
264	BRACKET; SENSOR,PRESSURE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97387-683-2	01	1	0804-		●

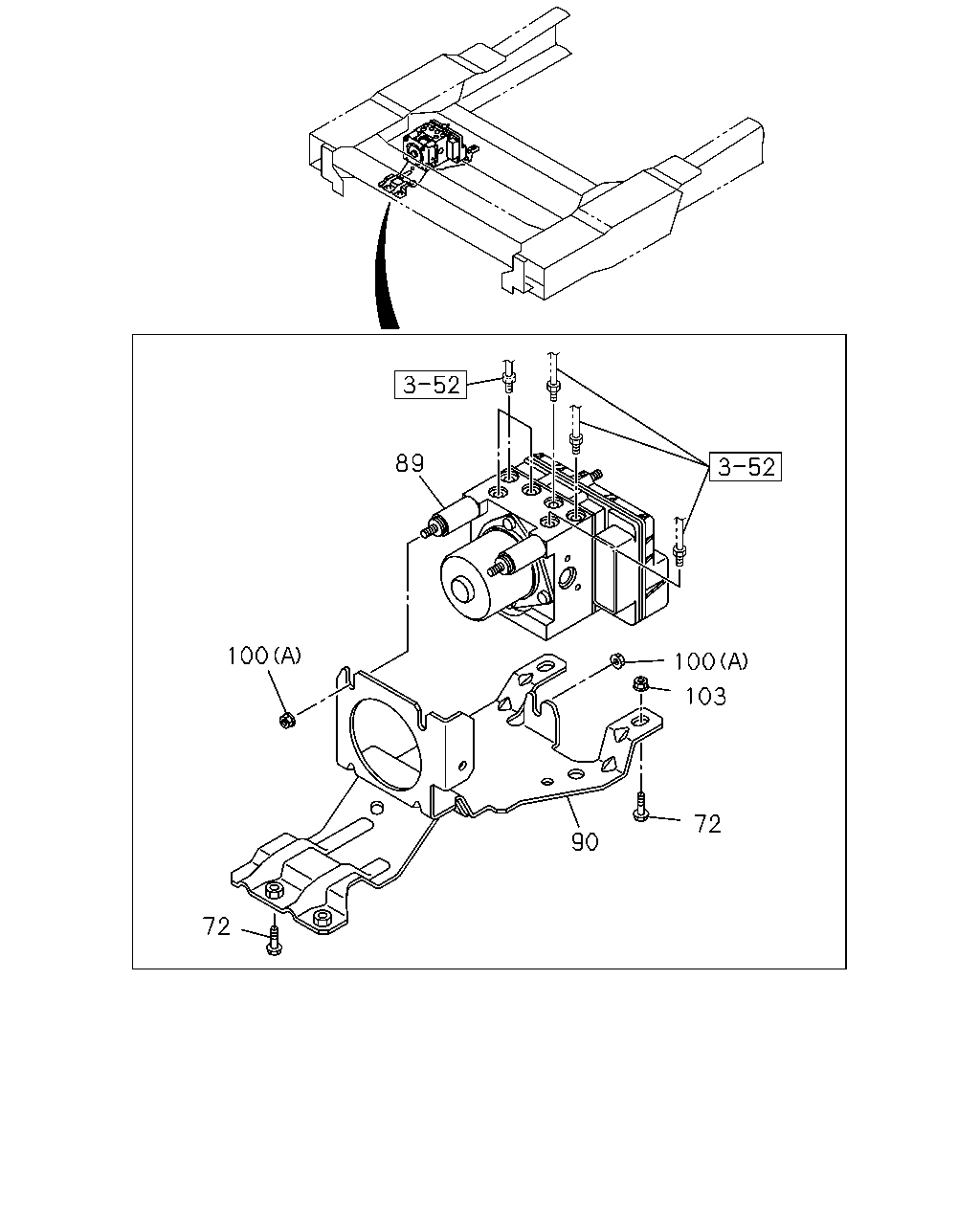

89 100 100 103 72 90 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
72	BOLT; BRKT TO BODY M8X25 FLANGE SOU	0-28650-825-0	04	1	0804-	●		●
72	BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> M8X25 FLANGE SOU	0-28650-825-0	04	1	0804-		●
89	HYDRAULIC UNIT; ANTI LOCK BRK DISC BRAKE FRT<J52> HYDRO BRAKE BOOSTER(7QQ)	8-98081-563-1	01	1	0804-1006	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52>	8-98081-563-1	01	1	0804-1006		●
89	HYDRAULIC UNIT; ANTI LOCK BRK DISC BRAKE FRT<J52> HYDRO BRAKE BOOSTER(7QQ)	8-98158-008-1	01	1	1007-	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52>	8-98158-008-1	01	1	1007-		●
89	HYDRAULIC UNIT; ANTI LOCK BRK DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98081-562-1	01	1	0804-1006	●
89	HYDRAULIC UNIT; ANTI LOCK BRK DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98158-007-1	01	1	1007-	●
89	HYDRAULIC UNIT; ANTI LOCK BRK EXC. DISC BRAKE FRT<J52>	8-98081-561-1	01	1	0804-1006	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>	8-98081-561-1	01	1	0804-1006		●
89	HYDRAULIC UNIT; ANTI LOCK BRK	8-98081-561-1	01	1	0804-1006			●
89	HYDRAULIC UNIT; ANTI LOCK BRK EXC. DISC BRAKE FRT<J52>	8-98158-006-1	01	1	1007-	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>	8-98158-006-1	01	1	1007-		●
89	HYDRAULIC UNIT; ANTI LOCK BRK	8-98158-006-1	01	1	1007-			●
90	BRACKET; HYDRAULIC UNIT,ABS	8-97385-320-0	01	1	0804-	●		●
90	BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97385-320-0	01	1	0804-		●
100	NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER(7QQ) (B)	8-97358-958-0	01	1	0804-	●
100	NUT; HYDRAULIC UNIT (B)	8-97358-958-0	01	1	0804-		●	●
100	NUT; HYDRAULIC UNIT (A) M8 FLANGE SOU	0-91180-108-0	03	1	0804-	●		●
100	NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M8 FLANGE SOU	0-91180-108-0	03	1	0804-		●
103	NUT; HYDRAULIC UNIT BRKT M8 FLANGE SOU	0-91180-108-0	02	1	0804-	●		●
103	NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> M8 FLANGE SOU	0-91180-108-0	02	1	0804-		●

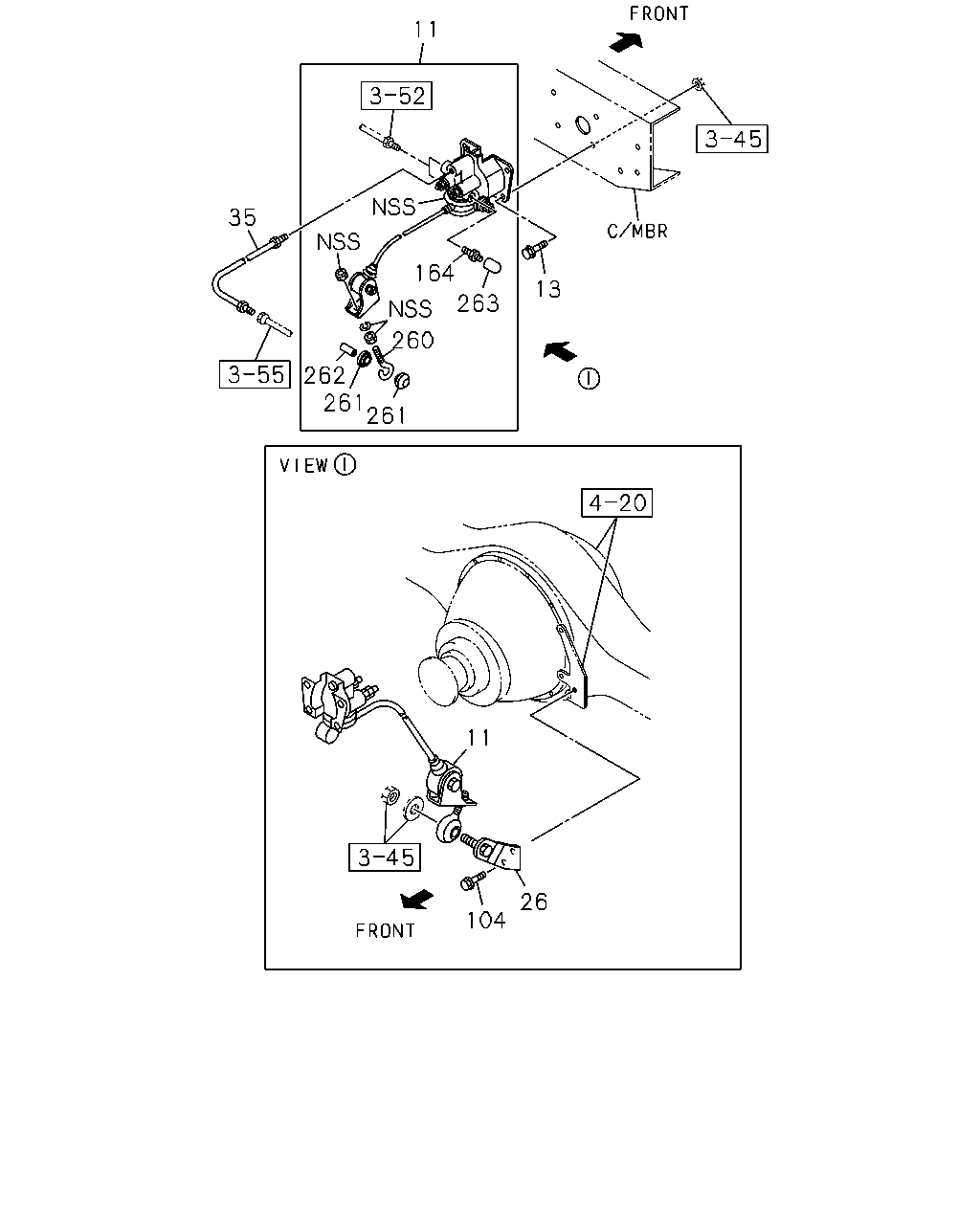

11 35 164 13 263 260 262 261 261 11 26 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
11	VALVE; BRK CONT BRK WHL LK CONT LSPV<6PH>	8-94427-224-2	01	1	0804-	●
13	BOLT; VLV TO BRKT BRK WHL LK CONT LSPV<6PH> M8X16 FLANGE SOU	0-28050-816-0	04	1	0804-	●
26	BRACKET; PROPORTIONING VLV BRK WHL LK CONT LSPV<6PH>	8-98029-821-0	01	1	0804-	●
35	PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98057-271-0	01	1	0804-	●
104	BOLT; BRKT TO BODY BRK WHL LK CONT LSPV<6PH> M8X16 FLANGE SOU	0-28050-816-0	02	1	0804-	●
164	SCREW; BLEEDER BRK WHL LK CONT LSPV<6PH>	8-97093-663-0	01	1	0804-	●
260	SHACKLE; LSPV BRK WHL LK CONT LSPV<6PH>	8-97173-366-0	01	1	0804-	●
261	BUSHING; LSPV BRK WHL LK CONT LSPV<6PH>	8-97145-631-0	02	1	0804-	●
262	COLLAR; LSPV BRK WHL LK CONT LSPV<6PH>	8-97139-186-0	01	1	0804-	●
263	CAP; BLEEDER BRK WHL LK CONT LSPV<6PH>	8-97093-662-0	01	1	0804-	●

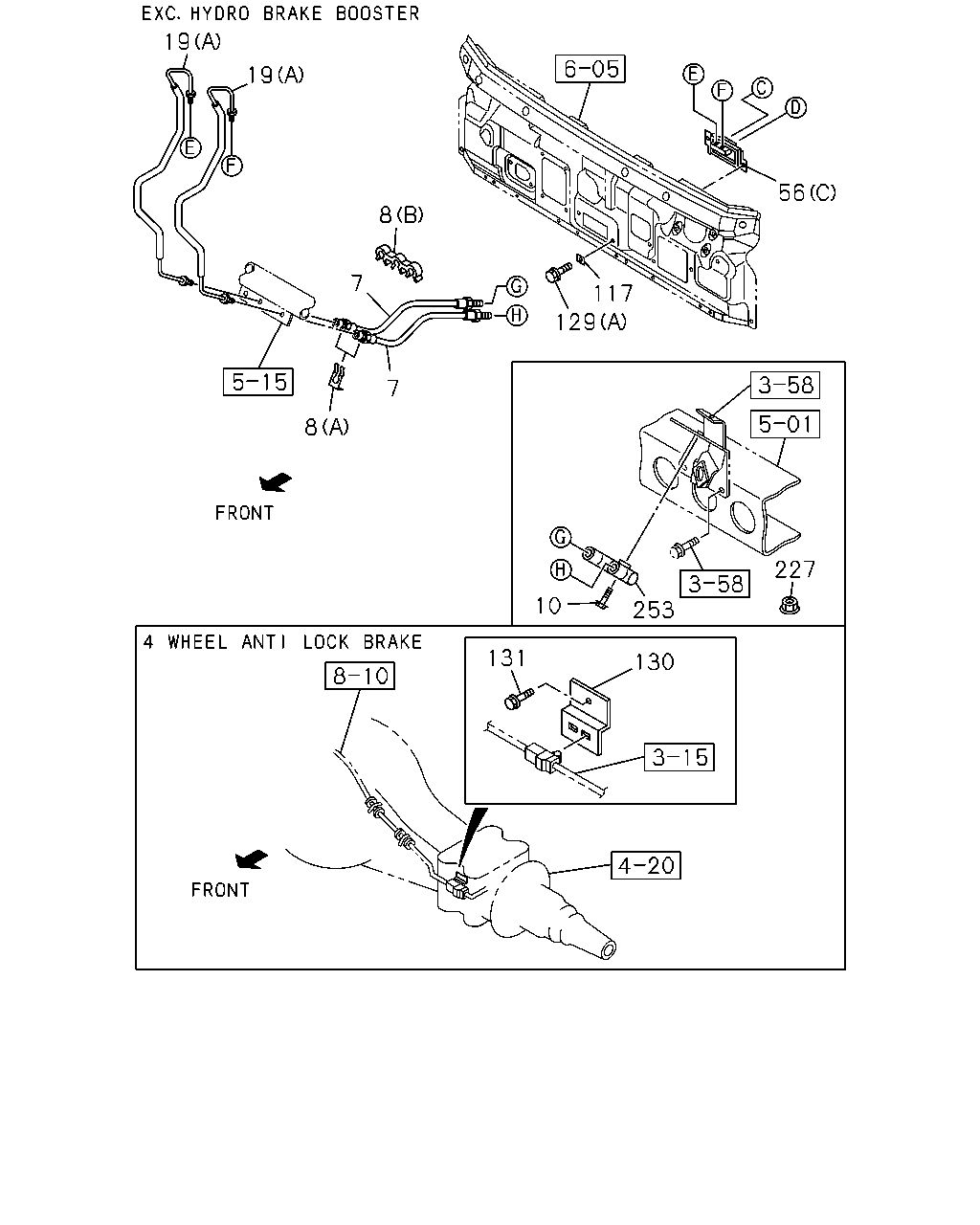

19 19 56 8 7 117 129 7 8 227 10 253 131 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	HOSE; FLEX,PIPE TO 5 WAY JOINT	8-98029-865-0	02	1	0804-	●	●	●
8	CLIP; FLEX HOSE,CABLE SIDE (B)	8-97076-471-0	01	1	0804-	●	●	●
8	CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	0804-	●	●	●
10	BOLT; JOINT M6X40 FLANGE	0-28650-640-0	01	1	0804-	●	●	●
19	PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (C)	8-98043-501-2	02	1	0804-	●
19	PIPE; BRK,M/CYL TO UNION (C)	8-98043-501-2	02	1	0804-		●	●
19	PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (D)	8-98070-478-1	01	1	0804-0812	●
19	PIPE; BRK,M/CYL TO UNION (D)	8-98070-478-1	01	1	0804-0812		●	●
19	PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (E)	8-98098-682-1	01	1	0901-	●
19	PIPE; BRK,M/CYL TO UNION (E)	8-98098-682-1	01	1	0901-		●	●
19	PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-97389-337-3	01	1	0804-	●
19	PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-366-1	02	1	0804-	●
56	BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98077-185-2	01	1	0804-0812	●
56	BRACKET; UNION,BRK (A)	8-98077-185-2	01	1	0804-0812		●	●
56	BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98098-679-0	01	1	0901-	●
56	BRACKET; UNION,BRK (A)	8-98098-679-0	01	1	0901-		●	●
56	BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98056-776-1	01	1	0804-1005	●
56	BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98056-776-1	01	1	0804-1005		●	●
56	BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98154-267-1	01	1	1006-	●
56	BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98154-267-1	01	1	1006-		●	●
56	BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-939-1	01	1	0804-1005	●
56	BRACKET; UNION,BRK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-939-1	01	1	0804-1005		●	●
56	BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98154-266-1	01	1	1006-	●
56	BRACKET; UNION,BRK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98154-266-1	01	1	1006-		●	●
56	BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ),TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97389-281-1	01	1	0804-1005	●
56	BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ),TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98154-264-1	01	1	1006-	●
56	BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97389-282-1	01	1	0804-1005	●
56	BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98154-265-1	01	1	1006-	●
117	SEAL; UNION,BRK PIPE JOINT SOU	8-97856-616-0	02	1	0804-	●	●	●
129	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) (B) M6X12 FLANGE SOU	0-28050-612-0	01	1	0804-	●
129	BOLT; BRKT (B) M6X12 FLANGE SOU	0-28050-612-0	01	1	0804-		●	●
129	BOLT; BRKT (A) M6X16 FLANGE SOU	0-28650-616-0	01	1	0804-0809	●	●	●
129	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0804-	●	●	●
130	BRACKET; SPEED SENSOR	8-97080-060-2	02	1	0804-	●		●
130	BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97080-060-2	02	1	0804-		●
131	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	0804-	●		●
131	BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> M8X12 FLANGE	0-28050-812-0	02	1	0804-		●
227	NUT; JOINT M8 FLANGE SOU	0-91180-108-0	02	1	0804-	●	●	●
253	JOINT	8-97038-940-1	01	1	0804-	●		●
253	JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97038-940-1	01	1	0804-		●
253	JOINT BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97120-033-2	01	1	0804-		●
253	JOINT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONTLSPV<6PH>	5-47456-009-1	01	1	0804-		●

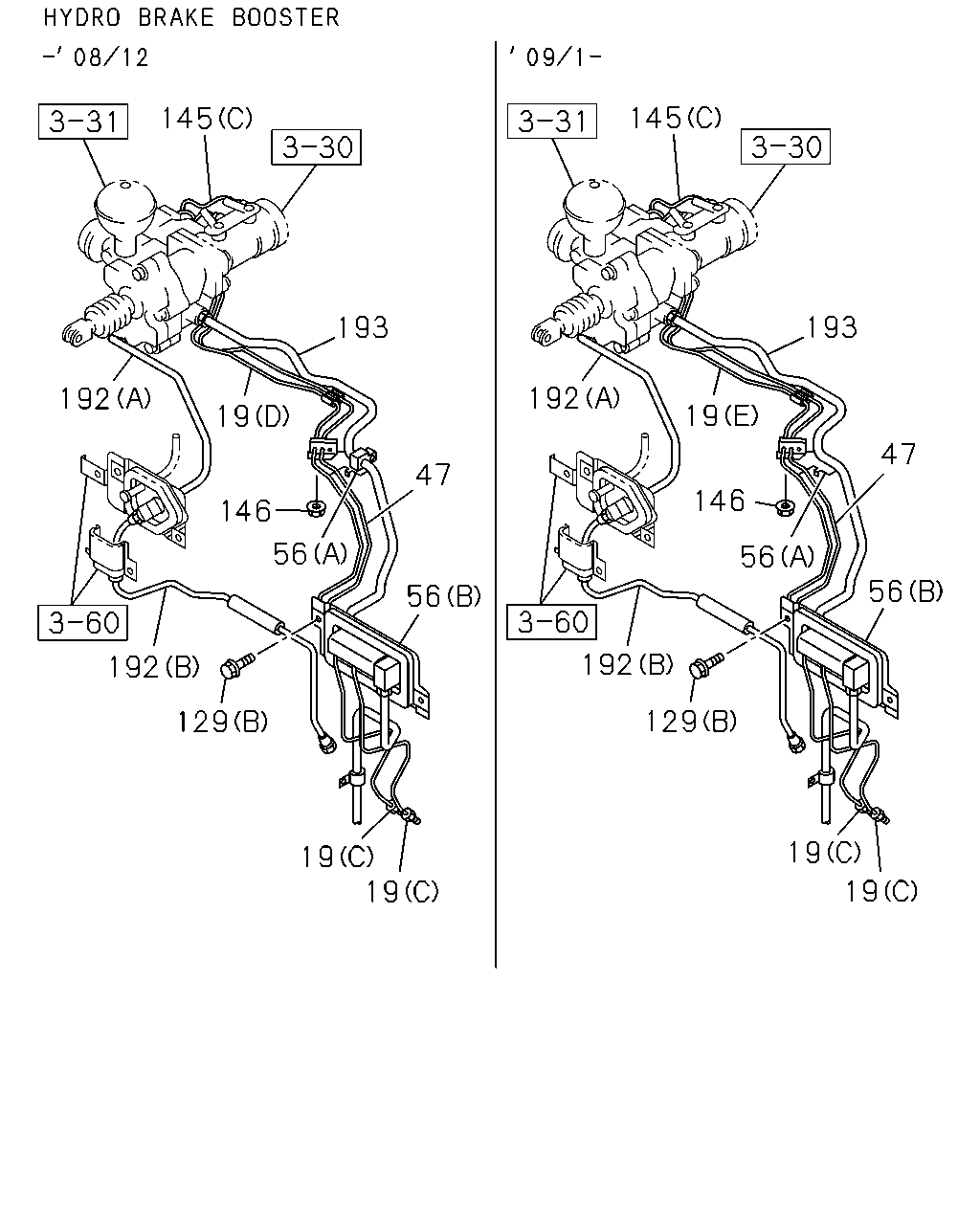

145 145 193 193 192 192 19 19 47 47 146 146 56 56 56 56 192 192 129 129 19 19 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (C)	8-98043-501-2	02	1	0804-	●
19	PIPE; BRK,M/CYL TO UNION (C)	8-98043-501-2	02	1	0804-		●	●
19	PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (D)	8-98070-478-1	01	1	0804-0812	●
19	PIPE; BRK,M/CYL TO UNION (D)	8-98070-478-1	01	1	0804-0812		●	●
19	PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (E)	8-98098-682-1	01	1	0901-	●
19	PIPE; BRK,M/CYL TO UNION (E)	8-98098-682-1	01	1	0901-		●	●
19	PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-97389-337-3	01	1	0804-	●
19	PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-366-1	02	1	0804-	●
47	PIPE; OIL,FRT BRK HYDRO BRAKE BOOSTER(7QQ)	8-98070-480-2	01	1	0804-0812	●
47	PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98070-480-2	01	1	0804-0812		●
47	PIPE; OIL,FRT BRK	8-98070-480-2	01	1	0804-0812			●
47	PIPE; OIL,FRT BRK HYDRO BRAKE BOOSTER(7QQ) L=1150	8-98098-681-0	01	1	0901-0906	●
47	PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> L=1150	8-98098-681-0	01	1	0901-0906		●
47	PIPE; OIL,FRT BRK L=1150	8-98098-681-0	01	1	0901-0906			●
47	PIPE; OIL,FRT BRK HYDRO BRAKE BOOSTER(7QQ) L=1148	8-98133-414-0	01	1	0907-	●
47	PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> L=1148	8-98133-414-0	01	1	0907-		●
47	PIPE; OIL,FRT BRK L=1148	8-98133-414-0	01	1	0907-			●
47	PIPE; OIL,FRT BRK EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98005-586-3	01	1	0804-0906	●
47	PIPE; OIL,FRT BRK EXC. HYDRO BRAKE BOOSTER(7QQ) L=1173	8-98133-413-0	01	1	0907-	●
56	BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98077-185-2	01	1	0804-0812	●
56	BRACKET; UNION,BRK (A)	8-98077-185-2	01	1	0804-0812		●	●
56	BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98098-679-0	01	1	0901-	●
56	BRACKET; UNION,BRK (A)	8-98098-679-0	01	1	0901-		●	●
56	BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98056-776-1	01	1	0804-1005	●
56	BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98056-776-1	01	1	0804-1005		●	●
56	BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98154-267-1	01	1	1006-	●
56	BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98154-267-1	01	1	1006-		●	●
56	BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-939-1	01	1	0804-1005	●
56	BRACKET; UNION,BRK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-939-1	01	1	0804-1005		●	●
56	BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98154-266-1	01	1	1006-	●
56	BRACKET; UNION,BRK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98154-266-1	01	1	1006-		●	●
56	BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ),TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97389-281-1	01	1	0804-1005	●
56	BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ),TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98154-264-1	01	1	1006-	●
56	BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97389-282-1	01	1	0804-1005	●
56	BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98154-265-1	01	1	1006-	●
129	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) (B) M6X12 FLANGE SOU	0-28050-612-0	01	1	0804-	●
129	BOLT; BRKT (B) M6X12 FLANGE SOU	0-28050-612-0	01	1	0804-		●	●
129	BOLT; BRKT (A) M6X16 FLANGE SOU	0-28650-616-0	01	1	0804-0809	●	●	●
129	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0804-	●	●	●
145	PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) (C)	8-98075-345-0	01	1	0804-0906	●
145	PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98075-345-0	01	1	0804-0906		●
145	PIPE; BRK,METERING VLV TO UNION (C)	8-98075-345-0	01	1	0804-0906			●
145	PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) (C) L=268	8-98133-409-0	01	1	0907-	●
145	PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (C) L=268	8-98133-409-0	01	1	0907-		●
145	PIPE; BRK,METERING VLV TO UNION (C) L=268	8-98133-409-0	01	1	0907-			●
145	PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98042-422-0	01	1	0804-0906	●
145	PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B) L=201	8-98133-407-0	01	1	0907-	●
145	PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98070-482-2	01	1	0804-0812		●
145	PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98098-680-1	01	1	0901-		●
146	NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) M8 W/LK WASHER SOU	8-94279-050-0	01	1	0804-	●
146	NUT; BRKT M8 W/LK WASHER SOU	8-94279-050-0	01	1	0804-		●	●
192	PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (B)	8-98042-052-1	01	1	0804-1103	●
192	PIPE; PRESSURE (B)	8-98042-052-1	01	1	0804-1103		●	●
192	PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (B)	8-98193-137-0	01	1	1104-	●
192	PIPE; PRESSURE (B)	8-98193-137-0	01	1	1104-		●	●
192	PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98101-746-0	01	1	0804-0808	●
192	PIPE; PRESSURE (A)	8-98101-746-0	01	1	0804-0808		●	●
192	PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98127-262-0	01	1	0809-	●
192	PIPE; PRESSURE (A)	8-98127-262-0	01	1	0809-		●	●
193	PIPE; RETURN HYDRO BRAKE BOOSTER(7QQ)	8-98067-717-1	01	1	0804-0812	●
193	PIPE; RETURN	8-98067-717-1	01	1	0804-0812		●	●
193	PIPE; RETURN HYDRO BRAKE BOOSTER(7QQ)	8-98098-683-0	01	1	0901-	●
193	PIPE; RETURN	8-98098-683-0	01	1	0901-		●	●

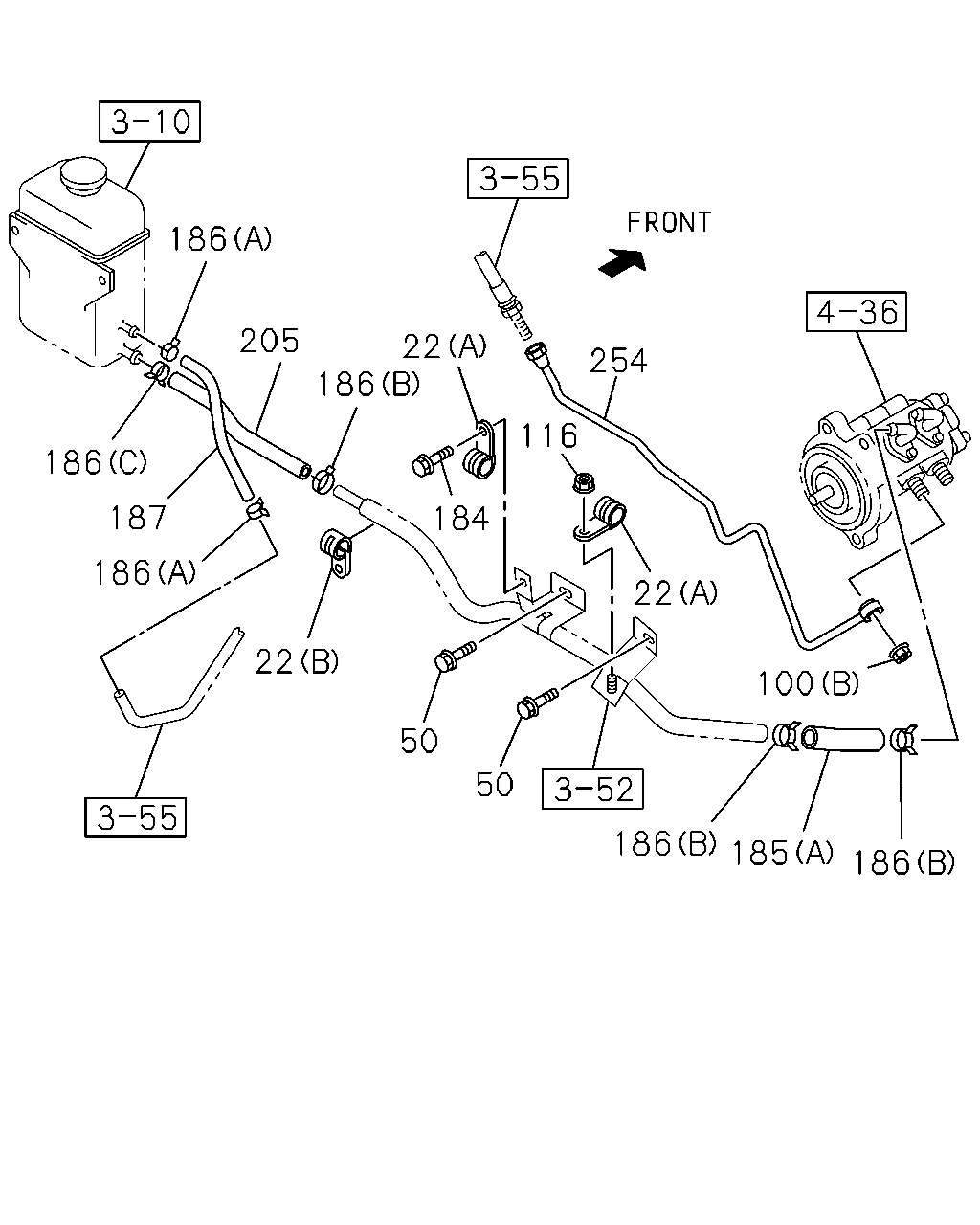

186 205 22 186 254 116 186 187 184 186 22 22 100 50 50 186 185 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	CLIP HYDRO BRAKE BOOSTER(7QQ) (A) ID=10 L=16.5	8-98082-034-0	02	1	0804-	●
22	CLIP (A) ID=10 L=16.5	8-98082-034-0	02	1	0804-		●	●
22	CLIP HYDRO BRAKE BOOSTER(7QQ) (B) ID=17 L=21	8-98082-035-0	01	1	0804-	●
22	CLIP (B) ID=17 L=21	8-98082-035-0	01	1	0804-		●	●
50	BOLT; PIPE HYDRO BRAKE BOOSTER(7QQ) M8X16 FLANGE SOU	0-28050-816-0	03	1	0804-	●
50	BOLT; PIPE M8X16 FLANGE SOU	0-28050-816-0	03	1	0804-		●	●
100	NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER(7QQ) (B)	8-97358-958-0	01	1	0804-	●
100	NUT; HYDRAULIC UNIT (B)	8-97358-958-0	01	1	0804-		●	●
100	NUT; HYDRAULIC UNIT (A) M8 FLANGE SOU	0-91180-108-0	03	1	0804-	●		●
100	NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M8 FLANGE SOU	0-91180-108-0	03	1	0804-		●
116	NUT HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE SOU	0-91180-108-0	02	1	0804-0808	●
116	NUT M8 FLANGE SOU	0-91180-108-0	02	1	0804-0808		●	●
116	NUT HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE SOU	0-91180-108-0	01	1	0809-	●
116	NUT M8 FLANGE SOU	0-91180-108-0	01	1	0809-		●	●
184	BOLT; CLIP HYDRO BRAKE BOOSTER(7QQ) M8X16 FLANGE SOU	0-28050-816-0	01	1	0809-	●
184	BOLT; CLIP M8X16 FLANGE SOU	0-28050-816-0	01	1	0809-		●	●
185	HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	0804-	●
185	HOSE; RUBBER,SUCTION (A)	8-97330-513-0	01	1	0804-		●	●
185	HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98085-720-0	01	1	0804-	●
185	HOSE; RUBBER,SUCTION (B)	8-98085-720-0	01	1	0804-		●	●
186	CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (A) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●
186	CLIP; HOSE (A) ID=16 SOU	8-94238-568-0	02	1	0804-0911		●	●
186	CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (A) ID=16	8-98008-098-0	02	1	0912-	●
186	CLIP; HOSE (A) ID=16	8-98008-098-0	02	1	0912-		●	●
186	CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (B) ID=21	8-94242-034-0	01	1	0804-0911	●
186	CLIP; HOSE (B) ID=21	8-94242-034-0	01	1	0804-0911		●	●
186	CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (B) ID=21	8-98150-355-0	01	1	0912-	●
186	CLIP; HOSE (B) ID=21	8-98150-355-0	01	1	0912-		●	●
186	CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (B) ID=21	8-94242-034-0	02	1	0804-	●
186	CLIP; HOSE (B) ID=21	8-94242-034-0	02	1	0804-		●	●
186	CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (C) ID=22 SOU	8-94382-401-0	01	1	0804-1003	●
186	CLIP; HOSE (C) ID=22 SOU	8-94382-401-0	01	1	0804-1003		●	●
186	CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (C) ID=22	8-97359-141-0	01	1	1004-	●
186	CLIP; HOSE (C) ID=22	8-97359-141-0	01	1	1004-		●	●
187	HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER(7QQ) L=220 SERVICED BY L=3000	0-19809-300-0	01	1	0804-	●
187	HOSE; RUBBER,OIL TANK L=220 SERVICED BY L=3000	0-19809-300-0	01	1	0804-		●
187	HOSE; RUBBER,OIL TANK L=200 SERVICED BY L=3000	0-19809-300-0	01	1	0804-			●
205	HOSE; TANK TO PIPE HYDRO BRAKE BOOSTER(7QQ) SERVICED BY L=300	0-09814-300-0	01	1	0804-	●
205	HOSE; TANK TO PIPE SERVICED BY L=300	0-09814-300-0	01	1	0804-		●
205	HOSE; TANK TO PIPE L=200 SERVICED BY L=300	0-09814-300-0	01	1	0804-			●
254	PIPE; BRAKE,2WAY HYDRO BRAKE BOOSTER(7QQ)	8-98036-161-0	01	1	0804-	●
254	PIPE; BRAKE,2WAY	8-98036-161-0	01	1	0804-		●
254	PIPE; BRAKE,2WAY	8-98053-548-0	01	1	0804-			●

35 11

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	11	VALVE; BRK CONT BRK WHL LK CONT LSPV<6PH>	8-94427-224-2	01	1	0804-		●
	35	PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98057-271-0	01	1	0804-		●

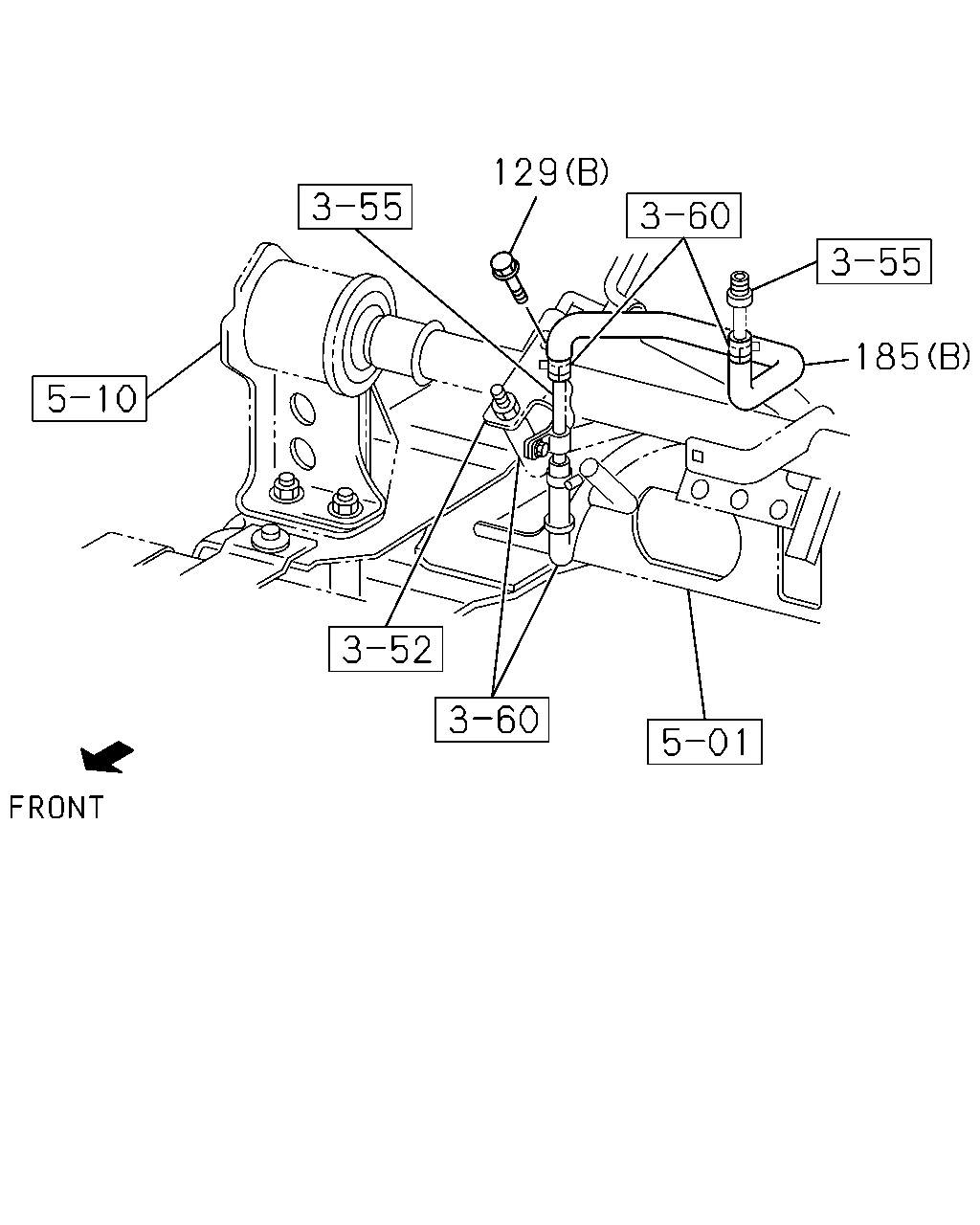

129 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
129	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) (B) M6X12 FLANGE SOU	0-28050-612-0	01	1	0804-	●
129	BOLT; BRKT (B) M6X12 FLANGE SOU	0-28050-612-0	01	1	0804-		●	●
129	BOLT; BRKT (A) M6X16 FLANGE SOU	0-28650-616-0	01	1	0804-0809	●	●	●
129	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0804-	●	●	●
185	HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	0804-	●
185	HOSE; RUBBER,SUCTION (A)	8-97330-513-0	01	1	0804-		●	●
185	HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98085-720-0	01	1	0804-	●
185	HOSE; RUBBER,SUCTION (B)	8-98085-720-0	01	1	0804-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
