2-82B — POWER TAKE OFF; TRANSMISSION REAR (#5086) — 87 parça

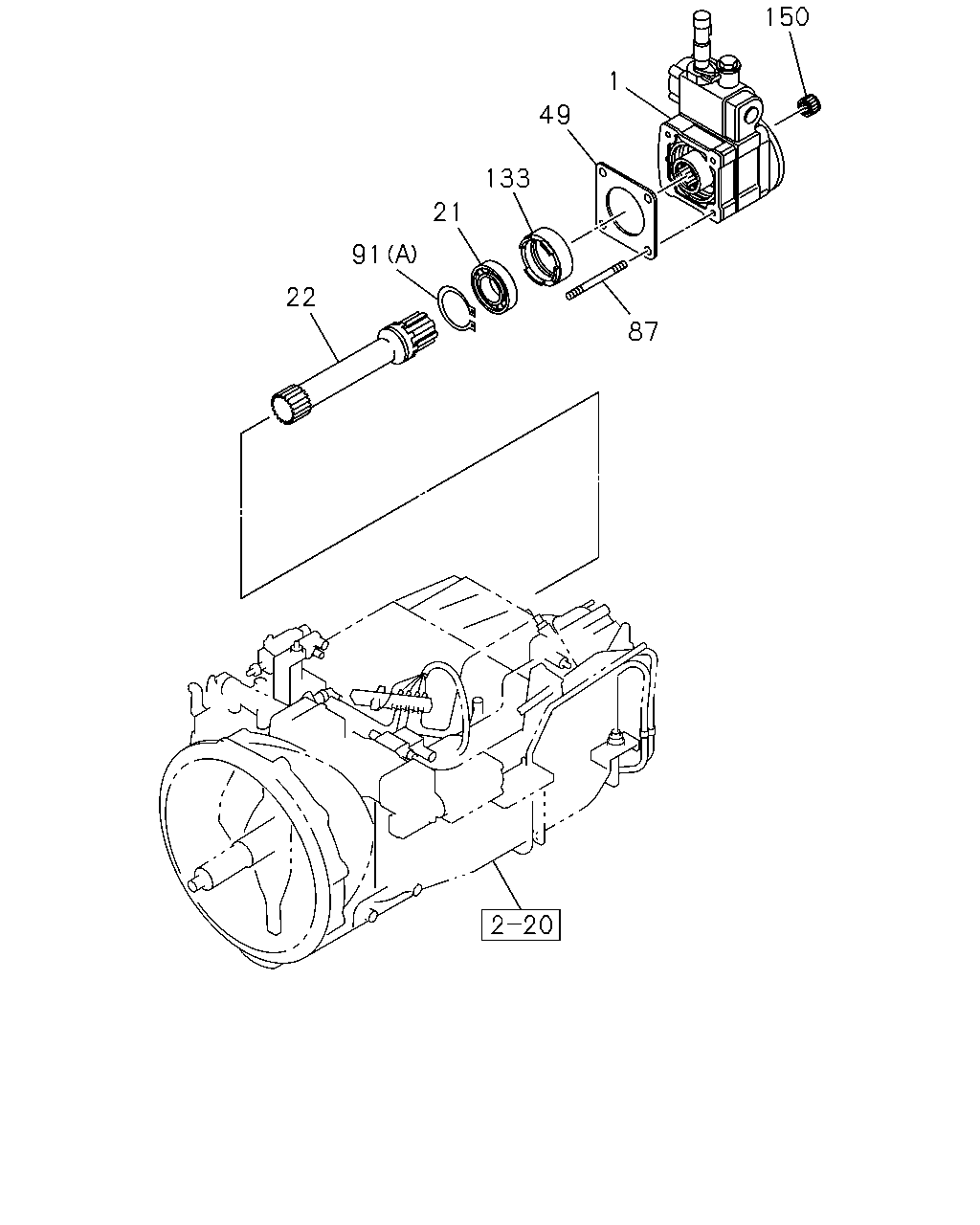

150 1 49 133 21 91 22 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	POWER TAKE OFF ASM; TRANS RR POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38000-377-0	01	1	0006-
21	BEARING; MAIN DRIVE SHAFT,TRANS RR PTO POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38219-033-0	01	1	0006-
21	BEARING; MAIN DRIVE SHAFT,TRANS RR PTO POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-36289-013-0	01	1	9606-9707
21	BEARING; MAIN DRIVE SHAFT,TRANS RR PTO POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38219-033-0	01	1	9708-9905
22	SHAFT; MAIN DRIVE,TRANS RR PTO POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33381-011-0	01	1	0006-
22	SHAFT; MAIN DRIVE,TRANS RR PTO POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33381-011-0	01	1	9606-9905
49	GASKET; PTO GEAR CASE TO TRANS POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33132-054-0	01	1	0006-
49	GASKET; PTO GEAR CASE TO TRANS POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33132-054-0	01	1	9606-9905
87	STUD; GEAR CASE POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38119-034-0	04	1	9606-9905
87	STUD; GEAR CASE POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33119-413-0	04	1	0006-
91	RING; SNAP POWER TAKE OFF-ZF TRANSMISSION<BDM> (A)	1-38219-010-0	01	1	9606-9905
91	RING; SNAP POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-38219-016-0	01	1	9606-9905
91	RING; SNAP POWER TAKE OFF-ZF TRANSMISSION<BDM> (C)	1-38219-017-0	01	1	9606-9905
91	RING; SNAP POWER TAKE OFF-ZF TRANSMISSION<BDM> (A)	1-38219-010-0	01	1	0006-
91	RING; SNAP POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-38219-016-0	01	1	0006-
91	RING; SNAP POWER TAKE OFF-ZF TRANSMISSION<BDM> (C)	1-38219-017-0	01	1	0006-
133	BUSHING; SHAFT POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38219-011-0	01	1	0006-
133	BUSHING; SHAFT POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38219-011-0	01	1	9606-9905
150	BEARING; OUTPUT SHAFT POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38249-018-0	01	1	0006-
150	BEARING; OUTPUT SHAFT POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38249-018-0	01	1	9606-9905

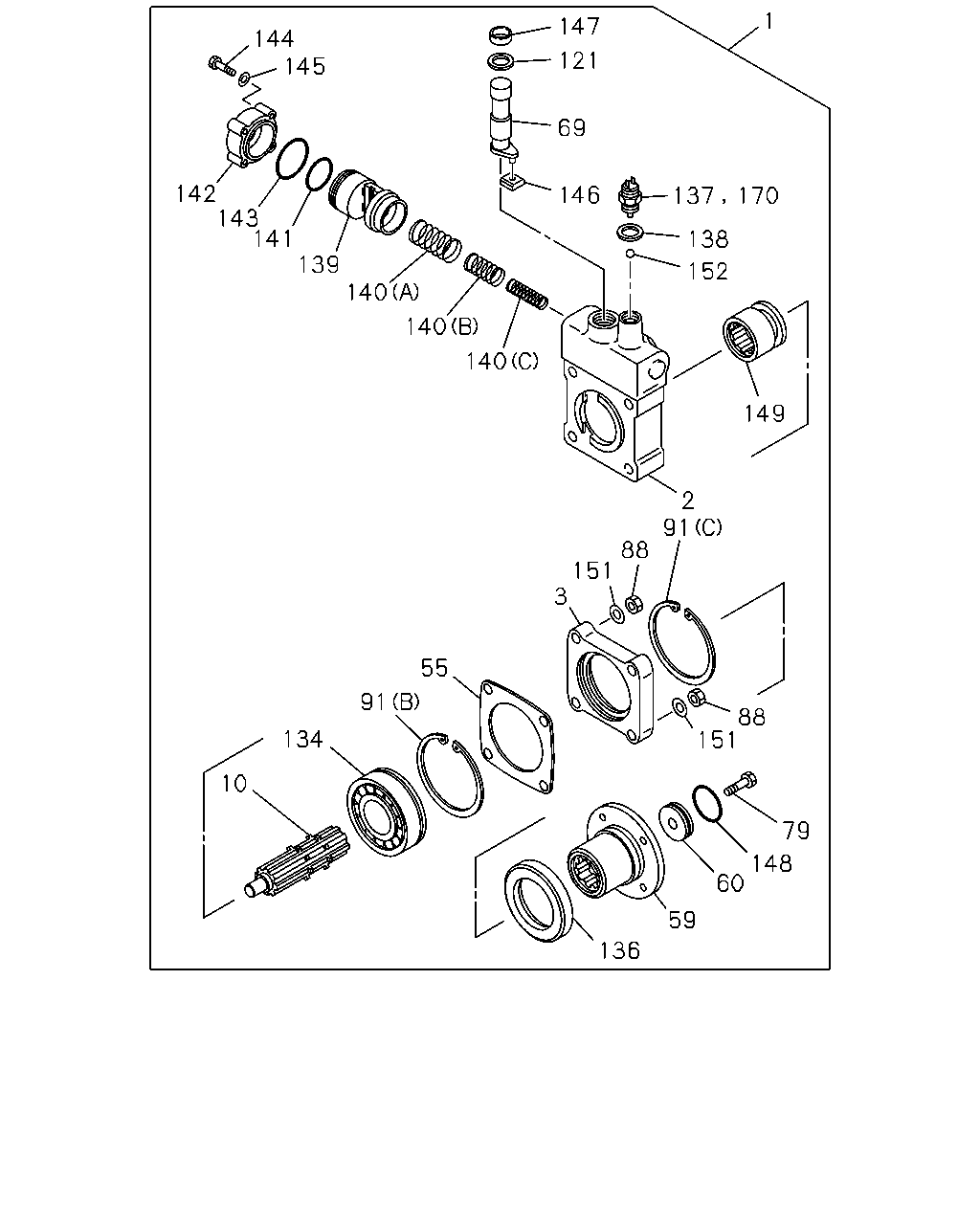

1 147 144 145 121 69 142 143 141 146 137 170 138 139 140 152 140 140 149 2 91 88 151 3 55 91 88 151 134 10 79 148 60 59 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	POWER TAKE OFF ASM; TRANS RR POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38000-377-0	01	1	0006-
2	CASE; GEAR,TRANS RR PTO POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38111-076-0	01	1	0006-
2	CASE; GEAR,TRANS RR PTO POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38111-076-0	01	1	9606-9905
3	COVER; GEAR CASE,TRANS RR PTO POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38159-002-0	01	1	9606-9905
3	COVER; GEAR CASE,TRANS RR PTO POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38159-002-0	01	1	0006-
10	SHAFT; PTO OUTPUT GEAR,TRANS RR PTO POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38221-047-0	01	1	0006-
10	SHAFT; PTO OUTPUT GEAR,TRANS RR PTO POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38221-047-0	01	1	9606-9905
55	GASKET; BRG COVER,TRANS RR PTO POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33132-054-0	01	1	0006-
55	GASKET; BRG COVER,TRANS RR PTO POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33132-054-0	01	1	9606-9905
59	YOKE; SPINDLE,PTO OUTPUT SHAFT,RR PTO POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38519-012-0	01	1	9606-9707
59	YOKE; SPINDLE,PTO OUTPUT SHAFT,RR PTO POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38519-012-0	01	1	0006-
60	WASHER; YOKE,OUTPUT SHAFT,RR PTO POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38519-013-0	01	1	0006-
60	WASHER; YOKE,OUTPUT SHAFT,RR PTO POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38519-013-0	01	1	9606-9905
69	LEVER; PTO CONT,TRANS RR PTO POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38361-032-0	01	1	9606-9707
69	LEVER; PTO CONT,TRANS RR PTO POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38361-032-0	01	1	0006-
79	BOLT POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38519-019-0	01	1	0006-
79	BOLT POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-41329-062-0	01	1	9606-9707
79	BOLT POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38519-019-0	01	1	9708-9905
88	NUT; COVER POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38119-027-0	04	1	0006-
88	NUT; COVER POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38119-027-0	04	1	9606-9905
91	RING; SNAP POWER TAKE OFF-ZF TRANSMISSION<BDM> (A)	1-38219-010-0	01	1	9606-9905
91	RING; SNAP POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-38219-016-0	01	1	9606-9905
91	RING; SNAP POWER TAKE OFF-ZF TRANSMISSION<BDM> (C)	1-38219-017-0	01	1	9606-9905
91	RING; SNAP POWER TAKE OFF-ZF TRANSMISSION<BDM> (A)	1-38219-010-0	01	1	0006-
91	RING; SNAP POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-38219-016-0	01	1	0006-
91	RING; SNAP POWER TAKE OFF-ZF TRANSMISSION<BDM> (C)	1-38219-017-0	01	1	0006-
121	RING; SNAP,SHIFT LEVER POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38369-004-0	01	1	9606-9707
121	RING; SNAP,SHIFT LEVER POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38369-004-0	01	1	0006-
134	BEARING; OUTPUT SHAFT POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38219-015-0	01	1	0006-
134	BEARING; OUTPUT SHAFT POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38219-015-0	01	1	9606-9905
136	SEAL; SHAFT POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38519-010-0	01	1	0006-
136	SEAL; SHAFT POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38519-010-0	01	1	9606-9905
137	SWITCH; RR PTO POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-82440-080-1	01	1	9606-9905
138	GASKET; SW POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33119-249-0	01	1	0006-
138	GASKET; SW POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33119-249-0	01	1	9606-9905
139	PISTON; RR PTO POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38129-016-0	01	1	0006-
139	PISTON; RR PTO POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38129-016-0	01	1	9606-9905
140	SPRING; PISTON,RR PTO POWER TAKE OFF-ZF TRANSMISSION<BDM> (C)	1-38129-013-0	01	1	9606-9905
140	SPRING; PISTON,RR PTO POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-38129-014-0	01	1	9606-9905
140	SPRING; PISTON,RR PTO POWER TAKE OFF-ZF TRANSMISSION<BDM> (A)	1-38129-015-0	01	1	9606-9905
140	SPRING; PISTON,RR PTO POWER TAKE OFF-ZF TRANSMISSION<BDM> (C)	1-38129-013-0	01	1	0006-
140	SPRING; PISTON,RR PTO POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-38129-014-0	01	1	0006-
140	SPRING; PISTON,RR PTO POWER TAKE OFF-ZF TRANSMISSION<BDM> (A)	1-38129-015-0	01	1	0006-
141	GASKET; PISTON,RR PTO POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38129-023-0	01	1	0006-
141	GASKET; PISTON,RR PTO POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38129-023-0	01	1	9606-9905
142	CYLINDER; RR PTO POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38159-003-0	01	1	0006-
142	CYLINDER; RR PTO POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38159-003-0	01	1	9606-9905
143	GASKET; CYL POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38129-018-0	01	1	0006-
143	GASKET; CYL POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38129-018-0	01	1	9606-9905
144	BOLT; CYL POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38519-020-0	04	1	0006-
144	BOLT; CYL POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38129-024-0	04	1	9606-9707
144	BOLT; CYL POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38519-020-0	04	1	9708-9905
145	WASHER; LK,CYL POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38129-025-0	04	1	0006-
145	WASHER; LK,CYL POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38129-025-0	04	1	9606-9905
146	PAD; CONT LEVER POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38369-009-0	01	1	0006-
146	PAD; CONT LEVER POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38369-009-0	01	1	9606-9905
147	CUP; SEALING POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38369-006-0	01	1	9606-9707
147	CUP; SEALING POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38369-006-0	01	1	0006-
148	GASKET; YOKE POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38519-014-0	01	1	0006-
148	GASKET; YOKE POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38519-014-0	01	1	9606-9905
149	SLEEVE; SLIDING POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38229-008-0	01	1	0006-
149	SLEEVE; SLIDING POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38229-008-0	01	1	9606-9905
151	WASHER; PL,COVER POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38119-028-0	04	1	0006-
151	WASHER; PL,COVER POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38119-028-0	04	1	9606-9905
152	BALL; SW POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38119-032-0	01	1	0006-
152	BALL; SW POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-38119-032-0	01	1	9606-9905
170	PLUG; SWITCH HOLE,PTO POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33119-253-0	01	1	0006-
