Isuzu WW
▶
TRUCKS
▶
NPR
▶
51172 - NPR/NQR(SOUTHAFRICA)
▶
3 - Brakes, Brake System
▶

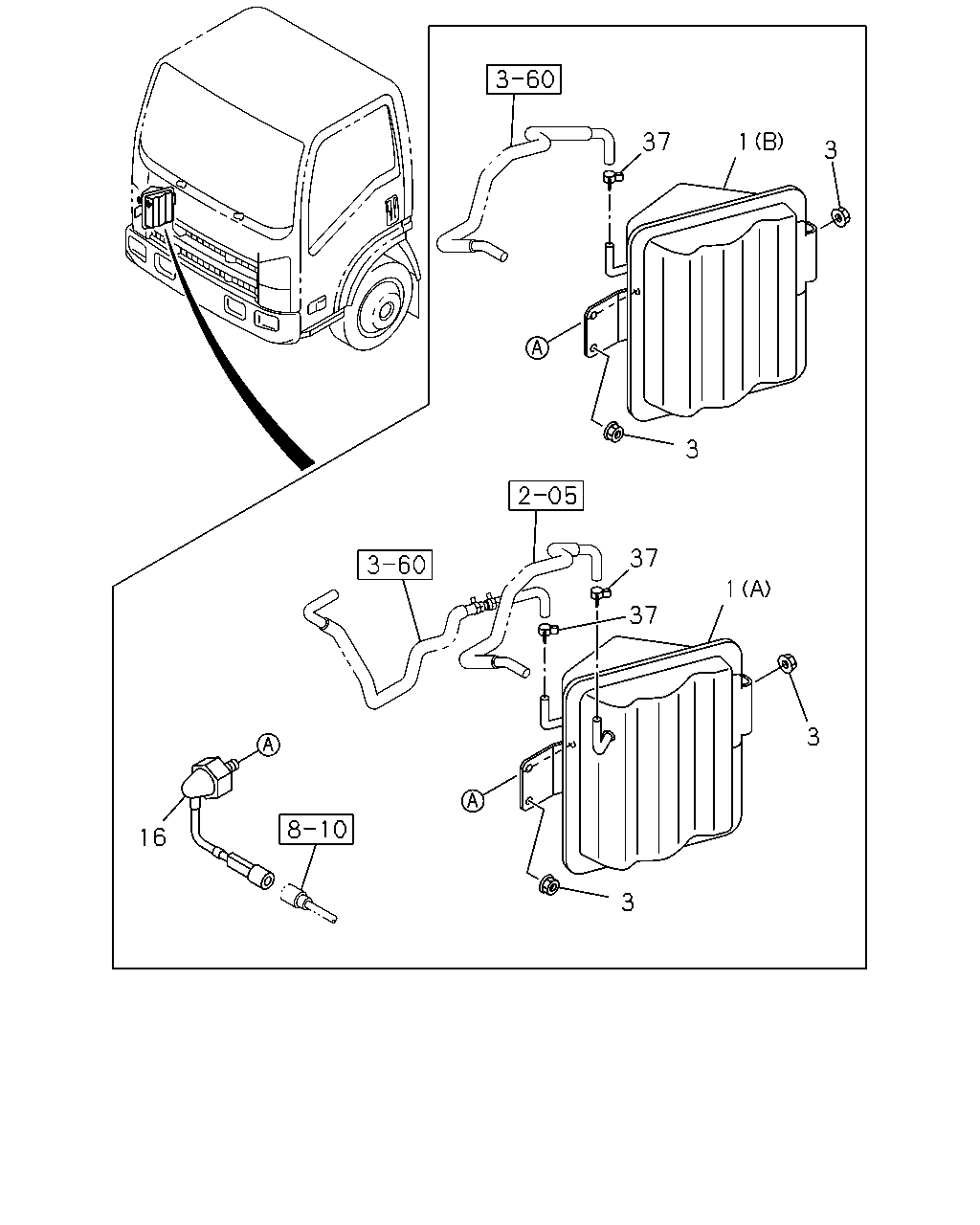

3-21 - VACUUM TANK
▶
3-21 — VACUUM TANK
(#50858) — 19 parça
Tümü
A - NPR5SN
B - NPR5SS
C - NPR5WN
◀
[321A] HYDRO BRAKE BOOSTER (8 parça)
[321A] EXC.HYDRO BRAKE BOOSTER (11 parça)
▶
37
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C)
8-98032-291-0
01
1
0804-
●
1
TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (C)
8-98032-291-0
01
1
0804-
●
●
1
TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)
8-98009-121-2
01
1
0804-
●
1
TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B)
8-98009-122-2
01
1
0804-
●
37
CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) ID=15.5 SOU
8-94367-944-0
02
1
0804-
●
37
CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) ID=15.5 SOU
8-94367-944-0
01
1
0804-
●
37
CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=15.5 SOU
8-94367-944-0
01
1
0804-
●
37
CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) ID=15.5 SOU
8-94367-944-0
01
1
0804-
●
●
1
37
3
3
37
1
37
3
16
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C)
8-98032-291-0
01
1
0804-
●
1
TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (C)
8-98032-291-0
01
1
0804-
●
●
1
TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)
8-98009-121-2
01
1
0804-
●
1
TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B)
8-98009-122-2
01
1
0804-
●
3
NUT; VAC TANK TO BRKT
EXC. HYDRO BRAKE BOOSTER(7QQ)
8-98008-071-0
03
1
0804-0809
●
3
NUT; VAC TANK TO BRKT
8-98008-071-0
03
1
0810-
●
●
●
16
SWITCH; VAC
EXC. HYDRO BRAKE BOOSTER(7QQ)
8-98049-417-0
01
1
0804-
●
37
CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) ID=15.5 SOU
8-94367-944-0
02
1
0804-
●
37
CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) ID=15.5 SOU
8-94367-944-0
01
1
0804-
●
37
CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=15.5 SOU
8-94367-944-0
01
1
0804-
●
37
CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) ID=15.5 SOU
8-94367-944-0
01
1
0804-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
