◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51172 - NPR/NQR(SOUTHAFRICA) ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#50856) — 59 parça
çizim 157765
237 238 241 235 8 238 237 238 85 238 85 225 237 235 235
BalonParca AdiParca NoAdetTipApplied Date A B C
8 GUIDE; PARKING BRK
(A) 		8-98096-374-0 01 1 0804- ● ● ●
8 GUIDE; PARKING BRK
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) 		8-98110-964-0 01 1 0804- ● ● ●
85 CLIP; BRKT
ID=14.5 L=20 		1-09701-012-0 01 1 0804- ● ● ●
225 NUT; CABLE CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 0804- ● ● ●
225 NUT; CABLE CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU 		0-91180-108-0 01 1 0804- ● ● ●
225 NUT; CABLE CLIP
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M8 FLANGE SOU 		0-91180-108-0 01 1 0804- ● ● ●
235 BRACKET; CONT CABLE TO FRAME
(A) 		8-98105-435-0 01 1 0804-0909 ● ● ●
235 BRACKET; CONT CABLE TO FRAME
(A) 		8-98106-986-1 01 1 0910- ● ● ●
235 BRACKET; CONT CABLE TO FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98033-907-0 01 1 0804- ● ● ●
235 BRACKET; CONT CABLE TO FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98087-322-0 01 1 0804- ● ● ●
237 NUT; BRKT TO FRAME
M10 FLANGE SOU 		0-91180-110-0 01 1 0804- ● ● ●
237 NUT; BRKT TO FRAME
M10 FLANGE SOU 		0-91180-110-0 01 1 0804- ●
238 BOLT; CLIP TO BRKT
(A) M8X25 FLANGE SOU 		0-28650-825-0 03 1 0804- ● ● ●
238 BOLT; CLIP TO BRKT
(B) M10X30 FLANGE SOU 		0-28651-030-0 01 1 0804- ● ● ●
238 BOLT; CLIP TO BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X25 FLANGE SOU 		0-28650-825-0 01 1 0804- ● ● ●
241 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 02 1 0804- ● ● ●

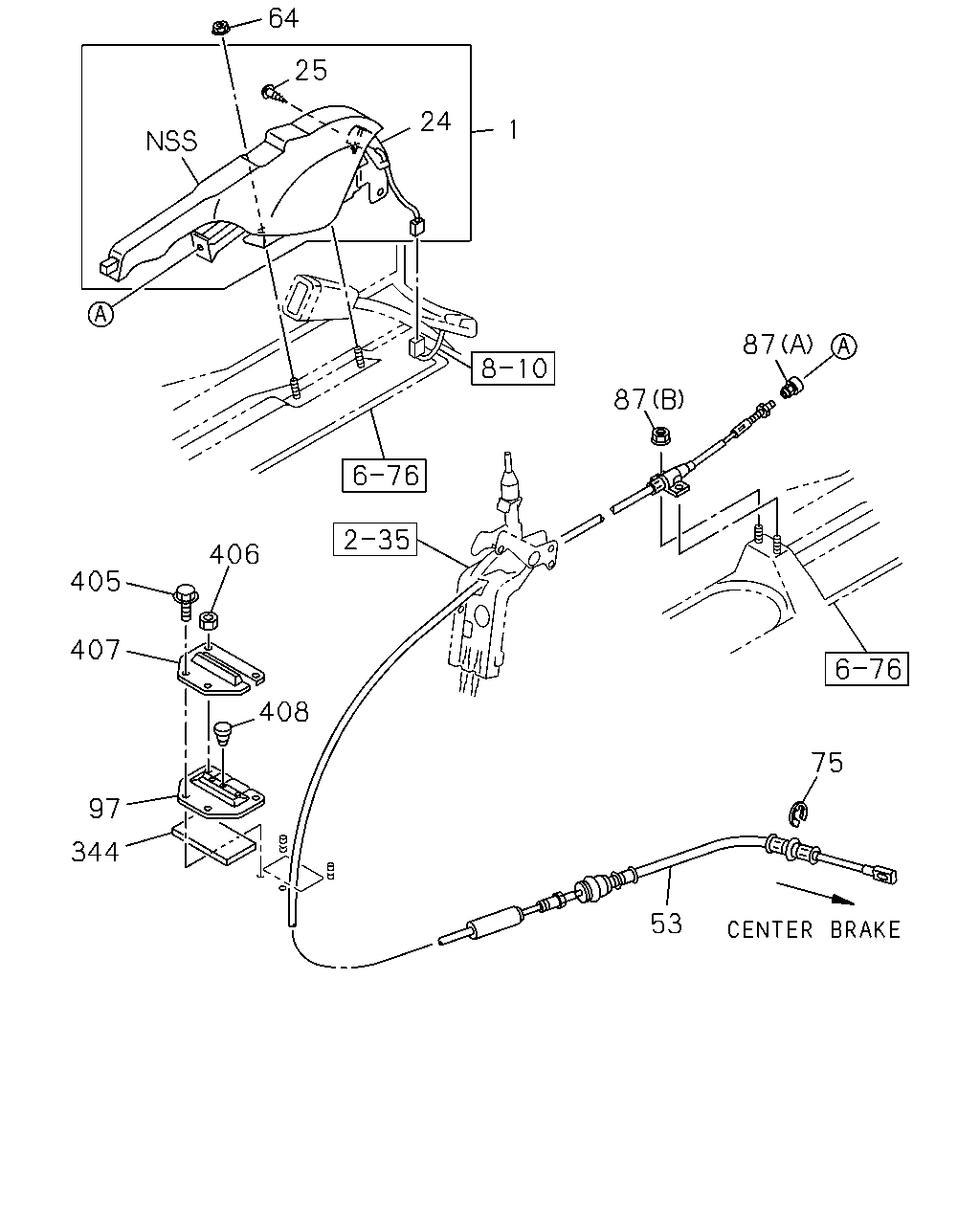

çizim 157767
64 25 24 1 87 87 406 405 407 408 75 97 344 53
BalonParca AdiParca NoAdetTipApplied Date A B C
1 STEM ASM; PARKING BRK
GRAY 		8-97405-353-0 01 1 0804-1303 ● ● ●
1 STEM ASM; PARKING BRK
GRAY 		8-97426-513-0 01 1 1304- ● ● ●
24 SWITCH ASM; PARK BRK
SOU 		8-97995-828-1 01 1 0804-1303 ● ● ●
24 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1304- ● ● ●
25 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 0804- ● ● ●
53 CABLE; PARK BRK,FRT LWR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-233-3 01 1 0804- ● ● ●
53 CABLE; PARK BRK,FRT LWR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-315-3 01 1 0804- ● ● ●
64 NUT; PARKING BRK
M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 0804- ● ● ●
75 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 0804- ● ● ●
87 NUT
(B) M8 FLANGE SOU 		0-91180-108-0 02 1 0804- ● ● ●
87 NUT
(A) M6 		8-98034-313-1 01 1 0804- ● ● ●
97 GROMMET; PARKING BRK CABLE 8-97065-212-1 01 1 0804- ● ● ●
344 GASKET; DASH LWR
MANUAL TILT CAB<RWZ> 		8-97096-753-0 01 1 0804- ● ●
405 BOLT; GROMMET
M6X20 FLANGE 		0-28450-620-0 02 1 0804- ● ● ●
406 NUT; GROMMET
M6 FLANGE SOU 		0-91180-106-0 02 1 0804- ● ● ●
407 RETAINER; GROMMET 1-33657-674-0 01 1 0804- ● ● ●
408 CAP; GROMMET
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97371-108-0 02 1 0804- ● ● ●

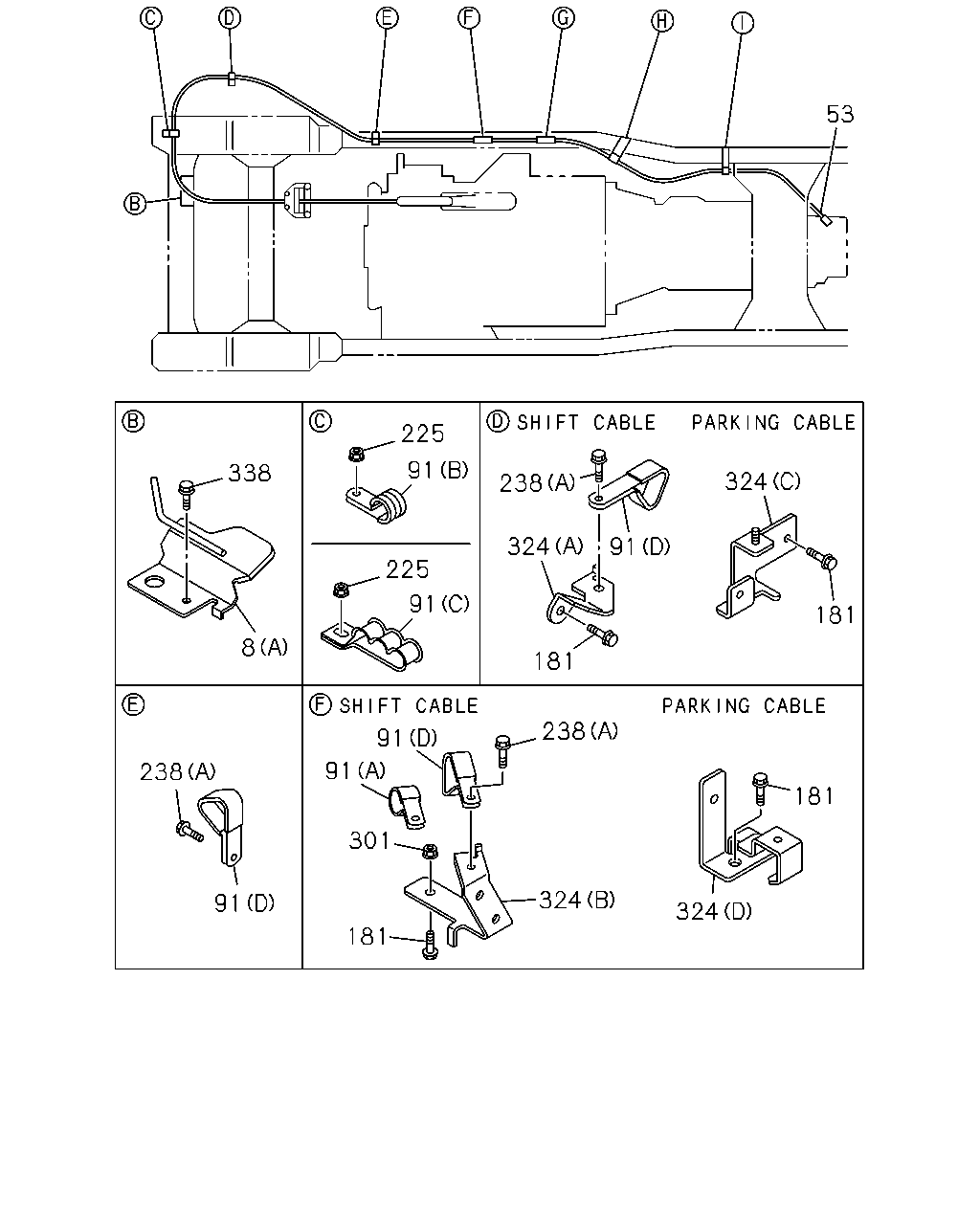

çizim 157770
53 225 91 338 324 238 324 91 225 91 181 8 181 238 91 91 238 181 301 324 91 324 181
BalonParca AdiParca NoAdetTipApplied Date A B C
8 GUIDE; PARKING BRK
(A) 		8-98096-374-0 01 1 0804- ● ● ●
8 GUIDE; PARKING BRK
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) 		8-98110-964-0 01 1 0804- ● ● ●
53 CABLE; PARK BRK,FRT LWR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-233-3 01 1 0804- ● ● ●
53 CABLE; PARK BRK,FRT LWR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-315-3 01 1 0804- ● ● ●
91 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=13 L=28 		0-95235-255-0 01 1 0804- ● ● ●
91 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=13 L=28 		0-95235-255-0 01 1 0804- ● ● ●
91 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=13 L=28 		0-95235-255-0 01 1 0804- ● ● ●
91 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=19 L=32 		1-09701-235-0 01 1 0804- ● ● ●
91 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-97036-333-1 01 1 0804- ● ● ●
91 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-97036-333-1 01 1 0804- ● ● ●
91 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-97036-333-1 01 1 0804- ● ● ●
91 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98023-622-0 01 1 0804- ● ● ●
181 BOLT; BRKT
M8X16 FLANGE SOU 		0-28050-816-0 01 1 0804- ● ● ●
181 BOLT; BRKT
M8X25 FLANGE SOU 		0-28650-825-0 03 1 0804- ● ● ●
225 NUT; CABLE CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 0804- ● ● ●
225 NUT; CABLE CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU 		0-91180-108-0 01 1 0804- ● ● ●
225 NUT; CABLE CLIP
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M8 FLANGE SOU 		0-91180-108-0 01 1 0804- ● ● ●
238 BOLT; CLIP TO BRKT
(A) M8X25 FLANGE SOU 		0-28650-825-0 03 1 0804- ● ● ●
238 BOLT; CLIP TO BRKT
(B) M10X30 FLANGE SOU 		0-28651-030-0 01 1 0804- ● ● ●
238 BOLT; CLIP TO BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X25 FLANGE SOU 		0-28650-825-0 01 1 0804- ● ● ●
301 NUT; BRKT,BRK & CLU PEDAL
M8 FLANGE SOU 		0-91180-108-0 01 1 0804- ● ● ●
324 BRACKET
(A) 		8-98034-115-0 01 1 0804- ● ● ●
324 BRACKET
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) 		8-98111-394-1 01 1 0804- ● ● ●
324 BRACKET
(B) 		8-98034-185-1 01 1 0804- ● ● ●
324 BRACKET
(C) 		8-98099-516-0 01 1 0804- ● ● ●
338 SCREW; GUIDE
M8X35 FLANGE 		8-98046-876-0 01 1 0804- ● ● ●
