Sayfa 3-05 - Isuzu EPC

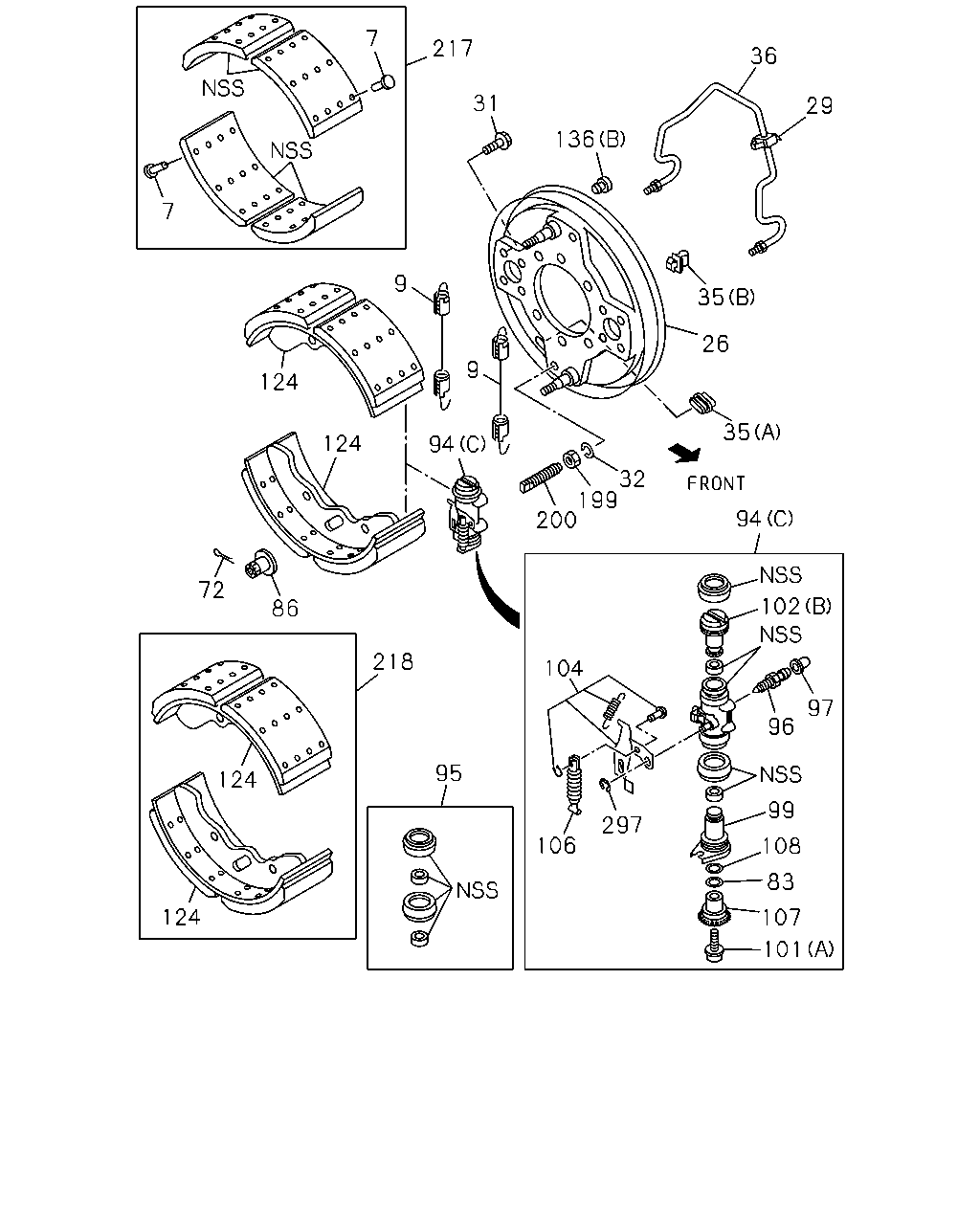

3-05 — REAR WHEEL BRAKE (#50853) — 428 parça

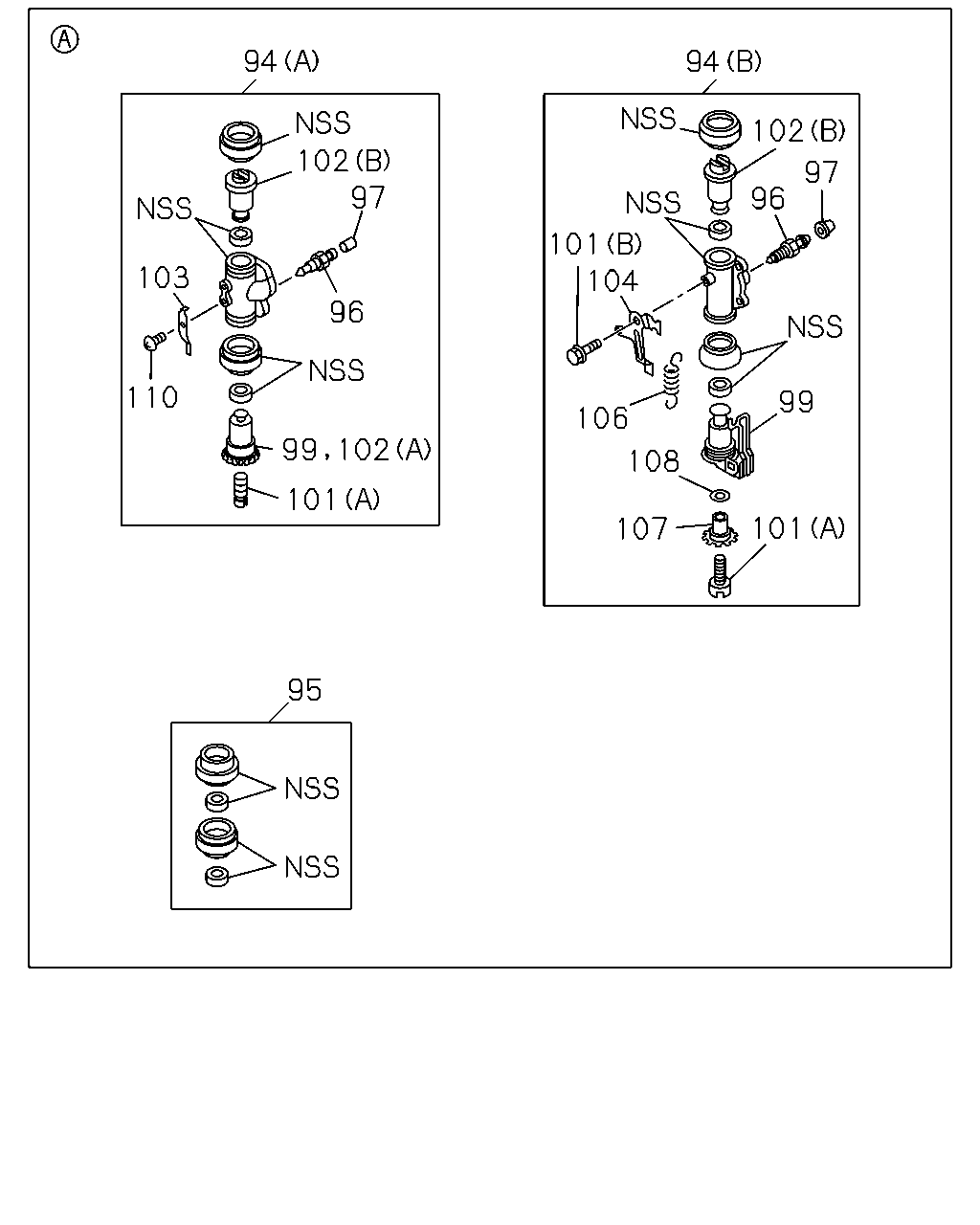

94 94 102 102 97 97 96 101 104 103 96 110 99 106 102 108 101 101 107 95 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
94	CYLINDER; WHEEL,RR BRK HYDRO BRAKE BOOSTER(7QQ) (B) REAR	8-97358-878-0	01	1	0804-1007	●
94	CYLINDER; WHEEL,RR BRK (B) REAR	8-97358-878-0	01	1	0804-1007		●
94	CYLINDER; WHEEL,RR BRK G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (B) REAR	8-97358-878-0	01	1	1008-	●
94	CYLINDER; WHEEL,RR BRK (B) REAR	8-97358-878-0	01	1	1008-		●
94	CYLINDER; WHEEL,RR BRK HYDRO BRAKE BOOSTER(7QQ) (B) FRONT	8-97358-880-0	01	1	0804-1007	●
94	CYLINDER; WHEEL,RR BRK (B) FRONT	8-97358-880-0	01	1	0804-1007		●
94	CYLINDER; WHEEL,RR BRK G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (B) FRONT	8-97358-880-0	01	1	1008-	●
94	CYLINDER; WHEEL,RR BRK (B) FRONT	8-97358-880-0	01	1	1008-		●
94	CYLINDER; WHEEL,RR BRK HYDRO BRAKE BOOSTER(7QQ) (B) REAR	8-97358-879-0	01	1	0804-1007	●
94	CYLINDER; WHEEL,RR BRK (B) REAR	8-97358-879-0	01	1	0804-1007		●
94	CYLINDER; WHEEL,RR BRK G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (B) REAR	8-97358-879-0	01	1	1008-	●
94	CYLINDER; WHEEL,RR BRK (B) REAR	8-97358-879-0	01	1	1008-		●
94	CYLINDER; WHEEL,RR BRK HYDRO BRAKE BOOSTER(7QQ) (B) FRONT	8-97358-881-0	01	1	0804-1007	●
94	CYLINDER; WHEEL,RR BRK (B) FRONT	8-97358-881-0	01	1	0804-1007		●
94	CYLINDER; WHEEL,RR BRK G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (B) FRONT	8-97358-881-0	01	1	1008-	●
94	CYLINDER; WHEEL,RR BRK (B) FRONT	8-97358-881-0	01	1	1008-		●
94	CYLINDER; WHEEL,RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (B) REAR	8-97349-705-0	01	1	0804-1007	●
94	CYLINDER; WHEEL,RR BRK G.V.W. 6.0-6.5TON(RPV) (B) REAR	8-97349-705-0	01	1	1008-	●
94	CYLINDER; WHEEL,RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (B) FRONT	8-97349-707-0	01	1	0804-1007	●
94	CYLINDER; WHEEL,RR BRK G.V.W. 6.0-6.5TON(RPV) (B) FRONT	8-97349-707-0	01	1	1008-	●
94	CYLINDER; WHEEL,RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (B) REAR	8-97349-706-0	01	1	0804-1007	●
94	CYLINDER; WHEEL,RR BRK G.V.W. 6.0-6.5TON(RPV) (B) REAR	8-97349-706-0	01	1	1008-	●
94	CYLINDER; WHEEL,RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (B) FRONT	8-97349-708-0	01	1	0804-1007	●
94	CYLINDER; WHEEL,RR BRK G.V.W. 6.0-6.5TON(RPV) (B) FRONT	8-97349-708-0	01	1	1008-	●
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C) FRONT	8-97372-821-0	01	1	0804-1507			●
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C) FRONT	8-98317-278-0	01	1	1508-			●
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C) REAR	8-97372-823-0	01	1	0804-1507			●
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C) REAR	8-98317-280-0	01	1	1508-			●
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C) FRONT	8-97372-820-0	01	1	0804-1507			●
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C) FRONT	8-98317-281-0	01	1	1508-			●
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C) REAR	8-97372-822-0	01	1	0804-1507			●
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C) REAR	8-98317-282-0	01	1	1508-			●
94	CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97353-570-0	02	1	0804-			●
94	CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) REAR	8-97353-571-0	01	1	0804-			●
94	CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT	8-97353-572-0	01	1	0804-			●
95	CUP SET; RR WHEEL CYL HYDRO BRAKE BOOSTER(7QQ)	5-87832-051-0	02	1	0804-1007	●
95	CUP SET; RR WHEEL CYL	5-87832-051-0	02	1	0804-1007		●
95	CUP SET; RR WHEEL CYL G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	5-87832-051-0	02	1	1008-	●
95	CUP SET; RR WHEEL CYL	5-87832-051-0	02	1	1008-		●
95	CUP SET; RR WHEEL CYL EXC. HYDRO BRAKE BOOSTER(7QQ)	5-87832-070-0	01	1	0804-1007	●
95	CUP SET; RR WHEEL CYL G.V.W. 6.0-6.5TON(RPV)	5-87832-070-0	01	1	1008-	●
95	CUP SET; RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87832-131-0	01	1	0804-1507			●
95	CUP SET; RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87832-359-0	01	1	1508-			●
95	CUP SET; RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87832-080-0	02	1	0804-			●
96	SCREW; BLEEDER,RR BRK HYDRO BRAKE BOOSTER(7QQ)	8-98050-477-0	02	1	0804-1007	●
96	SCREW; BLEEDER,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98050-477-0	02	1	0804-1007			●
96	SCREW; BLEEDER,RR BRK	8-98050-477-0	02	1	0804-1007		●
96	SCREW; BLEEDER,RR BRK G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-98050-477-0	02	1	1008-	●
96	SCREW; BLEEDER,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98050-477-0	02	1	1008-			●
96	SCREW; BLEEDER,RR BRK	8-98050-477-0	02	1	1008-		●
96	SCREW; BLEEDER,RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ) SOU	8-98050-476-0	02	1	0804-1007	●
96	SCREW; BLEEDER,RR BRK G.V.W. 6.0-6.5TON(RPV) SOU	8-98050-476-0	02	1	1008-	●
96	SCREW; BLEEDER,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98050-477-0	01	1	0804-			●
97	CAP; BLEEDER,RR WHEEL CYL SOU	8-98050-479-0	02	1	0804-	●	●
97	CAP; BLEEDER,RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> SOU	8-98050-479-0	02	1	0804-			●
97	CAP; BLEEDER,RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> SOU	8-98050-479-0	01	1	0804-			●
99	PISTON; RR WHEEL CYL HYDRO BRAKE BOOSTER(7QQ)	8-97349-731-0	02	1	0804-1007	●
99	PISTON; RR WHEEL CYL	8-97349-731-0	02	1	0804-1007		●
99	PISTON; RR WHEEL CYL G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97349-731-0	02	1	1008-	●
99	PISTON; RR WHEEL CYL	8-97349-731-0	02	1	1008-		●
99	PISTON; RR WHEEL CYL HYDRO BRAKE BOOSTER(7QQ)	8-97349-732-0	02	1	0804-1007	●
99	PISTON; RR WHEEL CYL	8-97349-732-0	02	1	0804-1007		●
99	PISTON; RR WHEEL CYL G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97349-732-0	02	1	1008-	●
99	PISTON; RR WHEEL CYL	8-97349-732-0	02	1	1008-		●
99	PISTON; RR WHEEL CYL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97349-729-0	01	1	0804-1007	●
99	PISTON; RR WHEEL CYL G.V.W. 6.0-6.5TON(RPV)	8-97349-729-0	01	1	1008-	●
99	PISTON; RR WHEEL CYL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97349-730-0	02	1	0804-1007	●
99	PISTON; RR WHEEL CYL G.V.W. 6.0-6.5TON(RPV)	8-97349-730-0	02	1	1008-	●
99	PISTON; RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97372-832-0	02	1	0804-			●
99	PISTON; RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97372-831-0	02	1	0804-			●
99	PISTON; RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97353-579-0	03	1	0804-			●
101	SCREW; ADJ,RR WHEEL CYL (B)	8-97349-747-0	04	1	0804-	●	●
101	SCREW; ADJ,RR WHEEL CYL (A)	8-97349-741-0	02	1	0804-	●	●
101	SCREW; ADJ,RR WHEEL CYL (A)	8-97349-742-0	02	1	0804-	●	●
101	SCREW; ADJ,RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97372-838-0	02	1	0804-			●
101	SCREW; ADJ,RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97372-837-0	02	1	0804-			●
101	SCREW; ADJ,RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-94414-702-0	04	1	0804-			●
102	PISTON; REAR WHEEL CYL HYDRO BRAKE BOOSTER(7QQ) (B)	8-97332-043-0	04	1	0804-1007	●
102	PISTON; REAR WHEEL CYL (B)	8-97332-043-0	04	1	0804-1007		●
102	PISTON; REAR WHEEL CYL G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (B)	8-97332-043-0	04	1	1008-	●
102	PISTON; REAR WHEEL CYL (B)	8-97332-043-0	04	1	1008-		●
102	PISTON; REAR WHEEL CYL EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-97078-045-0	04	1	0804-1007	●
102	PISTON; REAR WHEEL CYL G.V.W. 6.0-6.5TON(RPV) (B)	8-97078-045-0	04	1	1008-	●
102	PISTON; REAR WHEEL CYL EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97349-729-0	01	1	0804-1007	●
102	PISTON; REAR WHEEL CYL G.V.W. 6.0-6.5TON(RPV) (A)	8-97349-729-0	01	1	1008-	●
102	PISTON; REAR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97372-833-0	04	1	0804-			●
102	PISTON; REAR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97353-578-0	04	1	0804-			●
102	PISTON; REAR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97353-579-0	01	1	0804-			●
103	SPRING; LK,RR WHEEL CYL,ADJ EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94128-486-0	04	1	0804-			●
104	LEVER; ADJ	8-97349-743-0	02	1	0804-	●	●
104	LEVER; ADJ	8-97349-744-0	02	1	0804-	●	●
104	LEVER; ADJ 4 WHEEL ANTI LOCK BRAKE<JE5>	1-47619-134-0	02	1	0804-			●
104	LEVER; ADJ 4 WHEEL ANTI LOCK BRAKE<JE5>	1-47619-133-0	02	1	0804-			●
106	SPRING; ADJ LEVER	8-97349-745-0	04	1	0804-	●	●
106	SPRING; ADJ LEVER 4 WHEEL ANTI LOCK BRAKE<JE5>	1-09583-345-0	04	1	0804-			●
107	GEAR; ADJ,RR W/CYL HYDRO BRAKE BOOSTER(7QQ)	8-97358-894-0	02	1	0804-1007	●
107	GEAR; ADJ,RR W/CYL	8-97358-894-0	02	1	0804-1007		●
107	GEAR; ADJ,RR W/CYL G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97358-894-0	02	1	1008-	●
107	GEAR; ADJ,RR W/CYL	8-97358-894-0	02	1	1008-		●
107	GEAR; ADJ,RR W/CYL HYDRO BRAKE BOOSTER(7QQ)	8-97358-895-0	02	1	0804-1007	●
107	GEAR; ADJ,RR W/CYL	8-97358-895-0	02	1	0804-1007		●
107	GEAR; ADJ,RR W/CYL G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97358-895-0	02	1	1008-	●
107	GEAR; ADJ,RR W/CYL	8-97358-895-0	02	1	1008-		●
107	GEAR; ADJ,RR W/CYL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97349-738-0	02	1	0804-1007	●
107	GEAR; ADJ,RR W/CYL G.V.W. 6.0-6.5TON(RPV)	8-97349-738-0	02	1	1008-	●
107	GEAR; ADJ,RR W/CYL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97349-740-0	02	1	0804-1007	●
107	GEAR; ADJ,RR W/CYL G.V.W. 6.0-6.5TON(RPV)	8-97349-740-0	02	1	1008-	●
107	GEAR; ADJ,RR W/CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97372-836-0	02	1	0804-			●
107	GEAR; ADJ,RR W/CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97372-835-0	02	1	0804-			●
108	WASHER; THRUST,GEAR ADJ	8-97349-736-0	04	1	0804-	●	●
108	WASHER; THRUST,GEAR ADJ 4 WHEEL ANTI LOCK BRAKE<JE5>	1-47629-135-0	04	1	0804-			●
110	SCREW; LOCK SPRING,RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94128-727-0	04	1	0804-			●

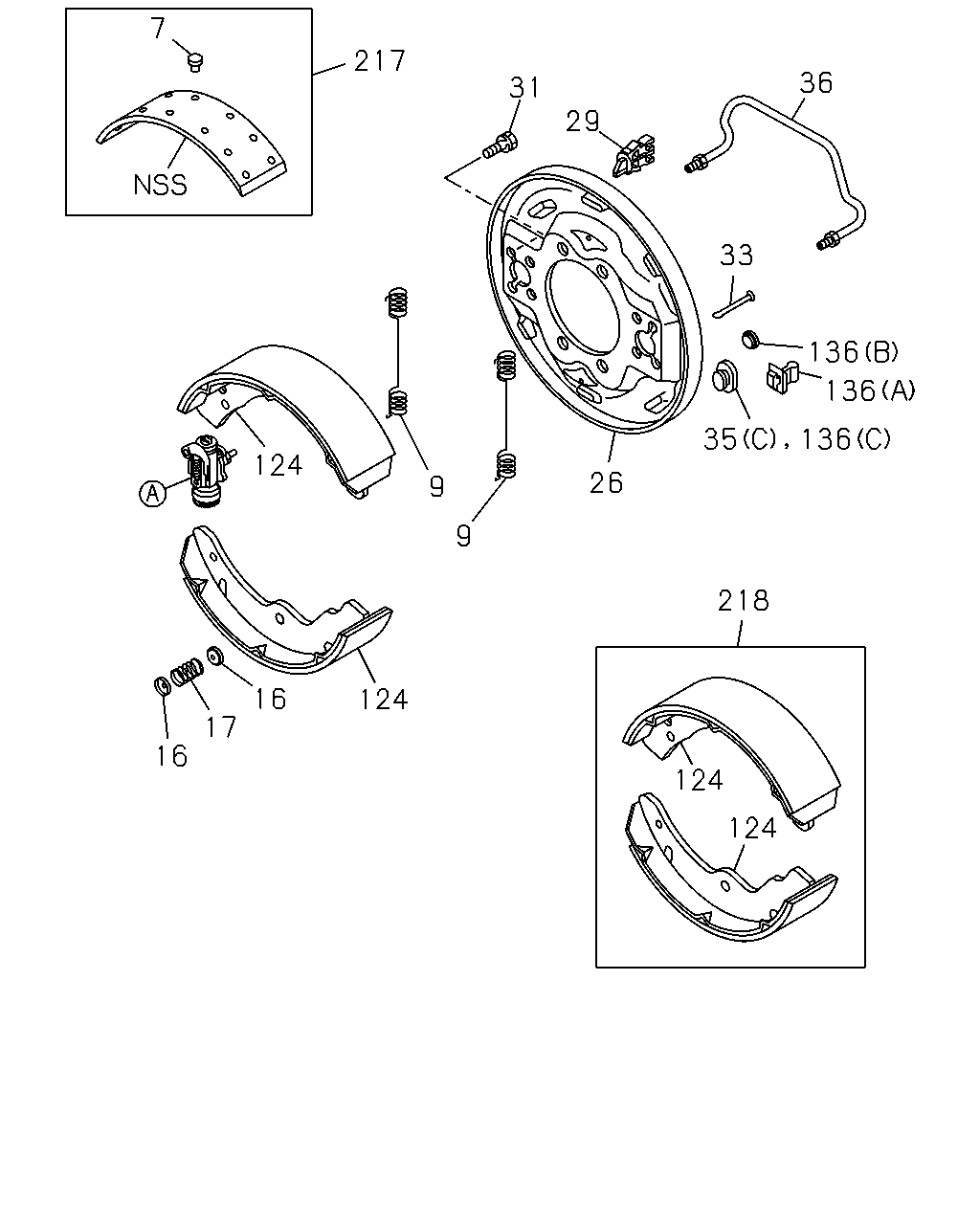

7 217 36 31 29 33 136 136 35 136 124 26 9 9 218 16 124 17 16 124 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	RIVET; LINING,RR BRK HYDRO BRAKE BOOSTER(7QQ) SOU	1-09732-029-0	64	1	0804-1007	●
7	RIVET; LINING,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> SOU	1-09732-029-0	64	1	0804-1007			●
7	RIVET; LINING,RR BRK SOU	1-09732-029-0	64	1	0804-1007		●
7	RIVET; LINING,RR BRK G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) SOU	1-09732-029-0	64	1	1008-	●
7	RIVET; LINING,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> SOU	1-09732-029-0	64	1	1008-			●
7	RIVET; LINING,RR BRK SOU	1-09732-029-0	64	1	1008-		●
7	RIVET; LINING,RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ) SOU	1-09732-029-0	48	1	0804-1007	●
7	RIVET; LINING,RR BRK G.V.W. 6.0-6.5TON(RPV) SOU	1-09732-029-0	48	1	1008-	●
7	RIVET; LINING,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> SOU	1-09732-029-0	96	1	0804-			●
9	SPRING; RETURN,BRK SHOE HYDRO BRAKE BOOSTER(7QQ)	8-97122-869-0	04	1	0804-1007	●
9	SPRING; RETURN,BRK SHOE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97122-869-0	04	1	0804-1007			●
9	SPRING; RETURN,BRK SHOE	8-97122-869-0	04	1	0804-1007		●
9	SPRING; RETURN,BRK SHOE G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97122-869-0	04	1	1008-	●
9	SPRING; RETURN,BRK SHOE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97122-869-0	04	1	1008-			●
9	SPRING; RETURN,BRK SHOE	8-97122-869-0	04	1	1008-		●
9	SPRING; RETURN,BRK SHOE EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97022-087-0	04	1	0804-1007	●
9	SPRING; RETURN,BRK SHOE G.V.W. 6.0-6.5TON(RPV)	8-97022-087-0	04	1	1008-	●
9	SPRING; RETURN,BRK SHOE 4 WHEEL ANTI LOCK BRAKE<JE5>	1-09583-346-0	04	1	0804-			●
16	CUP; SHOE HOLDING SOU	9-47165-096-0	08	1	0804-	●	●
16	CUP; SHOE HOLDING EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> SOU	9-47165-096-0	08	1	0804-			●
17	SPRING; SHOE HOLD DOWN SOU	5-09580-101-1	04	1	0804-	●	●
17	SPRING; SHOE HOLD DOWN EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> SOU	5-09580-101-1	04	1	0804-			●
26	PLATE; BACK,RR BRK HYDRO BRAKE BOOSTER(7QQ)	8-97207-158-0	01	1	0804-1007	●
26	PLATE; BACK,RR BRK	8-97207-158-0	01	1	0804-1007		●
26	PLATE; BACK,RR BRK G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97207-158-0	01	1	1008-	●
26	PLATE; BACK,RR BRK	8-97207-158-0	01	1	1008-		●
26	PLATE; BACK,RR BRK HYDRO BRAKE BOOSTER(7QQ)	8-97207-157-0	01	1	0804-1007	●
26	PLATE; BACK,RR BRK	8-97207-157-0	01	1	0804-1007		●
26	PLATE; BACK,RR BRK G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97207-157-0	01	1	1008-	●
26	PLATE; BACK,RR BRK	8-97207-157-0	01	1	1008-		●
26	PLATE; BACK,RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97192-081-0	01	1	0804-1007	●
26	PLATE; BACK,RR BRK G.V.W. 6.0-6.5TON(RPV)	8-97192-081-0	01	1	1008-	●
26	PLATE; BACK,RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97192-080-0	01	1	0804-1007	●
26	PLATE; BACK,RR BRK G.V.W. 6.0-6.5TON(RPV)	8-97192-080-0	01	1	1008-	●
26	PLATE; BACK,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97372-819-0	01	1	0804-			●
26	PLATE; BACK,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97372-818-0	01	1	0804-			●
26	PLATE; BACK,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97134-732-0	01	1	0804-			●
26	PLATE; BACK,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97134-731-0	01	1	0804-			●
29	CLIP; PIPE,BRK	8-97022-086-0	02	1	0804-	●	●
29	CLIP; PIPE,BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97022-086-0	02	1	0804-			●
29	CLIP; PIPE,BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	1-47143-008-0	02	1	0804-			●
31	BOLT; RR WHEEL CYL	8-97081-305-0	16	1	0804-	●	●
31	BOLT; RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97081-305-0	16	1	0804-			●
31	BOLT; RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> M12	1-47159-184-0	16	1	0804-			●
33	PIN; SHOE HOLD DOWN HYDRO BRAKE BOOSTER(7QQ)	8-97122-870-0	04	1	0804-1007	●
33	PIN; SHOE HOLD DOWN EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97122-870-0	04	1	0804-1007			●
33	PIN; SHOE HOLD DOWN	8-97122-870-0	04	1	0804-1007		●
33	PIN; SHOE HOLD DOWN G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97122-870-0	04	1	1008-	●
33	PIN; SHOE HOLD DOWN EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97122-870-0	04	1	1008-			●
33	PIN; SHOE HOLD DOWN	8-97122-870-0	04	1	1008-		●
33	PIN; SHOE HOLD DOWN EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97022-089-0	04	1	0804-1007	●
33	PIN; SHOE HOLD DOWN G.V.W. 6.0-6.5TON(RPV)	8-97022-089-0	04	1	1008-	●
35	GROMMET; CHECK HOLE HYDRO BRAKE BOOSTER(7QQ) (C)	8-97017-507-0	06	1	0804-1007	●
35	GROMMET; CHECK HOLE (C)	8-97017-507-0	06	1	0804-1007		●
35	GROMMET; CHECK HOLE G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (C)	8-97017-507-0	06	1	1008-	●
35	GROMMET; CHECK HOLE (C)	8-97017-507-0	06	1	1008-		●
35	GROMMET; CHECK HOLE EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97017-507-0	02	1	0804-1007	●
35	GROMMET; CHECK HOLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97017-507-0	02	1	0804-1007			●
35	GROMMET; CHECK HOLE G.V.W. 6.0-6.5TON(RPV) (C)	8-97017-507-0	02	1	1008-	●
35	GROMMET; CHECK HOLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97017-507-0	02	1	1008-			●
35	GROMMET; CHECK HOLE 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	1-09333-033-0	04	1	0804-			●
35	GROMMET; CHECK HOLE 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	9-09956-640-0	04	1	0804-			●
36	PIPE; OIL,RR BRK	8-97192-215-0	02	1	0804-	●	●
36	PIPE; OIL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97372-826-0	02	1	0804-			●
36	PIPE; OIL,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97079-847-0	02	1	0804-			●
124	SHOE ASM; BRK,RR HYDRO BRAKE BOOSTER(7QQ)	8-97188-455-0	04	1	0804-1007	●
124	SHOE ASM; BRK,RR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97188-455-0	04	1	0804-1007			●
124	SHOE ASM; BRK,RR	8-97188-455-0	04	1	0804-1007		●
124	SHOE ASM; BRK,RR G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97188-455-0	04	1	1008-	●
124	SHOE ASM; BRK,RR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97188-455-0	04	1	1008-			●
124	SHOE ASM; BRK,RR	8-97188-455-0	04	1	1008-		●
124	SHOE ASM; BRK,RR EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97201-061-0	04	1	0804-1007	●
124	SHOE ASM; BRK,RR G.V.W. 6.0-6.5TON(RPV)	8-97201-061-0	04	1	1008-	●
124	SHOE ASM; BRK,RR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97373-425-0	04	1	0804-			●
136	GROMMET EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97017-507-0	04	1	0804-1007	●
136	GROMMET G.V.W. 6.0-6.5TON(RPV) (C)	8-97017-507-0	04	1	1008-	●
136	GROMMET (B)	1-47154-008-0	04	1	0804-	●	●
136	GROMMET 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	1-47154-008-0	04	1	0804-			●
136	GROMMET EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97044-742-1	04	1	0804-			●
217	LINING KIT; RR BRK HYDRO BRAKE BOOSTER(7QQ)	5-87831-692-0	01	1	0804-1007	●
217	LINING KIT; RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87831-692-0	01	1	0804-1007			●
217	LINING KIT; RR BRK	5-87831-692-0	01	1	0804-1007		●
217	LINING KIT; RR BRK G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	5-87831-692-0	01	1	1008-	●
217	LINING KIT; RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87831-692-0	01	1	1008-			●
217	LINING KIT; RR BRK	5-87831-692-0	01	1	1008-		●
217	LINING KIT; RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ)	5-87831-774-0	01	1	0804-1007	●
217	LINING KIT; RR BRK G.V.W. 6.0-6.5TON(RPV)	5-87831-774-0	01	1	1008-	●
217	LINING KIT; RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87832-134-0	01	1	0804-			●
217	LINING KIT; RR BRK HYDRO BRAKE BOOSTER(7QQ) BEST VALUE PARTS	5-87610-119-0	01	1	0804-1007	●
217	LINING KIT; RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> BEST VALUE PARTS	5-87610-119-0	01	1	0804-1007			●
217	LINING KIT; RR BRK BEST VALUE PARTS	5-87610-119-0	01	1	0804-1007		●
217	LINING KIT; RR BRK G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BEST VALUE PARTS	5-87610-119-0	01	1	1008-	●
217	LINING KIT; RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> BEST VALUE PARTS	5-87610-119-0	01	1	1008-			●
217	LINING KIT; RR BRK BEST VALUE PARTS	5-87610-119-0	01	1	1008-		●
217	LINING KIT; RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ) BEST VALUE PARTS	5-87610-120-0	01	1	0804-1007	●
217	LINING KIT; RR BRK G.V.W. 6.0-6.5TON(RPV) BEST VALUE PARTS	5-87610-120-0	01	1	1008-	●
218	SHOE KIT; BRK,RR HYDRO BRAKE BOOSTER(7QQ)	5-87831-693-0	01	1	0804-1007	●
218	SHOE KIT; BRK,RR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87831-693-0	01	1	0804-1007			●
218	SHOE KIT; BRK,RR	5-87831-693-0	01	1	0804-1007		●
218	SHOE KIT; BRK,RR G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	5-87831-693-0	01	1	1008-	●
218	SHOE KIT; BRK,RR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87831-693-0	01	1	1008-			●
218	SHOE KIT; BRK,RR	5-87831-693-0	01	1	1008-		●
218	SHOE KIT; BRK,RR EXC. HYDRO BRAKE BOOSTER(7QQ)	5-87831-775-0	01	1	0804-1007	●
218	SHOE KIT; BRK,RR G.V.W. 6.0-6.5TON(RPV)	5-87831-775-0	01	1	1008-	●
218	SHOE KIT; BRK,RR 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87832-132-0	01	1	0804-			●

7 217 36 31 29 136 7 9 35 26 9 124 35 124 94 32 199 200 94 72 102 86 218 104 97 96 95 124 99 297 106 108 83 124 107 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	RIVET; LINING,RR BRK HYDRO BRAKE BOOSTER(7QQ) SOU	1-09732-029-0	64	1	0804-1007	●
7	RIVET; LINING,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> SOU	1-09732-029-0	64	1	0804-1007			●
7	RIVET; LINING,RR BRK SOU	1-09732-029-0	64	1	0804-1007		●
7	RIVET; LINING,RR BRK G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) SOU	1-09732-029-0	64	1	1008-	●
7	RIVET; LINING,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> SOU	1-09732-029-0	64	1	1008-			●
7	RIVET; LINING,RR BRK SOU	1-09732-029-0	64	1	1008-		●
7	RIVET; LINING,RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ) SOU	1-09732-029-0	48	1	0804-1007	●
7	RIVET; LINING,RR BRK G.V.W. 6.0-6.5TON(RPV) SOU	1-09732-029-0	48	1	1008-	●
7	RIVET; LINING,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> SOU	1-09732-029-0	96	1	0804-			●
9	SPRING; RETURN,BRK SHOE HYDRO BRAKE BOOSTER(7QQ)	8-97122-869-0	04	1	0804-1007	●
9	SPRING; RETURN,BRK SHOE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97122-869-0	04	1	0804-1007			●
9	SPRING; RETURN,BRK SHOE	8-97122-869-0	04	1	0804-1007		●
9	SPRING; RETURN,BRK SHOE G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97122-869-0	04	1	1008-	●
9	SPRING; RETURN,BRK SHOE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97122-869-0	04	1	1008-			●
9	SPRING; RETURN,BRK SHOE	8-97122-869-0	04	1	1008-		●
9	SPRING; RETURN,BRK SHOE EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97022-087-0	04	1	0804-1007	●
9	SPRING; RETURN,BRK SHOE G.V.W. 6.0-6.5TON(RPV)	8-97022-087-0	04	1	1008-	●
9	SPRING; RETURN,BRK SHOE 4 WHEEL ANTI LOCK BRAKE<JE5>	1-09583-346-0	04	1	0804-			●
26	PLATE; BACK,RR BRK HYDRO BRAKE BOOSTER(7QQ)	8-97207-158-0	01	1	0804-1007	●
26	PLATE; BACK,RR BRK	8-97207-158-0	01	1	0804-1007		●
26	PLATE; BACK,RR BRK G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97207-158-0	01	1	1008-	●
26	PLATE; BACK,RR BRK	8-97207-158-0	01	1	1008-		●
26	PLATE; BACK,RR BRK HYDRO BRAKE BOOSTER(7QQ)	8-97207-157-0	01	1	0804-1007	●
26	PLATE; BACK,RR BRK	8-97207-157-0	01	1	0804-1007		●
26	PLATE; BACK,RR BRK G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97207-157-0	01	1	1008-	●
26	PLATE; BACK,RR BRK	8-97207-157-0	01	1	1008-		●
26	PLATE; BACK,RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97192-081-0	01	1	0804-1007	●
26	PLATE; BACK,RR BRK G.V.W. 6.0-6.5TON(RPV)	8-97192-081-0	01	1	1008-	●
26	PLATE; BACK,RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97192-080-0	01	1	0804-1007	●
26	PLATE; BACK,RR BRK G.V.W. 6.0-6.5TON(RPV)	8-97192-080-0	01	1	1008-	●
26	PLATE; BACK,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97372-819-0	01	1	0804-			●
26	PLATE; BACK,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97372-818-0	01	1	0804-			●
26	PLATE; BACK,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97134-732-0	01	1	0804-			●
26	PLATE; BACK,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97134-731-0	01	1	0804-			●
29	CLIP; PIPE,BRK	8-97022-086-0	02	1	0804-	●	●
29	CLIP; PIPE,BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97022-086-0	02	1	0804-			●
29	CLIP; PIPE,BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	1-47143-008-0	02	1	0804-			●
31	BOLT; RR WHEEL CYL	8-97081-305-0	16	1	0804-	●	●
31	BOLT; RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97081-305-0	16	1	0804-			●
31	BOLT; RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> M12	1-47159-184-0	16	1	0804-			●
32	WASHER; LK 4 WHEEL ANTI LOCK BRAKE<JE5> ID=12.2 SOU	0-91510-512-0	04	1	0804-			●
35	GROMMET; CHECK HOLE HYDRO BRAKE BOOSTER(7QQ) (C)	8-97017-507-0	06	1	0804-1007	●
35	GROMMET; CHECK HOLE (C)	8-97017-507-0	06	1	0804-1007		●
35	GROMMET; CHECK HOLE G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (C)	8-97017-507-0	06	1	1008-	●
35	GROMMET; CHECK HOLE (C)	8-97017-507-0	06	1	1008-		●
35	GROMMET; CHECK HOLE EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97017-507-0	02	1	0804-1007	●
35	GROMMET; CHECK HOLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97017-507-0	02	1	0804-1007			●
35	GROMMET; CHECK HOLE G.V.W. 6.0-6.5TON(RPV) (C)	8-97017-507-0	02	1	1008-	●
35	GROMMET; CHECK HOLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97017-507-0	02	1	1008-			●
35	GROMMET; CHECK HOLE 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	1-09333-033-0	04	1	0804-			●
35	GROMMET; CHECK HOLE 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	9-09956-640-0	04	1	0804-			●
36	PIPE; OIL,RR BRK	8-97192-215-0	02	1	0804-	●	●
36	PIPE; OIL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97372-826-0	02	1	0804-			●
36	PIPE; OIL,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97079-847-0	02	1	0804-			●
72	PIN; SPLIT 4 WHEEL ANTI LOCK BRAKE<JE5>	9-09874-040-0	04	1	0804-			●
83	WASHER; PL 4 WHEEL ANTI LOCK BRAKE<JE5>	1-47629-136-0	04	1	0804-			●
86	NUT; FLANGE 4 WHEEL ANTI LOCK BRAKE<JE5>	1-09440-003-0	04	1	0804-			●
94	CYLINDER; WHEEL,RR BRK HYDRO BRAKE BOOSTER(7QQ) (B) REAR	8-97358-878-0	01	1	0804-1007	●
94	CYLINDER; WHEEL,RR BRK (B) REAR	8-97358-878-0	01	1	0804-1007		●
94	CYLINDER; WHEEL,RR BRK G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (B) REAR	8-97358-878-0	01	1	1008-	●
94	CYLINDER; WHEEL,RR BRK (B) REAR	8-97358-878-0	01	1	1008-		●
94	CYLINDER; WHEEL,RR BRK HYDRO BRAKE BOOSTER(7QQ) (B) FRONT	8-97358-880-0	01	1	0804-1007	●
94	CYLINDER; WHEEL,RR BRK (B) FRONT	8-97358-880-0	01	1	0804-1007		●
94	CYLINDER; WHEEL,RR BRK G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (B) FRONT	8-97358-880-0	01	1	1008-	●
94	CYLINDER; WHEEL,RR BRK (B) FRONT	8-97358-880-0	01	1	1008-		●
94	CYLINDER; WHEEL,RR BRK HYDRO BRAKE BOOSTER(7QQ) (B) REAR	8-97358-879-0	01	1	0804-1007	●
94	CYLINDER; WHEEL,RR BRK (B) REAR	8-97358-879-0	01	1	0804-1007		●
94	CYLINDER; WHEEL,RR BRK G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (B) REAR	8-97358-879-0	01	1	1008-	●
94	CYLINDER; WHEEL,RR BRK (B) REAR	8-97358-879-0	01	1	1008-		●
94	CYLINDER; WHEEL,RR BRK HYDRO BRAKE BOOSTER(7QQ) (B) FRONT	8-97358-881-0	01	1	0804-1007	●
94	CYLINDER; WHEEL,RR BRK (B) FRONT	8-97358-881-0	01	1	0804-1007		●
94	CYLINDER; WHEEL,RR BRK G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (B) FRONT	8-97358-881-0	01	1	1008-	●
94	CYLINDER; WHEEL,RR BRK (B) FRONT	8-97358-881-0	01	1	1008-		●
94	CYLINDER; WHEEL,RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (B) REAR	8-97349-705-0	01	1	0804-1007	●
94	CYLINDER; WHEEL,RR BRK G.V.W. 6.0-6.5TON(RPV) (B) REAR	8-97349-705-0	01	1	1008-	●
94	CYLINDER; WHEEL,RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (B) FRONT	8-97349-707-0	01	1	0804-1007	●
94	CYLINDER; WHEEL,RR BRK G.V.W. 6.0-6.5TON(RPV) (B) FRONT	8-97349-707-0	01	1	1008-	●
94	CYLINDER; WHEEL,RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (B) REAR	8-97349-706-0	01	1	0804-1007	●
94	CYLINDER; WHEEL,RR BRK G.V.W. 6.0-6.5TON(RPV) (B) REAR	8-97349-706-0	01	1	1008-	●
94	CYLINDER; WHEEL,RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (B) FRONT	8-97349-708-0	01	1	0804-1007	●
94	CYLINDER; WHEEL,RR BRK G.V.W. 6.0-6.5TON(RPV) (B) FRONT	8-97349-708-0	01	1	1008-	●
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C) FRONT	8-97372-821-0	01	1	0804-1507			●
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C) FRONT	8-98317-278-0	01	1	1508-			●
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C) REAR	8-97372-823-0	01	1	0804-1507			●
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C) REAR	8-98317-280-0	01	1	1508-			●
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C) FRONT	8-97372-820-0	01	1	0804-1507			●
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C) FRONT	8-98317-281-0	01	1	1508-			●
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C) REAR	8-97372-822-0	01	1	0804-1507			●
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C) REAR	8-98317-282-0	01	1	1508-			●
94	CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97353-570-0	02	1	0804-			●
94	CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) REAR	8-97353-571-0	01	1	0804-			●
94	CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT	8-97353-572-0	01	1	0804-			●
95	CUP SET; RR WHEEL CYL HYDRO BRAKE BOOSTER(7QQ)	5-87832-051-0	02	1	0804-1007	●
95	CUP SET; RR WHEEL CYL	5-87832-051-0	02	1	0804-1007		●
95	CUP SET; RR WHEEL CYL G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	5-87832-051-0	02	1	1008-	●
95	CUP SET; RR WHEEL CYL	5-87832-051-0	02	1	1008-		●
95	CUP SET; RR WHEEL CYL EXC. HYDRO BRAKE BOOSTER(7QQ)	5-87832-070-0	01	1	0804-1007	●
95	CUP SET; RR WHEEL CYL G.V.W. 6.0-6.5TON(RPV)	5-87832-070-0	01	1	1008-	●
95	CUP SET; RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87832-131-0	01	1	0804-1507			●
95	CUP SET; RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87832-359-0	01	1	1508-			●
95	CUP SET; RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87832-080-0	02	1	0804-			●
96	SCREW; BLEEDER,RR BRK HYDRO BRAKE BOOSTER(7QQ)	8-98050-477-0	02	1	0804-1007	●
96	SCREW; BLEEDER,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98050-477-0	02	1	0804-1007			●
96	SCREW; BLEEDER,RR BRK	8-98050-477-0	02	1	0804-1007		●
96	SCREW; BLEEDER,RR BRK G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-98050-477-0	02	1	1008-	●
96	SCREW; BLEEDER,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98050-477-0	02	1	1008-			●
96	SCREW; BLEEDER,RR BRK	8-98050-477-0	02	1	1008-		●
96	SCREW; BLEEDER,RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ) SOU	8-98050-476-0	02	1	0804-1007	●
96	SCREW; BLEEDER,RR BRK G.V.W. 6.0-6.5TON(RPV) SOU	8-98050-476-0	02	1	1008-	●
96	SCREW; BLEEDER,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98050-477-0	01	1	0804-			●
97	CAP; BLEEDER,RR WHEEL CYL SOU	8-98050-479-0	02	1	0804-	●	●
97	CAP; BLEEDER,RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> SOU	8-98050-479-0	02	1	0804-			●
97	CAP; BLEEDER,RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> SOU	8-98050-479-0	01	1	0804-			●
99	PISTON; RR WHEEL CYL HYDRO BRAKE BOOSTER(7QQ)	8-97349-731-0	02	1	0804-1007	●
99	PISTON; RR WHEEL CYL	8-97349-731-0	02	1	0804-1007		●
99	PISTON; RR WHEEL CYL G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97349-731-0	02	1	1008-	●
99	PISTON; RR WHEEL CYL	8-97349-731-0	02	1	1008-		●
99	PISTON; RR WHEEL CYL HYDRO BRAKE BOOSTER(7QQ)	8-97349-732-0	02	1	0804-1007	●
99	PISTON; RR WHEEL CYL	8-97349-732-0	02	1	0804-1007		●
99	PISTON; RR WHEEL CYL G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97349-732-0	02	1	1008-	●
99	PISTON; RR WHEEL CYL	8-97349-732-0	02	1	1008-		●
99	PISTON; RR WHEEL CYL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97349-729-0	01	1	0804-1007	●
99	PISTON; RR WHEEL CYL G.V.W. 6.0-6.5TON(RPV)	8-97349-729-0	01	1	1008-	●
99	PISTON; RR WHEEL CYL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97349-730-0	02	1	0804-1007	●
99	PISTON; RR WHEEL CYL G.V.W. 6.0-6.5TON(RPV)	8-97349-730-0	02	1	1008-	●
99	PISTON; RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97372-832-0	02	1	0804-			●
99	PISTON; RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97372-831-0	02	1	0804-			●
99	PISTON; RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97353-579-0	03	1	0804-			●
101	SCREW; ADJ,RR WHEEL CYL (B)	8-97349-747-0	04	1	0804-	●	●
101	SCREW; ADJ,RR WHEEL CYL (A)	8-97349-741-0	02	1	0804-	●	●
101	SCREW; ADJ,RR WHEEL CYL (A)	8-97349-742-0	02	1	0804-	●	●
101	SCREW; ADJ,RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97372-838-0	02	1	0804-			●
101	SCREW; ADJ,RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97372-837-0	02	1	0804-			●
101	SCREW; ADJ,RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-94414-702-0	04	1	0804-			●
102	PISTON; REAR WHEEL CYL HYDRO BRAKE BOOSTER(7QQ) (B)	8-97332-043-0	04	1	0804-1007	●
102	PISTON; REAR WHEEL CYL (B)	8-97332-043-0	04	1	0804-1007		●
102	PISTON; REAR WHEEL CYL G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (B)	8-97332-043-0	04	1	1008-	●
102	PISTON; REAR WHEEL CYL (B)	8-97332-043-0	04	1	1008-		●
102	PISTON; REAR WHEEL CYL EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-97078-045-0	04	1	0804-1007	●
102	PISTON; REAR WHEEL CYL G.V.W. 6.0-6.5TON(RPV) (B)	8-97078-045-0	04	1	1008-	●
102	PISTON; REAR WHEEL CYL EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97349-729-0	01	1	0804-1007	●
102	PISTON; REAR WHEEL CYL G.V.W. 6.0-6.5TON(RPV) (A)	8-97349-729-0	01	1	1008-	●
102	PISTON; REAR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97372-833-0	04	1	0804-			●
102	PISTON; REAR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97353-578-0	04	1	0804-			●
102	PISTON; REAR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97353-579-0	01	1	0804-			●
104	LEVER; ADJ	8-97349-743-0	02	1	0804-	●	●
104	LEVER; ADJ	8-97349-744-0	02	1	0804-	●	●
104	LEVER; ADJ 4 WHEEL ANTI LOCK BRAKE<JE5>	1-47619-134-0	02	1	0804-			●
104	LEVER; ADJ 4 WHEEL ANTI LOCK BRAKE<JE5>	1-47619-133-0	02	1	0804-			●
106	SPRING; ADJ LEVER	8-97349-745-0	04	1	0804-	●	●
106	SPRING; ADJ LEVER 4 WHEEL ANTI LOCK BRAKE<JE5>	1-09583-345-0	04	1	0804-			●
107	GEAR; ADJ,RR W/CYL HYDRO BRAKE BOOSTER(7QQ)	8-97358-894-0	02	1	0804-1007	●
107	GEAR; ADJ,RR W/CYL	8-97358-894-0	02	1	0804-1007		●
107	GEAR; ADJ,RR W/CYL G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97358-894-0	02	1	1008-	●
107	GEAR; ADJ,RR W/CYL	8-97358-894-0	02	1	1008-		●
107	GEAR; ADJ,RR W/CYL HYDRO BRAKE BOOSTER(7QQ)	8-97358-895-0	02	1	0804-1007	●
107	GEAR; ADJ,RR W/CYL	8-97358-895-0	02	1	0804-1007		●
107	GEAR; ADJ,RR W/CYL G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97358-895-0	02	1	1008-	●
107	GEAR; ADJ,RR W/CYL	8-97358-895-0	02	1	1008-		●
107	GEAR; ADJ,RR W/CYL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97349-738-0	02	1	0804-1007	●
107	GEAR; ADJ,RR W/CYL G.V.W. 6.0-6.5TON(RPV)	8-97349-738-0	02	1	1008-	●
107	GEAR; ADJ,RR W/CYL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97349-740-0	02	1	0804-1007	●
107	GEAR; ADJ,RR W/CYL G.V.W. 6.0-6.5TON(RPV)	8-97349-740-0	02	1	1008-	●
107	GEAR; ADJ,RR W/CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97372-836-0	02	1	0804-			●
107	GEAR; ADJ,RR W/CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97372-835-0	02	1	0804-			●
108	WASHER; THRUST,GEAR ADJ	8-97349-736-0	04	1	0804-	●	●
108	WASHER; THRUST,GEAR ADJ 4 WHEEL ANTI LOCK BRAKE<JE5>	1-47629-135-0	04	1	0804-			●
124	SHOE ASM; BRK,RR HYDRO BRAKE BOOSTER(7QQ)	8-97188-455-0	04	1	0804-1007	●
124	SHOE ASM; BRK,RR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97188-455-0	04	1	0804-1007			●
124	SHOE ASM; BRK,RR	8-97188-455-0	04	1	0804-1007		●
124	SHOE ASM; BRK,RR G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97188-455-0	04	1	1008-	●
124	SHOE ASM; BRK,RR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97188-455-0	04	1	1008-			●
124	SHOE ASM; BRK,RR	8-97188-455-0	04	1	1008-		●
124	SHOE ASM; BRK,RR EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97201-061-0	04	1	0804-1007	●
124	SHOE ASM; BRK,RR G.V.W. 6.0-6.5TON(RPV)	8-97201-061-0	04	1	1008-	●
124	SHOE ASM; BRK,RR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97373-425-0	04	1	0804-			●
136	GROMMET EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97017-507-0	04	1	0804-1007	●
136	GROMMET G.V.W. 6.0-6.5TON(RPV) (C)	8-97017-507-0	04	1	1008-	●
136	GROMMET (B)	1-47154-008-0	04	1	0804-	●	●
136	GROMMET 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	1-47154-008-0	04	1	0804-			●
136	GROMMET EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97044-742-1	04	1	0804-			●
199	NUT 4 WHEEL ANTI LOCK BRAKE<JE5>	1-09400-100-0	04	1	0804-			●
200	BOLT 4 WHEEL ANTI LOCK BRAKE<JE5>	1-47162-017-0	04	1	0804-0904			●
200	BOLT 4 WHEEL ANTI LOCK BRAKE<JE5>	1-47162-050-0	04	1	0905-			●
217	LINING KIT; RR BRK HYDRO BRAKE BOOSTER(7QQ)	5-87831-692-0	01	1	0804-1007	●
217	LINING KIT; RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87831-692-0	01	1	0804-1007			●
217	LINING KIT; RR BRK	5-87831-692-0	01	1	0804-1007		●
217	LINING KIT; RR BRK G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	5-87831-692-0	01	1	1008-	●
217	LINING KIT; RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87831-692-0	01	1	1008-			●
217	LINING KIT; RR BRK	5-87831-692-0	01	1	1008-		●
217	LINING KIT; RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ)	5-87831-774-0	01	1	0804-1007	●
217	LINING KIT; RR BRK G.V.W. 6.0-6.5TON(RPV)	5-87831-774-0	01	1	1008-	●
217	LINING KIT; RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87832-134-0	01	1	0804-			●
217	LINING KIT; RR BRK HYDRO BRAKE BOOSTER(7QQ) BEST VALUE PARTS	5-87610-119-0	01	1	0804-1007	●
217	LINING KIT; RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> BEST VALUE PARTS	5-87610-119-0	01	1	0804-1007			●
217	LINING KIT; RR BRK BEST VALUE PARTS	5-87610-119-0	01	1	0804-1007		●
217	LINING KIT; RR BRK G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BEST VALUE PARTS	5-87610-119-0	01	1	1008-	●
217	LINING KIT; RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> BEST VALUE PARTS	5-87610-119-0	01	1	1008-			●
217	LINING KIT; RR BRK BEST VALUE PARTS	5-87610-119-0	01	1	1008-		●
217	LINING KIT; RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ) BEST VALUE PARTS	5-87610-120-0	01	1	0804-1007	●
217	LINING KIT; RR BRK G.V.W. 6.0-6.5TON(RPV) BEST VALUE PARTS	5-87610-120-0	01	1	1008-	●
218	SHOE KIT; BRK,RR HYDRO BRAKE BOOSTER(7QQ)	5-87831-693-0	01	1	0804-1007	●
218	SHOE KIT; BRK,RR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87831-693-0	01	1	0804-1007			●
218	SHOE KIT; BRK,RR	5-87831-693-0	01	1	0804-1007		●
218	SHOE KIT; BRK,RR G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	5-87831-693-0	01	1	1008-	●
218	SHOE KIT; BRK,RR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87831-693-0	01	1	1008-			●
218	SHOE KIT; BRK,RR	5-87831-693-0	01	1	1008-		●
218	SHOE KIT; BRK,RR EXC. HYDRO BRAKE BOOSTER(7QQ)	5-87831-775-0	01	1	0804-1007	●
218	SHOE KIT; BRK,RR G.V.W. 6.0-6.5TON(RPV)	5-87831-775-0	01	1	1008-	●
218	SHOE KIT; BRK,RR 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87832-132-0	01	1	0804-			●
297	RING; SNAP 4 WHEEL ANTI LOCK BRAKE<JE5>	1-47629-263-0	04	1	0804-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
