◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51172 - NPR/NQR(SOUTHAFRICA) ▶ 3 - Brakes, Brake System ▶ 3-02 - FRONT DISC BRAKE CALIPER ▶
3-02 — FRONT DISC BRAKE CALIPER (#50852) — 58 parça

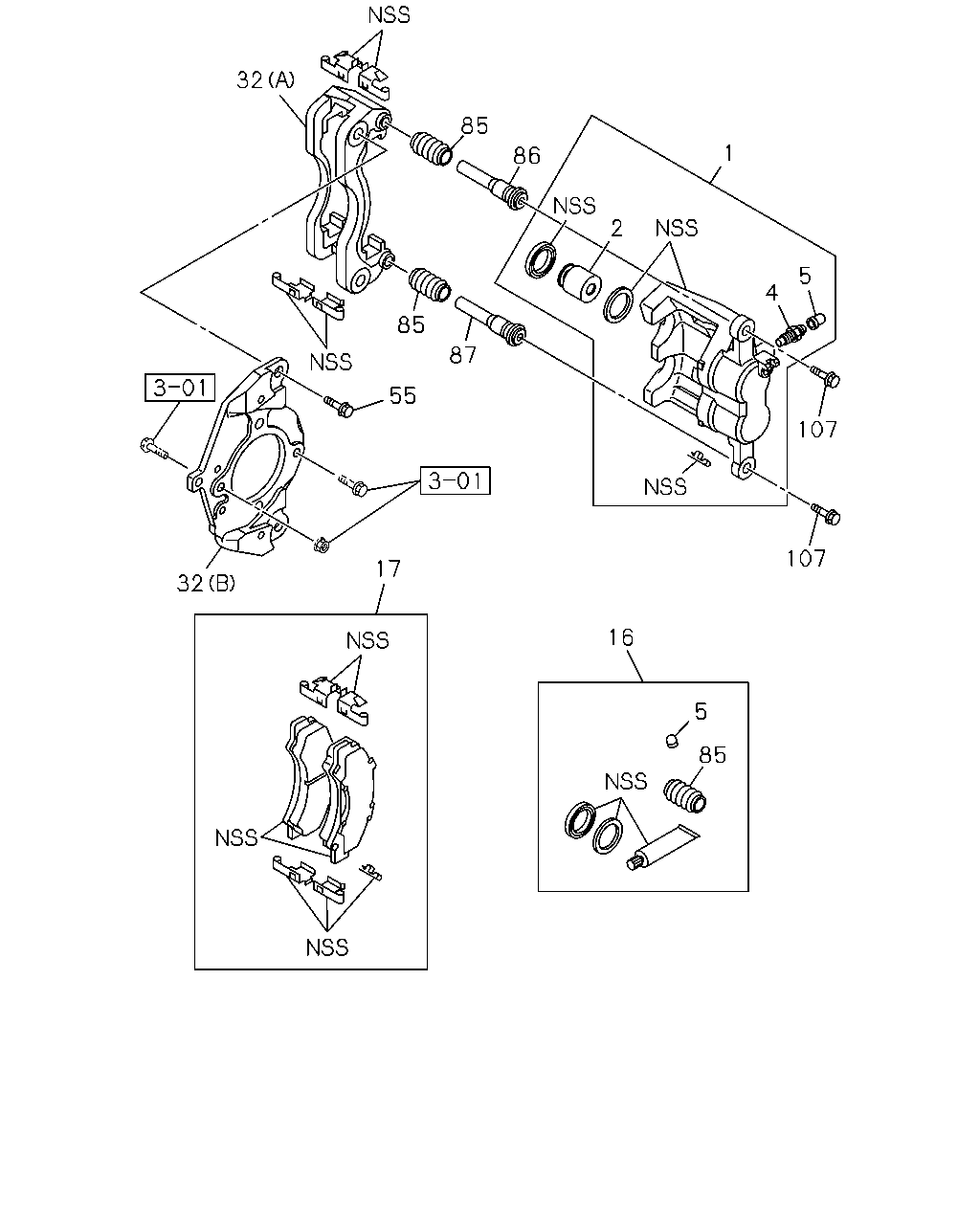

çizim 157762
32 85 1 86 2 5 4 85 87 55 107 107 17 32 16 5 85
BalonParca AdiParca NoAdetTipApplied Date A B
1 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97365-908-0 01 1 0804-1310 ●
1 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-98247-731-0 01 1 1311-1412 ●
1 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-98303-462-0 01 1 1501- ●
1 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97365-907-0 01 1 0804-1310 ●
1 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-98247-730-0 01 1 1311-1412 ●
1 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-98303-461-0 01 1 1501- ●
1 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97368-920-0 01 1 0804-1412 ●
1 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-98303-466-0 01 1 1501- ●
1 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97368-919-0 01 1 0804-1412 ●
1 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-98303-465-0 01 1 1501- ●
1 CALIPER; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		8-97365-910-0 01 1 0804-1412 ●
1 CALIPER; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		8-98303-470-0 01 1 1501- ●
1 CALIPER; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		8-97365-909-0 01 1 0804-1412 ●
1 CALIPER; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		8-98303-469-0 01 1 1501- ●
2 PISTON; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97365-269-0 04 1 0804- ●
2 PISTON; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97365-279-0 04 1 0804- ●
2 PISTON; CALIPER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		8-97365-279-0 04 1 0804- ●
4 SCREW; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) SOU 		8-98050-476-0 02 1 1311-1412 ●
4 SCREW; BLEEDER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> SOU 		8-98050-476-0 02 1 1501- ● ●
4 SCREW; BLEEDER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		1-47615-027-0 02 1 0804-1310 ● ●
4 SCREW; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		1-47615-027-0 02 1 1311-1412 ●
4 SCREW; BLEEDER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		1-47615-027-0 02 1 1311-1412 ●
5 CAP; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) SOU 		8-98050-479-0 02 1 1311-1412 ●
5 CAP; BLEEDER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> SOU 		8-98050-479-0 02 1 1501- ● ●
5 CAP; BLEEDER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> SOU 		1-47619-009-0 02 1 0804-1310 ● ●
5 CAP; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) SOU 		1-47619-009-0 02 1 1311-1412 ●
5 CAP; BLEEDER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> SOU 		1-47619-009-0 02 1 1311-1412 ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-98120-357-0 01 1 0804-1310 ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-98248-904-0 01 1 1311-1412 ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-98302-531-0 01 1 1501- ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-98120-358-0 01 1 0804-1412 ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		8-98120-358-0 01 1 0804-1412 ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-98302-532-0 01 1 1501- ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		8-98302-532-0 01 1 1501- ●
17 PAD KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97329-266-0 01 1 0804-1212 ●
17 PAD KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-98216-922-0 01 1 1301- ●
17 PAD KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97168-634-0 01 1 0804-1212 ●
17 PAD KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-98216-926-0 01 1 1301- ●
17 PAD KIT; CALIPER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		8-97211-691-0 01 1 0804- ●
32 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> (B) 		8-98009-727-0 01 1 0804- ●
32 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> (B) 		8-98009-726-0 01 1 0804- ●
32 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) (A) 		8-97365-271-0 02 1 0804- ●
32 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (A) 		8-97365-281-0 02 1 0804- ●
32 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (A) 		8-97365-284-0 02 1 0804- ●
32 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B) 		8-98009-731-0 01 1 0804-1107 ●
32 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B) 		8-98188-552-0 01 1 1108- ●
32 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B) 		8-98009-730-0 01 1 0804-1107 ●
32 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B) 		8-98188-551-0 01 1 1108- ●
55 BOLT; SUPPORT BRKT TO DISC BRK
DISC BRAKE FRT<J52> M16X31 FLANGE 		8-97359-816-0 04 1 0804- ●
55 BOLT; SUPPORT BRKT TO DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> M16X40 FLANGE 		8-97359-817-0 04 1 0804- ●
85 BOOT; PIN
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		8-97365-265-0 04 1 0804-0901 ● ●
85 BOOT; PIN
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		8-98120-354-0 04 1 0902- ● ●
86 PIN; GUIDE
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		8-98047-529-0 02 1 0804- ● ●
87 PIN; LOCK
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-98248-005-0 02 1 1311- ●
87 PIN; LOCK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		8-98047-531-0 02 1 0804-1310 ● ●
87 PIN; LOCK
DISC BRAKE FRT<J52> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-98047-531-0 02 1 1311- ●
87 PIN; LOCK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		8-98047-531-0 02 1 1311- ●
107 BOLT; PIN
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		8-97365-264-0 04 1 0804- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
