Sayfa 2-85 - Isuzu EPC

2-85 — POWER TAKE OFF CONTROL (#50850) — 182 parça

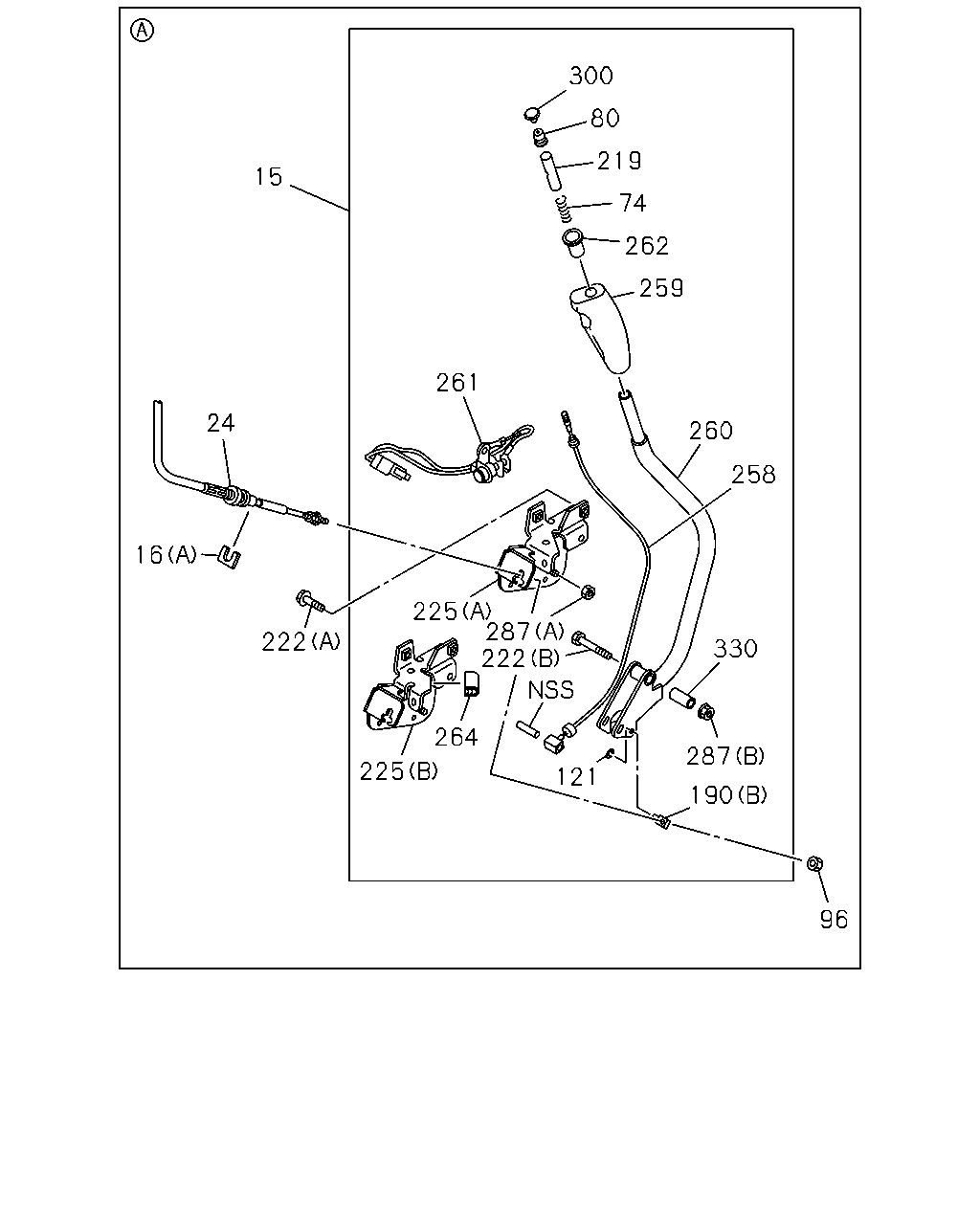

15 300 80 219 74 262 259 260 258 330 287 190 96 121 222 287 225 225 264 222 16 24 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	LEVER ASM; PTO CONT DUMP CHASSIS(V4D)	8-98029-208-6	01	1	0804-1006
15	LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98029-208-6	01	1	0804-1006
15	LEVER ASM; PTO CONT DUMP CONTROL LEVER<RC4>	8-98029-208-7	01	1	1007-1204
15	LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-98029-208-7	01	1	1007-1204
15	LEVER ASM; PTO CONT DUMP CONTROL LEVER<RC4>	8-98199-362-0	01	1	1205-
15	LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-98199-362-0	01	1	1205-
16	CLIP; CABLE,PTO DUMP CHASSIS(V4D) (B) T=6.0 SOU	5-09709-024-0	02	1	0804-0805
16	CLIP; CABLE,PTO DUMP CHASSIS(V4D) (B) T=4.5 & 9	8-97371-947-0	02	1	0806-
16	CLIP; CABLE,PTO DUMP CHASSIS(V4D) (A)	8-98050-126-0	01	1	0804-
16	CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A)	8-98050-126-0	01	1	0804-
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3600	8-98146-349-0	01	1	0904-1207
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3600	8-98223-300-1	01	1	1208-
24	CABLE; PTO CONT DUMP CHASSIS(V4D) L=4362	8-98115-256-0	01	1	0804-1207
24	CABLE; PTO CONT DUMP CHASSIS(V4D) L=4362	8-98223-299-0	01	1	1208-
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3602	8-98085-642-1	01	1	0804-0903
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3602	8-98085-642-1	01	1	0904-1207
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3602	8-98223-352-0	01	1	1208-
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3680	8-98085-641-1	01	1	0804-0903
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3680	8-98085-641-1	01	1	0904-1207
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3680	8-98223-353-0	01	1	1208-
74	SPRING; RETURN,CONT LEVER DUMP CHASSIS(V4D)	8-98029-874-0	01	1	0804-1006
74	SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98029-874-0	01	1	0804-1006
74	SPRING; RETURN,CONT LEVER DUMP CONTROL LEVER<RC4>	8-98029-874-0	01	1	1007-
74	SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-98029-874-0	01	1	1007-
80	COVER; CONT LEVER DUMP CHASSIS(V4D)	8-97122-741-0	01	1	0804-1006
80	COVER; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97122-741-0	01	1	0804-1006
80	COVER; CONT LEVER DUMP CONTROL LEVER<RC4>	8-97122-741-0	01	1	1007-
80	COVER; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-97122-741-0	01	1	1007-
96	NUT DUMP CHASSIS(V4D) M6 SOU	0-91110-506-0	01	1	0804-
96	NUT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) M6 SOU	0-91110-506-0	01	1	0804-
121	RING; SNAP DUMP CHASSIS(V4D) ID=4	0-91805-504-0	01	1	0804-1006
121	RING; SNAP PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) ID=4	0-91805-504-0	01	1	0804-1006
121	RING; SNAP DUMP CONTROL LEVER<RC4> ID=4	0-91805-504-0	01	1	1007-
121	RING; SNAP PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> ID=4	0-91805-504-0	01	1	1007-
190	BOSS; LEVER,PTO DUMP CHASSIS(V4D) (B)	8-98029-878-0	01	1	0804-1006
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B)	8-98029-878-0	01	1	0804-1006
190	BOSS; LEVER,PTO DUMP CONTROL LEVER<RC4> (B)	8-98029-878-0	01	1	1007-
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> (B)	8-98029-878-0	01	1	1007-
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (A)	8-94366-842-2	01	1	0804-0903
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (A)	8-94366-842-2	01	1	0904-
219	KNOB; LEVER DUMP CHASSIS(V4D)	8-97122-736-0	01	1	0804-1006
219	KNOB; LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97122-736-0	01	1	0804-1006
219	KNOB; LEVER DUMP CONTROL LEVER<RC4>	8-97122-736-0	01	1	1007-
219	KNOB; LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-97122-736-0	01	1	1007-
222	BOLT; LEVER DUMP CHASSIS(V4D) (B) M8X60	0-10855-860-0	01	1	0804-1006
222	BOLT; LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B) M8X60	0-10855-860-0	01	1	0804-1006
222	BOLT; LEVER DUMP CONTROL LEVER<RC4> (B) M8X60	0-10855-860-0	01	1	1007-
222	BOLT; LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> (B) M8X60	0-10855-860-0	01	1	1007-
222	BOLT; LEVER DUMP CHASSIS(V4D) (A) M8X20 FLANGE	0-28650-820-0	03	1	0804-1006
222	BOLT; LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A) M8X20 FLANGE	0-28650-820-0	03	1	0804-1006
222	BOLT; LEVER DUMP CONTROL LEVER<RC4> (A) M8X20 FLANGE	0-28650-820-0	03	1	1007-
222	BOLT; LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> (A) M8X20 FLANGE	0-28650-820-0	03	1	1007-
225	BRACKET; CONT LEVER DUMP CHASSIS(V4D) (A)	8-98029-873-2	01	1	0804-1006
225	BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A)	8-98029-873-2	01	1	0804-1006
225	BRACKET; CONT LEVER DUMP CONTROL LEVER<RC4> (A)	8-98029-873-3	01	1	1007-1204
225	BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> (A)	8-98029-873-3	01	1	1007-1204
225	BRACKET; CONT LEVER DUMP CONTROL LEVER<RC4> (B)	8-98152-960-1	01	1	1205-
225	BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> (B)	8-98152-960-1	01	1	1205-
258	CABLE; DUMP CONT DUMP CHASSIS(V4D)	8-98029-877-1	01	1	0804-1006
258	CABLE; DUMP CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98029-877-1	01	1	0804-1006
258	CABLE; DUMP CONT DUMP CONTROL LEVER<RC4>	8-98029-877-1	01	1	1007-
258	CABLE; DUMP CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-98029-877-1	01	1	1007-
259	GRIP; CONT LEVER DUMP CHASSIS(V4D)	8-97141-653-0	01	1	0804-1006
259	GRIP; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97141-653-0	01	1	0804-1006
259	GRIP; CONT LEVER DUMP CONTROL LEVER<RC4>	8-97141-653-0	01	1	1007-
259	GRIP; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-97141-653-0	01	1	1007-
260	LEVER; DUMP CONT DUMP CHASSIS(V4D)	8-98030-057-2	01	1	0804-1006
260	LEVER; DUMP CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98030-057-2	01	1	0804-1006
260	LEVER; DUMP CONT DUMP CONTROL LEVER<RC4>	8-98030-057-2	01	1	1007-
260	LEVER; DUMP CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-98030-057-2	01	1	1007-
261	SWITCH; DUMP CONT DUMP CHASSIS(V4D)	8-98081-918-0	01	1	0804-1006
261	SWITCH; DUMP CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98081-918-0	01	1	0804-1006
261	SWITCH; DUMP CONT DUMP CONTROL LEVER<RC4>	8-98081-918-0	01	1	1007-
261	SWITCH; DUMP CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-98081-918-0	01	1	1007-
262	RETAINER; SPRING DUMP CHASSIS(V4D)	8-97129-397-0	01	1	0804-1006
262	RETAINER; SPRING PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97129-397-0	01	1	0804-1006
262	RETAINER; SPRING DUMP CONTROL LEVER<RC4>	8-97129-397-0	01	1	1007-
262	RETAINER; SPRING PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-97129-397-0	01	1	1007-
264	PROTECTOR; EDGE DUMP CONTROL LEVER<RC4>	8-98211-652-0	01	1	1205-
264	PROTECTOR; EDGE PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-98211-652-0	01	1	1205-
287	NUT; SWITCH,CONT LEVER DUMP CHASSIS(V4D) (A) M6 SOU	0-91110-506-0	01	1	0804-1006
287	NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A) M6 SOU	0-91110-506-0	01	1	0804-1006
287	NUT; SWITCH,CONT LEVER DUMP CONTROL LEVER<RC4> (A) M6 SOU	0-91110-506-0	01	1	1007-
287	NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> (A) M6 SOU	0-91110-506-0	01	1	1007-
287	NUT; SWITCH,CONT LEVER DUMP CHASSIS(V4D) (B) M8 FLANGE SOU	0-91180-208-0	01	1	0804-1006
287	NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B) M8 FLANGE SOU	0-91180-208-0	01	1	0804-1006
287	NUT; SWITCH,CONT LEVER DUMP CONTROL LEVER<RC4> (B) M8 FLANGE SOU	0-91180-208-0	01	1	1007-
287	NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> (B) M8 FLANGE SOU	0-91180-208-0	01	1	1007-
300	CAP; KNOB DUMP CHASSIS(V4D)	8-97122-740-0	01	1	0804-1006
300	CAP; KNOB PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97122-740-0	01	1	0804-1006
300	CAP; KNOB DUMP CONTROL LEVER<RC4>	8-97122-740-0	01	1	1007-
300	CAP; KNOB PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-97122-740-0	01	1	1007-
330	COLOR; DUMP CONT DUMP CHASSIS(V4D)	8-98049-802-0	01	1	0804-1006
330	COLOR; DUMP CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98049-802-0	01	1	0804-1006
330	COLOR; DUMP CONT DUMP CONTROL LEVER<RC4>	8-98049-802-0	01	1	1007-
330	COLOR; DUMP CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-98049-802-0	01	1	1007-

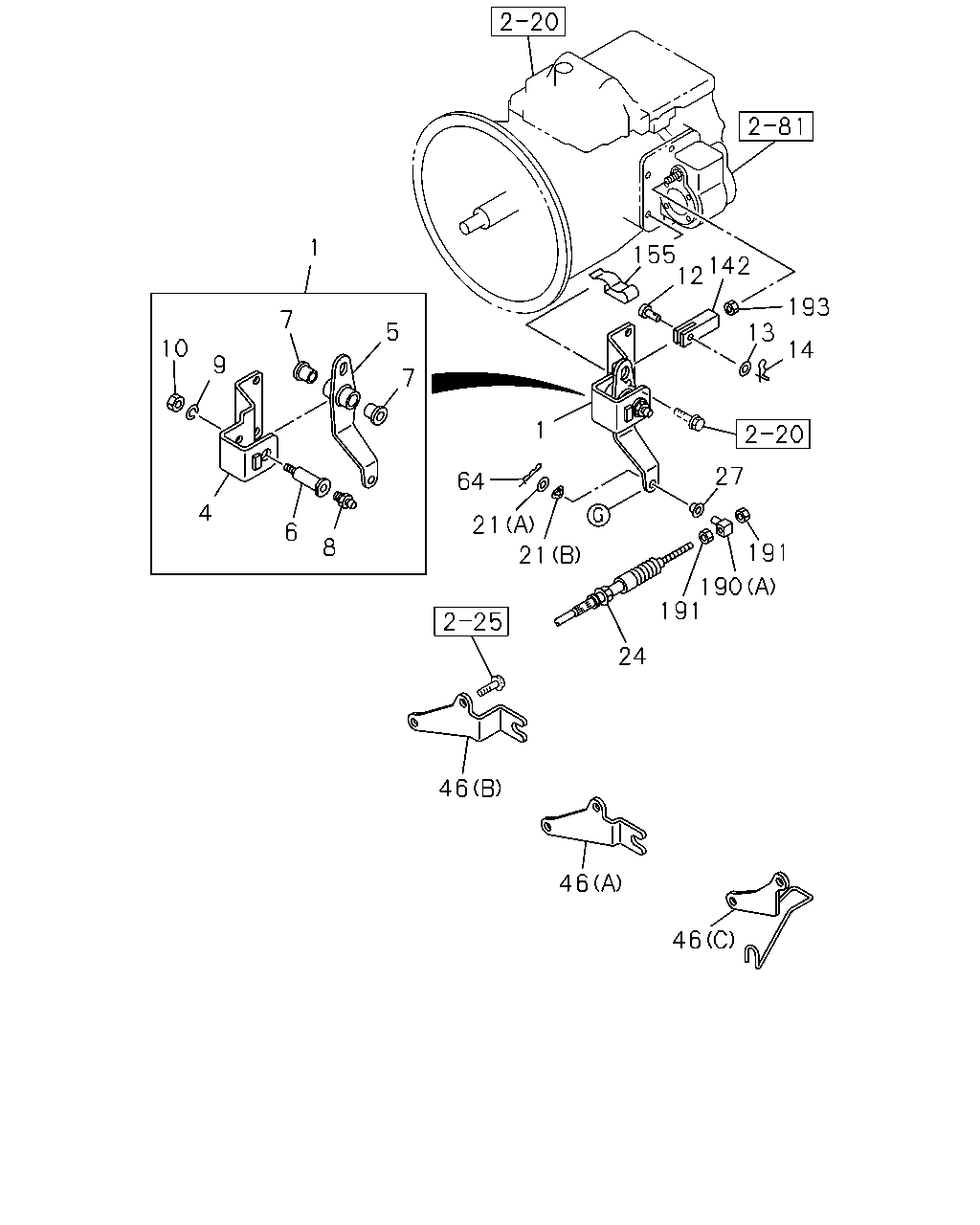

1 155 142 12 193 7 5 13 10 14 9 7 1 27 64 4 21 21 6 8 191 190 191 24 46 46 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98032-714-0	01	1	0804-1107
1	LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98150-089-1	01	1	1108-
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98032-717-0	01	1	0804-1107
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98150-099-1	01	1	1108-
5	LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98032-718-0	01	1	0804-
6	SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98032-720-0	01	1	0804-1107
6	SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98150-101-0	01	1	1108-
7	BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	5-33659-053-0	02	1	0804-
8	NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) M6 STRAIGHT SOU	0-90301-406-0	01	1	0804-
9	WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) ID=8.2 SOU	0-91510-508-0	01	1	0804-
10	NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) M8 SOU	0-91110-508-0	01	1	0804-
12	JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98031-692-0	01	1	0804-
13	WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) ID=12.5 OD=22	0-91610-512-0	01	1	0804-
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97581-216-0	01	1	0804-
21	WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) (A) ID=8.4 OD=22	0-91614-708-0	01	1	0804-0903
21	WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (A) ID=8.4 OD=22	0-91614-708-0	01	1	0904-
21	WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) (B) ID=8.5 T=0.3	5-09509-001-0	01	1	0804-0903
21	WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (B) ID=8.5 T=0.3	5-09509-001-0	01	1	0904-
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3600	8-98146-349-0	01	1	0904-1207
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3600	8-98223-300-1	01	1	1208-
24	CABLE; PTO CONT DUMP CHASSIS(V4D) L=4362	8-98115-256-0	01	1	0804-1207
24	CABLE; PTO CONT DUMP CHASSIS(V4D) L=4362	8-98223-299-0	01	1	1208-
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3602	8-98085-642-1	01	1	0804-0903
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3602	8-98085-642-1	01	1	0904-1207
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3602	8-98223-352-0	01	1	1208-
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3680	8-98085-641-1	01	1	0804-0903
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3680	8-98085-641-1	01	1	0904-1207
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3680	8-98223-353-0	01	1	1208-
27	BUSHING; LEVER,PTO PTO MANUAL CONTROL(6WC)	8-94367-367-0	01	1	0804-0903
27	BUSHING; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ)	8-94367-367-0	01	1	0904-
46	BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) (C)	8-98133-150-0	01	1	0910-
46	BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98032-829-2	01	1	0804-0903
46	BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (A)	8-98032-829-2	01	1	0904-
46	BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98081-815-0	01	1	0804-0903
46	BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (B)	8-98081-815-0	01	1	0904-
64	PIN; SNAP,CONT CABLE JOINT NPR(NP***N) PTO MANUAL CONTROL(6WC) L=27.7 SOU	8-94111-137-0	01	1	0804-0903
64	PIN; SNAP,CONT CABLE JOINT NPR(NP***N) PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=27.7 SOU	8-94111-137-0	01	1	0904-1012
64	PIN; SNAP,CONT CABLE JOINT PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=27.7 SOU	8-94111-137-0	01	1	1101-
142	CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98031-691-0	01	1	0804-
155	CLIP; CABLE PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) T=5.5 SOU	5-09709-047-0	01	1	0804-
190	BOSS; LEVER,PTO DUMP CHASSIS(V4D) (B)	8-98029-878-0	01	1	0804-1006
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B)	8-98029-878-0	01	1	0804-1006
190	BOSS; LEVER,PTO DUMP CONTROL LEVER<RC4> (B)	8-98029-878-0	01	1	1007-
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> (B)	8-98029-878-0	01	1	1007-
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (A)	8-94366-842-2	01	1	0804-0903
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (A)	8-94366-842-2	01	1	0904-
191	NUT; BOSS PTO MANUAL CONTROL(6WC) M6 SOU	0-91110-506-0	02	1	0804-0903
191	NUT; BOSS PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) M6 SOU	0-91110-506-0	02	1	0904-
193	NUT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) M12	0-91111-512-0	01	1	0804-

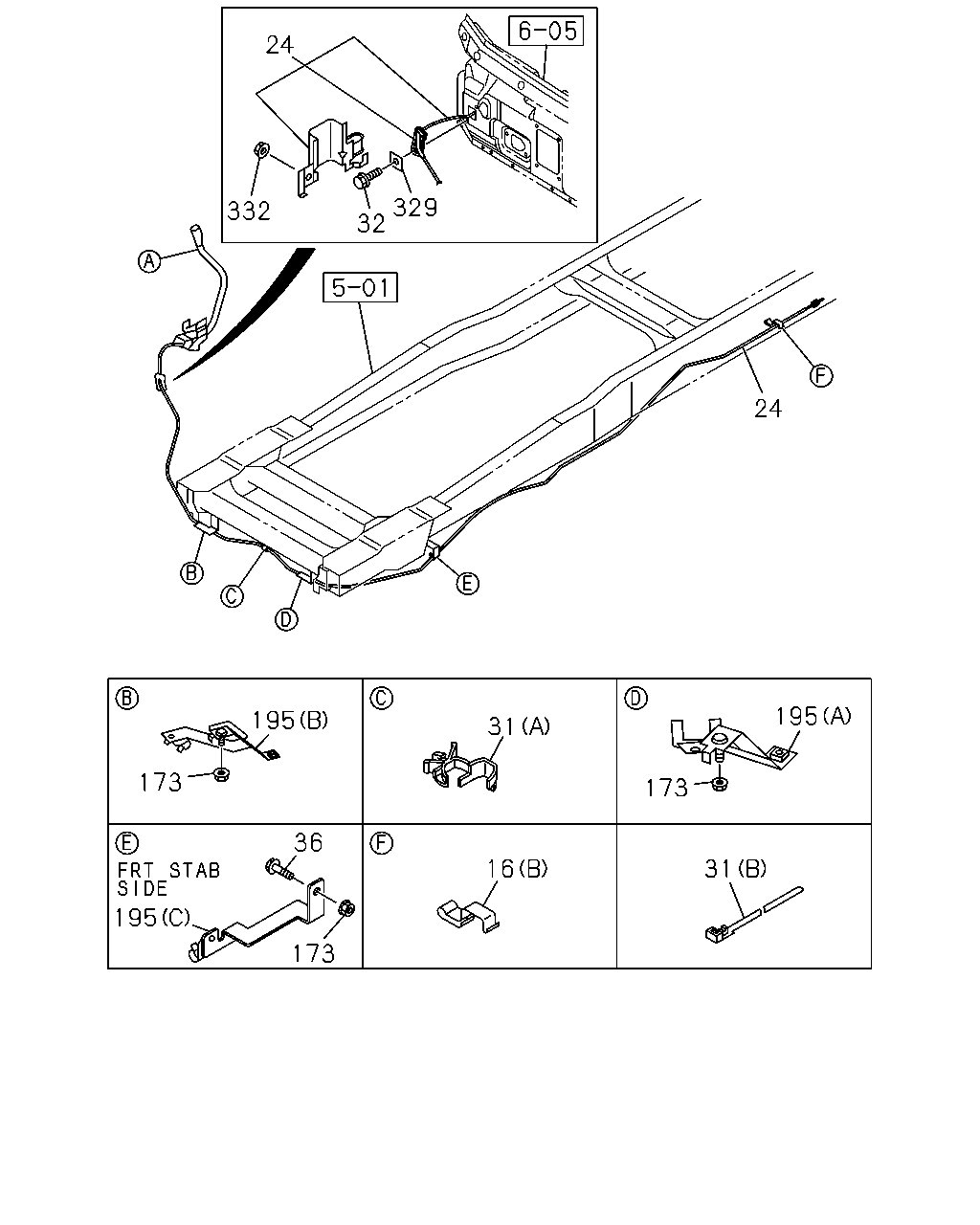

24 329 32 332 24 195 195 31 173 173 36 16 31 195 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; CABLE,PTO DUMP CHASSIS(V4D) (B) T=6.0 SOU	5-09709-024-0	02	1	0804-0805
16	CLIP; CABLE,PTO DUMP CHASSIS(V4D) (B) T=4.5 & 9	8-97371-947-0	02	1	0806-
16	CLIP; CABLE,PTO DUMP CHASSIS(V4D) (A)	8-98050-126-0	01	1	0804-
16	CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A)	8-98050-126-0	01	1	0804-
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3600	8-98146-349-0	01	1	0904-1207
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3600	8-98223-300-1	01	1	1208-
24	CABLE; PTO CONT DUMP CHASSIS(V4D) L=4362	8-98115-256-0	01	1	0804-1207
24	CABLE; PTO CONT DUMP CHASSIS(V4D) L=4362	8-98223-299-0	01	1	1208-
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3602	8-98085-642-1	01	1	0804-0903
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3602	8-98085-642-1	01	1	0904-1207
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3602	8-98223-352-0	01	1	1208-
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3680	8-98085-641-1	01	1	0804-0903
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3680	8-98085-641-1	01	1	0904-1207
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3680	8-98223-353-0	01	1	1208-
31	CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) (B) L=300	1-09707-001-1	02	1	0904-
31	CLIP; BAND,CABLE DUMP CHASSIS(V4D) (B) L=250 SOU	5-09707-030-1	01	1	0804-
31	CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B) L=250 SOU	5-09707-030-1	01	1	0804-
31	CLIP; BAND,CABLE DUMP CHASSIS(V4D) (A) ID=16	8-97040-812-0	01	1	0804-
31	CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A) ID=16	8-97040-812-0	01	1	0804-
32	BOLT; CLIP,CABLE DUMP CHASSIS(V4D) M6X16 FLANGE	0-28060-616-0	02	1	0804-
32	BOLT; CLIP,CABLE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) M6X16 FLANGE	0-28060-616-0	02	1	0804-
36	BOLT; PTO BRKT DUMP CHASSIS(V4D) M8X25 FLANGE SOU	0-28650-825-0	01	1	0804-
36	BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) M8X25 FLANGE SOU	0-28650-825-0	01	1	0804-
173	NUT; BRKT DUMP CHASSIS(V4D) M8 FLANGE SOU	0-91180-108-0	02	1	0804-
173	NUT; BRKT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) M8 FLANGE SOU	0-91180-108-0	02	1	0804-
173	NUT; BRKT DUMP CHASSIS(V4D) M8 FLANGE SOU	0-91180-108-0	01	1	0804-
173	NUT; BRKT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) M8 FLANGE SOU	0-91180-108-0	01	1	0804-
195	BRACKET; CONT CABLE DUMP CHASSIS(V4D) (B)	8-98098-618-0	01	1	0804-
195	BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B)	8-98098-618-0	01	1	0804-
195	BRACKET; CONT CABLE DUMP CHASSIS(V4D) (C)	8-98102-494-0	01	1	0804-
195	BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (C)	8-98102-494-0	01	1	0804-
195	BRACKET; CONT CABLE DUMP CHASSIS(V4D) (A)	8-98102-495-1	01	1	0804-
195	BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A)	8-98102-495-1	01	1	0804-
329	SEAL DUMP CHASSIS(V4D) SOU	8-97856-616-0	02	1	0804-
329	SEAL PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) SOU	8-97856-616-0	02	1	0804-
332	NUT; PTO CONT CABLE DUMP CHASSIS(V4D) M6 FLANGE SOU	0-91180-106-0	01	1	0804-
332	NUT; PTO CONT CABLE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) M6 FLANGE SOU	0-91180-106-0	01	1	0804-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
