Sayfa 2-81 - Isuzu EPC

2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#50849) — 188 parça

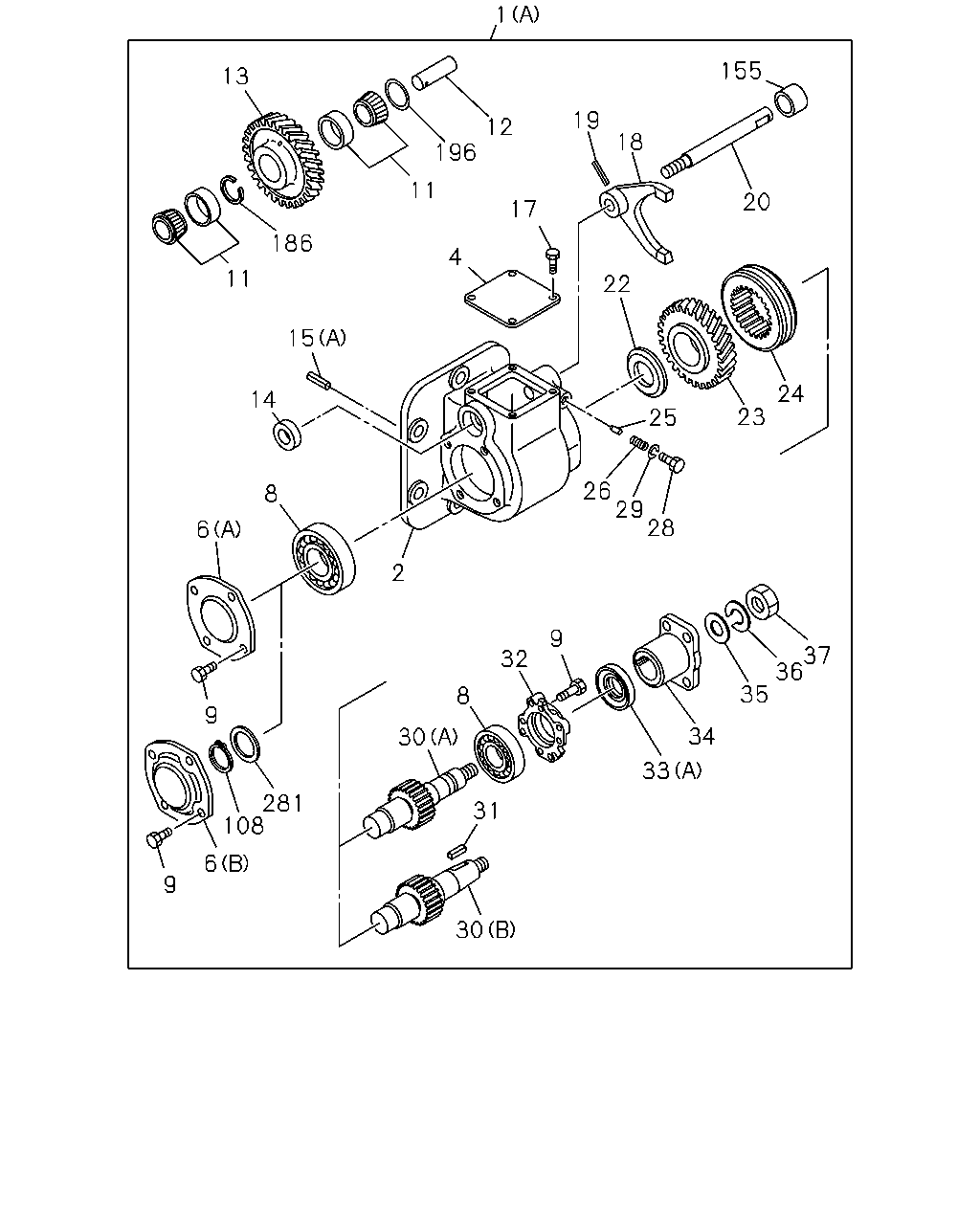

6 108 281 9 30 8 32 9 33 34 35 36 37 30 31 26 29 28 25 23 24 20 22 18 155 2 9 6 8 4 17 19 12 1 196 11 15 186 13 11 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) IDENTIFICATION=YG	8-97286-908-7	01	1	0804-1210
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) IDENTIFICATION=YG	8-98223-523-0	01	1	1211-1305
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) IDENTIFICATION=YG	8-98233-783-1	01	1	1306-
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) IDENTIFICATION=YE	8-98092-476-1	01	1	0804-0811
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) IDENTIFICATION=YT	8-98136-477-1	01	1	0812-1210
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) IDENTIFICATION=YT	8-98223-522-1	01	1	1211-1305
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) IDENTIFICATION=YT	8-98233-785-1	01	1	1306-
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97308-689-2	01	1	0804-1409
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98282-381-0	01	1	1410-
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97308-692-2	01	1	0804-1409
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98282-383-0	01	1	1410-
4	COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98046-613-0	01	1	0804-
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98046-612-0	01	1	0804-1305
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B)	8-98233-778-0	01	1	1306-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=25 OD=62	8-94343-031-1	02	1	0804-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	0804-
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) M8X20 FLANGE	0-28050-820-0	08	1	0804-
11	BEARING; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) NSK	8-97106-734-0	02	1	0804-
11	BEARING; IDLE GEAR,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) NSK	8-97106-734-0	02	1	0804-
12	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-38211-606-0	01	1	0804-
12	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	0804-
13	GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=31	8-97308-700-0	01	1	0804-
13	GEAR; IDLE,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) Z=31	8-97308-700-0	01	1	0804-
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98028-789-0	01	1	0804-
15	PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=25 OD=5	8-94135-771-0	01	1	0804-
15	PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=14	8-97175-890-0	01	1	0804-
15	PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=16	9-09878-613-0	01	1	0804-
15	PIN; SPR,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) (A) L=16	9-09878-613-0	01	1	0804-
17	BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) M8X20 FLANGE	0-28050-820-0	04	1	0804-
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97224-702-0	01	1	0804-
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98088-695-0	01	1	0804-
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) L=25 OD=5	8-94135-771-0	01	1	0804-
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98046-623-0	01	1	0804-
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97308-709-1	01	1	0804-
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-38245-603-1	01	1	0804-
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	0804-
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=27	8-97308-714-0	01	1	0804-0805
23	GEAR; OUTPUT,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) Z=27	8-97308-714-0	01	1	0804-0805
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=27	8-98120-609-0	01	1	0806-
23	GEAR; OUTPUT,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) Z=27	8-98120-609-0	01	1	0806-
24	SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97231-316-1	01	1	0804-
24	SLEEVE; DOG CLU,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66)	8-97231-316-1	01	1	0804-
25	PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-94169-071-0	01	1	0804-
26	SPRING; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	9-09940-380-0	01	1	0804-
26	SPRING; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97175-987-0	01	1	0804-
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) M8	8-98038-424-0	01	1	0804-
29	WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) ID=8.2 SOU	0-91510-808-0	01	1	0804-
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97118-183-1	01	1	0804-1210
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) (A)	8-97118-183-1	01	1	0804-1210
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98223-518-0	01	1	1211-1305
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) (B)	8-98223-518-0	01	1	1211-1305
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98233-777-0	01	1	1306-
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) (B)	8-98233-777-0	01	1	1306-
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=25	8-98068-088-0	01	1	1211-
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) L=25	8-98068-088-0	01	1	1211-
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-794-0	01	1	0804-
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66)	8-97305-794-0	01	1	0804-
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	1-38159-007-0	01	1	0804-
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) (A)	1-38159-007-0	01	1	0804-
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98028-789-0	01	1	0804-
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98046-624-0	01	1	0804-1210
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66)	8-98046-624-0	01	1	0804-1210
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98223-519-0	01	1	1211-
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66)	8-98223-519-0	01	1	1211-
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) ID=15	0-91610-514-0	01	1	0804-
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=15	0-91610-514-0	02	1	0804-
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) ID=14.2 SOU	0-91510-814-0	01	1	0804-
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M14 SOU	0-91111-514-0	01	1	0804-
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) M14 SOU	0-91111-514-0	01	1	0804-
108	RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=23.2	9-09180-025-0	01	1	1306-
108	RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) ID=23.2	9-09180-025-0	01	1	1306-
155	PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98037-770-0	01	1	0804-
155	PLUG; SHIFTER ROD PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66)	8-98037-770-0	01	1	0804-
186	RING; SNAP,IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97106-730-0	01	1	0804-
186	RING; SNAP,IDLE GEAR,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66)	8-97106-730-0	01	1	0804-
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) T=1.50	8-97106-724-0	02	1	0804-
196	PIECE; THRUST PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) T=1.50	8-97106-724-0	02	1	0804-
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) T=1.60	8-97106-725-0	02	1	0804-
196	PIECE; THRUST PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) T=1.60	8-97106-725-0	02	1	0804-
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) T=1.65	8-97106-726-0	02	1	0804-
196	PIECE; THRUST PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) T=1.65	8-97106-726-0	02	1	0804-
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) T=1.70	8-97106-727-0	02	1	0804-
196	PIECE; THRUST PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) T=1.70	8-97106-727-0	02	1	0804-
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) T=1.80	8-97106-728-0	02	1	0804-
196	PIECE; THRUST PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) T=1.80	8-97106-728-0	02	1	0804-
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) T=1.85	8-97106-729-0	02	1	0804-
196	PIECE; THRUST PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) T=1.85	8-97106-729-0	02	1	0804-
281	SHIM; OUTPUT SHAFT PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) T=1.85	8-97106-729-0	01	1	1306-
281	SHIM; OUTPUT SHAFT PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) T=1.85	8-97106-729-0	01	1	1306-

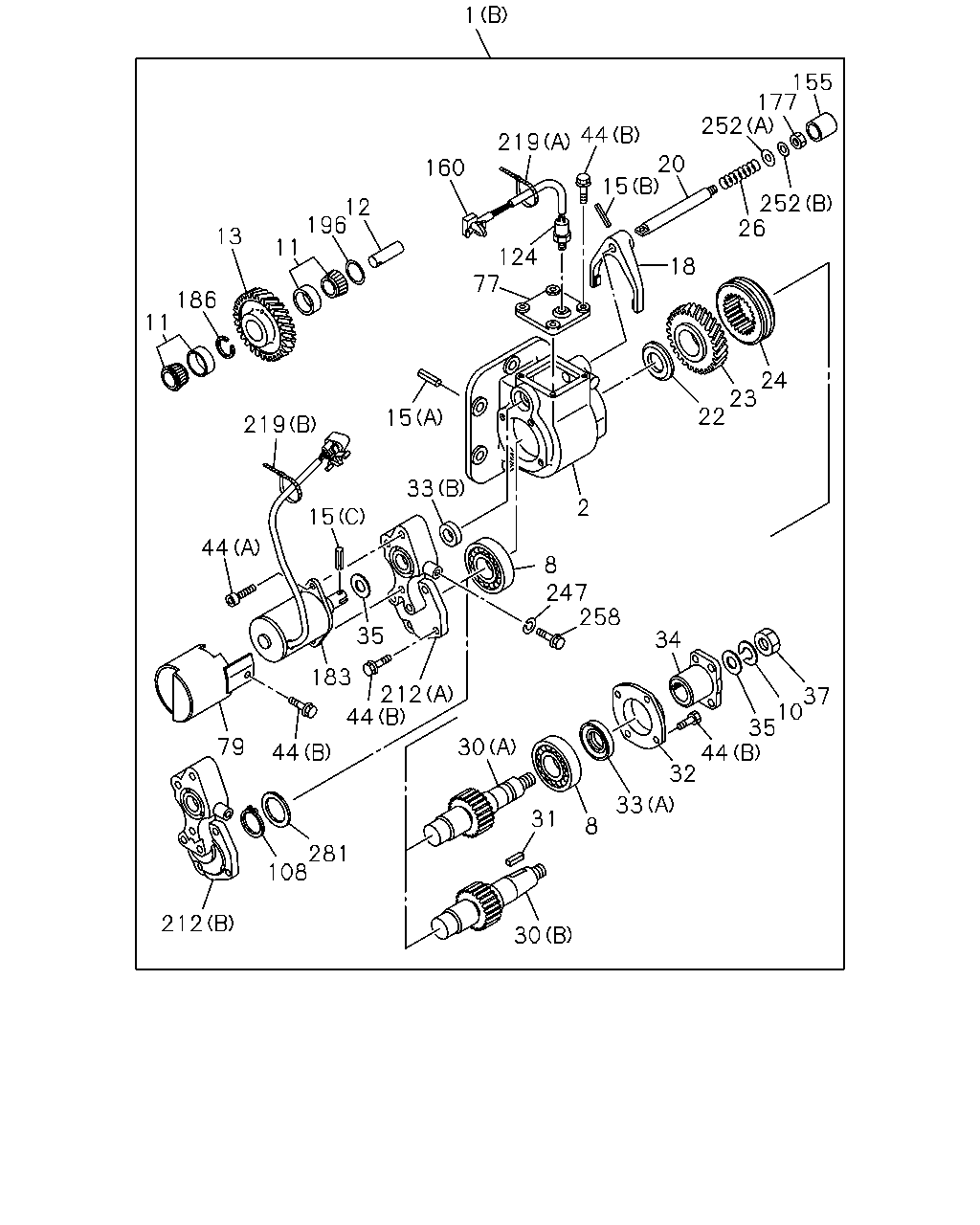

1 11 186 13 11 196 12 160 219 44 77 124 15 20 252 177 155 252 26 18 15 219 44 15 33 79 44 183 35 44 212 2 22 23 24 8 247 258 212 108 281 30 34 31 30 8 33 32 44 35 10 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) IDENTIFICATION=YG	8-97286-908-7	01	1	0804-1210
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) IDENTIFICATION=YG	8-98223-523-0	01	1	1211-1305
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) IDENTIFICATION=YG	8-98233-783-1	01	1	1306-
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) IDENTIFICATION=YE	8-98092-476-1	01	1	0804-0811
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) IDENTIFICATION=YT	8-98136-477-1	01	1	0812-1210
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) IDENTIFICATION=YT	8-98223-522-1	01	1	1211-1305
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) IDENTIFICATION=YT	8-98233-785-1	01	1	1306-
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97308-689-2	01	1	0804-1409
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98282-381-0	01	1	1410-
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97308-692-2	01	1	0804-1409
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98282-383-0	01	1	1410-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=25 OD=62	8-94343-031-1	02	1	0804-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	0804-
10	WASHER; OUTPUT SHAFT COVER,SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=14.2 SOU	0-91510-814-0	01	1	0804-
11	BEARING; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) NSK	8-97106-734-0	02	1	0804-
11	BEARING; IDLE GEAR,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) NSK	8-97106-734-0	02	1	0804-
12	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-38211-606-0	01	1	0804-
12	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	0804-
13	GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=31	8-97308-700-0	01	1	0804-
13	GEAR; IDLE,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) Z=31	8-97308-700-0	01	1	0804-
15	PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=25 OD=5	8-94135-771-0	01	1	0804-
15	PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=14	8-97175-890-0	01	1	0804-
15	PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=16	9-09878-613-0	01	1	0804-
15	PIN; SPR,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) (A) L=16	9-09878-613-0	01	1	0804-
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97224-702-0	01	1	0804-
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98088-695-0	01	1	0804-
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98046-623-0	01	1	0804-
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97308-709-1	01	1	0804-
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-38245-603-1	01	1	0804-
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	0804-
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=27	8-97308-714-0	01	1	0804-0805
23	GEAR; OUTPUT,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) Z=27	8-97308-714-0	01	1	0804-0805
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=27	8-98120-609-0	01	1	0806-
23	GEAR; OUTPUT,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) Z=27	8-98120-609-0	01	1	0806-
24	SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97231-316-1	01	1	0804-
24	SLEEVE; DOG CLU,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66)	8-97231-316-1	01	1	0804-
26	SPRING; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	9-09940-380-0	01	1	0804-
26	SPRING; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97175-987-0	01	1	0804-
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97118-183-1	01	1	0804-1210
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) (A)	8-97118-183-1	01	1	0804-1210
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98223-518-0	01	1	1211-1305
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) (B)	8-98223-518-0	01	1	1211-1305
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98233-777-0	01	1	1306-
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) (B)	8-98233-777-0	01	1	1306-
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=25	8-98068-088-0	01	1	1211-
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) L=25	8-98068-088-0	01	1	1211-
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-794-0	01	1	0804-
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66)	8-97305-794-0	01	1	0804-
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	1-38159-007-0	01	1	0804-
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) (A)	1-38159-007-0	01	1	0804-
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98028-789-0	01	1	0804-
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98046-624-0	01	1	0804-1210
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66)	8-98046-624-0	01	1	0804-1210
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98223-519-0	01	1	1211-
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66)	8-98223-519-0	01	1	1211-
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) ID=15	0-91610-514-0	01	1	0804-
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=15	0-91610-514-0	02	1	0804-
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M14 SOU	0-91111-514-0	01	1	0804-
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) M14 SOU	0-91111-514-0	01	1	0804-
44	BOLT; COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE	0-28050-820-0	12	1	0804-1002
44	BOLT; COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE	0-28050-820-0	15	1	1003-
44	BOLT; COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 HEX SOCKET	0-58330-816-0	03	1	0804-
77	COVER; OUTPUT,RR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97308-719-0	01	1	0804-
79	COVER; DUST,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97308-728-0	01	1	1003-
108	RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=23.2	9-09180-025-0	01	1	1306-
108	RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) ID=23.2	9-09180-025-0	01	1	1306-
124	SWITCH; PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98031-760-1	01	1	0804-
155	PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98037-770-0	01	1	0804-
155	PLUG; SHIFTER ROD PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66)	8-98037-770-0	01	1	0804-
160	CLIP; PTO A/T SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=15	8-94315-436-1	01	1	0804-
177	NUT; SHIFT ROD PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 SOU	0-91110-508-0	01	1	0804-
183	SOLENOID ASM; PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98038-582-0	01	1	0804-0811
183	SOLENOID ASM; PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98136-076-1	01	1	0812-
186	RING; SNAP,IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97106-730-0	01	1	0804-
186	RING; SNAP,IDLE GEAR,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66)	8-97106-730-0	01	1	0804-
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) T=1.50	8-97106-724-0	02	1	0804-
196	PIECE; THRUST PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) T=1.50	8-97106-724-0	02	1	0804-
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) T=1.60	8-97106-725-0	02	1	0804-
196	PIECE; THRUST PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) T=1.60	8-97106-725-0	02	1	0804-
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) T=1.65	8-97106-726-0	02	1	0804-
196	PIECE; THRUST PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) T=1.65	8-97106-726-0	02	1	0804-
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) T=1.70	8-97106-727-0	02	1	0804-
196	PIECE; THRUST PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) T=1.70	8-97106-727-0	02	1	0804-
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) T=1.80	8-97106-728-0	02	1	0804-
196	PIECE; THRUST PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) T=1.80	8-97106-728-0	02	1	0804-
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) T=1.85	8-97106-729-0	02	1	0804-
196	PIECE; THRUST PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) T=1.85	8-97106-729-0	02	1	0804-
212	ADAPTER; SOLENOID PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97308-739-0	01	1	0804-1305
212	ADAPTER; SOLENOID PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98233-779-0	01	1	1306-
219	CLIP; CABLE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97221-218-0	02	1	0804-
219	CLIP; CABLE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98091-152-0	01	1	0804-1002
247	WASHER PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.2 SOU	0-91510-808-0	01	1	0804-1002
252	WASHER; PL,SHIFTER ROD PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=8.4 OD=16 SOU	0-91610-508-0	01	1	0804-
252	WASHER; PL,SHIFTER ROD PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97308-737-1	01	1	0804-
258	BOLT PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8	8-98038-424-0	01	1	0804-1002
281	SHIM; OUTPUT SHAFT PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) T=1.85	8-97106-729-0	01	1	1306-
281	SHIM; OUTPUT SHAFT PTO MANUAL CONTROL(6WC) PTO TRANSMISSION SIDE(V66) T=1.85	8-97106-729-0	01	1	1306-

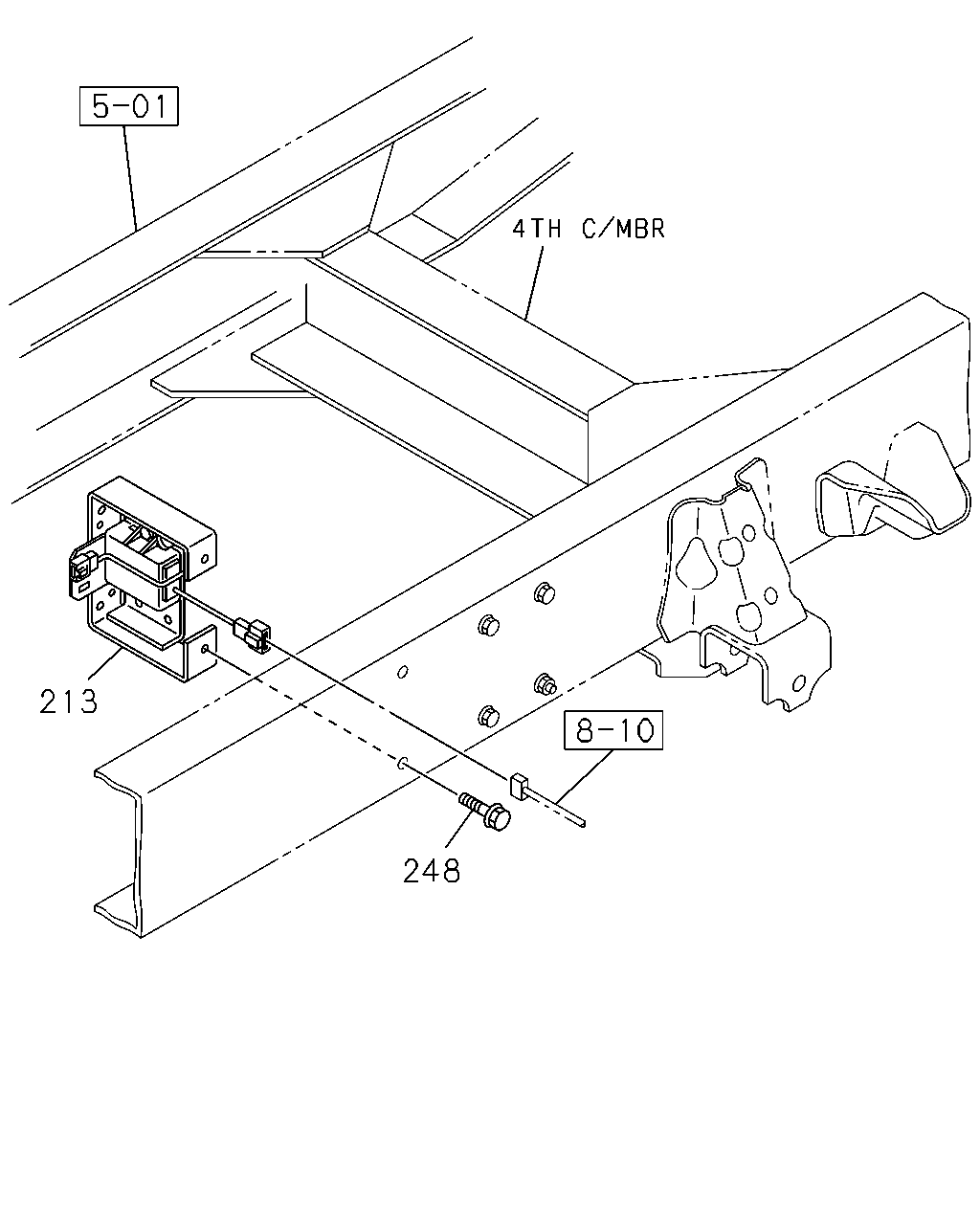

213 248

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	213	CONTROL UNIT; PTO POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98039-755-2	01	1	0804-
	248	BOLT; PTO CONT POWER TAKE OFF CONTROL ELECTRIC(7GR) M10X30 FLANGE SOU	0-28651-030-0	02	1	0804-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
