Isuzu WW
▶
TRUCKS
▶
NPR
▶
51172 - NPR/NQR(SOUTHAFRICA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE
▶

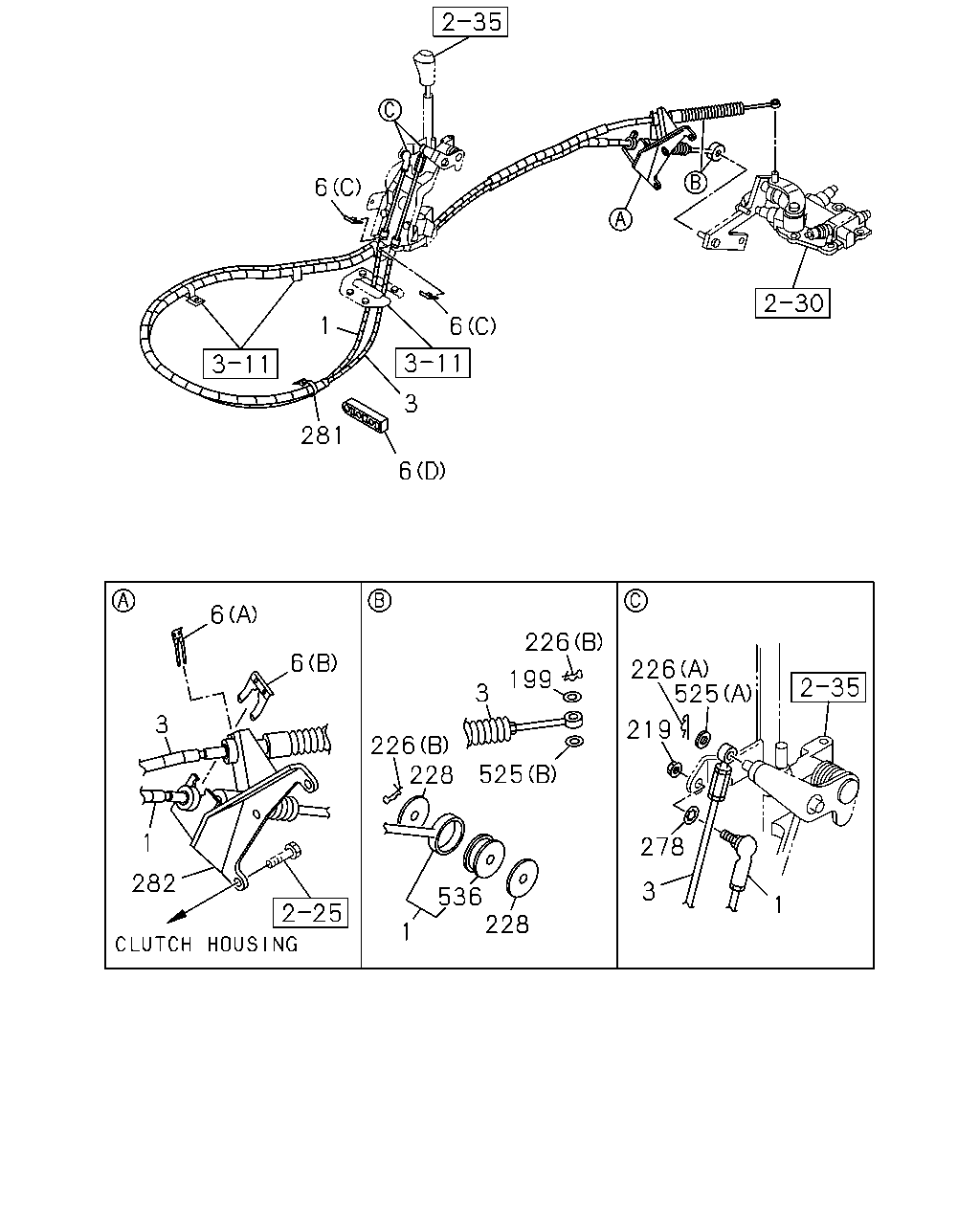

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE
(#50845) — 18 parça
6
1
6
3
281
6
6
226
6
226
525
199
3
3
219
226
228
525
1
278
282
3
536
228
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; SHIFT,TRANS CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3090
8-98025-436-3
01
1
0804-0911
1
CABLE; SHIFT,TRANS CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3090
8-98146-856-0
01
1
0912-
3
CABLE; SELECT,TRANS CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3202
8-98025-442-3
01
1
0804-
6
CLIP; CABLE
EXC. MANUAL TILT CAB<RWZ>,TRANSMISSION CONTROL-SMOOTHER(8GF) (D)
8-97093-491-1
01
1
0804-
6
CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=22.2
1-09701-209-1
01
1
0804-
6
CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)
8-97011-448-0
02
1
0804-
6
CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=19.2
8-97211-011-0
01
1
0804-
199
WASHER; PL,SELECT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8.4 OD=16 SOU
0-91610-508-0
01
1
0804-
219
NUT; FLANGE,SHAFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8 T=8.0 SOU
8-94363-045-0
01
1
0804-
226
PIN; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=27.7 SOU
8-94111-137-0
01
1
0804-
226
PIN; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=23
8-94170-378-0
02
1
0804-
228
WASHER; PL,SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8.2 OD=40
8-97182-975-0
02
1
0804-
278
WASHER; LK,SHIFT WIRE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8.4 TOOTH LK INT
0-91541-208-0
01
1
0804-
281
CLIP; BAND
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=140 SOU
5-09707-031-1
01
1
0804-
282
BRACKET; TRANS SIDE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98032-395-1
01
1
0804-
525
WASHER; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=8.4 OD=16 SOU
0-91614-508-0
01
1
0804-
525
WASHER; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=8.4 OD=14
5-09550-002-0
01
1
0804-
536
DAMPER; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98097-681-0
01
1
0804-
