Isuzu WW
▶
TRUCKS
▶
NPR
▶
51172 - NPR/NQR(SOUTHAFRICA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER
▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER
(#50844) — 39 parça
◀

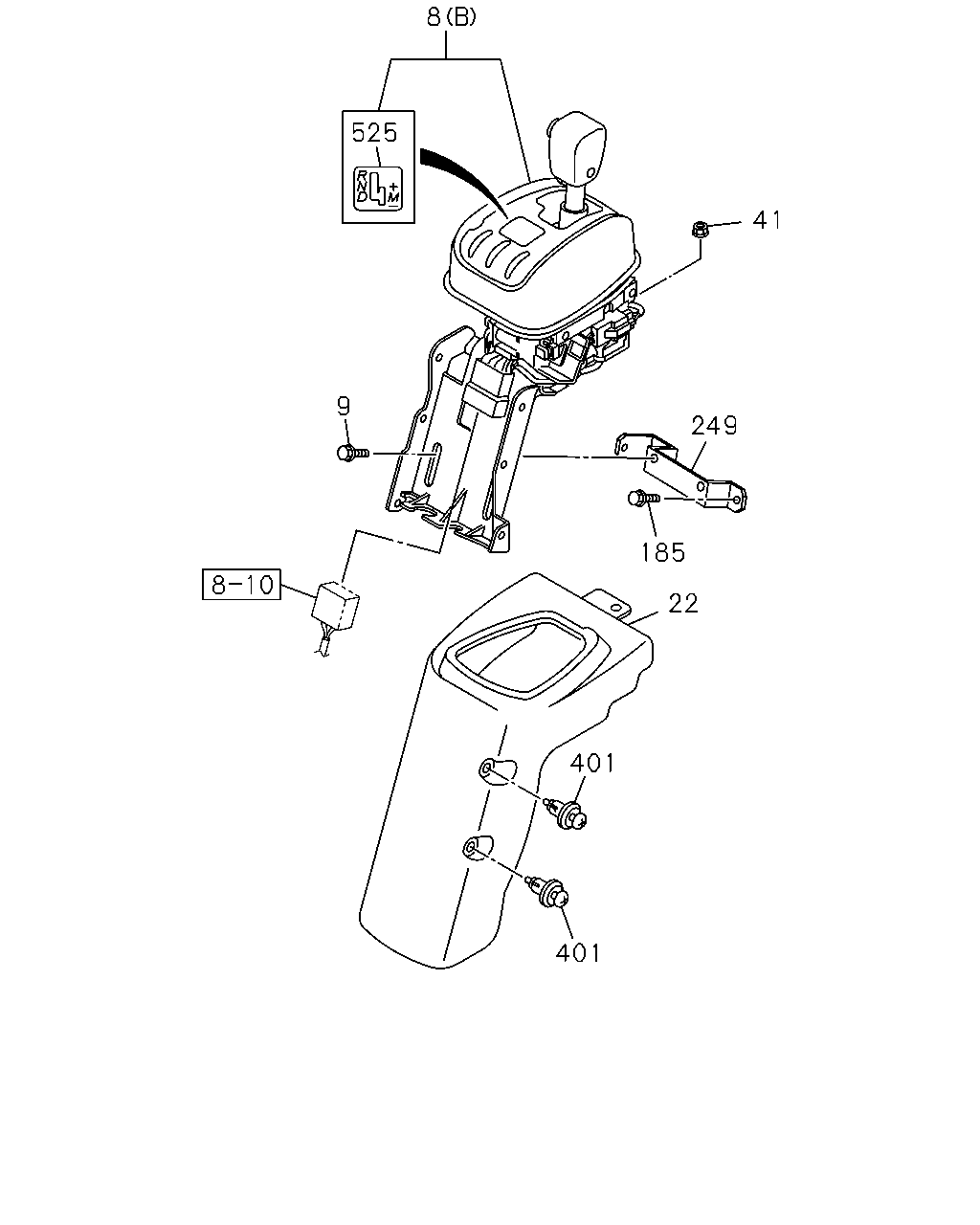

[235A] TRANSMISSION CONTROL-SMOOTHER (13 parça)

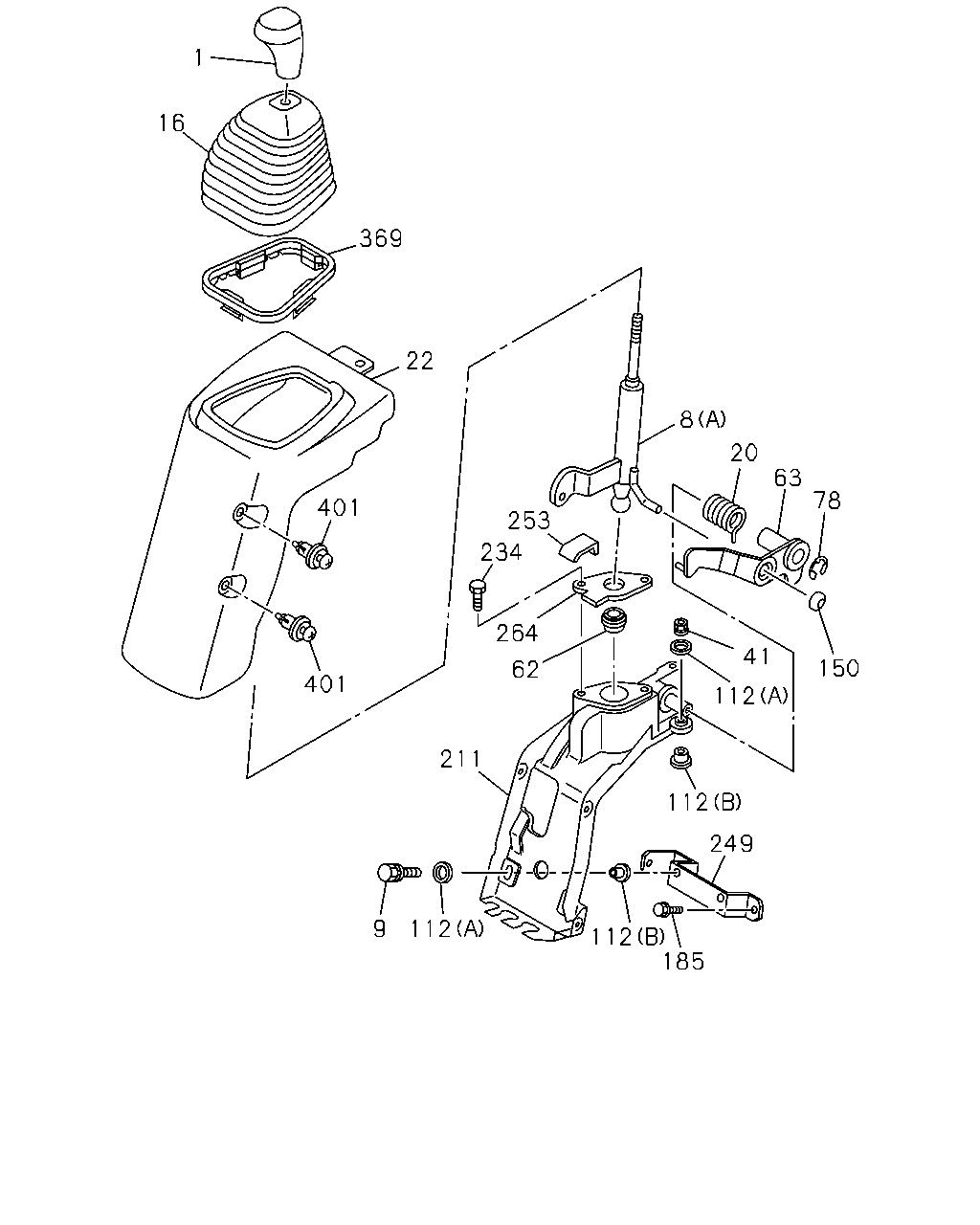

[235A] TRANSMISSION CONTROL-SMOOTHER DELETE (26 parça)
▶
8
525
41
9
249
185
22
401
401
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY
8-97405-354-6
01
1
0804-1101
8
LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY
8-97421-814-0
01
1
1102-1311
8
LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY
8-97429-026-0
01
1
1312-1408
8
LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY
8-97465-737-1
01
1
1409-
8
LEVER; CHANGE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) SOU
8-97204-507-0
01
1
0804-
9
BOLT; CHANGE LEVER
M8X28 W/LK&PL WASHER SOU
8-94438-324-1
02
1
0804-
22
COVER; DUST,CHANGE LEVER
GRAY
8-97408-728-1
01
1
0804-
41
NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU
0-91180-108-0
02
1
0804-
41
NUT; CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/DISHED WASHER
8-97329-625-0
02
1
0804-
185
BOLT; BRKT,COVER
M8X20 FLANGE
0-28650-820-0
02
1
0804-
249
BRACKET; COVER
8-97387-767-0
01
1
0804-
401
CLIP; COVER
GRAY
8-97406-179-0
04
1
0804-
525
LABEL; SHIFT POSITION
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98048-480-1
01
1
0804-
1
16
369
22
8
20
63
78
253
401
234
264
41
150
62
401
112
211
112
249
112
185
9
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
KNOB; CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK
8-97196-287-1
01
1
0804-
8
LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY
8-97405-354-6
01
1
0804-1101
8
LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY
8-97421-814-0
01
1
1102-1311
8
LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY
8-97429-026-0
01
1
1312-1408
8
LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY
8-97465-737-1
01
1
1409-
8
LEVER; CHANGE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) SOU
8-97204-507-0
01
1
0804-
9
BOLT; CHANGE LEVER
M8X28 W/LK&PL WASHER SOU
8-94438-324-1
02
1
0804-
16
BOOT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98035-063-0
01
1
0804-
20
SPRING; CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-97204-514-1
01
1
0804-
22
COVER; DUST,CHANGE LEVER
GRAY
8-97408-728-1
01
1
0804-
41
NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU
0-91180-108-0
02
1
0804-
41
NUT; CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/DISHED WASHER
8-97329-625-0
02
1
0804-
62
SEAT; BALL,CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) SOU
8-97011-895-1
01
1
0804-
63
LEVER; RELAY,SELECT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) SOU
8-97163-768-0
01
1
0804-
78
RING; SNAP,CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10
0-91805-510-0
01
1
0804-
112
RUBBER; CUSHION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) SOU
8-97091-426-0
04
1
0804-
112
RUBBER; CUSHION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) SOU
8-97091-427-0
04
1
0804-
150
BALL; DETENT,CONT LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) SOU
8-97049-147-0
01
1
0804-
185
BOLT; BRKT,COVER
M8X20 FLANGE
0-28650-820-0
02
1
0804-
211
BRACKET; CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-97204-505-1
01
1
0804-
234
BOLT; BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE
1-33739-842-0
02
1
0804-
249
BRACKET; COVER
8-97387-767-0
01
1
0804-
253
STOPPER; CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) SOU
8-97204-510-0
01
1
0804-
264
PLATE; COVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) SOU
8-97204-511-0
01
1
0804-
369
RETAINER; REINF
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98032-213-1
01
1
0804-
401
CLIP; COVER
GRAY
8-97406-179-0
04
1
0804-
