2-30 — GEAR SHIFTER AND QUADRANT BOX (#50843) — 160 parça

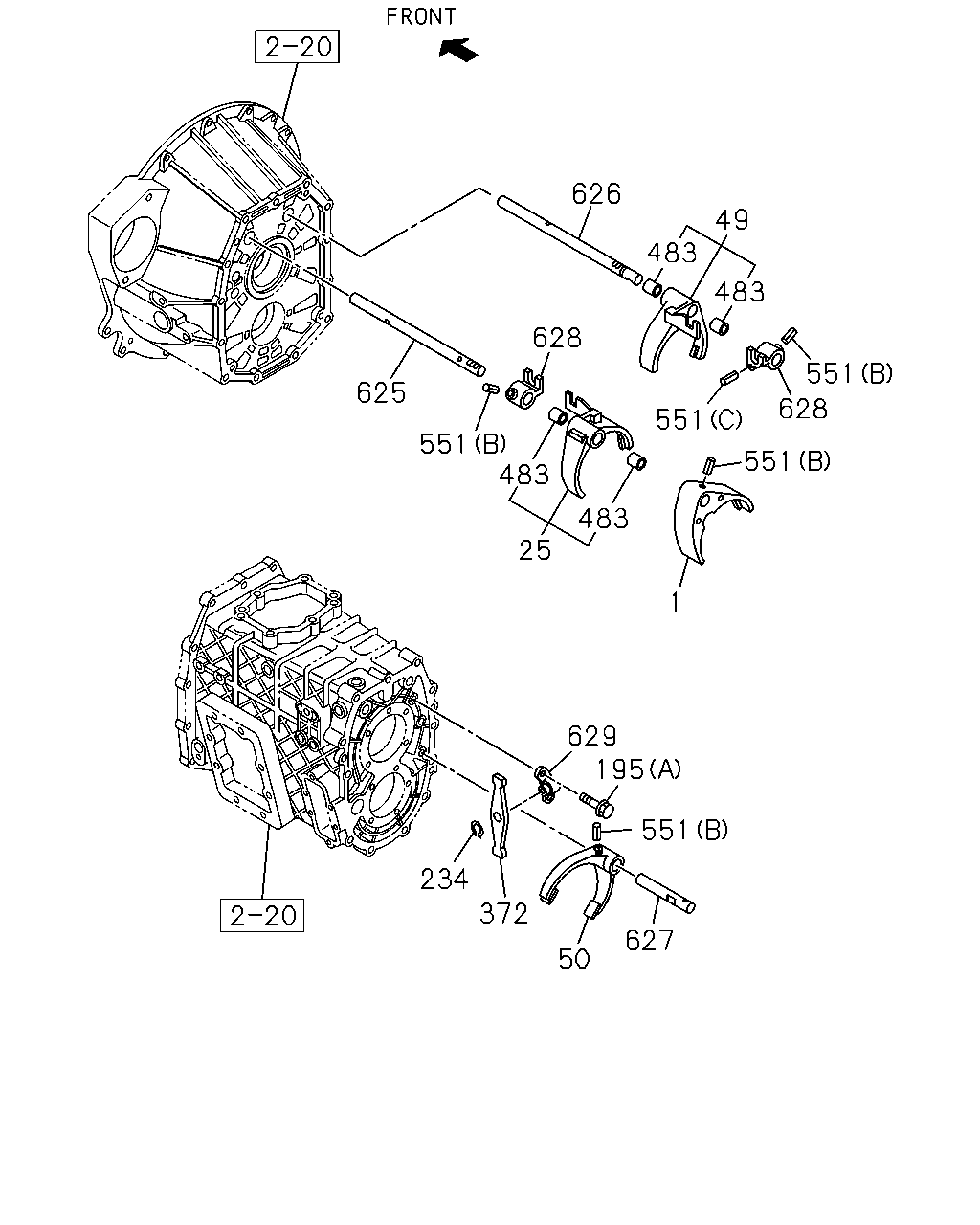

çizim 157747
626 49 483 483 628 551 625 628 551 551 483 551 483 25 1 629 195 551 234 372 627 50
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 0804-
25 ARM; SHIFT,2ND & 3RD 8-97362-731-2 01 1 0804-1407
25 ARM; SHIFT,2ND & 3RD 8-98255-926-1 01 1 1408-
49 ARM; SHIFT,4TH & 5TH 8-97362-732-1 01 1 0804-
50 ARM; SHIFT,6TH 8-97241-325-1 01 1 0804-
195 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0804-
195 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0804-
234 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 0804-
372 LEVER; RELAY,6TH 8-97241-343-0 01 1 0804-
483 BUSHING; SHIFT ARM 8-97241-326-2 04 1 0804-
551 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0804-
551 PIN; SPRING
(B) L=32 		8-97011-596-2 05 1 0804-
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0804-
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4 		1-09748-031-0 02 1 0804-
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) OD=5 		8-97184-905-0 03 1 0804-
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-97379-991-0 01 1 0804-
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD 8-97362-741-0 01 1 0804-
626 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-97366-024-1 01 1 0804-
627 ROD; GEAR SHIFT,6TH SUB 8-97241-339-0 01 1 0804-0805
627 ROD; GEAR SHIFT,6TH SUB 8-98119-293-0 01 1 0806-
628 BLOCK; SHIFT,LOW,REV & 6TH 8-97241-327-1 02 1 0804-
629 BRIDGE; LEVER 8-97241-345-1 01 1 0804-

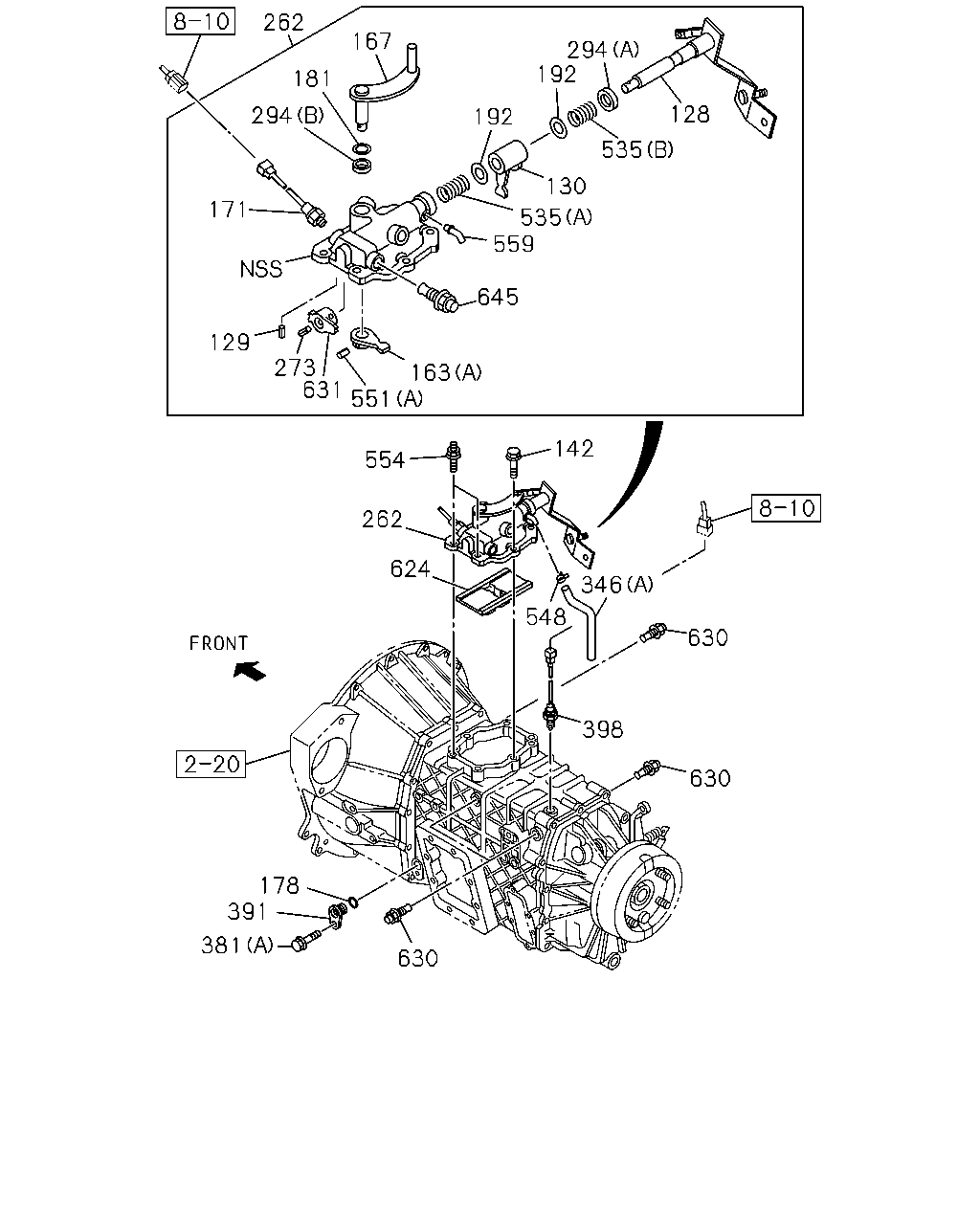

çizim 157752
262 167 294 192 181 128 294 192 535 130 171 535 559 645 129 273 631 163 551 142 554 262 624 346 548 630 398 630 178 391 381 630
BalonParca AdiParca NoAdetTipApplied Date
128 LEVER; SHIFT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-595-0 01 1 0804-
129 PIN; SPR,SHIFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=30 OD=4 		1-09748-031-0 01 1 0804-
130 LEVER; SHIFT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97306-647-0 01 1 0804-
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X22 FLANGE 		8-97365-376-0 04 1 0804-
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE 		8-98020-384-0 03 1 0804-
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X75 FLANGE 		8-98020-385-0 03 1 0804-
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97305-663-0 01 1 0804-
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-979-0 01 1 0804-
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97379-990-0 01 1 0804-
167 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98039-444-0 01 1 0804-
167 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-994-0 01 1 0804-
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 0804-1312
171 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401-
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		9-09567-113-0 01 1 0804-
181 WASHER; PL,SELECT LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97367-327-0 01 1 0804-
192 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-661-0 02 1 0804-
192 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-09503-280-0 01 1 0804-
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-592-1 01 1 0804-1312
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98240-994-1 01 1 1401-
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-399-5 01 1 0804-1010
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98109-435-1 01 1 1011-1312
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98241-121-1 01 1 1401-1411
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98296-529-0 01 1 1412-
273 PIN; SPR,STOPPER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) D=4.2 L=25 		8-97103-142-0 01 1 0804-
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97305-662-0 01 1 0804-
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97363-225-0 01 1 0804-
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		1-09625-600-0 01 1 0804-
346 HOSE; AIR
(A) 		8-97309-855-0 01 1 0804-
346 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97373-381-0 01 1 0804-
381 BOLT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M6X16 FLANGE SOU 		0-28650-616-0 01 1 0804-
381 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X12 FLANGE SOU 		0-28050-612-0 04 1 0804-0906
381 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X12 FLANGE 		1-33739-842-0 04 1 0907-
381 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X20 FLANGE SOU 		0-28650-620-0 01 1 0804-
391 PLUG; SW HOLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97300-273-1 01 1 0804-
398 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98186-003-0 01 1 1107-1311
398 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98256-418-0 01 1 1312-
398 SWITCH; REV LAMP 8-98023-050-0 01 1 0804-1106
398 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98023-050-0 01 1 1107-1312
398 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98242-173-1 01 1 1401-
535 SPRING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97305-659-0 01 1 0804-
535 SPRING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97305-660-0 01 1 0804-
548 CLIP; HOSE 8-97031-674-0 01 1 0804-
551 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0804-
551 PIN; SPRING
(B) L=32 		8-97011-596-2 05 1 0804-
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0804-
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4 		1-09748-031-0 02 1 0804-
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) OD=5 		8-97184-905-0 03 1 0804-
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-97379-991-0 01 1 0804-
554 STUD; CONT BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X15,M8X25 L=49 		8-97365-378-0 02 1 0804-
559 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97358-318-0 01 1 0804-
559 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-710-0 01 1 0804-
624 PLATE; INTER LOCK 8-97241-317-3 01 1 0804-
630 DETENT ASM 8-98019-536-0 04 1 0804-
631 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-666-0 01 1 0804-
631 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-984-0 01 1 0804-
645 DETENT ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98019-536-0 01 1 0804-

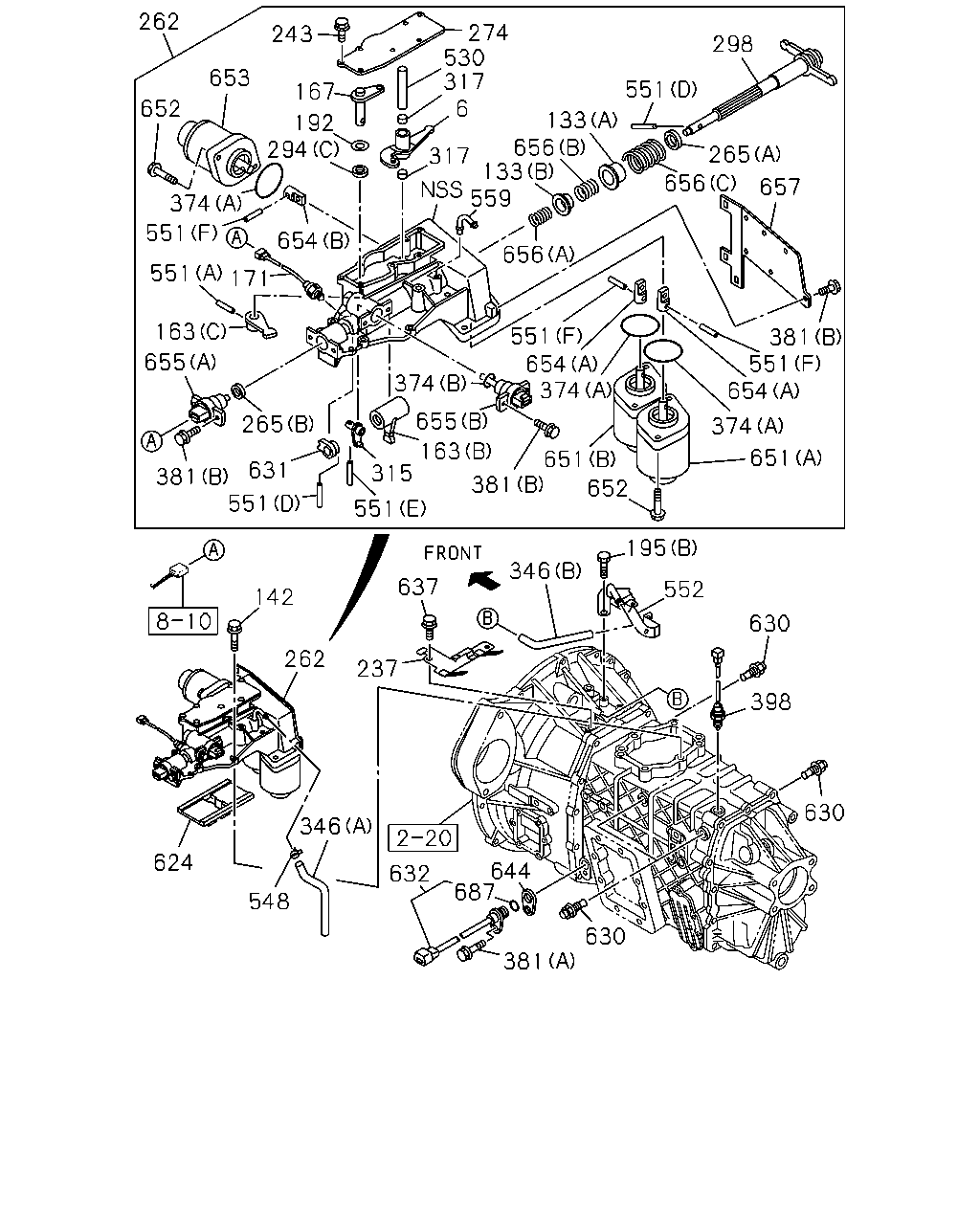

çizim 157768
262 274 530 317 6 243 298 653 551 167 652 133 656 133 559 192 294 265 317 656 657 374 551 654 656 551 171 163 381 551 654 551 654 374 655 374 655 265 374 163 315 651 651 381 631 381 551 652 551 195 346 637 552 142 630 262 237 398 630 346 630 644 687 624 632 548 381
BalonParca AdiParca NoAdetTipApplied Date
6 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-995-0 01 1 0804-
133 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-988-0 01 1 0804-
133 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97379-989-0 01 1 0804-
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X22 FLANGE 		8-97365-376-0 04 1 0804-
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE 		8-98020-384-0 03 1 0804-
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X75 FLANGE 		8-98020-385-0 03 1 0804-
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97305-663-0 01 1 0804-
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-979-0 01 1 0804-
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97379-990-0 01 1 0804-
167 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98039-444-0 01 1 0804-
167 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-994-0 01 1 0804-
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 0804-1312
171 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401-
192 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-661-0 02 1 0804-
192 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-09503-280-0 01 1 0804-
195 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0804-
195 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0804-
237 BRACKET; CABLE,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98018-905-1 01 1 0804-
243 BOLT; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE SOU 		0-28050-612-0 11 1 0804-0906
243 BOLT; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE 		1-33739-842-0 11 1 0907-
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-592-1 01 1 0804-1312
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98240-994-1 01 1 1401-
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-399-5 01 1 0804-1010
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98109-435-1 01 1 1011-1312
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98241-121-1 01 1 1401-1411
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98296-529-0 01 1 1412-
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97363-225-0 01 1 0804-
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-981-0 01 1 0804-
274 COVER; SHAFT,QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-711-0 01 1 0804-
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97305-662-0 01 1 0804-
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97363-225-0 01 1 0804-
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		1-09625-600-0 01 1 0804-
298 SHAFT; SHIFT LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-978-0 01 1 0804-
315 LEVER; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-998-0 01 1 0804-1411
315 LEVER; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98296-526-0 01 1 1412-
317 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-997-0 02 1 0804-
346 HOSE; AIR
(A) 		8-97309-855-0 01 1 0804-
346 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97373-381-0 01 1 0804-
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97349-571-0 03 1 0804-
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97349-573-0 01 1 0804-
381 BOLT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M6X16 FLANGE SOU 		0-28650-616-0 01 1 0804-
381 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X12 FLANGE SOU 		0-28050-612-0 04 1 0804-0906
381 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X12 FLANGE 		1-33739-842-0 04 1 0907-
381 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X20 FLANGE SOU 		0-28650-620-0 01 1 0804-
398 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98186-003-0 01 1 1107-1311
398 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98256-418-0 01 1 1312-
398 SWITCH; REV LAMP 8-98023-050-0 01 1 0804-1106
398 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98023-050-0 01 1 1107-1312
398 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98242-173-1 01 1 1401-
530 SHAFT; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-996-0 01 1 0804-
548 CLIP; HOSE 8-97031-674-0 01 1 0804-
551 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0804-
551 PIN; SPRING
(B) L=32 		8-97011-596-2 05 1 0804-
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0804-
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4 		1-09748-031-0 02 1 0804-
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) OD=5 		8-97184-905-0 03 1 0804-
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-97379-991-0 01 1 0804-
552 BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97349-914-1 01 1 0804-
559 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97358-318-0 01 1 0804-
559 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-710-0 01 1 0804-
624 PLATE; INTER LOCK 8-97241-317-3 01 1 0804-
630 DETENT ASM 8-98019-536-0 04 1 0804-
631 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-666-0 01 1 0804-
631 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-984-0 01 1 0804-
632 SENSOR; TRANS,REV
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97315-604-1 01 1 0804-
637 BOLT; BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 01 1 0804-
644 SPACER; SENSOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-489-1 01 1 0804-
651 SOLENOID ASM; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98002-759-0 01 1 0804-
651 SOLENOID ASM; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98002-760-0 01 1 0804-
652 BOLT; SORENOID
TRANSMISSION CONTROL-SMOOTHER(8GF) M10X25 FLANGE 		0-28151-025-0 06 1 0804-
653 SOLENOID ASM; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98002-761-0 01 1 0804-
654 JOINT; SOLENOID,CASE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97349-473-0 02 1 0804-
654 JOINT; SOLENOID,CASE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97380-419-0 01 1 0804-
655 SENSOR; STROKE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97324-826-0 01 1 0804-1010
655 SENSOR; STROKE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98107-823-0 01 1 1011-
655 SENSOR; STROKE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97324-827-0 01 1 0804-1010
655 SENSOR; STROKE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98107-824-0 01 1 1011-
656 SPRING; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97379-985-0 01 1 0804-
656 SPRING; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-986-0 01 1 0804-
656 SPRING; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97379-987-0 01 1 0804-
657 PLATE; SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-712-0 01 1 0804-
687 GASKET; SENSOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		9-09567-113-0 01 1 0804-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
