2-26 — MANUAL TRANSMISSION GEAR (#50842) — 100 parça

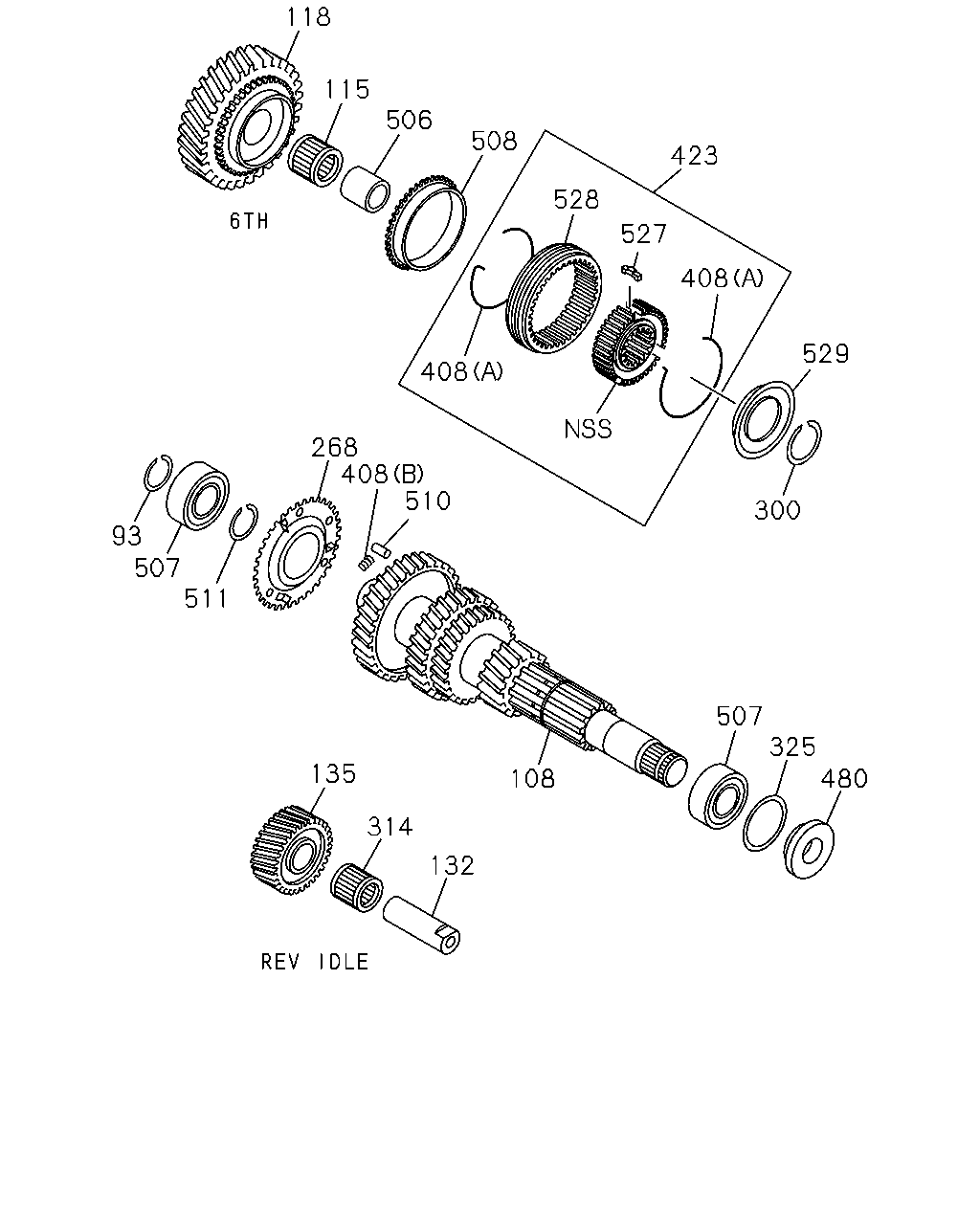

çizim 157738
118 115 506 508 423 528 527 408 529 408 268 408 510 300 93 507 511 507 325 135 480 108 314 132
BalonParca AdiParca NoAdetTipApplied Date
93 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=1.9 		8-97254-734-0 01 1 0804-
93 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.1 		8-97254-740-0 01 1 0804-
93 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.3 		8-97254-742-0 01 1 0804-
108 SHAFT; COUNTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=47-39-33-20 		8-97380-627-1 01 1 0804-
108 SHAFT; COUNTER
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20 		8-97252-639-1 01 1 0804-
115 BEARING; NEEDLE,6TH,COUNTER
OD=49.8 		8-98286-084-0 01 1 1411-
115 BEARING; NEEDLE,6TH,COUNTER
OD=49.75 		8-97253-113-0 01 1 0804-
118 GEAR; 6TH,COUNTER
Z=50 		8-97386-580-0 01 1 0804-
132 SHAFT; REV 8-97252-655-0 01 1 0804-
135 GEAR; REV IDLER
Z=25 		8-98031-869-1 01 1 0804-
268 PLATE; ANTI LASH,COUNTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-684-1 01 1 0804-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.7 		8-97254-727-0 01 1 0804-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.8 		8-97254-728-0 01 1 0804-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.9 		8-97254-734-0 01 1 0804-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.6 		8-97365-617-0 01 1 0804-
314 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 0804-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.29 		8-97252-666-0 01 1 0804-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.35 		8-97252-667-0 01 1 0804-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.41 		8-97252-668-0 01 1 0804-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.47 		8-97252-669-0 01 1 0804-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.53 		8-97252-670-0 01 1 0804-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.59 		8-97252-671-0 01 1 0804-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.65 		8-97252-672-0 01 1 0804-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.71 		8-97252-673-0 01 1 0804-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.77 		8-97252-674-0 01 1 0804-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.83 		8-97252-675-0 01 1 0804-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.89 		8-97257-622-0 01 1 0804-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.11 		8-97306-188-0 01 1 0804-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.17 		8-97306-189-0 01 1 0804-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.23 		8-97306-190-0 01 1 0804-
408 SPRING
(A) 		8-97366-040-1 04 1 0804-
408 SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-94148-196-0 03 1 0804-
423 SLEEVE & HUB ASM; 6TH 8-97367-022-0 01 1 0804-
480 WASHER; THRUST,6TH 8-97253-123-1 01 1 0804-
506 COLLAR; 6TH,COUNTER 8-97253-121-1 01 1 0804-
507 BEARING; COUNTER SHAFT,FRT & RR 8-97253-107-0 02 1 0804-
508 RING; BLOCK,6TH
Z=45 		8-97309-532-0 01 1 0804-
510 PIN; STRAIGHT,ANTI LASH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		9-08160-825-0 03 1 0804-
511 RING; SNAP,ANTI LASH PLATE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97254-767-0 01 1 0804-
527 INSERT; 6TH 8-94448-202-2 03 1 0804-
528 SLEEVE; 6TH
Z=45 		8-94421-871-1 01 1 0804-
529 PLATE; STOPPER,6TH 8-97248-952-0 01 1 0804-

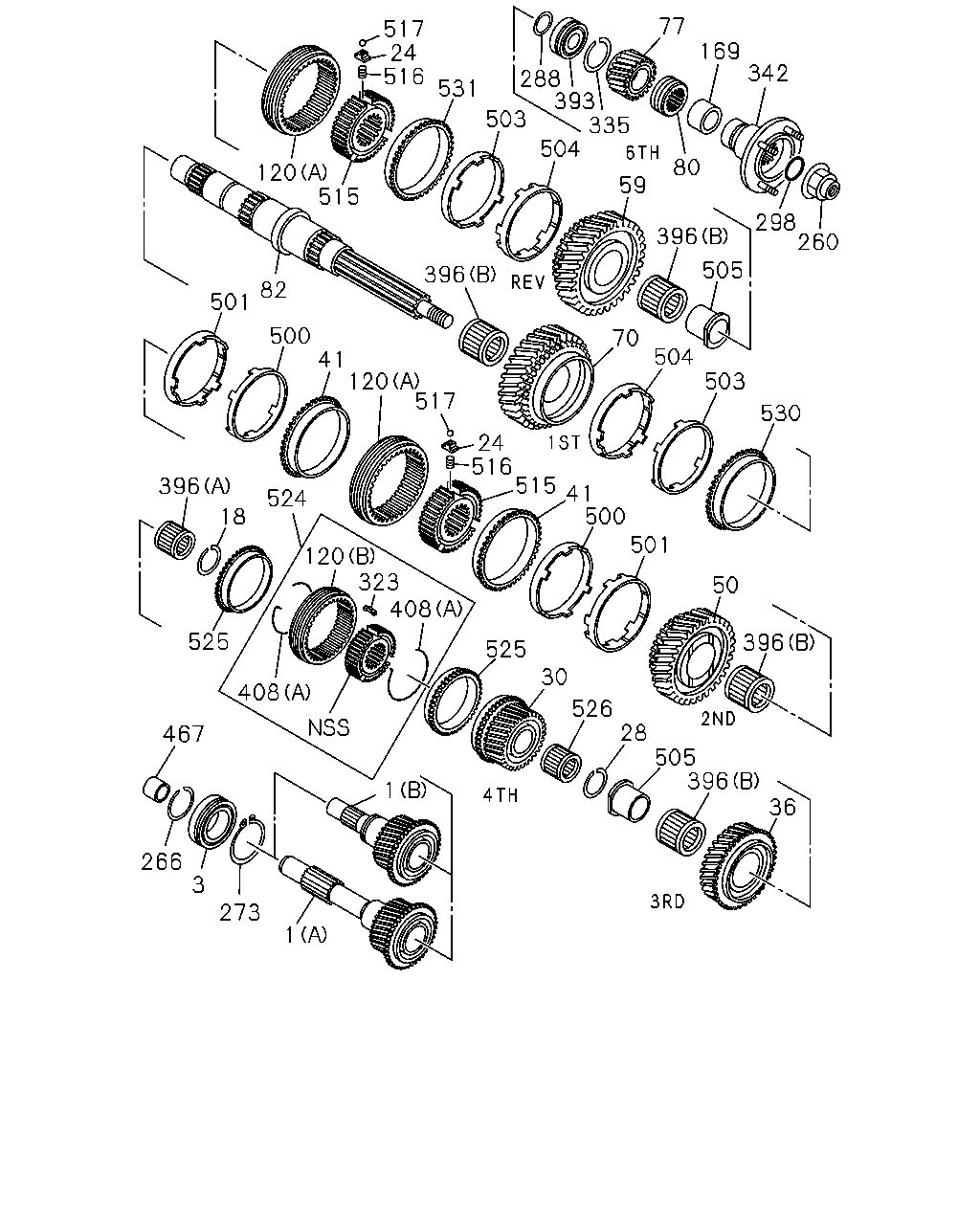

çizim 157764
77 517 24 516 169 342 288 393 335 504 531 503 80 120 515 59 298 260 396 505 396 82 501 500 41 120 70 504 503 517 530 24 516 515 396 41 500 524 18 501 120 323 408 50 396 525 525 30 408 526 28 505 396 36 467 1 266 3 30 273 1
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=26 		8-98021-266-0 01 1 0804-
1 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=26 		8-98021-267-0 01 1 0804-
3 BEARING; TOP GEAR SHAFT
NSK 		8-97253-098-1 01 1 0804-
18 RING; SNAP,CLU HUB
ID=30.7 T=1.8 		8-97254-728-0 01 1 0804-
24 BLOCK; INDEX,SYN 8-97241-313-1 03 1 0804-
24 BLOCK; INDEX,SYN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-313-1 03 1 0804-
28 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 0804-
30 GEAR; 4TH,MAINSHAFT
Z=28 		8-97241-230-0 01 1 0804-
36 GEAR; 3RD,MAINSHAFT
Z=34 		8-97241-234-0 01 1 0804-
41 RING; BLOCK,2ND & 3RD
Z=45 		8-97241-306-1 02 1 0804-
50 GEAR; 2ND,MAINSHAFT
Z=38 		8-97241-237-1 01 1 0804-
59 GEAR; REV MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=41 		8-97350-011-0 01 1 0804-1006
59 GEAR; REV MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=41 		8-97241-244-0 01 1 0804-1006
59 GEAR; REV MAINSHAFT
Z=41 		8-97241-244-0 01 1 1007-
70 GEAR; 1ST,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43 		8-97350-010-0 01 1 0804-
70 GEAR; 1ST,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43 		8-97352-815-0 01 1 0804-
77 GEAR; 6TH,MAINSHAFT
Z=21 		8-97386-582-0 01 1 0804-
80 GEAR; SPD DRIVE
Z=4 		8-97253-556-0 01 1 0804-
82 SHAFT; MAIN,TRANS
Z=28-42-42-21 		8-97253-116-3 01 1 0804-
120 SLEEVE
(B) Z=45 		8-94421-871-1 01 1 0804-
120 SLEEVE
(A) Z=45 		8-97241-296-1 01 1 0804-1311
120 SLEEVE
(A) Z=45 		8-97241-296-1 01 1 0804-1311
120 SLEEVE
(A) Z=45 		8-98258-279-0 01 1 1312-
120 SLEEVE
(A) Z=45 		8-98258-279-0 01 1 1312-
169 COLLAR; MAINSHAFT 8-97252-937-1 01 1 0804-
260 NUT; MAINSHAFT END
M27 H=25 		8-97360-410-0 01 1 0804-
266 RING; SNAP,BRG INNER 8-97286-916-0 01 1 0804-
273 RING; SNAP,BRG OUTER 8-97254-610-0 01 1 0804-
288 SPACER; BRG,MAINSHAFT 8-97252-942-0 01 1 0804-
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7 		8-98028-226-0 01 1 0804-
323 INSERT 8-94448-202-2 03 1 0804-
335 RING; SNAP,BEARING 8-97254-722-0 01 1 0804-
342 FLANGE; OUTPUT 8-98031-862-0 01 1 0804-
393 BEARING; MAINSHAFT END 8-97253-105-1 01 1 0804-
396 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-102-1 01 1 0804-
396 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 0804-
408 SPRING
(A) 		8-97366-040-1 04 1 0804-
408 SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-94148-196-0 03 1 0804-
467 COLLAR; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-183-1 01 1 0804-
500 RING; OUTSIDE,3RD & 2ND 8-97241-309-1 02 1 0804-
501 RING; INSIDE,3RD & 2ND 8-97241-312-1 02 1 0804-
503 RING; OUTSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-309-1 02 1 0804-1006
503 RING; OUTSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-309-1 01 1 1007-
504 RING; INSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-312-1 02 1 0804-1006
504 RING; INSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-312-1 01 1 1007-
505 COLLAR; 3RD & REV 8-97253-119-2 02 1 0804-
515 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 01 1 0804-
515 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 01 1 0804-
516 SPRING; SYNCHRO,INDEX 8-97254-835-0 03 1 0804-
516 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97254-835-0 03 1 0804-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 03 1 0804-
517 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-935-0 03 1 0804-
524 SLEEVE & HUB ASM; TOP-4TH,OD 8-97366-526-0 01 1 0804-
525 RING; BLOCK,TOP & 4TH,OD
Z=45 		8-97309-532-0 02 1 0804-
526 BEARING; NEEDLE,4TH & 5TH 8-97253-112-0 01 1 0804-
530 RING; BLOCK,LOW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-306-1 01 1 0804-
531 RING; BLOCK,REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-306-1 01 1 0804-1006
531 RING; BLOCK,REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97368-343-0 01 1 1007-
