2-25 — SPEEDOMETER DRIVEN GEAR (#50841) — 28 parça

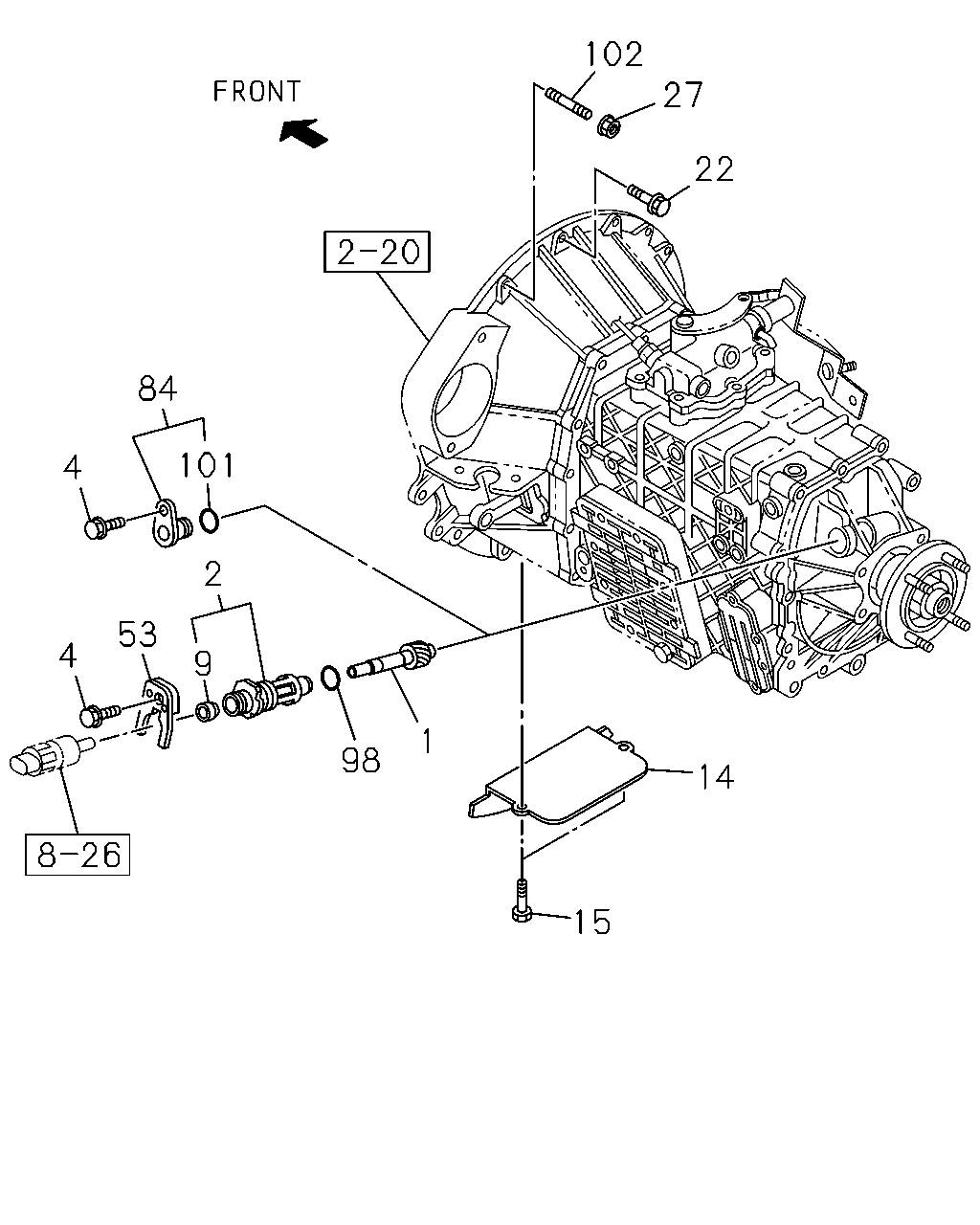

çizim 157737
102 27 22 84 101 4 2 53 4 9 1 98 14 15
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GEAR; DRIVEN,SPD
FRT&RR 225/70R19.5 19.5X6.00-127(CRR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=12 		8-97253-563-1 01 1 0804- ●
1 GEAR; DRIVEN,SPD
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=13 		8-97253-562-1 01 1 0804- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FRT&RR 225/70R19.5 19.5X6.00-127(CRR),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> MARK "12,13,14,15" 		8-97253-125-0 01 1 0804- ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE 		0-28650-820-0 01 1 0804- ● ● ●
9 SEAL; OIL,DRIVEN GEAR
FRT&RR 225/70R19.5 19.5X6.00-127(CRR),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK 		8-97131-328-1 01 1 0804- ●
14 COVER; UNDER,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97308-233-0 01 1 0804- ● ● ●
15 BOLT; UNDER COVER TO TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE SOU 		0-28650-616-0 02 1 0804- ● ● ●
22 BOLT; TRANS CASE TO ENG
EURO3 SPECIFICATION(NT3) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X50 FLANGE 		0-28151-050-0 03 1 0804- ● ● ●
22 BOLT; TRANS CASE TO ENG
EURO3 SPECIFICATION(NT3) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X55 FLANGE 		8-97365-449-0 04 1 0804- ● ● ●
22 BOLT; TRANS CASE TO ENG
EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR) M10X50 FLANGE 		0-28151-050-0 05 1 0804- ● ● ●
22 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X35 FLANGE 		0-28151-035-0 02 1 0804-0909 ● ● ●
22 BOLT; TRANS CASE TO ENG
PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X35 FLANGE 		0-28151-035-0 02 1 0910- ● ● ●
22 BOLT; TRANS CASE TO ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE 		0-28151-030-0 02 1 0804-0909 ● ● ●
22 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO MANUAL CONTROL(6WC) M10X30 FLANGE 		0-28151-030-0 02 1 0804-0909 ● ● ●
22 BOLT; TRANS CASE TO ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66) M10X30 FLANGE 		0-28151-030-0 02 1 0804-0909 ● ● ●
22 BOLT; TRANS CASE TO ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE 		0-28151-030-0 02 1 0910- ● ● ●
22 BOLT; TRANS CASE TO ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO MANUAL CONTROL(6WC) M10X30 FLANGE 		0-28151-030-0 02 1 0910- ● ● ●
22 BOLT; TRANS CASE TO ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X35 FLANGE 		0-28151-035-0 03 1 0804- ● ● ●
22 BOLT; TRANS CASE TO ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X55 FLANGE 		8-97365-449-0 02 1 0804- ● ● ●
22 BOLT; TRANS CASE TO ENG
EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR) M10X55 FLANGE 		8-97365-449-0 02 1 0804- ● ● ●
27 NUT; CLU HSG TO TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE SOU 		0-91180-210-0 02 1 0804- ● ● ●
53 PLATE; LOCK,DRIVEN GEAR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98046-217-0 01 1 0804- ●
84 CAP; BUSH,SPEEDOMETER GEAR 8-98035-151-1 01 1 0804- ● ●
84 CAP; BUSH,SPEEDOMETER GEAR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98035-151-1 01 1 0804- ●
98 SEAL; OIL,BUSH
FRT&RR 225/70R19.5 19.5X6.00-127(CRR),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		9-09561-324-0 01 1 0804- ●
101 GASKET; CAP 9-09561-324-0 01 1 0804- ● ●
101 GASKET; CAP
4 WHEEL ANTI LOCK BRAKE<JE5> 		9-09561-324-0 01 1 0804- ●
102 STUD; TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) M10X50 L=99 		0-49241-050-0 02 1 0804- ● ● ●
