2-20 — MANUAL TRANSMISSION ASM AND CASE (#50840) — 101 parça

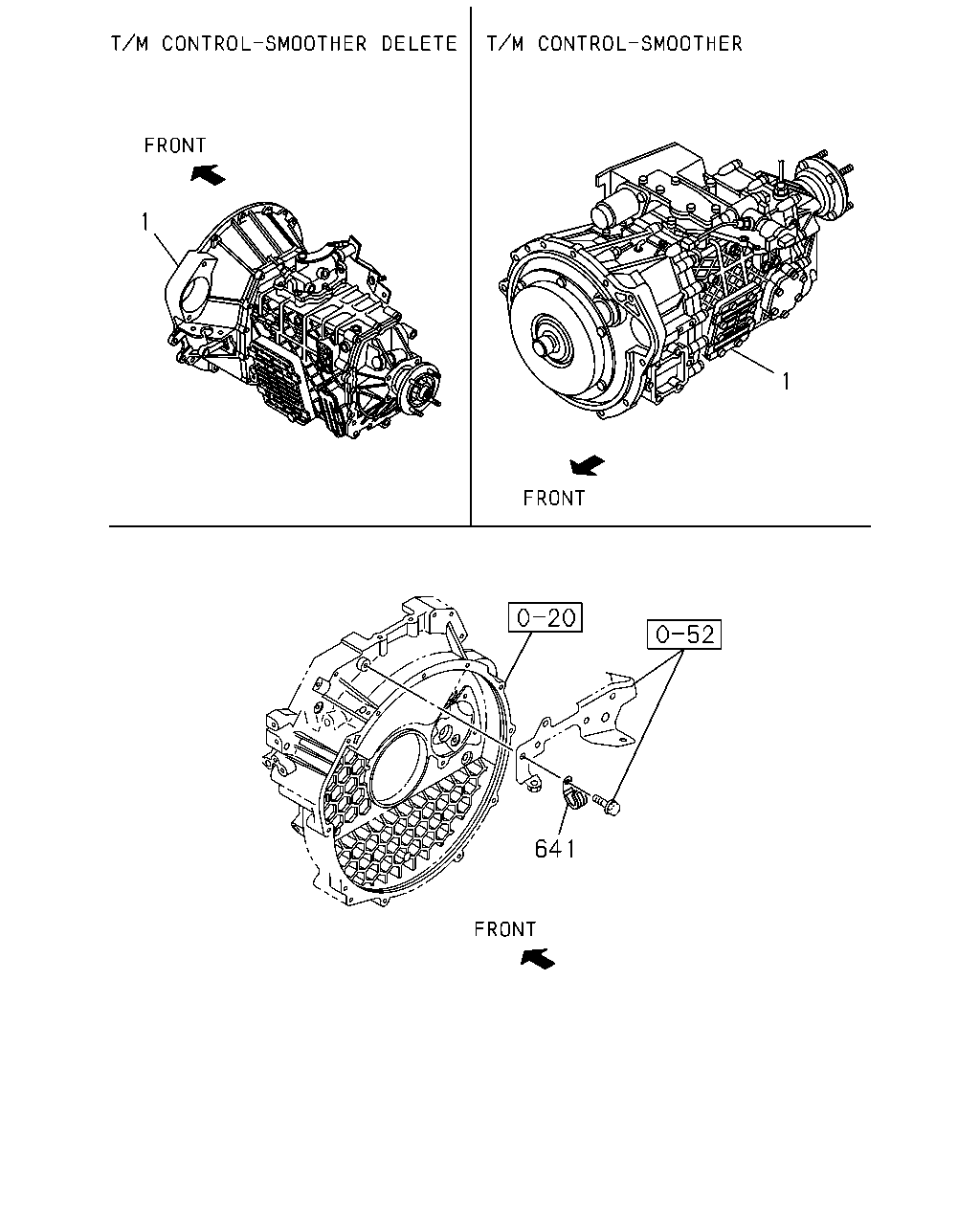

1 1 641

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TRANSMISSION ASM; MANUAL KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66)	8-98067-683-0	01	1	0804-0904
1	TRANSMISSION ASM; MANUAL KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECTPUMP(8KZ)	8-98067-683-0	01	1	0905-
1	TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98067-683-0	01	1	0804-
1	TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98067-680-0	01	1	0804-
1	TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98067-680-0	01	1	0804-
1	TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>,POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98067-683-0	01	1	0804-
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66)	8-98067-680-0	01	1	0804-0904
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECTPUMP(8KZ)	8-98067-680-0	01	1	0905-
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>	8-98067-683-0	01	1	0804-0904
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>,PTO T/M SIDE DIRECT PUMP(8KZ)	8-98067-683-0	01	1	0905-
641	CLIP; CAM SENSOR ID=8	8-94107-659-0	01	1	0804-0804

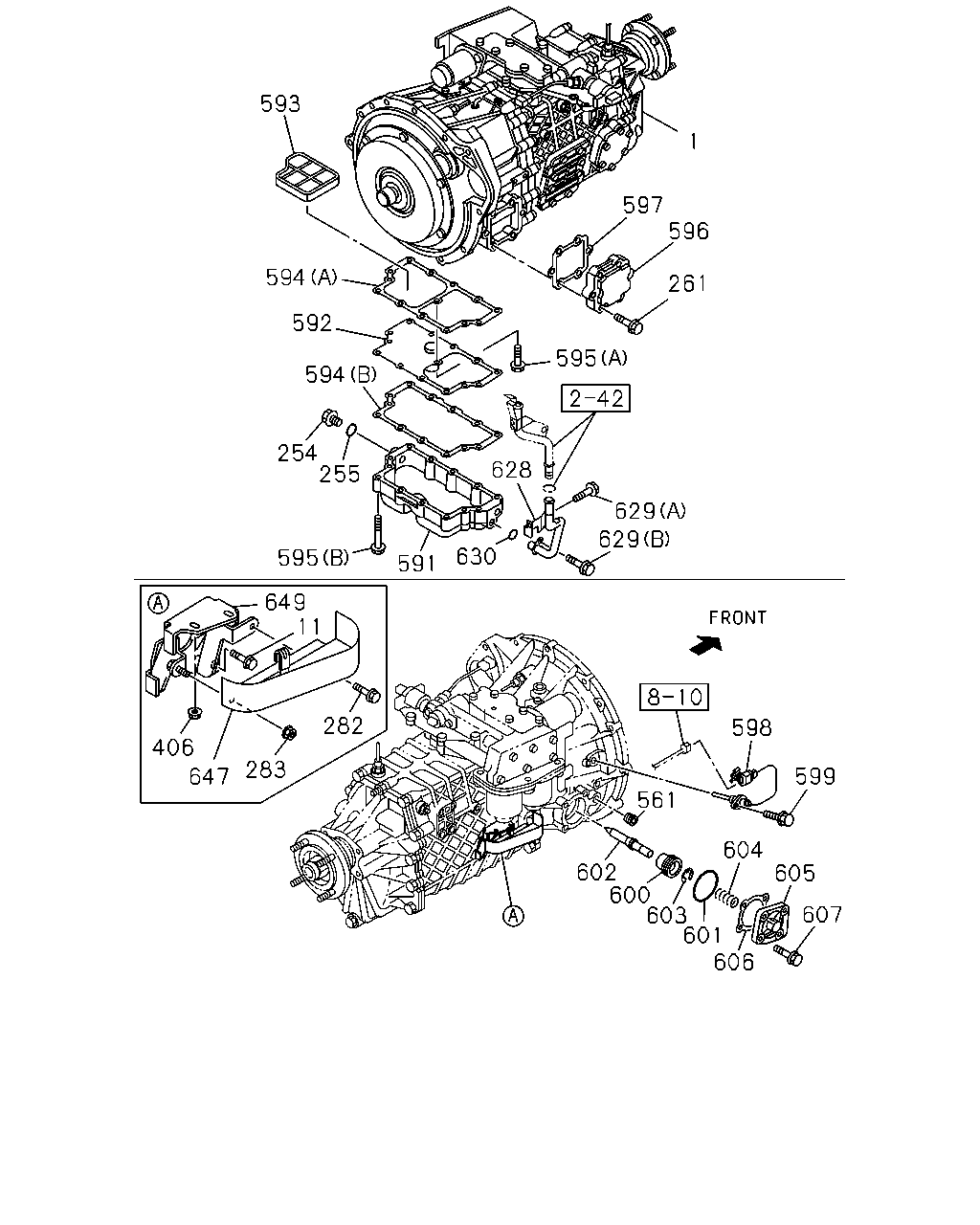

593 1 597 596 594 261 592 595 594 254 255 628 629 629 630 595 591 649 11 282 598 406 561 283 599 647 604 602 600 603 601 606 605 607

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TRANSMISSION ASM; MANUAL KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66)	8-98067-683-0	01	1	0804-0904
1	TRANSMISSION ASM; MANUAL KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECTPUMP(8KZ)	8-98067-683-0	01	1	0905-
1	TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98067-683-0	01	1	0804-
1	TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98067-680-0	01	1	0804-
1	TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98067-680-0	01	1	0804-
1	TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>,POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98067-683-0	01	1	0804-
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66)	8-98067-680-0	01	1	0804-0904
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECTPUMP(8KZ)	8-98067-680-0	01	1	0905-
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>	8-98067-683-0	01	1	0804-0904
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>,PTO T/M SIDE DIRECT PUMP(8KZ)	8-98067-683-0	01	1	0905-
11	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M10X20 FLANGE	0-28761-020-0	02	1	0804-
254	PLUG; DRAIN,OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97365-374-0	01	1	0804-
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) ID=17	8-97115-712-0	01	1	0804-
261	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) M6X35 FLANGE	0-28650-635-0	06	1	0804-
282	BOLT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	0804-
283	NUT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU	0-91180-108-0	01	1	0804-
406	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE SOU	0-91180-210-0	02	1	0804-
561	PLUG TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97320-204-0	01	1	0804-
591	PAN; OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-429-2	01	1	0804-
592	COVER; STRAINER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-771-1	01	1	0804-
593	FILTER; STRAINER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-438-1	01	1	0804-
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97256-430-1	01	1	0804-
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97289-772-0	01	1	0804-
595	BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE SOU	0-28650-616-0	01	1	0804-
595	BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X35 FLANGE	0-28650-635-0	13	1	0804-
596	COVER; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-773-0	01	1	0804-
597	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-774-0	01	1	0804-
598	SENSOR; TURBINE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97316-495-1	01	1	0804-
599	BOLT; SENSOR TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE SOU	0-28650-616-0	01	1	0804-
600	PISTON; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-652-1	01	1	0804-
601	SEAL; PISTON ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-755-0	01	1	0804-
602	PLUNGER; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-653-0	01	1	0804-
603	RING; SNAP TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8	9-09185-008-0	01	1	0804-
604	SPRING; PISTON TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-752-0	01	1	0804-
605	COVER; CYLINDER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-756-0	01	1	0804-
606	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-757-0	01	1	0804-
607	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	04	1	0804-
628	TUBE; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98030-395-1	01	1	0804-
629	BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M10X16 FLANGE	0-28151-016-0	01	1	0804-
629	BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	0804-
630	GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) ID=15.8	8-97305-656-0	01	1	0804-
647	PROTECTOR; HEAT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97329-465-0	01	1	0804-
649	BRACKET; SOLENOID TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97387-237-0	01	1	0804-

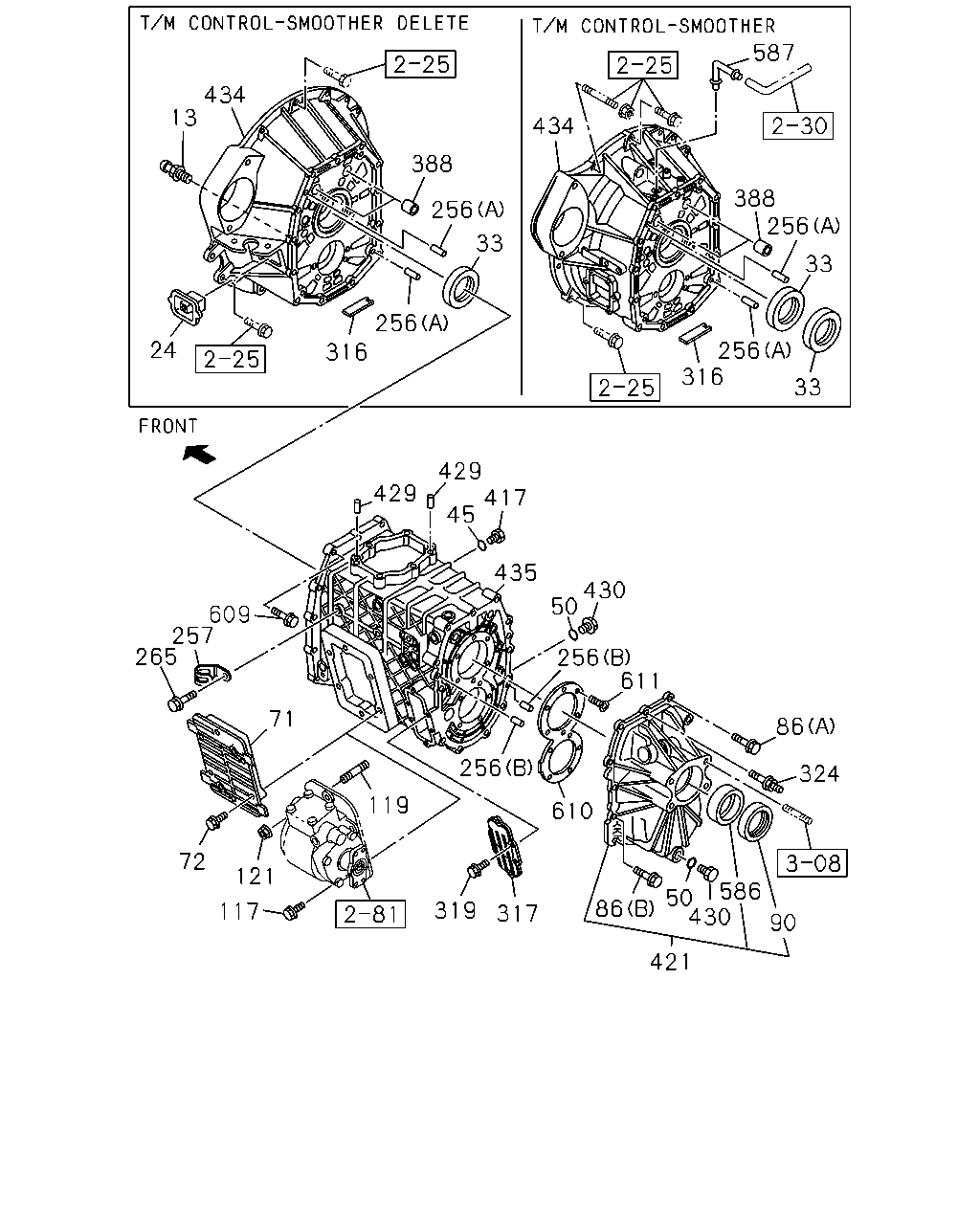

587 434 13 434 388 388 256 256 33 33 256 24 256 316 316 33 429 417 45 429 435 430 50 609 257 265 256 611 256 71 86 324 119 610 72 121 586 50 430 86 319 117 317 90 421

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	SUPPORT; SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97255-385-1	01	1	0804-
24	COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97255-201-0	01	1	0804-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97253-550-0	01	1	0804-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-187-0	02	1	0804-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0804-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	0804-
71	COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66)	8-97252-625-0	01	1	0804-0904
71	COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECTPUMP(8KZ)	8-97252-625-0	01	1	0905-
72	BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66) M10X20 FLANGE	8-98014-142-0	06	1	0804-0904
72	BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECTPUMP(8KZ) M10X20 FLANGE	8-98014-142-0	06	1	0905-
86	BOLT; RR COVER (A) M10X40 FLANGE	0-28151-040-0	10	1	0804-1405
86	BOLT; RR COVER (A) M10X40 FLANGE	0-28151-040-0	09	1	1406-
86	BOLT; RR COVER (B) M10X40 FLANGE	8-97365-377-0	02	1	0804-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	0804-
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) M10X30 FLANGE	0-28751-030-0	02	1	1108-
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28751-030-0	03	1	0804-1107
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE	0-28751-030-0	03	1	1108-
119	STUD; PTO FIX PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) M10X25 L=40	0-44011-025-0	02	1	1108-
119	STUD; PTO FIX PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) M10X30 L=45	0-44011-030-0	02	1	1108-
119	STUD; PTO FIX PTO TRANSMISSION SIDE(V66) M10X25 L=40	0-44011-025-0	03	1	0804-1107
119	STUD; PTO FIX PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X25 L=40	0-44011-025-0	03	1	1108-
121	NUT; PTO FIX PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) M10 FLANGE SOU	0-91180-210-0	04	1	1007-
121	NUT; PTO FIX PTO TRANSMISSION SIDE(V66) M10 FLANGE SOU	0-91180-210-0	03	1	0804-1006
121	NUT; PTO FIX PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE SOU	0-91180-210-0	03	1	1007-
256	PIN; KNOCK (A) OD=10 L=20	8-97135-423-0	02	1	0804-
256	PIN; KNOCK (B) ID=6 L=12	9-08160-612-0	02	1	0804-
257	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0804-
265	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X12 FLANGE	0-28050-812-0	01	1	0804-
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0804-
317	COVER; CASE	8-97252-626-0	01	1	0804-
319	BOLT; COVER M8X20 FLANGE	0-28050-820-0	06	1	0804-
324	STUD; RR COVER M10X15,M10X40 L=65	8-97365-379-0	01	1	0804-1405
324	STUD; RR COVER M10X15,M10X40 L=65	8-97365-379-0	02	1	1406-
388	BUSHING; CLU HSG	8-97241-326-2	02	1	0804-
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	0804-
421	COVER; RR,TRANS	8-98020-028-0	01	1	0804-
429	PIN; STRAIGHT OD=10 L=20	8-97135-423-0	02	1	0804-
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	0804-
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97237-099-5	01	1	0804-
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98032-146-0	01	1	0804-0906
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98100-978-0	01	1	0907-
435	CASE; TRANS	8-97379-374-0	01	1	0804-
586	BEARING; NEEDLE	8-97253-109-0	01	1	0804-
587	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97358-318-0	01	1	0804-
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28151-040-0	13	1	0804-
610	RETAINER; BRG	8-97241-315-1	01	1	0804-
611	SCREW M10X27 TORQUES	8-97365-354-0	11	1	0804-
