◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51172 - NPR/NQR(SOUTHAFRICA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#50833) — 34 parça

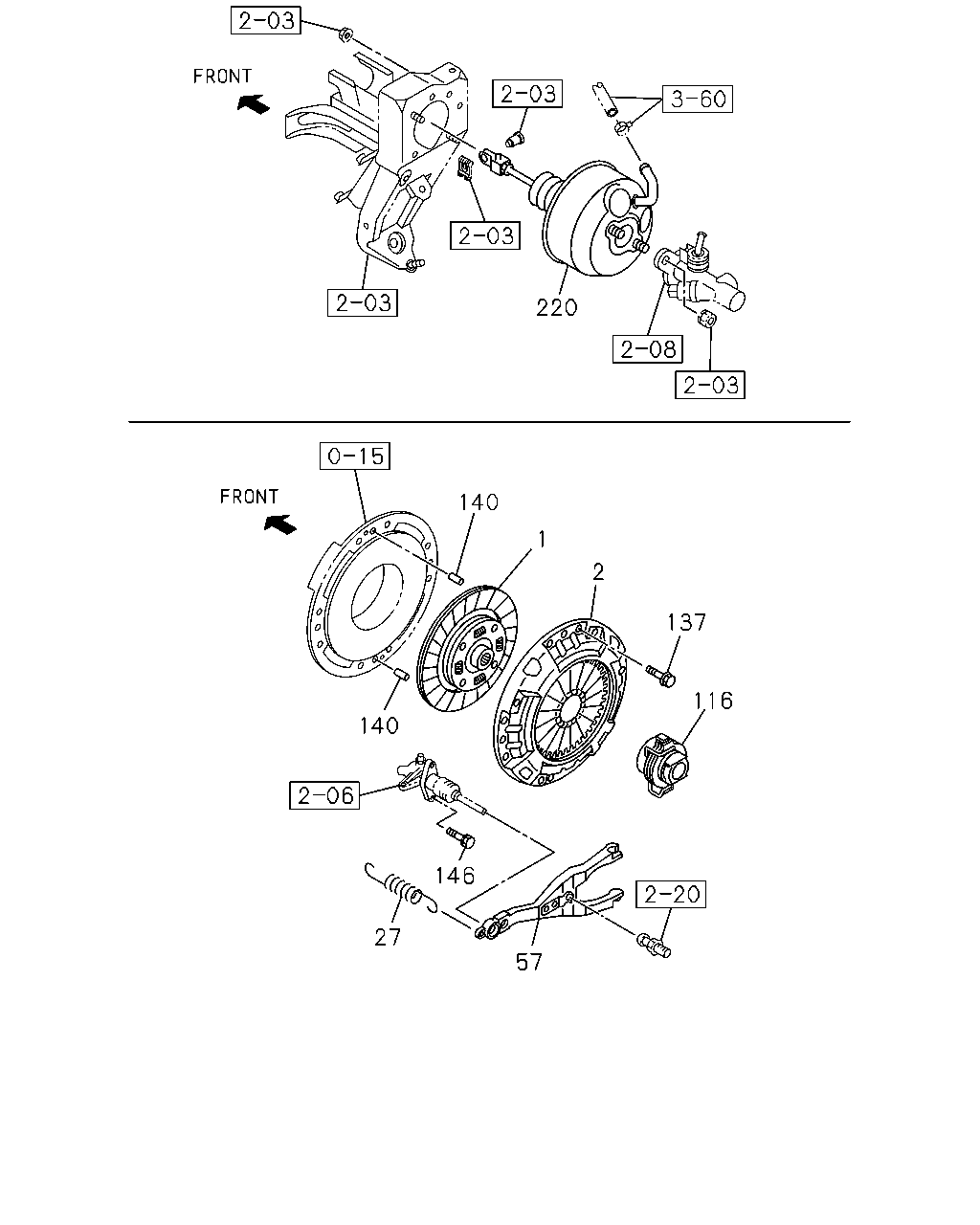

çizim 157725
220 140 1 2 137 116 140 146 27 57
BalonParca AdiParca NoAdetTipApplied Date
1 DISC; CLUTCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97362-235-1 01 1 0804-1402
1 DISC; CLUTCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98255-140-1 01 1 1403-
1 DISC; CLUTCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS 		5-87610-080-1 01 1 0805-1501
2 PLATE ASM; PRESSURE,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97351-794-0 01 1 0804-1405
2 PLATE ASM; PRESSURE,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97038-831-2 01 1 1406-
2 PLATE ASM; PRESSURE,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS 		5-87610-081-0 01 1 0804-1405
2 PLATE ASM; PRESSURE,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS 		5-87610-104-0 01 1 1406-
27 SPRING; RETURN,SHIFT FORK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98025-313-0 01 1 0804-
57 FORK; SHIFT,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97255-303-0 01 1 0804-
116 BLOCK; SHIFT,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97255-313-0 01 1 0804-
116 BLOCK; SHIFT,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS 		5-87610-110-0 01 1 0804-
137 BOLT; CLU COVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X16 FLANGE 		0-28051-016-0 10 1 0804-
140 PIN; STRAIGHT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=25 		8-94410-361-0 02 1 0804-
146 BOLT; SLAVE CYL TO TRANS CASE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X30 FLANGE 		0-28650-830-0 02 1 0804-
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98033-837-0 01 1 0804-

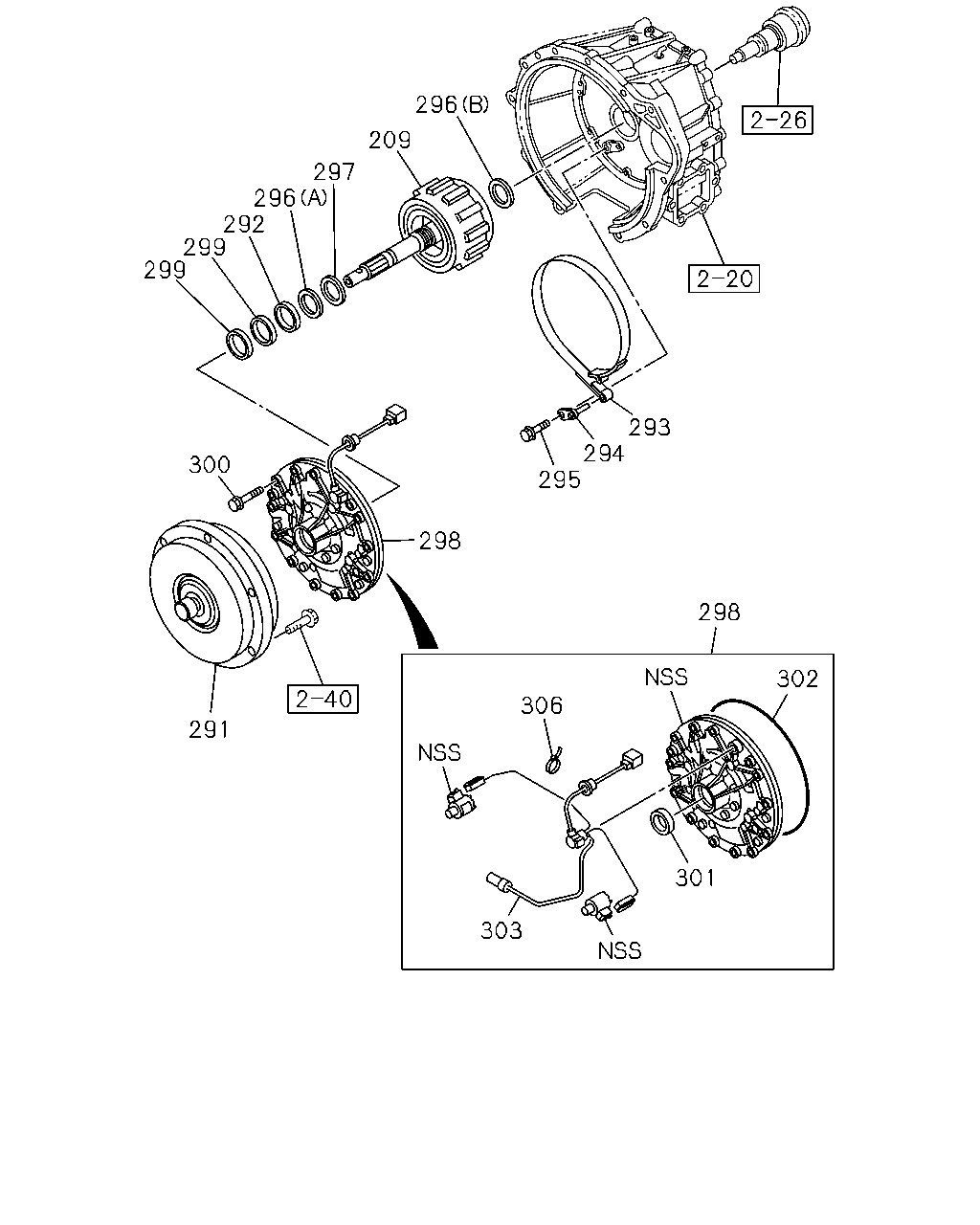

çizim 157733
296 209 297 296 292 299 299 293 294 295 300 298 298 302 306 291 301 303
BalonParca AdiParca NoAdetTipApplied Date
209 CLUTCH ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98044-525-0 01 1 0804-0904
209 CLUTCH ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98116-930-2 01 1 0905-1412
209 CLUTCH ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98275-320-0 01 1 1501-
291 COUPLING; FLUID
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98087-661-2 01 1 0804-
292 RING; SEAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-329-0 01 1 0804-
293 BAND; BRAKE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97254-651-0 01 1 0804-
294 PIN; ANCHOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-703-0 01 1 0804-
295 BOLT; ANCHOR PIN
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 01 1 0804-
296 BEARING; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97255-688-0 01 1 0804-
296 BEARING; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97255-689-0 01 1 0804-
297 WASHER; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97300-070-0 01 1 0804-
298 PUMP ASM; OIL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98040-037-0 01 1 0804-0804
298 PUMP ASM; OIL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98107-924-1 01 1 0804-
299 RING; SEAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-330-0 02 1 0804-
300 BOLT; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X45 FLANGE SOU 		0-28050-845-0 11 1 0804-
301 SEAL; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97289-811-0 01 1 0804-
302 RING; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-188-0 01 1 0804-
303 HARNESS ASM; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-265-2 01 1 0804-
306 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER(8GF) L=100 		8-94279-939-0 03 1 0804-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
