Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#50830) — 174 parça

172 25 532 38 385 562 143 2 44 1 36 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH	8-98074-108-1	01	1	0804-	●	●	●
2	GASKET; PIPE TO MANIF	8-97381-455-0	01	1	0804-	●	●	●
8	BRACKET; EXH PIPE	8-97365-228-0	01	1	0804-	●	●	●
25	PIPE; EXH,BRK VLV TO SILENCER	8-98074-109-0	01	1	0804-	●	●	●
36	NUT; EXH PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEEL BASE 4400MM(44W) (B) M10 FLANGE SOU	0-91180-110-0	02	1	0804-	●	●
36	NUT; EXH PIPE (B) M10 FLANGE SOU	0-91180-110-0	02	1	0804-			●
36	NUT; EXH PIPE (A) M10 FLANGE SOU	8-97096-192-1	03	1	0804-	●	●	●
38	NUT; SILENCER M10 FLANGE SOU	0-91180-110-0	02	1	0804-	●	●	●
44	BOLT; BRKT M10X40 FLANGE	0-28051-040-0	01	1	0804-	●	●	●
143	RUBBER; SUPPORT (A)	8-97080-694-0	01	1	0804-	●	●	●
143	RUBBER; SUPPORT (B)	8-98034-767-0	01	1	0804-	●	●	●
172	BOLT M10X35 FLANGE SOU	0-28651-035-0	02	1	0804-	●	●	●
385	BRACKET; SILENCER MTG (A)	8-98074-495-1	01	1	0804-	●	●
385	BRACKET; SILENCER MTG (B)	8-97207-224-0	02	1	0804-	●	●	●
385	BRACKET; SILENCER MTG (A)	8-98101-911-0	01	1	0804-			●
532	NUT WHEEL BASE 2700MM(27W) M8 FLANGE SOU	0-91180-108-0	02	1	0804-	●
532	NUT M10 FLANGE SOU	0-91180-110-0	02	1	0804-	●	●	●
532	NUT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M10 FLANGE SOU	0-91180-110-0	02	1	0804-	●	●
532	NUT M10 FLANGE SOU	0-91180-110-0	02	1	0804-			●
562	PLATE; STUD,BOLT M8X70	0-10855-870-0	04	1	0804-	●	●	●

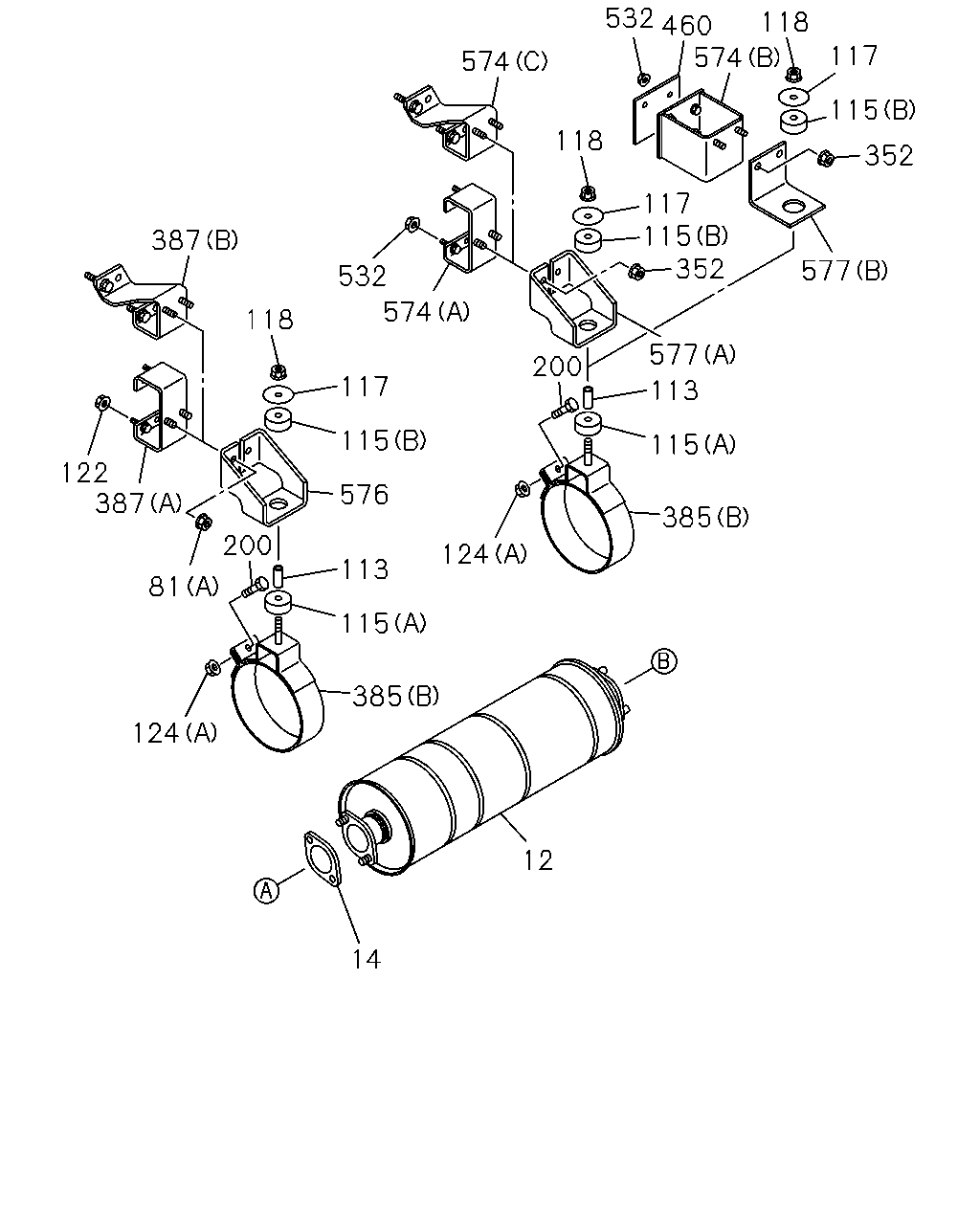

532 460 574 118 117 574 115 118 352 117 115 352 387 577 532 574 118 577 200 117 113 115 115 122 387 576 385 200 124 113 81 115 385 124 12 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	SILENCER ASM; EXH	8-98090-839-0	01	1	0804-	●	●	●
14	GASKET; SILENCER TO EXH PIPE ID=64.7 SOU	8-94328-352-0	01	1	0804-	●	●	●
81	NUT; BRKT WHEEL BASE 2700MM(27W) (A) M10 FLANGE SOU	0-91180-110-0	01	1	0804-	●
81	NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) M10 FLANGE SOU	0-91180-110-0	02	1	0804-	●
81	NUT; BRKT (A) M10 FLANGE SOU	0-91180-110-0	02	1	0804-		●	●
81	NUT; BRKT (B) M8 FLANGE SOU	0-91180-108-0	02	1	0804-	●	●	●
113	COLLAR; DIST,MTG BRKT L=37.5 SOU	9-22151-217-0	02	1	0804-	●	●	●
115	RUBBER; MTG,SILENCER (A)	8-97379-882-0	02	1	0804-	●	●	●
115	RUBBER; MTG,SILENCER (B)	8-97379-927-0	02	1	0804-	●	●	●
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	0804-	●	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	02	1	0804-	●	●	●
122	NUT; HANGER BRKT M10 FLANGE SOU	0-91180-110-0	02	1	0804-	●	●	●
124	NUT; SUPPORT RUBBER (A) M8 SOU	0-91110-508-0	02	1	0804-	●	●	●
124	NUT; SUPPORT RUBBER (B) M10 FLANGE SOU	0-91180-110-0	01	1	0804-	●	●	●
124	NUT; SUPPORT RUBBER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) M10 FLANGE SOU	0-91180-110-0	01	1	0804-	●
124	NUT; SUPPORT RUBBER (B) M10 FLANGE SOU	0-91180-110-0	01	1	0804-		●	●
200	BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50040-845-0	02	1	0804-0909	●	●	●
200	BOLT; SUPPORT RUBBER M8X45 W/LK WASHER SOU	0-50540-845-0	02	1	0910-	●	●	●
352	NUT; BRKT WHEEL BASE 2700MM(27W) M8 FLANGE SOU	0-91180-108-0	03	1	0804-	●
352	NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M10 FLANGE SOU	0-91180-110-0	02	1	0804-	●
352	NUT; BRKT M10 FLANGE SOU	0-91180-110-0	02	1	0804-		●	●
385	BRACKET; SILENCER MTG (A)	8-98074-495-1	01	1	0804-	●	●
385	BRACKET; SILENCER MTG (B)	8-97207-224-0	02	1	0804-	●	●	●
385	BRACKET; SILENCER MTG (A)	8-98101-911-0	01	1	0804-			●
387	SPACER; BRKT WHEEL BASE 2700MM(27W) (A)	8-98078-962-1	01	1	0804-	●
387	SPACER; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A)	8-98044-774-0	01	1	0804-	●
387	SPACER; BRKT (A)	8-98044-774-0	01	1	0804-		●
387	SPACER; BRKT (B)	8-98050-196-2	01	1	0804-			●
460	PLATE; EXH PIPE WHEEL BASE 2700MM(27W)	8-98035-656-0	01	1	0804-	●
532	NUT WHEEL BASE 2700MM(27W) M8 FLANGE SOU	0-91180-108-0	02	1	0804-	●
532	NUT M10 FLANGE SOU	0-91180-110-0	02	1	0804-	●	●	●
532	NUT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M10 FLANGE SOU	0-91180-110-0	02	1	0804-	●	●
532	NUT M10 FLANGE SOU	0-91180-110-0	02	1	0804-			●
574	SPACER; DPD WHEEL BASE 2700MM(27W) (B)	8-98079-106-0	01	1	0804-	●
574	SPACER; DPD WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A)	8-98044-774-0	01	1	0804-	●
574	SPACER; DPD (A)	8-98044-774-0	01	1	0804-		●
574	SPACER; DPD (C)	8-98050-196-2	01	1	0804-			●
576	BRACKET; DPD FRT TO FRAME	8-98074-124-1	01	1	0804-	●	●	●
577	BRACKET; DPD RR TO FRAME WHEEL BASE 2700MM(27W) (B)	8-98078-961-0	01	1	0804-	●
577	BRACKET; DPD RR TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A)	8-98074-124-1	01	1	0804-	●
577	BRACKET; DPD RR TO FRAME (A)	8-98074-124-1	01	1	0804-		●	●

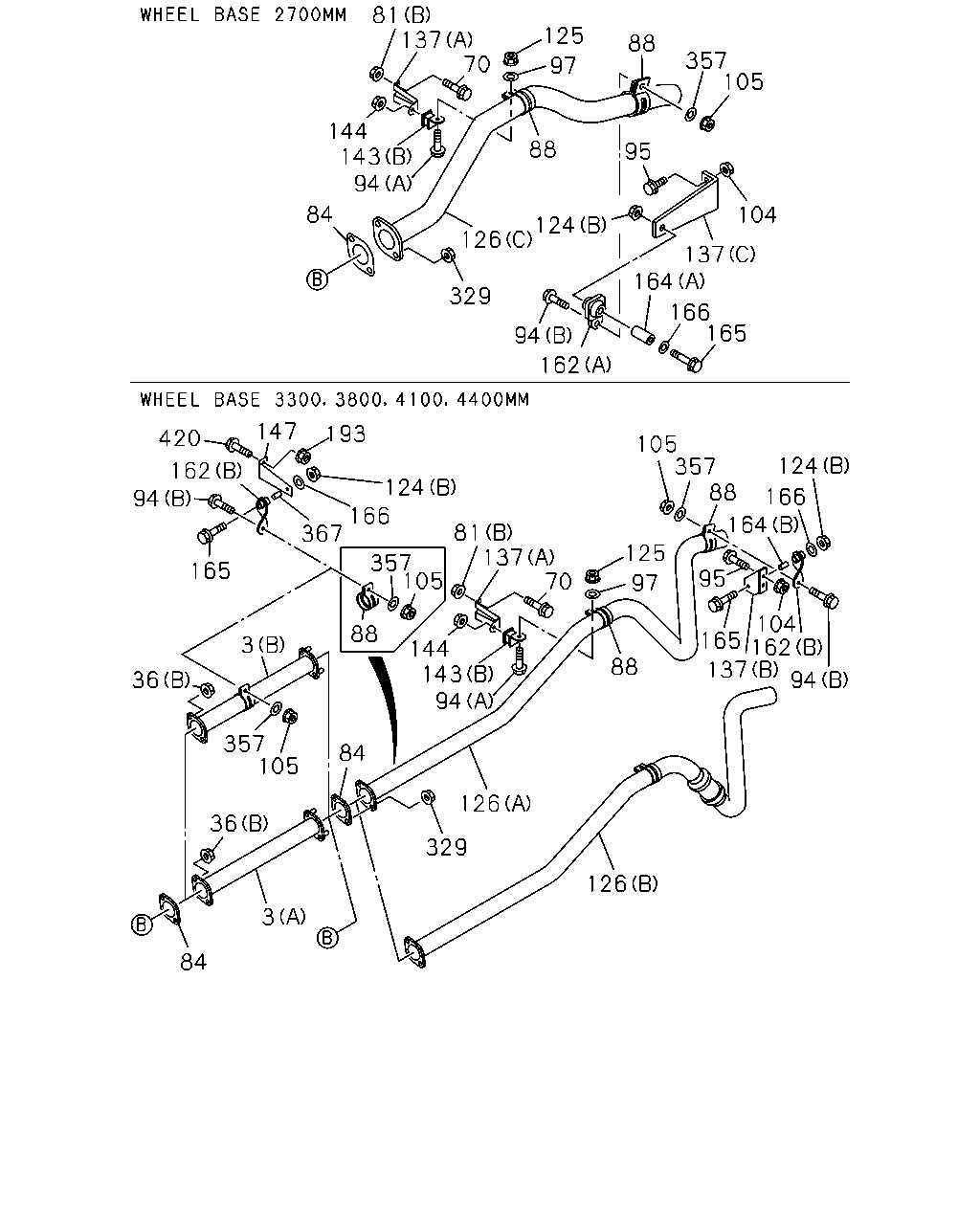

81 137 125 70 88 357 105 97 144 143 94 88 95 84 104 124 126 137 164 329 166 165 94 162 147 193 420 105 357 88 124 162 94 124 166 367 166 164 81 137 125 70 357 105 165 95 97 104 162 137 88 165 3 144 143 94 88 94 36 357 105 84 126 36 329 126 3 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	PIPE; EXH,CENTER WHEEL BASE 4400MM(44W) (B)	8-98283-854-0	01	1	1509-	●
3	PIPE; EXH,CENTER WHEEL BASE 4400MM(44W) (B)	8-98090-140-0	01	1	0804-0811	●
3	PIPE; EXH,CENTER WHEEL BASE 4400MM(44W) (B)	8-98134-199-0	01	1	0812-0812	●
3	PIPE; EXH,CENTER WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (B)	8-98134-199-0	01	1	0812-1508	●	●
3	PIPE; EXH,CENTER (B)	8-98134-199-0	01	1	0812-1508			●
3	PIPE; EXH,CENTER WHEEL BASE 3800MM(38W) (B)	8-98134-199-0	01	1	1509-	●	●
3	PIPE; EXH,CENTER (B)	8-98134-199-0	01	1	1509-			●
3	PIPE; EXH,CENTER WHEEL BASE 3800MM(38W) (A) SOU	8-97089-322-0	01	1	0804-0811	●	●
3	PIPE; EXH,CENTER (A) SOU	8-97089-322-0	01	1	0804-0811			●
3	PIPE; EXH,CENTER WHEEL BASE 4100MM(41W) (B)	8-98090-138-0	01	1	0804-0811	●	●
3	PIPE; EXH,CENTER WHEEL BASE 4100MM(41W) (A)	8-97307-804-0	01	1	0812-1508	●	●
3	PIPE; EXH,CENTER WHEEL BASE 4100MM(41W) (B)	8-98283-853-0	01	1	1509-	●	●
36	NUT; EXH PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEEL BASE 4400MM(44W) (B) M10 FLANGE SOU	0-91180-110-0	02	1	0804-	●	●
36	NUT; EXH PIPE (B) M10 FLANGE SOU	0-91180-110-0	02	1	0804-			●
36	NUT; EXH PIPE (A) M10 FLANGE SOU	8-97096-192-1	03	1	0804-	●	●	●
70	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	02	1	0804-	●	●	●
81	NUT; BRKT WHEEL BASE 2700MM(27W) (A) M10 FLANGE SOU	0-91180-110-0	01	1	0804-	●
81	NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) M10 FLANGE SOU	0-91180-110-0	02	1	0804-	●
81	NUT; BRKT (A) M10 FLANGE SOU	0-91180-110-0	02	1	0804-		●	●
81	NUT; BRKT (B) M8 FLANGE SOU	0-91180-108-0	02	1	0804-	●	●	●
84	GASKET; EXH PIPE ID=64.7 SOU	8-94328-352-0	01	1	0804-	●	●	●
84	GASKET; EXH PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEEL BASE 4400MM(44W) ID=64.7 SOU	8-94328-352-0	01	1	0804-	●	●
84	GASKET; EXH PIPE ID=64.7 SOU	8-94328-352-0	01	1	0804-			●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	0804-0811	●	●	●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	0804-0811	●	●	●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	0804-0811	●	●	●
88	CLAMP; EXH PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-97373-158-0	01	1	0804-0811	●	●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	0804-0811			●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	0812-0812	●	●	●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	0812-0812	●	●	●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	0812-0812	●	●	●
88	CLAMP; EXH PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W)	8-97373-158-0	01	1	0812-0812	●	●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	0812-0812			●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	0812-1508	●	●	●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	0812-1508	●	●	●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	0812-1508	●	●	●
88	CLAMP; EXH PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W)	8-97373-158-0	01	1	0812-1508	●	●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	1509-	●	●	●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	1509-	●	●	●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	1509-	●	●	●
88	CLAMP; EXH PIPE WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	1509-	●	●
94	BOLT; CLAMP (B) M10X45 FLANGE SOU	0-28051-045-0	01	1	0804-	●	●	●
94	BOLT; CLAMP WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) M10X45 FLANGE SOU	0-28051-045-0	01	1	0804-	●
94	BOLT; CLAMP (B) M10X45 FLANGE SOU	0-28051-045-0	01	1	0804-		●	●
94	BOLT; CLAMP (A) M10X50 FLANGE	8-97301-165-0	01	1	0804-	●	●	●
95	BOLT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W), WHEEL BASE 3800MM(38W) M8X25 FLANGE SOU	0-28650-825-0	02	1	0804-	●
95	BOLT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) M8X25 FLANGE SOU	0-28650-825-0	02	1	0804-		●
95	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	02	1	0804-			●
95	BOLT; BRKT WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M10X30 FLANGE SOU	0-28651-030-0	02	1	0804-	●
95	BOLT; BRKT WHEEL BASE 4100MM(41W) M10X30 FLANGE SOU	0-28651-030-0	02	1	0804-		●
97	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	0804-	●	●	●
104	NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W), WHEEL BASE 3800MM(38W) M8 FLANGE SOU	0-91180-108-0	02	1	0804-	●
104	NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) M8 FLANGE SOU	0-91180-108-0	02	1	0804-		●
104	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	0804-			●
104	NUT; BRKT WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M10 FLANGE SOU	0-91180-110-0	02	1	0804-	●
104	NUT; BRKT WHEEL BASE 4100MM(41W) M10 FLANGE SOU	0-91180-110-0	02	1	0804-		●
105	NUT; CLAMP M10 SOU	0-91110-510-0	01	1	0804-	●	●	●
105	NUT; CLAMP WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M10 SOU	0-91110-510-0	01	1	0804-	●
105	NUT; CLAMP M10 SOU	0-91110-510-0	01	1	0804-		●	●
124	NUT; SUPPORT RUBBER (A) M8 SOU	0-91110-508-0	02	1	0804-	●	●	●
124	NUT; SUPPORT RUBBER (B) M10 FLANGE SOU	0-91180-110-0	01	1	0804-	●	●	●
124	NUT; SUPPORT RUBBER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) M10 FLANGE SOU	0-91180-110-0	01	1	0804-	●
124	NUT; SUPPORT RUBBER (B) M10 FLANGE SOU	0-91180-110-0	01	1	0804-		●	●
125	NUT; CLAMP M10 SOU	0-91110-510-0	01	1	0804-	●	●	●
126	PIPE; EXH,RR WHEEL BASE 4100MM(41W) (B)	8-98134-346-0	01	1	0812-1508	●	●
126	PIPE; EXH,RR WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B)	8-98283-855-0	01	1	1509-	●	●
126	PIPE; EXH,RR WHEEL BASE 3800MM(38W) (B)	8-98134-798-0	01	1	0812-	●	●
126	PIPE; EXH,RR (B)	8-98134-798-0	01	1	0812-			●
126	PIPE; EXH,RR WHEEL BASE 2700MM(27W) (C)	8-98078-964-0	01	1	0804-	●
126	PIPE; EXH,RR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	8-98090-128-1	01	1	0804-0811	●	●
126	PIPE; EXH,RR (A)	8-98090-128-1	01	1	0804-0811			●
126	PIPE; EXH,RR WHEEL BASE 3300MM(33W) (A)	8-98090-128-1	01	1	0812-	●	●
126	PIPE; EXH,RR WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B)	8-98011-818-0	01	1	0804-0811	●	●
126	PIPE; EXH,RR WHEEL BASE 4400MM(44W) (B)	8-98011-818-0	01	1	0812-1508	●
137	BRACKET; TAIL PIPE WHEEL BASE 2700MM(27W) (C)	8-97169-014-0	01	1	0804-	●
137	BRACKET; TAIL PIPE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B)	8-97185-801-0	01	1	0804-	●
137	BRACKET; TAIL PIPE WHEEL BASE 4100MM(41W) (B)	8-97185-801-0	01	1	0804-		●
137	BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B)	8-97116-588-2	01	1	0804-	●	●
137	BRACKET; TAIL PIPE (B)	8-97116-588-2	01	1	0804-			●
137	BRACKET; TAIL PIPE (A)	8-97096-651-0	01	1	0804-	●	●	●
143	RUBBER; SUPPORT (A)	8-97080-694-0	01	1	0804-	●	●	●
143	RUBBER; SUPPORT (B)	8-98034-767-0	01	1	0804-	●	●	●
144	NUT; MTG RUBBER M8 FLANGE SOU	0-91180-108-0	01	1	0804-	●	●	●
147	BRACKET; VERTICAL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W)	8-98090-125-1	01	1	0804-0811	●
147	BRACKET; VERTICAL PIPE	8-98090-125-1	01	1	0804-0811		●	●
147	BRACKET; VERTICAL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W)	8-98117-604-0	01	1	0812-	●
147	BRACKET; VERTICAL PIPE	8-98117-604-0	01	1	0812-		●	●
162	RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2700MM(27W) (A)	8-98032-150-0	01	1	0804-	●
162	RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) L=115	8-98034-765-0	01	1	0804-	●
162	RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) L=115	8-98034-765-0	01	1	0804-	●
162	RUBBER; SUPPORT,TAIL PIPE (B) L=115	8-98034-765-0	01	1	0804-		●	●
162	RUBBER; SUPPORT,TAIL PIPE (B) L=115	8-98034-765-0	01	1	0804-		●	●
164	COLLAR; DIST,TAIL PIPE WHEEL BASE 2700MM(27W) (A) L=23	8-98006-011-0	01	1	0804-	●
164	COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) L=37.5 SOU	9-22151-217-0	01	1	0804-	●
164	COLLAR; DIST,TAIL PIPE (B) L=37.5 SOU	9-22151-217-0	01	1	0804-		●	●
165	BOLT; SUPPORT RUBBER WHEEL BASE 2700MM(27W) M10X45 FLANGE SOU	0-28051-045-0	01	1	0804-	●
165	BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M10X70 FLANGE SOU	0-28051-070-0	01	1	0804-	●
165	BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M10X70 FLANGE SOU	0-28051-070-0	01	1	0804-	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE SOU	0-28051-070-0	01	1	0804-		●	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE SOU	0-28051-070-0	01	1	0804-		●	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	0-91614-810-0	01	1	0804-	●	●	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) ID=10.5 OD=32	0-91614-810-0	01	1	0804-	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	0-91614-810-0	01	1	0804-		●	●
193	NUT; BRKT,VERTICAL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M10 FLANGE SOU	0-91180-110-0	02	1	0804-	●
193	NUT; BRKT,VERTICAL PIPE M10 FLANGE SOU	0-91180-110-0	02	1	0804-		●	●
329	NUT; EXH PIPE TO PIPE M10 FLANGE SOU	0-91180-110-0	02	1	0804-	●	●	●
357	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	0804-	●	●	●
357	WASHER; PL,CLAMP WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) ID=10.5 OD=22	0-91614-610-0	01	1	0804-	●
357	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	0804-		●	●
367	COLLAR; DIST,SUPPORT RUBBER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) L=37.5 SOU	9-22151-217-0	01	1	0804-	●
367	COLLAR; DIST,SUPPORT RUBBER L=37.5 SOU	9-22151-217-0	01	1	0804-		●	●
420	BOLT; BRKT,VERTICAL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M10X30 FLANGE SOU	0-28651-030-0	02	1	0804-	●
420	BOLT; BRKT,VERTICAL PIPE M10X30 FLANGE SOU	0-28651-030-0	02	1	0804-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
