◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10722 - CXH RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-53C - TRANSMISSION OIL COOLER SYSTEM ▶
2-53C — TRANSMISSION OIL COOLER SYSTEM (#5083) — 65 parça

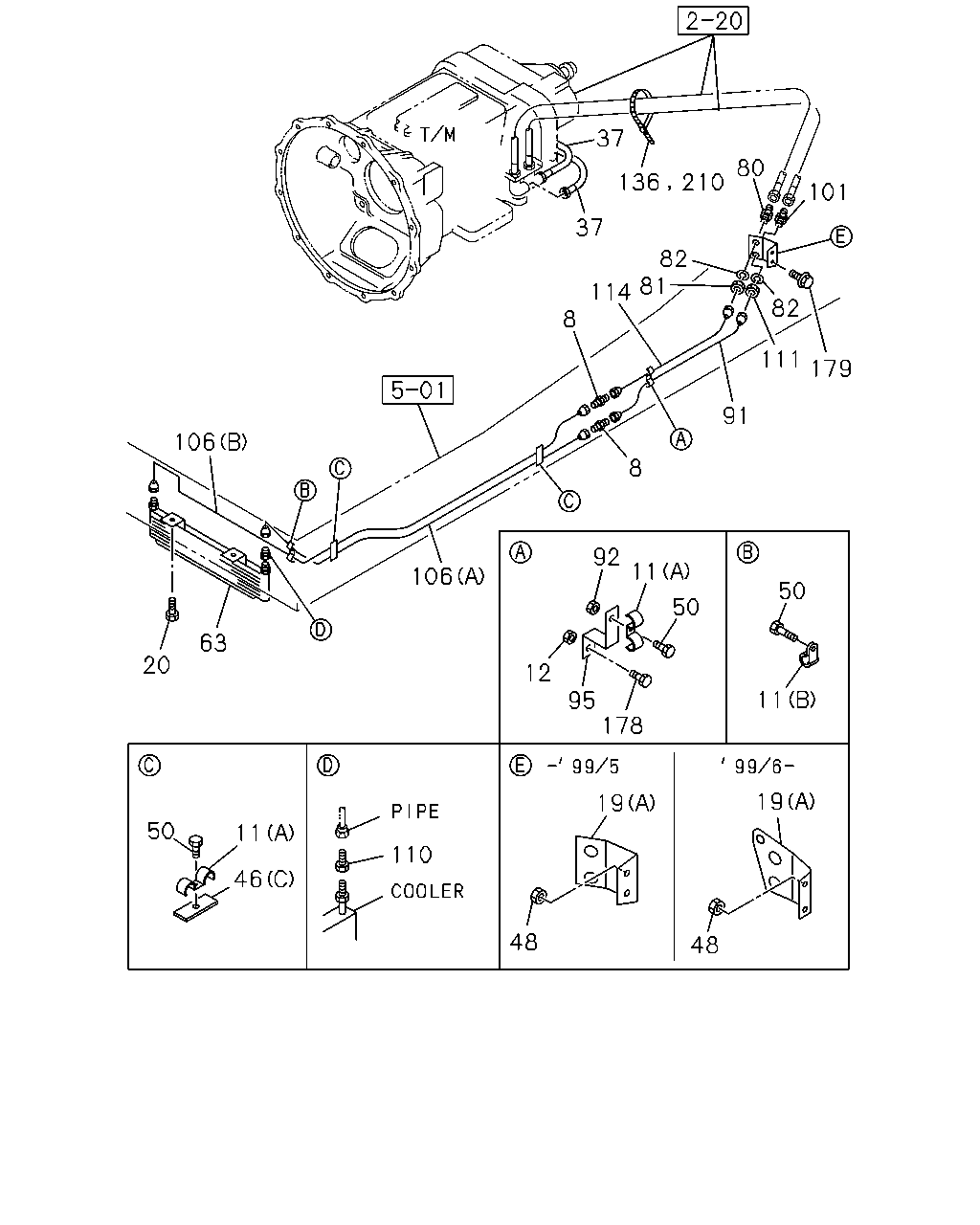

çizim 41979
37 80 101 37 82 81 114 82 8 111 179 91 106 8 92 11 106 50 50 63 20 12 11 95 178 19 19 50 11 110 46 48 48 136 210
BalonParca AdiParca NoAdetTipApplied Date A B C D E
8 UNION
TRANSMISSION OIL COOLER<C2C> M22 		9-09233-015-1 02 1 9906-0007 ● ● ●
8 UNION
TRANSMISSION OIL COOLER<C2C> M22 		9-09233-015-1 01 1 0008- ● ● ●
8 UNION
TRANSMISSION OIL COOLER<C2C> M22 		9-09233-015-1 01 1 0008- ● ● ●
11 CLIP; PIPE
TRANSMISSION OIL COOLER<C2C> (A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 03 1 9906-0007 ● ● ●
11 CLIP; PIPE
TRANSMISSION OIL COOLER<C2C> (A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 02 1 0008- ● ● ●
11 CLIP; PIPE
6WG1 TC-N(71L) TRANSMISSION OIL COOLER<C2C> (B) ID=16 & 9 L=21 & 18 		1-09700-676-0 01 1 9701-9905 ● ●
11 CLIP; PIPE
TRANSMISSION OIL COOLER<C2C> (B) ID=16 & 9 L=21 & 18 		1-09700-676-0 01 1 9906-0002 ● ● ●
11 CLIP; PIPE
TRANSMISSION OIL COOLER<C2C> (B) ID=16 & 9 L=21 & 18 		1-09700-676-0 01 1 0003- ● ● ●
11 CLIP; PIPE
TRANSMISSION OIL COOLER<C2C> (A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 01 1 0008- ● ● ●
12 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 9906- ● ● ●
19 BRACKET; FLEX HOSE
6WG1 TC-N(71L) TRANSMISSION OIL COOLER<C2C> (A) 		1-47477-355-0 01 1 9701-9905 ● ●
19 BRACKET; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> (A) 		1-47478-566-0 01 1 9906- ● ● ●
20 BOLT; COOLER TO BRKT
TRANSMISSION OIL COOLER<C2C> M10X25 FLANGE 		0-28681-025-0 02 1 9906-0006 ● ● ●
20 BOLT; COOLER TO BRKT
TRANSMISSION OIL COOLER<C2C> M10X20 FLANGE 		0-28081-020-0 02 1 0007- ● ● ●
37 HOSE; FLEX,OIL COOLER PIPE TO A/T
TRANSMISSION OIL COOLER<C2C> L=1120 		1-09365-010-0 02 1 9712-9803 ●
37 HOSE; FLEX,OIL COOLER PIPE TO A/T
TRANSMISSION OIL COOLER<C2C> L=1120 		1-09365-010-0 02 1 9804-9905 ● ●
37 HOSE; FLEX,OIL COOLER PIPE TO A/T
L=1120 		1-09365-010-0 02 1 9906-9907 ● ●
37 HOSE; FLEX,OIL COOLER PIPE TO A/T
TRANSMISSION OIL COOLER<C2C> L=1120 		1-09365-010-0 02 1 9908- ● ● ●
46 BRACKET; OIL PIPE
6WG1 TC-N(71L) TRANSMISSION OIL COOLER<C2C> (C) L=50 		1-47475-299-2 02 1 9701-9905 ● ●
46 BRACKET; OIL PIPE
TRANSMISSION OIL COOLER<C2C> (C) L=50 		1-47475-299-2 02 1 9906- ● ● ●
48 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 02 1 9906- ● ● ●
48 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 02 1 9906- ● ● ●
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28680-820-0 01 1 9906- ● ● ●
50 BOLT; CLIP
6WG1 TC-N(71L) TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28680-820-0 03 1 9701-9905 ● ●
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28680-820-0 03 1 9906-0002 ● ● ●
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28680-820-0 02 1 0003- ● ● ●
50 BOLT; CLIP
6WG1 TC-N(71L) TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE 		0-28680-830-0 01 1 9701-9905 ● ●
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE 		0-28680-830-0 01 1 9906-0002 ● ● ●
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE 		0-28680-830-0 01 1 0003- ● ● ●
63 COOLER; OIL
6WG1 TC-N(71L) TRANSMISSION OIL COOLER<C2C> 		1-21700-290-0 01 1 9606-9905 ● ●
63 COOLER; OIL
TRANSMISSION OIL COOLER<C2C> 		1-21700-290-0 01 1 9906- ● ● ●
80 UNION; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> M22 & M22 STRAIGHT 		1-09654-204-1 01 1 9709-9905 ● ●
80 UNION; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> M22 & M22 STRAIGHT 		1-09654-204-1 01 1 9906- ● ● ●
81 NUT; UNION
TRANSMISSION OIL COOLER<C2C> M22 		9-09111-422-0 01 1 9906- ● ● ●
82 WASHER; LK,UNION
TRANSMISSION OIL COOLER<C2C> ID=22.5 		9-09150-522-0 02 1 9906-0007 ● ● ●
82 WASHER; LK,UNION
TRANSMISSION OIL COOLER<C2C> ID=22.5 		9-09150-522-0 01 1 0008- ● ● ●
82 WASHER; LK,UNION
TRANSMISSION OIL COOLER<C2C> ID=22.5 		9-09150-522-0 01 1 0008- ● ● ●
91 PIPE; OIL,FLEX HOSE TO UNION
6WG1 TC-N(71L) TRANSMISSION OIL COOLER<C2C> 		1-47429-789-0 01 1 9701-9905 ● ●
91 PIPE; OIL,FLEX HOSE TO UNION
TRANSMISSION OIL COOLER<C2C> L=837 		1-49163-182-0 01 1 9906- ● ● ●
92 NUT; CLIP
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 9906-0002 ● ● ●
92 NUT; CLIP
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 9906-0002 ● ● ●
92 NUT; CLIP
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 0003- ● ● ●
92 NUT; CLIP
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 0003- ● ● ●
95 BRACKET; CLIP
TRANSMISSION OIL COOLER<C2C> 		1-47475-881-0 02 1 9906-9908 ● ● ●
95 BRACKET; CLIP
TRANSMISSION OIL COOLER<C2C> 		1-47475-881-0 01 1 9909-0002 ● ● ●
95 BRACKET; CLIP
TRANSMISSION OIL COOLER<C2C> 		1-47475-881-0 01 1 9909-0002 ● ● ●
95 BRACKET; CLIP
TRANSMISSION OIL COOLER<C2C> 		1-47475-881-0 01 1 0003- ● ● ●
95 BRACKET; CLIP
TRANSMISSION OIL COOLER<C2C> 		1-47475-881-0 01 1 0003- ● ● ●
95 BRACKET; CLIP
6WG1 TC-N(71L) TRANSMISSION OIL COOLER<C2C> 		1-47475-881-0 01 1 9701-9905 ● ●
95 BRACKET; CLIP
TRANSMISSION OIL COOLER<C2C> 		1-47475-881-0 01 1 9906-9908 ● ● ●
101 UNION; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> M22 & M22 STRAIGHT 		1-09654-204-1 01 1 9709-9905 ● ●
101 UNION; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> M22 & M22 STRAIGHT 		1-09654-204-1 01 1 9906- ● ● ●
106 PIPE ASM; OIL,COOLER TO UNION
6WG1 TC-N(71L) TRANSMISSION OIL COOLER<C2C> (A) 		1-47429-501-0 01 1 9701-9711 ● ●
106 PIPE ASM; OIL,COOLER TO UNION
6WG1 TC-N(71L) TRANSMISSION OIL COOLER<C2C> (A) 		1-49162-309-0 01 1 9712-9905 ● ●
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> (A) L=2317 		1-49164-311-0 01 1 9906- ● ● ●
106 PIPE ASM; OIL,COOLER TO UNION
6WG1 TC-N(71L) TRANSMISSION OIL COOLER<C2C> (B) 		1-47429-502-0 01 1 9701-9905 ● ●
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> (B) L=1703 		1-49164-312-0 01 1 9906- ● ● ●
110 UNION; OIL PIPE
TRANSMISSION OIL COOLER<C2C> 		1-09654-398-0 02 1 9906- ● ● ●
111 NUT; UNION
TRANSMISSION OIL COOLER<C2C> M22 		9-09111-422-0 01 1 9906- ● ● ●
114 PIPE; OIL,UNION TO FLEX HOSE
6WG1 TC-N(71L) TRANSMISSION OIL COOLER<C2C> L=1013 		1-47429-790-0 01 1 9701-9905 ● ●
114 PIPE; OIL,UNION TO FLEX HOSE
TRANSMISSION OIL COOLER<C2C> L=998 		1-49163-183-0 01 1 9906- ● ● ●
136 CLIP; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> L=250 		1-09707-126-0 01 1 9906- ● ● ●
178 BOLT; BRKT,CLIP
TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE 		0-28680-825-0 01 1 9906- ● ● ●
179 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE 		0-28680-830-0 02 1 9906- ● ● ●
210 BAND; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> L=175 		1-09707-178-0 01 1 9906- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
