Sayfa 1-41 - Isuzu EPC

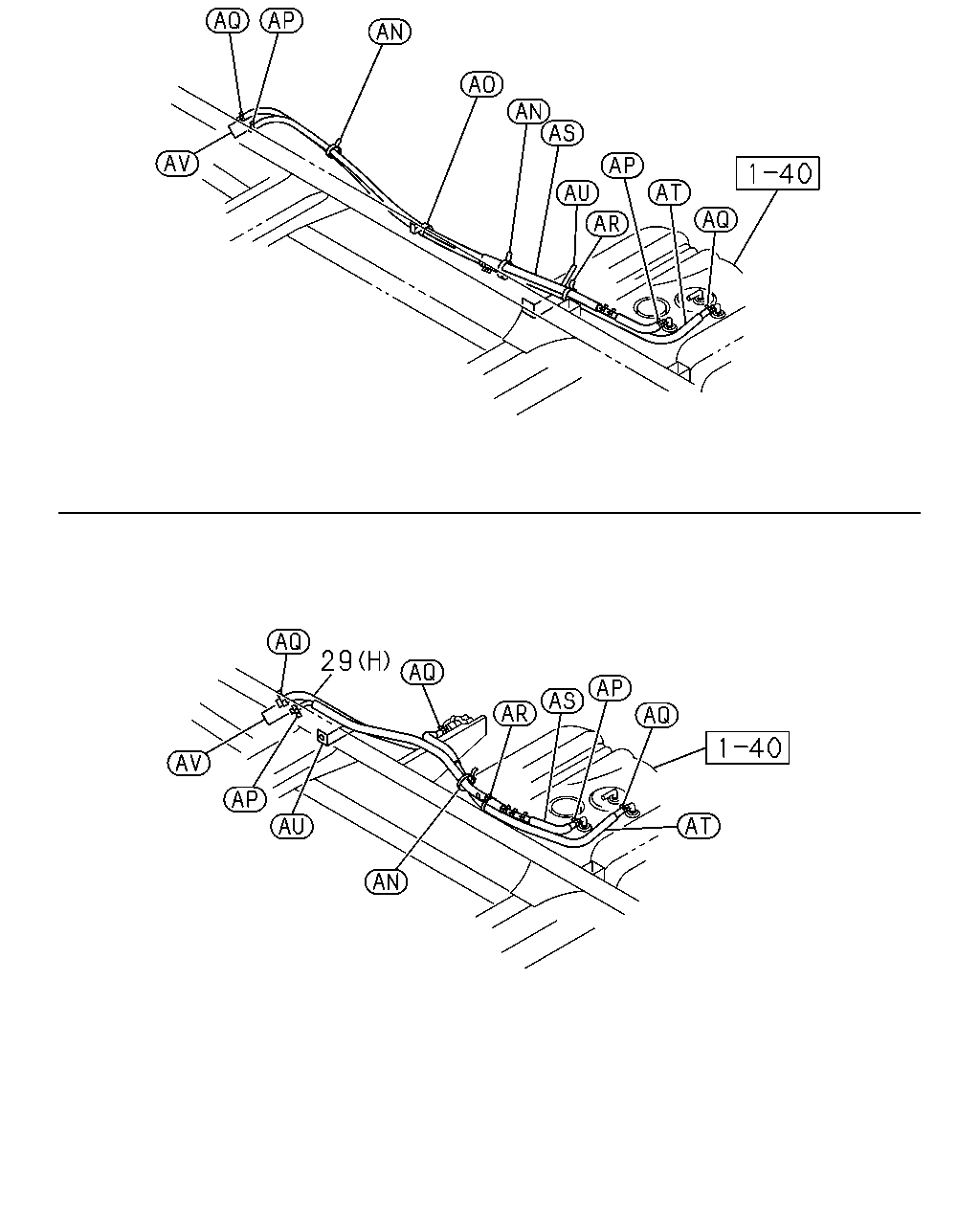

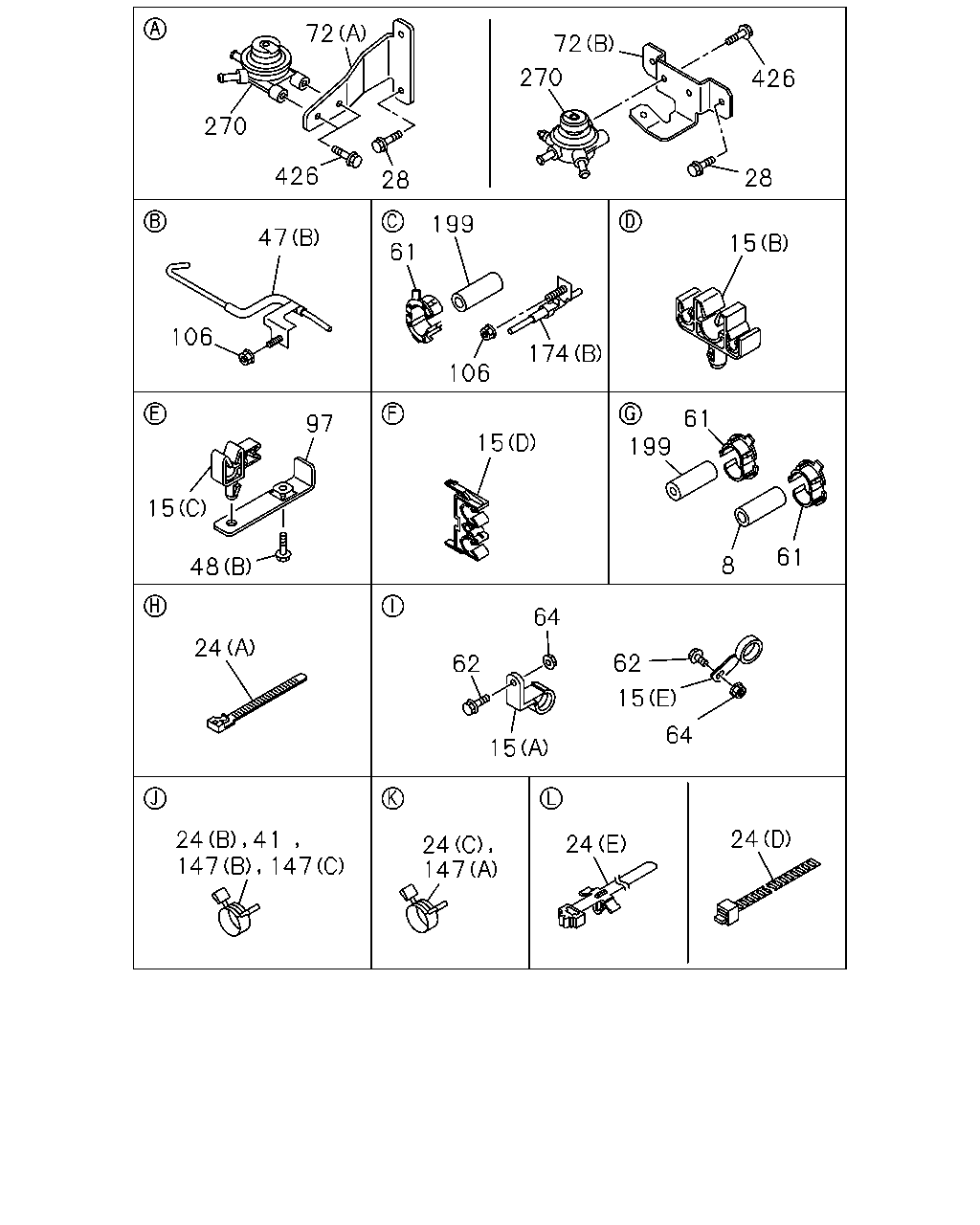

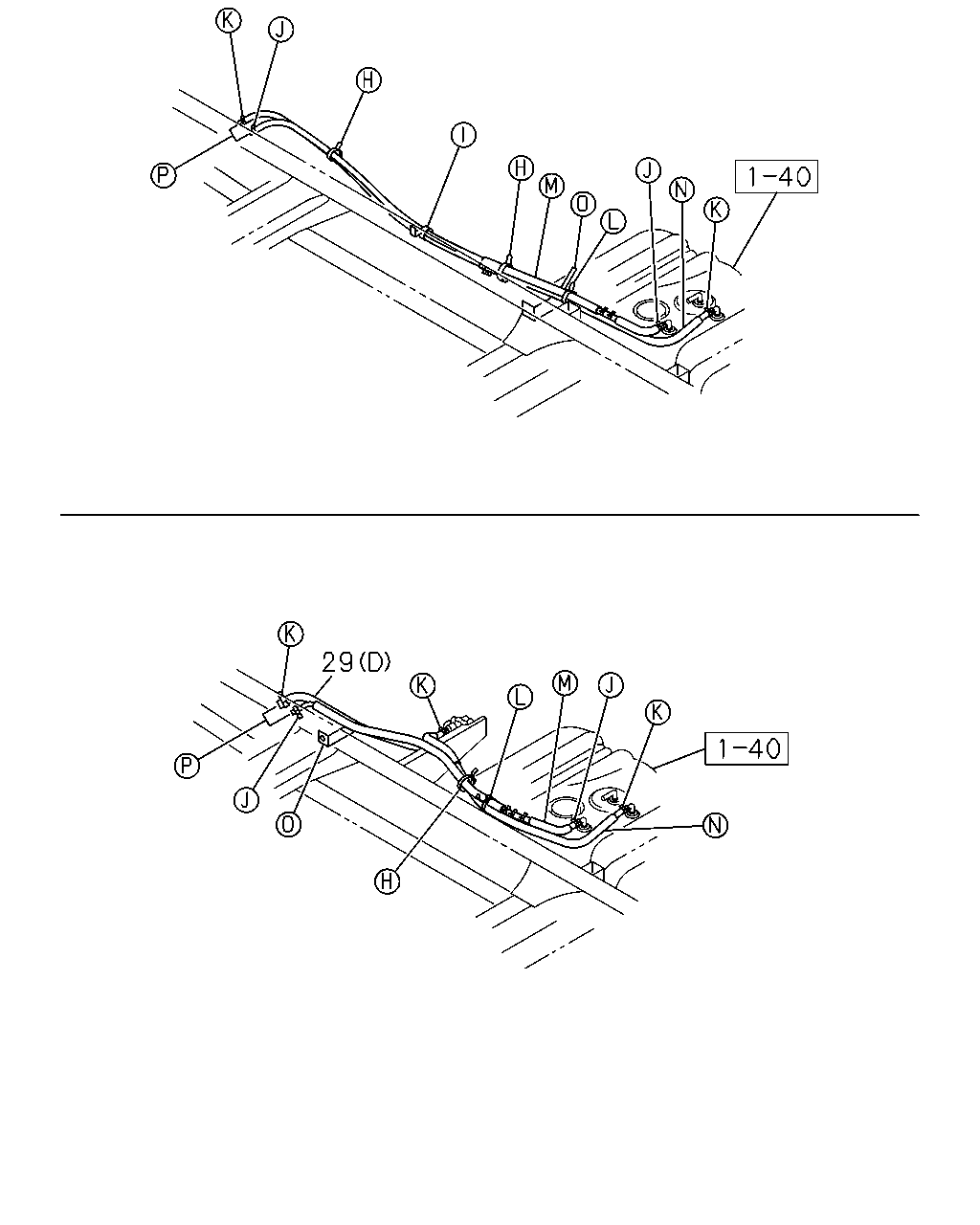

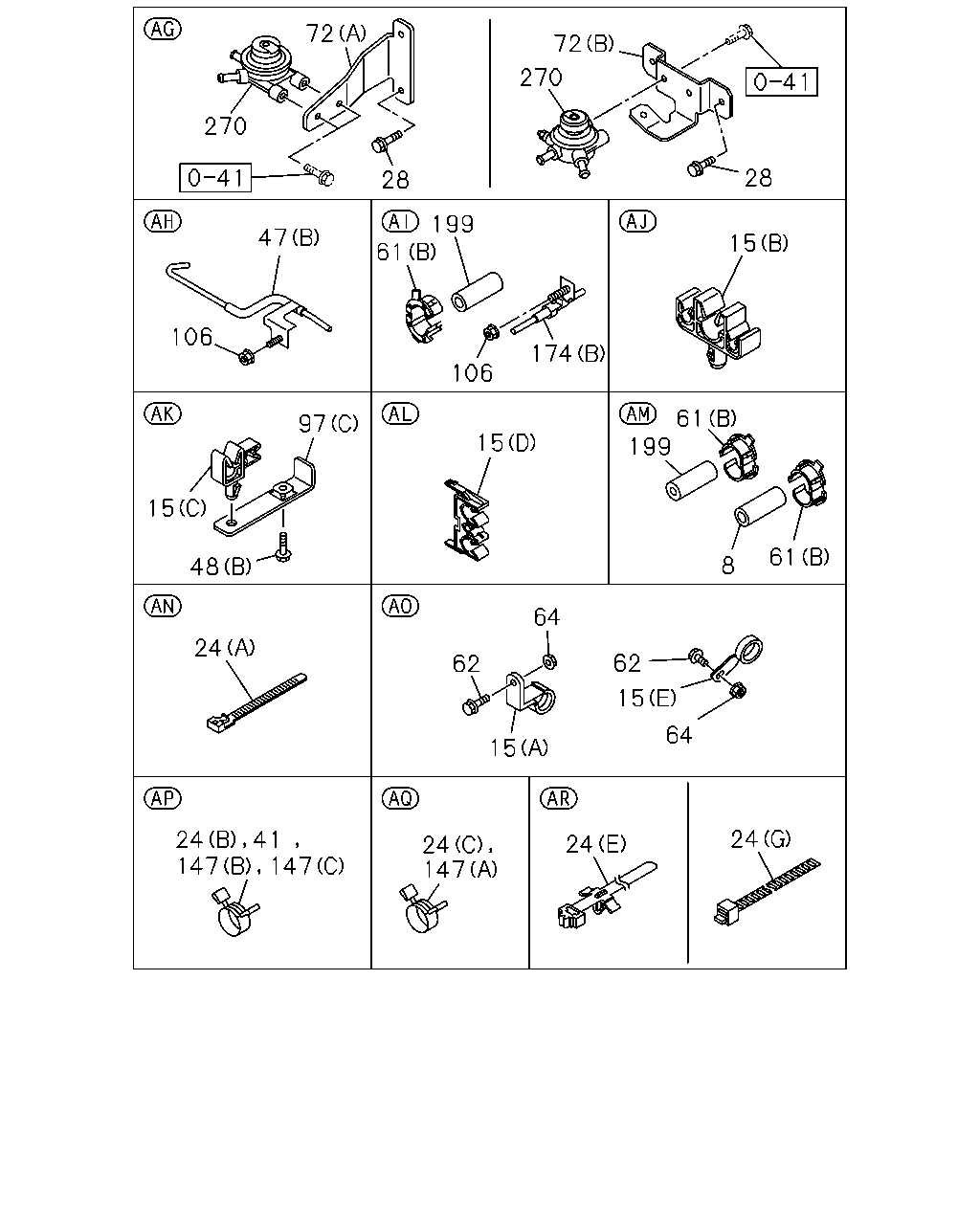

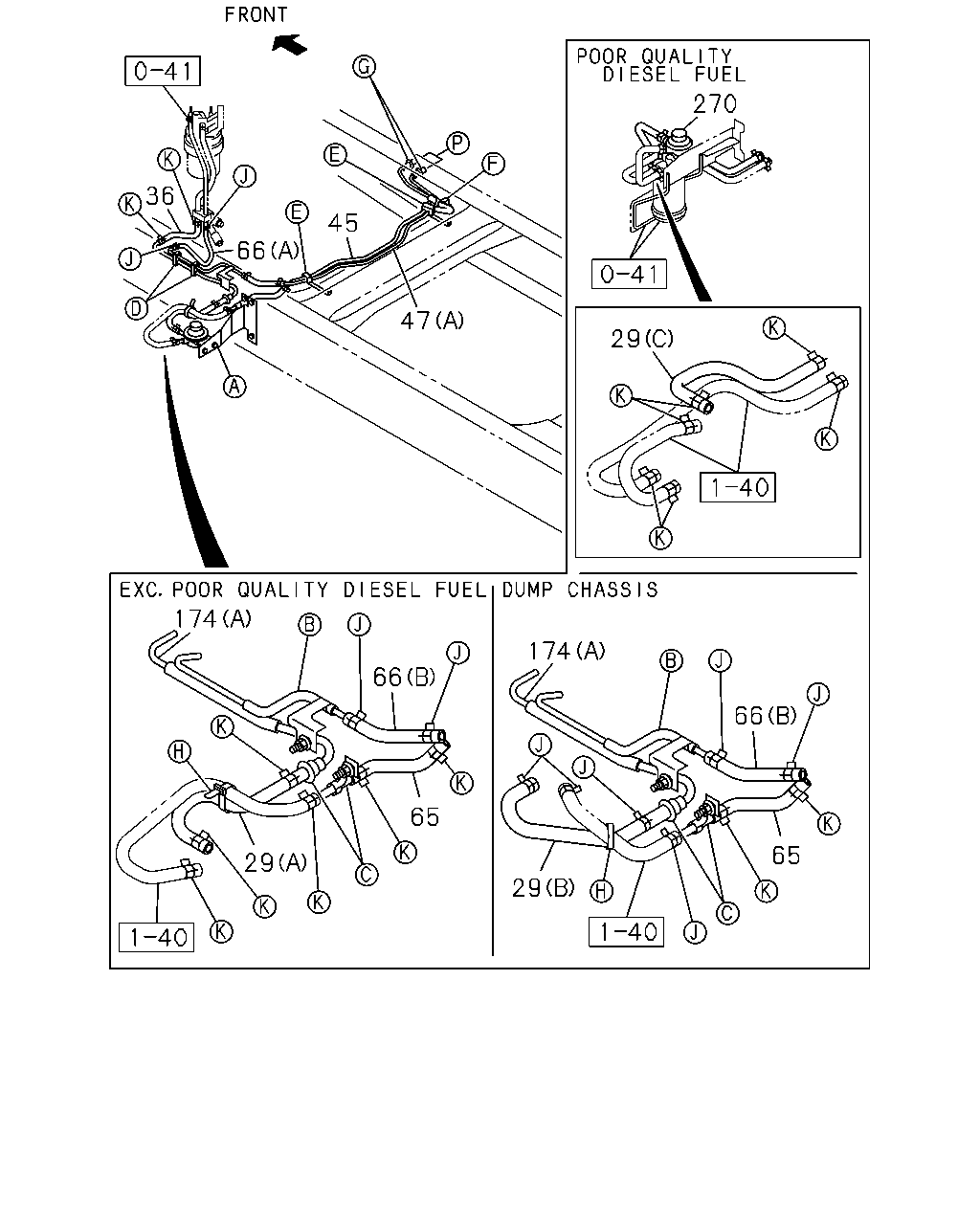

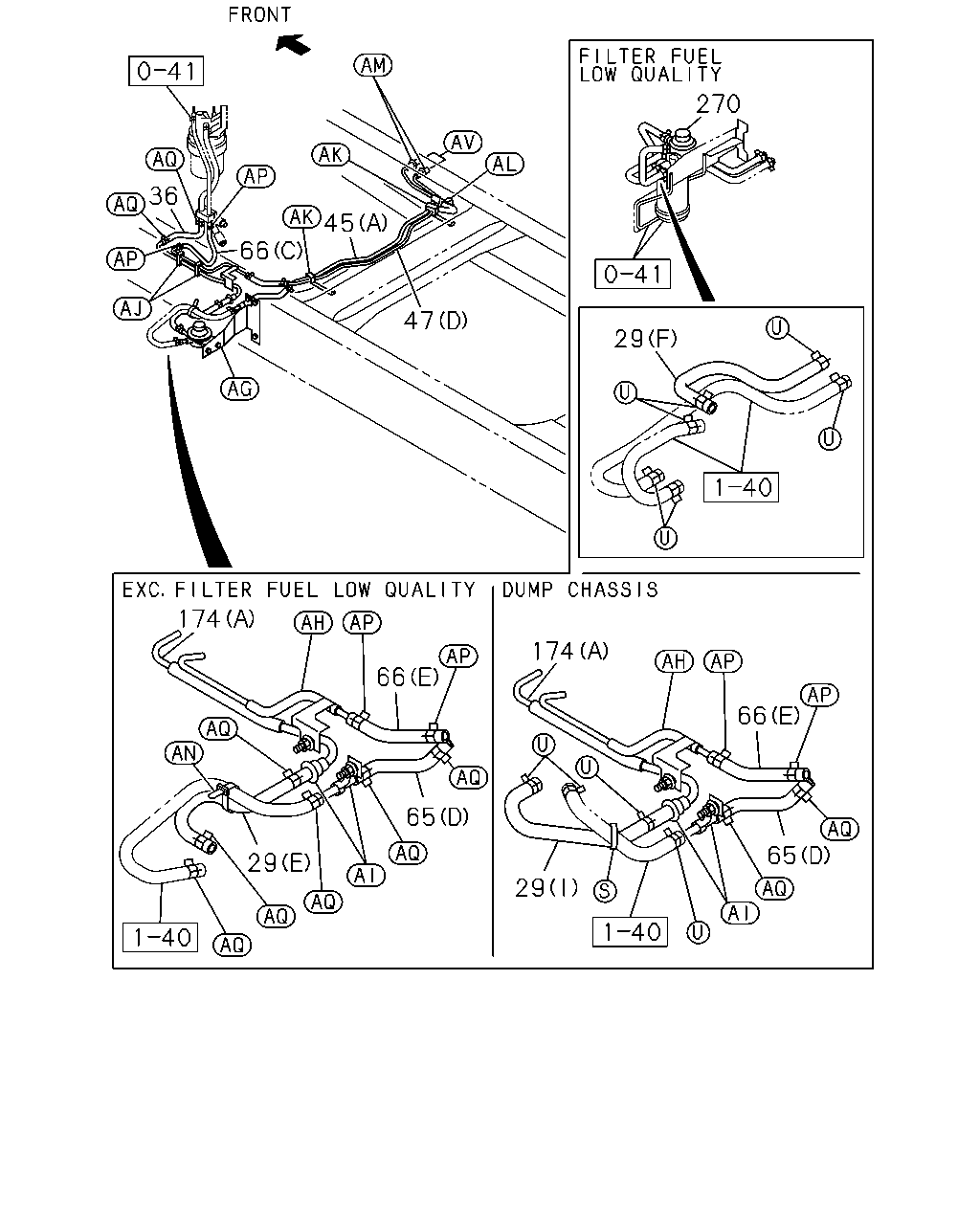

1-41 — FUEL PIPING; CHASSIS (#50829) — 475 parça

66 124 47 124 29 147 311 147 48 156 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE SOU	0-91180-110-0	01	1	0804-	●	●
4	NUT; BRKT DUMP CHASSIS(V4D) M10 FLANGE SOU	0-91180-110-0	01	1	0804-	●
29	HOSE; FUEL DUMP CHASSIS(V4D) (D) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	0804-0808	●
29	HOSE; FUEL DUMP CHASSIS(V4D) (D) L=550	8-97389-791-0	01	1	0809-	●
29	HOSE; FUEL DUMP CHASSIS(V4D) (B)	8-98098-275-0	01	1	0804-	●
29	HOSE; FUEL DUMP CHASSIS(V4D) (E)	8-98111-746-0	01	1	0804-0808	●
29	HOSE; FUEL DUMP CHASSIS(V4D) (E)	8-97389-795-0	01	1	0809-	●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) EXC. DUMP CHASSIS(V4D) (C)	8-98099-502-0	01	1	0804-	●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	0804-		●	●
29	HOSE; FUEL WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) (E)	8-98067-565-1	01	1	0804-	●
29	HOSE; FUEL WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) (E)	8-98067-564-4	01	1	0804-	●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (E)	8-98067-564-4	01	1	0804-		●
29	HOSE; FUEL WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (E)	8-98067-563-4	01	1	0804-	●
29	HOSE; FUEL WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (E)	8-98067-563-4	01	1	0804-		●
29	HOSE; FUEL MINI BUS CHASSIS VAR.2(6GQ) (E)	8-98067-563-4	01	1	0804-		●
29	HOSE; FUEL (E)	8-98067-563-4	01	1	0804-			●
29	HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98037-758-0	01	1	0804-	●	●	●
47	PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98033-864-0	01	1	0804-	●	●	●
47	PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98046-937-1	01	1	0804-	●	●	●
47	PIPE; FUEL,RETURN (C)	8-98036-483-0	01	1	0804-	●	●	●
47	PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-618-1	01	1	0804-	●	●	●
47	PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-639-0	01	1	0804-	●	●	●
48	BOLT; BRKT (A) M10X30 FLANGE SOU	0-28651-030-0	01	1	0804-	●	●
48	BOLT; BRKT (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	0804-	●	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 2700MM(27W) (C)	8-98090-524-1	01	1	0804-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) (C)	8-98067-567-2	01	1	0804-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (C)	8-98067-567-2	01	1	0804-		●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C)	8-98067-566-2	01	1	0804-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (C)	8-98067-566-2	01	1	0804-		●
66	HOSE; FUEL,RETURN PIPE MINI BUS CHASSIS VAR.2(6GQ) (C)	8-98067-566-2	01	1	0804-		●
66	HOSE; FUEL,RETURN PIPE (C)	8-98067-566-2	01	1	0804-			●
66	HOSE; FUEL,RETURN PIPE (A)	8-98093-616-0	01	1	0804-	●	●	●
66	HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0804-	●	●	●
124	CLIP; HOSE (A) ID=13	8-94238-571-0	01	1	0804-0911	●	●	●
124	CLIP; HOSE (A) ID=13	8-98150-357-0	01	1	0912-	●	●	●
124	CLIP; HOSE (B) ID=12	8-97358-961-0	01	1	0804-1002	●	●	●
124	CLIP; HOSE (B) ID=12	8-98150-358-0	01	1	1003-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-	●	●	●
147	CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	02	1	0912-	●	●	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) (A) ID=16	8-98008-098-0	02	1	0912-	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=13	8-94238-571-0	01	1	0804-0911	●	●	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	0912-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16 SOU	8-94238-568-0	02	1	0804-0808	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16 SOU	8-94238-568-0	02	1	0804-0808	●	●	●
147	CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) (A) ID=16 SOU	8-94238-568-0	02	1	0804-0808	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16 SOU	8-94238-568-0	02	1	0809-0906	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16 SOU	8-94238-568-0	02	1	0809-0906	●	●	●
147	CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) (A) ID=16 SOU	8-94238-568-0	02	1	0809-0906	●	●	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) (A) ID=16 SOU	8-94238-568-0	02	1	0809-0906	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16 SOU	8-94238-568-0	02	1	0907-0911	●	●	●
147	CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) (A) ID=16 SOU	8-94238-568-0	02	1	0907-0911	●	●	●
147	CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) (A) ID=16 SOU	8-94238-568-0	02	1	0907-0911	●	●	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) (A) ID=16 SOU	8-94238-568-0	02	1	0907-0911	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) ID=16 SOU	8-94238-568-0	02	1	0907-0911	●
147	CLIP; FUEL PIPE TO HOSE MINI BUS CHASSIS VAR.2(6GQ) (A) ID=16 SOU	8-94238-568-0	02	1	0907-0911		●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (A) ID=16 SOU	8-94238-568-0	02	1	0907-0911		●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16 SOU	8-94238-568-0	02	1	0907-0911			●
147	CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) (A) ID=16 SOU	8-94238-568-0	02	1	0912-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=12	8-94238-610-0	01	1	0804-0911	●	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=12	8-98150-358-0	01	1	0912-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16 SOU	8-94238-568-0	04	1	0804-0911	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	04	1	0912-	●	●	●
156	BRACKET; FUEL HOSE	8-98041-250-2	01	1	0804-	●	●
311	JOINT; HOSE	8-97353-668-0	01	1	0804-0808	●	●	●
311	JOINT; HOSE	8-97353-668-0	01	1	0809-	●	●	●
311	JOINT; HOSE WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D)	8-97353-668-0	01	1	0809-	●

66 124 47 124 29 147 311 147 48 156 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE SOU	0-91180-110-0	01	1	0804-	●	●
4	NUT; BRKT DUMP CHASSIS(V4D) M10 FLANGE SOU	0-91180-110-0	01	1	0804-	●
29	HOSE; FUEL DUMP CHASSIS(V4D) (D) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	0804-0808	●
29	HOSE; FUEL DUMP CHASSIS(V4D) (D) L=550	8-97389-791-0	01	1	0809-	●
29	HOSE; FUEL DUMP CHASSIS(V4D) (B)	8-98098-275-0	01	1	0804-	●
29	HOSE; FUEL DUMP CHASSIS(V4D) (E)	8-98111-746-0	01	1	0804-0808	●
29	HOSE; FUEL DUMP CHASSIS(V4D) (E)	8-97389-795-0	01	1	0809-	●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) EXC. DUMP CHASSIS(V4D) (C)	8-98099-502-0	01	1	0804-	●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	0804-		●	●
29	HOSE; FUEL WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) (E)	8-98067-565-1	01	1	0804-	●
29	HOSE; FUEL WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) (E)	8-98067-564-4	01	1	0804-	●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (E)	8-98067-564-4	01	1	0804-		●
29	HOSE; FUEL WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (E)	8-98067-563-4	01	1	0804-	●
29	HOSE; FUEL WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (E)	8-98067-563-4	01	1	0804-		●
29	HOSE; FUEL MINI BUS CHASSIS VAR.2(6GQ) (E)	8-98067-563-4	01	1	0804-		●
29	HOSE; FUEL (E)	8-98067-563-4	01	1	0804-			●
29	HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98037-758-0	01	1	0804-	●	●	●
47	PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98033-864-0	01	1	0804-	●	●	●
47	PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98046-937-1	01	1	0804-	●	●	●
47	PIPE; FUEL,RETURN (C)	8-98036-483-0	01	1	0804-	●	●	●
47	PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-618-1	01	1	0804-	●	●	●
47	PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-639-0	01	1	0804-	●	●	●
48	BOLT; BRKT (A) M10X30 FLANGE SOU	0-28651-030-0	01	1	0804-	●	●
48	BOLT; BRKT (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	0804-	●	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 2700MM(27W) (C)	8-98090-524-1	01	1	0804-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) (C)	8-98067-567-2	01	1	0804-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (C)	8-98067-567-2	01	1	0804-		●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C)	8-98067-566-2	01	1	0804-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (C)	8-98067-566-2	01	1	0804-		●
66	HOSE; FUEL,RETURN PIPE MINI BUS CHASSIS VAR.2(6GQ) (C)	8-98067-566-2	01	1	0804-		●
66	HOSE; FUEL,RETURN PIPE (C)	8-98067-566-2	01	1	0804-			●
66	HOSE; FUEL,RETURN PIPE (A)	8-98093-616-0	01	1	0804-	●	●	●
66	HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0804-	●	●	●
124	CLIP; HOSE (A) ID=13	8-94238-571-0	01	1	0804-0911	●	●	●
124	CLIP; HOSE (A) ID=13	8-98150-357-0	01	1	0912-	●	●	●
124	CLIP; HOSE (B) ID=12	8-97358-961-0	01	1	0804-1002	●	●	●
124	CLIP; HOSE (B) ID=12	8-98150-358-0	01	1	1003-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-	●	●	●
147	CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	02	1	0912-	●	●	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) (A) ID=16	8-98008-098-0	02	1	0912-	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=13	8-94238-571-0	01	1	0804-0911	●	●	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	0912-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16 SOU	8-94238-568-0	02	1	0804-0808	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16 SOU	8-94238-568-0	02	1	0804-0808	●	●	●
147	CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) (A) ID=16 SOU	8-94238-568-0	02	1	0804-0808	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16 SOU	8-94238-568-0	02	1	0809-0906	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16 SOU	8-94238-568-0	02	1	0809-0906	●	●	●
147	CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) (A) ID=16 SOU	8-94238-568-0	02	1	0809-0906	●	●	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) (A) ID=16 SOU	8-94238-568-0	02	1	0809-0906	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16 SOU	8-94238-568-0	02	1	0907-0911	●	●	●
147	CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) (A) ID=16 SOU	8-94238-568-0	02	1	0907-0911	●	●	●
147	CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) (A) ID=16 SOU	8-94238-568-0	02	1	0907-0911	●	●	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) (A) ID=16 SOU	8-94238-568-0	02	1	0907-0911	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) ID=16 SOU	8-94238-568-0	02	1	0907-0911	●
147	CLIP; FUEL PIPE TO HOSE MINI BUS CHASSIS VAR.2(6GQ) (A) ID=16 SOU	8-94238-568-0	02	1	0907-0911		●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (A) ID=16 SOU	8-94238-568-0	02	1	0907-0911		●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16 SOU	8-94238-568-0	02	1	0907-0911			●
147	CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) (A) ID=16 SOU	8-94238-568-0	02	1	0912-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=12	8-94238-610-0	01	1	0804-0911	●	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=12	8-98150-358-0	01	1	0912-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16 SOU	8-94238-568-0	04	1	0804-0911	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	04	1	0912-	●	●	●
156	BRACKET; FUEL HOSE	8-98041-250-2	01	1	0804-	●	●
311	JOINT; HOSE	8-97353-668-0	01	1	0804-0808	●	●	●
311	JOINT; HOSE	8-97353-668-0	01	1	0809-	●	●	●
311	JOINT; HOSE WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D)	8-97353-668-0	01	1	0809-	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
29	HOSE; FUEL DUMP CHASSIS(V4D) (D) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	0804-0808	●
29	HOSE; FUEL DUMP CHASSIS(V4D) (D) L=550	8-97389-791-0	01	1	0809-	●
29	HOSE; FUEL DUMP CHASSIS(V4D) (B)	8-98098-275-0	01	1	0804-	●
29	HOSE; FUEL DUMP CHASSIS(V4D) (E)	8-98111-746-0	01	1	0804-0808	●
29	HOSE; FUEL DUMP CHASSIS(V4D) (E)	8-97389-795-0	01	1	0809-	●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) EXC. DUMP CHASSIS(V4D) (C)	8-98099-502-0	01	1	0804-	●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	0804-		●	●
29	HOSE; FUEL WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) (E)	8-98067-565-1	01	1	0804-	●
29	HOSE; FUEL WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) (E)	8-98067-564-4	01	1	0804-	●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (E)	8-98067-564-4	01	1	0804-		●
29	HOSE; FUEL WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (E)	8-98067-563-4	01	1	0804-	●
29	HOSE; FUEL WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (E)	8-98067-563-4	01	1	0804-		●
29	HOSE; FUEL MINI BUS CHASSIS VAR.2(6GQ) (E)	8-98067-563-4	01	1	0804-		●
29	HOSE; FUEL (E)	8-98067-563-4	01	1	0804-			●
29	HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98037-758-0	01	1	0804-	●	●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
29	HOSE; FUEL DUMP CHASSIS(V4D) (D) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	0804-0808	●
29	HOSE; FUEL DUMP CHASSIS(V4D) (D) L=550	8-97389-791-0	01	1	0809-	●
29	HOSE; FUEL DUMP CHASSIS(V4D) (B)	8-98098-275-0	01	1	0804-	●
29	HOSE; FUEL DUMP CHASSIS(V4D) (E)	8-98111-746-0	01	1	0804-0808	●
29	HOSE; FUEL DUMP CHASSIS(V4D) (E)	8-97389-795-0	01	1	0809-	●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) EXC. DUMP CHASSIS(V4D) (C)	8-98099-502-0	01	1	0804-	●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	0804-		●	●
29	HOSE; FUEL WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) (E)	8-98067-565-1	01	1	0804-	●
29	HOSE; FUEL WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) (E)	8-98067-564-4	01	1	0804-	●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (E)	8-98067-564-4	01	1	0804-		●
29	HOSE; FUEL WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (E)	8-98067-563-4	01	1	0804-	●
29	HOSE; FUEL WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (E)	8-98067-563-4	01	1	0804-		●
29	HOSE; FUEL MINI BUS CHASSIS VAR.2(6GQ) (E)	8-98067-563-4	01	1	0804-		●
29	HOSE; FUEL (E)	8-98067-563-4	01	1	0804-			●
29	HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98037-758-0	01	1	0804-	●	●	●

72 72 270 270 28 28 199 61 47 15 106 174 106 61 199 97 15 15 61 8 48 64 24 62 62 15 64 15 24 147 147 24 24 147 41 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	RUBBER; MTG OD=17 L=50 SOU	8-94157-054-1	01	1	0804-	●	●	●
15	CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0804-0804	●
15	CLIP; FUEL PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0804-0804	●
15	CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0804-0804		●
15	CLIP; FUEL PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0804-0804		●
15	CLIP; FUEL PIPE MINI BUS CHASSIS VAR.2(6GQ) (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0804-0804		●
15	CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0805-	●
15	CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0805-	●
15	CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0805-		●
15	CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0805-		●
15	CLIP; FUEL PIPE MINI BUS CHASSIS VAR.2(6GQ) (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0805-		●
15	CLIP; FUEL PIPE (C) ID=12 & 6.35	8-97215-437-0	02	1	0804-	●	●	●
15	CLIP; FUEL PIPE (B) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0804-	●	●	●
15	CLIP; FUEL PIPE (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0804-	●	●	●
15	CLIP; FUEL PIPE (E) ID=28 L=60	1-09700-585-1	01	1	0804-			●
24	CLIP; FUEL HOSE EXC. DUMP CHASSIS(V4D) (A) L=140 SOU	5-09707-031-1	01	1	0804-0808	●
24	CLIP; FUEL HOSE (A) L=140 SOU	5-09707-031-1	01	1	0804-0808		●	●
24	CLIP; FUEL HOSE EXC. DUMP CHASSIS(V4D) (A) L=140 SOU	5-09707-031-1	02	1	0809-0809	●
24	CLIP; FUEL HOSE (A) L=140 SOU	5-09707-031-1	02	1	0809-0809		●	●
24	CLIP; FUEL HOSE EXC. DUMP CHASSIS(V4D) (A) L=140 SOU	5-09707-031-1	01	1	0810-	●
24	CLIP; FUEL HOSE (A) L=140 SOU	5-09707-031-1	01	1	0810-		●	●
24	CLIP; FUEL HOSE (E) L=170.3	1-09987-182-0	01	1	0804-	●	●	●
24	CLIP; FUEL HOSE (A) L=140 SOU	5-09707-031-1	02	1	0804-0808	●	●	●
24	CLIP; FUEL HOSE (A) L=140 SOU	5-09707-031-1	01	1	0809-0809	●	●	●
24	CLIP; FUEL HOSE (A) L=140 SOU	5-09707-031-1	02	1	0810-	●	●	●
24	CLIP; FUEL HOSE (C) ID=16 SOU	8-94238-568-0	04	1	0804-0911	●	●	●
24	CLIP; FUEL HOSE (C) ID=16	8-98008-098-0	04	1	0912-	●	●	●
24	CLIP; FUEL HOSE (B) ID=12	8-94238-610-0	02	1	0804-0911	●	●	●
24	CLIP; FUEL HOSE (B) ID=12	8-98150-358-0	02	1	0912-	●	●	●
24	CLIP; FUEL HOSE (D) L=450	1-09707-142-1	01	1	0804-			●
28	BOLT; BRKT,FUEL PUMP WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0),DUMP CHASSIS(V4D) M10X30 FLANGE SOU	0-28651-030-0	02	1	0804-0810	●
28	BOLT; BRKT,FUEL PUMP WHEEL BASE 2700MM(27W) POOR QUALITY DIESEL FUEL(KF0) DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE SOU	0-28651-030-0	02	1	0804-0810	●
28	BOLT; BRKT,FUEL PUMP WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X30 FLANGE SOU	0-28651-030-0	02	1	0804-0810		●
28	BOLT; BRKT,FUEL PUMP WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) M10X30 FLANGE SOU	0-28651-030-0	02	1	0804-0810		●
28	BOLT; BRKT,FUEL PUMP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) M10X30 FLANGE SOU	0-28651-030-0	02	1	0804-0810			●
28	BOLT; BRKT,FUEL PUMP WHEEL BASE 2700MM(27W) POOR QUALITY DIESEL FUEL(KF0) DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE SOU	0-28651-030-0	02	1	0811-	●
28	BOLT; BRKT,FUEL PUMP WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0),DUMP CHASSIS(V4D) M10X30 FLANGE SOU	0-28651-030-0	02	1	0811-	●
28	BOLT; BRKT,FUEL PUMP WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0),MINI BUS CHASSIS VAR.2(6GQ) M10X30 FLANGE SOU	0-28651-030-0	02	1	0811-		●
28	BOLT; BRKT,FUEL PUMP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) M10X30 FLANGE SOU	0-28651-030-0	02	1	0811-			●
41	CLIP; FUEL PIPE,FUEL TANK ID=12	8-94238-610-0	02	1	0804-0911	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=12	8-98150-358-0	02	1	0912-	●	●	●
47	PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98033-864-0	01	1	0804-	●	●	●
47	PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98046-937-1	01	1	0804-	●	●	●
47	PIPE; FUEL,RETURN (C)	8-98036-483-0	01	1	0804-	●	●	●
47	PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-618-1	01	1	0804-	●	●	●
47	PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-639-0	01	1	0804-	●	●	●
48	BOLT; BRKT (A) M10X30 FLANGE SOU	0-28651-030-0	01	1	0804-	●	●
48	BOLT; BRKT (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	0804-	●	●	●
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	0804-	●	●	●
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	01	1	0804-	●	●	●
62	BOLT; CLIP FIX WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) M8X25 FLANGE SOU	0-28650-825-0	01	1	0804-0804	●	●
62	BOLT; CLIP FIX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M8X25 FLANGE SOU	0-28650-825-0	01	1	0804-0804	●
62	BOLT; CLIP FIX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) M8X25 FLANGE SOU	0-28650-825-0	01	1	0804-0804		●
62	BOLT; CLIP FIX WHEEL BASE 3300MM(33W) MINI BUS CHASSIS VAR.2(6GQ) M8X25 FLANGE SOU	0-28650-825-0	01	1	0804-0804		●
62	BOLT; CLIP FIX M8X25 FLANGE SOU	0-28650-825-0	01	1	0804-0804			●
62	BOLT; CLIP FIX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M8X25 FLANGE SOU	0-28650-825-0	01	1	0805-	●
62	BOLT; CLIP FIX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M8X25 FLANGE SOU	0-28650-825-0	01	1	0805-	●
62	BOLT; CLIP FIX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) M8X25 FLANGE SOU	0-28650-825-0	01	1	0805-		●
62	BOLT; CLIP FIX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) M8X25 FLANGE SOU	0-28650-825-0	01	1	0805-		●
62	BOLT; CLIP FIX M8X25 FLANGE SOU	0-28650-825-0	01	1	0805-			●
64	NUT; CLIP WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) M8 FLANGE SOU	0-91180-108-0	01	1	0804-0804	●	●
64	NUT; CLIP WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M8 FLANGE SOU	0-91180-108-0	01	1	0804-0804	●
64	NUT; CLIP WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) M8 FLANGE SOU	0-91180-108-0	01	1	0804-0804		●
64	NUT; CLIP WHEEL BASE 3300MM(33W) MINI BUS CHASSIS VAR.2(6GQ) M8 FLANGE SOU	0-91180-108-0	01	1	0804-0804		●
64	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	01	1	0804-0804			●
64	NUT; CLIP WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M8 FLANGE SOU	0-91180-108-0	01	1	0805-	●
64	NUT; CLIP WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M8 FLANGE SOU	0-91180-108-0	01	1	0805-	●
64	NUT; CLIP WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) M8 FLANGE SOU	0-91180-108-0	01	1	0805-		●
64	NUT; CLIP WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) M8 FLANGE SOU	0-91180-108-0	01	1	0805-		●
64	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	01	1	0805-			●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 2700MM(27W) POOR QUALITY DIESEL FUEL(KF0) DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98097-511-0	01	1	0804-	●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0),DUMP CHASSIS(V4D) (A)	8-98084-815-1	01	1	0804-0810	●
72	BRACKET; FUEL PUMP & FILTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98084-815-1	01	1	0804-0810		●	●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98084-815-1	01	1	0804-0810		●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0),DUMP CHASSIS(V4D) (A)	8-98084-815-1	01	1	0811-	●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0),MINI BUS CHASSIS VAR.2(6GQ) (A)	8-98084-815-1	01	1	0811-		●
72	BRACKET; FUEL PUMP & FILTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98084-815-1	01	1	0811-			●
97	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98057-653-0	02	1	0804-	●	●	●
97	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98041-203-0	02	1	0804-	●	●	●
106	NUT; FUEL PIPE M10 FLANGE SOU	0-91180-110-0	01	1	0804-	●	●	●
106	NUT; FUEL PIPE M10 FLANGE SOU	0-91180-110-0	01	1	0804-	●		●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-	●	●	●
147	CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	02	1	0912-	●	●	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) (A) ID=16	8-98008-098-0	02	1	0912-	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=13	8-94238-571-0	01	1	0804-0911	●	●	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	0912-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16 SOU	8-94238-568-0	02	1	0804-0808	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16 SOU	8-94238-568-0	02	1	0804-0808	●	●	●
147	CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) (A) ID=16 SOU	8-94238-568-0	02	1	0804-0808	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16 SOU	8-94238-568-0	02	1	0809-0906	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16 SOU	8-94238-568-0	02	1	0809-0906	●	●	●
147	CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) (A) ID=16 SOU	8-94238-568-0	02	1	0809-0906	●	●	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) (A) ID=16 SOU	8-94238-568-0	02	1	0809-0906	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16 SOU	8-94238-568-0	02	1	0907-0911	●	●	●
147	CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) (A) ID=16 SOU	8-94238-568-0	02	1	0907-0911	●	●	●
147	CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) (A) ID=16 SOU	8-94238-568-0	02	1	0907-0911	●	●	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) (A) ID=16 SOU	8-94238-568-0	02	1	0907-0911	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) ID=16 SOU	8-94238-568-0	02	1	0907-0911	●
147	CLIP; FUEL PIPE TO HOSE MINI BUS CHASSIS VAR.2(6GQ) (A) ID=16 SOU	8-94238-568-0	02	1	0907-0911		●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (A) ID=16 SOU	8-94238-568-0	02	1	0907-0911		●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16 SOU	8-94238-568-0	02	1	0907-0911			●
147	CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) (A) ID=16 SOU	8-94238-568-0	02	1	0912-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=12	8-94238-610-0	01	1	0804-0911	●	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=12	8-98150-358-0	01	1	0912-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16 SOU	8-94238-568-0	04	1	0804-0911	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	04	1	0912-	●	●	●
174	PIPE; FUEL,FEED,FRT (A)	8-98033-844-1	01	1	0804-	●	●	●
174	PIPE; FUEL,FEED,FRT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-615-0	01	1	0804-	●	●	●
174	PIPE; FUEL,FEED,FRT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-616-0	01	1	0804-	●	●	●
199	PROTECTOR; FUEL PIPE OD=15 L=50	8-97077-629-0	01	1	0804-	●	●	●
199	PROTECTOR; FUEL PIPE OD=15 L=50	8-97077-629-0	01	1	0804-	●		●
270	PUMP ASM; FUEL	8-98018-187-4	01	1	0804-1408	●	●	●
270	PUMP ASM; FUEL	8-97948-892-0	01	1	1409-	●	●	●

270 36 45 66 47 29 174 174 66 66 65 65 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
29	HOSE; FUEL DUMP CHASSIS(V4D) (D) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	0804-0808	●
29	HOSE; FUEL DUMP CHASSIS(V4D) (D) L=550	8-97389-791-0	01	1	0809-	●
29	HOSE; FUEL DUMP CHASSIS(V4D) (B)	8-98098-275-0	01	1	0804-	●
29	HOSE; FUEL DUMP CHASSIS(V4D) (E)	8-98111-746-0	01	1	0804-0808	●
29	HOSE; FUEL DUMP CHASSIS(V4D) (E)	8-97389-795-0	01	1	0809-	●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) EXC. DUMP CHASSIS(V4D) (C)	8-98099-502-0	01	1	0804-	●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	0804-		●	●
29	HOSE; FUEL WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) (E)	8-98067-565-1	01	1	0804-	●
29	HOSE; FUEL WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) (E)	8-98067-564-4	01	1	0804-	●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (E)	8-98067-564-4	01	1	0804-		●
29	HOSE; FUEL WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (E)	8-98067-563-4	01	1	0804-	●
29	HOSE; FUEL WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (E)	8-98067-563-4	01	1	0804-		●
29	HOSE; FUEL MINI BUS CHASSIS VAR.2(6GQ) (E)	8-98067-563-4	01	1	0804-		●
29	HOSE; FUEL (E)	8-98067-563-4	01	1	0804-			●
29	HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98037-758-0	01	1	0804-	●	●	●
36	HOSE; FUEL,FILTER TO TANK EURO2 SPECIFICATION(NT2)	8-98093-615-0	01	1	0804-1008	●	●	●
36	HOSE; FUEL,FILTER TO TANK EURO2 SPECIFICATION(NT2)	8-98171-618-0	01	1	1009-	●	●	●
36	HOSE; FUEL,FILTER TO TANK EURO3 SPECIFICATION(NT3)	8-98034-028-1	01	1	0804-	●	●	●
45	PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98046-936-3	01	1	0804-	●	●	●
45	PIPE; FUEL,DELIVERY EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98043-681-1	01	1	0804-	●	●	●
47	PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98033-864-0	01	1	0804-	●	●	●
47	PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98046-937-1	01	1	0804-	●	●	●
47	PIPE; FUEL,RETURN (C)	8-98036-483-0	01	1	0804-	●	●	●
47	PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-618-1	01	1	0804-	●	●	●
47	PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-639-0	01	1	0804-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98043-671-0	01	1	0804-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0804-	●	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 2700MM(27W) (C)	8-98090-524-1	01	1	0804-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) (C)	8-98067-567-2	01	1	0804-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (C)	8-98067-567-2	01	1	0804-		●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C)	8-98067-566-2	01	1	0804-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (C)	8-98067-566-2	01	1	0804-		●
66	HOSE; FUEL,RETURN PIPE MINI BUS CHASSIS VAR.2(6GQ) (C)	8-98067-566-2	01	1	0804-		●
66	HOSE; FUEL,RETURN PIPE (C)	8-98067-566-2	01	1	0804-			●
66	HOSE; FUEL,RETURN PIPE (A)	8-98093-616-0	01	1	0804-	●	●	●
66	HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0804-	●	●	●
174	PIPE; FUEL,FEED,FRT (A)	8-98033-844-1	01	1	0804-	●	●	●
174	PIPE; FUEL,FEED,FRT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-615-0	01	1	0804-	●	●	●
174	PIPE; FUEL,FEED,FRT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-616-0	01	1	0804-	●	●	●
270	PUMP ASM; FUEL	8-98018-187-4	01	1	0804-1408	●	●	●
270	PUMP ASM; FUEL	8-97948-892-0	01	1	1409-	●	●	●

72 72 270 426 270 426 28 28 199 47 15 61 106 174 106 61 97 15 199 15 61 8 48 64 24 62 62 15 64 15 24 147 147 24 24 147 24 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	RUBBER; MTG OD=17 L=50 SOU	8-94157-054-1	01	1	0804-	●	●	●
15	CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0804-0804	●
15	CLIP; FUEL PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0804-0804	●
15	CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0804-0804		●
15	CLIP; FUEL PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0804-0804		●
15	CLIP; FUEL PIPE MINI BUS CHASSIS VAR.2(6GQ) (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0804-0804		●
15	CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0805-	●
15	CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0805-	●
15	CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0805-		●
15	CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0805-		●
15	CLIP; FUEL PIPE MINI BUS CHASSIS VAR.2(6GQ) (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0805-		●
15	CLIP; FUEL PIPE (C) ID=12 & 6.35	8-97215-437-0	02	1	0804-	●	●	●
15	CLIP; FUEL PIPE (B) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0804-	●	●	●
15	CLIP; FUEL PIPE (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0804-	●	●	●
15	CLIP; FUEL PIPE (E) ID=28 L=60	1-09700-585-1	01	1	0804-			●
24	CLIP; FUEL HOSE EXC. DUMP CHASSIS(V4D) (A) L=140 SOU	5-09707-031-1	01	1	0804-0808	●
24	CLIP; FUEL HOSE (A) L=140 SOU	5-09707-031-1	01	1	0804-0808		●	●
24	CLIP; FUEL HOSE EXC. DUMP CHASSIS(V4D) (A) L=140 SOU	5-09707-031-1	02	1	0809-0809	●
24	CLIP; FUEL HOSE (A) L=140 SOU	5-09707-031-1	02	1	0809-0809		●	●
24	CLIP; FUEL HOSE EXC. DUMP CHASSIS(V4D) (A) L=140 SOU	5-09707-031-1	01	1	0810-	●
24	CLIP; FUEL HOSE (A) L=140 SOU	5-09707-031-1	01	1	0810-		●	●
24	CLIP; FUEL HOSE (E) L=170.3	1-09987-182-0	01	1	0804-	●	●	●
24	CLIP; FUEL HOSE (A) L=140 SOU	5-09707-031-1	02	1	0804-0808	●	●	●
24	CLIP; FUEL HOSE (A) L=140 SOU	5-09707-031-1	01	1	0809-0809	●	●	●
24	CLIP; FUEL HOSE (A) L=140 SOU	5-09707-031-1	02	1	0810-	●	●	●
24	CLIP; FUEL HOSE (C) ID=16 SOU	8-94238-568-0	04	1	0804-0911	●	●	●
24	CLIP; FUEL HOSE (C) ID=16	8-98008-098-0	04	1	0912-	●	●	●
24	CLIP; FUEL HOSE (B) ID=12	8-94238-610-0	02	1	0804-0911	●	●	●
24	CLIP; FUEL HOSE (B) ID=12	8-98150-358-0	02	1	0912-	●	●	●
24	CLIP; FUEL HOSE (D) L=450	1-09707-142-1	01	1	0804-			●
28	BOLT; BRKT,FUEL PUMP WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0),DUMP CHASSIS(V4D) M10X30 FLANGE SOU	0-28651-030-0	02	1	0804-0810	●
28	BOLT; BRKT,FUEL PUMP WHEEL BASE 2700MM(27W) POOR QUALITY DIESEL FUEL(KF0) DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE SOU	0-28651-030-0	02	1	0804-0810	●
28	BOLT; BRKT,FUEL PUMP WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X30 FLANGE SOU	0-28651-030-0	02	1	0804-0810		●
28	BOLT; BRKT,FUEL PUMP WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) M10X30 FLANGE SOU	0-28651-030-0	02	1	0804-0810		●
28	BOLT; BRKT,FUEL PUMP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) M10X30 FLANGE SOU	0-28651-030-0	02	1	0804-0810			●
28	BOLT; BRKT,FUEL PUMP WHEEL BASE 2700MM(27W) POOR QUALITY DIESEL FUEL(KF0) DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE SOU	0-28651-030-0	02	1	0811-	●
28	BOLT; BRKT,FUEL PUMP WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0),DUMP CHASSIS(V4D) M10X30 FLANGE SOU	0-28651-030-0	02	1	0811-	●
28	BOLT; BRKT,FUEL PUMP WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0),MINI BUS CHASSIS VAR.2(6GQ) M10X30 FLANGE SOU	0-28651-030-0	02	1	0811-		●
28	BOLT; BRKT,FUEL PUMP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) M10X30 FLANGE SOU	0-28651-030-0	02	1	0811-			●
41	CLIP; FUEL PIPE,FUEL TANK ID=12	8-94238-610-0	02	1	0804-0911	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=12	8-98150-358-0	02	1	0912-	●	●	●
47	PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98033-864-0	01	1	0804-	●	●	●
47	PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98046-937-1	01	1	0804-	●	●	●
47	PIPE; FUEL,RETURN (C)	8-98036-483-0	01	1	0804-	●	●	●
47	PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-618-1	01	1	0804-	●	●	●
47	PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-639-0	01	1	0804-	●	●	●
48	BOLT; BRKT (A) M10X30 FLANGE SOU	0-28651-030-0	01	1	0804-	●	●
48	BOLT; BRKT (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	0804-	●	●	●
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	0804-	●	●	●
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	01	1	0804-	●	●	●
62	BOLT; CLIP FIX WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) M8X25 FLANGE SOU	0-28650-825-0	01	1	0804-0804	●	●
62	BOLT; CLIP FIX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M8X25 FLANGE SOU	0-28650-825-0	01	1	0804-0804	●
62	BOLT; CLIP FIX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) M8X25 FLANGE SOU	0-28650-825-0	01	1	0804-0804		●
62	BOLT; CLIP FIX WHEEL BASE 3300MM(33W) MINI BUS CHASSIS VAR.2(6GQ) M8X25 FLANGE SOU	0-28650-825-0	01	1	0804-0804		●
62	BOLT; CLIP FIX M8X25 FLANGE SOU	0-28650-825-0	01	1	0804-0804			●
62	BOLT; CLIP FIX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M8X25 FLANGE SOU	0-28650-825-0	01	1	0805-	●
62	BOLT; CLIP FIX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M8X25 FLANGE SOU	0-28650-825-0	01	1	0805-	●
62	BOLT; CLIP FIX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) M8X25 FLANGE SOU	0-28650-825-0	01	1	0805-		●
62	BOLT; CLIP FIX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) M8X25 FLANGE SOU	0-28650-825-0	01	1	0805-		●
62	BOLT; CLIP FIX M8X25 FLANGE SOU	0-28650-825-0	01	1	0805-			●
64	NUT; CLIP WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) M8 FLANGE SOU	0-91180-108-0	01	1	0804-0804	●	●
64	NUT; CLIP WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M8 FLANGE SOU	0-91180-108-0	01	1	0804-0804	●
64	NUT; CLIP WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) M8 FLANGE SOU	0-91180-108-0	01	1	0804-0804		●
64	NUT; CLIP WHEEL BASE 3300MM(33W) MINI BUS CHASSIS VAR.2(6GQ) M8 FLANGE SOU	0-91180-108-0	01	1	0804-0804		●
64	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	01	1	0804-0804			●
64	NUT; CLIP WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M8 FLANGE SOU	0-91180-108-0	01	1	0805-	●
64	NUT; CLIP WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M8 FLANGE SOU	0-91180-108-0	01	1	0805-	●
64	NUT; CLIP WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) M8 FLANGE SOU	0-91180-108-0	01	1	0805-		●
64	NUT; CLIP WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) M8 FLANGE SOU	0-91180-108-0	01	1	0805-		●
64	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	01	1	0805-			●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 2700MM(27W) POOR QUALITY DIESEL FUEL(KF0) DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98097-511-0	01	1	0804-	●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0),DUMP CHASSIS(V4D) (A)	8-98084-815-1	01	1	0804-0810	●
72	BRACKET; FUEL PUMP & FILTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98084-815-1	01	1	0804-0810		●	●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98084-815-1	01	1	0804-0810		●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0),DUMP CHASSIS(V4D) (A)	8-98084-815-1	01	1	0811-	●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0),MINI BUS CHASSIS VAR.2(6GQ) (A)	8-98084-815-1	01	1	0811-		●
72	BRACKET; FUEL PUMP & FILTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98084-815-1	01	1	0811-			●
97	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98057-653-0	02	1	0804-	●	●	●
97	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98041-203-0	02	1	0804-	●	●	●
106	NUT; FUEL PIPE M10 FLANGE SOU	0-91180-110-0	01	1	0804-	●	●	●
106	NUT; FUEL PIPE M10 FLANGE SOU	0-91180-110-0	01	1	0804-	●		●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-	●	●	●
147	CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	02	1	0912-	●	●	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) (A) ID=16	8-98008-098-0	02	1	0912-	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=13	8-94238-571-0	01	1	0804-0911	●	●	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	0912-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16 SOU	8-94238-568-0	02	1	0804-0808	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16 SOU	8-94238-568-0	02	1	0804-0808	●	●	●
147	CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) (A) ID=16 SOU	8-94238-568-0	02	1	0804-0808	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16 SOU	8-94238-568-0	02	1	0809-0906	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16 SOU	8-94238-568-0	02	1	0809-0906	●	●	●
147	CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) (A) ID=16 SOU	8-94238-568-0	02	1	0809-0906	●	●	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) (A) ID=16 SOU	8-94238-568-0	02	1	0809-0906	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16 SOU	8-94238-568-0	02	1	0907-0911	●	●	●
147	CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) (A) ID=16 SOU	8-94238-568-0	02	1	0907-0911	●	●	●
147	CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) (A) ID=16 SOU	8-94238-568-0	02	1	0907-0911	●	●	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) (A) ID=16 SOU	8-94238-568-0	02	1	0907-0911	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) ID=16 SOU	8-94238-568-0	02	1	0907-0911	●
147	CLIP; FUEL PIPE TO HOSE MINI BUS CHASSIS VAR.2(6GQ) (A) ID=16 SOU	8-94238-568-0	02	1	0907-0911		●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (A) ID=16 SOU	8-94238-568-0	02	1	0907-0911		●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16 SOU	8-94238-568-0	02	1	0907-0911			●
147	CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) (A) ID=16 SOU	8-94238-568-0	02	1	0912-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=12	8-94238-610-0	01	1	0804-0911	●	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=12	8-98150-358-0	01	1	0912-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16 SOU	8-94238-568-0	04	1	0804-0911	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	04	1	0912-	●	●	●
174	PIPE; FUEL,FEED,FRT (A)	8-98033-844-1	01	1	0804-	●	●	●
174	PIPE; FUEL,FEED,FRT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-615-0	01	1	0804-	●	●	●
174	PIPE; FUEL,FEED,FRT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-616-0	01	1	0804-	●	●	●
199	PROTECTOR; FUEL PIPE OD=15 L=50	8-97077-629-0	01	1	0804-	●	●	●
199	PROTECTOR; FUEL PIPE OD=15 L=50	8-97077-629-0	01	1	0804-	●		●
270	PUMP ASM; FUEL	8-98018-187-4	01	1	0804-1408	●	●	●
270	PUMP ASM; FUEL	8-97948-892-0	01	1	1409-	●	●	●
426	BOLT; FUEL PUMP M8X20 FLANGE	0-28650-820-0	02	1	0804-	●	●	●

270 36 45 66 47 29 174 174 66 66 65 65 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
29	HOSE; FUEL DUMP CHASSIS(V4D) (D) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	0804-0808	●
29	HOSE; FUEL DUMP CHASSIS(V4D) (D) L=550	8-97389-791-0	01	1	0809-	●
29	HOSE; FUEL DUMP CHASSIS(V4D) (B)	8-98098-275-0	01	1	0804-	●
29	HOSE; FUEL DUMP CHASSIS(V4D) (E)	8-98111-746-0	01	1	0804-0808	●
29	HOSE; FUEL DUMP CHASSIS(V4D) (E)	8-97389-795-0	01	1	0809-	●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) EXC. DUMP CHASSIS(V4D) (C)	8-98099-502-0	01	1	0804-	●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	0804-		●	●
29	HOSE; FUEL WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) (E)	8-98067-565-1	01	1	0804-	●
29	HOSE; FUEL WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) (E)	8-98067-564-4	01	1	0804-	●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (E)	8-98067-564-4	01	1	0804-		●
29	HOSE; FUEL WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (E)	8-98067-563-4	01	1	0804-	●
29	HOSE; FUEL WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (E)	8-98067-563-4	01	1	0804-		●
29	HOSE; FUEL MINI BUS CHASSIS VAR.2(6GQ) (E)	8-98067-563-4	01	1	0804-		●
29	HOSE; FUEL (E)	8-98067-563-4	01	1	0804-			●
29	HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98037-758-0	01	1	0804-	●	●	●
36	HOSE; FUEL,FILTER TO TANK EURO2 SPECIFICATION(NT2)	8-98093-615-0	01	1	0804-1008	●	●	●
36	HOSE; FUEL,FILTER TO TANK EURO2 SPECIFICATION(NT2)	8-98171-618-0	01	1	1009-	●	●	●
36	HOSE; FUEL,FILTER TO TANK EURO3 SPECIFICATION(NT3)	8-98034-028-1	01	1	0804-	●	●	●
45	PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98046-936-3	01	1	0804-	●	●	●
45	PIPE; FUEL,DELIVERY EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98043-681-1	01	1	0804-	●	●	●
47	PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98033-864-0	01	1	0804-	●	●	●
47	PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98046-937-1	01	1	0804-	●	●	●
47	PIPE; FUEL,RETURN (C)	8-98036-483-0	01	1	0804-	●	●	●
47	PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-618-1	01	1	0804-	●	●	●
47	PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-639-0	01	1	0804-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98043-671-0	01	1	0804-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0804-	●	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 2700MM(27W) (C)	8-98090-524-1	01	1	0804-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) (C)	8-98067-567-2	01	1	0804-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (C)	8-98067-567-2	01	1	0804-		●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C)	8-98067-566-2	01	1	0804-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (C)	8-98067-566-2	01	1	0804-		●
66	HOSE; FUEL,RETURN PIPE MINI BUS CHASSIS VAR.2(6GQ) (C)	8-98067-566-2	01	1	0804-		●
66	HOSE; FUEL,RETURN PIPE (C)	8-98067-566-2	01	1	0804-			●
66	HOSE; FUEL,RETURN PIPE (A)	8-98093-616-0	01	1	0804-	●	●	●
66	HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0804-	●	●	●
174	PIPE; FUEL,FEED,FRT (A)	8-98033-844-1	01	1	0804-	●	●	●
174	PIPE; FUEL,FEED,FRT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-615-0	01	1	0804-	●	●	●
174	PIPE; FUEL,FEED,FRT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-616-0	01	1	0804-	●	●	●
270	PUMP ASM; FUEL	8-98018-187-4	01	1	0804-1408	●	●	●
270	PUMP ASM; FUEL	8-97948-892-0	01	1	1409-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
