1-40 — FUEL TANK (#50828) — 75 parça

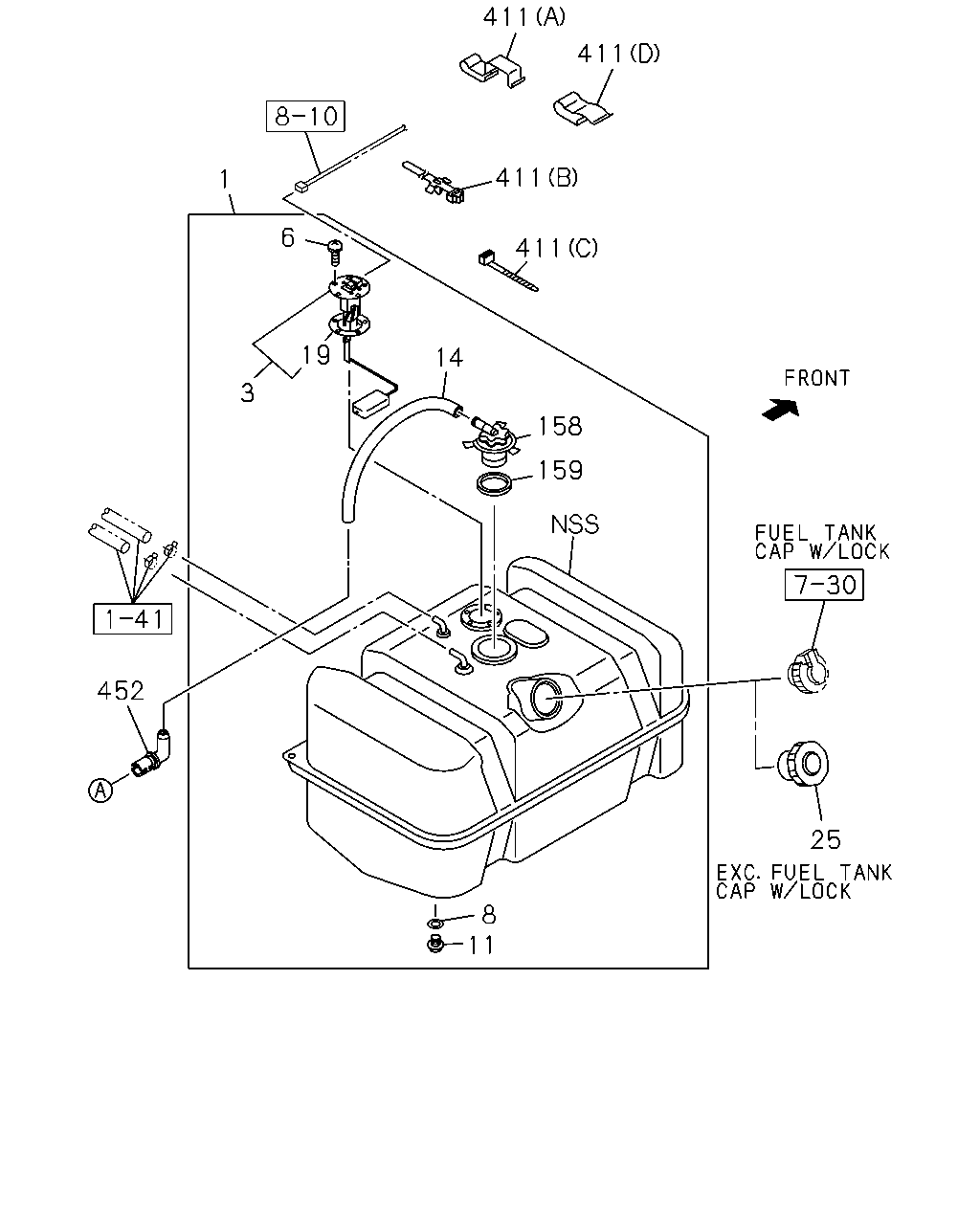

çizim 157705
411 411 411 1 6 411 19 14 3 158 159 452 25 8 11
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TANK; FUEL
756X482X376 100L 		8-98062-738-4 01 1 0804- ● ● ●
3 UNIT; FUEL TANK,SUB 8-98056-705-0 01 1 0804- ● ● ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
M5X12 W/LK WASHER 		0-36220-512-0 05 1 0804- ● ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
ID=14.2 OD=23.0 		9-09572-014-0 01 1 0804- ● ● ●
11 PLUG; DRAIN,FUEL TANK
M14X14 		9-09862-156-0 01 1 0804- ● ● ●
14 HOSE; BREATHER,OUTLET
L=480 		8-97135-581-0 01 1 0804-1003 ● ● ●
14 HOSE; BREATHER,OUTLET
L=420 		8-98157-809-0 01 1 1004- ● ● ●
19 GASKET; FUEL TANK UNIT 8-98051-797-0 01 1 0804- ● ● ●
25 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97387-179-0 01 1 0804- ● ● ●
158 VALVE; ROLL OVER & FLOAT 8-97179-645-0 01 1 0804- ● ● ●
159 SEAL; ROLL OVER & FLOAT VALVE 8-97326-488-0 01 1 0804- ● ● ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) T=6.0 		5-09709-012-0 02 1 0804-0804 ●
411 CLIP; FUEL TANK UNIT HARNESS
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) T=6.0 		5-09709-012-0 02 1 0804-0804 ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) T=5.5 		8-97371-951-0 02 1 0805- ●
411 CLIP; FUEL TANK UNIT HARNESS
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) T=5.5 		8-97371-951-0 02 1 0805- ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) T=6.0 SOU 		5-09709-024-0 03 1 0804-0804 ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) T=6.0 SOU 		5-09709-024-0 03 1 0804-0804 ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) T=4.5 & 9 		8-97371-947-0 03 1 0805- ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) T=4.5 & 9 		8-97371-947-0 03 1 0805- ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) T=6.0 		5-09709-012-0 03 1 0804-0804 ● ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) T=5.5 		8-97371-951-0 03 1 0805- ● ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) T=6.0 		5-09709-012-0 05 1 0804-0804 ● ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) T=5.5 		8-97371-951-0 05 1 0805- ● ●
411 CLIP; FUEL TANK UNIT HARNESS
(C) L=140 SOU 		5-09707-031-1 01 1 0804- ● ● ●
411 CLIP; FUEL TANK UNIT HARNESS
(B) L=170.3 		1-09987-182-0 01 1 0804- ● ● ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) T=6.0 SOU 		5-09709-024-0 02 1 0804-0804 ● ●
411 CLIP; FUEL TANK UNIT HARNESS
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) T=6.0 SOU 		5-09709-024-0 02 1 0804-0804 ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) T=4.5 & 9 		8-97371-947-0 02 1 0805- ● ●
411 CLIP; FUEL TANK UNIT HARNESS
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) T=4.5 & 9 		8-97371-947-0 02 1 0805- ●
411 CLIP; FUEL TANK UNIT HARNESS
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) T=10.5 SOU 		5-09709-014-0 03 1 0804-0804 ●
411 CLIP; FUEL TANK UNIT HARNESS
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) T=10.5 		8-97371-950-0 03 1 0805- ●
452 BREATHER; FUEL TANK 8-97357-261-0 01 1 0804- ● ● ●

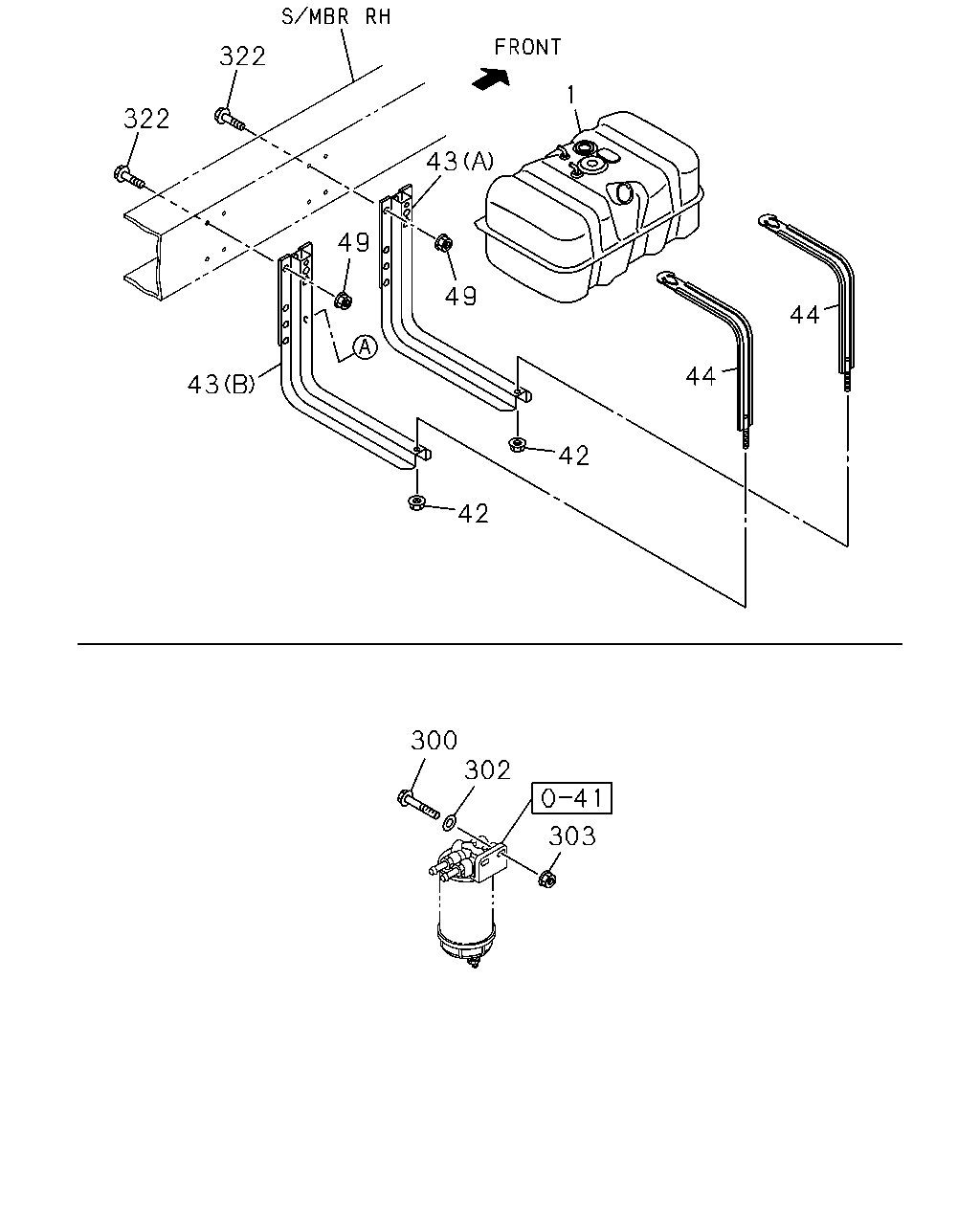

çizim 157707
322 1 322 43 49 49 44 44 43 42 42 300 302 303
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TANK; FUEL
756X482X376 100L 		8-98062-738-4 01 1 0804- ● ● ●
42 NUT; SUPPORT BELT
M8 FLANGE 		9-09130-408-0 02 1 0804- ● ● ●
43 BRACKET; FUEL TANK
(A) 		8-97384-060-5 01 1 0804- ● ● ●
43 BRACKET; FUEL TANK
(B) 		8-97384-062-6 01 1 0804- ● ● ●
44 BAND; FUEL TANK
L=795 		8-97384-080-2 02 1 0804- ● ● ●
49 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 08 1 0804- ● ● ●
300 BOLT; BRKT TO BODY
POOR QUALITY DIESEL FUEL(KF0) M10X40 FLANGE SOU 		0-28651-040-0 02 1 0804- ● ● ●
302 WASHER; PL,SEDIMENTER
POOR QUALITY DIESEL FUEL(KF0) ID=10.5 OD=26 		0-91614-710-0 02 1 0804- ● ● ●
303 NUT; SEDIMENTER BRKT
POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE SOU 		0-91180-110-0 02 1 0804- ● ● ●
322 BOLT; BRKT FIX
M10X40 FLANGE 		0-28661-040-0 08 1 0804- ● ● ●

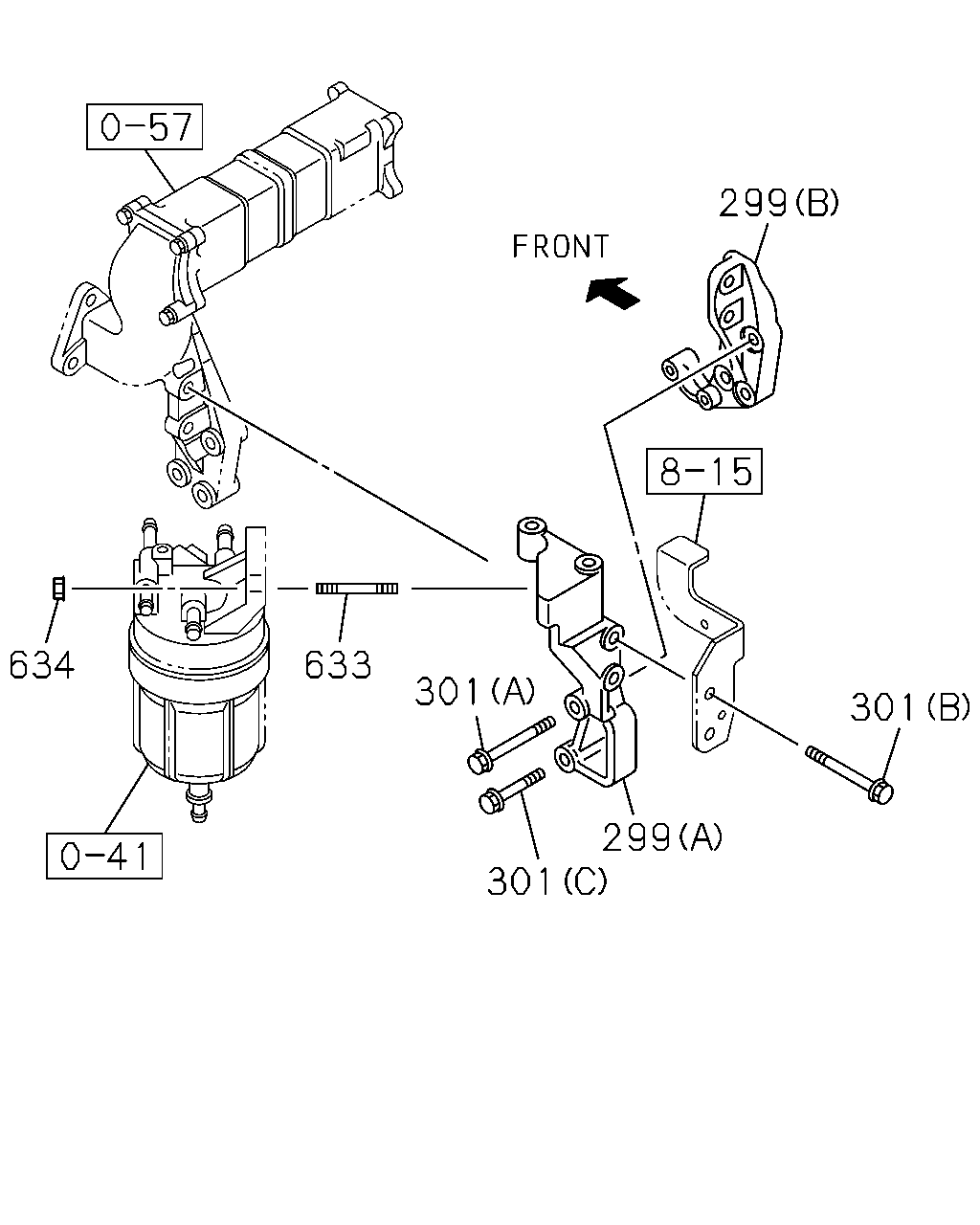

çizim 157713
299 634 633 301 301 299 301
BalonParca AdiParca NoAdetTipApplied Date A B C
299 BRACKET; FUEL FILTER
(A) 		8-98023-175-3 01 1 0804- ● ● ●
299 BRACKET; FUEL FILTER
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98074-132-1 01 1 0804- ● ● ●
301 BOLT; BRKT TO SEDIMENTER
(C) M12X80 		0-28151-280-0 01 1 0905- ● ● ●
301 BOLT; BRKT TO SEDIMENTER
(A) M12X100 FLANGE 		0-28151-200-0 01 1 0804- ● ● ●
301 BOLT; BRKT TO SEDIMENTER
(B) M12X50 FLANGE 		0-28151-250-0 02 1 0804-0811 ● ● ●
301 BOLT; BRKT TO SEDIMENTER
(B) M12X50 FLANGE 		0-28151-250-0 01 1 0812- ● ● ●
301 BOLT; BRKT TO SEDIMENTER
(A) M12X70 FLANGE 		0-28151-270-0 01 1 0804-0811 ● ● ●
301 BOLT; BRKT TO SEDIMENTER
(C) M12X80 		0-28151-280-0 01 1 0804-0811 ● ● ●
633 STUD; BRKT TO SEDIMENTER
M8X25 L=37 		0-41010-825-0 02 1 0804- ● ● ●
634 NUT; BRKT TO SEDIMENTER
M8 FLANGE SOU 		0-91180-108-0 02 1 0804- ● ● ●

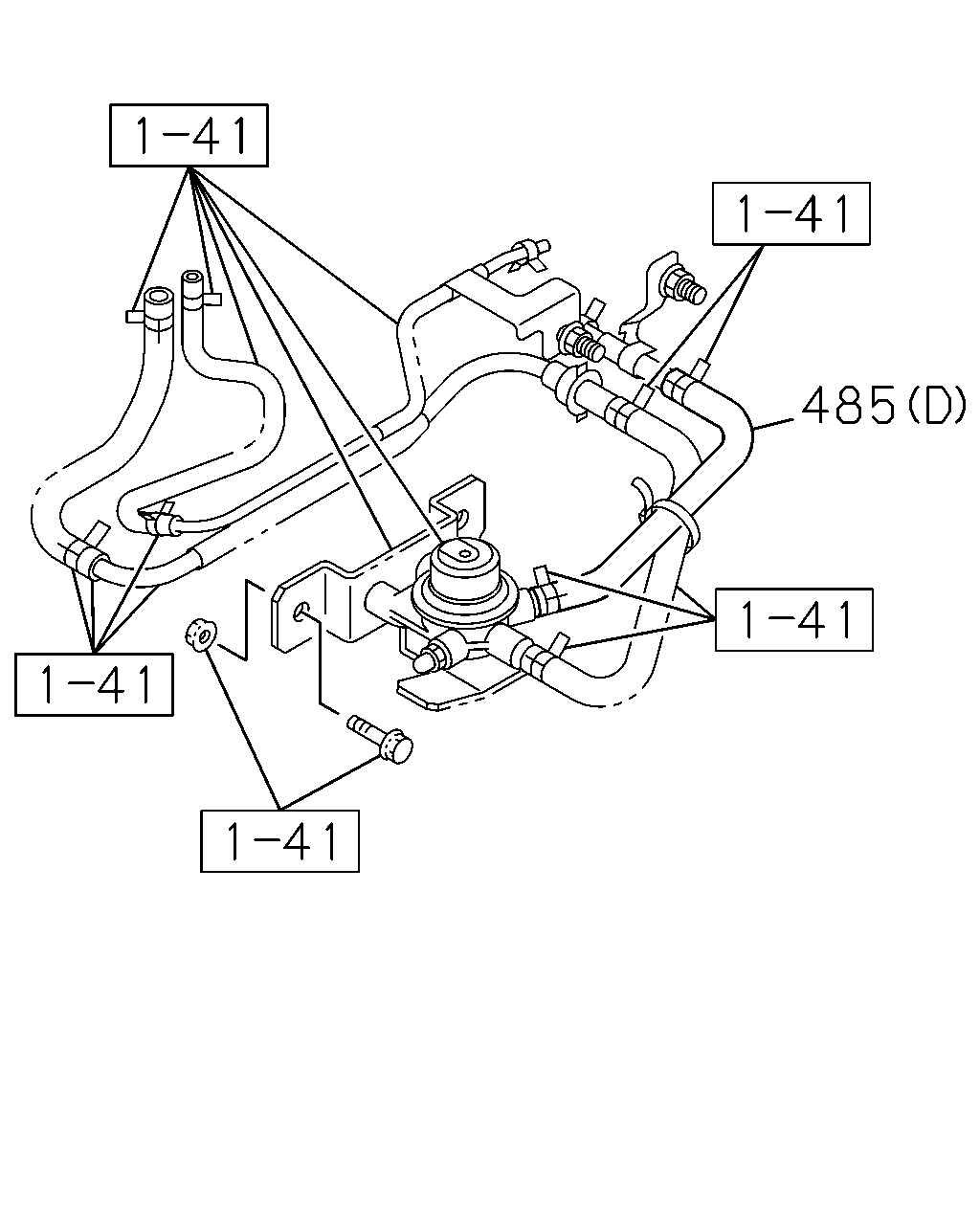

çizim 157714
485
BalonParca AdiParca NoAdetTipApplied Date A B C
485 HOSE; FUEL
DUMP CHASSIS(V4D) (D) 		8-98098-276-0 01 1 0804- ●
485 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) EXC. DUMP CHASSIS(V4D) (B) 		8-98099-503-0 01 1 0804-0906 ●
485 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98099-503-0 01 1 0804-0906 ● ●
485 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) EXC. DUMP CHASSIS(V4D) (B) 		8-98099-503-0 01 1 0907- ●
485 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) EXC. DUMP CHASSIS(V4D) (B) 		8-98099-503-0 01 1 0907- ●
485 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98099-503-0 01 1 0907- ● ●
485 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98099-503-0 01 1 0907- ● ●
485 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) EXC. DUMP CHASSIS(V4D) (C) 		8-98105-710-0 01 1 0804- ●
485 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98105-710-0 01 1 0804- ● ●
485 HOSE; FUEL
EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98041-728-0 01 1 0804- ● ● ●

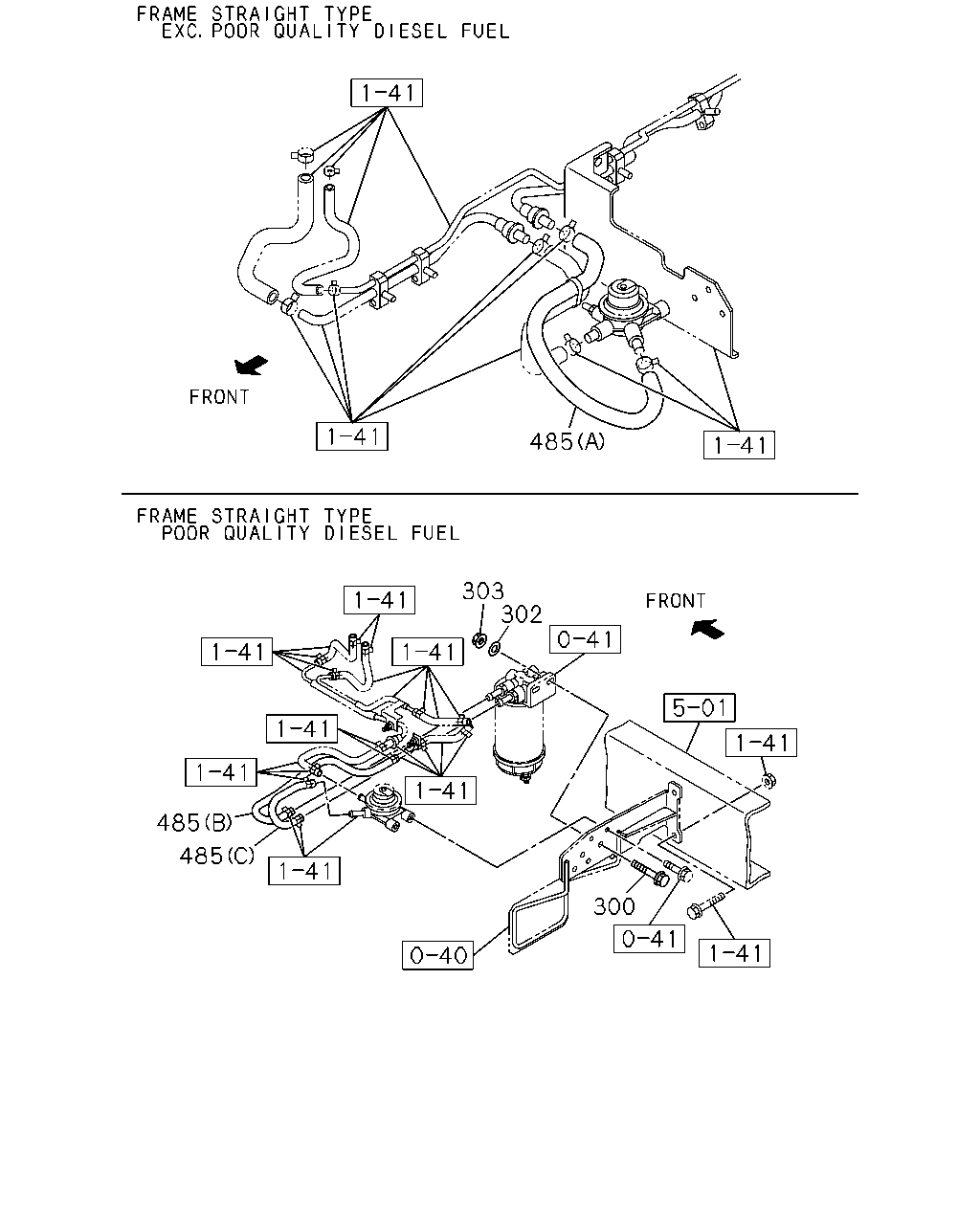

çizim 157717
485 303 302 300 485 485
BalonParca AdiParca NoAdetTipApplied Date A B C
300 BOLT; BRKT TO BODY
POOR QUALITY DIESEL FUEL(KF0) M10X40 FLANGE SOU 		0-28651-040-0 02 1 0804- ● ● ●
302 WASHER; PL,SEDIMENTER
POOR QUALITY DIESEL FUEL(KF0) ID=10.5 OD=26 		0-91614-710-0 02 1 0804- ● ● ●
303 NUT; SEDIMENTER BRKT
POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE SOU 		0-91180-110-0 02 1 0804- ● ● ●
485 HOSE; FUEL
DUMP CHASSIS(V4D) (D) 		8-98098-276-0 01 1 0804- ●
485 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) EXC. DUMP CHASSIS(V4D) (B) 		8-98099-503-0 01 1 0804-0906 ●
485 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98099-503-0 01 1 0804-0906 ● ●
485 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) EXC. DUMP CHASSIS(V4D) (B) 		8-98099-503-0 01 1 0907- ●
485 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) EXC. DUMP CHASSIS(V4D) (B) 		8-98099-503-0 01 1 0907- ●
485 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98099-503-0 01 1 0907- ● ●
485 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98099-503-0 01 1 0907- ● ●
485 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) EXC. DUMP CHASSIS(V4D) (C) 		8-98105-710-0 01 1 0804- ●
485 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98105-710-0 01 1 0804- ● ●
485 HOSE; FUEL
EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98041-728-0 01 1 0804- ● ● ●
