1-31 — AIR DUCT (#50826) — 345 parça

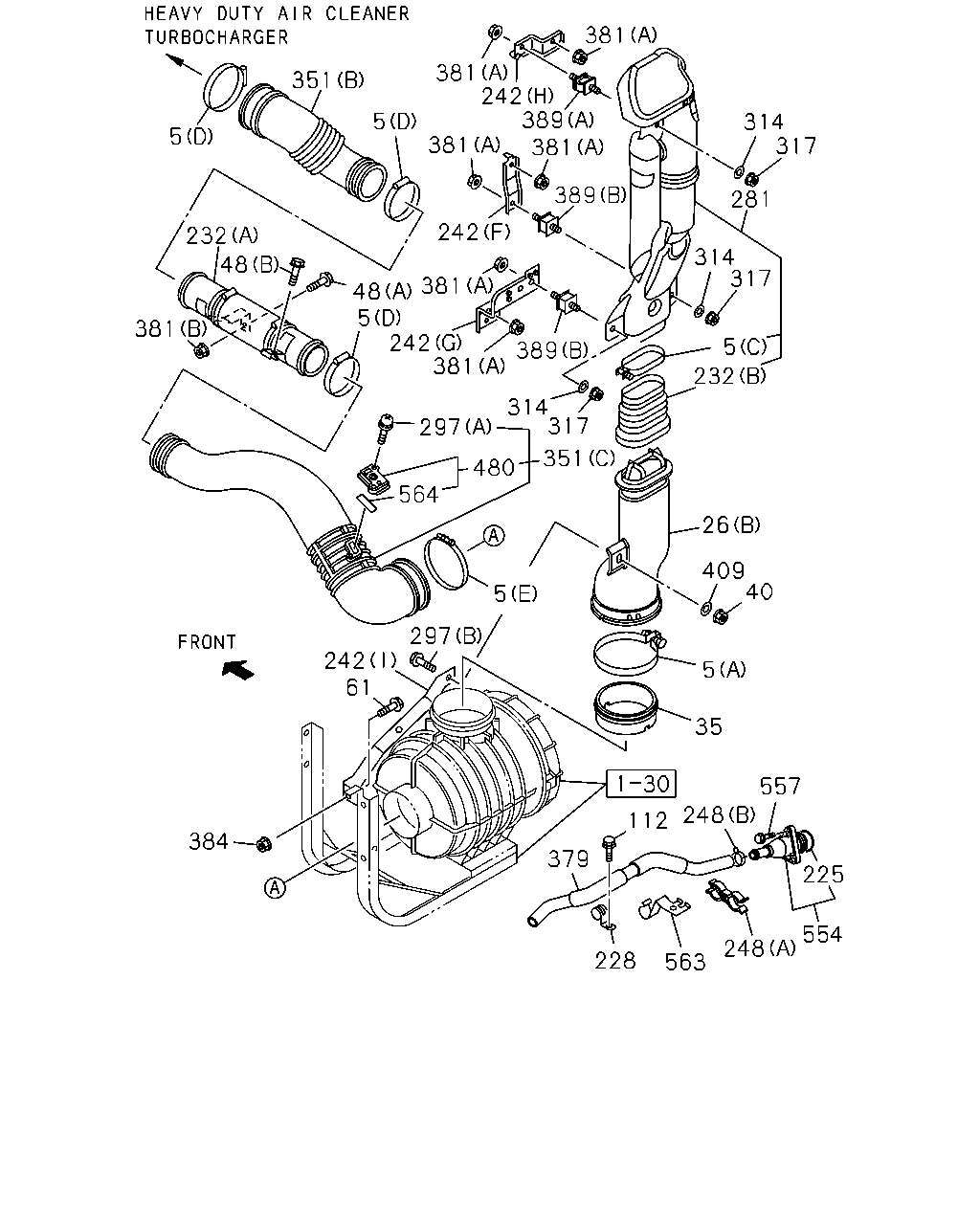

çizim 157634
381 381 242 389 381 351 5 314 317 5 381 281 389 232 242 314 317 48 381 48 5 242 381 381 389 5 232 314 317 297 351 480 564 26 409 40 5 297 242 61 5 35 557 248 112 384 379 225 554 248 228 563
BalonParca AdiParca NoAdetTipApplied Date A B C
5 CLIP; AIR DUCT
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) ID=55-75 		8-98133-349-0 01 1 0901- ●
5 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 0804- ● ● ●
5 CLIP; AIR DUCT
(B) ID=77-95 SOU 		1-09707-198-0 02 1 0804-0810 ● ● ●
5 CLIP; AIR DUCT
(B) ID=75-95 		8-98133-357-0 02 1 0811- ● ● ●
5 CLIP; AIR DUCT
(D) ID=68-85 SOU 		1-09707-202-0 01 1 0804-0810 ● ● ●
5 CLIP; AIR DUCT
(D) ID=68-85 SOU 		1-09707-202-0 01 1 0804-0810 ●
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ● ●
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 01 1 0811-0812 ●
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 01 1 0901- ● ● ●
5 CLIP; AIR DUCT
(C) D=101.6 SOU 		9-09915-502-1 01 1 0804- ● ● ●
5 CLIP; AIR DUCT
(D) ID=68-85 SOU 		1-09707-202-0 02 1 0804-0810 ●
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 02 1 0811- ●
5 CLIP; AIR DUCT
(E) ID=112 		9-09915-074-1 01 1 0804- ●
26 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 0804- ● ●
26 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 0804- ●
35 SEAL; DUCT,INT 8-98029-332-0 01 1 0804- ● ● ●
40 NUT; AIR INT DUCT
M10 FLANGE SOU 		0-91180-110-0 01 1 0804- ● ● ●
48 BOLT; AIR DUCT
(A) M10X30 FLANGE SOU 		0-28651-030-0 02 1 0804- ●
48 BOLT; AIR DUCT
(B) M10X35 FLANGE SOU 		0-28651-035-0 01 1 0804- ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE SOU 		0-28650-825-0 01 1 0804- ● ●
61 BOLT; BRKT,AIR DUCT
M10X35 FLANGE SOU 		0-28651-035-0 01 1 0804- ●
112 BOLT; CLIP
EURO3 SPECIFICATION(NT3) M8X12 FLANGE 		0-28050-812-0 01 1 0804- ● ● ●
225 GASKET; AIR PIPE
EURO3 SPECIFICATION(NT3) ID=43.7 		9-09561-344-0 01 1 0804-0810 ● ● ●
225 GASKET; AIR PIPE
EURO3 SPECIFICATION(NT3) ID=43.7 		9-09561-344-0 01 1 0811- ● ●
228 CLIP; PCV HOSE
EURO3 SPECIFICATION(NT3) ID=28 H=45 L=30 		1-09700-948-0 01 1 0804- ● ● ●
232 HOSE; CONN
EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (D) 		8-98095-507-1 01 1 0804- ● ●
232 HOSE; CONN
EURO3 SPECIFICATION(NT3) (C) 		8-98059-956-2 01 1 0804- ● ●
232 HOSE; CONN
HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (D) 		8-98070-857-1 01 1 0804- ● ●
232 HOSE; CONN
(B) 		8-98082-535-0 01 1 0804-0812 ● ● ●
232 HOSE; CONN
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-98082-535-0 01 1 0901-0901 ● ●
232 HOSE; CONN
EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-98082-535-0 01 1 0901-0901 ●
232 HOSE; CONN
(B) 		8-98082-535-0 01 1 0902-1309 ● ● ●
232 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310- ● ● ●
232 HOSE; CONN
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98063-793-3 01 1 0804- ●
232 HOSE; CONN
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98094-582-2 01 1 0804- ●
242 BRACKET; AIR DUCT
(A) 		8-98004-416-0 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98032-143-1 01 1 0804- ● ● ●
242 BRACKET; AIR DUCT
(B) 		8-98032-142-1 01 1 0804- ● ● ●
242 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 0804- ●
242 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 0804- ●
242 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 0804- ●
242 BRACKET; AIR DUCT
(I) 		8-98049-012-1 01 1 0804- ●
248 CLIP; RUBBER HOSE
EURO3 SPECIFICATION(NT3) (B) ID=21.7 		8-97203-074-0 01 1 0804- ● ● ●
248 CLIP; RUBBER HOSE
EURO3 SPECIFICATION(NT3) HYDRO BRAKE BOOSTER(7QQ) (A) ID=25.5 & 13 		8-97181-208-0 01 1 0804-0804 ● ● ●
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98000-230-5 01 1 0804- ● ●
281 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-98101-995-5 01 1 0804- ● ● ●
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98061-757-2 01 1 0804- ●
297 BOLT; DUCT
(B) M10X35 FLANGE SOU 		0-28651-035-0 01 1 0804- ●
297 BOLT; DUCT
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0804- ●
314 WASHER; PL,AIR INT DUCT
ID=10.5 OD=32 		0-91614-810-0 03 1 0804- ● ● ●
317 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 0804- ● ● ●
351 DUCT; AIR
EURO3 SPECIFICATION(NT3) (B) 		8-98115-643-0 01 1 0804- ●
351 DUCT; AIR
(A) 		8-98105-722-1 01 1 0804- ● ● ●
351 DUCT; AIR
EURO2 SPECIFICATION(NT2) (B) 		8-98070-850-0 01 1 0804- ●
351 DUCT; AIR
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98070-863-1 01 1 0804- ●
379 HOSE; RUBBER
EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98133-340-0 01 1 0811-1501 ●
379 HOSE; RUBBER
EURO3 SPECIFICATION(NT3) 		8-98133-340-0 01 1 1502- ●
379 HOSE; RUBBER
EURO3 SPECIFICATION(NT3) 		8-98075-711-0 01 1 0804-0810 ● ● ●
379 HOSE; RUBBER
EURO3 SPECIFICATION(NT3) 		8-98075-711-0 01 1 0811-1501 ● ●
379 HOSE; RUBBER
EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98075-711-0 01 1 0811-1501 ●
379 HOSE; RUBBER
EURO3 SPECIFICATION(NT3) 		8-98075-711-0 01 1 1502- ● ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 0804- ● ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 0804- ● ● ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 0804- ●
381 NUT; BRKT,AIR DUCT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10 FLANGE SOU 		0-91180-110-0 02 1 0804- ●
381 NUT; BRKT,AIR DUCT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10 FLANGE SOU 		0-91180-110-0 01 1 0804- ●
384 NUT; AIR INT DUCT BRKT
M10 FLANGE SOU 		0-91180-110-0 01 1 0804- ●
389 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 0804- ● ● ●
389 RUBBER; SUPPORT,AIR INT UPR
(B) 		8-98036-826-0 02 1 0804- ● ● ●
409 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 0804- ● ● ●
480 ADAPTER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-98086-417-0 01 1 0804- ●
554 FLANGE; PIPE,PCV
EURO3 SPECIFICATION(NT3) 		8-98038-208-0 01 1 0804-0810 ● ● ●
554 FLANGE; PIPE,PCV
EURO3 SPECIFICATION(NT3) 		8-98038-208-0 01 1 0811- ● ●
557 BOLT; HOSE CLIP
EURO3 SPECIFICATION(NT3) M6X20 FLANGE 		0-28050-620-0 03 1 0804-0810 ● ● ●
557 BOLT; HOSE CLIP
EURO3 SPECIFICATION(NT3) M6X20 FLANGE 		0-28050-620-0 03 1 0811- ● ●
563 BRACKET; CLIP
EURO2 SPECIFICATION(NT2) 		8-98090-587-0 01 1 0804- ● ● ●
564 GASKET; ADAPTER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-98071-416-0 01 1 0804- ●

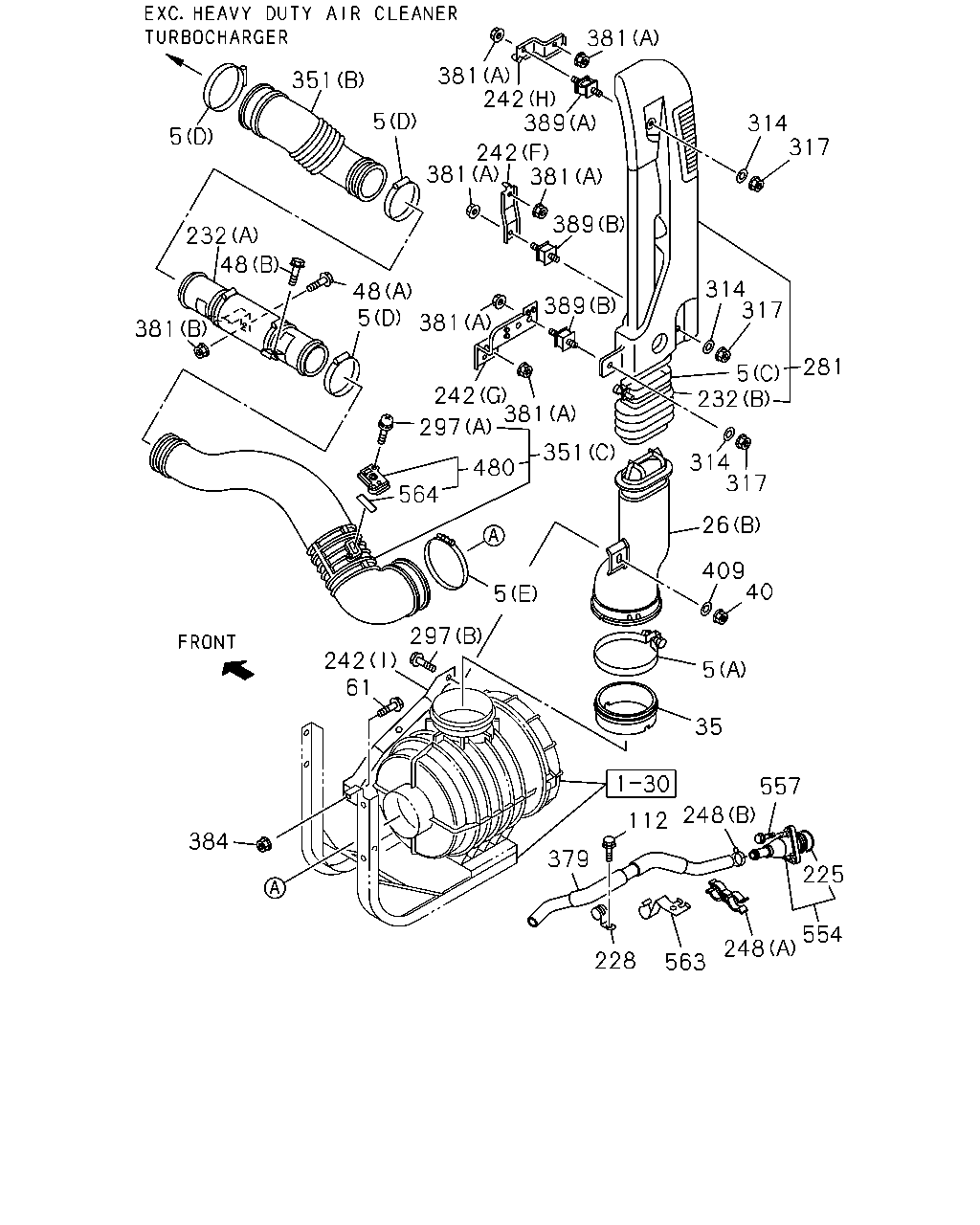

çizim 157637
381 381 242 389 351 5 314 317 5 242 381 381 389 232 48 314 317 48 5 389 381 381 5 232 281 242 381 297 351 314 317 480 564 26 409 40 5 297 242 61 5 35 557 248 112 384 379 225 554 248 228 563
BalonParca AdiParca NoAdetTipApplied Date A B C
5 CLIP; AIR DUCT
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) ID=55-75 		8-98133-349-0 01 1 0901- ●
5 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 0804- ● ● ●
5 CLIP; AIR DUCT
(B) ID=77-95 SOU 		1-09707-198-0 02 1 0804-0810 ● ● ●
5 CLIP; AIR DUCT
(B) ID=75-95 		8-98133-357-0 02 1 0811- ● ● ●
5 CLIP; AIR DUCT
(D) ID=68-85 SOU 		1-09707-202-0 01 1 0804-0810 ● ● ●
5 CLIP; AIR DUCT
(D) ID=68-85 SOU 		1-09707-202-0 01 1 0804-0810 ●
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ● ●
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 01 1 0811-0812 ●
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 01 1 0901- ● ● ●
5 CLIP; AIR DUCT
(C) D=101.6 SOU 		9-09915-502-1 01 1 0804- ● ● ●
5 CLIP; AIR DUCT
(D) ID=68-85 SOU 		1-09707-202-0 02 1 0804-0810 ●
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 02 1 0811- ●
5 CLIP; AIR DUCT
(E) ID=112 		9-09915-074-1 01 1 0804- ●
26 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 0804- ● ●
26 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 0804- ●
35 SEAL; DUCT,INT 8-98029-332-0 01 1 0804- ● ● ●
40 NUT; AIR INT DUCT
M10 FLANGE SOU 		0-91180-110-0 01 1 0804- ● ● ●
48 BOLT; AIR DUCT
(A) M10X30 FLANGE SOU 		0-28651-030-0 02 1 0804- ●
48 BOLT; AIR DUCT
(B) M10X35 FLANGE SOU 		0-28651-035-0 01 1 0804- ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE SOU 		0-28650-825-0 01 1 0804- ● ●
61 BOLT; BRKT,AIR DUCT
M10X35 FLANGE SOU 		0-28651-035-0 01 1 0804- ●
112 BOLT; CLIP
EURO3 SPECIFICATION(NT3) M8X12 FLANGE 		0-28050-812-0 01 1 0804- ● ● ●
225 GASKET; AIR PIPE
EURO3 SPECIFICATION(NT3) ID=43.7 		9-09561-344-0 01 1 0804-0810 ● ● ●
225 GASKET; AIR PIPE
EURO3 SPECIFICATION(NT3) ID=43.7 		9-09561-344-0 01 1 0811- ● ●
228 CLIP; PCV HOSE
EURO3 SPECIFICATION(NT3) ID=28 H=45 L=30 		1-09700-948-0 01 1 0804- ● ● ●
232 HOSE; CONN
EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (D) 		8-98095-507-1 01 1 0804- ● ●
232 HOSE; CONN
EURO3 SPECIFICATION(NT3) (C) 		8-98059-956-2 01 1 0804- ● ●
232 HOSE; CONN
HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (D) 		8-98070-857-1 01 1 0804- ● ●
232 HOSE; CONN
(B) 		8-98082-535-0 01 1 0804-0812 ● ● ●
232 HOSE; CONN
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-98082-535-0 01 1 0901-0901 ● ●
232 HOSE; CONN
EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-98082-535-0 01 1 0901-0901 ●
232 HOSE; CONN
(B) 		8-98082-535-0 01 1 0902-1309 ● ● ●
232 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310- ● ● ●
232 HOSE; CONN
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98063-793-3 01 1 0804- ●
232 HOSE; CONN
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98094-582-2 01 1 0804- ●
242 BRACKET; AIR DUCT
(A) 		8-98004-416-0 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98032-143-1 01 1 0804- ● ● ●
242 BRACKET; AIR DUCT
(B) 		8-98032-142-1 01 1 0804- ● ● ●
242 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 0804- ●
242 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 0804- ●
242 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 0804- ●
242 BRACKET; AIR DUCT
(I) 		8-98049-012-1 01 1 0804- ●
248 CLIP; RUBBER HOSE
EURO3 SPECIFICATION(NT3) (B) ID=21.7 		8-97203-074-0 01 1 0804- ● ● ●
248 CLIP; RUBBER HOSE
EURO3 SPECIFICATION(NT3) HYDRO BRAKE BOOSTER(7QQ) (A) ID=25.5 & 13 		8-97181-208-0 01 1 0804-0804 ● ● ●
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98000-230-5 01 1 0804- ● ●
281 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-98101-995-5 01 1 0804- ● ● ●
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98061-757-2 01 1 0804- ●
297 BOLT; DUCT
(B) M10X35 FLANGE SOU 		0-28651-035-0 01 1 0804- ●
297 BOLT; DUCT
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0804- ●
314 WASHER; PL,AIR INT DUCT
ID=10.5 OD=32 		0-91614-810-0 03 1 0804- ● ● ●
317 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 0804- ● ● ●
351 DUCT; AIR
EURO3 SPECIFICATION(NT3) (B) 		8-98115-643-0 01 1 0804- ●
351 DUCT; AIR
(A) 		8-98105-722-1 01 1 0804- ● ● ●
351 DUCT; AIR
EURO2 SPECIFICATION(NT2) (B) 		8-98070-850-0 01 1 0804- ●
351 DUCT; AIR
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98070-863-1 01 1 0804- ●
379 HOSE; RUBBER
EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98133-340-0 01 1 0811-1501 ●
379 HOSE; RUBBER
EURO3 SPECIFICATION(NT3) 		8-98133-340-0 01 1 1502- ●
379 HOSE; RUBBER
EURO3 SPECIFICATION(NT3) 		8-98075-711-0 01 1 0804-0810 ● ● ●
379 HOSE; RUBBER
EURO3 SPECIFICATION(NT3) 		8-98075-711-0 01 1 0811-1501 ● ●
379 HOSE; RUBBER
EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98075-711-0 01 1 0811-1501 ●
379 HOSE; RUBBER
EURO3 SPECIFICATION(NT3) 		8-98075-711-0 01 1 1502- ● ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 0804- ● ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 0804- ● ● ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 0804- ●
381 NUT; BRKT,AIR DUCT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10 FLANGE SOU 		0-91180-110-0 02 1 0804- ●
381 NUT; BRKT,AIR DUCT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10 FLANGE SOU 		0-91180-110-0 01 1 0804- ●
384 NUT; AIR INT DUCT BRKT
M10 FLANGE SOU 		0-91180-110-0 01 1 0804- ●
389 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 0804- ● ● ●
389 RUBBER; SUPPORT,AIR INT UPR
(B) 		8-98036-826-0 02 1 0804- ● ● ●
409 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 0804- ● ● ●
480 ADAPTER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-98086-417-0 01 1 0804- ●
554 FLANGE; PIPE,PCV
EURO3 SPECIFICATION(NT3) 		8-98038-208-0 01 1 0804-0810 ● ● ●
554 FLANGE; PIPE,PCV
EURO3 SPECIFICATION(NT3) 		8-98038-208-0 01 1 0811- ● ●
557 BOLT; HOSE CLIP
EURO3 SPECIFICATION(NT3) M6X20 FLANGE 		0-28050-620-0 03 1 0804-0810 ● ● ●
557 BOLT; HOSE CLIP
EURO3 SPECIFICATION(NT3) M6X20 FLANGE 		0-28050-620-0 03 1 0811- ● ●
563 BRACKET; CLIP
EURO2 SPECIFICATION(NT2) 		8-98090-587-0 01 1 0804- ● ● ●
564 GASKET; ADAPTER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-98071-416-0 01 1 0804- ●

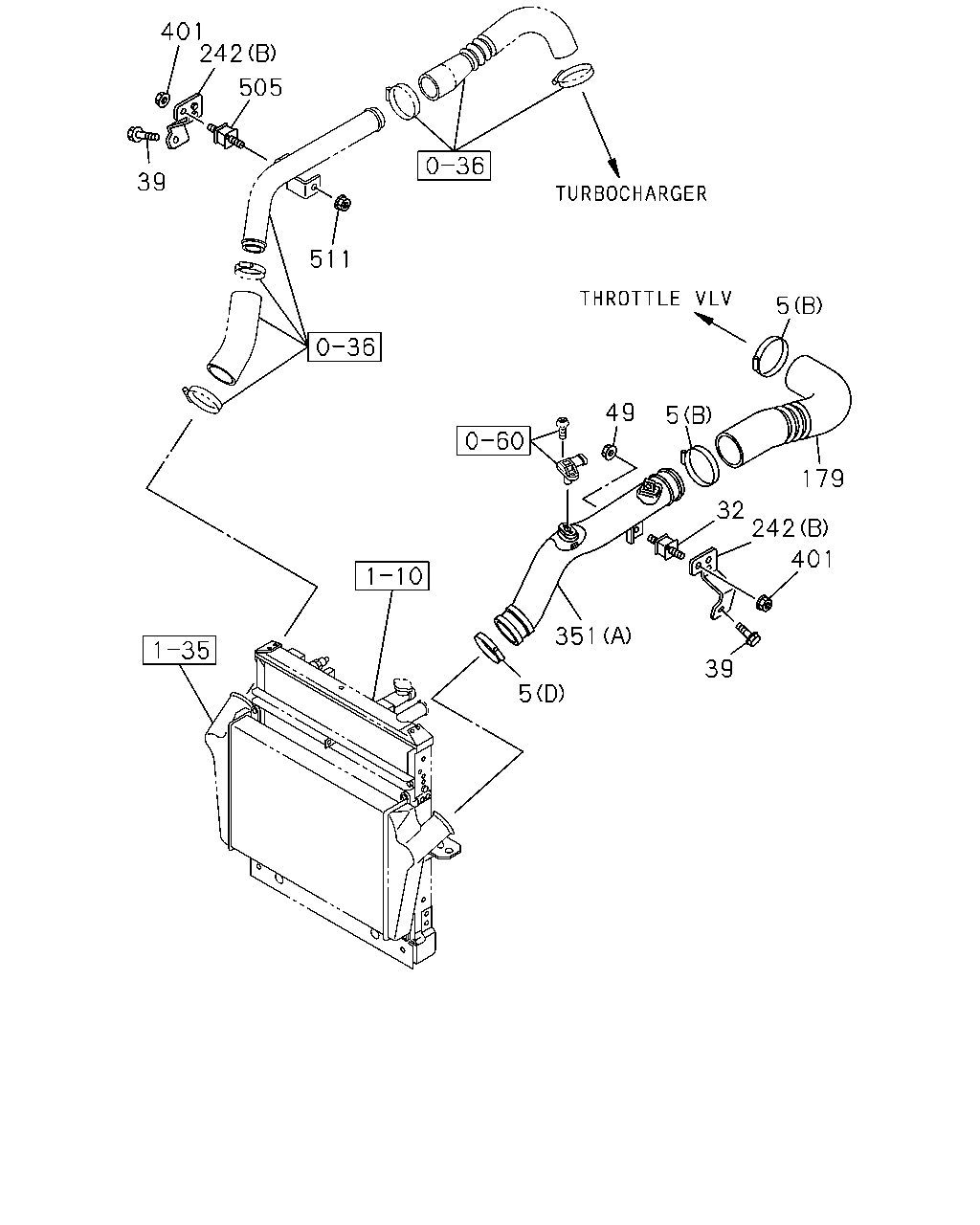

çizim 157711
401 242 505 39 511 5 49 5 179 32 242 401 351 39 5
BalonParca AdiParca NoAdetTipApplied Date A B C
5 CLIP; AIR DUCT
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) ID=55-75 		8-98133-349-0 01 1 0901- ●
5 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 0804- ● ● ●
5 CLIP; AIR DUCT
(B) ID=77-95 SOU 		1-09707-198-0 02 1 0804-0810 ● ● ●
5 CLIP; AIR DUCT
(B) ID=75-95 		8-98133-357-0 02 1 0811- ● ● ●
5 CLIP; AIR DUCT
(D) ID=68-85 SOU 		1-09707-202-0 01 1 0804-0810 ● ● ●
5 CLIP; AIR DUCT
(D) ID=68-85 SOU 		1-09707-202-0 01 1 0804-0810 ●
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ● ●
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 01 1 0811-0812 ●
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 01 1 0901- ● ● ●
5 CLIP; AIR DUCT
(C) D=101.6 SOU 		9-09915-502-1 01 1 0804- ● ● ●
5 CLIP; AIR DUCT
(D) ID=68-85 SOU 		1-09707-202-0 02 1 0804-0810 ●
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 02 1 0811- ●
5 CLIP; AIR DUCT
(E) ID=112 		9-09915-074-1 01 1 0804- ●
32 RUBBER; AIR DUCT MTG 8-98036-826-0 01 1 0804-1106 ● ● ●
32 RUBBER; AIR DUCT MTG
SOU 		8-97081-886-0 01 1 1107- ● ● ●
39 BOLT; BRKT
M8X25 FLANGE SOU 		0-28650-825-0 02 1 0804- ● ● ●
49 NUT; AIR DUCT
M8 FLANGE SOU 		0-91180-108-0 01 1 0804- ● ● ●
179 HOSE; AIR INT 8-98114-719-0 01 1 0804- ● ● ●
242 BRACKET; AIR DUCT
(A) 		8-98004-416-0 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98032-143-1 01 1 0804- ● ● ●
242 BRACKET; AIR DUCT
(B) 		8-98032-142-1 01 1 0804- ● ● ●
242 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 0804- ●
242 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 0804- ●
242 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 0804- ●
242 BRACKET; AIR DUCT
(I) 		8-98049-012-1 01 1 0804- ●
351 DUCT; AIR
EURO3 SPECIFICATION(NT3) (B) 		8-98115-643-0 01 1 0804- ●
351 DUCT; AIR
(A) 		8-98105-722-1 01 1 0804- ● ● ●
351 DUCT; AIR
EURO2 SPECIFICATION(NT2) (B) 		8-98070-850-0 01 1 0804- ●
351 DUCT; AIR
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98070-863-1 01 1 0804- ●
401 NUT; BRKT,AIR INT
M8 FLANGE SOU 		0-91180-108-0 01 1 0804- ● ● ●
401 NUT; BRKT,AIR INT
M8 FLANGE SOU 		0-91180-108-0 01 1 0804- ● ● ●
505 RUBBER; MTG 8-98036-826-0 01 1 0804-1106 ● ● ●
505 RUBBER; MTG
SOU 		8-97081-886-0 01 1 1107- ● ● ●
511 NUT; PIPE
M8 FLANGE SOU 		0-91180-108-0 01 1 0804- ● ● ●

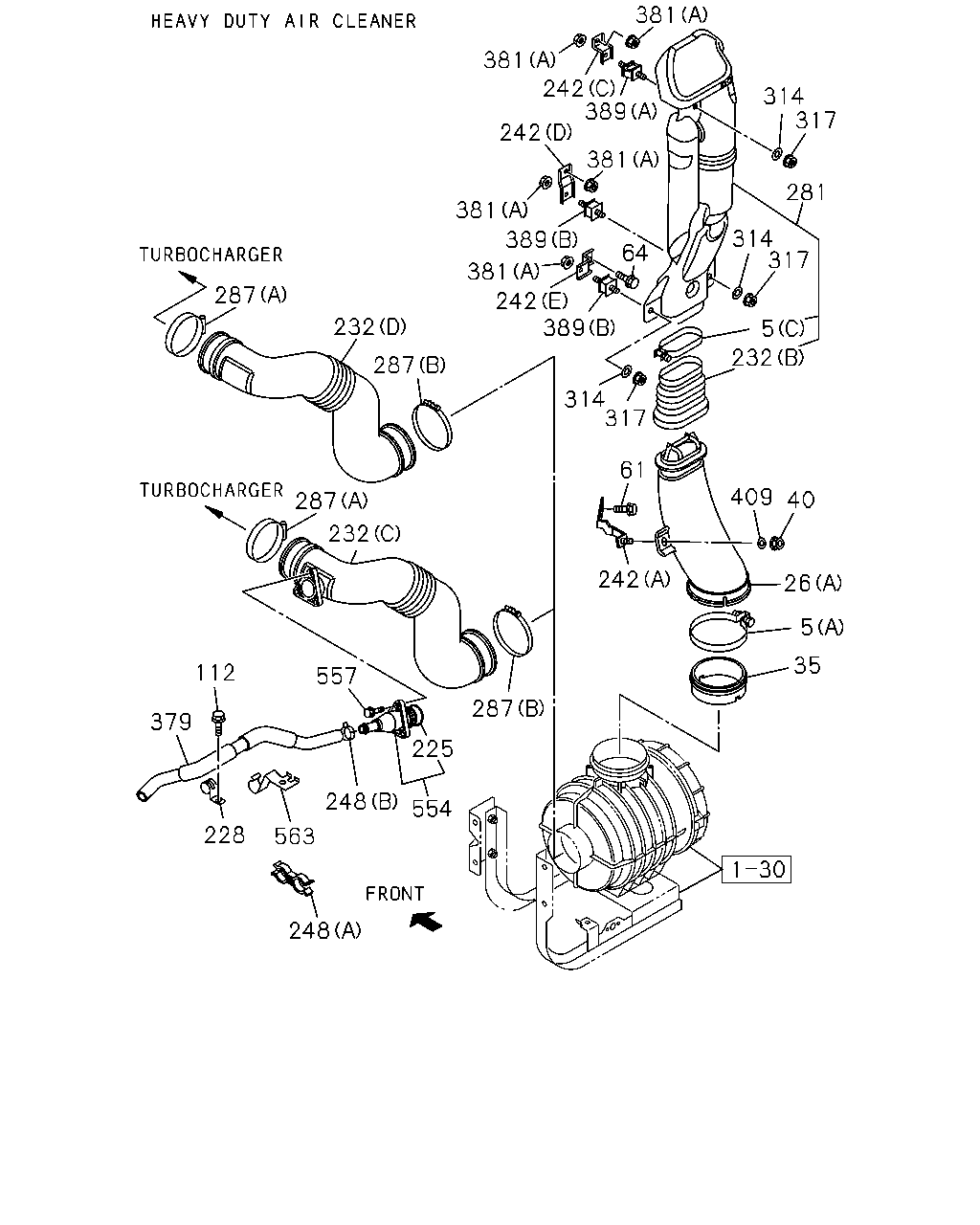

çizim 157712
381 381 242 389 314 317 242 381 281 381 314 317 389 64 381 287 242 389 232 5 232 287 314 317 61 409 40 287 232 242 26 5 35 557 112 287 379 225 248 554 228 563 248
BalonParca AdiParca NoAdetTipApplied Date A B C
5 CLIP; AIR DUCT
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) ID=55-75 		8-98133-349-0 01 1 0901- ●
5 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 0804- ● ● ●
5 CLIP; AIR DUCT
(B) ID=77-95 SOU 		1-09707-198-0 02 1 0804-0810 ● ● ●
5 CLIP; AIR DUCT
(B) ID=75-95 		8-98133-357-0 02 1 0811- ● ● ●
5 CLIP; AIR DUCT
(D) ID=68-85 SOU 		1-09707-202-0 01 1 0804-0810 ● ● ●
5 CLIP; AIR DUCT
(D) ID=68-85 SOU 		1-09707-202-0 01 1 0804-0810 ●
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ● ●
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 01 1 0811-0812 ●
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 01 1 0901- ● ● ●
5 CLIP; AIR DUCT
(C) D=101.6 SOU 		9-09915-502-1 01 1 0804- ● ● ●
5 CLIP; AIR DUCT
(D) ID=68-85 SOU 		1-09707-202-0 02 1 0804-0810 ●
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 02 1 0811- ●
5 CLIP; AIR DUCT
(E) ID=112 		9-09915-074-1 01 1 0804- ●
26 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 0804- ● ●
26 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 0804- ●
35 SEAL; DUCT,INT 8-98029-332-0 01 1 0804- ● ● ●
40 NUT; AIR INT DUCT
M10 FLANGE SOU 		0-91180-110-0 01 1 0804- ● ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE SOU 		0-28650-825-0 01 1 0804- ● ●
61 BOLT; BRKT,AIR DUCT
M10X35 FLANGE SOU 		0-28651-035-0 01 1 0804- ●
64 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 0804- ● ●
112 BOLT; CLIP
EURO3 SPECIFICATION(NT3) M8X12 FLANGE 		0-28050-812-0 01 1 0804- ● ● ●
225 GASKET; AIR PIPE
EURO3 SPECIFICATION(NT3) ID=43.7 		9-09561-344-0 01 1 0804-0810 ● ● ●
225 GASKET; AIR PIPE
EURO3 SPECIFICATION(NT3) ID=43.7 		9-09561-344-0 01 1 0811- ● ●
228 CLIP; PCV HOSE
EURO3 SPECIFICATION(NT3) ID=28 H=45 L=30 		1-09700-948-0 01 1 0804- ● ● ●
232 HOSE; CONN
EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (D) 		8-98095-507-1 01 1 0804- ● ●
232 HOSE; CONN
EURO3 SPECIFICATION(NT3) (C) 		8-98059-956-2 01 1 0804- ● ●
232 HOSE; CONN
HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (D) 		8-98070-857-1 01 1 0804- ● ●
232 HOSE; CONN
(B) 		8-98082-535-0 01 1 0804-0812 ● ● ●
232 HOSE; CONN
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-98082-535-0 01 1 0901-0901 ● ●
232 HOSE; CONN
EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-98082-535-0 01 1 0901-0901 ●
232 HOSE; CONN
(B) 		8-98082-535-0 01 1 0902-1309 ● ● ●
232 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310- ● ● ●
232 HOSE; CONN
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98063-793-3 01 1 0804- ●
232 HOSE; CONN
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98094-582-2 01 1 0804- ●
242 BRACKET; AIR DUCT
(A) 		8-98004-416-0 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98032-143-1 01 1 0804- ● ● ●
242 BRACKET; AIR DUCT
(B) 		8-98032-142-1 01 1 0804- ● ● ●
242 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 0804- ●
242 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 0804- ●
242 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 0804- ●
242 BRACKET; AIR DUCT
(I) 		8-98049-012-1 01 1 0804- ●
248 CLIP; RUBBER HOSE
EURO3 SPECIFICATION(NT3) (B) ID=21.7 		8-97203-074-0 01 1 0804- ● ● ●
248 CLIP; RUBBER HOSE
EURO3 SPECIFICATION(NT3) HYDRO BRAKE BOOSTER(7QQ) (A) ID=25.5 & 13 		8-97181-208-0 01 1 0804-0804 ● ● ●
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98000-230-5 01 1 0804- ● ●
281 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-98101-995-5 01 1 0804- ● ● ●
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98061-757-2 01 1 0804- ●
287 CLIP; AIR DUCT
(A) ID=68-85 SOU 		1-09707-202-0 01 1 0804-0810 ● ●
287 CLIP; AIR DUCT
(A) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
287 CLIP; AIR DUCT
(A) ID=55-75 		8-98133-349-0 01 1 0901- ● ●
287 CLIP; AIR DUCT
(B) ID=112 		9-09915-074-1 01 1 0804- ● ●
314 WASHER; PL,AIR INT DUCT
ID=10.5 OD=32 		0-91614-810-0 03 1 0804- ● ● ●
317 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 0804- ● ● ●
379 HOSE; RUBBER
EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98133-340-0 01 1 0811-1501 ●
379 HOSE; RUBBER
EURO3 SPECIFICATION(NT3) 		8-98133-340-0 01 1 1502- ●
379 HOSE; RUBBER
EURO3 SPECIFICATION(NT3) 		8-98075-711-0 01 1 0804-0810 ● ● ●
379 HOSE; RUBBER
EURO3 SPECIFICATION(NT3) 		8-98075-711-0 01 1 0811-1501 ● ●
379 HOSE; RUBBER
EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98075-711-0 01 1 0811-1501 ●
379 HOSE; RUBBER
EURO3 SPECIFICATION(NT3) 		8-98075-711-0 01 1 1502- ● ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 0804- ● ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 0804- ● ● ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 0804- ●
381 NUT; BRKT,AIR DUCT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10 FLANGE SOU 		0-91180-110-0 02 1 0804- ●
381 NUT; BRKT,AIR DUCT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10 FLANGE SOU 		0-91180-110-0 01 1 0804- ●
389 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 0804- ● ● ●
389 RUBBER; SUPPORT,AIR INT UPR
(B) 		8-98036-826-0 02 1 0804- ● ● ●
409 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 0804- ● ● ●
554 FLANGE; PIPE,PCV
EURO3 SPECIFICATION(NT3) 		8-98038-208-0 01 1 0804-0810 ● ● ●
554 FLANGE; PIPE,PCV
EURO3 SPECIFICATION(NT3) 		8-98038-208-0 01 1 0811- ● ●
557 BOLT; HOSE CLIP
EURO3 SPECIFICATION(NT3) M6X20 FLANGE 		0-28050-620-0 03 1 0804-0810 ● ● ●
557 BOLT; HOSE CLIP
EURO3 SPECIFICATION(NT3) M6X20 FLANGE 		0-28050-620-0 03 1 0811- ● ●
563 BRACKET; CLIP
EURO2 SPECIFICATION(NT2) 		8-98090-587-0 01 1 0804- ● ● ●

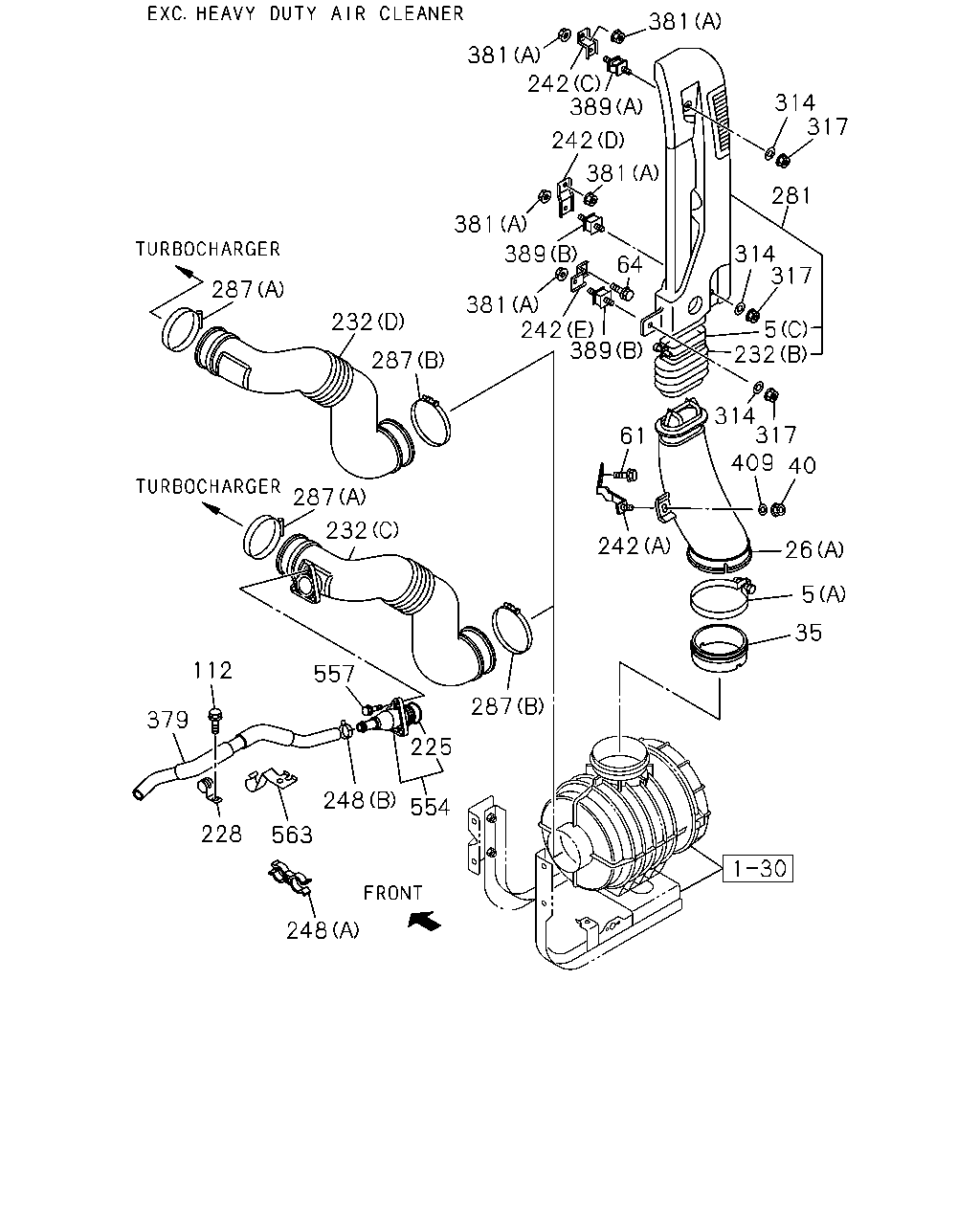

çizim 157732
381 381 242 389 314 317 242 381 281 381 314 317 389 64 287 381 242 389 5 232 232 287 314 317 409 61 40 287 232 242 26 5 35 557 112 287 379 225 248 554 228 563 248
BalonParca AdiParca NoAdetTipApplied Date A B C
5 CLIP; AIR DUCT
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) ID=55-75 		8-98133-349-0 01 1 0901- ●
5 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 0804- ● ● ●
5 CLIP; AIR DUCT
(B) ID=77-95 SOU 		1-09707-198-0 02 1 0804-0810 ● ● ●
5 CLIP; AIR DUCT
(B) ID=75-95 		8-98133-357-0 02 1 0811- ● ● ●
5 CLIP; AIR DUCT
(D) ID=68-85 SOU 		1-09707-202-0 01 1 0804-0810 ● ● ●
5 CLIP; AIR DUCT
(D) ID=68-85 SOU 		1-09707-202-0 01 1 0804-0810 ●
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ● ●
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 01 1 0811-0812 ●
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 01 1 0901- ● ● ●
5 CLIP; AIR DUCT
(C) D=101.6 SOU 		9-09915-502-1 01 1 0804- ● ● ●
5 CLIP; AIR DUCT
(D) ID=68-85 SOU 		1-09707-202-0 02 1 0804-0810 ●
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 02 1 0811- ●
5 CLIP; AIR DUCT
(E) ID=112 		9-09915-074-1 01 1 0804- ●
26 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 0804- ● ●
26 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 0804- ●
35 SEAL; DUCT,INT 8-98029-332-0 01 1 0804- ● ● ●
40 NUT; AIR INT DUCT
M10 FLANGE SOU 		0-91180-110-0 01 1 0804- ● ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE SOU 		0-28650-825-0 01 1 0804- ● ●
61 BOLT; BRKT,AIR DUCT
M10X35 FLANGE SOU 		0-28651-035-0 01 1 0804- ●
64 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 0804- ● ●
112 BOLT; CLIP
EURO3 SPECIFICATION(NT3) M8X12 FLANGE 		0-28050-812-0 01 1 0804- ● ● ●
225 GASKET; AIR PIPE
EURO3 SPECIFICATION(NT3) ID=43.7 		9-09561-344-0 01 1 0804-0810 ● ● ●
225 GASKET; AIR PIPE
EURO3 SPECIFICATION(NT3) ID=43.7 		9-09561-344-0 01 1 0811- ● ●
228 CLIP; PCV HOSE
EURO3 SPECIFICATION(NT3) ID=28 H=45 L=30 		1-09700-948-0 01 1 0804- ● ● ●
232 HOSE; CONN
EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (D) 		8-98095-507-1 01 1 0804- ● ●
232 HOSE; CONN
EURO3 SPECIFICATION(NT3) (C) 		8-98059-956-2 01 1 0804- ● ●
232 HOSE; CONN
HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (D) 		8-98070-857-1 01 1 0804- ● ●
232 HOSE; CONN
(B) 		8-98082-535-0 01 1 0804-0812 ● ● ●
232 HOSE; CONN
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-98082-535-0 01 1 0901-0901 ● ●
232 HOSE; CONN
EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-98082-535-0 01 1 0901-0901 ●
232 HOSE; CONN
(B) 		8-98082-535-0 01 1 0902-1309 ● ● ●
232 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310- ● ● ●
232 HOSE; CONN
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98063-793-3 01 1 0804- ●
232 HOSE; CONN
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98094-582-2 01 1 0804- ●
242 BRACKET; AIR DUCT
(A) 		8-98004-416-0 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98032-143-1 01 1 0804- ● ● ●
242 BRACKET; AIR DUCT
(B) 		8-98032-142-1 01 1 0804- ● ● ●
242 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 0804- ●
242 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 0804- ●
242 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 0804- ●
242 BRACKET; AIR DUCT
(I) 		8-98049-012-1 01 1 0804- ●
248 CLIP; RUBBER HOSE
EURO3 SPECIFICATION(NT3) (B) ID=21.7 		8-97203-074-0 01 1 0804- ● ● ●
248 CLIP; RUBBER HOSE
EURO3 SPECIFICATION(NT3) HYDRO BRAKE BOOSTER(7QQ) (A) ID=25.5 & 13 		8-97181-208-0 01 1 0804-0804 ● ● ●
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98000-230-5 01 1 0804- ● ●
281 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-98101-995-5 01 1 0804- ● ● ●
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98061-757-2 01 1 0804- ●
287 CLIP; AIR DUCT
(A) ID=68-85 SOU 		1-09707-202-0 01 1 0804-0810 ● ●
287 CLIP; AIR DUCT
(A) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
287 CLIP; AIR DUCT
(A) ID=55-75 		8-98133-349-0 01 1 0901- ● ●
287 CLIP; AIR DUCT
(B) ID=112 		9-09915-074-1 01 1 0804- ● ●
314 WASHER; PL,AIR INT DUCT
ID=10.5 OD=32 		0-91614-810-0 03 1 0804- ● ● ●
317 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 0804- ● ● ●
379 HOSE; RUBBER
EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98133-340-0 01 1 0811-1501 ●
379 HOSE; RUBBER
EURO3 SPECIFICATION(NT3) 		8-98133-340-0 01 1 1502- ●
379 HOSE; RUBBER
EURO3 SPECIFICATION(NT3) 		8-98075-711-0 01 1 0804-0810 ● ● ●
379 HOSE; RUBBER
EURO3 SPECIFICATION(NT3) 		8-98075-711-0 01 1 0811-1501 ● ●
379 HOSE; RUBBER
EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98075-711-0 01 1 0811-1501 ●
379 HOSE; RUBBER
EURO3 SPECIFICATION(NT3) 		8-98075-711-0 01 1 1502- ● ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 0804- ● ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 0804- ● ● ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 0804- ●
381 NUT; BRKT,AIR DUCT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10 FLANGE SOU 		0-91180-110-0 02 1 0804- ●
381 NUT; BRKT,AIR DUCT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10 FLANGE SOU 		0-91180-110-0 01 1 0804- ●
389 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 0804- ● ● ●
389 RUBBER; SUPPORT,AIR INT UPR
(B) 		8-98036-826-0 02 1 0804- ● ● ●
409 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 0804- ● ● ●
554 FLANGE; PIPE,PCV
EURO3 SPECIFICATION(NT3) 		8-98038-208-0 01 1 0804-0810 ● ● ●
554 FLANGE; PIPE,PCV
EURO3 SPECIFICATION(NT3) 		8-98038-208-0 01 1 0811- ● ●
557 BOLT; HOSE CLIP
EURO3 SPECIFICATION(NT3) M6X20 FLANGE 		0-28050-620-0 03 1 0804-0810 ● ● ●
557 BOLT; HOSE CLIP
EURO3 SPECIFICATION(NT3) M6X20 FLANGE 		0-28050-620-0 03 1 0811- ● ●
563 BRACKET; CLIP
EURO2 SPECIFICATION(NT2) 		8-98090-587-0 01 1 0804- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
