1-11 — RADIATOR HOSE AND SUB TANK (#50824) — 43 parça
çizim 157701

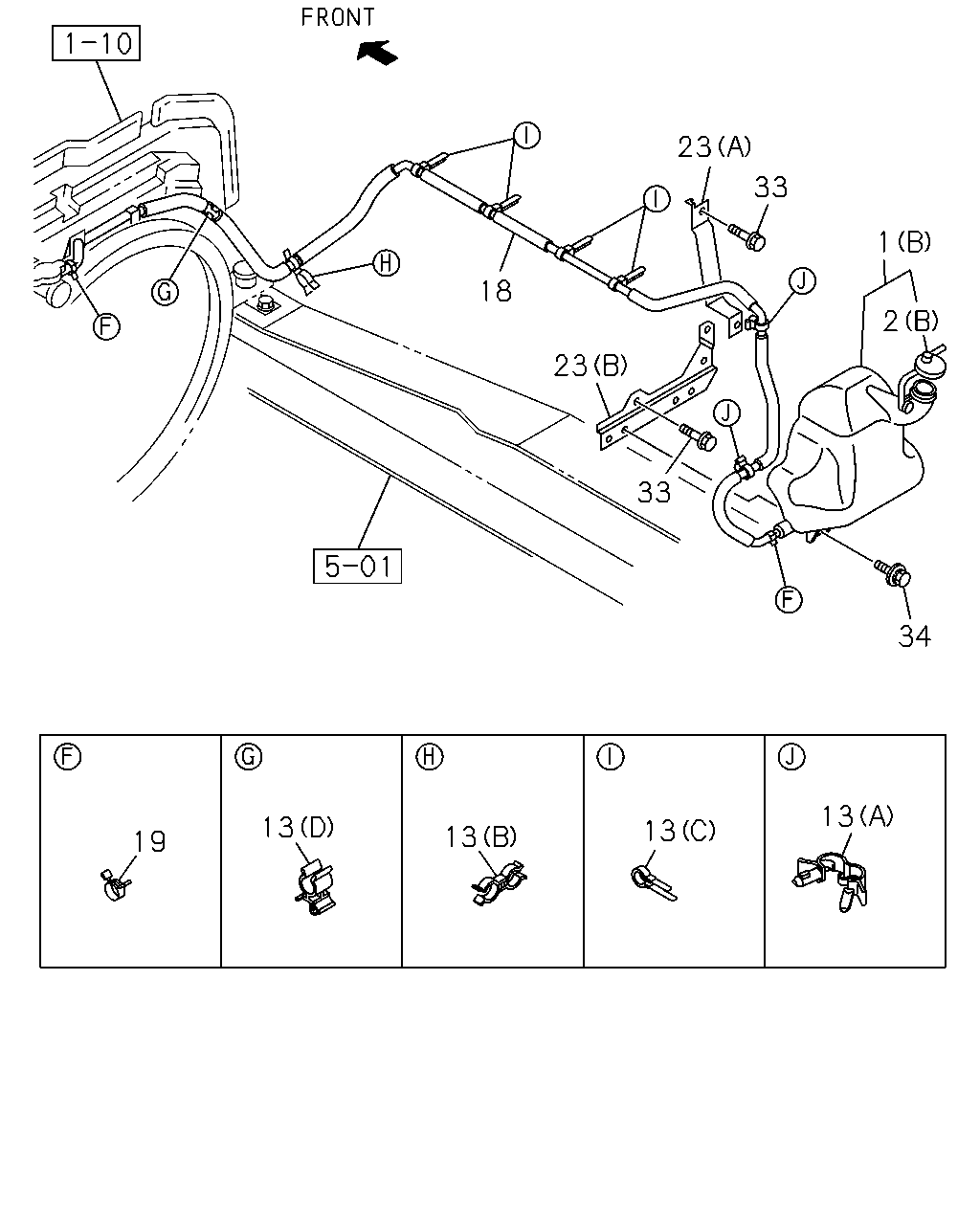

23 33 1 18 2 23 33 34 13 13 13 13 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TANK; SURGE,RAD
(A) 		8-97387-632-1 01 1 0804-1010 ● ●
1 TANK; SURGE,RAD
(A) 		8-98178-179-0 01 1 1011- ● ●
1 TANK; SURGE,RAD
(B) 		8-98001-240-1 01 1 0804- ●
2 CAP; SURGE TANK
(A) 		8-97217-796-0 01 1 0804-1010 ● ●
2 CAP; SURGE TANK
(A) 		8-98178-074-0 01 1 1011- ● ●
2 CAP; SURGE TANK
(B) SOU 		8-97130-964-0 01 1 0804- ●
13 CLIP; HOSE,SURGE TANK
(A) ID=13-18 L=14.5 		1-09709-290-0 01 1 0804- ● ●
13 CLIP; HOSE,SURGE TANK
(C) ID=14 L=47 SOU 		5-09700-319-0 04 1 0804- ● ● ●
13 CLIP; HOSE,SURGE TANK
(B) ID=10 & 11 		8-94438-996-0 01 1 0804- ● ● ●
13 CLIP; HOSE,SURGE TANK
(D) ID=12 		8-98029-256-0 01 1 0804- ● ● ●
13 CLIP; HOSE,SURGE TANK
(A) ID=13-18 L=14.5 		1-09709-290-0 02 1 0804- ●
18 HOSE; RAD TO SURGE TANK
L=1690 		8-98006-525-0 01 1 0804- ● ●
18 HOSE; RAD TO SURGE TANK
L=1840 		8-98006-528-0 01 1 0804- ●
19 CLIP; HOSE,SURGE TANK
ID=12 		8-94238-610-0 02 1 0804-0911 ● ● ●
19 CLIP; HOSE,SURGE TANK
ID=12 		8-98150-358-0 02 1 0912- ● ● ●
23 BRACKET; RESERVE TANK
(A) 		8-98001-252-0 01 1 0804- ●
23 BRACKET; RESERVE TANK
(B) 		8-98010-502-1 01 1 0804- ●
33 BOLT; BRKT
M8X16 FLANGE SOU 		0-28050-816-0 03 1 0804- ●
34 BOLT; RESERVE TANK
M8X22 W/LK&PL WASHER 		1-09030-042-0 03 1 0804- ● ● ●
çizim 157702

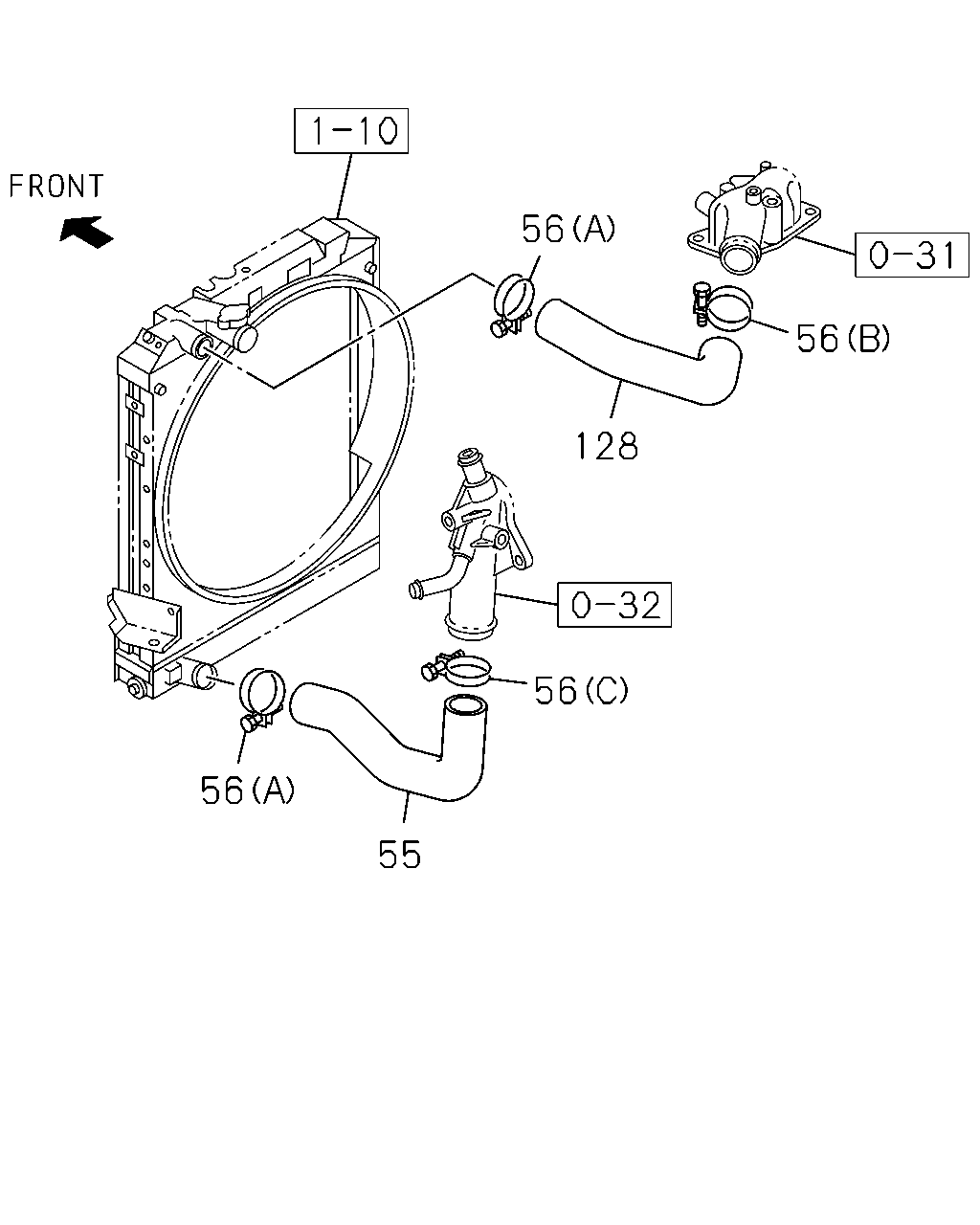

56 56 128 56 56 55
BalonParca AdiParca NoAdetTipApplied Date A B C
55 HOSE; WATER,RAD OUTLET 8-98006-453-0 01 1 0804- ● ● ●
56 CLIP; WATER HOSE,RAD
(A) ID=48 		8-98036-282-0 02 1 0804-0901 ● ● ●
56 CLIP; WATER HOSE,RAD
(B) ID=52 SOU 		1-09704-057-0 01 1 0902- ● ● ●
56 CLIP; WATER HOSE,RAD
(B) ID=52 		8-98036-283-0 01 1 0804-0901 ● ● ●
56 CLIP; WATER HOSE,RAD
(A) ID=48 		8-98133-956-0 02 1 0902- ● ● ●
56 CLIP; WATER HOSE,RAD
(C) ID=62 		8-98036-284-0 01 1 0804-0901 ● ● ●
56 CLIP; WATER HOSE,RAD
(C) ID=62 		8-98133-957-0 01 1 0902- ● ● ●
128 HOSE; WATER,RAD INL 8-98006-452-0 01 1 0804- ● ● ●
çizim 157703

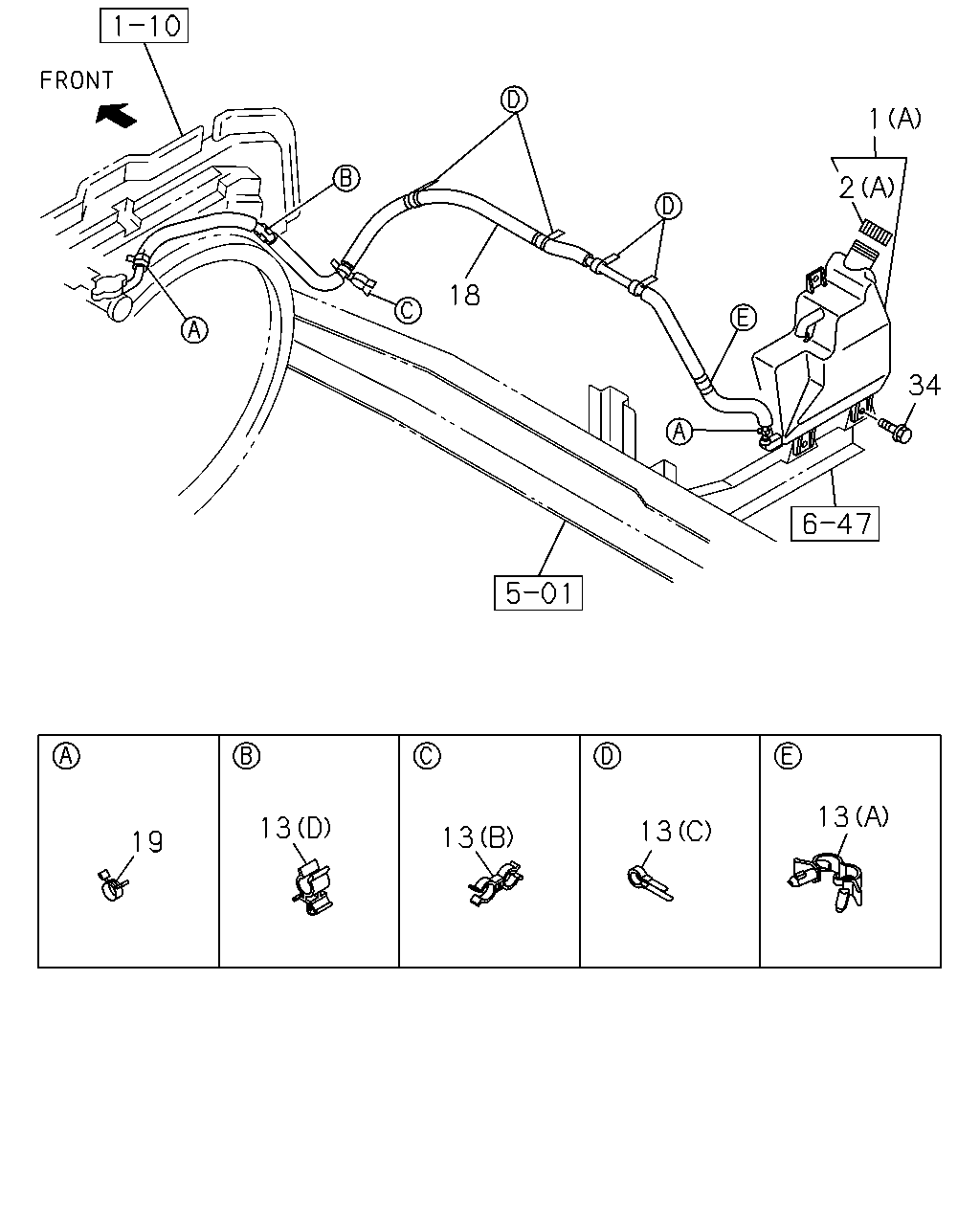

1 2 18 34 13 13 13 13 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TANK; SURGE,RAD
(A) 		8-97387-632-1 01 1 0804-1010 ● ●
1 TANK; SURGE,RAD
(A) 		8-98178-179-0 01 1 1011- ● ●
1 TANK; SURGE,RAD
(B) 		8-98001-240-1 01 1 0804- ●
2 CAP; SURGE TANK
(A) 		8-97217-796-0 01 1 0804-1010 ● ●
2 CAP; SURGE TANK
(A) 		8-98178-074-0 01 1 1011- ● ●
2 CAP; SURGE TANK
(B) SOU 		8-97130-964-0 01 1 0804- ●
13 CLIP; HOSE,SURGE TANK
(A) ID=13-18 L=14.5 		1-09709-290-0 01 1 0804- ● ●
13 CLIP; HOSE,SURGE TANK
(C) ID=14 L=47 SOU 		5-09700-319-0 04 1 0804- ● ● ●
13 CLIP; HOSE,SURGE TANK
(B) ID=10 & 11 		8-94438-996-0 01 1 0804- ● ● ●
13 CLIP; HOSE,SURGE TANK
(D) ID=12 		8-98029-256-0 01 1 0804- ● ● ●
13 CLIP; HOSE,SURGE TANK
(A) ID=13-18 L=14.5 		1-09709-290-0 02 1 0804- ●
18 HOSE; RAD TO SURGE TANK
L=1690 		8-98006-525-0 01 1 0804- ● ●
18 HOSE; RAD TO SURGE TANK
L=1840 		8-98006-528-0 01 1 0804- ●
19 CLIP; HOSE,SURGE TANK
ID=12 		8-94238-610-0 02 1 0804-0911 ● ● ●
19 CLIP; HOSE,SURGE TANK
ID=12 		8-98150-358-0 02 1 0912- ● ● ●
34 BOLT; RESERVE TANK
M8X22 W/LK&PL WASHER 		1-09030-042-0 03 1 0804- ● ● ●
