1-10 — RADIATOR
(#50823) — 46 parça
Tümü
A - NPR5SN
B - NPR5SS
C - NPR5WN
◀

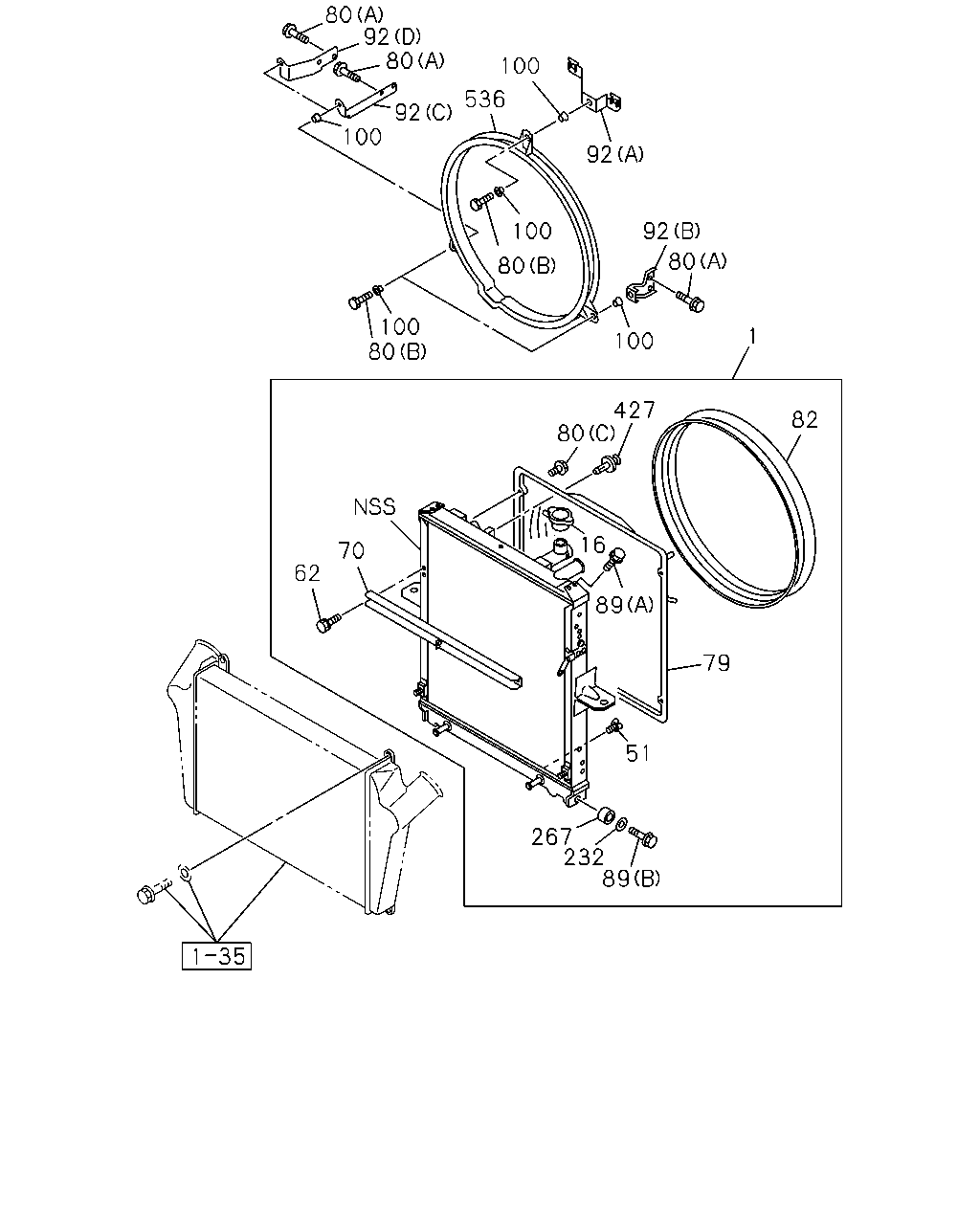

[110A] NO.2 (26 parça)

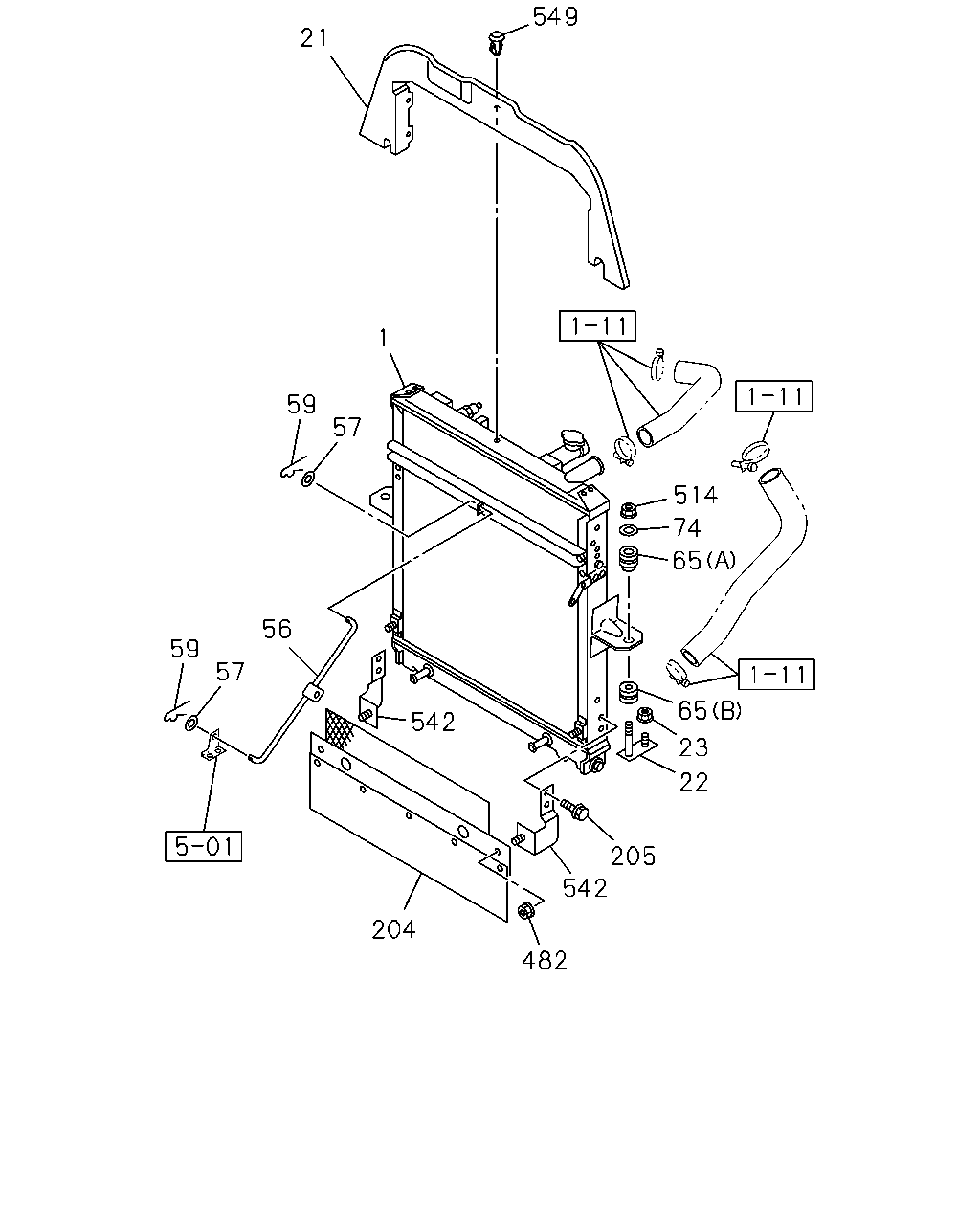

[110A] NO.1 (20 parça)
▶
80
92
80
100
536
92
100
92
100
92
80
80
100
80
1
100
427
80
82
16
70
62
89
79
51
267
232
89
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98046-662-0
01
1
0804-1410
●
●
●
1
RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98259-945-0
01
1
1411-
●
●
●
1
RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98046-661-0
01
1
0804-1410
●
●
●
1
RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98259-944-0
01
1
1411-
●
●
●
16
CAP; RAD
SOU
8-97239-187-0
01
1
0804-
●
●
●
51
PLUG; DRAIN
W/GASKET SOU
8-97171-437-0
01
1
0804-
●
●
●
62
BOLT; STAY
M8X12 FLANGE
0-28050-812-0
02
1
0804-
●
●
●
70
STAY; RAD
8-98018-941-0
01
1
0804-
●
●
●
79
GUIDE; FAN,RAD
8-98006-477-0
01
1
0804-
●
●
●
80
BOLT; FAN GUIDE
EXC. GENERATOR 24V80A(7YN) (A) M10X20 FLANGE
0-28151-020-0
02
1
0807-
●
●
●
80
BOLT; FAN GUIDE
(A) M10X20 FLANGE
0-28151-020-0
02
1
0804-0806
●
●
●
80
BOLT; FAN GUIDE
GENERATOR 24V80A(7YN) (A) M10X20 FLANGE
0-28151-020-0
04
1
0807-
●
●
●
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
0804-
●
●
●
80
BOLT; FAN GUIDE
(C) M6X16
1-21559-481-0
04
1
0804-
●
●
●
82
COVER; FAN,RAD
8-98006-478-0
01
1
0804-
●
●
●
89
BOLT
(A) M8X12 FLANGE
0-28050-812-0
02
1
0804-
●
●
●
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
02
1
0804-
●
●
●
92
BRACKET; FAN GUIDE
(A)
8-97382-827-2
01
1
0804-
●
●
●
92
BRACKET; FAN GUIDE
(B)
8-97386-233-0
01
1
0804-
●
●
●
92
BRACKET; FAN GUIDE
GENERATOR 24V80A(7YN) (D)
8-98032-526-0
01
1
0804-
●
●
●
92
BRACKET; FAN GUIDE
EXC. GENERATOR 24V80A(7YN) (C)
8-97350-997-0
01
1
0804-
●
●
●
100
RUBBER; MTG
1-09337-027-0
06
1
0804-
●
●
●
232
COLLAR; DIST,CUSHION RUBBER
1-87410-723-0
02
1
0804-
●
●
●
267
RUBBER; CUSHION
1-21467-023-0
02
1
0804-
●
●
●
427
CLIP; FAN GUIDE
1-09470-009-0
01
1
0804-
●
●
●
536
SHROUD; FAN
8-97350-995-0
01
1
0804-
●
●
●
549
21
1
59
57
514
74
65
56
59
57
65
542
23
22
205
542
204
482
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98046-662-0
01
1
0804-1410
●
●
●
1
RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98259-945-0
01
1
1411-
●
●
●
1
RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98046-661-0
01
1
0804-1410
●
●
●
1
RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98259-944-0
01
1
1411-
●
●
●
21
SEAL; RAD
8-98006-486-3
01
1
0804-1002
●
●
●
22
BRACKET; RAD MTG
8-97330-527-1
02
1
0804-
●
●
●
23
NUT; RAD MTG
M8 FLANGE SOU
0-91180-108-0
02
1
0804-
●
●
●
56
STAY; RAD
8-98006-490-2
01
1
0804-
●
●
●
57
WASHER; PL,STAY
ID=10.5 SOU
0-91610-510-0
02
1
0804-
●
●
●
59
PIN; SNAP,STAY
L=32.6
8-97359-052-0
02
1
0804-
●
●
●
65
INSULATOR; RAD
(A)
8-94249-346-0
02
1
0804-
●
●
●
65
INSULATOR; RAD
(B)
8-94249-347-0
02
1
0804-
●
●
●
74
WASHER; PL,CUSHION RUBBER
ID=8.5 OD=36
8-97359-049-1
02
1
0804-
●
●
●
204
GUIDE ASM; AIR
8-98025-413-0
01
1
0804-1002
●
●
●
205
BOLT; AIR GUIDE
M6X10 FLANGE SOU
0-28050-610-0
04
1
0804-1002
●
●
●
482
NUT; AIR GUIDE
M8 FLANGE SOU
0-91180-108-0
02
1
0804-1002
●
●
●
514
NUT; RAD
M8 FLANGE SOU
0-91180-108-0
02
1
0804-
●
●
●
542
BRACKET; AIR GUIDE
8-98025-414-0
01
1
0804-1002
●
●
●
542
BRACKET; AIR GUIDE
8-98025-415-0
01
1
0804-1002
●
●
●
549
CLIP; SEAL,RAD
8-97228-568-0
07
1
0804-1002
●
●
●
