1-01 — ACCELERATOR PEDAL AND CONTROL (#50822) — 20 parça

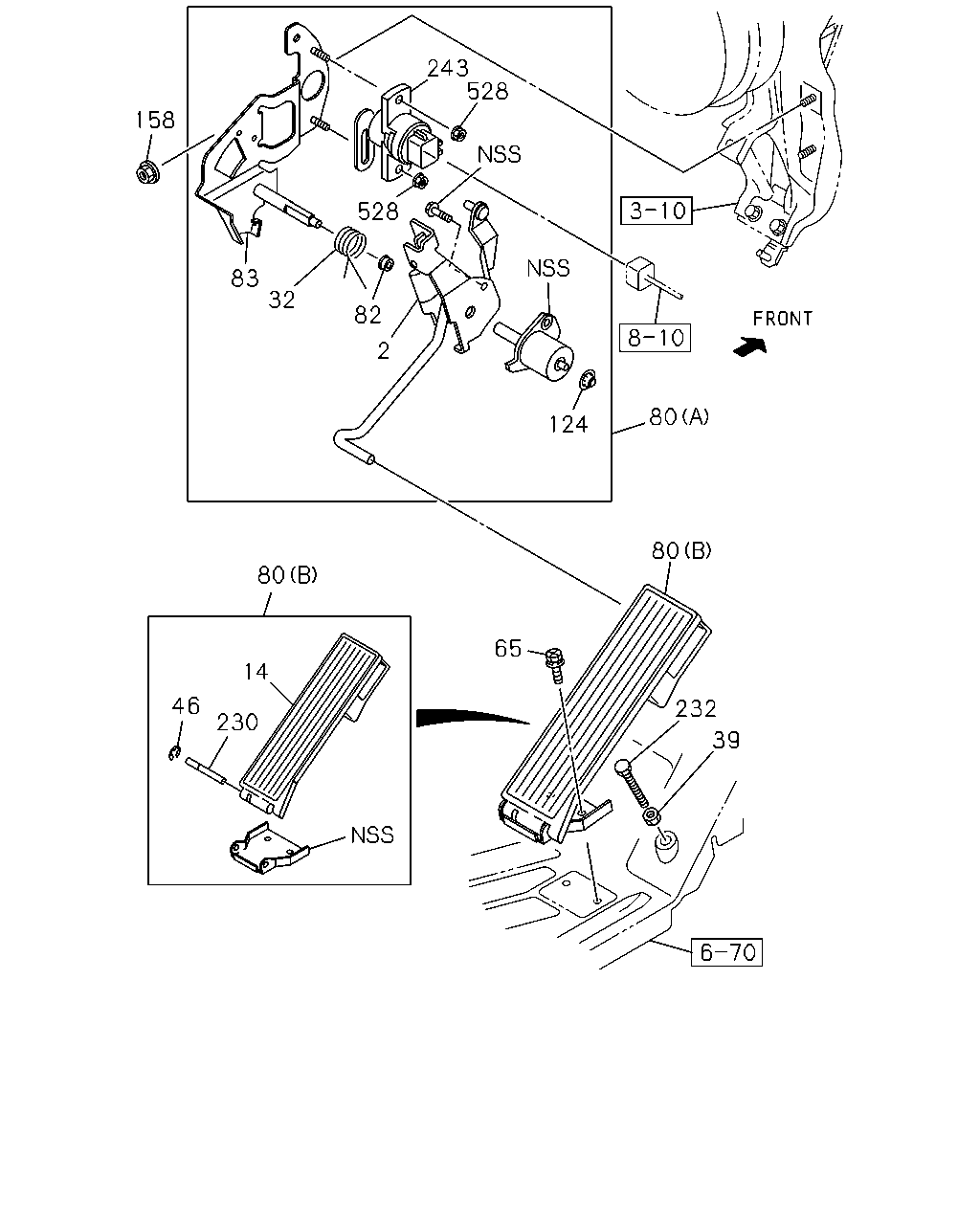

çizim 157698
243 528 158 528 83 32 82 2 80 124 80 80 65 14 46 232 230 39
BalonParca AdiParca NoAdetTipApplied Date A B C
2 LEVER; ENG CONT 8-98002-158-2 01 1 0804- ● ● ●
14 PAD; PEDAL,ACCEL
SOU 		8-97853-062-2 01 1 0804- ● ● ●
32 SPRING; RETURN,ACCEL PEDAL 8-98031-665-0 01 1 0804- ● ● ●
39 NUT; ACCEL PEDAL STOPPER
M8 SOU 		0-91110-508-0 01 1 0804- ● ● ●
46 RING; SNAP,ACCEL CONT PEDAL
ID=4 		0-91805-504-0 01 1 0804- ● ● ●
65 BOLT
M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 0804- ● ● ●
80 LINK ASM; ENG CONT
(A) 		8-97387-358-3 01 1 0804- ● ● ●
80 LINK ASM; ENG CONT
(B) SOU 		8-97853-061-2 01 1 0804- ● ● ●
82 BUSHING; ENG CONT LVR 8-97581-053-0 01 1 0804- ● ● ●
83 BRACKET; CONT LINK 8-98023-885-2 01 1 0804- ● ● ●
124 NUT; LEVER
ID=7.9 PUSH NUT SOU 		8-94368-617-0 01 1 0804- ● ● ●
158 NUT; BRKT
M8 FLANGE SOU 		8-94279-060-0 02 1 0804- ● ● ●
230 PIN; JOINT,ACCEL PEDAL TO BRKT
SOU 		8-97853-064-0 01 1 0804- ● ● ●
232 BOLT; STOPPER,ACCEL PEDAL
M8X45 		8-97378-461-0 01 1 0804- ● ● ●
243 SENSOR; ACCEL 8-97602-416-0 01 1 0804-0910 ● ● ●
243 SENSOR; ACCEL 8-98131-263-0 01 1 0911- ● ● ●
528 NUT; ACCEL SENSOR
M5 		8-94169-022-0 02 1 0804- ● ● ●

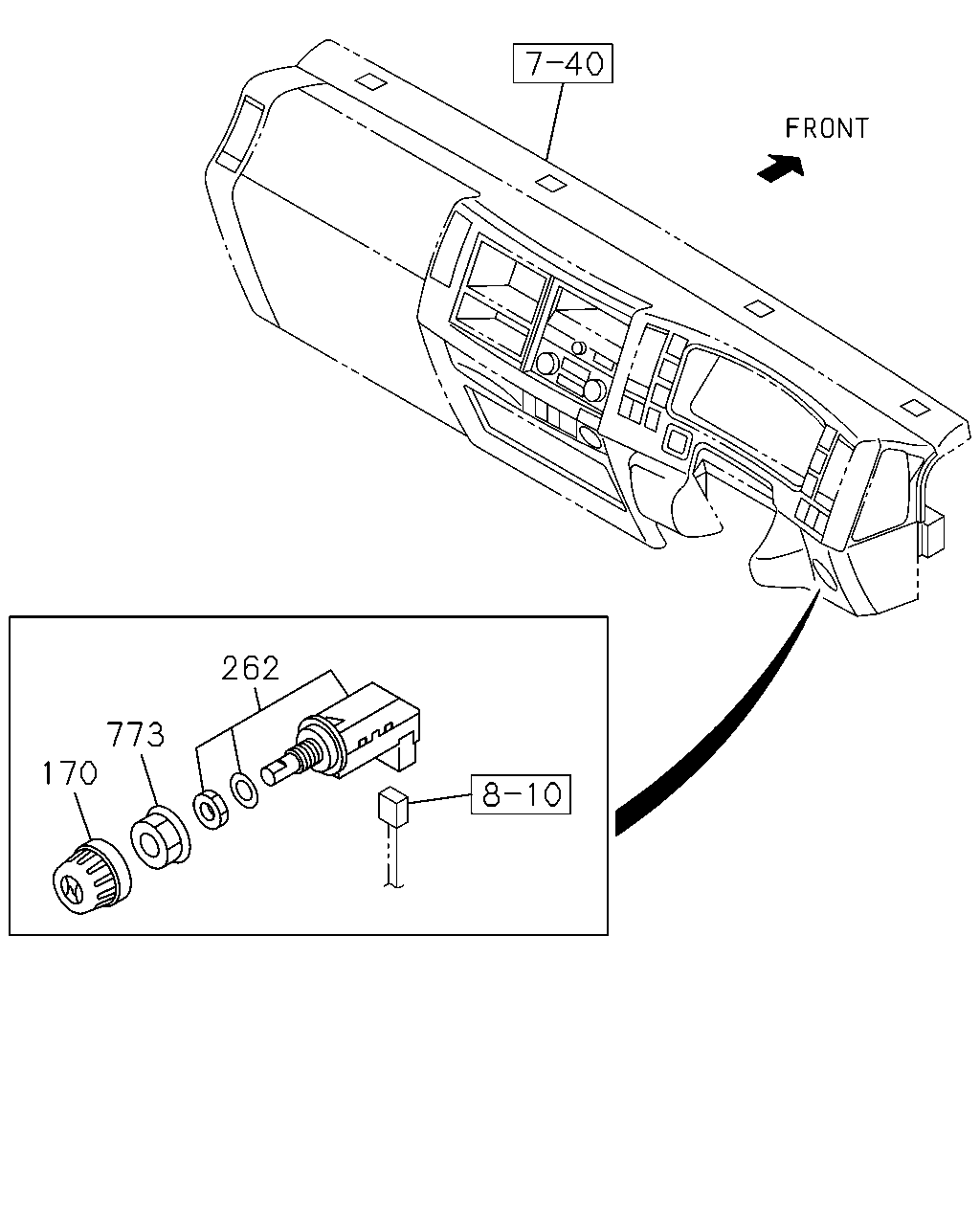

çizim 157699
262 773 170
BalonParca AdiParca NoAdetTipApplied Date A B C
170 KNOB 8-98013-420-0 01 1 0804- ● ● ●
262 SWITCH; ACCEL,IDLE 8-98013-418-0 01 1 0804- ● ● ●
773 HOLDER; ACCEL PEDAL 8-97352-127-0 01 1 0804- ● ● ●
