0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#50817) — 129 parça

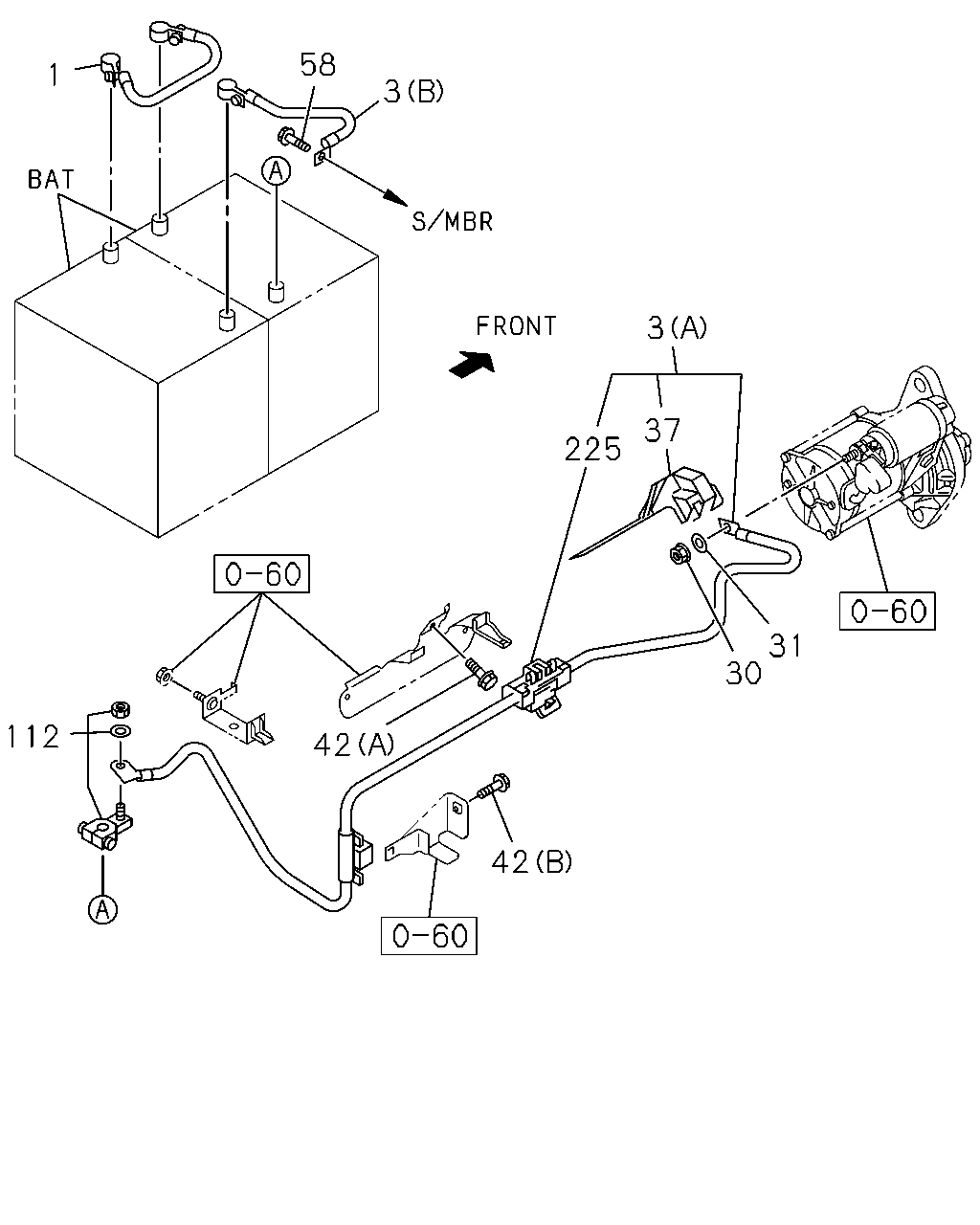

çizim 157690
58 1 3 3 37 225 31 30 112 42 42
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 0804-
3 HARNESS; CABLE,BATTERY TO STARTER
NPR SGL CAB(NP**SN) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. DUMP CHASSIS(V4D) (C) 		8-98137-187-1 01 1 0906-1409
3 HARNESS; CABLE,BATTERY TO STARTER
NPR SGL CAB(NP**SN) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. DUMP CHASSIS(V4D) (C) 		8-98294-738-0 01 1 1410-
3 HARNESS; CABLE,BATTERY TO STARTER
NPR SGL CAB(NP**SN) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),BATTERY 115E41L<8MA> (A) 		8-98137-179-1 01 1 0906-1409
3 HARNESS; CABLE,BATTERY TO STARTER
NPR SGL CAB(NP**SN) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),BATTERY 115E41L<8MA> (A) 		8-98294-737-0 01 1 1410-
3 HARNESS; CABLE,BATTERY TO STARTER
NPR SGL CAB(NP**SN) DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98116-880-1 01 1 0805-0812
3 HARNESS; CABLE,BATTERY TO STARTER
NPR SGL CAB(NP**SN) DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98137-177-1 01 1 0901-1409
3 HARNESS; CABLE,BATTERY TO STARTER
NPR SGL CAB(NP**SN) DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-694-0 01 1 1410-
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) BATTERY 115E41L<8MA> (D) L=400 		8-98056-339-1 01 1 0804-1203
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) BATTERY 115E41L<8MA> (D) L=400 		8-98201-105-0 01 1 1204-
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-1 01 1 0804-
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98070-230-1 01 1 0804-0812
3 HARNESS; CABLE,BATTERY TO STARTER
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98070-230-2 01 1 0901-1409
3 HARNESS; CABLE,BATTERY TO STARTER
NQR(NP***S) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98070-230-2 01 1 0901-1409
3 HARNESS; CABLE,BATTERY TO STARTER
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-721-0 01 1 1410-
3 HARNESS; CABLE,BATTERY TO STARTER
NQR(NP***S) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98294-721-0 01 1 1410-
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98067-966-2 01 1 0804-0804
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),BATTERY 115E41L<8MA> (A) 		8-98067-966-3 01 1 0805-0812
3 HARNESS; CABLE,BATTERY TO STARTER
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),POWER TAKE OFF CONTROL ELECTRIC(7GR),BATTERY 115E41L<8MA> (A) 		8-98067-966-4 01 1 0901-1409
3 HARNESS; CABLE,BATTERY TO STARTER
NQR(NP***S) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98067-966-4 01 1 0901-1409
3 HARNESS; CABLE,BATTERY TO STARTER
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),POWER TAKE OFF CONTROL ELECTRIC(7GR),BATTERY 115E41L<8MA> (A) 		8-98294-718-0 01 1 1410-
3 HARNESS; CABLE,BATTERY TO STARTER
NQR(NP***S) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-718-0 01 1 1410-
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98077-141-2 01 1 0804-1409
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98294-726-0 01 1 1410-
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-138-4 01 1 0804-1409
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-724-0 01 1 1410-
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) BATTERY 115E41L<8MA> (F) L=450 		8-98072-275-1 01 1 0804-
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (B) L=250 		8-98056-338-1 01 1 0804-
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (E) 		8-98108-588-1 01 1 0804-1409
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (E) 		8-98294-733-0 01 1 1410-
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98070-231-3 01 1 0804-1409
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-722-0 01 1 1410-
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (E) 		8-98108-590-1 01 1 0804-1409
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (E) 		8-98294-735-0 01 1 1410-
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-144-3 01 1 0804-1409
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-728-0 01 1 1410-
30 NUT; CABLE,STARTER TO BATTERY
M8 SOU 		0-91110-508-0 01 1 0804-
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 SOU 		0-91510-808-0 01 1 0804-
37 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 0804-0905
37 CAP; TERMINAL,BATTERY CABLE
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98042-507-0 01 1 0906-
37 CAP; TERMINAL,BATTERY CABLE
NQR SGL CAB(NPR5SS) NPR DBL CAB(NPR5WN) TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98042-507-0 01 1 0906-
37 CAP; TERMINAL,BATTERY CABLE
NPR SGL CAB(NP**SN) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. DUMP CHASSIS(V4D) 		8-98042-507-0 01 1 0906-
37 CAP; TERMINAL,BATTERY CABLE
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98042-507-0 01 1 0906-
37 CAP; TERMINAL,BATTERY CABLE
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> 		8-98042-507-0 01 1 0906-
42 BOLT; BRKT,BATTERY CABLE
(A) M6X16 FLANGE 		8-97329-599-0 01 1 0804-
42 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) BATTERY 115E41L<8MA> (C) M8X25 FLANGE SOU 		0-28650-825-0 01 1 0804-
42 BOLT; BRKT,BATTERY CABLE
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (B) M6X25 FLANGE SOU 		0-28650-625-0 01 1 0804-0809
42 BOLT; BRKT,BATTERY CABLE
NPR SGL CAB(NP**SN) DUMP CHASSIS(V4D) (B) M6X25 FLANGE SOU 		0-28650-625-0 01 1 0810-
42 BOLT; BRKT,BATTERY CABLE
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (B) M6X25 FLANGE SOU 		0-28650-625-0 01 1 0810-
58 BOLT; CABLE,BATTERY
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0804-1004
58 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005-
112 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 0804-
225 BLOCK; TERMINAL 8-98029-689-0 01 1 0804-0905
225 BLOCK; TERMINAL
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98029-689-0 01 1 0906-1409
225 BLOCK; TERMINAL
NQR SGL CAB(NPR5SS) NPR DBL CAB(NPR5WN) TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98029-689-0 01 1 0906-1409
225 BLOCK; TERMINAL
NPR SGL CAB(NP**SN) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. DUMP CHASSIS(V4D) 		8-98029-689-0 01 1 0906-1409
225 BLOCK; TERMINAL
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98029-689-0 01 1 0906-1409
225 BLOCK; TERMINAL
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> 		8-98029-689-0 01 1 0906-1409
225 BLOCK; TERMINAL
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98294-524-0 01 1 1410-
225 BLOCK; TERMINAL
NQR SGL CAB(NPR5SS) NPR DBL CAB(NPR5WN) TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98294-524-0 01 1 1410-
225 BLOCK; TERMINAL
NPR SGL CAB(NP**SN) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. DUMP CHASSIS(V4D) 		8-98294-524-0 01 1 1410-
225 BLOCK; TERMINAL
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98294-524-0 01 1 1410-
225 BLOCK; TERMINAL
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> 		8-98294-524-0 01 1 1410-

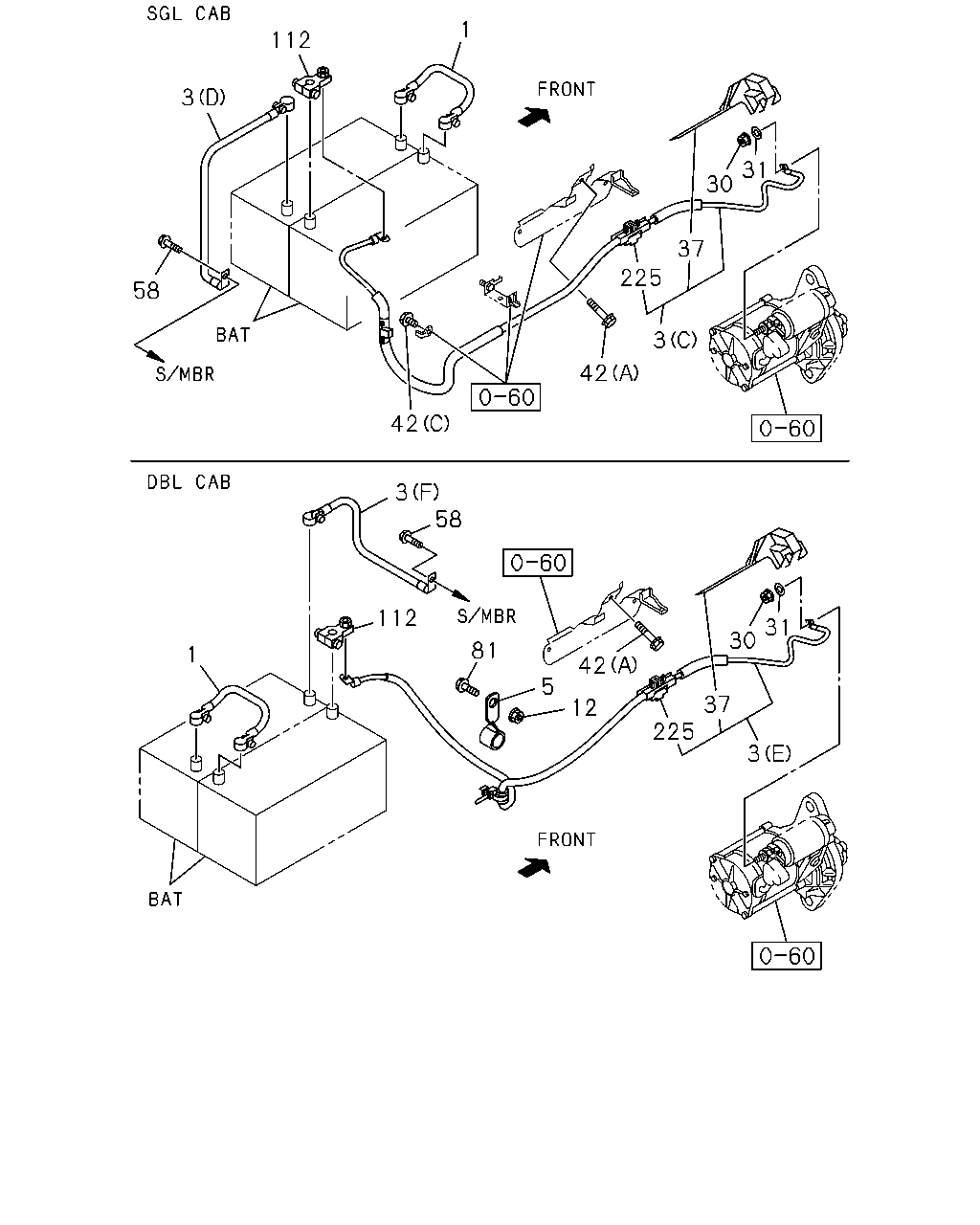

çizim 157692
1 112 3 31 30 37 225 58 3 42 42 3 58 112 31 30 81 1 42 5 37 225 12 3
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 0804-
3 HARNESS; CABLE,BATTERY TO STARTER
NPR SGL CAB(NP**SN) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. DUMP CHASSIS(V4D) (C) 		8-98137-187-1 01 1 0906-1409
3 HARNESS; CABLE,BATTERY TO STARTER
NPR SGL CAB(NP**SN) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. DUMP CHASSIS(V4D) (C) 		8-98294-738-0 01 1 1410-
3 HARNESS; CABLE,BATTERY TO STARTER
NPR SGL CAB(NP**SN) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),BATTERY 115E41L<8MA> (A) 		8-98137-179-1 01 1 0906-1409
3 HARNESS; CABLE,BATTERY TO STARTER
NPR SGL CAB(NP**SN) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),BATTERY 115E41L<8MA> (A) 		8-98294-737-0 01 1 1410-
3 HARNESS; CABLE,BATTERY TO STARTER
NPR SGL CAB(NP**SN) DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98116-880-1 01 1 0805-0812
3 HARNESS; CABLE,BATTERY TO STARTER
NPR SGL CAB(NP**SN) DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98137-177-1 01 1 0901-1409
3 HARNESS; CABLE,BATTERY TO STARTER
NPR SGL CAB(NP**SN) DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-694-0 01 1 1410-
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) BATTERY 115E41L<8MA> (D) L=400 		8-98056-339-1 01 1 0804-1203
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) BATTERY 115E41L<8MA> (D) L=400 		8-98201-105-0 01 1 1204-
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-1 01 1 0804-
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98070-230-1 01 1 0804-0812
3 HARNESS; CABLE,BATTERY TO STARTER
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98070-230-2 01 1 0901-1409
3 HARNESS; CABLE,BATTERY TO STARTER
NQR(NP***S) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98070-230-2 01 1 0901-1409
3 HARNESS; CABLE,BATTERY TO STARTER
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-721-0 01 1 1410-
3 HARNESS; CABLE,BATTERY TO STARTER
NQR(NP***S) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98294-721-0 01 1 1410-
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98067-966-2 01 1 0804-0804
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),BATTERY 115E41L<8MA> (A) 		8-98067-966-3 01 1 0805-0812
3 HARNESS; CABLE,BATTERY TO STARTER
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),POWER TAKE OFF CONTROL ELECTRIC(7GR),BATTERY 115E41L<8MA> (A) 		8-98067-966-4 01 1 0901-1409
3 HARNESS; CABLE,BATTERY TO STARTER
NQR(NP***S) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98067-966-4 01 1 0901-1409
3 HARNESS; CABLE,BATTERY TO STARTER
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),POWER TAKE OFF CONTROL ELECTRIC(7GR),BATTERY 115E41L<8MA> (A) 		8-98294-718-0 01 1 1410-
3 HARNESS; CABLE,BATTERY TO STARTER
NQR(NP***S) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-718-0 01 1 1410-
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98077-141-2 01 1 0804-1409
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98294-726-0 01 1 1410-
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-138-4 01 1 0804-1409
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-724-0 01 1 1410-
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) BATTERY 115E41L<8MA> (F) L=450 		8-98072-275-1 01 1 0804-
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (B) L=250 		8-98056-338-1 01 1 0804-
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (E) 		8-98108-588-1 01 1 0804-1409
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (E) 		8-98294-733-0 01 1 1410-
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98070-231-3 01 1 0804-1409
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-722-0 01 1 1410-
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (E) 		8-98108-590-1 01 1 0804-1409
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (E) 		8-98294-735-0 01 1 1410-
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-144-3 01 1 0804-1409
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-728-0 01 1 1410-
5 CLIP; BATTERY CABLE TO BODY
DBL CAB(NP**W*) BATTERY 115E41L<8MA> ID=19 L=58 		1-09700-733-1 01 1 0804-
12 NUT; BATTERY CABLE CLIP
DBL CAB(NP**W*) BATTERY 115E41L<8MA> M8 FLANGE SOU 		0-91180-108-0 01 1 0804-
30 NUT; CABLE,STARTER TO BATTERY
M8 SOU 		0-91110-508-0 01 1 0804-
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 SOU 		0-91510-808-0 01 1 0804-
37 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 0804-0905
37 CAP; TERMINAL,BATTERY CABLE
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98042-507-0 01 1 0906-
37 CAP; TERMINAL,BATTERY CABLE
NQR SGL CAB(NPR5SS) NPR DBL CAB(NPR5WN) TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98042-507-0 01 1 0906-
37 CAP; TERMINAL,BATTERY CABLE
NPR SGL CAB(NP**SN) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. DUMP CHASSIS(V4D) 		8-98042-507-0 01 1 0906-
37 CAP; TERMINAL,BATTERY CABLE
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98042-507-0 01 1 0906-
37 CAP; TERMINAL,BATTERY CABLE
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> 		8-98042-507-0 01 1 0906-
42 BOLT; BRKT,BATTERY CABLE
(A) M6X16 FLANGE 		8-97329-599-0 01 1 0804-
42 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) BATTERY 115E41L<8MA> (C) M8X25 FLANGE SOU 		0-28650-825-0 01 1 0804-
42 BOLT; BRKT,BATTERY CABLE
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (B) M6X25 FLANGE SOU 		0-28650-625-0 01 1 0804-0809
42 BOLT; BRKT,BATTERY CABLE
NPR SGL CAB(NP**SN) DUMP CHASSIS(V4D) (B) M6X25 FLANGE SOU 		0-28650-625-0 01 1 0810-
42 BOLT; BRKT,BATTERY CABLE
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (B) M6X25 FLANGE SOU 		0-28650-625-0 01 1 0810-
58 BOLT; CABLE,BATTERY
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0804-1004
58 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005-
81 BOLT; BATTERY CABLE
DBL CAB(NP**W*) BATTERY 115E41L<8MA> M8X25 FLANGE SOU 		0-28650-825-0 01 1 0804-
112 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 0804-
225 BLOCK; TERMINAL 8-98029-689-0 01 1 0804-0905
225 BLOCK; TERMINAL
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98029-689-0 01 1 0906-1409
225 BLOCK; TERMINAL
NQR SGL CAB(NPR5SS) NPR DBL CAB(NPR5WN) TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98029-689-0 01 1 0906-1409
225 BLOCK; TERMINAL
NPR SGL CAB(NP**SN) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. DUMP CHASSIS(V4D) 		8-98029-689-0 01 1 0906-1409
225 BLOCK; TERMINAL
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98029-689-0 01 1 0906-1409
225 BLOCK; TERMINAL
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> 		8-98029-689-0 01 1 0906-1409
225 BLOCK; TERMINAL
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98294-524-0 01 1 1410-
225 BLOCK; TERMINAL
NQR SGL CAB(NPR5SS) NPR DBL CAB(NPR5WN) TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98294-524-0 01 1 1410-
225 BLOCK; TERMINAL
NPR SGL CAB(NP**SN) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. DUMP CHASSIS(V4D) 		8-98294-524-0 01 1 1410-
225 BLOCK; TERMINAL
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98294-524-0 01 1 1410-
225 BLOCK; TERMINAL
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> 		8-98294-524-0 01 1 1410-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
