◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51172 - NPR/NQR(SOUTHAFRICA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶
0-41 — FUEL FILTER AND BRACKET (#50809) — 34 parça

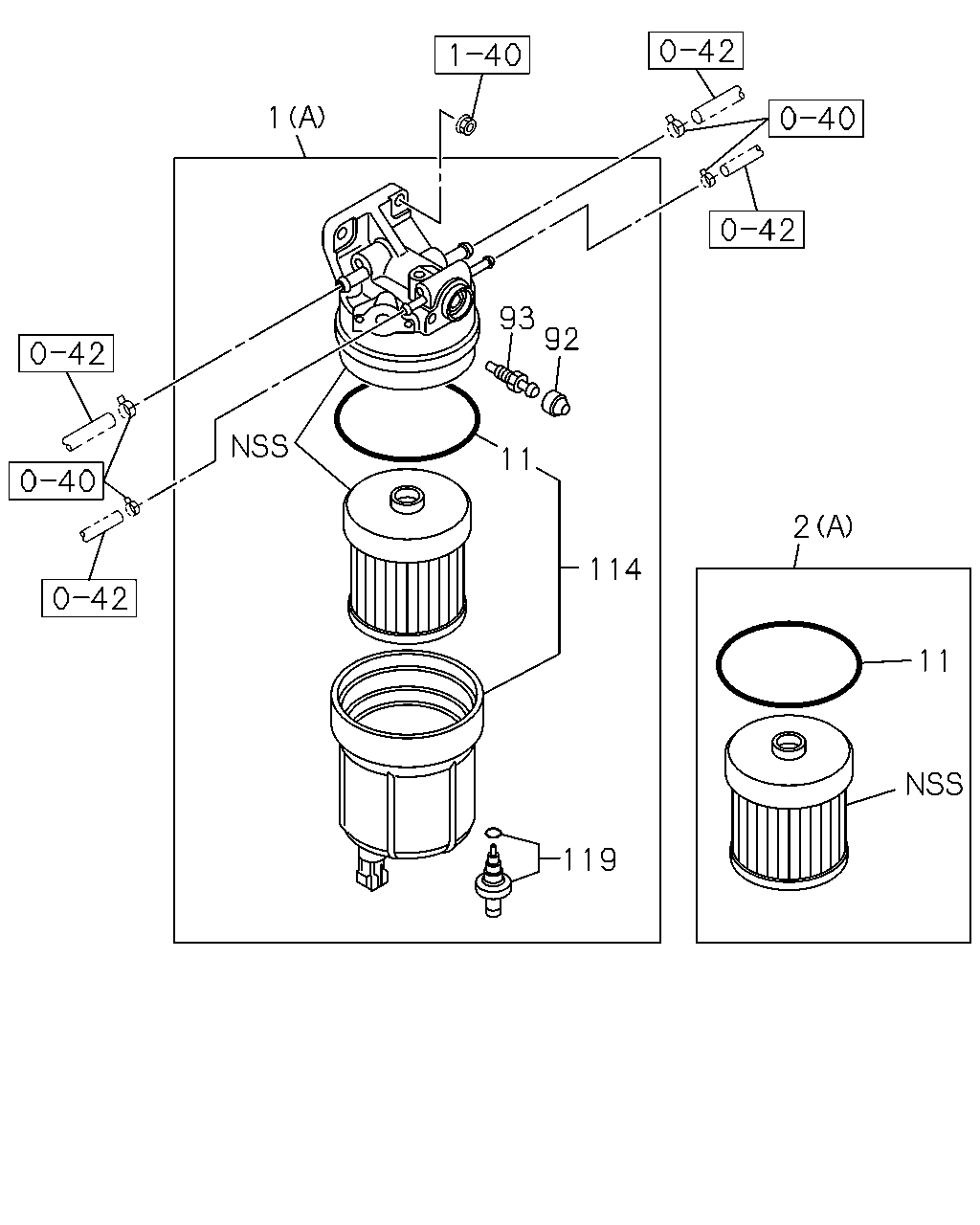

çizim 157674
1 93 92 11 2 114 11 119
BalonParca AdiParca NoAdetTipApplied Date
1 FILTER ASM; FUEL
(A) 		8-98060-050-1 01 1 0804-0912
1 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1001-
1 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 0804-
2 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-0 01 1 1201-
2 ELEMENT KIT; FUEL FILTER
(A) 		8-98037-011-0 01 1 0804-0912
2 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1001-1112
2 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1201-
2 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-983-0 01 1 0804-
11 GASKET; CASE TO BODY,FUEL FILTER 8-98037-015-0 01 1 0804-1112
11 GASKET; CASE TO BODY,FUEL FILTER 8-98203-600-0 01 1 1201-
92 CAP; FUEL FILTER 8-98034-314-0 01 1 0804-
93 CONNECTOR; FUEL FILTER
M8X10 		8-98034-312-0 01 1 0804-
114 CASE ASM; FUEL FILTER 8-98039-987-1 01 1 0804-
119 PLUG; DRAIN,FUEL FILTER 8-98037-095-0 01 1 0804-
çizim 157675
131 131 2 1 136 1 1 40 88 40 88
BalonParca AdiParca NoAdetTipApplied Date
1 FILTER ASM; FUEL
(A) 		8-98060-050-1 01 1 0804-0912
1 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1001-
1 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 0804-
2 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-0 01 1 1201-
2 ELEMENT KIT; FUEL FILTER
(A) 		8-98037-011-0 01 1 0804-0912
2 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1001-1112
2 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1201-
2 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-983-0 01 1 0804-
40 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W), WHEELBASE 3800MM(38W),WHEEL BASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) EXC. DUMP CHASSIS(V4D) (B) 		8-98107-354-3 01 1 0804-0810
40 BRACKET; FUEL FILTER
NPR SGL CAB(NP**SN) POOR QUALITY DIESEL FUEL(KF0) EXC. DUMP CHASSIS(V4D) (B) 		8-98107-354-3 01 1 0811-
40 BRACKET; FUEL FILTER
NQR(NP***S) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEELBASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98107-354-3 01 1 0811-
40 BRACKET; FUEL FILTER
DBL CAB(NP**W*) POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98107-354-3 01 1 0811-
40 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W) POOR QUALITY DIESEL FUEL(KF0) DUMP CHASSIS(V4D) (A) 		8-98107-353-1 01 1 0804-0806
40 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W) POOR QUALITY DIESEL FUEL(KF0) DUMP CHASSIS(V4D) (A) 		8-98121-708-0 01 1 0807-
88 BOLT; BRKT,FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) M10X30 FLANGE SOU 		0-28651-030-0 01 1 0804-1009
88 BOLT; BRKT,FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) M10X30 FLANGE SOU 		0-28651-030-0 02 1 1010-
131 PIPE; FILTER
POOR QUALITY DIESEL FUEL(KF0) 		8-97358-699-0 02 1 0804-0908
131 PIPE; FILTER
POOR QUALITY DIESEL FUEL(KF0) NPTF3/8-18 OD=10 		8-98122-953-0 02 1 0909-
136 CAP KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) 		8-98096-004-0 01 1 0804-1408
136 CAP KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) 		8-98279-324-0 01 1 1409-
