◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51172 - NPR/NQR(SOUTHAFRICA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#50808) — 104 parça

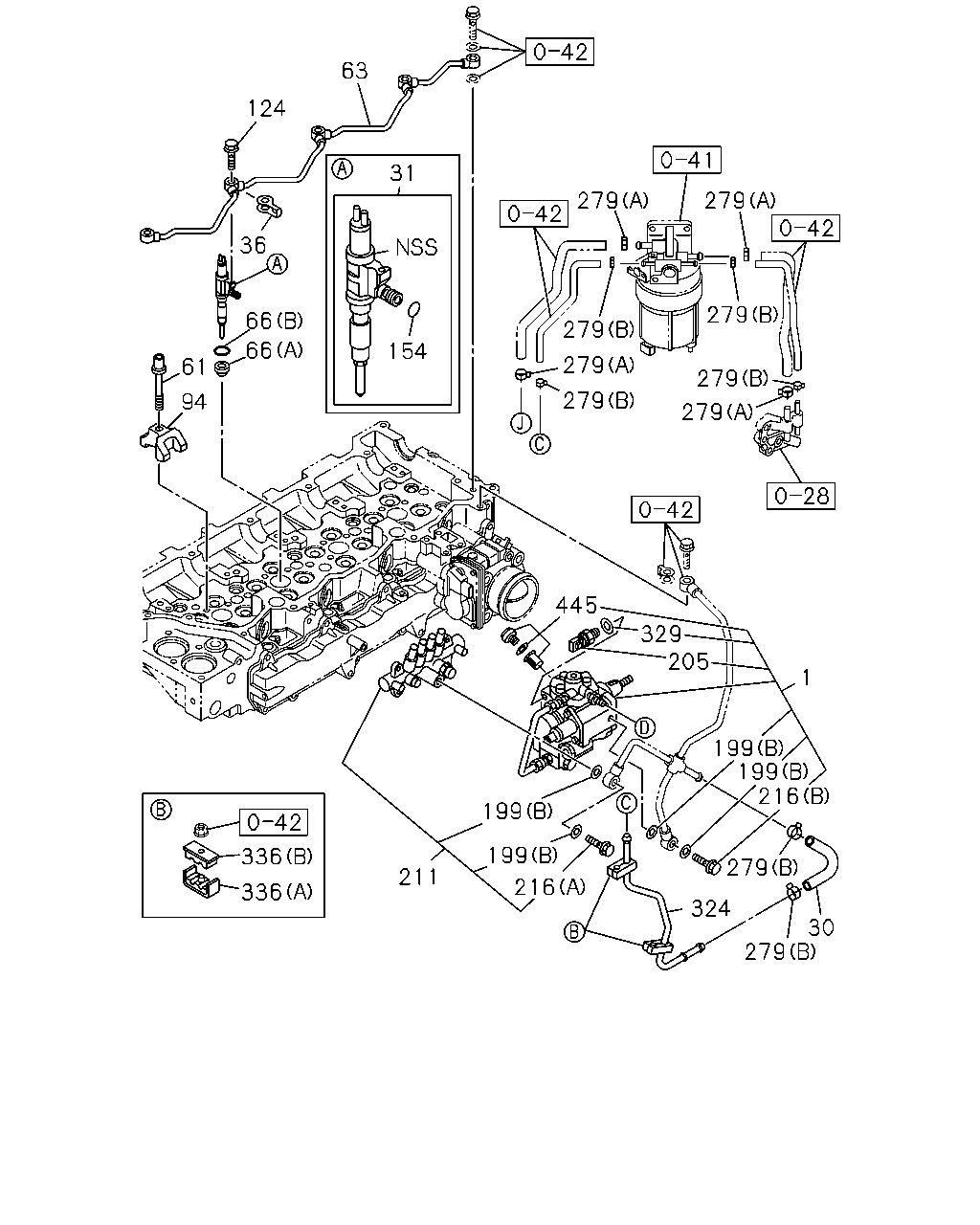

çizim 157671
279 279 279 279 279 279 279 279 279 279 63 31 154 66 66 36 124 61 94 336 336 211 199 199 216 445 329 205 1 199 199 216 324 30
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ 8-97386-557-5 01 1 0804-
30 HOSE; RUBBER,FUEL LEAK 8-98036-320-2 01 1 0804-
31 NOZZLE ASM; INJ 8-97609-788-6 04 1 0804-
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 		8-97600-925-0 04 1 0804-0908
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 0909-
61 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 0804-
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 0804-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3 		8-94173-412-0 04 1 0804-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-97601-447-2 04 1 0804-0909
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 04 1 0910-
94 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 0804-
124 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 0804-
154 GASKET; CONNECTOR
ID=11.0 		9-09561-111-0 04 1 0804-1106
154 GASKET; CONNECTOR
ID=11.0 		0-95690-111-0 04 1 1107-
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0804-
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0804-
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0804-
211 RAIL ASM; COMMON 8-98011-888-2 01 1 0804-
216 BOLT; EYE
(C) 		5-15759-003-0 01 1 0804-
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0804-
216 BOLT; EYE
(A) 		8-98043-033-0 01 1 0804-
279 CLIP; FUEL HOSE
(A) ID=16 		8-97329-628-0 04 1 0804-
279 CLIP; FUEL HOSE
(B) ID=11.5 		8-97375-638-0 06 1 0804-
324 PIPE; FUEL RETURN 8-98036-173-0 01 1 0804-
329 GASKET; SENSOR,FUEL TEMP
ID=9.8 OD=11.7 		9-09566-110-0 01 1 0804-1201
336 CLIP; FUEL PIPE
(A) ID=8 & 9 L=25 		8-97603-522-0 02 1 0804-
336 CLIP; FUEL PIPE
(B) ID=8 & 9 L=25 		8-97603-523-0 02 1 0804-
445 SCREW; FILTER,INLET 8-98204-986-0 01 1 0804-

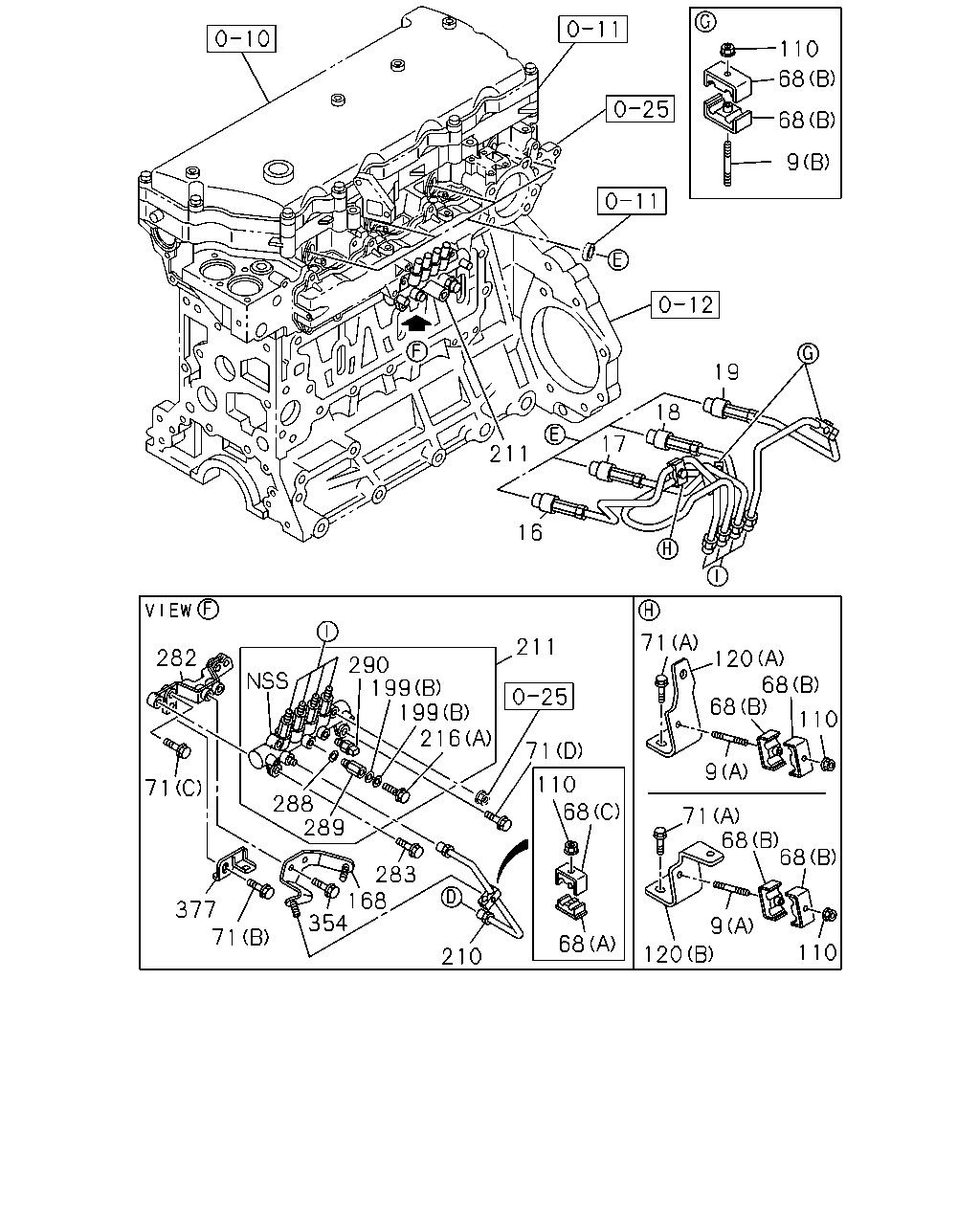

çizim 157672
110 68 68 9 19 211 18 17 16 71 211 282 120 68 68 290 199 199 216 110 71 9 110 68 71 288 289 71 68 68 283 168 354 377 71 9 68 110 120 210
BalonParca AdiParca NoAdetTipApplied Date
9 STUD; CLIP
(B) M6X30 L=38 		0-41010-630-0 02 1 0804-
9 STUD; CLIP
(A) M6X35 L=43 		8-97203-278-0 01 1 0804-
16 PIPE; INJ NO.1 8-98039-934-0 01 1 0804-1102
16 PIPE; INJ NO.1 8-98185-344-0 01 1 1103-1404
16 PIPE; INJ NO.1 8-98271-202-0 01 1 1405-1501
16 PIPE; INJ NO.1 8-98298-606-0 01 1 1502-
17 PIPE; INJ NO.2 8-98039-935-0 01 1 0804-1102
17 PIPE; INJ NO.2 8-98185-345-0 01 1 1103-1404
17 PIPE; INJ NO.2 8-98271-203-0 01 1 1405-1501
17 PIPE; INJ NO.2 8-98298-607-0 01 1 1502-
18 PIPE; INJ NO.3 8-98039-936-0 01 1 0804-1102
18 PIPE; INJ NO.3 8-98185-346-0 01 1 1103-1404
18 PIPE; INJ NO.3 8-98271-204-0 01 1 1405-1501
18 PIPE; INJ NO.3 8-98298-608-0 01 1 1502-
19 PIPE; INJ NO.4 8-98039-937-0 01 1 0804-1102
19 PIPE; INJ NO.4 8-98185-347-0 01 1 1103-1404
19 PIPE; INJ NO.4 8-98271-205-0 01 1 1405-1501
19 PIPE; INJ NO.4 8-98298-609-0 01 1 1502-
68 CLIP; INJ PIPE
(C) 		1-09701-195-3 01 1 0804-
68 CLIP; INJ PIPE
(A) 		1-09701-196-2 01 1 0804-
68 CLIP; INJ PIPE
(B) 		8-98039-293-0 06 1 0804-1405
68 CLIP; INJ PIPE
(B) ID=11 & 11 L=19 		8-98148-996-2 06 1 1406-
71 BOLT; BRKT
(A) M8X16 FLANGE SOU 		0-28050-816-0 01 1 0804-
71 BOLT; BRKT
(C) M8X40 FLANGE 		0-28050-840-0 01 1 0804-
71 BOLT; BRKT
(D) M8X50 FLANGE 		0-28050-850-0 01 1 0804-
71 BOLT; BRKT
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M6X10 FLANGE SOU 		0-28050-610-0 01 1 0804-
71 BOLT; BRKT
EURO3 SPECIFICATION(NT3) (B) M6X10 FLANGE SOU 		0-28050-610-0 02 1 0804-
110 NUT; CLIP
M6 FLANGE SOU 		0-91180-106-0 04 1 0804-
120 BRACKET; INJ PIPE
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98001-041-0 01 1 0804-0906
120 BRACKET; INJ PIPE
EURO3 SPECIFICATION(NT3) (B) 		8-98041-601-0 01 1 0804-0906
120 BRACKET; INJ PIPE
(B) 		8-98041-601-0 01 1 0907-
168 BRACKET; FUEL PIPE 8-98036-175-1 01 1 0804-
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0804-
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0804-
210 PIPE; INJ,C/R 8-98036-176-1 01 1 0804-
211 RAIL ASM; COMMON 8-98011-888-2 01 1 0804-
216 BOLT; EYE
(C) 		5-15759-003-0 01 1 0804-
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0804-
216 BOLT; EYE
(A) 		8-98043-033-0 01 1 0804-
282 BRACKET; COMMON RAIL 8-97324-194-0 01 1 0804-1005
282 BRACKET; COMMON RAIL 8-98157-115-0 01 1 1006-
283 BOLT; COMMON RAIL
M8X25 FLANGE SOU 		0-28050-825-0 01 1 0804-
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0804-
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 0804-
290 SENSOR; PRESS 8-97318-684-0 01 1 0804-0809
290 SENSOR; PRESS 8-98119-790-0 01 1 0810-
354 BOLT; FUEL PIPE
M8X16 FLANGE SOU 		0-28050-816-0 02 1 0804-
377 BRACKET; HARNESS
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97310-438-1 01 1 0804-
377 BRACKET; HARNESS
EURO3 SPECIFICATION(NT3) 		8-97310-438-1 02 1 0804-

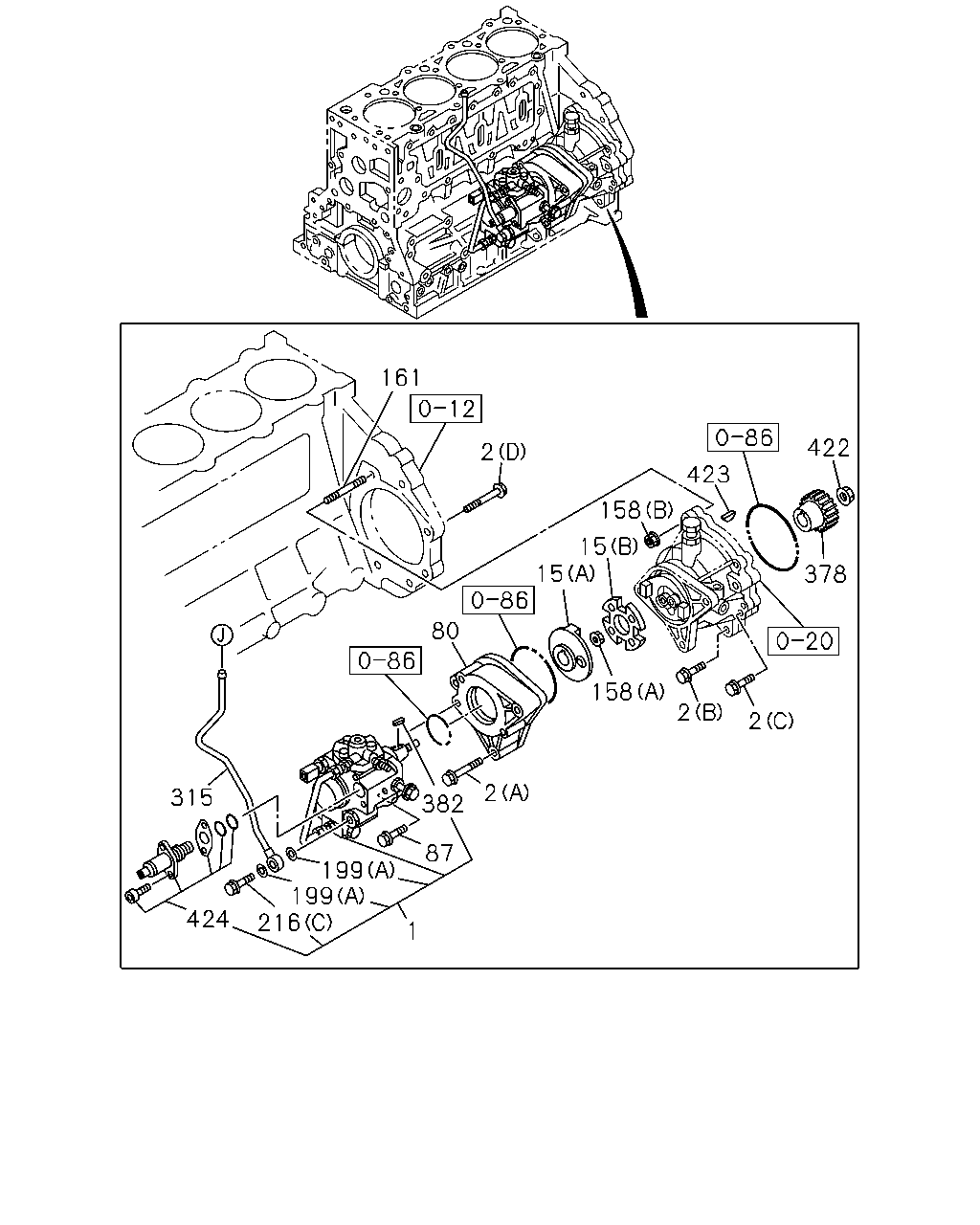

çizim 157673
161 422 2 423 158 15 15 378 80 158 2 2 2 315 382 87 199 199 216 424 1
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ 8-97386-557-5 01 1 0804-
2 BOLT; INJ PUMP
(A) M10X60 FLANGE SOU 		0-28051-060-0 03 1 0804-
2 BOLT; INJ PUMP
(B) M10X70 FLANGE 		0-28151-070-0 01 1 0804-
2 BOLT; INJ PUMP
(C) M12X70 FLANGE 		0-28151-270-0 01 1 0804-
2 BOLT; INJ PUMP
(D) M12X95 FLANGE 		8-94396-485-1 01 1 0804-
15 COUPLING ASM; INJ PUMP
(A) 		8-97306-054-0 01 1 0804-
15 COUPLING ASM; INJ PUMP
(B) SEE FIG-NO 0-87 FOR COMPONENT. 		8-97306-059-1 01 1 0804-
80 BRACKET; PUMP 8-98061-699-0 01 1 0804-
87 BOLT; PUMP
M8X30 FLANGE 		0-28650-830-0 03 1 0804-
158 NUT; INJ PUMP
(B) M10 FLANGE SOU 		0-91180-110-0 02 1 0804-
158 NUT; INJ PUMP
(A) M14 FLANGE 		0-91180-114-0 01 1 0804-
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0804-0910
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97066-386-1 02 1 0911-
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0804-
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0804-
216 BOLT; EYE
(C) 		5-15759-003-0 01 1 0804-
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0804-
216 BOLT; EYE
(A) 		8-98043-033-0 01 1 0804-
315 PIPE; FUEL,SUCTION 8-98036-172-0 01 1 0804-0808
315 PIPE; FUEL,SUCTION 8-98126-333-0 01 1 0809-
378 GEAR; PUMP
Z=35 		8-98017-915-0 01 1 0804-
382 KEY; DRIVE SHAFT 8-97375-384-0 01 1 0804-1201
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1202-
422 NUT; GEAR
M18 		8-97141-154-0 01 1 0804-
423 KEY; GEAR 9-08055-519-0 01 1 0804-
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER 		8-98145-484-0 01 1 0804-0905
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 0906-
