Isuzu WW
▶
TRUCKS
▶
NPR
▶
51172 - NPR/NQR(SOUTHAFRICA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶
0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#50795) — 32 parça
◀

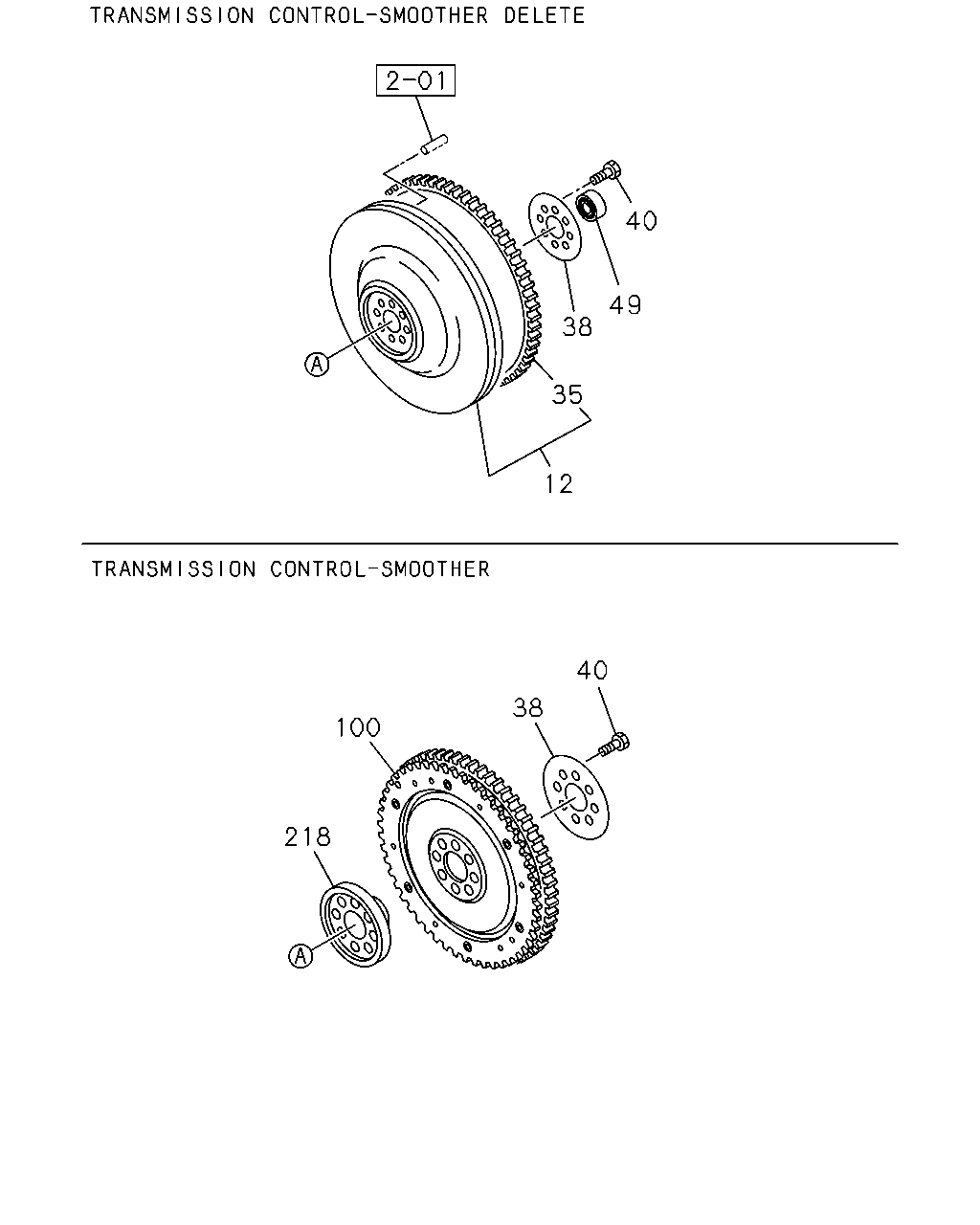

[015A] FLYWHEEL (10 parça)

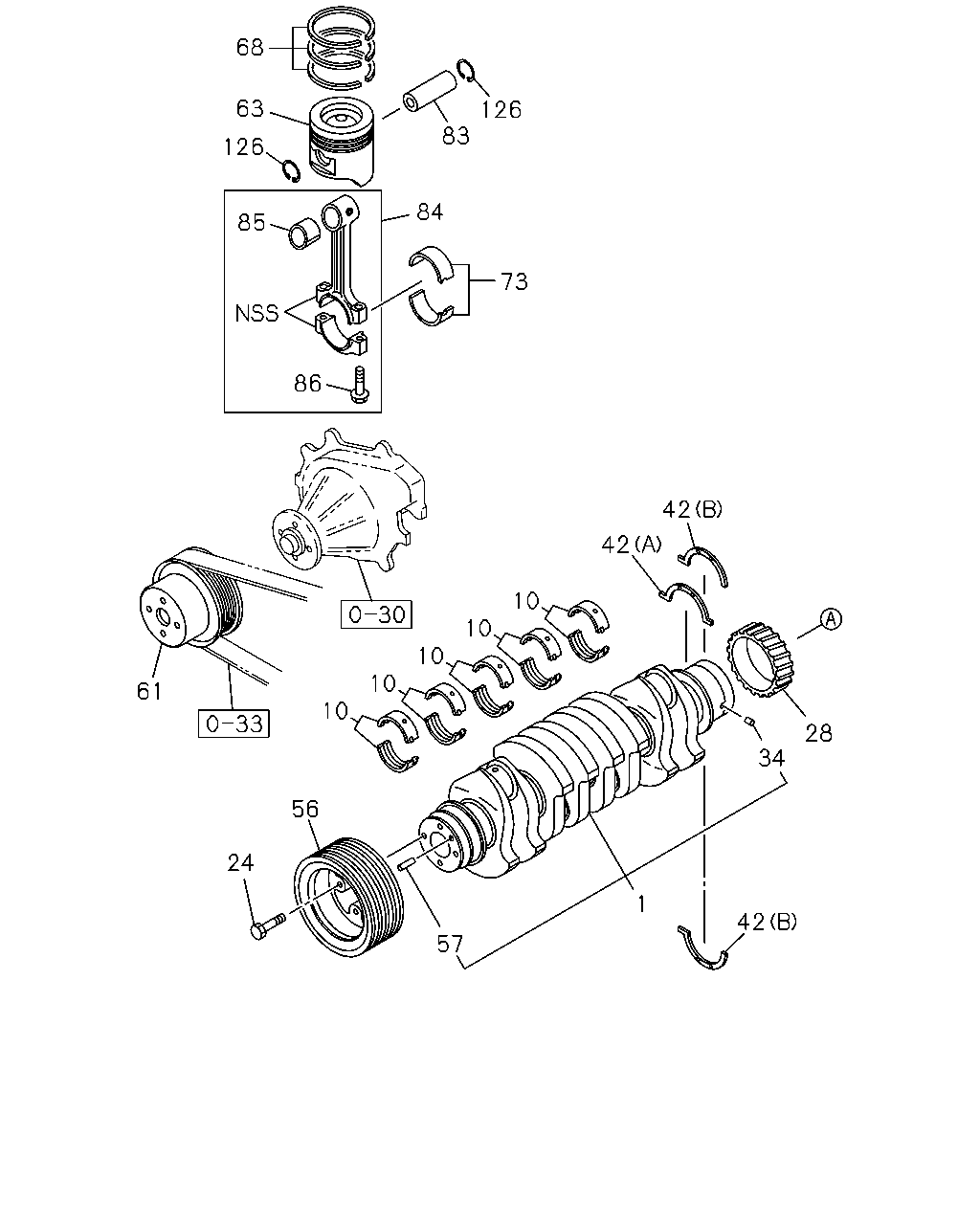

[015A] CRANKSHAFT AND PISTON (22 parça)
▶
40
49
38
35
12
40
38
100
218
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
FLYWHEEL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-97326-227-2
01
1
0804-
35
GEAR; RING
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=138
8-97046-366-1
01
1
0804-
38
WASHER; FLYWHEEL
EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) ID=50 OD=120
8-98001-510-0
01
1
0804-1009
38
WASHER; FLYWHEEL
EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) ID=50 OD=140
8-98176-366-0
01
1
1010-
38
WASHER; FLYWHEEL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=55 OD=110
8-94397-496-1
01
1
0804-
40
BOLT; FLYWHEEL
M16X42
8-97178-013-0
08
1
0804-
49
BEARING; PILOT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-97258-239-0
01
1
0804-
49
BEARING; PILOT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BEST VALUE PARTS
5-87610-164-0
01
1
0804-
100
PLATE; FLEX
EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)
8-97362-336-3
01
1
0804-
218
SPACER; CRANK END
EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)
8-97332-858-1
01
1
0804-
68
63
126
85
86
126
83
84
73
42
42
10
10
10
10
10
61
56
24
57
1
34
28
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CRANKSHAFT
8-98029-270-0
01
1
0804-
10
METAL SET; CRANKSHAFT,STANDARD
BLUE
8-97372-076-1
05
1
0804-
10
METAL SET; CRANKSHAFT,STANDARD
BLACK
8-97372-077-1
05
1
0804-
10
METAL SET; CRANKSHAFT,STANDARD
BROWN
8-97372-078-1
05
1
0804-
24
BOLT; DAMPER
M16X42
8-97028-733-0
04
1
0804-
28
GEAR; CR/SHF
Z=42
8-94394-342-4
01
1
0804-
34
PIN; GEAR SETTING
OD=5 L=6
9-09878-626-0
01
1
0804-
42
WASHER; THRUST,CR/SHF
(A)
8-97386-548-0
01
1
0804-
42
WASHER; THRUST,CR/SHF
(B)
8-97386-549-0
02
1
0804-
56
PULLEY; CR/SHF DAMPER
3-GROOVE
8-98004-024-3
01
1
0804-
57
PIN; PULLEY
OD=8 L=20
9-08150-820-0
02
1
0804-
61
PULLEY; FAN DRIVE
1-GROOVE
8-98003-384-1
01
1
0804-
63
PISTON
ALSO INCLUDED IN LINER SET. NON GRADE
8-98041-141-2
04
1
0804-
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
8-98040-125-0
04
1
0804-
73
METAL SET; CONN ROD,STANDARD
YELLOW
8-98055-479-0
04
1
0804-
73
METAL SET; CONN ROD,STANDARD
GREEN
8-98055-480-0
04
1
0804-
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
8-98018-863-1
04
1
0804-
84
ROD ASM; CONN
8-98018-425-3
04
1
0804-
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
8-94391-794-1
04
1
0804-
86
BOLT; CONNROD
M13X57 FLANGE
1-12235-035-0
08
1
0804-1004
86
BOLT; CONNROD
M13X57 FLANGE
8-98091-141-0
08
1
1005-
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=43.7
8-98006-828-0
08
1
0804-
