◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10722 - CXH RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-37C - MANUAL TRANSMISSION CONT; MISSION SIDE ▶
2-37C — MANUAL TRANSMISSION CONT; MISSION SIDE (#5079) — 154 parça
çizim 6878
24 28 15 25 15 112 25 22 25 22 25 22 24 28 30 45 49 35 32 5 8 35 32 47 47 30 49 45 36 44 6 38 38 36 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E
5 ROD; LINK,3RD SHIFT
6WA1 TC-S(56L) L=1110 		1-33652-623-0 01 1 9606-9702 ●
5 ROD; LINK,3RD SHIFT
6WA1 TC-S(56L) L=1110 		1-33652-623-0 01 1 9703-9706 ●
5 ROD; LINK,3RD SHIFT
6WA1 TC-S(56L),6WG1 TC-N(71L) L=1110 		1-33652-623-0 01 1 9707-9905 ● ●
5 ROD; LINK,3RD SHIFT
EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> L=1110 		1-33652-623-0 01 1 9906- ● ● ●
5 ROD; LINK,3RD SHIFT
CAB UP +110MM<TGG> L=1120 		1-33652-603-0 01 1 9906- ● ● ●
6 ROD; LINK,3RD SELECT
CAB UP +110MM<TGG> L=1623 		1-33652-808-0 01 1 9906- ● ● ●
6 ROD; LINK,3RD SELECT
6WA1 TC-S(56L) L=1613 		1-33652-729-0 01 1 9606-9706 ●
6 ROD; LINK,3RD SELECT
6WA1 TC-S(56L),6WG1 TC-N(71L) L=1613 		1-33652-729-0 01 1 9707-9905 ● ●
6 ROD; LINK,3RD SELECT
EXC. CAB UP +110MM<TGG> L=1613 		1-33652-729-0 01 1 9906- ● ● ●
8 ROD; LINK,4TH SHIFT
6WA1 TC-S(56L) L=480 		1-33652-730-0 01 1 9606-9706 ●
8 ROD; LINK,4TH SHIFT
6WA1 TC-S(56L),6WG1 TC-N(71L) L=480 		1-33652-730-0 01 1 9707-9905 ● ●
8 ROD; LINK,4TH SHIFT
L=480 		1-33652-730-0 01 1 9906- ● ● ●
15 ROD; LINK 1ST SHIFT
(D) L=435 		1-33652-696-0 01 1 9606-9701 ●
15 ROD; LINK 1ST SHIFT
(D) L=435 		1-33652-696-0 01 1 9702-9905 ● ●
15 ROD; LINK 1ST SHIFT
(D) L=435 		1-33652-696-0 01 1 9906-9906 ● ●
15 ROD; LINK 1ST SHIFT
(D) L=435 		1-33652-696-0 01 1 9907- ● ● ●
15 ROD; LINK 1ST SHIFT
6WG1 TC-N(71L) (C) L=438 		1-33652-682-0 01 1 9606-9706 ● ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (C) L=438 		1-33652-682-0 01 1 9707-9711 ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (C) L=428 		1-33652-781-0 01 1 9712-9905 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (C) L=428 		1-33652-781-1 01 1 9906- ● ●
15 ROD; LINK 1ST SHIFT
6WG1 TC-N(71L) (B) L=497 		1-33652-716-0 01 1 9606-9706 ● ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (B) L=497 		1-33652-716-0 01 1 9707-9711 ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (B) L=490 		1-33652-780-0 01 1 9712-9905 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) L=490 		1-33652-780-0 01 1 9906- ● ●
15 ROD; LINK 1ST SHIFT
6WG1 TC-N(71L) (C) L=427 		1-33652-714-0 01 1 9707-9905 ● ●
15 ROD; LINK 1ST SHIFT
CAB UP +110MM<TGG> (C) L=423 		1-33652-804-1 01 1 9906- ● ● ●
15 ROD; LINK 1ST SHIFT
6WG1 TC-N(71L) (B) L=485 		1-33652-713-0 01 1 9709-9905 ● ●
15 ROD; LINK 1ST SHIFT
CAB UP +110MM<TGG> (B) L=474 		1-33652-803-0 01 1 9906- ● ● ●
22 JOINT; BALL,SCREW,LINK ROD
6WA1 TC-S(56L) (A) SHIFT L=64.5 		1-09760-111-0 01 1 9606-9710 ●
22 JOINT; BALL,SCREW,LINK ROD
6WG1 TC-N(71L) (B) SELECT 		1-09760-109-0 02 1 9606-9706 ● ●
22 JOINT; BALL,SCREW,LINK ROD
6WA1 TC-S(56L),6WG1 TC-N(71L) (B) SELECT 		1-09760-109-0 02 1 9707-9905 ● ●
22 JOINT; BALL,SCREW,LINK ROD
L TYPE ENG<90L> (B) SELECT 		1-09760-109-0 02 1 9906- ● ● ●
22 JOINT; BALL,SCREW,LINK ROD
6WG1 TC-N(71L) (A) SHIFT 		1-09760-125-0 01 1 9709-9710 ● ●
22 JOINT; BALL,SCREW,LINK ROD
(A) SHIFT 		1-09760-125-0 01 1 9711-9905 ● ●
22 JOINT; BALL,SCREW,LINK ROD
(A) SHIFT 		1-09760-125-0 01 1 9906- ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-050-0 02 1 9606-9708 ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-050-0 01 1 9709-9710 ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-056-0 01 1 9709-9710 ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-056-0 02 1 9711-9802 ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9803-9905 ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9906-0007 ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 01 1 0008- ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 01 1 0008- ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) M12 		9-99111-412-0 02 1 9606-9708 ●
25 NUT; LK,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L) (A) M12 		9-99111-412-0 02 1 9709-9905 ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) M12 		9-99111-412-0 02 1 9906- ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
6WG1 TC-N(71L) (B) M10 		9-09111-410-0 02 1 9606-9706 ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L) (B) M10 		9-09111-410-0 02 1 9707-9905 ●
25 NUT; LK,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> (B) M10 		9-09111-410-0 02 1 9906- ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
6WG1 TC-N(71L) (A) M10 		9-09111-510-0 02 1 9707-9905 ● ●
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-049-0 02 1 9606-9804 ● ●
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9805-9905 ● ●
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9906-0007 ● ● ●
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-062-1 01 1 0008- ● ● ●
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-062-1 01 1 0008- ● ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-110-0 02 1 9606-9706 ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-110-0 02 1 9707-9710 ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-124-0 02 1 9711-9905 ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-124-0 02 1 9906- ● ● ●
32 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-050-0 02 1 9606-9710 ● ●
32 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-056-0 02 1 9711-9802 ● ●
32 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 9803-9905 ● ●
32 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 9906- ● ● ●
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9606-9706 ●
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9707-9905 ● ●
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9906- ● ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L) 		1-09760-109-0 02 1 9606-9609 ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L) 		1-09760-109-0 02 1 9610-9612 ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L) 		1-09760-109-0 02 1 9701-9706 ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L),6WG1 TC-N(71L) 		1-09760-109-0 02 1 9707-9807 ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L),6WG1 TC-N(71L) 		1-09760-109-0 02 1 9808-9905 ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-109-0 02 1 9906-9906 ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-109-0 02 1 9907- ● ● ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-049-0 02 1 9606-9804 ● ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-062-0 02 1 9805-9807 ● ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 0001- ● ● ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9808-9905 ● ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9906-9912 ● ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L) M10 		9-09111-410-0 02 1 9606-9609 ●
44 NUT; LK,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L) M10 		9-09111-410-0 02 1 9610-9612 ●
44 NUT; LK,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L) M10 		9-09111-410-0 02 1 9701-9706 ●
44 NUT; LK,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L),6WG1 TC-N(71L) M10 		9-09111-410-0 02 1 9707-9807 ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L),6WG1 TC-N(71L) M10 		9-09111-410-0 02 1 9808-9905 ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9906-9906 ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9907- ● ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L) 		1-09760-117-0 02 1 9606-9609 ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-117-0 02 1 9610-9706 ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L),6WG1 TC-N(71L) 		1-09760-117-0 02 1 9707-9710 ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L),6WG1 TC-N(71L) 		1-09760-125-0 02 1 9711-9905 ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-125-0 02 1 9906- ● ● ●
47 NUT; 4TH LINK ROD
(A) M10 FLANGE 		1-09440-050-0 02 1 9606-9710 ● ●
47 NUT; 4TH LINK ROD
(A) M10 FLANGE 		1-09440-056-0 02 1 9711-9802 ● ●
47 NUT; 4TH LINK ROD
(A) M10 FLANGE 		1-09440-061-0 02 1 9803-9905 ● ●
47 NUT; 4TH LINK ROD
(A) M10 FLANGE 		1-09440-061-0 02 1 9906- ● ● ●
49 NUT; LK,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L) M12 		9-99111-412-0 02 1 9606-9609 ●
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 9610-9706 ●
49 NUT; LK,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L),6WG1 TC-N(71L) M12 		9-99111-412-0 02 1 9707-9905 ● ●
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 9906- ● ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9606-9708 ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9606-9708 ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9709-9905 ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9709-9905 ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9906- ● ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9906- ● ● ●

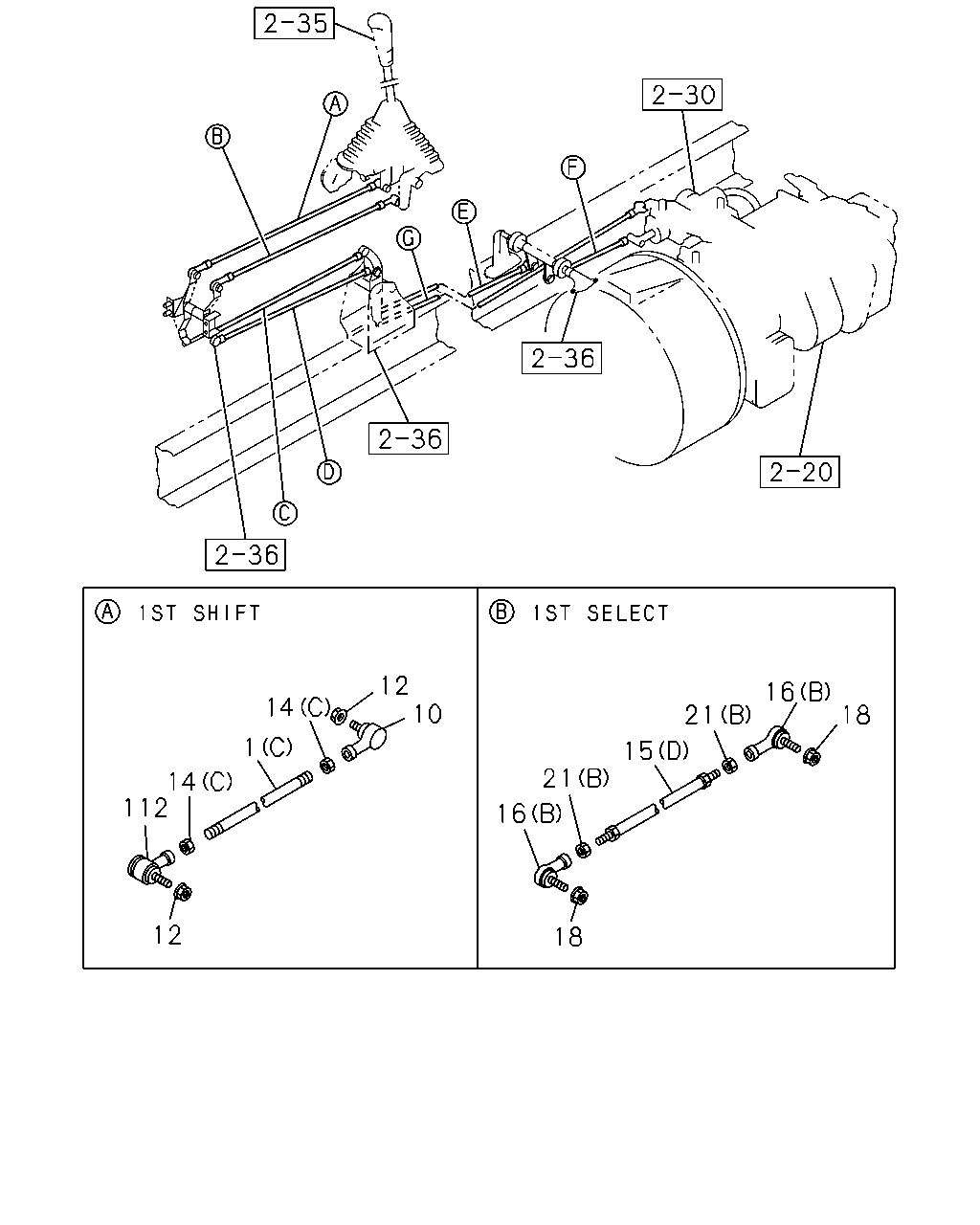

çizim 42585
12 10 16 14 21 18 1 15 21 14 112 16 12 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 ROD; LINK,1ST SHIFT
(C) L=480 		9-08401-248-0 01 1 9606-9701 ●
1 ROD; LINK,1ST SHIFT
(C) L=480 		9-08401-248-0 01 1 9702-9905 ● ●
1 ROD; LINK,1ST SHIFT
(C) L=480 		9-08401-248-0 01 1 9906-9906 ● ●
1 ROD; LINK,1ST SHIFT
(C) L=480 		9-08401-248-0 01 1 9907- ● ● ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-117-0 01 1 9606-9701 ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-117-0 01 1 9702-9710 ● ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-125-0 01 1 9711-9905 ● ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-125-0 01 1 9906-9906 ● ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-125-0 01 1 9907- ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-050-0 02 1 9606-9708 ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-056-0 02 1 9709-9802 ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9803-9905 ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9906- ● ● ●
14 NUT; LK,RIGHT SCREW,LINK ROD
(C) M12 		9-99111-412-0 02 1 9606-9701 ●
14 NUT; LK,RIGHT SCREW,LINK ROD
(C) M12 		9-99111-412-0 02 1 9702-9905 ● ●
14 NUT; LK,RIGHT SCREW,LINK ROD
(C) M12 		9-99111-412-0 02 1 9906-9906 ● ●
14 NUT; LK,RIGHT SCREW,LINK ROD
(C) M12 		9-99111-412-0 02 1 9907- ● ● ●
15 ROD; LINK 1ST SHIFT
(D) L=435 		1-33652-696-0 01 1 9606-9701 ●
15 ROD; LINK 1ST SHIFT
(D) L=435 		1-33652-696-0 01 1 9702-9905 ● ●
15 ROD; LINK 1ST SHIFT
(D) L=435 		1-33652-696-0 01 1 9906-9906 ● ●
15 ROD; LINK 1ST SHIFT
(D) L=435 		1-33652-696-0 01 1 9907- ● ● ●
15 ROD; LINK 1ST SHIFT
6WG1 TC-N(71L) (C) L=438 		1-33652-682-0 01 1 9606-9706 ● ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (C) L=438 		1-33652-682-0 01 1 9707-9711 ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (C) L=428 		1-33652-781-0 01 1 9712-9905 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (C) L=428 		1-33652-781-1 01 1 9906- ● ●
15 ROD; LINK 1ST SHIFT
6WG1 TC-N(71L) (B) L=497 		1-33652-716-0 01 1 9606-9706 ● ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (B) L=497 		1-33652-716-0 01 1 9707-9711 ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (B) L=490 		1-33652-780-0 01 1 9712-9905 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) L=490 		1-33652-780-0 01 1 9906- ● ●
15 ROD; LINK 1ST SHIFT
6WG1 TC-N(71L) (C) L=427 		1-33652-714-0 01 1 9707-9905 ● ●
15 ROD; LINK 1ST SHIFT
CAB UP +110MM<TGG> (C) L=423 		1-33652-804-1 01 1 9906- ● ● ●
15 ROD; LINK 1ST SHIFT
6WG1 TC-N(71L) (B) L=485 		1-33652-713-0 01 1 9709-9905 ● ●
15 ROD; LINK 1ST SHIFT
CAB UP +110MM<TGG> (B) L=474 		1-33652-803-0 01 1 9906- ● ● ●
16 JOINT ASM; BALL,CONT ROD
(B) 		1-09760-108-0 02 1 9606-9701 ●
16 JOINT ASM; BALL,CONT ROD
(B) 		1-09760-108-0 02 1 9702-9905 ● ●
16 JOINT ASM; BALL,CONT ROD
(B) 		1-09760-108-0 02 1 9906-9906 ● ●
16 JOINT ASM; BALL,CONT ROD
(B) 		1-09760-108-0 02 1 9907- ● ● ●
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-049-0 02 1 9606-9804 ● ●
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9805-9905 ● ●
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9906- ● ● ●
21 NUT; LK,RIGHT SCREW,LINK ROD
(B) M8 		9-09111-408-0 02 1 9606-9701 ●
21 NUT; LK,RIGHT SCREW,LINK ROD
(B) M8 		9-09111-408-0 02 1 9702-9905 ● ●
21 NUT; LK,RIGHT SCREW,LINK ROD
(B) M8 		9-09111-408-0 02 1 9906-9906 ● ●
21 NUT; LK,RIGHT SCREW,LINK ROD
(B) M8 		9-09111-408-0 02 1 9907- ● ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9606-9708 ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9606-9708 ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9709-9905 ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9709-9905 ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9906- ● ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9906- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
