Sayfa 9-01 - Isuzu EPC

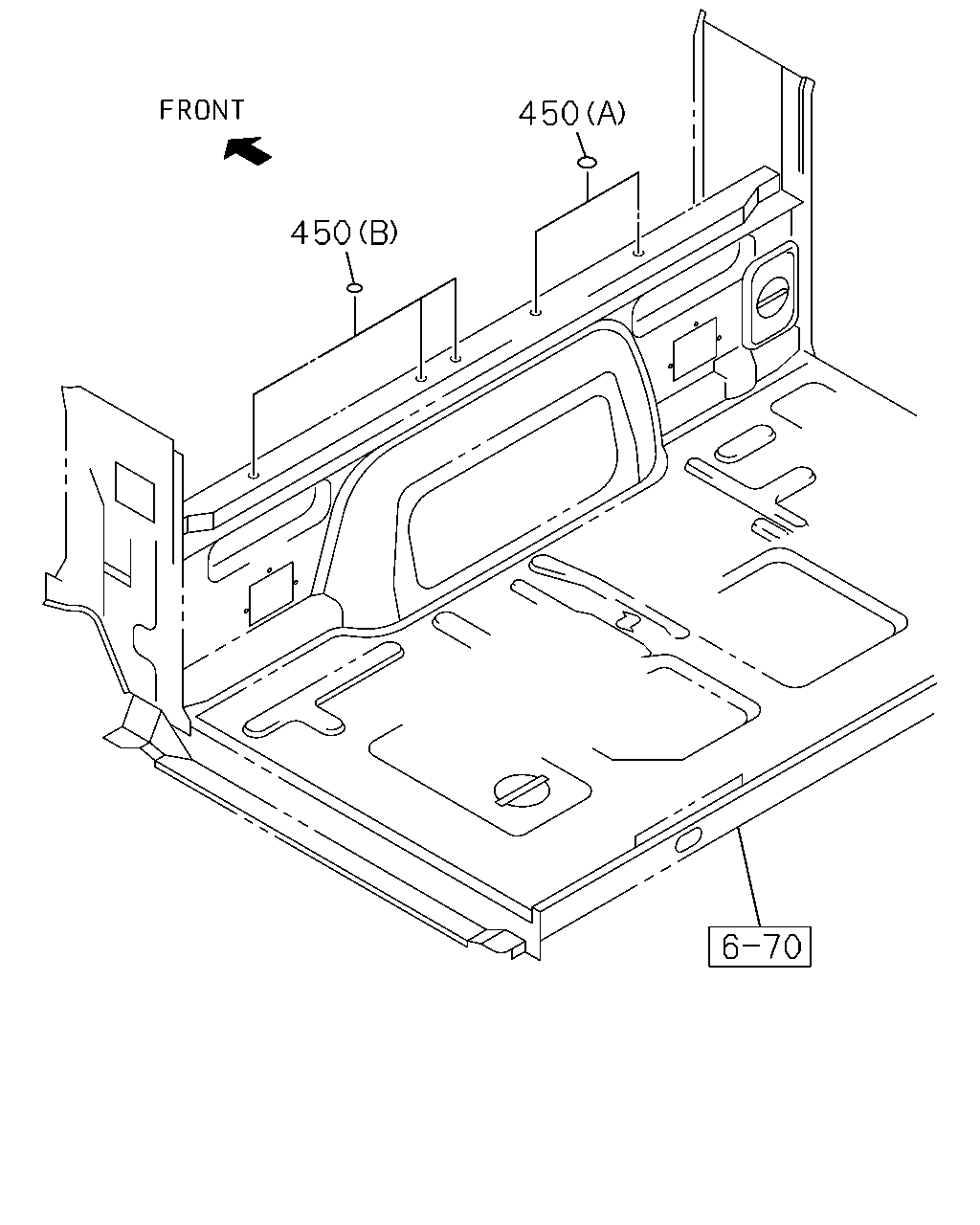

450 450

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
450	16.064 SEAL; HOLE 02.580 (A) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0710-	●
450	16.064 SEAL; HOLE 02.580 (A) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0710-	●
450	16.064 SEAL; HOLE 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	03	1	0710-	●

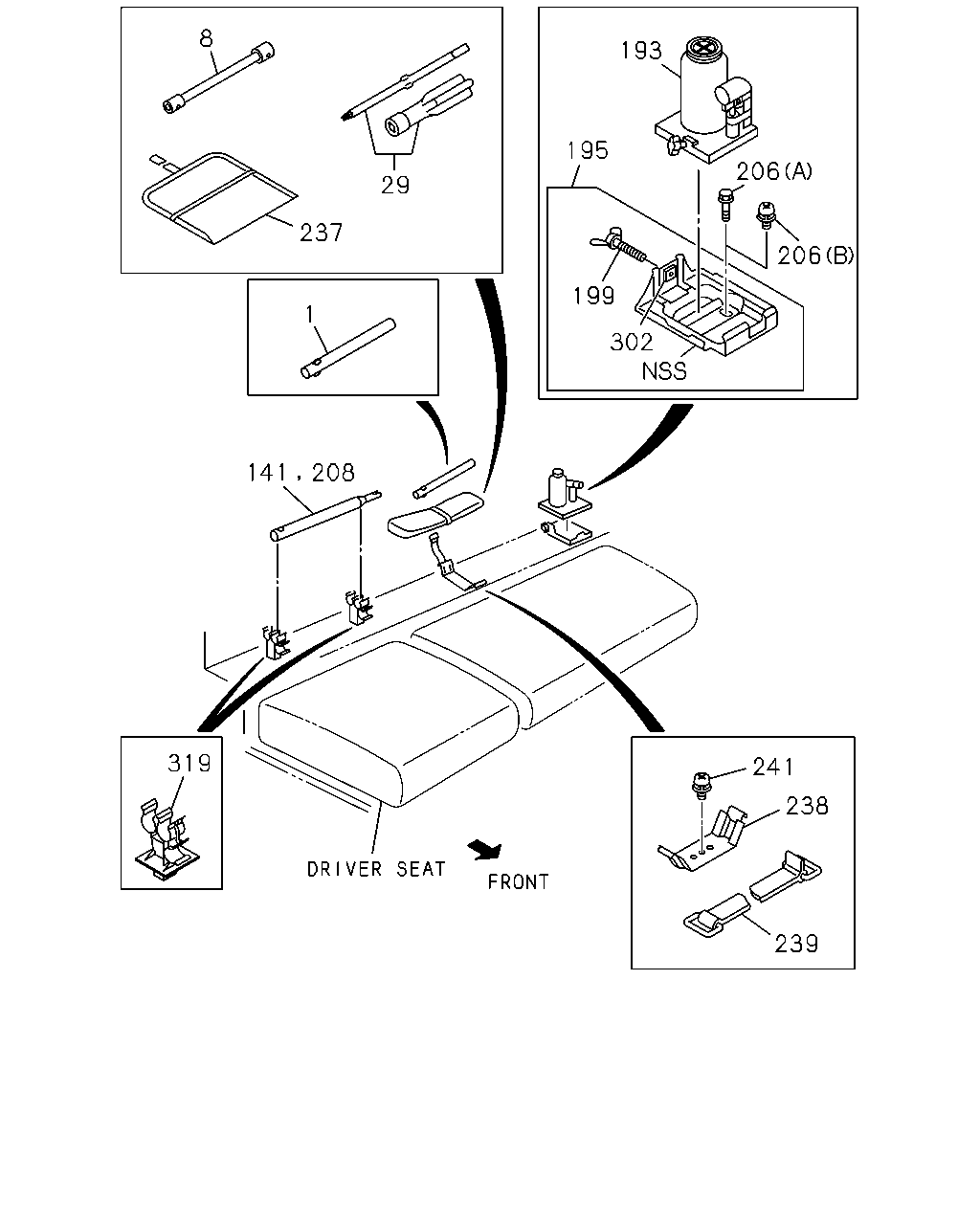

8 193 195 206 29 237 206 199 1 302 208 141 319 241 238 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.629 HANDLE; SPARE TIRE CARRIER 08.821 L=280	1-85515-007-0	01	1	0710-1108	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER L=280	8-98181-251-0	01	1	1109-	●	●
8	08.821 WRENCH; WHEEL B=41X21 L=440	1-85113-015-1	01	1	0710-0803	●	●
8	08.821 WRENCH; WHEEL FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL/NUT(CTX) B=41X21 L=440	1-85113-015-1	01	1	0804-1005		●
8	08.821 WRENCH; WHEEL B=41X21 L=440	1-85113-015-1	01	1	0804-1005	●
8	08.821 WRENCH; WHEEL B=41X21 L=440	1-85113-015-1	01	1	1006-		●
8	08.821 WRENCH; WHEEL F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX) B=41X21 L=440	1-85113-015-1	01	1	1006-	●
29	08.821 DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	0710-0803	●	●
29	08.821 DRIVER; SCREW FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL/NUT(CTX) <+>,<-> L=160	8-94242-798-1	01	1	0804-1005		●
29	08.821 DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	0804-1005	●
29	08.821 DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	1006-		●
29	08.821 DRIVER; SCREW F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX) <+>,<-> L=160	8-94242-798-1	01	1	1006-	●
141	08.821 HANDLE; WRENCH 08.820 L=580	1-85515-005-1	01	1	0712-1108	●
141	08.821 HANDLE; WRENCH 08.820 L=580	8-98181-249-0	01	1	1109-	●
193	08.820 JACK ASM EXC. AUSTRALIA EQUIPMENT(B13) 5TON	8-97131-077-2	01	1	0804-0805		●
193	08.820 JACK ASM EXC. AUSTRALIA EQUIPMENT(B13) 5TON	8-98114-045-0	01	1	0806-0911		●
193	08.820 JACK ASM FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL/NUT(CTX) EXC. AUSTRALIA EQUIPMENT(B13) 5TON	8-98114-045-0	01	1	0912-1005		●
193	08.820 JACK ASM EXC. AUSTRALIA EQUIPMENT(B13) 5TON	8-98114-045-0	01	1	1006-		●
193	08.820 JACK ASM 5TON	8-94438-021-2	01	1	0710-0803	●	●
193	08.820 JACK ASM F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX) AUSTRALIA EQUIPMENT(B13) 5TON	8-94438-021-2	01	1	0804-0911		●
193	08.820 JACK ASM 5TON	8-94438-021-2	01	1	0804-0911	●
193	08.820 JACK ASM FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL/NUT(CTX) AUSTRALIA EQUIPMENT(B13) 5TON	8-94438-021-2	01	1	0912-1005		●
193	08.820 JACK ASM 5TON	8-94438-021-2	01	1	0912-1005	●
193	08.820 JACK ASM AUSTRALIA EQUIPMENT(B13) 5TON	8-94438-021-2	01	1	1006-		●
193	08.820 JACK ASM F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX) 5TON	8-94438-021-2	01	1	1006-	●
195	08.820 BRACKET; JACK	8-98034-917-0	01	1	0710-0803		●
195	08.820 BRACKET; JACK AUSTRALIA EQUIPMENT(B13)	8-98034-917-0	01	1	0804-		●
195	08.820 BRACKET; JACK EXC. AUSTRALIA EQUIPMENT(B13)	8-98033-737-1	01	1	0804-0805		●
195	08.820 BRACKET; JACK EXC. AUSTRALIA EQUIPMENT(B13)	8-97589-376-2	01	1	0806-		●
195	08.820 BRACKET; JACK	8-94273-769-5	01	1	0710-	●
199	08.820 BOLT; JACK M8X30 WING	8-98005-536-0	01	1	0710-0803		●
199	08.820 BOLT; JACK AUSTRALIA EQUIPMENT(B13) M8X30 WING	8-98005-536-0	01	1	0804-0805		●
199	08.820 BOLT; JACK M8X30 WING	8-98005-536-0	01	1	0806-		●
199	08.820 BOLT; JACK EXC. AUSTRALIA EQUIPMENT(B13) M8X50 WING	8-98005-537-0	01	1	0804-0805		●
199	08.820 BOLT; JACK M8X30 WING	8-94279-018-1	01	1	0710-	●
206	08.820 SCREW; OIL JACK BRKT 06.216 (A) BOLT M8X25 FLANGE	0-28650-825-0	01	1	0710-		●
206	08.820 SCREW; OIL JACK BRKT 16.570 (B) M6X16	0-38050-616-0	01	1	0710-	●
208	08.820 HANDLE; JACK L=580	1-85515-005-1	01	1	0710-0711	●	●
208	08.820 HANDLE; JACK L=580	1-85515-005-1	01	1	0712-1108		●
208	08.820 HANDLE; JACK L=580	8-98181-249-0	01	1	1109-		●
237	08.821 BAG; TOOL	8-97130-903-0	01	1	0710-0803	●	●
237	08.821 BAG; TOOL FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL/NUT(CTX)	8-97130-903-0	01	1	0804-1005		●
237	08.821 BAG; TOOL	8-97130-903-0	01	1	0804-1005	●
237	08.821 BAG; TOOL	8-97130-903-1	01	1	1006-		●
237	08.821 BAG; TOOL F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX)	8-97130-903-1	01	1	1006-	●
238	08.820 SUPPORT; TOOL BAG	8-97994-977-0	01	1	0710-		●
239	08.820 BAND; TOOL BAG L=100	5-73997-026-1	01	1	0710-	●	●
241	08.820 SCREW; TOOL BAG SUPPORT 16.570 M6X16	0-38050-616-0	01	1	0710-		●
302	08.820 NUT; JACK BRKT	8-98021-556-0	01	1	0710-		●
302	08.820 NUT; JACK BRKT	8-94279-522-0	01	1	0710-	●
319	08.821 CLIP; TOOL BAR	8-97853-077-2	02	1	0710-	●	●

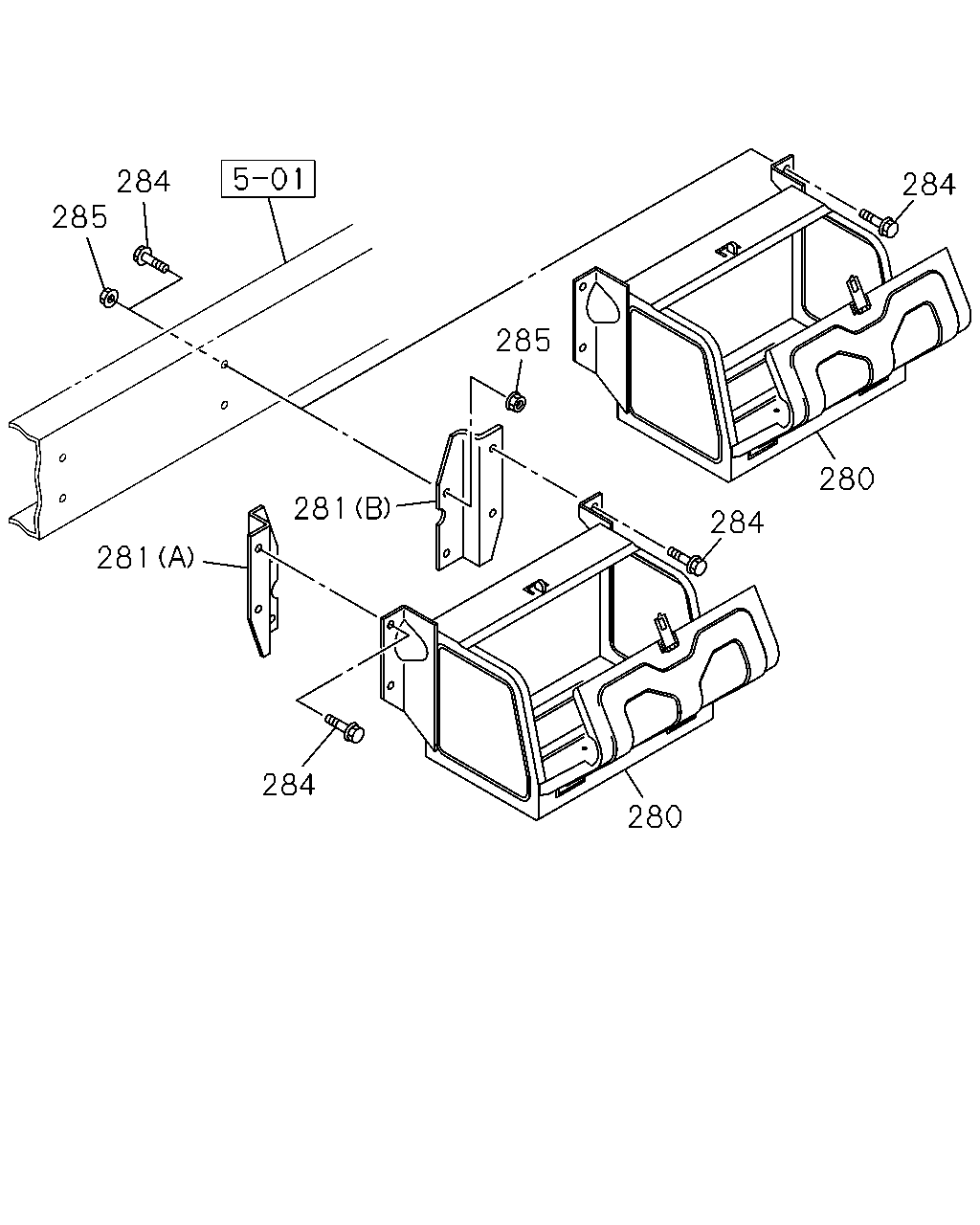

284 285 284 285 280 281 284 281 284 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2>	8-97384-079-0	01	1	0710-	●	●
281	08.821 BRACKET; TOOL BOX TOOL & STORAGE BOX<VK2> (B)	8-98045-642-1	01	1	0710-	●
281	08.821 BRACKET; TOOL BOX TOOL & STORAGE BOX<VK2> (A)	8-98046-374-1	01	1	0710-0901	●
281	08.821 BRACKET; TOOL BOX TOOL & STORAGE BOX<VK2> (A)	8-98130-709-0	01	1	0902-	●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0710-	●	●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0710-	●
285	08.821 NUT; TOOL BOX TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE	0-91180-110-0	04	1	0710-	●	●
