◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51162 - NPS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#50786) — 45 parça

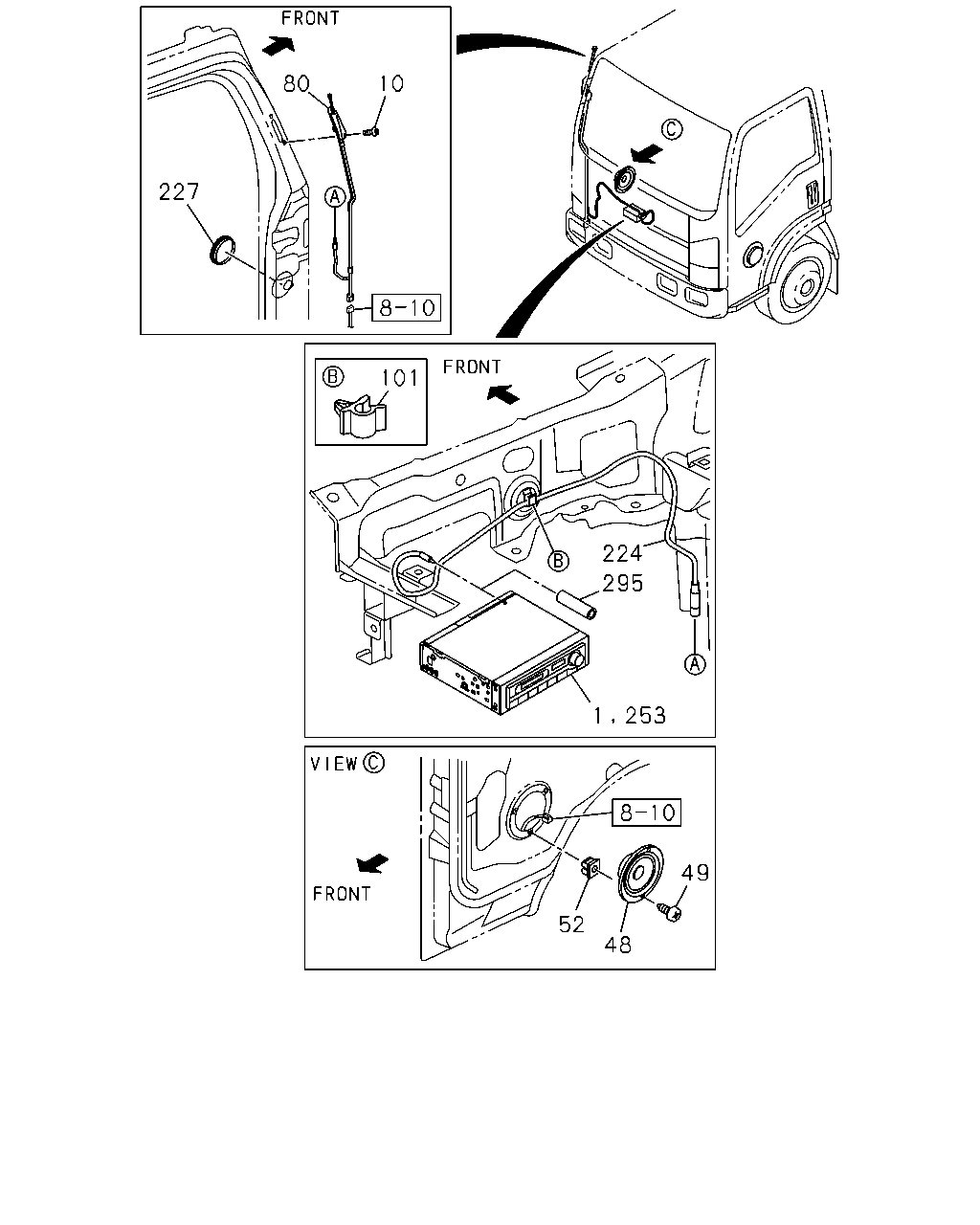

çizim 157399
80 10 227 101 224 295 253 1 49 52 48
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.650 RADIO
AM/FM RADIO(U69) 		8-98032-643-0 01 1 0710- ● ●
10 09.647 SCREW; ANTENNA CABLE
M5X11 TAPPING W/TORQUES 		8-98061-742-0 02 1 0710- ● ●
48 09.650 SPEAKER; AUDIO 8-97317-001-1 02 1 0710-0803 ● ●
48 09.650 SPEAKER; AUDIO
2-SPEAKER SYSTEM BASE<U95> 		8-97317-001-1 02 1 0804- ●
48 09.650 SPEAKER; AUDIO 8-97317-001-1 02 1 0804- ●
49 09.655 SCREW; SPEAKER
16.067 M5X14 		8-94279-325-0 06 1 0710-0712 ● ●
49 09.655 SCREW; SPEAKER
M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 0801-0803 ● ●
49 09.655 SCREW; SPEAKER
2-SPEAKER SYSTEM BASE<U95> M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 0804- ●
49 09.655 SCREW; SPEAKER
M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 0804- ●
52 09.655 GROMMET; SCREW,SPEAKER
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0710-0803 ● ●
52 09.655 GROMMET; SCREW,SPEAKER
2-SPEAKER SYSTEM BASE<U95> 01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0804- ●
52 09.655 GROMMET; SCREW,SPEAKER
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0804- ●
80 09.645 ANTENNA 8-97387-265-3 01 1 0710- ● ●
101 09.649 CLIP; FEEDER TO BRKT
09.647 ID=4.8 		8-94128-483-0 01 1 0710- ● ●
224 09.647 CABLE; EXT,FEEDER 8-98029-970-1 01 1 0710-0801 ● ●
224 09.647 CABLE; EXT,FEEDER
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98029-970-1 01 1 0802-0803 ● ●
224 09.647 CABLE; EXT,FEEDER
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> 		8-98029-970-1 01 1 0804-1003 ●
224 09.647 CABLE; EXT,FEEDER
EXC. FULLAUTO AIR CONDITIONER(C68), REMOTECONT DOOR LOCK<6NF> 		8-98029-970-1 01 1 0804-1003 ●
224 09.647 CABLE; EXT,FEEDER
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98029-970-1 01 1 0804-1003 ●
224 09.647 CABLE; EXT,FEEDER
EXC. FULLAUTO AIR CONDITIONER(C68), REMOTECONT DOOR LOCK<6NF> 		8-98029-970-1 01 1 1004- ●
224 09.647 CABLE; EXT,FEEDER
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> 		8-98029-970-1 01 1 1004- ●
224 09.647 CABLE; EXT,FEEDER
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) 		8-98029-970-1 01 1 1004- ●
224 09.647 CABLE; EXT,FEEDER
EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98029-970-1 01 1 1004- ●
227 09.647 PROTECTOR; EDGE 8-98053-117-0 01 1 0710- ● ●
253 09.645 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) TUNER BAND LATIN AMERICA<7DM> 		8-98112-329-0 01 1 0803- ● ●
253 09.645 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) 		8-98017-752-0 01 1 0803-0803 ● ●
253 09.645 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) EXC. TUNER BAND LATIN AMERICA<7DM> 		8-98017-752-0 01 1 0803- ● ●
295 09.665 INSULATOR; ANTENNA
EXC. AM/FM RADIO(U69) 		8-98095-617-1 01 1 0710-0802 ● ●
295 09.665 INSULATOR; ANTENNA
EXC. RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) ,AM/FM RADIO(U69) 		8-98095-617-1 01 1 0803- ● ●

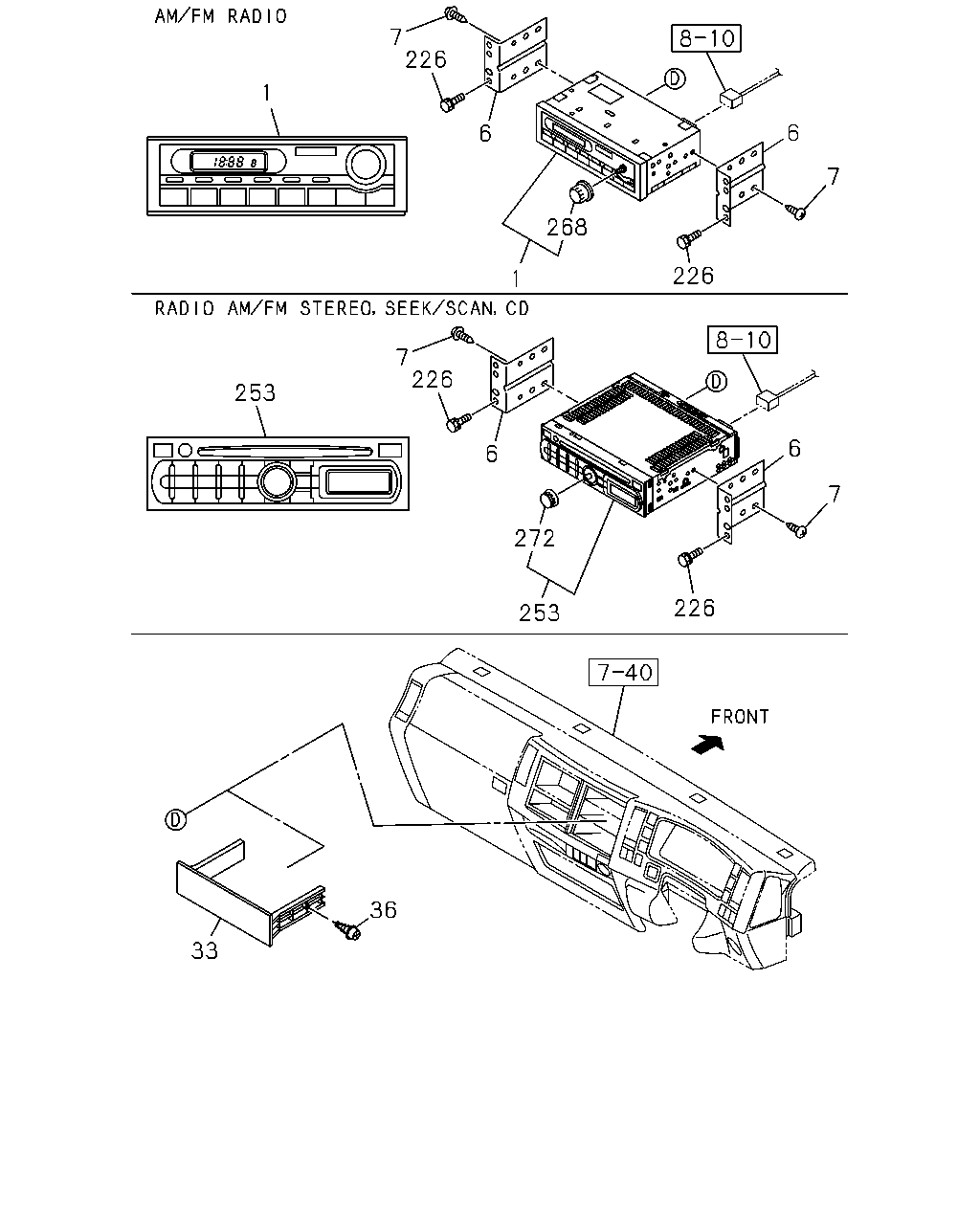

çizim 157405
7 226 1 6 6 7 268 226 1 7 226 253 6 6 7 272 226 253 36 33
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.650 RADIO
AM/FM RADIO(U69) 		8-98032-643-0 01 1 0710- ● ●
6 09.645 BRACKET; RADIO TO PANEL 8-97585-617-0 02 1 0710- ● ●
7 09.650 SCREW; RADIO
AM/FM RADIO(U69) M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 0710-0802 ● ●
7 09.650 SCREW; RADIO
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3), AM/FM RADIO(U69) M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 0803- ● ●
33 09.650 COVER; RADIO
EXC. AM/FM RADIO(U69) BLACK 		8-97407-896-1 01 1 0710-0802 ● ●
33 09.650 COVER; RADIO
EXC. RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) ,AM/FM RADIO(U69) BLACK 		8-97407-896-2 01 1 0803- ● ●
36 09.779 SCREW; COVER
EXC. AM/FM RADIO(U69) 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0710-0802 ● ●
36 09.779 SCREW; COVER
EXC. RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) ,AM/FM RADIO(U69) 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0803- ● ●
226 09.647 BOLT; BRKT
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 0710-1101 ● ●
226 09.647 BOLT; BRKT
16.100 M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 02 1 1102-1212 ● ●
226 09.647 BOLT; BRKT
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 1301- ● ●
253 09.645 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) TUNER BAND LATIN AMERICA<7DM> 		8-98112-329-0 01 1 0803- ● ●
253 09.645 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) 		8-98017-752-0 01 1 0803-0803 ● ●
253 09.645 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) EXC. TUNER BAND LATIN AMERICA<7DM> 		8-98017-752-0 01 1 0803- ● ●
268 09.649 KNOB; VOL
AM/FM RADIO(U69) CLARION 		8-97375-820-0 01 1 0710- ● ●
272 09.649 KNOB; AUDIO CONTROL
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) CLARION 		8-98048-329-0 01 1 0803- ● ●
