2-30 — GEAR SHIFTER AND QUADRANT BOX (#50781) — 333 parça

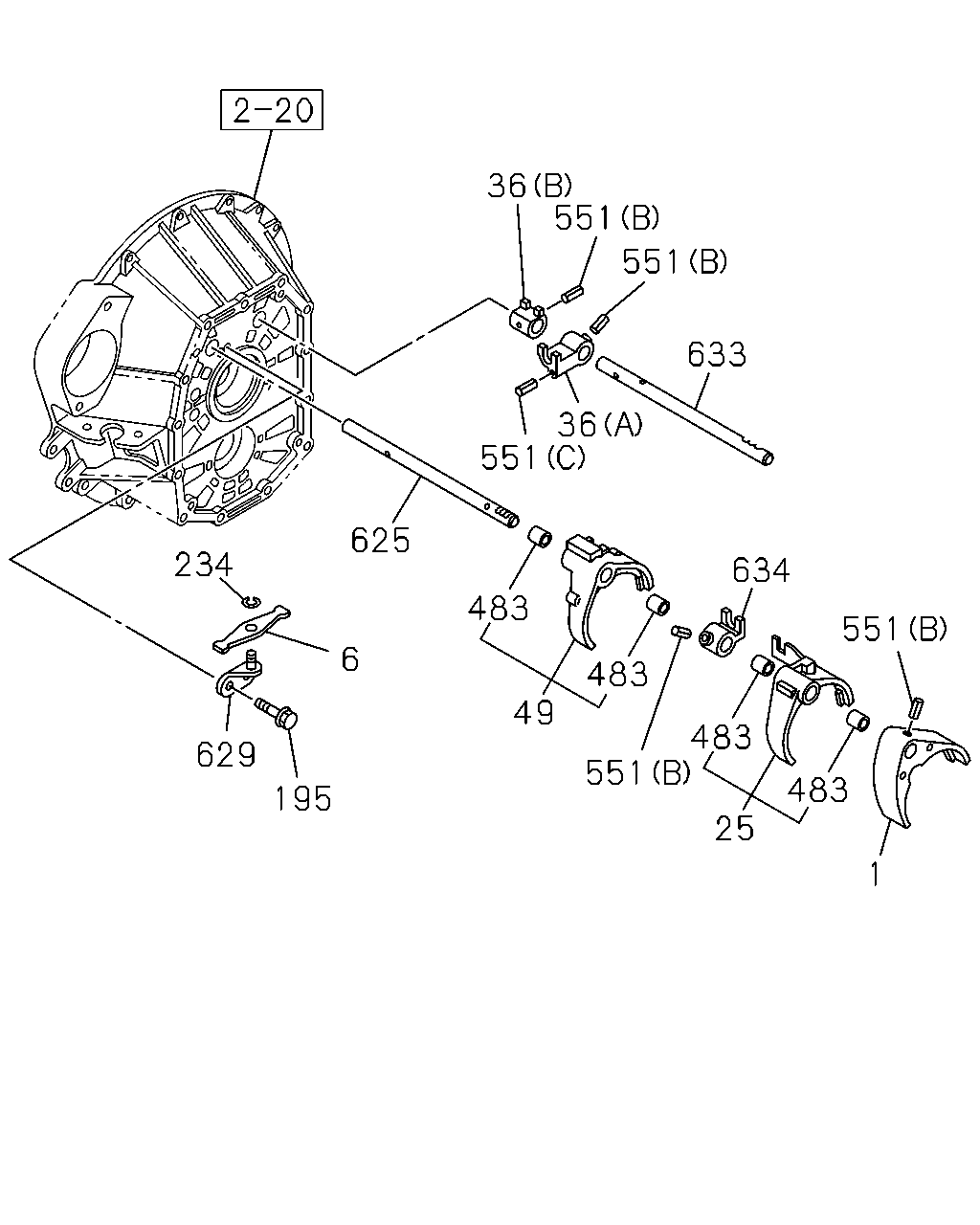

çizim 45876
36 551 551 633 36 551 625 234 634 483 551 6 483 49 483 551 629 483 195 25 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.302 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 0211- ●
6 04.302 LEVER; RELAY 8-97241-344-0 01 1 0211- ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97355-690-0 01 1 0211-0404 ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97362-731-2 01 1 0405-1407 ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-98255-926-1 01 1 1408- ●
36 04.303 BLOCK; SHIFT,4TH & 5TH
(A) 		8-97241-329-1 01 1 0211- ●
36 04.303 BLOCK; SHIFT,4TH & 5TH
(B) 		8-97241-330-0 01 1 0211- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 0211- ●
195 04.105 BOLT
04.012 M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0211-0604 ●
195 04.105 BOLT
M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0605- ●
234 04.311 RING; SNAP
04.307 ID=12 		8-94460-357-0 01 1 0211- ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 04 1 0211- ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0211- ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 0211- ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0211- ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97241-333-3 01 1 0211-0404 ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-741-0 01 1 0405- ●
629 04.555 BRIDGE; LEVER 8-97237-107-1 01 1 0211- ●
633 04.309 ROD; GEAR SHIFT,4TH,5TH 8-97358-832-0 01 1 0211-0404 ●
633 04.309 ROD; GEAR SHIFT,4TH,5TH 8-97362-743-0 01 1 0405- ●
634 04.303 BLOCK; SHIFT,LOW,REV 8-97241-327-1 01 1 0211- ●

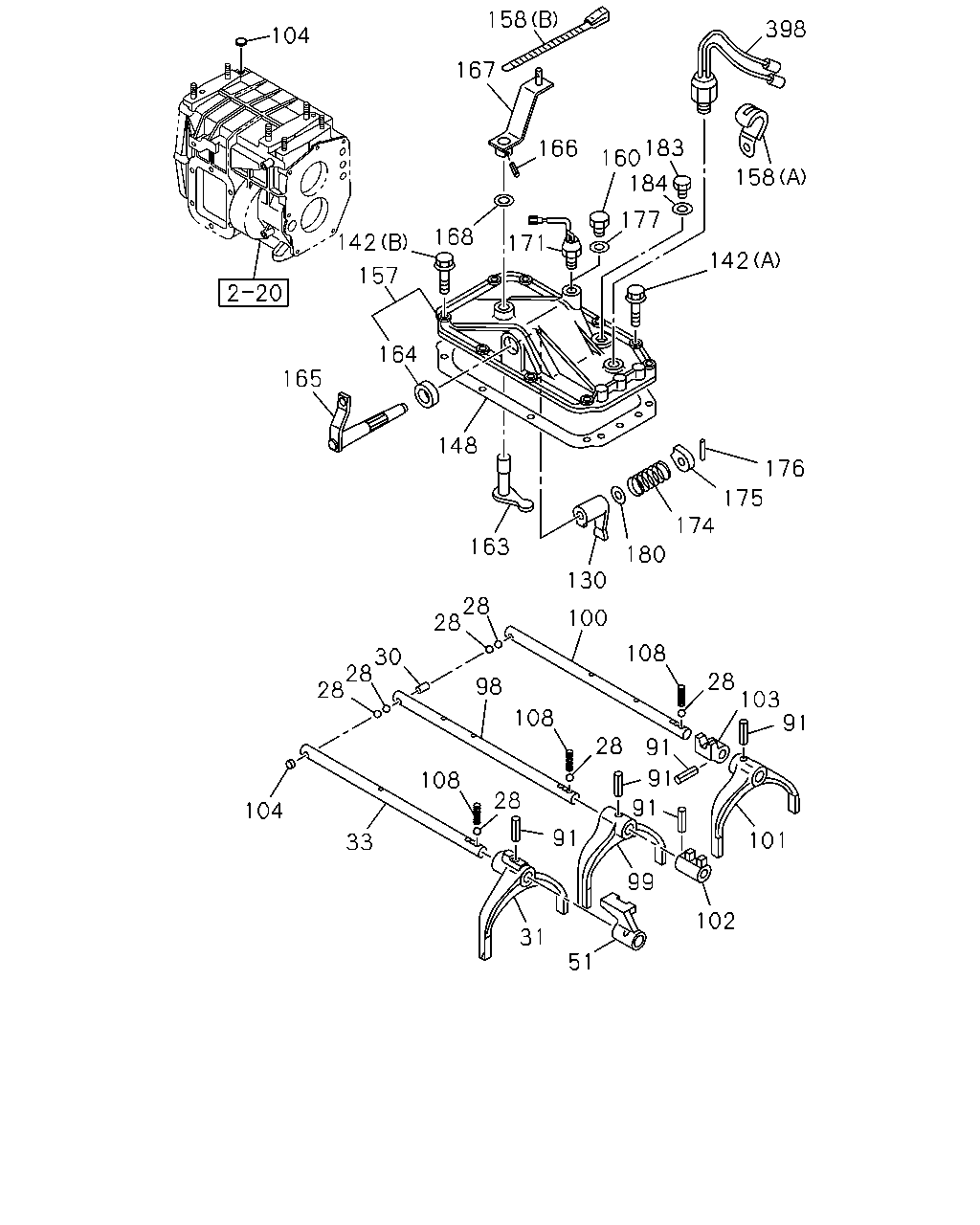

çizim 100472
104 158 167 166 183 160 398 158 142 184 177 171 168 142 164 157 165 148 163 176 175 174 180 130 100 28 28 30 28 28 104 33 108 98 108 28 28 108 28 103 91 91 91 101 91 102 99 51 31 91
BalonParca AdiParca NoAdetTipApplied Date A B C
28 04.311 BALL; INTER LK 9-00097-010-0 07 1 0211-0501 ● ●
28 04.311 BALL; INTER LK
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		9-00097-010-0 07 1 0502-0504 ● ●
28 04.311 BALL; INTER LK
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		9-00097-010-0 07 1 0505- ● ●
30 04.307 PIN; INTER LK
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-971-0 01 1 1211- ● ●
30 04.307 PIN; INTER LK
04.311 		5-33534-001-0 01 1 0211-1210 ● ●
30 04.307 PIN; INTER LK
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.311 		5-33534-001-0 01 1 1211- ● ●
31 04.302 ARM; SHIFT,LOW & 2ND
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-300-0 01 1 1211- ● ●
31 04.302 ARM; SHIFT,LOW & 2ND 8-97011-365-1 01 1 0211-1210 ● ●
31 04.302 ARM; SHIFT,LOW & 2ND
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97011-365-1 01 1 1211- ● ●
33 04.309 ROD; SHIFT,LOW & 2ND
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98188-591-0 01 1 1211- ● ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97011-370-1 01 1 0211-1210 ● ●
33 04.309 ROD; SHIFT,LOW & 2ND
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97011-370-1 01 1 1211- ● ●
51 04.303 BLOCK; SHIFT,1ST & 2ND
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98188-589-0 01 1 1211- ● ●
51 04.303 BLOCK; SHIFT,1ST & 2ND 8-97022-837-2 01 1 0211-1210 ● ●
51 04.303 BLOCK; SHIFT,1ST & 2ND
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97022-837-2 01 1 1211- ● ●
91 04.302 PIN; SPR,SHIFT ARM
IN-HOUSE PRODUCTION VAR.2<TMW> 04.303 L=25 OD=5 		1-09748-032-0 06 1 1211- ● ●
91 04.302 PIN; SPR,SHIFT ARM
04.303 L=25 OD=5 		8-94135-771-0 06 1 0211-1210 ● ●
91 04.302 PIN; SPR,SHIFT ARM
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.303 L=25 OD=5 		8-94135-771-0 06 1 1211- ● ●
98 04.309 ROD; SHIFT,TOP & 3RD
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98188-590-0 01 1 1211- ● ●
98 04.309 ROD; SHIFT,TOP & 3RD 8-97011-371-1 01 1 0211-1210 ● ●
98 04.309 ROD; SHIFT,TOP & 3RD
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97011-371-1 01 1 1211- ● ●
99 04.302 ARM; SHIFT,4TH & 3RD
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-301-0 01 1 1211- ● ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-97011-366-1 01 1 0211-1210 ● ●
99 04.302 ARM; SHIFT,4TH & 3RD
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97011-366-1 01 1 1211- ● ●
100 04.309 ROD; SHIFT,REV & 5TH
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98188-592-0 01 1 1211- ● ●
100 04.309 ROD; SHIFT,REV & 5TH 8-94316-923-0 01 1 0211-1210 ● ●
100 04.309 ROD; SHIFT,REV & 5TH
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94316-923-0 01 1 1211- ● ●
101 04.302 ARM; SHIFT,REV & 5TH
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-303-0 01 1 1211- ● ●
101 04.302 ARM; SHIFT,REV & 5TH 8-97107-545-0 01 1 0211-1210 ● ●
101 04.302 ARM; SHIFT,REV & 5TH
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97107-545-0 01 1 1211- ● ●
102 04.303 BLOCK; SHIFT,3RD & 4TH
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98188-588-0 01 1 1211- ● ●
102 04.303 BLOCK; SHIFT,3RD & 4TH 8-97017-573-1 01 1 0211-1210 ● ●
102 04.303 BLOCK; SHIFT,3RD & 4TH
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97017-573-1 01 1 1211- ● ●
103 04.303 BLOCK; SHIFT,REV TO OD
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98188-587-0 01 1 1211- ● ●
103 04.303 BLOCK; SHIFT,REV TO OD 8-94135-719-4 01 1 0211-1210 ● ●
103 04.303 BLOCK; SHIFT,REV TO OD
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94135-719-4 01 1 1211- ● ●
104 04.311 PLUG; PLATE
IN-HOUSE PRODUCTION VAR.2<TMW> OD=16 		0-92001-416-0 01 1 1211- ● ●
104 04.311 PLUG; PLATE
4JB1 NA ENG(RLF) 04.105 OD=16 		9-09201-316-0 01 1 0211-0409 ●
104 04.311 PLUG; PLATE
4JG2 ENG(RJC) EXC. EXHAUST BRAKE<NF8> 04.105 OD=16 		9-09201-316-0 01 1 0211-0409 ●
104 04.311 PLUG; PLATE
4JB1 NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> 04.105 OD=16 		9-09201-316-0 01 1 0211-0409 ●
104 04.311 PLUG; PLATE
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 04.105 OD=16 		9-09201-316-0 01 1 0211-0409 ●
104 04.311 PLUG; PLATE
IN-HOUSE PRODUCTION VAR.2<TMW> 04.105 OD=16 		9-09201-316-0 01 1 0410-0501 ● ●
104 04.311 PLUG; PLATE
4JG2 ENG(RJC) EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> 04.105 OD=16 		9-09201-316-0 01 1 0410-0501 ●
104 04.311 PLUG; PLATE
4JB1 NA ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.105 OD=16 		9-09201-316-0 01 1 0410-0501 ●
104 04.311 PLUG; PLATE
4JB1 NA ENG(RLF) EXC. TURBOCHARGER<K51>,IN-HOUSE PRODUCTION VAR.2<TMW> 04.105 OD=16 		9-09201-316-0 01 1 0410-0501 ●
104 04.311 PLUG; PLATE
4JB1 NA ENG(RLF) TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> 04.105 OD=16 		9-09201-316-0 01 1 0410-0501 ●
104 04.311 PLUG; PLATE
04.105 OD=16 		9-09201-316-0 01 1 0502-0910 ● ●
104 04.311 PLUG; PLATE
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 04.105 OD=16 		9-09201-316-0 01 1 0911-1210 ● ●
104 04.311 PLUG; PLATE
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.105 OD=16 		9-09201-316-0 01 1 1211- ●
104 04.311 PLUG; PLATE
4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> 04.105 OD=16 		9-09201-316-0 01 1 1211- ●
104 04.311 PLUG; PLATE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.105 OD=16 		9-09201-316-0 01 1 1211- ●
108 04.311 SPRING; LOCK BALL
IN-HOUSE PRODUCTION VAR.2<TMW> OD=6.8 L=31.6 		8-98188-917-0 03 1 1211- ● ●
108 04.311 SPRING; LOCK BALL
OD=6.8 L=31.6 		9-09740-114-0 03 1 0211-1210 ● ●
108 04.311 SPRING; LOCK BALL
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> OD=6.8 L=31.6 		9-09740-114-0 03 1 1211- ● ●
130 04.302 LEVER; SHIFT,INTERNAL
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-340-0 01 1 1211- ● ●
130 04.302 LEVER; SHIFT,INTERNAL 8-94105-141-2 01 1 0211-1210 ● ●
130 04.302 LEVER; SHIFT,INTERNAL
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94105-141-2 01 1 1211- ● ●
130 04.302 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 0211- ●
142 04.012 BOLT; QUAD BOX
IN-HOUSE PRODUCTION VAR.2<TMW> 03.275 (A) M8X25 FLANGE 		0-28050-825-0 08 1 1211- ● ●
142 04.012 BOLT; QUAD BOX
IN-HOUSE PRODUCTION VAR.2<TMW> 00.206 (B) M8X30 FLANGE 		0-28050-830-0 02 1 1211- ● ●
142 04.012 BOLT; QUAD BOX
04.105 (A) M8X25 		8-94128-786-0 08 1 0211-1210 ● ●
142 04.012 BOLT; QUAD BOX
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.105 (A) M8X25 		8-94128-786-0 08 1 1211- ● ●
142 04.012 BOLT; QUAD BOX
04.105 (B) M8X30 		8-97029-705-0 02 1 0211-1210 ● ●
142 04.012 BOLT; QUAD BOX
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.105 (B) M8X30 		8-97029-705-0 02 1 1211- ● ●
142 04.012 BOLT; QUAD BOX
04.356 (C) M8X22 FLANGE 		8-94448-815-3 04 1 0211-0604 ●
142 04.012 BOLT; QUAD BOX
04.356 (C) M8X22 FLANGE 		8-97365-376-0 04 1 0605- ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-273-0 01 1 1211- ● ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 04.012 		8-94257-162-0 01 1 0211-1210 ● ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.012 		8-94257-162-0 01 1 1211- ● ●
157 04.105 BOX; QUAD,TRANS
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-265-0 01 1 1211- ● ●
157 04.105 BOX; QUAD,TRANS
EXHAUST BRAKE<NF8> 		8-94340-145-0 01 1 0211-0504 ● ●
157 04.105 BOX; QUAD,TRANS
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94340-145-0 01 1 0505-1210 ● ●
157 04.105 BOX; QUAD,TRANS
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94340-145-0 01 1 0505-1210 ● ●
157 04.105 BOX; QUAD,TRANS
EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94340-145-0 01 1 1211- ● ●
157 04.105 BOX; QUAD,TRANS
EXC. EXHAUST BRAKE<NF8> 		8-94340-146-0 01 1 0211-0504 ● ●
157 04.105 BOX; QUAD,TRANS
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94340-146-0 01 1 0505- ● ●
158 04.105 CLIP; HARNESS
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> 03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0803-0910 ● ● ●
158 04.105 CLIP; HARNESS
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> 03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0911- ● ●
158 04.105 CLIP; HARNESS
01.152 (A) ID=8.5 		5-09700-275-0 01 1 0211-0802 ● ●
158 04.105 CLIP; HARNESS
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 01.152 (A) ID=8.5 		5-09700-275-0 01 1 0803-0910 ● ● ●
158 04.105 CLIP; HARNESS
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 01.152 (A) ID=8.5 		5-09700-275-0 01 1 0911- ● ●
158 04.105 CLIP; HARNESS
EXHAUST BRAKE<NF8> 03.162 (B) L=140 		5-09707-031-1 01 1 0211-0504 ● ●
158 04.105 CLIP; HARNESS
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 03.162 (B) L=140 		5-09707-031-1 01 1 0505-0802 ● ●
158 04.105 CLIP; HARNESS
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> 03.162 (B) L=140 		5-09707-031-1 01 1 0505-0802 ● ●
158 04.105 CLIP; HARNESS
EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 03.162 (B) L=140 		5-09707-031-1 01 1 0803-0806 ● ●
158 04.105 CLIP; HARNESS
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 03.162 (B) L=140 		5-09707-031-1 01 1 0807- ● ●
158 04.105 CLIP; HARNESS
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> 03.162 (B) L=140 		5-09707-031-1 01 1 0807- ● ●
158 04.105 CLIP; HARNESS
4JH1 ENG(RJX) (C) 		8-97300-317-0 01 1 0211-0302 ●
160 04.105 PLUG; BLIND
4JG2 ENG(RJC),4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> 08.971 M14X9 		9-99202-314-0 01 1 0410-0501 ● ●
160 04.105 PLUG; BLIND
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> 08.971 M14X9 		9-99202-314-0 01 1 0502-0504 ● ●
160 04.105 PLUG; BLIND
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> 08.971 M14X9 		9-99202-314-0 01 1 0505-0805 ● ●
160 04.105 PLUG; BLIND
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> M14X9 		8-98042-944-0 01 1 0806- ● ●
163 04.302 LEVER; SELECT,INTERNAL
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-302-0 01 1 1211- ● ●
163 04.302 LEVER; SELECT,INTERNAL 8-94159-268-1 01 1 0211-1210 ● ●
163 04.302 LEVER; SELECT,INTERNAL
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94159-268-1 01 1 1211- ● ●
163 04.302 LEVER; SELECT,INTERNAL 8-97305-663-0 01 1 0211- ●
164 04.105 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). OD=27 		8-97304-068-0 02 1 0211- ● ●
165 04.302 LEVER; SHIFT
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-282-0 01 1 1211- ● ●
165 04.302 LEVER; SHIFT
EXHAUST BRAKE<NF8> 		8-97036-221-0 01 1 0211-0504 ● ●
165 04.302 LEVER; SHIFT
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97036-221-0 01 1 0505-1210 ● ●
165 04.302 LEVER; SHIFT
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97036-221-0 01 1 0505-1210 ● ●
165 04.302 LEVER; SHIFT
EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97036-221-0 01 1 1211- ● ●
165 04.302 LEVER; SHIFT
EXC. EXHAUST BRAKE<NF8> 		8-97035-557-0 01 1 0211-0504 ● ●
165 04.302 LEVER; SHIFT
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97035-557-0 01 1 0505- ● ●
166 04.302 PIN; SPR,SELECT LEVER
IN-HOUSE PRODUCTION VAR.2<TMW> 04.303 L=25 OD=5 		1-09748-032-0 01 1 1211- ● ●
166 04.302 PIN; SPR,SELECT LEVER
04.303 L=25 OD=5 		8-94135-771-0 01 1 0211-1210 ● ●
166 04.302 PIN; SPR,SELECT LEVER
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.303 L=25 OD=5 		8-94135-771-0 01 1 1211- ● ●
167 04.302 LEVER; SELECT,EXTERNAL
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-276-0 01 1 1211- ● ●
167 04.302 LEVER; SELECT,EXTERNAL 8-97035-560-1 01 1 0211-1210 ● ●
167 04.302 LEVER; SELECT,EXTERNAL
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97035-560-1 01 1 1211- ● ●
167 04.302 LEVER; SELECT,EXTERNAL
4HF1-S ENG(RLS) 		8-97306-648-0 01 1 0211-0501 ●
167 04.302 LEVER; SELECT,EXTERNAL
4HF1-N ENG(RJZ) 		8-97306-648-0 01 1 0502-0611 ●
167 04.302 LEVER; SELECT,EXTERNAL
4HF1-N ENG(RJZ) 		8-98039-434-0 01 1 0612-1004 ●
167 04.302 LEVER; SELECT,EXTERNAL
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) 		8-98039-434-0 01 1 1005- ●
167 04.302 LEVER; SELECT,EXTERNAL
4JH1 ENG(RJX) 		8-97333-847-0 01 1 0211-0501 ●
167 04.302 LEVER; SELECT,EXTERNAL
4JH1-TC ENG(RDM) 		8-97333-847-0 01 1 0502-0611 ●
167 04.302 LEVER; SELECT,EXTERNAL
4JH1-TC ENG(RDM) 		8-98039-436-0 01 1 0612- ●
168 04.302 WASHER; LK,SELECT LEVER
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-433-0 01 1 1211- ● ●
168 04.302 WASHER; LK,SELECT LEVER 8-94249-250-1 01 1 0211-1210 ● ●
168 04.302 WASHER; LK,SELECT LEVER
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94249-250-1 01 1 1211- ● ●
171 04.054 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97165-946-1 01 1 0709-0802 ● ●
171 04.054 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98112-227-0 01 1 0803-1210 ● ●
171 04.054 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-415-0 01 1 1211- ● ●
171 04.054 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> 		8-97165-946-1 01 1 0211-0707 ● ●
171 04.054 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> 02.698 		8-98037-159-0 01 1 0708-0708 ● ●
171 04.054 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 02.698 		8-98037-159-0 01 1 0709- ● ●
171 04.054 SWITCH; NEUTRAL
4JH1 ENG(RJX) 		8-97316-688-1 01 1 0211-0501 ●
171 04.054 SWITCH; NEUTRAL
4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 		8-97316-688-1 01 1 0211-0501 ●
171 04.054 SWITCH; NEUTRAL
4JH1-TC ENG(RDM) 		8-97316-688-1 01 1 0502-0611 ●
171 04.054 SWITCH; NEUTRAL
4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 		8-97316-688-1 01 1 0502-0611 ●
171 04.054 SWITCH; NEUTRAL
4JH1-TC ENG(RDM) 02.698 		8-98023-050-0 01 1 0612-1004 ●
171 04.054 SWITCH; NEUTRAL
4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 02.698 		8-98023-050-0 01 1 0612-1004 ●
171 04.054 SWITCH; NEUTRAL
4JH1-TC ENG(RDM) 02.698 		8-98023-050-0 01 1 1005-1312 ●
171 04.054 SWITCH; NEUTRAL
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 02.698 		8-98023-050-0 01 1 1005-1312 ●
171 04.054 SWITCH; NEUTRAL
4JH1-TC ENG(RDM) 		8-98242-172-1 01 1 1401-1509 ●
171 04.054 SWITCH; NEUTRAL
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 		8-98242-172-1 01 1 1401-1509 ●
171 04.054 SWITCH; NEUTRAL
4JH1-TC ENG(RDM) 		8-98324-878-0 01 1 1510- ●
171 04.054 SWITCH; NEUTRAL
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 		8-98324-878-0 01 1 1510- ●
174 04.307 SPRING; REV
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-419-0 01 1 1211- ● ●
174 04.307 SPRING; REV 8-97031-927-0 01 1 0211-1210 ● ●
174 04.307 SPRING; REV
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97031-927-0 01 1 1211- ● ●
175 04.302 RING; STOPPER,SHIFT LEVER
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-338-0 01 1 1211- ● ●
175 04.302 RING; STOPPER,SHIFT LEVER
EXHAUST BRAKE<NF8> 		8-94249-048-2 01 1 0211-0504 ● ●
175 04.302 RING; STOPPER,SHIFT LEVER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94249-048-2 01 1 0505-1210 ● ●
175 04.302 RING; STOPPER,SHIFT LEVER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94249-048-2 01 1 0505-1210 ● ●
175 04.302 RING; STOPPER,SHIFT LEVER
EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94249-048-2 01 1 1211- ● ●
176 04.302 PIN; SPR,STOPPER
IN-HOUSE PRODUCTION VAR.2<TMW> 04.027 L=30 OD=4 		1-09748-031-0 02 1 1211- ● ●
176 04.302 PIN; SPR,STOPPER
4JB1 NA ENG(RLF) EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8> 04.555 L=30 OD=4 		9-09678-549-0 01 1 0211-0409 ●
176 04.302 PIN; SPR,STOPPER
EXC. EXHAUST BRAKE<NF8> 04.555 L=30 OD=4 		9-09678-549-0 01 1 0211-0409 ●
176 04.302 PIN; SPR,STOPPER
4JG2 ENG(RJC) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.555 L=30 OD=4 		9-09678-549-0 02 1 0410-0501 ●
176 04.302 PIN; SPR,STOPPER
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.555 L=30 OD=4 		9-09678-549-0 02 1 0410-0501 ●
176 04.302 PIN; SPR,STOPPER
4JB1 NA ENG(RLF) TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> 04.555 L=30 OD=4 		9-09678-549-0 02 1 0410-0501 ●
176 04.302 PIN; SPR,STOPPER
EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.555 L=30 OD=4 		9-09678-549-0 02 1 0410-0501 ●
176 04.302 PIN; SPR,STOPPER
4JB1 NA ENG(RLF) EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> 04.555 L=30 OD=4 		9-09678-549-0 01 1 0502-0504 ● ●
176 04.302 PIN; SPR,STOPPER
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> 04.555 L=30 OD=4 		9-09678-549-0 01 1 0505-0910 ● ●
176 04.302 PIN; SPR,STOPPER
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> 04.555 L=30 OD=4 		9-09678-549-0 01 1 0911- ●
176 04.302 PIN; SPR,STOPPER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> 04.555 L=30 OD=4 		9-09678-549-0 01 1 0911- ●
176 04.302 PIN; SPR,STOPPER
4JG2 ENG(RJC) 04.555 L=30 OD=4 		9-09678-549-0 02 1 0211-0409 ●
176 04.302 PIN; SPR,STOPPER
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 04.555 L=30 OD=4 		9-09678-549-0 02 1 0211-0409 ●
176 04.302 PIN; SPR,STOPPER
4JB1 NA ENG(RLF) TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8> 04.555 L=30 OD=4 		9-09678-549-0 02 1 0211-0409 ●
176 04.302 PIN; SPR,STOPPER
EXHAUST BRAKE<NF8> 04.555 L=30 OD=4 		9-09678-549-0 02 1 0211-0409 ●
176 04.302 PIN; SPR,STOPPER
4JB1 NA ENG(RLF) EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> 04.555 L=30 OD=4 		9-09678-549-0 01 1 0410-0501 ●
176 04.302 PIN; SPR,STOPPER
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> 04.555 L=30 OD=4 		9-09678-549-0 01 1 0410-0501 ●
176 04.302 PIN; SPR,STOPPER
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.555 L=30 OD=4 		9-09678-549-0 02 1 0502-0504 ● ●
176 04.302 PIN; SPR,STOPPER
IN-HOUSE PRODUCTION VAR.2<TMW> 04.555 L=30 OD=4 		9-09678-549-0 02 1 0502-0504 ● ●
176 04.302 PIN; SPR,STOPPER
4JB1-TC ENG(RDT) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.555 L=30 OD=4 		9-09678-549-0 02 1 0502-0504 ●
176 04.302 PIN; SPR,STOPPER
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.555 L=30 OD=4 		9-09678-549-0 02 1 0505-0910 ● ●
176 04.302 PIN; SPR,STOPPER
4JG2 ENG(RJC),4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> 04.555 L=30 OD=4 		9-09678-549-0 02 1 0505-0910 ● ●
176 04.302 PIN; SPR,STOPPER
4JB1-TC ENG(RDT) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.555 L=30 OD=4 		9-09678-549-0 02 1 0505-0910 ●
176 04.302 PIN; SPR,STOPPER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> 04.555 L=30 OD=4 		9-09678-549-0 02 1 0911-1210 ● ●
176 04.302 PIN; SPR,STOPPER
4JB1-TC ENG(RDT) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.555 L=30 OD=4 		9-09678-549-0 02 1 0911-1210 ●
176 04.302 PIN; SPR,STOPPER
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.555 L=30 OD=4 		9-09678-549-0 02 1 0911-1210 ●
176 04.302 PIN; SPR,STOPPER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.555 L=30 OD=4 		9-09678-549-0 02 1 0911-1210 ●
176 04.302 PIN; SPR,STOPPER
4JB1-TC ENG(RDT) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.555 L=30 OD=4 		9-09678-549-0 02 1 1211- ●
176 04.302 PIN; SPR,STOPPER
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.555 L=30 OD=4 		9-09678-549-0 02 1 1211- ●
176 04.302 PIN; SPR,STOPPER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.555 L=30 OD=4 		9-09678-549-0 02 1 1211- ●
177 04.105 GASKET; CONT BOX
ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0410-0501 ● ●
177 04.105 GASKET; CONT BOX
ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0502-0504 ● ●
177 04.105 GASKET; CONT BOX
ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0505- ● ●
180 04.302 WASHER; REV STOP SPRING
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-423-0 01 1 1211- ● ●
180 04.302 WASHER; REV STOP SPRING
04.307 		8-94249-244-0 01 1 0211-1210 ● ●
180 04.302 WASHER; REV STOP SPRING
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.307 		8-94249-244-0 01 1 1211- ● ●
183 04.105 PLUG; SCREW,OIL FILTER
IN-HOUSE PRODUCTION VAR.2<TMW> M18 		8-98190-432-0 01 1 1211- ● ●
183 04.105 PLUG; SCREW,OIL FILTER
M18 		8-94337-946-1 01 1 0211-1210 ● ●
183 04.105 PLUG; SCREW,OIL FILTER
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M18 		8-94337-946-1 01 1 1211- ● ●
184 04.105 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> ID=15.5 		8-98189-969-0 01 1 1211- ● ●
184 04.105 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). 04.422 ID=15.3 		8-94336-511-0 01 1 0211-1210 ● ●
184 04.105 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.422 ID=15.3 		8-94336-511-0 01 1 1211- ● ●
398 02.698 SWITCH; REV LAMP
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98112-229-0 01 1 0803-0910 ● ● ●
398 02.698 SWITCH; REV LAMP
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98112-229-0 01 1 0911-1210 ● ●
398 02.698 SWITCH; REV LAMP
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-417-0 01 1 1211- ● ●
398 02.698 SWITCH; REV LAMP 8-97165-947-1 01 1 0211-0707 ● ●
398 02.698 SWITCH; REV LAMP
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-98037-160-0 01 1 0708-0802 ● ●
398 02.698 SWITCH; REV LAMP
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98037-160-0 01 1 0803-0910 ● ● ●
398 02.698 SWITCH; REV LAMP
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98037-160-0 01 1 0911- ● ●
398 02.698 SWITCH; REV LAMP
04.054 		8-97316-688-1 01 1 0211-0604 ●
398 02.698 SWITCH; REV LAMP 8-98023-050-0 01 1 0605-1312 ●
398 02.698 SWITCH; REV LAMP 8-98242-173-1 01 1 1401- ●

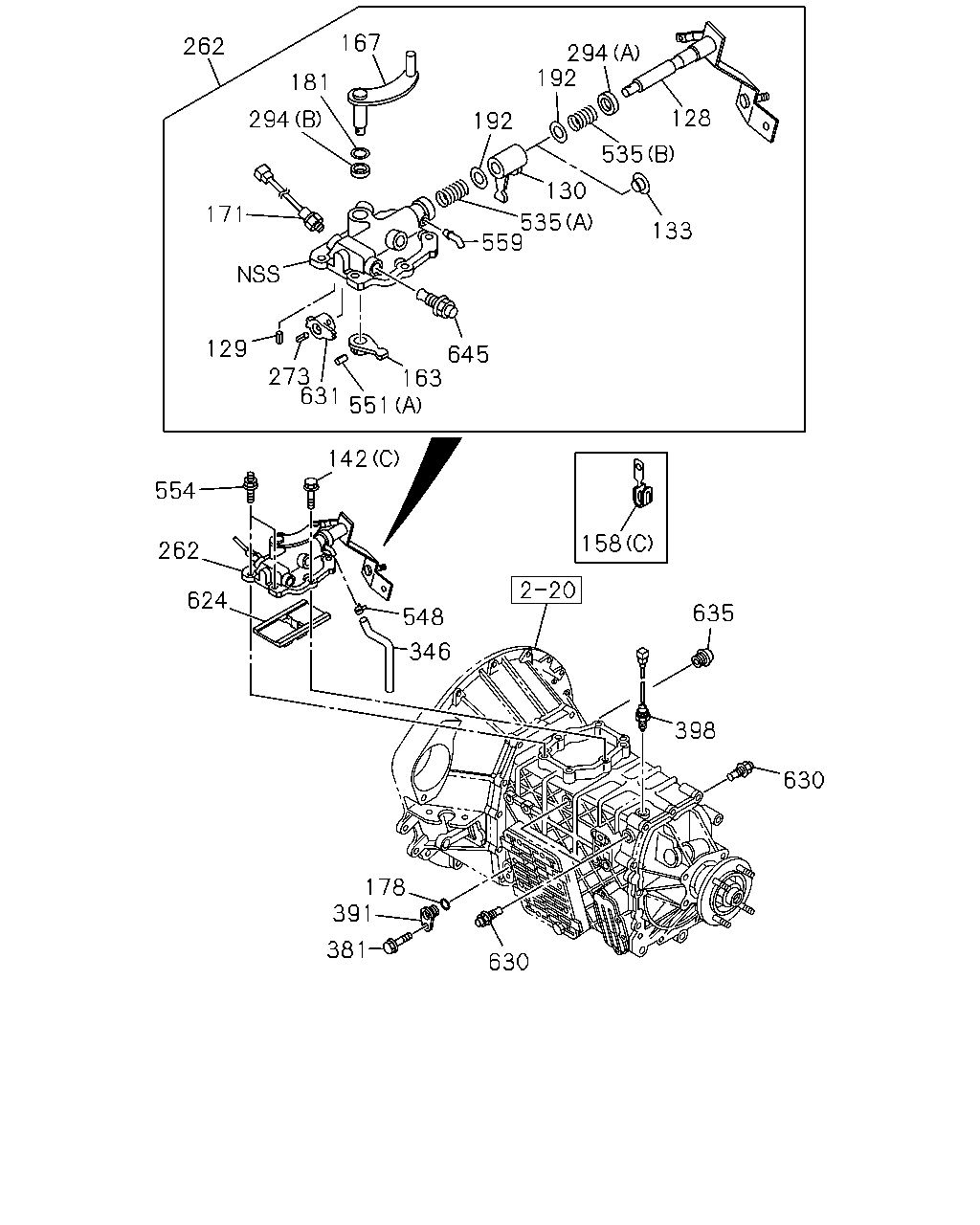

çizim 100534
630 178 391 381 630 398 635 158 346 548 624 262 554 142 551 631 273 129 163 645 559 535 130 133 128 535 294 192 192 167 181 294 171 262
BalonParca AdiParca NoAdetTipApplied Date A B C
128 04.030 LEVER; SHIFT,EXTERNAL 8-97305-725-0 01 1 0211- ●
129 04.027 PIN; SPR,SHIFT
L=30 OD=4 		1-09748-031-0 01 1 0211- ●
130 04.302 LEVER; SHIFT,INTERNAL
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-340-0 01 1 1211- ● ●
130 04.302 LEVER; SHIFT,INTERNAL 8-94105-141-2 01 1 0211-1210 ● ●
130 04.302 LEVER; SHIFT,INTERNAL
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94105-141-2 01 1 1211- ● ●
130 04.302 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 0211- ●
133 04.027 SEAT; SPR 8-97305-667-0 01 1 0211- ●
142 04.012 BOLT; QUAD BOX
IN-HOUSE PRODUCTION VAR.2<TMW> 03.275 (A) M8X25 FLANGE 		0-28050-825-0 08 1 1211- ● ●
142 04.012 BOLT; QUAD BOX
IN-HOUSE PRODUCTION VAR.2<TMW> 00.206 (B) M8X30 FLANGE 		0-28050-830-0 02 1 1211- ● ●
142 04.012 BOLT; QUAD BOX
04.105 (A) M8X25 		8-94128-786-0 08 1 0211-1210 ● ●
142 04.012 BOLT; QUAD BOX
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.105 (A) M8X25 		8-94128-786-0 08 1 1211- ● ●
142 04.012 BOLT; QUAD BOX
04.105 (B) M8X30 		8-97029-705-0 02 1 0211-1210 ● ●
142 04.012 BOLT; QUAD BOX
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.105 (B) M8X30 		8-97029-705-0 02 1 1211- ● ●
142 04.012 BOLT; QUAD BOX
04.356 (C) M8X22 FLANGE 		8-94448-815-3 04 1 0211-0604 ●
142 04.012 BOLT; QUAD BOX
04.356 (C) M8X22 FLANGE 		8-97365-376-0 04 1 0605- ●
158 04.105 CLIP; HARNESS
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> 03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0803-0910 ● ● ●
158 04.105 CLIP; HARNESS
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> 03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0911- ● ●
158 04.105 CLIP; HARNESS
01.152 (A) ID=8.5 		5-09700-275-0 01 1 0211-0802 ● ●
158 04.105 CLIP; HARNESS
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 01.152 (A) ID=8.5 		5-09700-275-0 01 1 0803-0910 ● ● ●
158 04.105 CLIP; HARNESS
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 01.152 (A) ID=8.5 		5-09700-275-0 01 1 0911- ● ●
158 04.105 CLIP; HARNESS
EXHAUST BRAKE<NF8> 03.162 (B) L=140 		5-09707-031-1 01 1 0211-0504 ● ●
158 04.105 CLIP; HARNESS
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 03.162 (B) L=140 		5-09707-031-1 01 1 0505-0802 ● ●
158 04.105 CLIP; HARNESS
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> 03.162 (B) L=140 		5-09707-031-1 01 1 0505-0802 ● ●
158 04.105 CLIP; HARNESS
EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 03.162 (B) L=140 		5-09707-031-1 01 1 0803-0806 ● ●
158 04.105 CLIP; HARNESS
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 03.162 (B) L=140 		5-09707-031-1 01 1 0807- ● ●
158 04.105 CLIP; HARNESS
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> 03.162 (B) L=140 		5-09707-031-1 01 1 0807- ● ●
158 04.105 CLIP; HARNESS
4JH1 ENG(RJX) (C) 		8-97300-317-0 01 1 0211-0302 ●
163 04.302 LEVER; SELECT,INTERNAL
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-302-0 01 1 1211- ● ●
163 04.302 LEVER; SELECT,INTERNAL 8-94159-268-1 01 1 0211-1210 ● ●
163 04.302 LEVER; SELECT,INTERNAL
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94159-268-1 01 1 1211- ● ●
163 04.302 LEVER; SELECT,INTERNAL 8-97305-663-0 01 1 0211- ●
167 04.302 LEVER; SELECT,EXTERNAL
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-276-0 01 1 1211- ● ●
167 04.302 LEVER; SELECT,EXTERNAL 8-97035-560-1 01 1 0211-1210 ● ●
167 04.302 LEVER; SELECT,EXTERNAL
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97035-560-1 01 1 1211- ● ●
167 04.302 LEVER; SELECT,EXTERNAL
4HF1-S ENG(RLS) 		8-97306-648-0 01 1 0211-0501 ●
167 04.302 LEVER; SELECT,EXTERNAL
4HF1-N ENG(RJZ) 		8-97306-648-0 01 1 0502-0611 ●
167 04.302 LEVER; SELECT,EXTERNAL
4HF1-N ENG(RJZ) 		8-98039-434-0 01 1 0612-1004 ●
167 04.302 LEVER; SELECT,EXTERNAL
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) 		8-98039-434-0 01 1 1005- ●
167 04.302 LEVER; SELECT,EXTERNAL
4JH1 ENG(RJX) 		8-97333-847-0 01 1 0211-0501 ●
167 04.302 LEVER; SELECT,EXTERNAL
4JH1-TC ENG(RDM) 		8-97333-847-0 01 1 0502-0611 ●
167 04.302 LEVER; SELECT,EXTERNAL
4JH1-TC ENG(RDM) 		8-98039-436-0 01 1 0612- ●
171 04.054 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97165-946-1 01 1 0709-0802 ● ●
171 04.054 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98112-227-0 01 1 0803-1210 ● ●
171 04.054 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-415-0 01 1 1211- ● ●
171 04.054 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> 		8-97165-946-1 01 1 0211-0707 ● ●
171 04.054 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> 02.698 		8-98037-159-0 01 1 0708-0708 ● ●
171 04.054 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 02.698 		8-98037-159-0 01 1 0709- ● ●
171 04.054 SWITCH; NEUTRAL
4JH1 ENG(RJX) 		8-97316-688-1 01 1 0211-0501 ●
171 04.054 SWITCH; NEUTRAL
4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 		8-97316-688-1 01 1 0211-0501 ●
171 04.054 SWITCH; NEUTRAL
4JH1-TC ENG(RDM) 		8-97316-688-1 01 1 0502-0611 ●
171 04.054 SWITCH; NEUTRAL
4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 		8-97316-688-1 01 1 0502-0611 ●
171 04.054 SWITCH; NEUTRAL
4JH1-TC ENG(RDM) 02.698 		8-98023-050-0 01 1 0612-1004 ●
171 04.054 SWITCH; NEUTRAL
4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 02.698 		8-98023-050-0 01 1 0612-1004 ●
171 04.054 SWITCH; NEUTRAL
4JH1-TC ENG(RDM) 02.698 		8-98023-050-0 01 1 1005-1312 ●
171 04.054 SWITCH; NEUTRAL
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 02.698 		8-98023-050-0 01 1 1005-1312 ●
171 04.054 SWITCH; NEUTRAL
4JH1-TC ENG(RDM) 		8-98242-172-1 01 1 1401-1509 ●
171 04.054 SWITCH; NEUTRAL
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 		8-98242-172-1 01 1 1401-1509 ●
171 04.054 SWITCH; NEUTRAL
4JH1-TC ENG(RDM) 		8-98324-878-0 01 1 1510- ●
171 04.054 SWITCH; NEUTRAL
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 		8-98324-878-0 01 1 1510- ●
178 04.307 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09567-113-0 01 1 0211- ●
181 04.302 WASHER; PL,SELECT LEVER 1-09503-280-0 01 1 0211-0303 ●
181 04.302 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 0304- ●
192 04.309 WASHER; PL 8-97305-661-0 02 1 0211-0303 ●
192 04.309 WASHER; PL 8-97305-661-0 01 1 0304- ●
262 04.105 BOX ASM; SHIFT CONT
4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 		8-97256-825-7 01 1 0211-0404 ●
262 04.105 BOX ASM; SHIFT CONT
4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 		8-97362-750-0 01 1 0405-0501 ●
262 04.105 BOX ASM; SHIFT CONT
4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 		8-97362-750-2 01 1 0502-1004 ●
262 04.105 BOX ASM; SHIFT CONT
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 		8-97362-750-2 01 1 1005-1312 ●
262 04.105 BOX ASM; SHIFT CONT
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 		8-98240-999-2 01 1 1401- ●
262 04.105 BOX ASM; SHIFT CONT
4HF1-S ENG(RLS) EXC. EXHAUST BRAKE<NF8> 		8-97352-015-0 01 1 0211-0404 ●
262 04.105 BOX ASM; SHIFT CONT
4HF1-S ENG(RLS) EXC. EXHAUST BRAKE<NF8> 		8-97362-755-0 01 1 0405-0501 ●
262 04.105 BOX ASM; SHIFT CONT
4HF1-N ENG(RJZ) EXC. EXHAUST BRAKE<NF8> 		8-97362-755-2 01 1 0502-1004 ●
262 04.105 BOX ASM; SHIFT CONT
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) EXC. EXHAUST BRAKE<NF8> 		8-97362-755-2 01 1 1005- ●
262 04.105 BOX ASM; SHIFT CONT
4JH1 ENG(RJX) 		8-97310-609-2 01 1 0211-0404 ●
262 04.105 BOX ASM; SHIFT CONT
4JH1 ENG(RJX) 		8-97362-753-0 01 1 0405-0501 ●
262 04.105 BOX ASM; SHIFT CONT
4JH1-TC ENG(RDM) 		8-97362-753-2 01 1 0502-1312 ●
262 04.105 BOX ASM; SHIFT CONT
4JH1-TC ENG(RDM) 		8-98241-002-2 01 1 1401- ●
273 04.309 PIN; SPR,STOPPER
04.307 D=4.2 L=25 		8-97103-142-0 01 1 0211- ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-09625-599-0 01 1 0211-0303 ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 0304- ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97305-662-0 01 1 0211- ●
346 04.545 HOSE; AIR 8-97309-855-0 01 1 0211- ●
381 04.105 BOLT
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 0211-0512 ●
381 04.105 BOLT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 0601- ●
391 04.104 PLUG; SW HOLE 8-97300-273-1 01 1 0211- ●
398 02.698 SWITCH; REV LAMP
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98112-229-0 01 1 0803-0910 ● ● ●
398 02.698 SWITCH; REV LAMP
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98112-229-0 01 1 0911-1210 ● ●
398 02.698 SWITCH; REV LAMP
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-417-0 01 1 1211- ● ●
398 02.698 SWITCH; REV LAMP 8-97165-947-1 01 1 0211-0707 ● ●
398 02.698 SWITCH; REV LAMP
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-98037-160-0 01 1 0708-0802 ● ●
398 02.698 SWITCH; REV LAMP
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98037-160-0 01 1 0803-0910 ● ● ●
398 02.698 SWITCH; REV LAMP
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98037-160-0 01 1 0911- ● ●
398 02.698 SWITCH; REV LAMP
04.054 		8-97316-688-1 01 1 0211-0604 ●
398 02.698 SWITCH; REV LAMP 8-98023-050-0 01 1 0605-1312 ●
398 02.698 SWITCH; REV LAMP 8-98242-173-1 01 1 1401- ●
535 04.302 SPRING; LEVER
(A) 		8-97323-771-0 01 1 0211- ●
535 04.302 SPRING; LEVER
(B) 		8-97323-772-0 01 1 0211- ●
548 04.457 CLIP; HOSE
03.278 		8-97031-674-0 01 1 0211- ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0211- ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 0211- ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0211- ●
554 04.302 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97352-677-0 02 1 0211-0604 ●
554 04.302 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97365-378-0 02 1 0605- ●
559 04.302 PIPE; BREATHER 8-97305-517-0 01 1 0211-0604 ●
559 04.302 PIPE; BREATHER
04.510 		8-97358-318-0 01 1 0605- ●
624 04.105 PLATE; INTER LOCK 8-97241-317-3 01 1 0211- ●
630 04.307 DETENT ASM 8-97241-341-0 03 1 0211-0604 ●
630 04.307 DETENT ASM 8-98019-536-0 03 1 0605- ●
631 04.105 STOPPER; SPRING 8-97305-666-0 01 1 0211- ●
635 04.309 PLUG; DETENT
00.206 		8-97229-313-2 01 1 0211-0611 ●
635 04.309 PLUG; DETENT
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 00.206 		8-97380-892-0 01 1 0612-1004 ●
635 04.309 PLUG; DETENT
00.206 		8-97380-892-0 01 1 1005- ●
645 04.311 DETENT ASM
04.307 		8-97241-341-0 01 1 0405-0604 ●
645 04.311 DETENT ASM
04.307 		8-98019-536-0 01 1 0605- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
