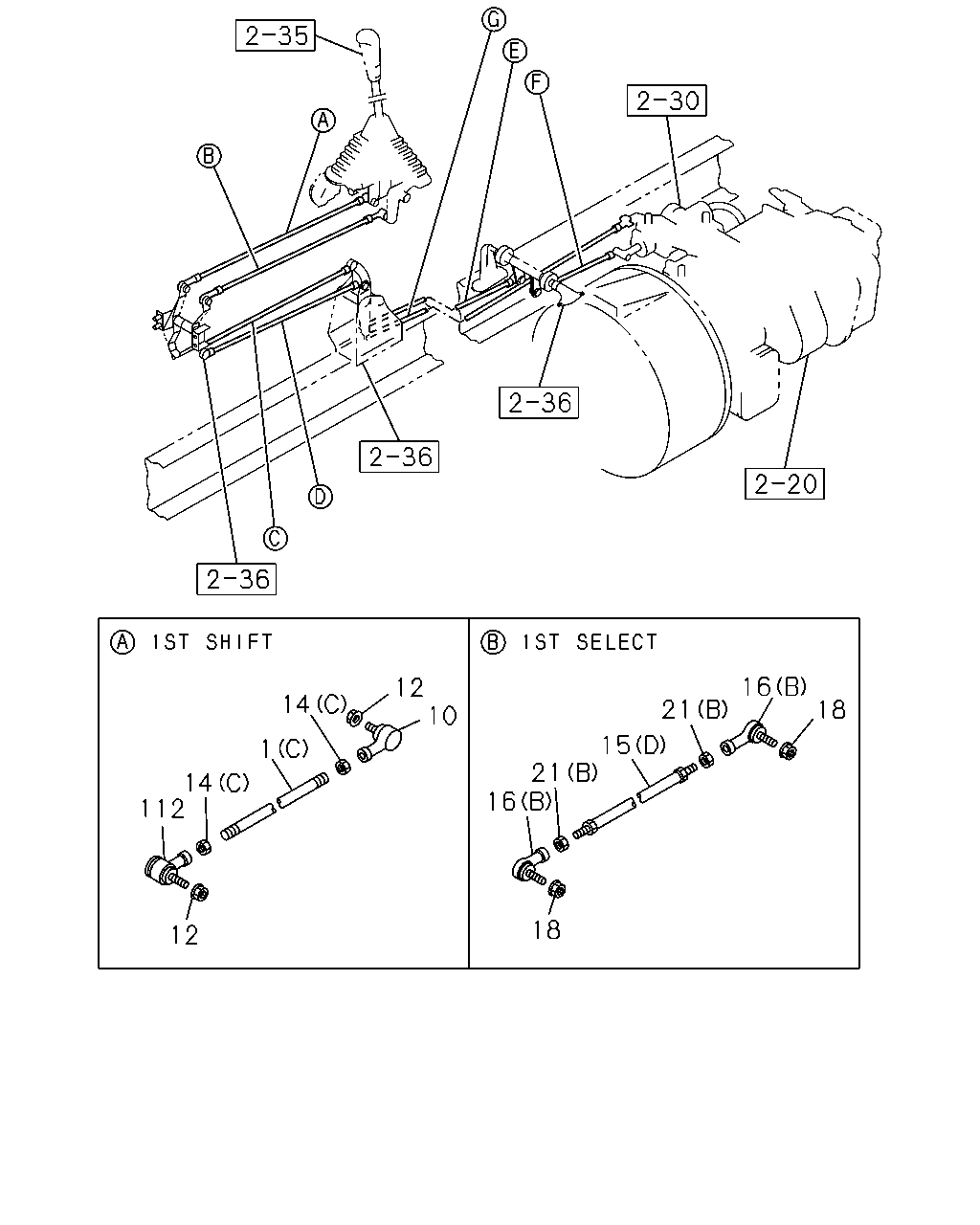

2-37B — MANUAL TRANSMISSION CONT; MISSION SIDE (#5078) — 168 parça

28 24 25 15 22 5 112 25 22 25 15 22 28 24 25 25 15 15 22 28 25 112 24 25 24 22 22 28 30 35 32 8 5 49 35 47 45 32 30 47 47 45 49 47 47 49 45 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	ROD; LINK,3RD SHIFT 10PE1S(60L) L=855	1-33652-321-0	01	1	9606-9905
5	ROD; LINK,3RD SHIFT 6WA1 TC-S(56L) L=1110	1-33652-623-0	01	1	9606-9702
5	ROD; LINK,3RD SHIFT 6WA1 TC-S(56L) L=1110	1-33652-623-0	01	1	9703-9706
5	ROD; LINK,3RD SHIFT 6WA1 TC-S(56L) L=1110	1-33652-623-0	01	1	9707-9905
5	ROD; LINK,3RD SHIFT EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> L=1110	1-33652-623-0	01	1	9906-
8	ROD; LINK,4TH SHIFT V TYPE ENG<91L> L=492	1-33652-702-1	01	1	9606-9905
8	ROD; LINK,4TH SHIFT 6WA1 TC-S(56L) L=477	1-33652-718-0	01	1	9701-9905
8	ROD; LINK,4TH SHIFT L=485	1-33652-859-0	01	1	9906-
15	ROD; LINK 1ST SHIFT (D) L=435	1-33652-696-0	01	1	9606-9701
15	ROD; LINK 1ST SHIFT (D) L=435	1-33652-696-0	01	1	9702-9905
15	ROD; LINK 1ST SHIFT (D) L=435	1-33652-696-0	01	1	9906-9906
15	ROD; LINK 1ST SHIFT (D) L=435	1-33652-696-0	01	1	9907-
15	ROD; LINK 1ST SHIFT 10PE1S(60L) (E) L=440	1-33652-672-0	01	1	9606-9905
15	ROD; LINK 1ST SHIFT 10PE1S(60L) (A) L=490	1-33652-700-0	01	1	9606-9905
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (C) L=438	1-33652-682-0	01	1	9606-9706
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (C) L=438	1-33652-682-0	01	1	9707-9711
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (C) L=428	1-33652-781-0	01	1	9712-9905
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (C) L=428	1-33652-781-1	01	1	9906-
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (B) L=497	1-33652-716-0	01	1	9606-9706
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (B) L=497	1-33652-716-0	01	1	9707-9711
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (B) L=490	1-33652-780-0	01	1	9712-9905
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) L=490	1-33652-780-0	01	1	9906-
22	JOINT; BALL,SCREW,LINK ROD (A) SHIFT L=64.5	1-09760-111-0	01	1	9606-9710
22	JOINT; BALL,SCREW,LINK ROD 10PE1S(60L) (B) SELECT	1-09760-108-0	02	1	9606-9905
22	JOINT; BALL,SCREW,LINK ROD 6WA1 TC-S(56L) (B) SELECT	1-09760-109-0	02	1	9606-9706
22	JOINT; BALL,SCREW,LINK ROD 6WA1 TC-S(56L) (B) SELECT	1-09760-109-0	02	1	9707-9905
22	JOINT; BALL,SCREW,LINK ROD L TYPE ENG<90L> (B) SELECT	1-09760-109-0	02	1	9906-
22	JOINT; BALL,SCREW,LINK ROD (A) SHIFT	1-09760-125-0	01	1	9711-9905
22	JOINT; BALL,SCREW,LINK ROD (A) SHIFT	1-09760-125-0	01	1	9906-
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-050-0	02	1	9606-9708
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-050-0	01	1	9709-9710
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-056-0	01	1	9709-9710
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-056-0	02	1	9711-9802
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	9803-9905
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	9906-0007
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	01	1	0008-
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	01	1	0008-
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	9-99111-412-0	02	1	9606-9708
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	9-99111-412-0	02	1	9709-9905
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	9-99111-412-0	02	1	9906-
25	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L) (B) M8	9-09111-408-0	02	1	9606-9905
25	NUT; LK,RIGHT SCREW,LINK ROD 6WA1 TC-S(56L) (B) M10	9-09111-410-0	02	1	9606-9706
25	NUT; LK,RIGHT SCREW,LINK ROD 6WA1 TC-S(56L) (B) M10	9-09111-410-0	02	1	9707-9905
25	NUT; LK,RIGHT SCREW,LINK ROD L TYPE ENG<90L> (B) M10	9-09111-410-0	02	1	9906-
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-049-0	02	1	9606-9804
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	02	1	9805-9905
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	02	1	9906-0007
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	01	1	0008-
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	01	1	0008-
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-110-0	02	1	9606-9706
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-110-0	02	1	9707-9710
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	9711-9905
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	9906-
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-050-0	02	1	9606-9710
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-056-0	02	1	9711-9802
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	9803-9905
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	9906-
32	NUT; 3RD LINK ROD M8 FLANGE	1-09440-062-1	01	1	9808-9912
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9606-9706
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9707-9905
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9906-
45	JOINT; BALL,RIGHT SCREW,LINK ROD V TYPE ENG<91L>	1-09760-117-0	01	1	9606-9612
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-117-0	01	1	9701-9710
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-125-0	01	1	9711-9905
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-125-0	02	1	9906-
47	NUT; 4TH LINK ROD (A) M10 FLANGE	1-09440-061-0	02	1	9906-
47	NUT; 4TH LINK ROD (A) M10 FLANGE	1-09440-050-0	01	1	9606-9710
47	NUT; 4TH LINK ROD (A) M10 FLANGE	1-09440-056-0	01	1	9711-9802
47	NUT; 4TH LINK ROD (A) M10 FLANGE	1-09440-061-0	01	1	9803-9905
47	NUT; 4TH LINK ROD (B) M14	9-99110-414-0	01	1	9606-9905
47	NUT; 4TH LINK ROD (C) M14	9-99111-414-0	01	1	9606-9905
49	NUT; LK,RIGHT SCREW,LINK ROD V TYPE ENG<91L> M12	9-99111-412-0	01	1	9606-9612
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	01	1	9701-9905
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	9906-
112	JOINT; RUBBER	1-33670-413-1	01	1	9606-9708
112	JOINT; RUBBER	1-33670-413-1	01	1	9606-9708
112	JOINT; RUBBER	1-33670-413-1	01	1	9709-9905
112	JOINT; RUBBER	1-33670-413-1	01	1	9709-9905
112	JOINT; RUBBER	1-33670-413-1	01	1	9906-
112	JOINT; RUBBER	1-33670-413-1	01	1	9906-

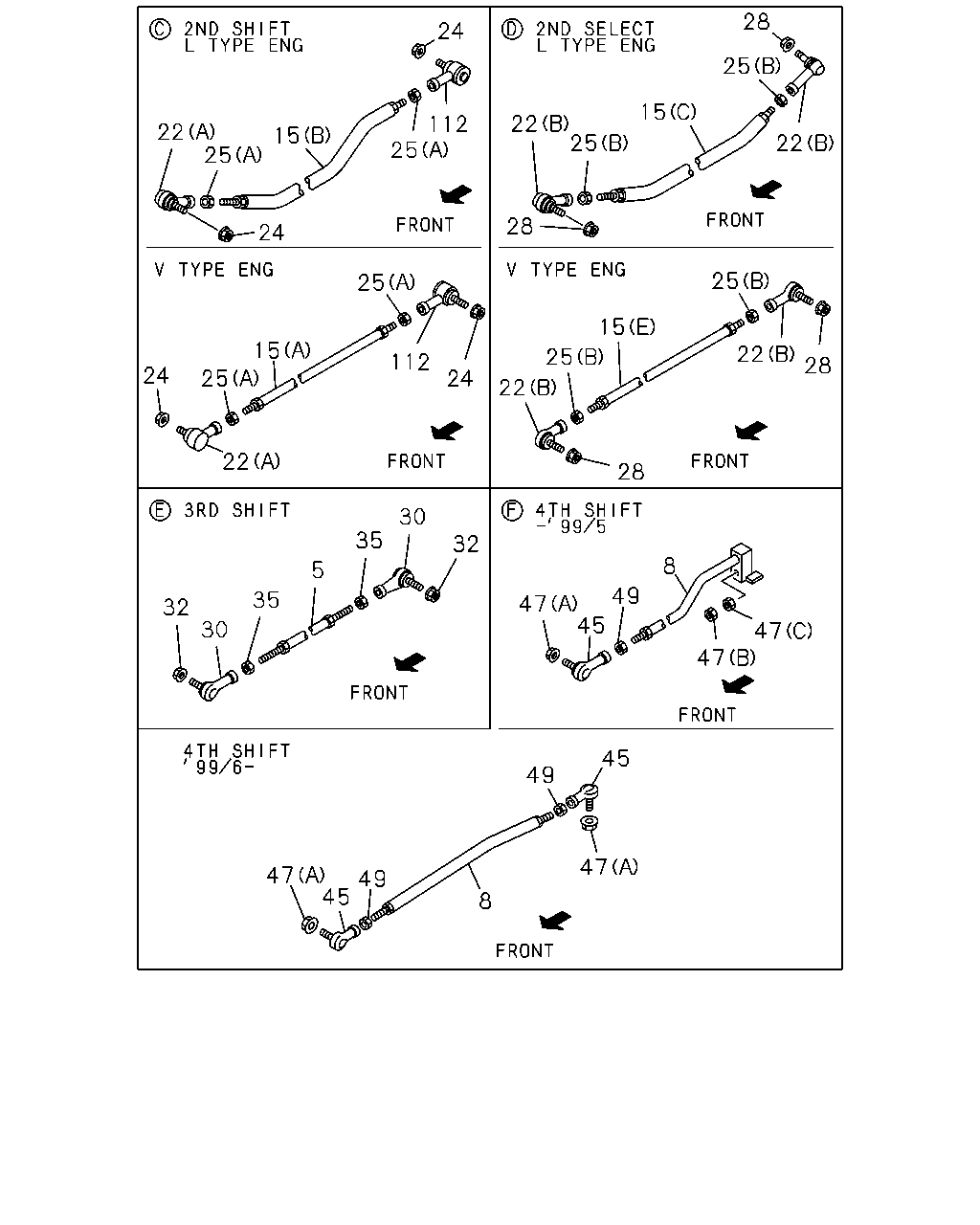

36 44 6 36 38 38 44 38 38 36 6 44 44 36 121 6 38 36 44 32 44 36 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	ROD; LINK,3RD SELECT 10PE1S(60L) L=1266	1-33652-741-0	01	1	9606-9807
6	ROD; LINK,3RD SELECT 10PE1S(60L) L=1189	1-33652-861-0	01	1	9808-9905
6	ROD; LINK,3RD SELECT 6WA1 TC-S(56L) L=1454	1-33652-745-0	01	1	9701-9807
6	ROD; LINK,3RD SELECT 6WA1 TC-S(56L) L=1412	1-33652-860-0	01	1	9808-9905
6	ROD; LINK,3RD SELECT L=1412	1-33652-860-0	01	1	9906-0005
6	ROD; LINK,3RD SELECT EXC. MIXER TRUCK<RA2> L=1412	1-33652-860-0	01	1	0006-
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> L=1479	1-33652-960-0	01	1	0006-
7	ROD ASM; CONT,SELECT L=125	1-33671-333-0	01	1	9808-9905
7	ROD ASM; CONT,SELECT 6WA1 TC-C(55L) L=125	1-33671-333-0	01	1	9906-9912
7	ROD ASM; CONT,SELECT 10PE1N(61L) L=125	1-33671-454-0	01	1	9906-9912
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-050-0	02	1	9606-9710
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-056-0	02	1	9711-9802
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	9803-9905
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	9906-
32	NUT; 3RD LINK ROD M8 FLANGE	1-09440-062-1	01	1	9808-9912
36	JOINT; BALL,RIGHT SCREW,LINK ROD 6WA1 TC-S(56L)	1-09760-109-0	02	1	9701-9706
36	JOINT; BALL,RIGHT SCREW,LINK ROD 6WA1 TC-S(56L)	1-09760-109-0	02	1	9707-9807
36	JOINT; BALL,RIGHT SCREW,LINK ROD 10PE1S(60L)	1-09760-108-0	02	1	9606-9807
36	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-109-0	01	1	9808-9905
36	JOINT; BALL,RIGHT SCREW,LINK ROD 6WA1 TC-S(56L)	1-09760-109-0	01	1	9808-9905
36	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-109-0	02	1	9906-9912
36	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-109-0	02	1	9906-9912
36	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-109-0	01	1	0001-
36	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-109-0	01	1	0001-
36	JOINT; BALL,RIGHT SCREW,LINK ROD 10PE1S(60L)	1-09760-108-0	01	1	9808-9905
38	NUT; 3RD LINK ROD M8 FLANGE	1-09440-049-0	02	1	9606-9804
38	NUT; 3RD LINK ROD M8 FLANGE	1-09440-062-0	02	1	9805-9807
38	NUT; 3RD LINK ROD M8 FLANGE	1-09440-062-1	01	1	9808-9912
38	NUT; 3RD LINK ROD M8 FLANGE	1-09440-062-1	02	1	0001-
44	NUT; LK,RIGHT SCREW,LINK ROD 6WA1 TC-S(56L) M10	9-09111-410-0	02	1	9701-9706
44	NUT; LK,RIGHT SCREW,LINK ROD 6WA1 TC-S(56L) M10	9-09111-410-0	02	1	9707-9807
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L) M8	9-09111-408-0	02	1	9606-9807
44	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9808-9905
44	NUT; LK,RIGHT SCREW,LINK ROD 6WA1 TC-S(56L) M10	9-09111-410-0	02	1	9808-9905
44	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9906-9912
44	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9906-9912
44	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	01	1	0001-
44	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	01	1	0001-
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L) M8	9-09111-408-0	01	1	9808-9905
121	BOLT; LINK ROD	1-09044-103-0	02	1	9808-

16 12 10 14 21 18 15 21 16 1 14 112 18 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ROD; LINK,1ST SHIFT (C) L=480	9-08401-248-0	01	1	9606-9701
1	ROD; LINK,1ST SHIFT (C) L=480	9-08401-248-0	01	1	9702-9905
1	ROD; LINK,1ST SHIFT (C) L=480	9-08401-248-0	01	1	9906-9906
1	ROD; LINK,1ST SHIFT (C) L=480	9-08401-248-0	01	1	9907-
10	JOINT ASM; BALL,SELECT ROD	1-09760-117-0	01	1	9606-9701
10	JOINT ASM; BALL,SELECT ROD	1-09760-117-0	01	1	9702-9710
10	JOINT ASM; BALL,SELECT ROD	1-09760-125-0	01	1	9711-9905
10	JOINT ASM; BALL,SELECT ROD	1-09760-125-0	01	1	9906-9906
10	JOINT ASM; BALL,SELECT ROD	1-09760-125-0	01	1	9907-
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-050-0	02	1	9606-9708
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-056-0	02	1	9709-9802
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	9803-9905
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	9906-
14	NUT; LK,RIGHT SCREW,LINK ROD (C) M12	9-99111-412-0	02	1	9606-9701
14	NUT; LK,RIGHT SCREW,LINK ROD (C) M12	9-99111-412-0	02	1	9702-9905
14	NUT; LK,RIGHT SCREW,LINK ROD (C) M12	9-99111-412-0	02	1	9906-9906
14	NUT; LK,RIGHT SCREW,LINK ROD (C) M12	9-99111-412-0	02	1	9907-
15	ROD; LINK 1ST SHIFT (D) L=435	1-33652-696-0	01	1	9606-9701
15	ROD; LINK 1ST SHIFT (D) L=435	1-33652-696-0	01	1	9702-9905
15	ROD; LINK 1ST SHIFT (D) L=435	1-33652-696-0	01	1	9906-9906
15	ROD; LINK 1ST SHIFT (D) L=435	1-33652-696-0	01	1	9907-
15	ROD; LINK 1ST SHIFT 10PE1S(60L) (E) L=440	1-33652-672-0	01	1	9606-9905
15	ROD; LINK 1ST SHIFT 10PE1S(60L) (A) L=490	1-33652-700-0	01	1	9606-9905
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (C) L=438	1-33652-682-0	01	1	9606-9706
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (C) L=438	1-33652-682-0	01	1	9707-9711
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (C) L=428	1-33652-781-0	01	1	9712-9905
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (C) L=428	1-33652-781-1	01	1	9906-
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (B) L=497	1-33652-716-0	01	1	9606-9706
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (B) L=497	1-33652-716-0	01	1	9707-9711
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (B) L=490	1-33652-780-0	01	1	9712-9905
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) L=490	1-33652-780-0	01	1	9906-
16	JOINT ASM; BALL,CONT ROD (B)	1-09760-108-0	02	1	9606-9701
16	JOINT ASM; BALL,CONT ROD (B)	1-09760-108-0	02	1	9702-9905
16	JOINT ASM; BALL,CONT ROD (B)	1-09760-108-0	02	1	9906-9906
16	JOINT ASM; BALL,CONT ROD (B)	1-09760-108-0	02	1	9907-
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-049-0	02	1	9606-9804
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	9805-9905
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	9906-
21	NUT; LK,RIGHT SCREW,LINK ROD (B) M8	9-09111-408-0	02	1	9606-9701
21	NUT; LK,RIGHT SCREW,LINK ROD (B) M8	9-09111-408-0	02	1	9702-9905
21	NUT; LK,RIGHT SCREW,LINK ROD (B) M8	9-09111-408-0	02	1	9906-9906
21	NUT; LK,RIGHT SCREW,LINK ROD (B) M8	9-09111-408-0	02	1	9907-
112	JOINT; RUBBER	1-33670-413-1	01	1	9606-9708
112	JOINT; RUBBER	1-33670-413-1	01	1	9606-9708
112	JOINT; RUBBER	1-33670-413-1	01	1	9709-9905
112	JOINT; RUBBER	1-33670-413-1	01	1	9709-9905
112	JOINT; RUBBER	1-33670-413-1	01	1	9906-
112	JOINT; RUBBER	1-33670-413-1	01	1	9906-
