1 |

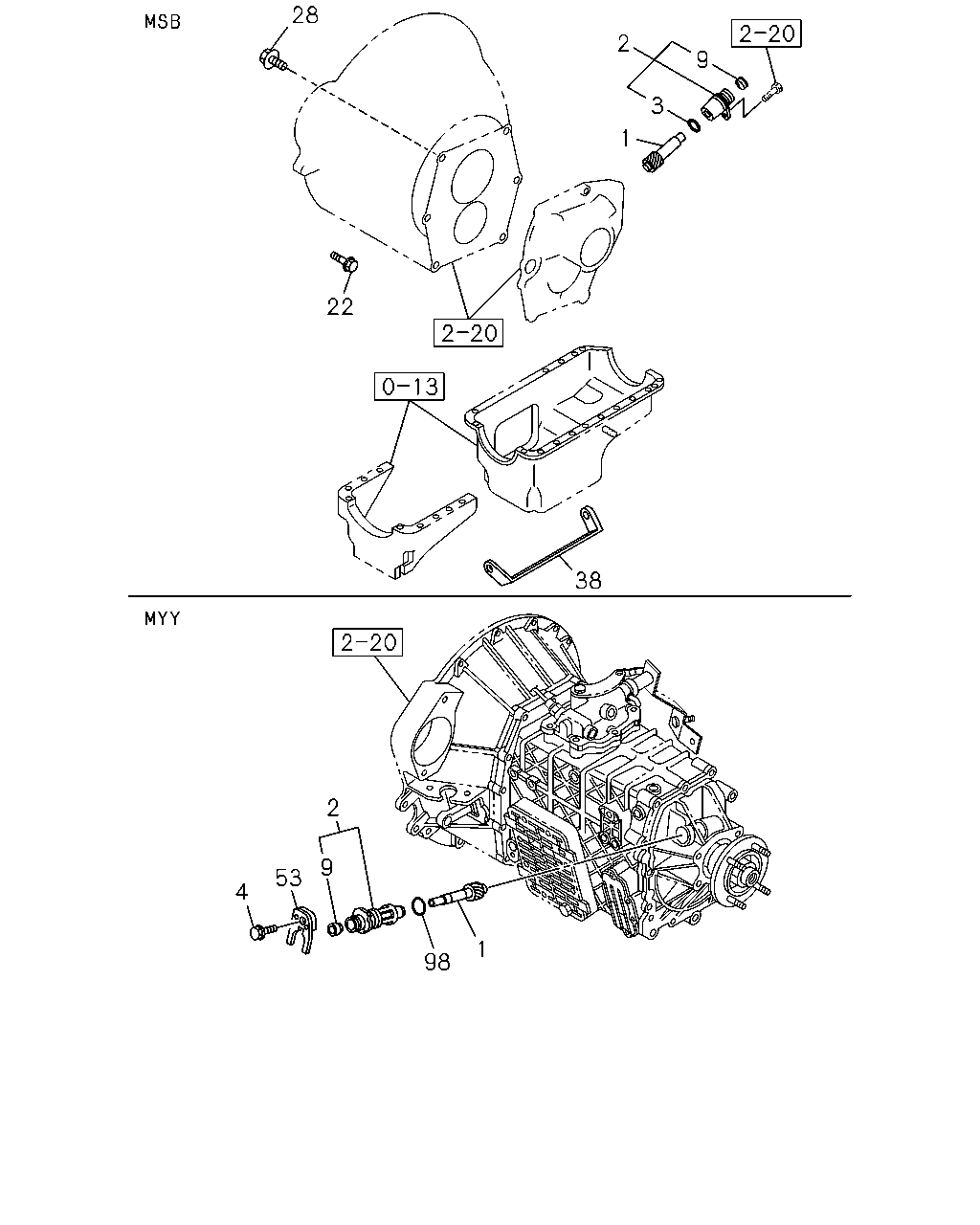

04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 43/9(S2J)
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.
5F-15-25(CUQ)
Z=12
|
8-97253-563-1 |
01 |
1 |
1005- |
● |
|
|
|
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 43/9(S2J)
(09V)
Z=13
|
8-97253-562-1 |
01 |
1 |
1005-1506 |
● |
|
|
|
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 43/9(S2J)
(09V),(89C)
Z=13
|
8-97253-562-1 |
01 |
1 |
1507- |
● |
|
|
|
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MSB5S(R45)
FINAL GEAR RATIO 39/7(GV1)
(BPU),(09V),(22H),(25H),(89C)
Z=14
|
8-94249-062-0 |
01 |
1 |
0211-0211 |
● |
|
|
|
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/7(GV1)
(09V),(25H),(31H)
Z=14
|
8-94249-062-0 |
01 |
1 |
0211-0211 |
|
● |
|
|
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MSB5S(R45)
FINAL GEAR RATIO 39/7(GV1)
(BPU),(CQP),(09V),(22H),(25H),(89C)
Z=14
|
8-94249-062-0 |
01 |
1 |
0212-0303 |
● |
|
|
|
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/7(GV1)
(09V),(25H),(31H)
Z=14
|
8-94249-062-0 |
01 |
1 |
0212-0303 |
|
● |
|
|
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MSB5S(R45)
FINAL GEAR RATIO 39/7(GV1)
(CQP),(09V),(22H),(25H),(89C)
Z=14
|
8-94249-062-0 |
01 |
1 |
0304-0501 |
● |
|
|
|
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/7(GV1)
(09V),(25H),(31H)
Z=14
|
8-94249-062-0 |
01 |
1 |
0304-0501 |
|
● |
|
|
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MSB5S(R45)
FINAL GEAR RATIO 39/7(GV1)
(CQP),(09V),(22H),(25H),(89C)
Z=14
|
8-94249-062-0 |
01 |
1 |
0502-0712 |
● |
|
|
|
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MSB5S(R45)
FINAL GEAR RATIO 39/7(GV1)
(CQP),(09V),(22H),(25H),(89C)
Z=14
|
8-94249-062-0 |
01 |
1 |
0801-1003 |
● |
|
|
|
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MSB5M(RM5)
FINAL GEAR RATIO 39/7(GV1)
(95H),(98H)
Z=14
|
8-94249-062-0 |
01 |
1 |
0801-1003 |
|
|
● |
● |
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MSB5S(R45)
FINAL GEAR RATIO 39/7(GV1)
(CQP),FRT 7R-15-8 RR 7.5R-15-12
F&R/DISC 5.5F-15-25(CUQ),(09V),(22H),(25H)
,(89C)
Z=14
|
8-94249-062-0 |
01 |
1 |
1004-1209 |
● |
|
|
|
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MSB5M(RM5)
FINAL GEAR RATIO 39/7(GV1)
(95H),(98H)
Z=14
|
8-94249-062-0 |
01 |
1 |
1004-1209 |
|
|
● |
● |
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MSB5S(R45)
FINAL GEAR RATIO 39/7(GV1)
(CQP),FRT 7R-15-8 RR 7.5R-15-12
F&R/DISC 5.5F-15-25(CUQ),(09V),(22H),(25H)
,(89C)
Z=14
|
8-98190-000-0 |
01 |
1 |
1210-1506 |
● |
|
|
|
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MSB5M(RM5)
FINAL GEAR RATIO 39/7(GV1)
(95H),(98H)
Z=14
|
8-98190-000-0 |
01 |
1 |
1210-1506 |
|
|
● |
● |
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MSB5S(R45)
FINAL GEAR RATIO 39/7(GV1)
(CQP),FRT 7R-15-8 RR 7.5R-15-12
F&R/DISC 5.5F-15-25(CUQ),(09V),(22H),(25H)
,(89C)
Z=14
|
8-98190-000-0 |
01 |
1 |
1507- |
● |
|
|
|
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MSB5M(RM5)
FINAL GEAR RATIO 39/7(GV1)
(94H),(95H),(98H)
Z=14
|
8-98190-000-0 |
01 |
1 |
1507- |
|
|
● |
● |
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 43/8(R40)
(09V),(22H),(25H),(89C)
Z=14
|
8-97253-561-1 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 39/7(GV1)
(BPL),(BPM),(BQN),(06H),(07H),(94H),
(95H),(98H)
Z=14
|
8-97253-561-1 |
01 |
1 |
0211-0501 |
|
|
● |
● |
● |
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 43/8(R40)
(09V),(22H),(25H),(89C)
Z=14
|
8-97253-561-1 |
01 |
1 |
0502-0505 |
● |
|
|
|
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 39/7(GV1)
(BPL),(BPM),(BQN),(07H),(94H),(95H),
(98H)
Z=14
|
8-97253-561-1 |
01 |
1 |
0502-0505 |
|
|
● |
● |
● |
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 43/8(R40)
(09V),(22H),(25H),(89C)
Z=14
|
8-97253-561-1 |
01 |
1 |
0506-1003 |
● |
|
|
|
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 39/7(GV1)
(BQN),(07H),(94H),(95H),(98H)
Z=14
|
8-97253-561-1 |
01 |
1 |
0506-1003 |
|
|
● |
● |
● |
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 43/8(R40)
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.
5F-15-25(CUQ),(09V),(22H),(25H),(89C)
Z=14
|
8-97253-561-1 |
01 |
1 |
1004- |
● |
|
|
|
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 39/7(GV1)
(BQN),(07H),(94H),(95H),(98H)
Z=14
|
8-97253-561-1 |
01 |
1 |
1004- |
|
|
● |
● |
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/7(GV1)
(BQN),(07H),(94H),(95H),(98H)
Z=14
|
8-97253-561-1 |
01 |
1 |
1004- |
|
|
|
|
● |
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MSB5M(RM5),M/T MSB5S(R45)
FINAL GEAR RATIO 41/7(R41)
(AVT),(BPU),(06H),(07H),(09V),(22H),
(25H),(31H),(89C),(94H),(95H),(98H)
Z=15
|
8-94249-063-0 |
01 |
1 |
0211-0211 |
● |
● |
● |
● |
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MSB5S(R45)
(37H)
Z=15
|
8-94249-063-0 |
01 |
1 |
0211-0211 |
|
|
|
|
|
● |
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MSB5M(RM5),M/T MSB5S(R45)
FINAL GEAR RATIO 41/7(R41)
(AVT),(BPU),(CQP),(06H),(07H),(09V),
(22H),(25H),(31H),(89C),(94H),(95H),
(98H)
Z=15
|
8-94249-063-0 |
01 |
1 |
0212-0311 |
● |
● |
● |
● |
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
(CQQ),(37H)
Z=15
|
8-94249-063-0 |
01 |
1 |
0212-0311 |
|
|
|
|
|
● |
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MSB5M(RM5),M/T MSB5S(R45)
FINAL GEAR RATIO 41/7(R41)
(AVT),(CQP),(06H),(07H),(09V),(22H),
(25H),(31H),(89C),(94H),(95H),(98H)
Z=15
|
8-94249-063-0 |
01 |
1 |
0312-0501 |
● |
● |
● |
● |
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MSB5M(RM5),M/T MSB5S(R45)
FINAL GEAR RATIO 39/8(RV9)
(CQQ),(37H)
Z=15
|
8-94249-063-0 |
01 |
1 |
0312-0501 |
|
|
|
|
|
● |
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MSB5M(RM5),M/T MSB5S(R45)
FINAL GEAR RATIO 41/7(R41)
(CQP),(07H),(09V),(22H),(25H),(89C),
(94H),(95H),(98H)
Z=15
|
8-94249-063-0 |
01 |
1 |
0502-1003 |
● |
|
● |
● |
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MSB5M(RM5),M/T MSB5S(R45)
FINAL GEAR RATIO 39/8(RV9)
Z=15
|
8-94249-063-0 |
01 |
1 |
0502-1003 |
|
|
|
|
|
● |
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MSB5S(R45)
FINAL GEAR RATIO 41/7(R41)
(CQP),FRT 7R-15-8 RR 7.5R-15-12
F&R/DISC 5.5F-15-25(CUQ),(09V),(22H),(25H)
,(89C)
Z=15
|
8-94249-063-0 |
01 |
1 |
1004-1209 |
● |
|
|
|
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MSB5M(RM5)
FINAL GEAR RATIO 41/7(R41)
(07H),(94H),(95H),(98H)
Z=15
|
8-94249-063-0 |
01 |
1 |
1004-1209 |
|
|
● |
● |
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/8(RV9)
Z=15
|
8-94249-063-0 |
01 |
1 |
1004-1209 |
|
|
|
|
|
● |
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MSB5S(R45)
FINAL GEAR RATIO 41/7(R41)
(CQP),FRT 7R-15-8 RR 7.5R-15-12
F&R/DISC 5.5F-15-25(CUQ),(09V),(22H),(25H)
,(89C)
Z=15
|
8-98190-001-0 |
01 |
1 |
1210- |
● |
|
|
|
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MSB5M(RM5)
FINAL GEAR RATIO 41/7(R41)
(07H),(94H),(95H),(98H)
Z=15
|
8-98190-001-0 |
01 |
1 |
1210- |
|
|
● |
● |
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/8(RV9)
Z=15
|
8-98190-001-0 |
01 |
1 |
1210- |
|
|
|
|
|
● |
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 41/7(R41)
(BPL),(BPM),(BQN),(06H),(07H),(09V),
(22H),(25H),(94H),(95H),(98H)
Z=15
|
8-97253-560-1 |
01 |
1 |
0211-0501 |
● |
|
● |
● |
● |
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 39/7(GV1)
(46H),(47H),(49H),(50H),(58H)
Z=15
|
8-97253-560-1 |
01 |
1 |
0211-0501 |
|
|
● |
● |
● |
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 41/7(R41)
(BPL),(BPM),(BQN),(07H),(09V),(22H),
(25H),(94H),(95H),(98H)
Z=15
|
8-97253-560-1 |
01 |
1 |
0502-0505 |
● |
|
● |
● |
● |
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 39/7(GV1)
(46H),(47H),(49H),(50H),(58H)
Z=15
|
8-97253-560-1 |
01 |
1 |
0502-0505 |
|
|
● |
● |
● |
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 41/7(R41)
(09V),(22H),(25H)
Z=15
|
8-97253-560-1 |
01 |
1 |
0506-0706 |
● |
|
|
|
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 39/7(GV1)
(CSA),(46H),(47H),(49H),(50H),(58H)
Z=15
|
8-97253-560-1 |
01 |
1 |
0506-0706 |
|
|
● |
● |
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 41/7(R41)
(BQN),(07H),(94H),(95H),(98H)
Z=15
|
8-97253-560-1 |
01 |
1 |
0506-0706 |
|
|
● |
● |
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/7(GV1)
(CSB),(46H),(47H),(49H),(50H),(58H)
Z=15
|
8-97253-560-1 |
01 |
1 |
0506-0706 |
|
|
|
|
● |
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41)
(BQN),(CSB),(07H),(94H),(95H),(98H)
Z=15
|
8-97253-560-1 |
01 |
1 |
0506-0706 |
|
|
|
|
● |
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 41/7(R41)
(BQN),(CSB),(CUA),(07H),(09V),(22H),
(25H),(94H),(95H),(98H)
Z=15
|
8-97253-560-1 |
01 |
1 |
0707-0811 |
● |
|
● |
● |
● |
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 39/7(GV1)
(CSB),(CUA),(CUC),(46H),(47H),(49H),
(50H),(58H)
Z=15
|
8-97253-560-1 |
01 |
1 |
0707-0811 |
|
|
● |
● |
● |
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 41/7(R41)
(BQN),(CSB),(CUA),(07H),(09V),(22H),
(25H),(94H),(95H),(98H)
Z=15
|
8-97253-560-1 |
01 |
1 |
0812-1003 |
● |
|
● |
● |
● |
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 39/7(GV1)
(CSB),(CUA),(CUC),(46H),(47H),(49H),
(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),
(58H)
Z=15
|
8-97253-560-1 |
01 |
1 |
0812-1003 |
|
|
● |
● |
● |
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 41/7(R41)
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.
5F-15-25(CUQ),(09V),(22H),(25H)
Z=15
|
8-97253-560-1 |
01 |
1 |
1004- |
● |
|
|
|
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 39/7(GV1)
(CUC),(46H),(47H),(49H),(50H),FRT&RR
7R-15-8 5.5FX15-115(57H),(58H)
Z=15
|
8-97253-560-1 |
01 |
1 |
1004- |
|
|
● |
● |
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 41/7(R41)
(BQN),(07H),(94H),(95H),(98H)
Z=15
|
8-97253-560-1 |
01 |
1 |
1004- |
|
|
● |
● |
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/7(GV1)
(CUA),(46H),(47H),(49H),(50H),FRT&RR
7R-15-8 5.5FX15-115(57H),(58H)
Z=15
|
8-97253-560-1 |
01 |
1 |
1004- |
|
|
|
|
● |
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41)
(BQN),(CUA),(07H),(94H),(95H),(98H)
Z=15
|
8-97253-560-1 |
01 |
1 |
1004- |
|
|
|
|
● |
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MSB5M(RM5)
FINAL GEAR RATIO 39/6(R43)
(06H),(07H),(46H),(47H),(49H),(50H),
(58H),(94H),(95H),(98H)
Z=17
|
8-94249-065-0 |
01 |
1 |
0211-0501 |
|
|
● |
● |
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MSB5M(RM5)
FINAL GEAR RATIO 39/6(R43)
(07H),(46H),(47H),(49H),(50H),(58H),
(94H),(95H),(98H)
Z=17
|
8-94249-065-0 |
01 |
1 |
0502-0811 |
|
|
● |
● |
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MSB5M(RM5)
FINAL GEAR RATIO 39/6(R43)
(07H),(46H),(47H),(49H),(50H),FRT&RR
7R-15-8 5.5FX15-115(57H),(58H),(94H),
(95H),(98H)
Z=17
|
8-94249-065-0 |
01 |
1 |
0812-1209 |
|
|
● |
● |
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MSB5M(RM5),M/T MSB5S(R45)
FINAL GEAR RATIO 41/7(R41)
(46H),(47H),(49H),(50H),(58H)
Z=16
|
8-94249-064-0 |
01 |
1 |
0211-0501 |
|
|
● |
● |
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MSB5M(RM5),M/T MSB5S(R45)
FINAL GEAR RATIO 43/7(R42)
(AVT),(06H),(07H),(46H),(47H),(49H),
(50H),(58H),(94H),(95H),(98H)
Z=16
|
8-94249-064-0 |
01 |
1 |
0211-0501 |
|
|
● |
● |
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MSB5M(RM5)
FINAL GEAR RATIO 41/7(R41)
(46H),(47H),(49H),(50H),(58H)
Z=16
|
8-94249-064-0 |
01 |
1 |
0502-0811 |
|
|
● |
● |
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MSB5M(RM5)
FINAL GEAR RATIO 43/7(R42)
(07H),(46H),(47H),(49H),(50H),(58H),
(94H),(95H),(98H)
Z=16
|
8-94249-064-0 |
01 |
1 |
0502-0811 |
|
|
● |
● |
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MSB5M(RM5)
FINAL GEAR RATIO 41/7(R41)
(46H),(47H),(49H),(50H),FRT&RR
7R-15-8 5.5FX15-115(57H),(58H)
Z=16
|
8-94249-064-0 |
01 |
1 |
0812-1209 |
|
|
● |
● |
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MSB5M(RM5)
FINAL GEAR RATIO 43/7(R42)
(07H),(46H),(47H),(49H),(50H),FRT&RR
7R-15-8 5.5FX15-115(57H),(58H),(94H),
(95H),(98H)
Z=16
|
8-94249-064-0 |
01 |
1 |
0812-1209 |
|
|
● |
● |
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MSB5M(RM5)
FINAL GEAR RATIO 41/7(R41)
(46H),(47H),(49H),(50H),FRT&RR
7R-15-8 5.5FX15-115(57H),(58H)
Z=16
|
8-98190-002-0 |
01 |
1 |
1210- |
|
|
● |
● |
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MSB5M(RM5)
FINAL GEAR RATIO 43/7(R42)
(07H),(46H),(47H),(49H),(50H),FRT&RR
7R-15-8 5.5FX15-115(57H),(58H),(94H),
(95H),(98H)
Z=16
|
8-98190-002-0 |
01 |
1 |
1210- |
|
|
● |
● |
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 41/7(R41)
(46H),(47H),(49H),(50H),(58H)
Z=16
|
8-97253-558-1 |
01 |
1 |
0211-0501 |
|
|
● |
● |
● |
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 43/7(R42)
(BPL),(BPM),(BQN),(06H),(07H),(58H),
(94H),(95H),(98H)
Z=16
|
8-97253-558-1 |
01 |
1 |
0211-0501 |
|
|
● |
● |
● |
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 41/7(R41)
(46H),(47H),(49H),(50H),(58H)
Z=16
|
8-97253-558-1 |
01 |
1 |
0502-0505 |
|
|
● |
● |
● |
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 43/7(R42)
(BPL),(BPM),(BQN),(07H),(58H),(94H),
(95H),(98H)
Z=16
|
8-97253-558-1 |
01 |
1 |
0502-0505 |
|
|
● |
● |
● |
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 41/7(R41)
(CSA),(46H),(47H),(49H),(50H),(58H)
Z=16
|
8-97253-558-1 |
01 |
1 |
0506-0706 |
|
|
● |
● |
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 43/7(R42)
(BQN),(CSA),(07H),(58H),(94H),(95H),
(98H)
Z=16
|
8-97253-558-1 |
01 |
1 |
0506-0706 |
|
|
● |
● |
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41)
(46H),(47H),(49H),(50H),(58H)
Z=16
|
8-97253-558-1 |
01 |
1 |
0506-0706 |
|
|
|
|
● |
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/7(R42)
(BQN),(CSB),(07H),(58H),(94H),(95H),
(98H)
Z=16
|
8-97253-558-1 |
01 |
1 |
0506-0706 |
|
|
|
|
● |
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 41/7(R41)
(46H),(47H),(49H),(50H),(58H)
Z=16
|
8-97253-558-1 |
01 |
1 |
0707-0804 |
|
|
● |
● |
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 43/7(R42)
(BQN),(07H),(58H),(94H),(95H),(98H)
Z=16
|
8-97253-558-1 |
01 |
1 |
0707-0804 |
|
|
● |
● |
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41)
(46H),(47H),(49H),(50H),(58H)
Z=16
|
8-97253-558-1 |
01 |
1 |
0707-0804 |
|
|
|
|
● |
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/7(R42)
(BQN),(CSB),(07H),(58H),(94H),(95H),
(98H)
Z=16
|
8-97253-558-1 |
01 |
1 |
0707-0804 |
|
|
|
|
● |
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 41/7(R41)
(CUC),(46H),(47H),(49H),(50H),(58H)
Z=16
|
8-97253-558-1 |
01 |
1 |
0805-0811 |
|
|
● |
● |
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 43/7(R42)
(BQN),(CUC),(07H),(58H),(94H),(95H),
(98H)
Z=16
|
8-97253-558-1 |
01 |
1 |
0805-0811 |
|
|
● |
● |
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41)
(46H),(47H),(49H),(50H),(58H)
Z=16
|
8-97253-558-1 |
01 |
1 |
0805-0811 |
|
|
|
|
● |
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/7(R42)
(BQN),(CUA),(07H),(58H),(94H),(95H),
(98H)
Z=16
|
8-97253-558-1 |
01 |
1 |
0805-0811 |
|
|
|
|
● |
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 41/7(R41)
(CUC),(46H),(47H),(49H),(50H),FRT&RR
7R-15-8 5.5FX15-115(57H),(58H)
Z=16
|
8-97253-558-1 |
01 |
1 |
0812- |
|
|
● |
● |
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 43/7(R42)
(BQN),(CUC),(07H),(58H),(94H),(95H),
(98H)
Z=16
|
8-97253-558-1 |
01 |
1 |
0812- |
|
|
● |
● |
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41)
(46H),(47H),(49H),(50H),FRT&RR
7R-15-8 5.5FX15-115(57H),(58H)
Z=16
|
8-97253-558-1 |
01 |
1 |
0812- |
|
|
|
|
● |
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/7(R42)
(BQN),(CUA),(07H),(58H),(94H),(95H),
(98H)
Z=16
|
8-97253-558-1 |
01 |
1 |
0812- |
|
|
|
|
● |
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 43/7(R42)
(46H),(47H),(49H),(50H)
Z=17
|
8-97253-557-1 |
01 |
1 |
0211-0811 |
|
|
● |
● |
● |
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM)
FINAL GEAR RATIO 43/7(R42)
(46H),(47H),(49H),(50H),FRT&RR
7R-15-8 5.5FX15-115(57H)
Z=17
|
8-97253-557-1 |
01 |
1 |
0812- |
|
|
● |
● |
|
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/7(R42)
(46H),(47H),(49H),(50H),FRT&RR
7R-15-8 5.5FX15-115(57H)
Z=17
|
8-97253-557-1 |
01 |
1 |
0812- |
|
|
|
|
● |
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41)
(CQQ)
Z=18
|
8-97149-976-1 |
01 |
1 |
0401-0501 |
|
|
|
|
|
● |
| |
1 |
04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41)
Z=18
|
8-97149-976-1 |
01 |
1 |
0502-1209 |
|
|
|
|
|
● |
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5S(R45)
FINAL GEAR RATIO 39/7(GV1)
(BPU),(09V),(22H),(25H),(89C)
04.338
Z=14 MARK "4"
|
8-97080-360-1 |
01 |
1 |
0211-0211 |
● |
|
|
|
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/7(GV1)
(09V),(25H),(31H)
04.338
Z=14 MARK "4"
|
8-97080-360-1 |
01 |
1 |
0211-0211 |
|
● |
|
|
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5S(R45)
FINAL GEAR RATIO 39/7(GV1)
(BPU),(CQP),(09V),(22H),(25H),(89C)
04.338
Z=14 MARK "4"
|
8-97080-360-1 |
01 |
1 |
0212-0303 |
● |
|
|
|
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/7(GV1)
(09V),(25H),(31H)
04.338
Z=14 MARK "4"
|
8-97080-360-1 |
01 |
1 |
0212-0303 |
|
● |
|
|
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5S(R45)
FINAL GEAR RATIO 39/7(GV1)
(CQP),(09V),(22H),(25H),(89C)
04.338
Z=14 MARK "4"
|
8-97080-360-1 |
01 |
1 |
0304-0501 |
● |
|
|
|
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/7(GV1)
(09V),(25H),(31H)
04.338
Z=14 MARK "4"
|
8-97080-360-1 |
01 |
1 |
0304-0501 |
|
● |
|
|
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5S(R45)
FINAL GEAR RATIO 39/7(GV1)
(CQP),(09V),(22H),(25H),(89C)
04.338
Z=14 MARK "4"
|
8-97080-360-1 |
01 |
1 |
0502-0712 |
● |
|
|
|
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5S(R45)
FINAL GEAR RATIO 39/7(GV1)
(CQP),(09V),(22H),(25H),(89C)
04.338
Z=14 MARK "4"
|
8-97080-360-1 |
01 |
1 |
0801-1003 |
● |
|
|
|
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5M(RM5)
FINAL GEAR RATIO 39/7(GV1)
(95H),(98H)
04.338
Z=14 MARK "4"
|
8-97080-360-1 |
01 |
1 |
0801-1003 |
|
|
● |
● |
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5S(R45)
FINAL GEAR RATIO 39/7(GV1)
(CQP),FRT 7R-15-8 RR 7.5R-15-12
F&R/DISC 5.5F-15-25(CUQ),(09V),(22H),(25H)
,(89C)
04.338
Z=14 MARK "4"
|
8-97080-360-1 |
01 |
1 |
1004-1209 |
● |
|
|
|
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5M(RM5)
FINAL GEAR RATIO 39/7(GV1)
(95H),(98H)
04.338
Z=14 MARK "4"
|
8-97080-360-1 |
01 |
1 |
1004-1209 |
|
|
● |
● |
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5S(R45)
FINAL GEAR RATIO 39/7(GV1)
(CQP),FRT 7R-15-8 RR 7.5R-15-12
F&R/DISC 5.5F-15-25(CUQ),(09V),(22H),(25H)
,(89C)
Z=14 MARK "4"
|
8-98190-371-0 |
01 |
1 |
1210-1506 |
● |
|
|
|
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5M(RM5)
FINAL GEAR RATIO 39/7(GV1)
(95H),(98H)
Z=14 MARK "4"
|
8-98190-371-0 |
01 |
1 |
1210-1506 |
|
|
● |
● |
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5S(R45)
FINAL GEAR RATIO 39/7(GV1)
(CQP),FRT 7R-15-8 RR 7.5R-15-12
F&R/DISC 5.5F-15-25(CUQ),(09V),(22H),(25H)
,(89C)
Z=14 MARK "4"
|
8-98190-371-0 |
01 |
1 |
1507- |
● |
|
|
|
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5M(RM5)
FINAL GEAR RATIO 39/7(GV1)
(94H),(95H),(98H)
Z=14 MARK "4"
|
8-98190-371-0 |
01 |
1 |
1507- |
|
|
● |
● |
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5M(RM5),M/T MSB5S(R45)
FINAL GEAR RATIO 41/7(R41)
(AVT),(BPU),(06H),(07H),(09V),(22H),
(25H),(31H),(89C),(94H),(95H),(98H)
04.338
Z=15 MARK "5"
|
8-97080-361-1 |
01 |
1 |
0211-0211 |
● |
● |
● |
● |
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5S(R45)
(37H)
04.338
Z=15 MARK "5"
|
8-97080-361-1 |
01 |
1 |
0211-0211 |
|
|
|
|
|
● |
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5M(RM5),M/T MSB5S(R45)
FINAL GEAR RATIO 41/7(R41)
(AVT),(BPU),(CQP),(06H),(07H),(09V),
(22H),(25H),(31H),(89C),(94H),(95H),
(98H)
04.338
Z=15 MARK "5"
|
8-97080-361-1 |
01 |
1 |
0212-0311 |
● |
● |
● |
● |
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
(CQQ),(37H)
04.338
Z=15 MARK "5"
|
8-97080-361-1 |
01 |
1 |
0212-0311 |
|
|
|
|
|
● |
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5M(RM5),M/T MSB5S(R45)
FINAL GEAR RATIO 41/7(R41)
(AVT),(CQP),(06H),(07H),(09V),(22H),
(25H),(31H),(89C),(94H),(95H),(98H)
04.338
Z=15 MARK "5"
|
8-97080-361-1 |
01 |
1 |
0312-0501 |
● |
● |
● |
● |
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5M(RM5),M/T MSB5S(R45)
FINAL GEAR RATIO 39/8(RV9)
(CQQ),(37H)
04.338
Z=15 MARK "5"
|
8-97080-361-1 |
01 |
1 |
0312-0501 |
|
|
|
|
|
● |
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5M(RM5),M/T MSB5S(R45)
FINAL GEAR RATIO 41/7(R41)
(CQP),(07H),(09V),(22H),(25H),(89C),
(94H),(95H),(98H)
04.338
Z=15 MARK "5"
|
8-97080-361-1 |
01 |
1 |
0502-1003 |
● |
|
● |
● |
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5M(RM5),M/T MSB5S(R45)
FINAL GEAR RATIO 39/8(RV9)
04.338
Z=15 MARK "5"
|
8-97080-361-1 |
01 |
1 |
0502-1003 |
|
|
|
|
|
● |
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5S(R45)
FINAL GEAR RATIO 41/7(R41)
(CQP),FRT 7R-15-8 RR 7.5R-15-12
F&R/DISC 5.5F-15-25(CUQ),(09V),(22H),(25H)
,(89C)
04.338
Z=15 MARK "5"
|
8-97080-361-1 |
01 |
1 |
1004-1209 |
● |
|
|
|
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5M(RM5)
FINAL GEAR RATIO 41/7(R41)
(07H),(94H),(95H),(98H)
04.338
Z=15 MARK "5"
|
8-97080-361-1 |
01 |
1 |
1004-1209 |
|
|
● |
● |
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/8(RV9)
04.338
Z=15 MARK "5"
|
8-97080-361-1 |
01 |
1 |
1004-1209 |
|
|
|
|
|
● |
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5S(R45)
FINAL GEAR RATIO 41/7(R41)
(CQP),FRT 7R-15-8 RR 7.5R-15-12
F&R/DISC 5.5F-15-25(CUQ),(09V),(22H),(25H)
,(89C)
Z=15 MARK "5"
|
8-98190-431-0 |
01 |
1 |
1210- |
● |
|
|
|
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5M(RM5)
FINAL GEAR RATIO 41/7(R41)
(07H),(94H),(95H),(98H)
Z=15 MARK "5"
|
8-98190-431-0 |
01 |
1 |
1210- |
|
|
● |
● |
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/8(RV9)
Z=15 MARK "5"
|
8-98190-431-0 |
01 |
1 |
1210- |
|
|
|
|
|
● |
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 41/7(R41)
(BPL),(BPM),(BQN),(06H),(07H),(09V),
(22H),(25H),(94H),(95H),(98H)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
0211-0501 |
● |
|
● |
● |
● |
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 43/8(R40)
(09V),(22H),(25H),(89C)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 39/7(GV1)
(BPL),(BPM),(BQN),(06H),(07H),(46H),
(47H),(49H),(50H),(58H),(94H),(95H),
(98H)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
0211-0501 |
|
|
● |
● |
● |
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 41/7(R41)
(BPL),(BPM),(BQN),(07H),(09V),(22H),
(25H),(94H),(95H),(98H)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
0502-0505 |
● |
|
● |
● |
● |
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 43/8(R40)
(09V),(22H),(25H),(89C)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
0502-0505 |
● |
|
|
|
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 39/7(GV1)
(BPL),(BPM),(BQN),(07H),(46H),(47H),
(49H),(50H),(58H),(94H),(95H),(98H)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
0502-0505 |
|
|
● |
● |
● |
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 43/8(R40)
(09V),(22H),(25H),(89C)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
0506-0706 |
● |
|
|
|
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 41/7(R41)
(09V),(22H),(25H)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
0506-0706 |
● |
|
|
|
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 41/7(R41)
(BQN),(07H),(94H),(95H),(98H)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
0506-0706 |
|
|
● |
● |
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 39/7(GV1)
(BQN),(CSA),(07H),(46H),(47H),(49H),
(50H),(58H),(94H),(95H),(98H)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
0506-0706 |
|
|
● |
● |
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/7(R41)
(BQN),(CSB),(07H),(94H),(95H),(98H)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
0506-0706 |
|
|
|
|
● |
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/7(GV1)
(BQN),(CSB),(07H),(46H),(47H),(49H),
(50H),(58H),(94H),(95H),(98H)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
0506-0706 |
|
|
|
|
● |
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 41/7(R41)
(BQN),(CSB),(CUA),(07H),(09V),(22H),
(25H),(94H),(95H),(98H)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
0707-0804 |
● |
|
● |
● |
● |
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 43/8(R40)
(09V),(22H),(25H),(89C)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
0707-0804 |
● |
|
|
|
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 39/7(GV1)
(BQN),(CSB),(CUA),(CUC),(07H),(46H),
(47H),(49H),(50H),(58H),(94H),(95H),
(98H)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
0707-0804 |
|
|
● |
● |
● |
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 41/7(R41)
(BQN),(CSB),(CUA),(07H),(09V),(22H),
(25H),(94H),(95H),(98H)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
0805-0811 |
● |
|
● |
● |
● |
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 43/8(R40)
(09V),(22H),(25H),(89C)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
0805-0811 |
● |
|
|
|
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 39/7(GV1)
(BQN),(CSB),(CUA),(CUC),(07H),(46H),
(47H),(49H),(50H),FRT&RR 7R-15-8 5.5FX
15-115(57H),(58H),(94H),(95H),(98H)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
0805-0811 |
|
|
● |
● |
● |
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 41/7(R41)
(BQN),(CSB),(CUA),(07H),(09V),(22H),
(25H),(94H),(95H),(98H)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
0812-1003 |
● |
|
● |
● |
● |
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 43/8(R40)
(09V),(22H),(25H),(89C)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
0812-1003 |
● |
|
|
|
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 39/7(GV1)
(BQN),(CSB),(CUA),(CUC),(07H),(46H),
(47H),(49H),(50H),FRT&RR 7R-15-8 5.5FX
15-115(57H),(58H),(94H),(95H),(98H)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
0812-1003 |
|
|
● |
● |
● |
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 43/8(R40)
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.
5F-15-25(CUQ),(09V),(22H),(25H),(89C)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
1004-1004 |
● |
|
|
|
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 41/7(R41)
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.
5F-15-25(CUQ),(09V),(22H),(25H)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
1004-1004 |
● |
|
|
|
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 41/7(R41)
(BQN),(07H),(94H),(95H),(98H)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
1004-1004 |
|
|
● |
● |
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 39/7(GV1)
(BQN),(CUC),(07H),(46H),(47H),(49H),
(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),
(58H),(94H),(95H),(98H)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
1004-1004 |
|
|
● |
● |
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/7(R41)
(BQN),(CUA),(07H),(94H),(95H),(98H)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
1004-1004 |
|
|
|
|
● |
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/7(GV1)
(BQN),(CUA),(07H),(46H),(47H),(49H),
(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),
(58H),(94H),(95H),(98H)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
1004-1004 |
|
|
|
|
● |
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 43/8(R40)
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.
5F-15-25(CUQ),(09V),(22H),(25H),(89C)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
1005-1506 |
● |
|
|
|
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 41/7(R41)
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.
5F-15-25(CUQ),(09V),(22H),(25H)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
1005-1506 |
● |
|
|
|
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 43/9(S2J)
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.
5F-15-25(CUQ),(09V)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
1005-1506 |
● |
|
|
|
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 41/7(R41)
(BQN),(07H),(94H),(95H),(98H)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
1005-1506 |
|
|
● |
● |
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 39/7(GV1)
(BQN),(CUC),(07H),(46H),(47H),(49H),
(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),
(58H),(94H),(95H),(98H)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
1005-1506 |
|
|
● |
● |
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/7(R41)
(BQN),(CUA),(07H),(94H),(95H),(98H)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
1005-1506 |
|
|
|
|
● |
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/7(GV1)
(BQN),(CUA),(07H),(46H),(47H),(49H),
(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),
(58H),(94H),(95H),(98H)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
1005-1506 |
|
|
|
|
● |
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 43/8(R40)
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.
5F-15-25(CUQ),(09V),(22H),(25H),(89C)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
1507- |
● |
|
|
|
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 41/7(R41)
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.
5F-15-25(CUQ),(09V),(22H),(25H)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
1507- |
● |
|
|
|
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 43/9(S2J)
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.
5F-15-25(CUQ),(09V),(89C)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
1507- |
● |
|
|
|
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 41/7(R41)
(BQN),(07H),(94H),(95H),(98H)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
1507- |
|
|
● |
● |
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 39/7(GV1)
(BQN),(CUC),(07H),(46H),(47H),(49H),
(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),
(58H),(94H),(95H),(98H)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
1507- |
|
|
● |
● |
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/7(R41)
(BQN),(CUA),(07H),(94H),(95H),(98H)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
1507- |
|
|
|
|
● |
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/7(GV1)
(BQN),(CUA),(07H),(46H),(47H),(49H),
(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),
(58H),(94H),(95H),(98H)
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
1507- |
|
|
|
|
● |
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5M(RM5)
FINAL GEAR RATIO 39/6(R43)
(06H),(07H),(46H),(47H),(49H),(50H),
(58H),(94H),(95H),(98H)
04.338
Z=17 MARK "7"
|
8-97080-363-1 |
01 |
1 |
0211-0501 |
|
|
● |
● |
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5M(RM5)
FINAL GEAR RATIO 39/6(R43)
(07H),(46H),(47H),(49H),(50H),(58H),
(94H),(95H),(98H)
04.338
Z=17 MARK "7"
|
8-97080-363-1 |
01 |
1 |
0502-0811 |
|
|
● |
● |
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5M(RM5)
FINAL GEAR RATIO 39/6(R43)
(07H),(46H),(47H),(49H),(50H),FRT&RR
7R-15-8 5.5FX15-115(57H),(58H),(94H),
(95H),(98H)
04.338
Z=17 MARK "7"
|
8-97080-363-1 |
01 |
1 |
0812-1209 |
|
|
● |
● |
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5M(RM5),M/T MSB5S(R45)
FINAL GEAR RATIO 41/7(R41)
(46H),(47H),(49H),(50H),(58H)
04.338
Z=16 MARK "6"
|
8-97080-362-1 |
01 |
1 |
0211-0501 |
|
|
● |
● |
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5M(RM5),M/T MSB5S(R45)
FINAL GEAR RATIO 43/7(R42)
(AVT),(06H),(07H),(46H),(47H),(49H),
(50H),(58H),(94H),(95H),(98H)
04.338
Z=16 MARK "6"
|
8-97080-362-1 |
01 |
1 |
0211-0501 |
|
|
● |
● |
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5M(RM5)
FINAL GEAR RATIO 41/7(R41)
(46H),(47H),(49H),(50H),(58H)
04.338
Z=16 MARK "6"
|
8-97080-362-1 |
01 |
1 |
0502-0811 |
|
|
● |
● |
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5M(RM5)
FINAL GEAR RATIO 43/7(R42)
(07H),(46H),(47H),(49H),(50H),(58H),
(94H),(95H),(98H)
04.338
Z=16 MARK "6"
|
8-97080-362-1 |
01 |
1 |
0502-0811 |
|
|
● |
● |
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5M(RM5)
FINAL GEAR RATIO 41/7(R41)
(46H),(47H),(49H),(50H),FRT&RR
7R-15-8 5.5FX15-115(57H),(58H)
04.338
Z=16 MARK "6"
|
8-97080-362-1 |
01 |
1 |
0812-1209 |
|
|
● |
● |
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5M(RM5)
FINAL GEAR RATIO 43/7(R42)
(07H),(46H),(47H),(49H),(50H),FRT&RR
7R-15-8 5.5FX15-115(57H),(58H),(94H),
(95H),(98H)
04.338
Z=16 MARK "6"
|
8-97080-362-1 |
01 |
1 |
0812-1209 |
|
|
● |
● |
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5M(RM5)
FINAL GEAR RATIO 41/7(R41)
(46H),(47H),(49H),(50H),FRT&RR
7R-15-8 5.5FX15-115(57H),(58H)
Z=16 MARK "6"
|
8-98190-372-0 |
01 |
1 |
1210- |
|
|
● |
● |
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5M(RM5)
FINAL GEAR RATIO 43/7(R42)
(07H),(46H),(47H),(49H),(50H),FRT&RR
7R-15-8 5.5FX15-115(57H),(58H),(94H),
(95H),(98H)
Z=16 MARK "6"
|
8-98190-372-0 |
01 |
1 |
1210- |
|
|
● |
● |
|
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 41/7(R41)
(46H),(47H),(49H),(50H),(58H)
MARK "10,11,16,17"
|
8-97253-124-0 |
01 |
1 |
0211-0501 |
|
|
● |
● |
● |
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 43/7(R42)
(BPL),(BPM),(BQN),(06H),(07H),(46H),
(47H),(49H),(50H),(58H),(94H),(95H),
(98H)
MARK "10,11,16,17"
|
8-97253-124-0 |
01 |
1 |
0211-0501 |
|
|
● |
● |
● |
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 41/7(R41)
(46H),(47H),(49H),(50H),(58H)
MARK "10,11,16,17"
|
8-97253-124-0 |
01 |
1 |
0502-0505 |
|
|
● |
● |
● |
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 43/7(R42)
(BPL),(BPM),(BQN),(07H),(46H),(47H),
(49H),(50H),(58H),(94H),(95H),(98H)
MARK "10,11,16,17"
|
8-97253-124-0 |
01 |
1 |
0502-0505 |
|
|
● |
● |
● |
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 41/7(R41)
(CSA),(46H),(47H),(49H),(50H),(58H)
MARK "10,11,16,17"
|
8-97253-124-0 |
01 |
1 |
0506-0706 |
|
|
● |
● |
● |
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 43/7(R42)
(BQN),(CSA),(CSB),(07H),(46H),(47H),
(49H),(50H),(58H),(94H),(95H),(98H)
MARK "10,11,16,17"
|
8-97253-124-0 |
01 |
1 |
0506-0706 |
|
|
● |
● |
● |
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 41/7(R41)
(46H),(47H),(49H),(50H),(58H)
MARK "10,11,16,17"
|
8-97253-124-0 |
01 |
1 |
0707-0804 |
|
|
● |
● |
● |
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 43/7(R42)
(BQN),(CSB),(07H),(46H),(47H),(49H),
(50H),(58H),(94H),(95H),(98H)
MARK "10,11,16,17"
|
8-97253-124-0 |
01 |
1 |
0707-0804 |
|
|
● |
● |
● |
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 41/7(R41)
(CUC),(46H),(47H),(49H),(50H),(58H)
MARK "10,11,16,17"
|
8-97253-124-0 |
01 |
1 |
0805-0811 |
|
|
● |
● |
● |
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 43/7(R42)
(BQN),(CUA),(CUC),(07H),(46H),(47H),
(49H),(50H),(58H),(94H),(95H),(98H)
MARK "10,11,16,17"
|
8-97253-124-0 |
01 |
1 |
0805-0811 |
|
|
● |
● |
● |
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 41/7(R41)
(CUC),(46H),(47H),(49H),(50H),FRT&RR
7R-15-8 5.5FX15-115(57H),(58H)
MARK "10,11,16,17"
|
8-97253-124-0 |
01 |
1 |
0812- |
|
|
● |
● |
● |
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM)
FINAL GEAR RATIO 43/7(R42)
(BQN),(CUA),(CUC),(07H),(46H),(47H),
(49H),(50H),FRT&RR 7R-15-8 5.5FX15-115
(57H),(58H),(94H),(95H),(98H)
MARK "10,11,16,17"
|
8-97253-124-0 |
01 |
1 |
0812- |
|
|
● |
● |
● |
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/7(R41)
(CQQ)
Z=18 MARK "7"
|
8-97176-426-0 |
01 |
1 |
0401-0501 |
|
|
|
|
|
● |
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/7(R41)
Z=18 MARK "7"
|
8-97176-426-0 |
01 |
1 |
0502-1209 |
|
|
|
|
|
● |
| |
3 |
04.338 GASKET; BUSHING
M/T MSB5M(RM5),M/T MSB5S(R45)
|
9-09920-852-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
|
● |
| |
3 |
04.338 GASKET; BUSHING
M/T MSB5M(RM5),M/T MSB5S(R45)
|
9-09920-852-0 |
01 |
1 |
0502-1209 |
● |
|
● |
● |
|
● |
| |
3 |
04.338 GASKET; BUSHING
M/T MSB5M(RM5),M/T MSB5S(R45)
03.278
|
9-09567-220-0 |
01 |
1 |
1210- |
● |
|
● |
● |
|
● |
| |
4 |
04.338 BOLT; RET,DRIVEN GEAR
M/T MYY5T(RSM)
02.664
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
0211-0512 |
● |
|
● |
● |
|
|
| |
4 |
04.338 BOLT; RET,DRIVEN GEAR
02.664
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
0211-0512 |
|
|
|
|
● |
|
| |
4 |
04.338 BOLT; RET,DRIVEN GEAR
M/T MYY5T(RSM)
01.531
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0601- |
● |
|
● |
● |
|
|
| |
4 |
04.338 BOLT; RET,DRIVEN GEAR
01.531
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0601- |
|
|
|
|
● |
|
| |
9 |
04.338 SEAL; OIL,DRIVEN GEAR
M/T MSB5M(RM5),M/T MSB5S(R45)
NOK
|
8-97080-507-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
|
● |
| |
9 |
04.338 SEAL; OIL,DRIVEN GEAR
M/T MSB5M(RM5),M/T MSB5S(R45)
NOK
|
8-97080-507-0 |
01 |
1 |
0502-1209 |
● |
|
● |
● |
|
● |
| |
9 |
04.338 SEAL; OIL,DRIVEN GEAR
M/T MSB5M(RM5),M/T MSB5S(R45)
NOK
|
8-98189-455-0 |
01 |
1 |
1210- |
● |
|
● |
● |
|
● |
| |
9 |
04.338 SEAL; OIL,DRIVEN GEAR
M/T MYY5T(RSM)
NOK
|
8-97131-328-1 |
01 |
1 |
0211- |
● |
|
● |
● |
● |
|
| |
22 |
00.685 BOLT; TRANS CASE TO ENG
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA
ENG(RLF)
03.162
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
0211-0501 |
● |
|
● |
● |
|
|
| |
22 |
00.685 BOLT; TRANS CASE TO ENG
03.162
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
0211-0501 |
|
● |
|
|
|
● |
| |
22 |
00.685 BOLT; TRANS CASE TO ENG
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),
4JB1 NA ENG(RLF)
03.162
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
0502-0504 |
● |
|
● |
● |
|
● |
| |
22 |
00.685 BOLT; TRANS CASE TO ENG
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
03.162
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
0505-0512 |
● |
|
● |
● |
|
● |
| |
22 |
00.685 BOLT; TRANS CASE TO ENG
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
02.277
M10X35 FLANGE
|
0-28651-035-0 |
04 |
1 |
0601- |
● |
|
● |
● |
|
● |
| |
28 |
00.685 BOLT; TRANS CASE TO HSG
M/T MSB5M(RM5),M/T MSB5S(R45)
IN-HOUSE PRODUCTION VAR.2<TMW>
M12X35 FLANGE
|
0-28161-235-0 |
06 |
1 |
1211- |
● |
|
● |
● |
|
● |
| |
28 |
00.685 BOLT; TRANS CASE TO HSG
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
00.683
M12X35 FLANGE
|
8-94249-246-0 |
06 |
1 |
0211-0501 |
● |
|
● |
● |
|
|
| |
28 |
00.685 BOLT; TRANS CASE TO HSG
00.683
M12X35 FLANGE
|
8-94249-246-0 |
06 |
1 |
0211-0501 |
|
● |
|
|
|
● |
| |
28 |
00.685 BOLT; TRANS CASE TO HSG
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
00.683
M12X35 FLANGE
|
8-94249-246-0 |
06 |
1 |
0502-0504 |
● |
|
● |
● |
|
● |
| |
28 |
00.685 BOLT; TRANS CASE TO HSG
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1
NA ENG(RLF)
00.683
M12X35 FLANGE
|
8-94249-246-0 |
06 |
1 |
0505-1210 |
● |
|
● |
● |
|
● |
| |
28 |
00.685 BOLT; TRANS CASE TO HSG
M/T MSB5M(RM5),M/T MSB5S(R45)
EXC. IN-HOUSE PRODUCTION VAR.2<TMW>
00.683
M12X35 FLANGE
|
8-94249-246-0 |
06 |
1 |
1211- |
● |
|
● |
● |
|
● |
| |
38 |
00.679 BRACKET; SPACE RUBBER
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
|
8-97095-937-1 |
01 |
1 |
0211-0303 |
● |
● |
● |
● |
|
● |
| |
38 |
00.679 BRACKET; SPACE RUBBER
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
|
8-97095-937-1 |
01 |
1 |
0304-0501 |
● |
|
● |
● |
|
● |
| |
38 |
00.679 BRACKET; SPACE RUBBER
4JB1 NA ENG(RLF)
TURKISH EQUIPMENT(S6S)
|
8-97095-937-1 |
01 |
1 |
0502-0504 |
● |
|
|
|
|
● |
| |
38 |
00.679 BRACKET; SPACE RUBBER
4JB1-TC ENG(RDT)
|
8-97095-937-1 |
01 |
1 |
0502-0504 |
|
|
● |
|
|
|
| |
38 |
00.679 BRACKET; SPACE RUBBER
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
|
8-97095-937-1 |
01 |
1 |
0505-0910 |
● |
|
|
● |
|
|
| |
38 |
00.679 BRACKET; SPACE RUBBER
4JB1 NA ENG(RLF)
TURKISH EQUIPMENT(S6S)
|
8-97095-937-1 |
01 |
1 |
0505-0910 |
● |
|
|
|
|
|
| |
38 |
00.679 BRACKET; SPACE RUBBER
4JB1-TC ENG(RDT)
|
8-97095-937-1 |
01 |
1 |
0505-0910 |
|
|
● |
|
|
|
| |
38 |
00.679 BRACKET; SPACE RUBBER
|
8-97095-937-1 |
01 |
1 |
0505-0910 |
|
|
|
|
|
● |
| |
38 |
00.679 BRACKET; SPACE RUBBER
4JB1-TC ENG(RDT)
|
8-97095-937-1 |
01 |
1 |
0911-1204 |
● |
|
● |
|
|
|
| |
38 |
00.679 BRACKET; SPACE RUBBER
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
|
8-97095-937-1 |
01 |
1 |
0911-1204 |
● |
|
|
● |
|
|
| |
38 |
00.679 BRACKET; SPACE RUBBER
4JB1 NA ENG(RLF)
TURKISH EQUIPMENT(S6S)
|
8-97095-937-1 |
01 |
1 |
0911-1204 |
● |
|
|
|
|
|
| |
38 |
00.679 BRACKET; SPACE RUBBER
|
8-97095-937-1 |
01 |
1 |
0911-1204 |
|
|
|
|
|
● |
| |
53 |
04.338 PLATE; LOCK,DRIVEN GEAR
M/T MYY5T(RSM)
|
8-97252-679-2 |
01 |
1 |
0211-0604 |
● |
|
● |
● |
|
|
| |
53 |
04.338 PLATE; LOCK,DRIVEN GEAR
|
8-97252-679-2 |
01 |
1 |
0211-0604 |
|
|
|
|
● |
|
| |
53 |
04.338 PLATE; LOCK,DRIVEN GEAR
M/T MYY5T(RSM)
|
8-98046-217-0 |
01 |
1 |
0605- |
● |
|
● |
● |
|
|
| |
53 |
04.338 PLATE; LOCK,DRIVEN GEAR
|
8-98046-217-0 |
01 |
1 |
0605- |
|
|
|
|
● |
|
| |
98 |
04.338 SEAL; OIL,BUSH
M/T MYY5T(RSM)
04.439
|
9-09561-324-0 |
01 |
1 |
0211- |
● |
|
● |
● |
● |
|
