2-08 — CLUTCH MASTER CYLINDER (#50776) — 161 parça

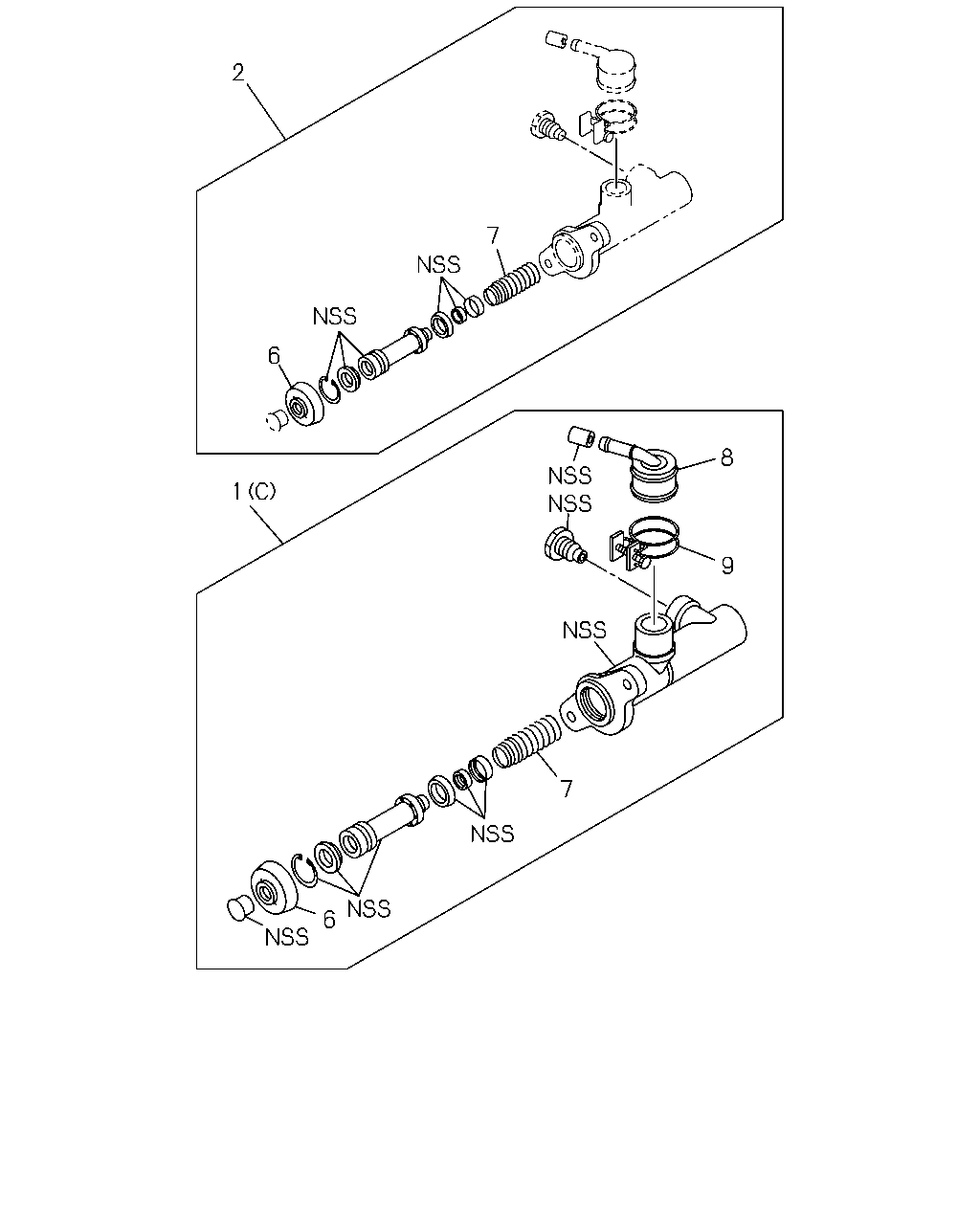

çizim 45293
2 7 6 8 1 9 7 6
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JG2 ENG(RJC),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> (A) 		8-97167-406-0 01 1 0211-0501 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> (A) 		8-97167-406-0 01 1 0502-0504 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> (A) 		8-97167-406-0 01 1 0505-0803 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> (A) 		8-98117-644-0 01 1 0804-1004 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> (A) 		8-98117-644-0 01 1 1005- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> (C) 		8-97210-748-1 01 1 0211-0704 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> (C) 		8-98083-061-0 01 1 0705- ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JH1 ENG(RJX) (B) 		8-97300-211-0 01 1 0211-0501 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JH1-TC ENG(RDM) EXC. POWER ASSIST CLUTCH<S2T> (B) 		8-97300-211-0 01 1 0502-0803 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JH1-TC ENG(RDM) EXC. POWER ASSIST CLUTCH<S2T> (B) 		8-98117-645-0 01 1 0804- ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		5-87831-597-0 01 1 0211-0501 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		5-87831-597-0 01 1 0502-0504 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		5-87831-597-0 01 1 0505-0803 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		5-87832-226-0 01 1 0804-1004 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TCENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ), 4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		5-87832-226-0 01 1 1005- ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		5-87831-617-0 01 1 0211-0501 ●
2 00.775 REPAIR KIT; CLU M/CYL
4HF1-N ENG(RJZ) POWER ASSIST CLUTCH<S2T> 		5-87831-617-0 01 1 0502- ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-94412-200-0 01 1 0211-0501 ● ● ●
6 00.775 BOOT; CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-94412-200-0 01 1 0502-0504 ● ● ●
6 00.775 BOOT; CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-94412-200-0 01 1 0505-1004 ● ● ●
6 00.775 BOOT; CLU M/CYL
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TCENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ), 4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-94412-200-0 01 1 1005- ● ● ●
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-153-0 01 1 0211-0501 ●
6 00.775 BOOT; CLU M/CYL
4HF1-N ENG(RJZ) POWER ASSIST CLUTCH<S2T> 		8-97163-153-0 01 1 0502- ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-780-0 01 1 0211-0501 ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-780-0 01 1 0502-0504 ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-780-0 01 1 0505-1004 ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TCENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ), 4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-780-0 01 1 1005- ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-148-0 01 1 0211-0501 ●
7 00.775 SPRING ASM; CLU M/CYL
4HF1-N ENG(RJZ) POWER ASSIST CLUTCH<S2T> 		8-97163-148-0 01 1 0502- ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-766-0 01 1 0211-0501 ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-766-0 01 1 0502-0504 ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-766-0 01 1 0505-1004 ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TCENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ), 4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-766-0 01 1 1005- ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-190-0 01 1 0211-0501 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
4HF1-N ENG(RJZ) POWER ASSIST CLUTCH<S2T> 		8-97163-190-0 01 1 0502- ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-773-0 01 1 0211-0501 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-773-0 01 1 0502-0504 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-773-0 01 1 0505-1004 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TCENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ), 4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-773-0 01 1 1005- ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-143-0 01 1 0211-0704 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-98061-352-0 01 1 0705- ●

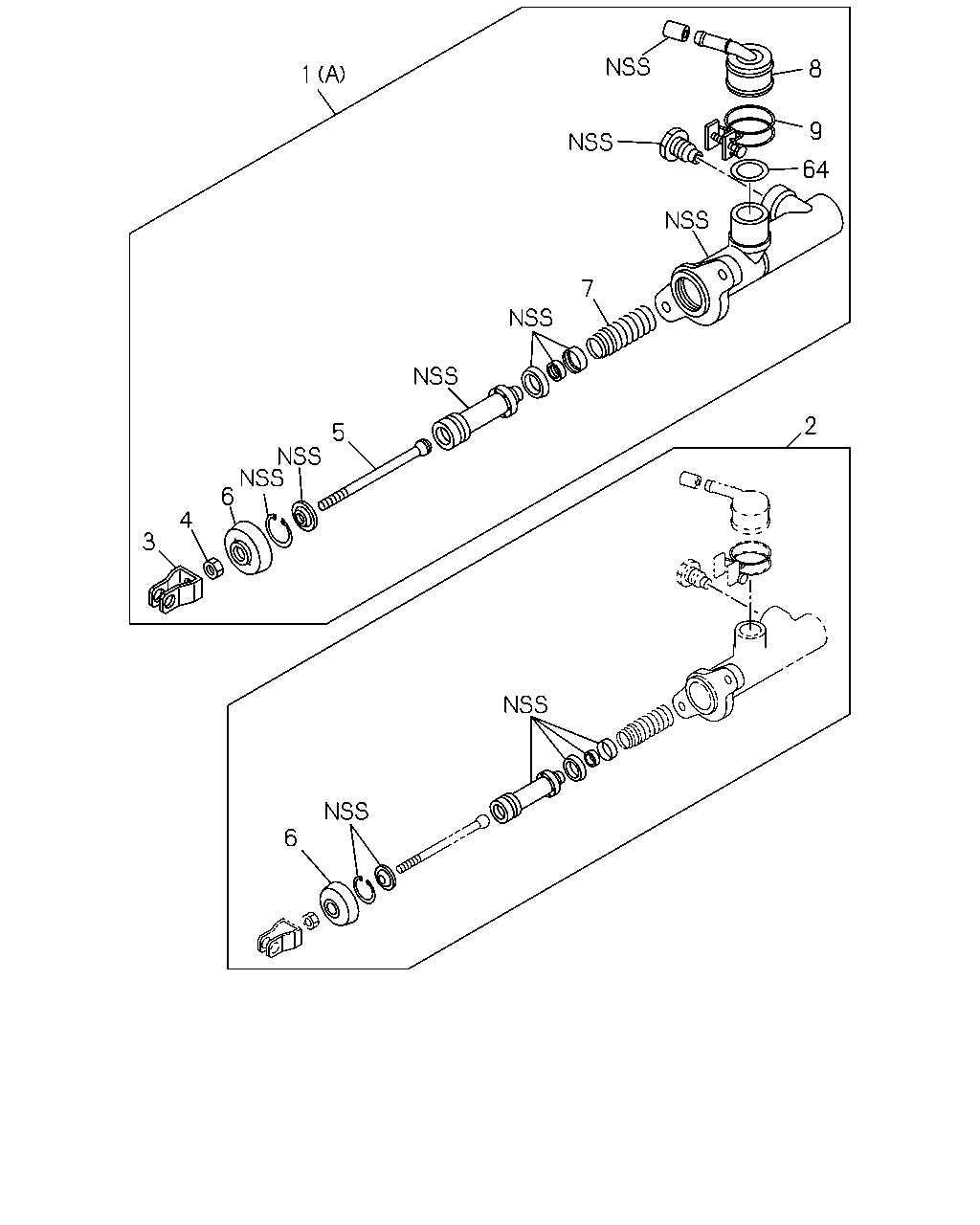

çizim 45294
8 1 9 64 7 2 5 6 4 3 6
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JG2 ENG(RJC),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> (A) 		8-97167-406-0 01 1 0211-0501 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> (A) 		8-97167-406-0 01 1 0502-0504 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> (A) 		8-97167-406-0 01 1 0505-0803 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> (A) 		8-98117-644-0 01 1 0804-1004 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> (A) 		8-98117-644-0 01 1 1005- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> (C) 		8-97210-748-1 01 1 0211-0704 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> (C) 		8-98083-061-0 01 1 0705- ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JH1 ENG(RJX) (B) 		8-97300-211-0 01 1 0211-0501 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JH1-TC ENG(RDM) EXC. POWER ASSIST CLUTCH<S2T> (B) 		8-97300-211-0 01 1 0502-0803 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JH1-TC ENG(RDM) EXC. POWER ASSIST CLUTCH<S2T> (B) 		8-98117-645-0 01 1 0804- ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		5-87831-597-0 01 1 0211-0501 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		5-87831-597-0 01 1 0502-0504 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		5-87831-597-0 01 1 0505-0803 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		5-87832-226-0 01 1 0804-1004 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TCENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ), 4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		5-87832-226-0 01 1 1005- ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		5-87831-617-0 01 1 0211-0501 ●
2 00.775 REPAIR KIT; CLU M/CYL
4HF1-N ENG(RJZ) POWER ASSIST CLUTCH<S2T> 		5-87831-617-0 01 1 0502- ●
3 00.777 JOINT; JAW,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-770-0 01 1 0211-0501 ● ● ●
3 00.777 JOINT; JAW,CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-770-0 01 1 0502-0504 ● ● ●
3 00.777 JOINT; JAW,CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-770-0 01 1 0505-1004 ● ● ●
3 00.777 JOINT; JAW,CLU M/CYL
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TCENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ), 4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-770-0 01 1 1005- ● ● ●
4 00.777 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH<S2T> 00.787 M8 		9-09111-408-0 01 1 0211-0501 ● ● ●
4 00.777 NUT; JAW JOINT
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 00.787 M8 		9-09111-408-0 01 1 0502-0504 ● ● ●
4 00.777 NUT; JAW JOINT
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 00.787 M8 		9-09111-408-0 01 1 0505-0511 ● ● ●
4 00.777 NUT; JAW JOINT
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> M8 		0-91111-508-0 01 1 0512-1004 ● ● ●
4 00.777 NUT; JAW JOINT
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TCENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ), 4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> M8 		0-91111-508-0 01 1 1005- ● ● ●
5 00.775 ROD; PUSH,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-768-0 01 1 0211-0501 ● ● ●
5 00.775 ROD; PUSH,CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-768-0 01 1 0502-0504 ● ● ●
5 00.775 ROD; PUSH,CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-768-0 01 1 0505-1004 ● ● ●
5 00.775 ROD; PUSH,CLU M/CYL
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TCENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ), 4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-768-0 01 1 1005- ● ● ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-94412-200-0 01 1 0211-0501 ● ● ●
6 00.775 BOOT; CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-94412-200-0 01 1 0502-0504 ● ● ●
6 00.775 BOOT; CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-94412-200-0 01 1 0505-1004 ● ● ●
6 00.775 BOOT; CLU M/CYL
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TCENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ), 4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-94412-200-0 01 1 1005- ● ● ●
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-153-0 01 1 0211-0501 ●
6 00.775 BOOT; CLU M/CYL
4HF1-N ENG(RJZ) POWER ASSIST CLUTCH<S2T> 		8-97163-153-0 01 1 0502- ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-780-0 01 1 0211-0501 ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-780-0 01 1 0502-0504 ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-780-0 01 1 0505-1004 ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TCENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ), 4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-780-0 01 1 1005- ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-148-0 01 1 0211-0501 ●
7 00.775 SPRING ASM; CLU M/CYL
4HF1-N ENG(RJZ) POWER ASSIST CLUTCH<S2T> 		8-97163-148-0 01 1 0502- ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-766-0 01 1 0211-0501 ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-766-0 01 1 0502-0504 ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-766-0 01 1 0505-1004 ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TCENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ), 4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-766-0 01 1 1005- ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-190-0 01 1 0211-0501 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
4HF1-N ENG(RJZ) POWER ASSIST CLUTCH<S2T> 		8-97163-190-0 01 1 0502- ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-773-0 01 1 0211-0501 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-773-0 01 1 0502-0504 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-773-0 01 1 0505-1004 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TCENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ), 4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-773-0 01 1 1005- ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-143-0 01 1 0211-0704 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-98061-352-0 01 1 0705- ●
64 00.777 GASKET; CONNECTOR
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-767-0 01 1 0211-0501 ● ● ●
64 00.777 GASKET; CONNECTOR
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-767-0 01 1 0502-0504 ● ● ●
64 00.777 GASKET; CONNECTOR
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-767-0 01 1 0505-1004 ● ● ●
64 00.777 GASKET; CONNECTOR
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TCENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ), 4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-767-0 01 1 1005- ● ● ●

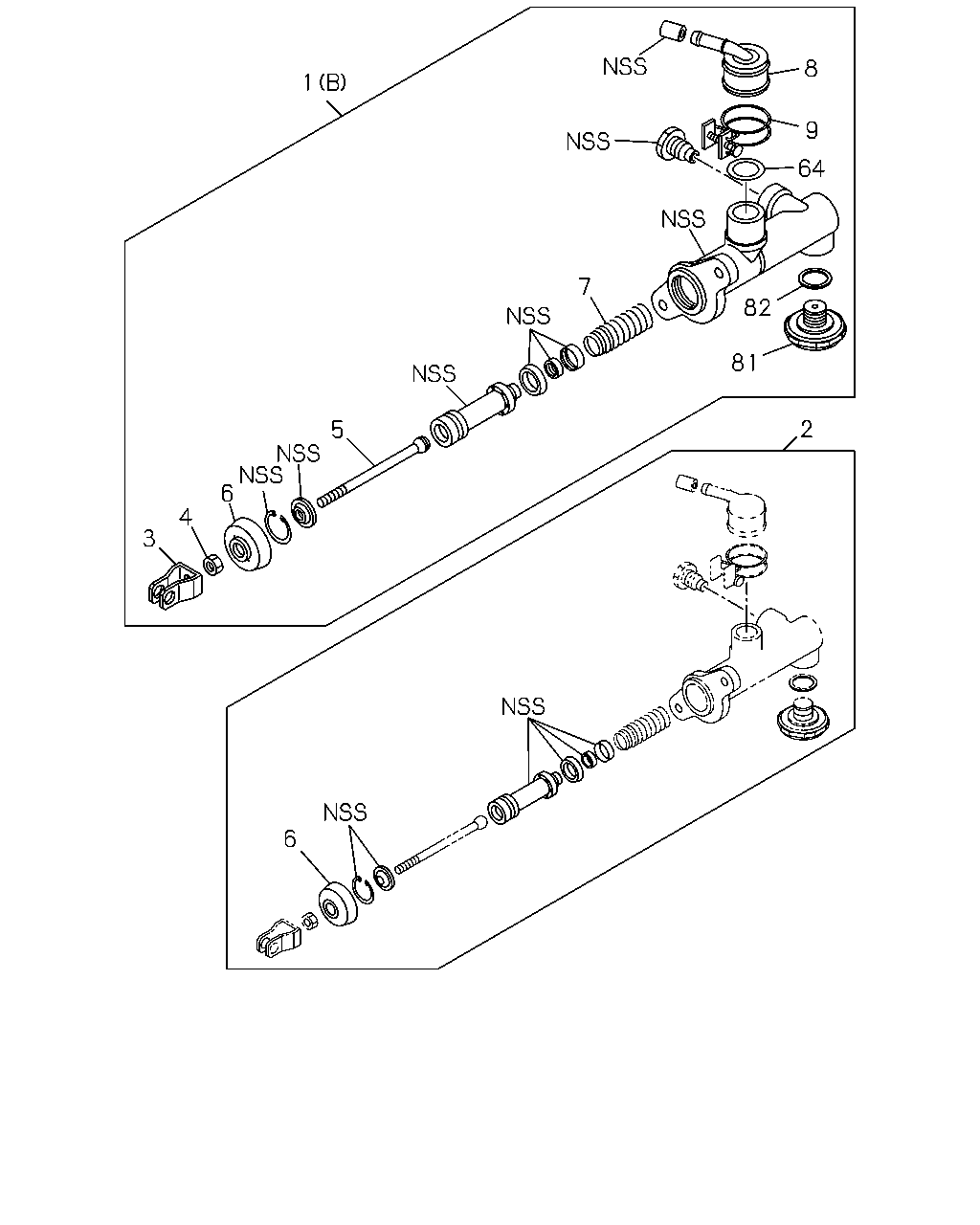

çizim 45296
8 1 9 64 7 82 81 2 5 6 4 3 6
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JG2 ENG(RJC),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> (A) 		8-97167-406-0 01 1 0211-0501 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> (A) 		8-97167-406-0 01 1 0502-0504 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> (A) 		8-97167-406-0 01 1 0505-0803 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> (A) 		8-98117-644-0 01 1 0804-1004 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> (A) 		8-98117-644-0 01 1 1005- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> (C) 		8-97210-748-1 01 1 0211-0704 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> (C) 		8-98083-061-0 01 1 0705- ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JH1 ENG(RJX) (B) 		8-97300-211-0 01 1 0211-0501 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JH1-TC ENG(RDM) EXC. POWER ASSIST CLUTCH<S2T> (B) 		8-97300-211-0 01 1 0502-0803 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JH1-TC ENG(RDM) EXC. POWER ASSIST CLUTCH<S2T> (B) 		8-98117-645-0 01 1 0804- ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		5-87831-597-0 01 1 0211-0501 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		5-87831-597-0 01 1 0502-0504 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		5-87831-597-0 01 1 0505-0803 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		5-87832-226-0 01 1 0804-1004 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TCENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ), 4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		5-87832-226-0 01 1 1005- ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		5-87831-617-0 01 1 0211-0501 ●
2 00.775 REPAIR KIT; CLU M/CYL
4HF1-N ENG(RJZ) POWER ASSIST CLUTCH<S2T> 		5-87831-617-0 01 1 0502- ●
3 00.777 JOINT; JAW,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-770-0 01 1 0211-0501 ● ● ●
3 00.777 JOINT; JAW,CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-770-0 01 1 0502-0504 ● ● ●
3 00.777 JOINT; JAW,CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-770-0 01 1 0505-1004 ● ● ●
3 00.777 JOINT; JAW,CLU M/CYL
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TCENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ), 4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-770-0 01 1 1005- ● ● ●
4 00.777 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH<S2T> 00.787 M8 		9-09111-408-0 01 1 0211-0501 ● ● ●
4 00.777 NUT; JAW JOINT
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 00.787 M8 		9-09111-408-0 01 1 0502-0504 ● ● ●
4 00.777 NUT; JAW JOINT
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 00.787 M8 		9-09111-408-0 01 1 0505-0511 ● ● ●
4 00.777 NUT; JAW JOINT
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> M8 		0-91111-508-0 01 1 0512-1004 ● ● ●
4 00.777 NUT; JAW JOINT
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TCENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ), 4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> M8 		0-91111-508-0 01 1 1005- ● ● ●
5 00.775 ROD; PUSH,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-768-0 01 1 0211-0501 ● ● ●
5 00.775 ROD; PUSH,CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-768-0 01 1 0502-0504 ● ● ●
5 00.775 ROD; PUSH,CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-768-0 01 1 0505-1004 ● ● ●
5 00.775 ROD; PUSH,CLU M/CYL
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TCENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ), 4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-768-0 01 1 1005- ● ● ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-94412-200-0 01 1 0211-0501 ● ● ●
6 00.775 BOOT; CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-94412-200-0 01 1 0502-0504 ● ● ●
6 00.775 BOOT; CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-94412-200-0 01 1 0505-1004 ● ● ●
6 00.775 BOOT; CLU M/CYL
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TCENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ), 4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-94412-200-0 01 1 1005- ● ● ●
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-153-0 01 1 0211-0501 ●
6 00.775 BOOT; CLU M/CYL
4HF1-N ENG(RJZ) POWER ASSIST CLUTCH<S2T> 		8-97163-153-0 01 1 0502- ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-780-0 01 1 0211-0501 ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-780-0 01 1 0502-0504 ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-780-0 01 1 0505-1004 ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TCENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ), 4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-780-0 01 1 1005- ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-148-0 01 1 0211-0501 ●
7 00.775 SPRING ASM; CLU M/CYL
4HF1-N ENG(RJZ) POWER ASSIST CLUTCH<S2T> 		8-97163-148-0 01 1 0502- ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-766-0 01 1 0211-0501 ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-766-0 01 1 0502-0504 ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-766-0 01 1 0505-1004 ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TCENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ), 4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-766-0 01 1 1005- ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-190-0 01 1 0211-0501 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
4HF1-N ENG(RJZ) POWER ASSIST CLUTCH<S2T> 		8-97163-190-0 01 1 0502- ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-773-0 01 1 0211-0501 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-773-0 01 1 0502-0504 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-773-0 01 1 0505-1004 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TCENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ), 4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-773-0 01 1 1005- ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-143-0 01 1 0211-0704 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-98061-352-0 01 1 0705- ●
64 00.777 GASKET; CONNECTOR
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-767-0 01 1 0211-0501 ● ● ●
64 00.777 GASKET; CONNECTOR
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-767-0 01 1 0502-0504 ● ● ●
64 00.777 GASKET; CONNECTOR
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-767-0 01 1 0505-1004 ● ● ●
64 00.777 GASKET; CONNECTOR
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TCENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ), 4JB1 NA ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-767-0 01 1 1005- ● ● ●
81 00.777 DAMPER; MASTER CYL
4JH1 ENG(RJX) 		8-97190-913-0 01 1 0211-0501 ●
81 00.777 DAMPER; MASTER CYL
4JH1-TC ENG(RDM) EXC. POWER ASSIST CLUTCH<S2T> 		8-97190-913-0 01 1 0502- ●
82 00.777 GASKET; DAMPER
4JH1 ENG(RJX) 		8-97191-396-0 01 1 0211-0501 ●
82 00.777 GASKET; DAMPER
4JH1-TC ENG(RDM) EXC. POWER ASSIST CLUTCH<S2T> 		8-97191-396-0 01 1 0502- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
