2-05 — CLUTCH PIPING (#50773) — 334 parça

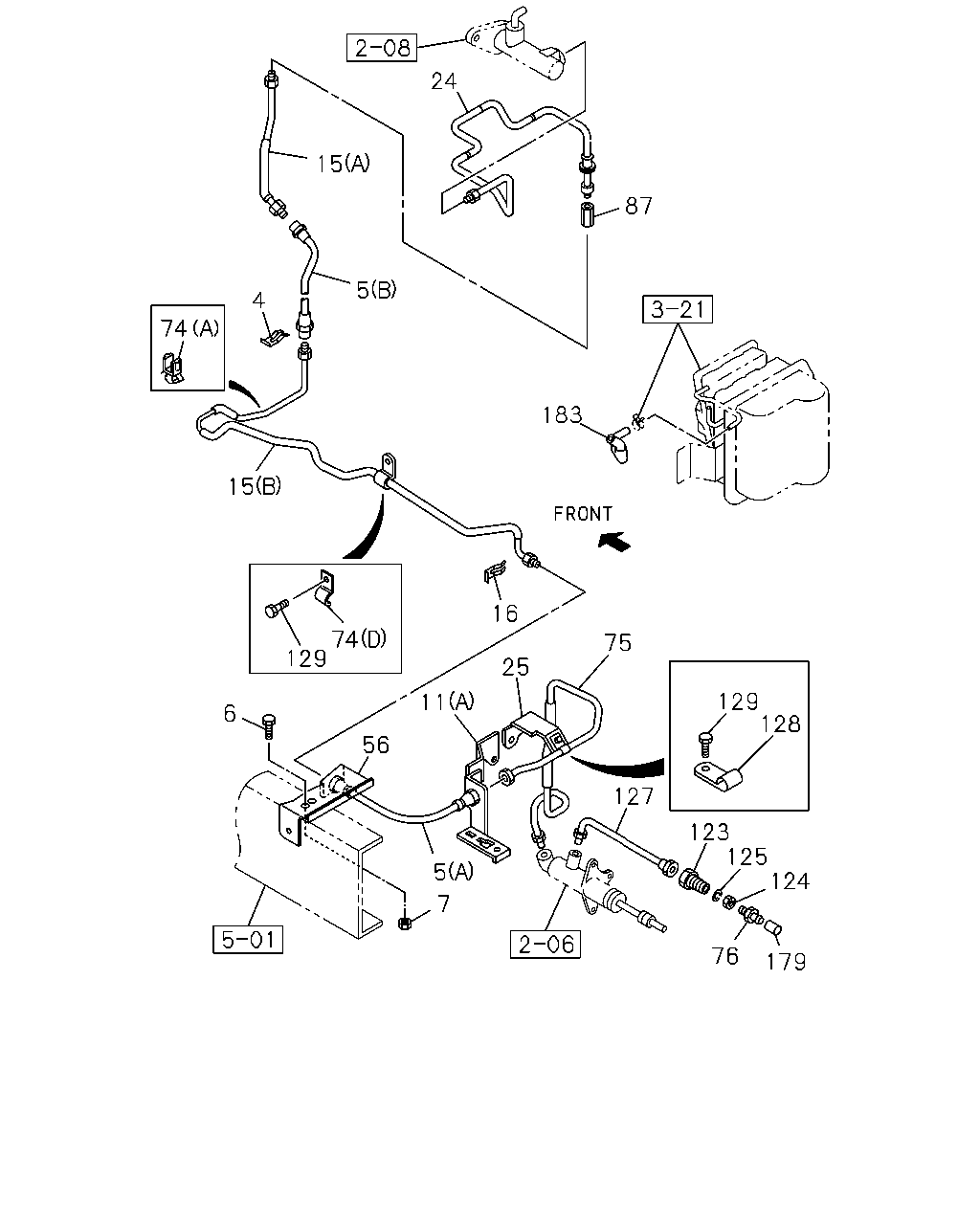

çizim 45836
24 15 87 5 4 74 183 15 16 74 129 75 25 129 128 11 6 56 127 123 125 124 5 7 76 179
BalonParca AdiParca NoAdetTipApplied Date A B C
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0211-0610 ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 02 1 0611- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1 NA ENG(RLF) EXC. TURBOCHARGER<K51> (A) 		8-97064-108-1 01 1 0211-0501 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97064-108-1 01 1 0502-0606 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1 NA ENG(RLF) (A) 		8-97064-108-1 01 1 0607- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JG2 ENG(RJC) (A) 		8-94374-552-1 01 1 0211-0501 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1 NA ENG(RLF) TURBOCHARGER<K51> (A) 		8-94374-552-1 01 1 0211-0501 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1-TC ENG(RDT) (A) 		8-94374-552-1 01 1 0502-0504 ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94374-552-1 01 1 0505-0606 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) (A) 		8-94374-552-1 01 1 0607- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0211-0609 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98004-775-0 01 1 0610-0706 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98090-655-0 01 1 0707- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HF1-S ENG(RLS) (A) 		8-94482-265-1 01 1 0211-0501 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HF1-N ENG(RJZ) (A) 		8-94482-265-1 01 1 0502-1004 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) (A) 		8-94482-265-1 01 1 1005- ●
5 00.785 HOSE; FLEX,CLU PIPE
4JH1 ENG(RJX) (C) 		8-97304-979-0 01 1 0211-0501 ●
5 00.785 HOSE; FLEX,CLU PIPE
4JH1-TC ENG(RDM) (C) 		8-97304-979-0 01 1 0502- ●
6 00.785 BOLT; BRKT,FLEX HOSE
4JB1 NA ENG(RLF) EXC. TURBOCHARGER<K51> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HF1-S ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-1004 ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HG1-T ENG(RDP),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1005- ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4JG2 ENG(RJC) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0211-0501 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4JB1 NA ENG(RLF) TURBOCHARGER<K51> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0211-0501 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4JB1-TC ENG(RDT) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0502-0504 ●
6 00.785 BOLT; BRKT,FLEX HOSE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0505-0512 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0601-0606 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0607- ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JG2 ENG(RJC),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0504 ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0505-0602 ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-1004 ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1005- ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1 NA ENG(RLF) EXC. TURBOCHARGER<K51> (B) 		8-94411-135-0 01 1 0211-0501 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94411-135-0 01 1 0502-0606 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1 NA ENG(RLF) (B) 		8-94411-135-0 01 1 0607- ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JG2 ENG(RJC) (A) 		8-97091-929-0 01 1 0211-0501 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1 NA ENG(RLF) TURBOCHARGER<K51> (A) 		8-97091-929-0 01 1 0211-0501 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1-TC ENG(RDT) (A) 		8-97091-929-0 01 1 0502-0504 ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1-TC ENG(RDT),4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97091-929-0 01 1 0505-0606 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1-TC ENG(RDT),4JG2 ENG(RJC) (A) 		8-97091-929-0 01 1 0607- ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HF1-S ENG(RLS) (B) 		8-97063-755-0 01 1 0211-0501 ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HF1-N ENG(RJZ) (B) 		8-97063-755-0 01 1 0502-1004 ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) (B) 		8-97063-755-0 01 1 1005- ●
15 00.785 PIPE; CLU,FLEX HOSE
4HF1-N ENG(RJZ) JAPAN PRODUCTION<C1H> EXC. FRAME-KICK UP<7EW> (B) 		8-98281-112-0 01 1 1406- ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1-TC ENG(RDT) (B) 		8-98204-484-0 01 1 1202- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HG1-T ENG(RDP) (B) 		8-97367-551-0 01 1 1005- ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1 NA ENG(RLF) EXC. TURBOCHARGER<K51> (B) 		8-97070-380-4 01 1 0211-0501 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1 NA ENG(RLF) (B) 		8-97070-380-4 01 1 0502-0504 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) 		8-97070-380-4 01 1 0505-0512 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1 NA ENG(RLF) (B) 		8-97070-380-4 01 1 0601- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97185-250-1 01 1 0211-0501 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97122-637-0 01 1 0211-0501 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1 NA ENG(RLF) TURBOCHARGER<K51> (B) 		8-97122-637-0 01 1 0211-0501 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1-TC ENG(RDT) (B) 		8-97122-637-0 01 1 0502-0512 ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) (B) 		8-97122-637-0 01 1 0601-1201 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JG2 ENG(RJC) (B) 		8-97122-637-0 01 1 1202- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97328-481-0 01 1 0211- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (B) 		8-97326-004-0 01 1 0211-0304 ●
15 00.785 PIPE; CLU,FLEX HOSE
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (B) 		8-97367-555-0 01 1 0305-0501 ●
15 00.785 PIPE; CLU,FLEX HOSE
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (B) 		8-97367-555-0 01 1 0502- ●
15 00.785 PIPE; CLU,FLEX HOSE
4JH1 ENG(RJX) (B) 		8-97326-005-0 01 1 0211-0501 ●
15 00.785 PIPE; CLU,FLEX HOSE
4JH1-TC ENG(RDM) (B) 		8-97326-005-0 01 1 0502- ●
15 00.785 PIPE; CLU,FLEX HOSE
SGL CAB(NK**S*) 4HF1-S ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (B) 		8-97326-003-0 01 1 0211-0304 ●
15 00.785 PIPE; CLU,FLEX HOSE
DBL CAB&MIDDLE(NK**WF) (B) 		8-97362-192-0 01 1 0211-0304 ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. FRAME-KICK UP<7EW> (B) 		8-97362-192-0 01 1 0305-0501 ●
15 00.785 PIPE; CLU,FLEX HOSE
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (B) 		8-97362-192-0 01 1 0502-1405 ●
15 00.785 PIPE; CLU,FLEX HOSE
4HF1-N ENG(RJZ) EXC. JAPAN PRODUCTION<C1H>,FRAME-KICK UP<7EW> (B) 		8-97362-192-0 01 1 1406- ●
16 00.785 CLIP; FLEX HOSE
4JG2 ENG(RJC),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) 		8-94167-006-0 01 1 0211-0501 ● ● ●
16 00.785 CLIP; FLEX HOSE
4JG2 ENG(RJC) 		8-94167-006-0 01 1 0211-0501 ● ●
16 00.785 CLIP; FLEX HOSE
4JB1 NA ENG(RLF) TURBOCHARGER<K51> 		8-94167-006-0 01 1 0211-0501 ● ●
16 00.785 CLIP; FLEX HOSE
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) 		8-94167-006-0 01 1 0502-0504 ● ● ●
16 00.785 CLIP; FLEX HOSE
4JB1-TC ENG(RDT) 		8-94167-006-0 01 1 0502-0504 ●
16 00.785 CLIP; FLEX HOSE
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) 		8-94167-006-0 01 1 0505-0606 ● ● ●
16 00.785 CLIP; FLEX HOSE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94167-006-0 01 1 0505-0606 ● ●
16 00.785 CLIP; FLEX HOSE
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) 		8-94167-006-0 01 1 0607-0610 ● ● ●
16 00.785 CLIP; FLEX HOSE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) 		8-94167-006-0 01 1 0607-0610 ● ●
16 00.785 CLIP; FLEX HOSE
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) 04.681 		8-97365-304-0 01 1 0611-1004 ● ● ●
16 00.785 CLIP; FLEX HOSE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) 04.681 		8-97365-304-0 01 1 0611-1004 ● ●
16 00.785 CLIP; FLEX HOSE
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) 04.681 		8-97365-304-0 01 1 1005- ● ● ●
16 00.785 CLIP; FLEX HOSE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) 04.681 		8-97365-304-0 01 1 1005- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION 8-97094-343-2 01 1 0211-0501 ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		8-97094-343-2 01 1 0211-0501 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH<S2T> 		8-97094-343-2 01 1 0502- ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH<S2T> 		8-97118-568-0 01 1 0211-0501 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> 		8-97118-568-0 01 1 0502- ●
25 00.785 BRACKET; OIL PIPE
4JG2 ENG(RJC) 		8-97013-211-1 01 1 0211-0501 ● ●
25 00.785 BRACKET; OIL PIPE
4JB1 NA ENG(RLF) TURBOCHARGER<K51> 		8-97013-211-1 01 1 0211-0501 ● ●
25 00.785 BRACKET; OIL PIPE
4JB1-TC ENG(RDT) 		8-97013-211-1 01 1 0502-0504 ●
25 00.785 BRACKET; OIL PIPE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97013-211-1 01 1 0505-0606 ● ●
25 00.785 BRACKET; OIL PIPE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) 		8-97013-211-1 01 1 0607- ● ●
56 00.785 BRACKET; FLEX HOSE
4JG2 ENG(RJC) 		8-97090-299-0 01 1 0211-0501 ● ●
56 00.785 BRACKET; FLEX HOSE
4JB1 NA ENG(RLF) TURBOCHARGER<K51> 		8-97090-299-0 01 1 0211-0501 ● ●
56 00.785 BRACKET; FLEX HOSE
4JB1-TC ENG(RDT) 		8-97090-299-0 01 1 0502-0504 ●
56 00.785 BRACKET; FLEX HOSE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97090-299-0 01 1 0505-0606 ● ●
56 00.785 BRACKET; FLEX HOSE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) 		8-97090-299-0 01 1 0607- ● ●
74 00.785 CLIP; CLU OIL PIPE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (A) H=28.5 		8-94486-808-0 01 1 0911- ● ●
74 00.785 CLIP; CLU OIL PIPE
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 06.672 (D) 		8-94363-358-0 01 1 0211-0501 ● ●
74 00.785 CLIP; CLU OIL PIPE
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) H=28.5 		8-94486-808-0 02 1 0211-0501 ● ●
74 00.785 CLIP; CLU OIL PIPE
4JB1 NA ENG(RLF) TURBOCHARGER<K51> 03.162 (A) H=28.5 		8-94486-808-0 02 1 0211-0501 ● ●
74 00.785 CLIP; CLU OIL PIPE
4JB1-TC ENG(RDT) 03.162 (A) H=28.5 		8-94486-808-0 02 1 0502-0511 ●
74 00.785 CLIP; CLU OIL PIPE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) H=28.5 		8-94486-808-0 02 1 0512-0910 ● ●
74 00.785 CLIP; CLU OIL PIPE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) H=28.5 		8-94486-808-0 02 1 0911- ● ●
74 00.785 CLIP; CLU OIL PIPE
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 03.483 (B) ID=9 & 7 L=15 & 15 		1-09700-060-0 01 1 0211-0501 ●
74 00.785 CLIP; CLU OIL PIPE
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 03.483 (B) ID=9 & 7 L=15 & 15 		1-09700-060-0 01 1 0502- ●
74 00.785 CLIP; CLU OIL PIPE
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 04.686 (C) ID=9 L=20 		9-09545-108-0 01 1 0211-0501 ●
74 00.785 CLIP; CLU OIL PIPE
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 04.686 (C) ID=9 L=20 		9-09545-108-0 01 1 0502-0606 ●
74 00.785 CLIP; CLU OIL PIPE
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (C) ID=9 L=20 		0-95405-308-0 01 1 0607- ●
75 00.785 PIPE ASM; CLU,HSG
4JG2 ENG(RJC) 		8-97063-756-2 01 1 0211-0501 ● ●
75 00.785 PIPE ASM; CLU,HSG
4JB1 NA ENG(RLF) TURBOCHARGER<K51> 		8-97063-756-2 01 1 0211-0501 ● ●
75 00.785 PIPE ASM; CLU,HSG
4JB1-TC ENG(RDT) 		8-97063-756-2 01 1 0502-0504 ●
75 00.785 PIPE ASM; CLU,HSG
4JB1-TC ENG(RDT),4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97063-756-2 01 1 0505-0606 ● ●
75 00.785 PIPE ASM; CLU,HSG
4JB1-TC ENG(RDT),4JG2 ENG(RJC) 		8-97063-756-2 01 1 0607- ● ●
76 00.785 SCREW; BREATHER
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 00.780 M8X16.5 		8-94115-113-0 01 1 0211-0501 ● ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0211-0501 ● ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		9-99227-006-0 01 1 0502-0607 ● ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		0-92107-006-0 01 1 0608- ● ● ●
123 00.785 UNION; AIR PIPE
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97013-854-0 01 1 0211-0501 ● ●
124 00.785 NUT; PIPE UNION
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 04.681 M16 		9-99111-416-0 01 1 0211-0501 ● ●
125 00.785 WASHER; LK,PIPE UNION
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 06.897 ID=16.2 		9-09150-516-0 01 1 0211-0501 ● ●
127 00.785 PIPE; AIR,UNION TO MAG VLV
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97062-512-1 01 1 0211-0501 ● ●
128 00.785 CLIP; AIR PIPE
4JG2 ENG(RJC) 03.145 ID=7 L=16 		9-09524-622-0 02 1 0211-0501 ● ●
128 00.785 CLIP; AIR PIPE
4JB1 NA ENG(RLF) TURBOCHARGER<K51> 03.145 ID=7 L=16 		9-09524-622-0 02 1 0211-0501 ● ●
128 00.785 CLIP; AIR PIPE
4JB1-TC ENG(RDT) 03.145 ID=7 L=16 		9-09524-622-0 02 1 0502-0504 ●
128 00.785 CLIP; AIR PIPE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.145 ID=7 L=16 		9-09524-622-0 02 1 0505-0606 ● ●
128 00.785 CLIP; AIR PIPE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=7 L=16 		0-95234-622-0 02 1 0607-0607 ● ●
128 00.785 CLIP; AIR PIPE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) ID=7 L=16 		0-95234-622-0 02 1 0607- ● ●
129 00.785 BOLT; PIPE CLIP
4JG2 ENG(RJC) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0211-0501 ● ●
129 00.785 BOLT; PIPE CLIP
4JB1 NA ENG(RLF) TURBOCHARGER<K51> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0211-0501 ● ●
129 00.785 BOLT; PIPE CLIP
4JB1-TC ENG(RDT) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0502-0504 ●
129 00.785 BOLT; PIPE CLIP
4JB1-TC ENG(RDT),4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0505-0512 ● ●
129 00.785 BOLT; PIPE CLIP
4JB1-TC ENG(RDT),4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0601-0606 ● ●
129 00.785 BOLT; PIPE CLIP
4JB1-TC ENG(RDT),4JG2 ENG(RJC) 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0607- ● ●
129 00.785 BOLT; PIPE CLIP
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0211-0501 ● ●
129 00.785 BOLT; PIPE CLIP
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0211-0501 ●
129 00.785 BOLT; PIPE CLIP
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0502-0512 ●
129 00.785 BOLT; PIPE CLIP
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 03.162 M6X20 FLANGE 		0-28650-620-0 01 1 0601- ●
129 00.785 BOLT; PIPE CLIP
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0211-0501 ●
129 00.785 BOLT; PIPE CLIP
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0502-0512 ●
129 00.785 BOLT; PIPE CLIP
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
179 00.785 CAP; BREATHER
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 00.780 OD=9.5 		9-47619-005-0 01 1 0211-0501 ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> 		8-97093-993-1 01 1 0211-0501 ●
183 00.785 HOSE; VAC,VAC TANK SIDE
4HF1-S ENG(RLS) POWER ASSIST CLUTCH<S2T> 		8-98009-419-0 01 1 0502-1004 ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> 		8-98009-419-0 01 1 1005- ●
çizim 45837
15 24 4 5 87 15 19 18 5 177 3 3
BalonParca AdiParca NoAdetTipApplied Date A B C
3 00.785 GASKET; FLEX HOSE,CLU
4JB1 NA ENG(RLF) EXC. TURBOCHARGER<K51> 		9-09920-873-1 01 1 0211-0501 ● ●
3 00.785 GASKET; FLEX HOSE,CLU
4HF1-S ENG(RLS) 		9-09920-873-1 01 1 0211-0501 ●
3 00.785 GASKET; FLEX HOSE,CLU
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) 		9-09920-873-1 01 1 0502-1004 ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
4HG1-T ENG(RDP),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) 		9-09920-873-1 01 1 1005- ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
4JH1 ENG(RJX) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0211-0501 ●
3 00.785 GASKET; FLEX HOSE,CLU
4JH1-TC ENG(RDM) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0502- ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0211-0610 ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 02 1 0611- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1 NA ENG(RLF) EXC. TURBOCHARGER<K51> (A) 		8-97064-108-1 01 1 0211-0501 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97064-108-1 01 1 0502-0606 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1 NA ENG(RLF) (A) 		8-97064-108-1 01 1 0607- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JG2 ENG(RJC) (A) 		8-94374-552-1 01 1 0211-0501 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1 NA ENG(RLF) TURBOCHARGER<K51> (A) 		8-94374-552-1 01 1 0211-0501 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1-TC ENG(RDT) (A) 		8-94374-552-1 01 1 0502-0504 ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94374-552-1 01 1 0505-0606 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) (A) 		8-94374-552-1 01 1 0607- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0211-0609 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98004-775-0 01 1 0610-0706 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98090-655-0 01 1 0707- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HF1-S ENG(RLS) (A) 		8-94482-265-1 01 1 0211-0501 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HF1-N ENG(RJZ) (A) 		8-94482-265-1 01 1 0502-1004 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) (A) 		8-94482-265-1 01 1 1005- ●
5 00.785 HOSE; FLEX,CLU PIPE
4JH1 ENG(RJX) (C) 		8-97304-979-0 01 1 0211-0501 ●
5 00.785 HOSE; FLEX,CLU PIPE
4JH1-TC ENG(RDM) (C) 		8-97304-979-0 01 1 0502- ●
15 00.785 PIPE; CLU,FLEX HOSE
4HF1-N ENG(RJZ) JAPAN PRODUCTION<C1H> EXC. FRAME-KICK UP<7EW> (B) 		8-98281-112-0 01 1 1406- ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1-TC ENG(RDT) (B) 		8-98204-484-0 01 1 1202- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HG1-T ENG(RDP) (B) 		8-97367-551-0 01 1 1005- ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1 NA ENG(RLF) EXC. TURBOCHARGER<K51> (B) 		8-97070-380-4 01 1 0211-0501 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1 NA ENG(RLF) (B) 		8-97070-380-4 01 1 0502-0504 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) 		8-97070-380-4 01 1 0505-0512 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1 NA ENG(RLF) (B) 		8-97070-380-4 01 1 0601- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97185-250-1 01 1 0211-0501 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97122-637-0 01 1 0211-0501 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1 NA ENG(RLF) TURBOCHARGER<K51> (B) 		8-97122-637-0 01 1 0211-0501 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1-TC ENG(RDT) (B) 		8-97122-637-0 01 1 0502-0512 ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) (B) 		8-97122-637-0 01 1 0601-1201 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JG2 ENG(RJC) (B) 		8-97122-637-0 01 1 1202- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97328-481-0 01 1 0211- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (B) 		8-97326-004-0 01 1 0211-0304 ●
15 00.785 PIPE; CLU,FLEX HOSE
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (B) 		8-97367-555-0 01 1 0305-0501 ●
15 00.785 PIPE; CLU,FLEX HOSE
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (B) 		8-97367-555-0 01 1 0502- ●
15 00.785 PIPE; CLU,FLEX HOSE
4JH1 ENG(RJX) (B) 		8-97326-005-0 01 1 0211-0501 ●
15 00.785 PIPE; CLU,FLEX HOSE
4JH1-TC ENG(RDM) (B) 		8-97326-005-0 01 1 0502- ●
15 00.785 PIPE; CLU,FLEX HOSE
SGL CAB(NK**S*) 4HF1-S ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (B) 		8-97326-003-0 01 1 0211-0304 ●
15 00.785 PIPE; CLU,FLEX HOSE
DBL CAB&MIDDLE(NK**WF) (B) 		8-97362-192-0 01 1 0211-0304 ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. FRAME-KICK UP<7EW> (B) 		8-97362-192-0 01 1 0305-0501 ●
15 00.785 PIPE; CLU,FLEX HOSE
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (B) 		8-97362-192-0 01 1 0502-1405 ●
15 00.785 PIPE; CLU,FLEX HOSE
4HF1-N ENG(RJZ) EXC. JAPAN PRODUCTION<C1H>,FRAME-KICK UP<7EW> (B) 		8-97362-192-0 01 1 1406- ●
18 00.830 DAMPER ASM; CLU OIL
4JH1 ENG(RJX) 		8-97304-970-0 01 1 0211-0501 ●
18 00.830 DAMPER ASM; CLU OIL
4JH1-TC ENG(RDM) 		8-97304-970-0 01 1 0502- ●
19 00.837 BOLT; CLU DAMPER
4JH1 ENG(RJX) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0211-0501 ●
19 00.837 BOLT; CLU DAMPER
4JH1-TC ENG(RDM) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0502-0512 ●
19 00.837 BOLT; CLU DAMPER
4JH1-TC ENG(RDM) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION 8-97094-343-2 01 1 0211-0501 ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		8-97094-343-2 01 1 0211-0501 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH<S2T> 		8-97094-343-2 01 1 0502- ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH<S2T> 		8-97118-568-0 01 1 0211-0501 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> 		8-97118-568-0 01 1 0502- ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0211-0501 ● ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		9-99227-006-0 01 1 0502-0607 ● ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		0-92107-006-0 01 1 0608- ● ● ●
177 00.777 BOLT; EYE,FLEX HOSE TO M/CYL
4JH1 ENG(RJX) 04.665 M10X22 		5-09675-017-0 01 1 0211-0501 ●
177 00.777 BOLT; EYE,FLEX HOSE TO M/CYL
4JH1-TC ENG(RDM) 04.665 M10X22 		5-09675-017-0 01 1 0502-0507 ●
177 00.777 BOLT; EYE,FLEX HOSE TO M/CYL
4JH1-TC ENG(RDM) 04.681 M10X22 		8-97381-454-0 01 1 0508-0905 ●
177 00.777 BOLT; EYE,FLEX HOSE TO M/CYL
4JH1-TC ENG(RDM) 04.681 M10X22 		8-98014-005-0 01 1 0906- ●

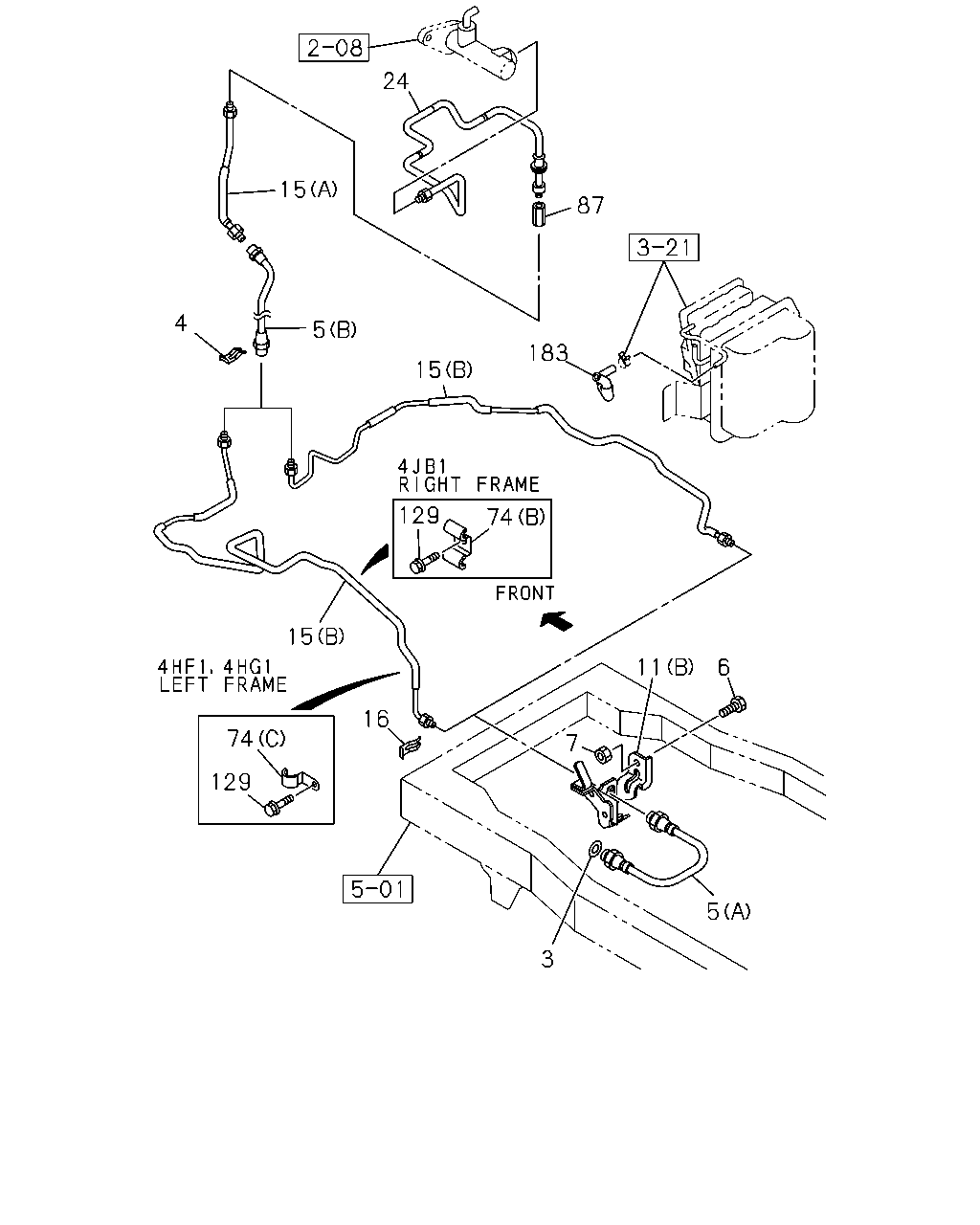

çizim 45873
24 15 87 4 5 183 15 129 74 15 11 6 16 7 74 129 5 3
BalonParca AdiParca NoAdetTipApplied Date A B C
3 00.785 GASKET; FLEX HOSE,CLU
4JB1 NA ENG(RLF) EXC. TURBOCHARGER<K51> 		9-09920-873-1 01 1 0211-0501 ● ●
3 00.785 GASKET; FLEX HOSE,CLU
4HF1-S ENG(RLS) 		9-09920-873-1 01 1 0211-0501 ●
3 00.785 GASKET; FLEX HOSE,CLU
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) 		9-09920-873-1 01 1 0502-1004 ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
4HG1-T ENG(RDP),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) 		9-09920-873-1 01 1 1005- ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
4JH1 ENG(RJX) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0211-0501 ●
3 00.785 GASKET; FLEX HOSE,CLU
4JH1-TC ENG(RDM) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0502- ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0211-0610 ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 02 1 0611- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1 NA ENG(RLF) EXC. TURBOCHARGER<K51> (A) 		8-97064-108-1 01 1 0211-0501 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97064-108-1 01 1 0502-0606 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1 NA ENG(RLF) (A) 		8-97064-108-1 01 1 0607- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JG2 ENG(RJC) (A) 		8-94374-552-1 01 1 0211-0501 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1 NA ENG(RLF) TURBOCHARGER<K51> (A) 		8-94374-552-1 01 1 0211-0501 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1-TC ENG(RDT) (A) 		8-94374-552-1 01 1 0502-0504 ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94374-552-1 01 1 0505-0606 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) (A) 		8-94374-552-1 01 1 0607- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0211-0609 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98004-775-0 01 1 0610-0706 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98090-655-0 01 1 0707- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HF1-S ENG(RLS) (A) 		8-94482-265-1 01 1 0211-0501 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HF1-N ENG(RJZ) (A) 		8-94482-265-1 01 1 0502-1004 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) (A) 		8-94482-265-1 01 1 1005- ●
5 00.785 HOSE; FLEX,CLU PIPE
4JH1 ENG(RJX) (C) 		8-97304-979-0 01 1 0211-0501 ●
5 00.785 HOSE; FLEX,CLU PIPE
4JH1-TC ENG(RDM) (C) 		8-97304-979-0 01 1 0502- ●
6 00.785 BOLT; BRKT,FLEX HOSE
4JB1 NA ENG(RLF) EXC. TURBOCHARGER<K51> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HF1-S ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-1004 ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HG1-T ENG(RDP),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1005- ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4JG2 ENG(RJC) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0211-0501 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4JB1 NA ENG(RLF) TURBOCHARGER<K51> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0211-0501 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4JB1-TC ENG(RDT) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0502-0504 ●
6 00.785 BOLT; BRKT,FLEX HOSE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0505-0512 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0601-0606 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0607- ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JG2 ENG(RJC),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0504 ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0505-0602 ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-1004 ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1005- ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1 NA ENG(RLF) EXC. TURBOCHARGER<K51> (B) 		8-94411-135-0 01 1 0211-0501 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94411-135-0 01 1 0502-0606 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1 NA ENG(RLF) (B) 		8-94411-135-0 01 1 0607- ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JG2 ENG(RJC) (A) 		8-97091-929-0 01 1 0211-0501 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1 NA ENG(RLF) TURBOCHARGER<K51> (A) 		8-97091-929-0 01 1 0211-0501 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1-TC ENG(RDT) (A) 		8-97091-929-0 01 1 0502-0504 ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1-TC ENG(RDT),4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97091-929-0 01 1 0505-0606 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1-TC ENG(RDT),4JG2 ENG(RJC) (A) 		8-97091-929-0 01 1 0607- ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HF1-S ENG(RLS) (B) 		8-97063-755-0 01 1 0211-0501 ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HF1-N ENG(RJZ) (B) 		8-97063-755-0 01 1 0502-1004 ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) (B) 		8-97063-755-0 01 1 1005- ●
15 00.785 PIPE; CLU,FLEX HOSE
4HF1-N ENG(RJZ) JAPAN PRODUCTION<C1H> EXC. FRAME-KICK UP<7EW> (B) 		8-98281-112-0 01 1 1406- ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1-TC ENG(RDT) (B) 		8-98204-484-0 01 1 1202- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HG1-T ENG(RDP) (B) 		8-97367-551-0 01 1 1005- ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1 NA ENG(RLF) EXC. TURBOCHARGER<K51> (B) 		8-97070-380-4 01 1 0211-0501 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1 NA ENG(RLF) (B) 		8-97070-380-4 01 1 0502-0504 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) 		8-97070-380-4 01 1 0505-0512 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1 NA ENG(RLF) (B) 		8-97070-380-4 01 1 0601- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97185-250-1 01 1 0211-0501 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97122-637-0 01 1 0211-0501 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1 NA ENG(RLF) TURBOCHARGER<K51> (B) 		8-97122-637-0 01 1 0211-0501 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1-TC ENG(RDT) (B) 		8-97122-637-0 01 1 0502-0512 ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) (B) 		8-97122-637-0 01 1 0601-1201 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JG2 ENG(RJC) (B) 		8-97122-637-0 01 1 1202- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97328-481-0 01 1 0211- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (B) 		8-97326-004-0 01 1 0211-0304 ●
15 00.785 PIPE; CLU,FLEX HOSE
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (B) 		8-97367-555-0 01 1 0305-0501 ●
15 00.785 PIPE; CLU,FLEX HOSE
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (B) 		8-97367-555-0 01 1 0502- ●
15 00.785 PIPE; CLU,FLEX HOSE
4JH1 ENG(RJX) (B) 		8-97326-005-0 01 1 0211-0501 ●
15 00.785 PIPE; CLU,FLEX HOSE
4JH1-TC ENG(RDM) (B) 		8-97326-005-0 01 1 0502- ●
15 00.785 PIPE; CLU,FLEX HOSE
SGL CAB(NK**S*) 4HF1-S ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (B) 		8-97326-003-0 01 1 0211-0304 ●
15 00.785 PIPE; CLU,FLEX HOSE
DBL CAB&MIDDLE(NK**WF) (B) 		8-97362-192-0 01 1 0211-0304 ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. FRAME-KICK UP<7EW> (B) 		8-97362-192-0 01 1 0305-0501 ●
15 00.785 PIPE; CLU,FLEX HOSE
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (B) 		8-97362-192-0 01 1 0502-1405 ●
15 00.785 PIPE; CLU,FLEX HOSE
4HF1-N ENG(RJZ) EXC. JAPAN PRODUCTION<C1H>,FRAME-KICK UP<7EW> (B) 		8-97362-192-0 01 1 1406- ●
16 00.785 CLIP; FLEX HOSE
4JG2 ENG(RJC),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) 		8-94167-006-0 01 1 0211-0501 ● ● ●
16 00.785 CLIP; FLEX HOSE
4JG2 ENG(RJC) 		8-94167-006-0 01 1 0211-0501 ● ●
16 00.785 CLIP; FLEX HOSE
4JB1 NA ENG(RLF) TURBOCHARGER<K51> 		8-94167-006-0 01 1 0211-0501 ● ●
16 00.785 CLIP; FLEX HOSE
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) 		8-94167-006-0 01 1 0502-0504 ● ● ●
16 00.785 CLIP; FLEX HOSE
4JB1-TC ENG(RDT) 		8-94167-006-0 01 1 0502-0504 ●
16 00.785 CLIP; FLEX HOSE
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) 		8-94167-006-0 01 1 0505-0606 ● ● ●
16 00.785 CLIP; FLEX HOSE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94167-006-0 01 1 0505-0606 ● ●
16 00.785 CLIP; FLEX HOSE
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) 		8-94167-006-0 01 1 0607-0610 ● ● ●
16 00.785 CLIP; FLEX HOSE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) 		8-94167-006-0 01 1 0607-0610 ● ●
16 00.785 CLIP; FLEX HOSE
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) 04.681 		8-97365-304-0 01 1 0611-1004 ● ● ●
16 00.785 CLIP; FLEX HOSE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) 04.681 		8-97365-304-0 01 1 0611-1004 ● ●
16 00.785 CLIP; FLEX HOSE
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) 04.681 		8-97365-304-0 01 1 1005- ● ● ●
16 00.785 CLIP; FLEX HOSE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) 04.681 		8-97365-304-0 01 1 1005- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION 8-97094-343-2 01 1 0211-0501 ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		8-97094-343-2 01 1 0211-0501 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH<S2T> 		8-97094-343-2 01 1 0502- ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH<S2T> 		8-97118-568-0 01 1 0211-0501 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> 		8-97118-568-0 01 1 0502- ●
74 00.785 CLIP; CLU OIL PIPE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (A) H=28.5 		8-94486-808-0 01 1 0911- ● ●
74 00.785 CLIP; CLU OIL PIPE
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 06.672 (D) 		8-94363-358-0 01 1 0211-0501 ● ●
74 00.785 CLIP; CLU OIL PIPE
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) H=28.5 		8-94486-808-0 02 1 0211-0501 ● ●
74 00.785 CLIP; CLU OIL PIPE
4JB1 NA ENG(RLF) TURBOCHARGER<K51> 03.162 (A) H=28.5 		8-94486-808-0 02 1 0211-0501 ● ●
74 00.785 CLIP; CLU OIL PIPE
4JB1-TC ENG(RDT) 03.162 (A) H=28.5 		8-94486-808-0 02 1 0502-0511 ●
74 00.785 CLIP; CLU OIL PIPE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) H=28.5 		8-94486-808-0 02 1 0512-0910 ● ●
74 00.785 CLIP; CLU OIL PIPE
4JB1-TC ENG(RDT),4JG2 ENG(RJC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) H=28.5 		8-94486-808-0 02 1 0911- ● ●
74 00.785 CLIP; CLU OIL PIPE
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 03.483 (B) ID=9 & 7 L=15 & 15 		1-09700-060-0 01 1 0211-0501 ●
74 00.785 CLIP; CLU OIL PIPE
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 03.483 (B) ID=9 & 7 L=15 & 15 		1-09700-060-0 01 1 0502- ●
74 00.785 CLIP; CLU OIL PIPE
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 04.686 (C) ID=9 L=20 		9-09545-108-0 01 1 0211-0501 ●
74 00.785 CLIP; CLU OIL PIPE
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 04.686 (C) ID=9 L=20 		9-09545-108-0 01 1 0502-0606 ●
74 00.785 CLIP; CLU OIL PIPE
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (C) ID=9 L=20 		0-95405-308-0 01 1 0607- ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0211-0501 ● ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		9-99227-006-0 01 1 0502-0607 ● ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		0-92107-006-0 01 1 0608- ● ● ●
129 00.785 BOLT; PIPE CLIP
4JG2 ENG(RJC) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0211-0501 ● ●
129 00.785 BOLT; PIPE CLIP
4JB1 NA ENG(RLF) TURBOCHARGER<K51> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0211-0501 ● ●
129 00.785 BOLT; PIPE CLIP
4JB1-TC ENG(RDT) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0502-0504 ●
129 00.785 BOLT; PIPE CLIP
4JB1-TC ENG(RDT),4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0505-0512 ● ●
129 00.785 BOLT; PIPE CLIP
4JB1-TC ENG(RDT),4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0601-0606 ● ●
129 00.785 BOLT; PIPE CLIP
4JB1-TC ENG(RDT),4JG2 ENG(RJC) 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0607- ● ●
129 00.785 BOLT; PIPE CLIP
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0211-0501 ● ●
129 00.785 BOLT; PIPE CLIP
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0211-0501 ●
129 00.785 BOLT; PIPE CLIP
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0502-0512 ●
129 00.785 BOLT; PIPE CLIP
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 03.162 M6X20 FLANGE 		0-28650-620-0 01 1 0601- ●
129 00.785 BOLT; PIPE CLIP
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0211-0501 ●
129 00.785 BOLT; PIPE CLIP
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0502-0512 ●
129 00.785 BOLT; PIPE CLIP
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> 		8-97093-993-1 01 1 0211-0501 ●
183 00.785 HOSE; VAC,VAC TANK SIDE
4HF1-S ENG(RLS) POWER ASSIST CLUTCH<S2T> 		8-98009-419-0 01 1 0502-1004 ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> 		8-98009-419-0 01 1 1005- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
