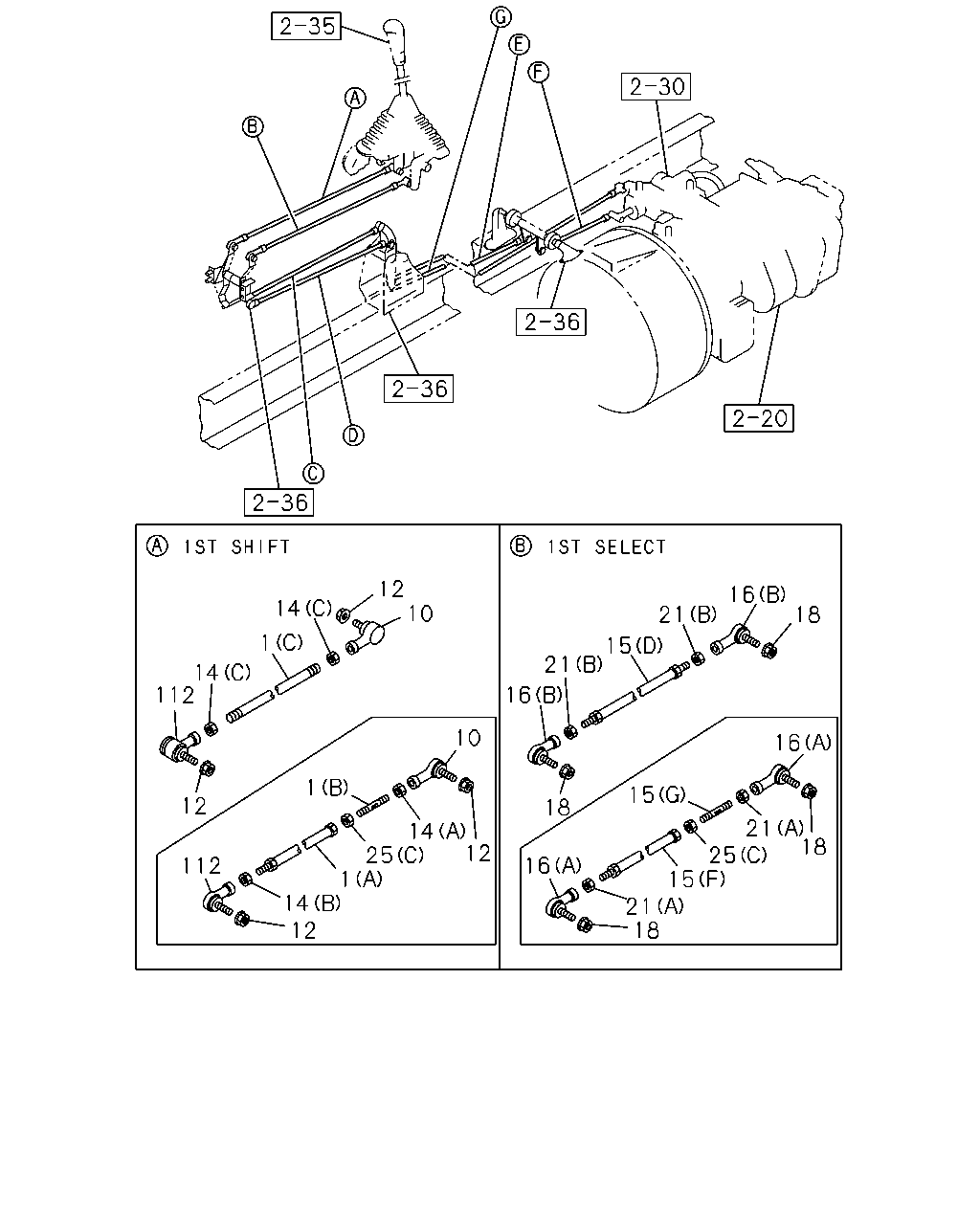

2-37A — MANUAL TRANSMISSION CONT; MISSION SIDE (#5077) — 248 parça

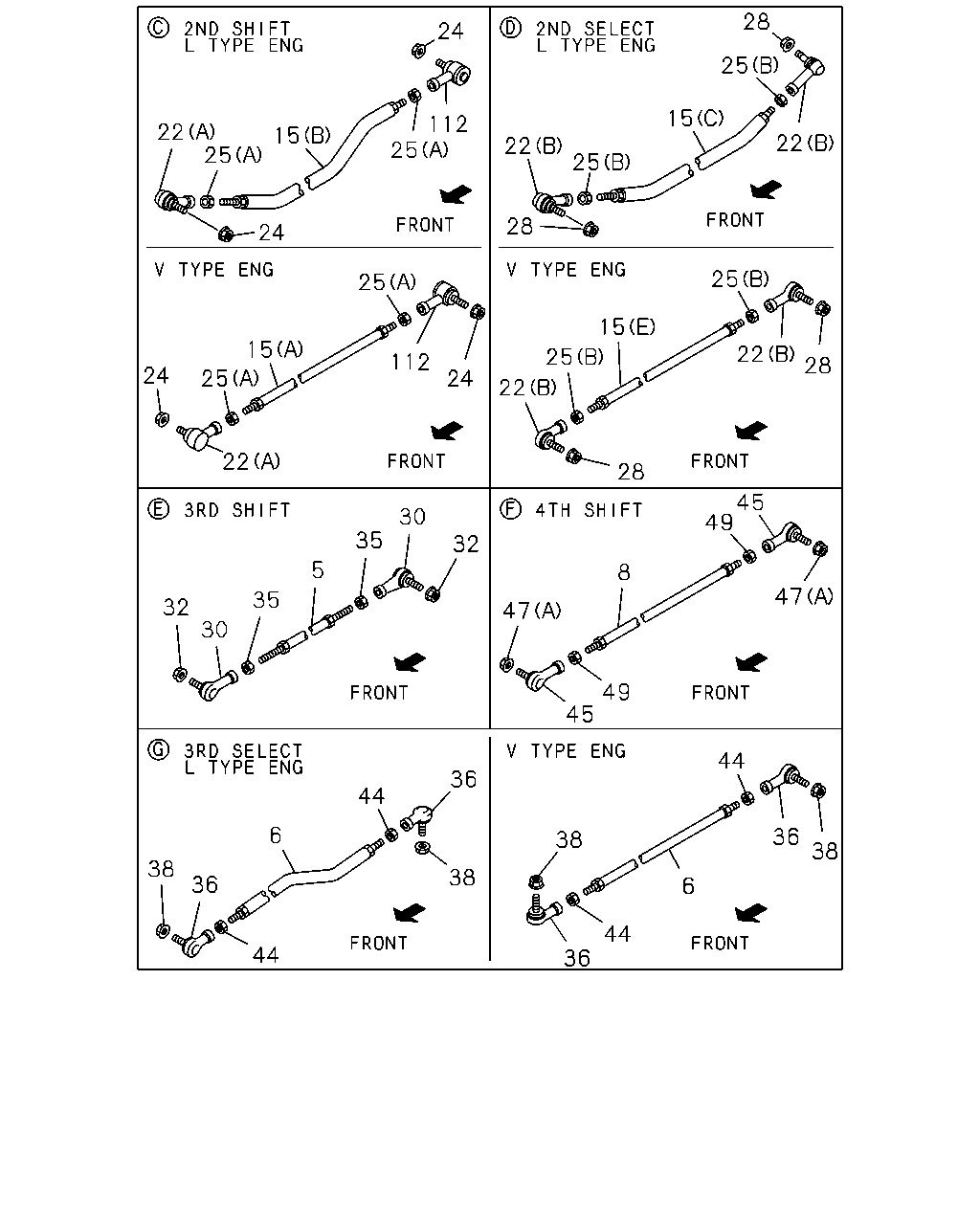

28 24 25 15 112 25 22 25 15 22 22 25 28 24 25 25 15 15 22 28 25 112 24 25 24 22 22 28 45 49 30 35 32 5 8 47 35 32 47 30 49 45 44 36 44 6 36 38 38 38 38 36 6 44 44 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	ROD; LINK,3RD SHIFT 10PE1S(60L) L=855	1-33652-321-0	01	1	9606-9905
5	ROD; LINK,3RD SHIFT 10PE1N(61L) L=855	1-33652-321-0	01	1	9906-
5	ROD; LINK,3RD SHIFT 6WA1 TC-S(56L) L=1110	1-33652-623-0	01	1	9606-9702
5	ROD; LINK,3RD SHIFT 6WA1 TC-S(56L) EXC. MIXER TRUCK<RA2> L=1110	1-33652-623-0	01	1	9703-9706
5	ROD; LINK,3RD SHIFT 6WA1 TC-S(56L) EXC. MIXER TRUCK<RA2> L=1110	1-33652-623-0	01	1	9707-9905
5	ROD; LINK,3RD SHIFT EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> L=1110	1-33652-623-0	01	1	9906-
5	ROD; LINK,3RD SHIFT 6WA1 TC-S(56L) MIXER TRUCK<RA2> L=1170	1-33652-547-0	01	1	9703-9905
5	ROD; LINK,3RD SHIFT 6WA1 TC-C(55L) MIXER TRUCK<RA2> L=1170	1-33652-547-0	01	1	9906-
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> ASSISTER SHIFT CONTROL<WX8> L TYPE ENG<90L> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE SPICER(TEY),CAB UP +110MM<TGG> L=1654	1-33652-770-0	01	1	9907-
6	ROD; LINK,3RD SELECT 10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> L=1308	1-33652-708-0	01	1	9606-9807
6	ROD; LINK,3RD SELECT 10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> L=1384	1-33652-819-0	01	1	9808-9905
6	ROD; LINK,3RD SELECT 10PE1N(61L) FRAME ENG MTG SEPARATE TYPE<SGM> L=1384	1-33652-819-0	01	1	9906-
6	ROD; LINK,3RD SELECT 10PE1S(60L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=1400	1-33652-735-0	01	1	9606-9807
6	ROD; LINK,3RD SELECT 10PE1S(60L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=1403	1-33652-824-1	01	1	9808-9905
6	ROD; LINK,3RD SELECT 10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=1403	1-33652-824-1	01	1	9906-
6	ROD; LINK,3RD SELECT 6WA1 TC-S(56L) L=1585	1-33652-660-0	01	1	9610-9702
6	ROD; LINK,3RD SELECT 6WA1 TC-S(56L) EXC. MIXER TRUCK<RA2> L=1585	1-33652-660-0	01	1	9703-9905
6	ROD; LINK,3RD SELECT L TYPE ENG<90L> ASSISTER SHIFT CONTROL<WX8> EXC. MIXER TRUCK<RA2> L=1585	1-33652-660-0	01	1	9906-
6	ROD; LINK,3RD SELECT 6WA1 TC-S(56L) MIXER TRUCK<RA2> L=1654	1-33652-770-0	01	1	9703-9905
8	ROD; LINK,4TH SHIFT 10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> L=324	1-33652-643-1	01	1	9606-9905
8	ROD; LINK,4TH SHIFT V TYPE ENG<91L> ASSISTER SHIFT CONTROL<WX8> FRAME ENG MTG SEPARATE TYPE<SGM> L=324	1-33652-643-1	01	1	9906-
8	ROD; LINK,4TH SHIFT 10PE1S(60L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=330	1-33652-653-1	01	1	9606-9609
8	ROD; LINK,4TH SHIFT 6WA1 TC-S(56L) L=330	1-33652-653-1	01	1	9610-9905
8	ROD; LINK,4TH SHIFT 10PE1S(60L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=330	1-33652-653-1	01	1	9610-9905
8	ROD; LINK,4TH SHIFT L TYPE ENG<90L> L=330	1-33652-653-1	01	1	9906-
8	ROD; LINK,4TH SHIFT V TYPE ENG<91L> ASSISTER SHIFT CONTROL<WX8> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=330	1-33652-653-1	01	1	9906-
15	ROD; LINK 1ST SHIFT HONG KONG EQUIPMENT(PQ1) (F) L=345	1-33652-736-0	01	1	9606-9701
15	ROD; LINK 1ST SHIFT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (F) L=345	1-33652-736-0	01	1	9702-9905
15	ROD; LINK 1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> (F) L=345	1-33652-736-0	01	1	9906-9906
15	ROD; LINK 1ST SHIFT (F) L=345	1-33652-736-0	01	1	9907-
15	ROD; LINK 1ST SHIFT HONG KONG EQUIPMENT(PQ1) (G) L=88	1-33652-740-0	01	1	9606-9701
15	ROD; LINK 1ST SHIFT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (G) L=88	1-33652-740-0	01	1	9702-9905
15	ROD; LINK 1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> (G) L=88	1-33652-740-0	01	1	9906-9906
15	ROD; LINK 1ST SHIFT (G) L=88	1-33652-740-0	01	1	9907-
15	ROD; LINK 1ST SHIFT EXC. HONG KONG EQUIPMENT(PQ1) (D) L=435	1-33652-696-0	01	1	9606-9701
15	ROD; LINK 1ST SHIFT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) L=435	1-33652-696-0	01	1	9702-9905
15	ROD; LINK 1ST SHIFT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D) L=435	1-33652-696-0	01	1	9906-9906
15	ROD; LINK 1ST SHIFT 10PE1S(60L) (E) L=440	1-33652-672-0	01	1	9606-9905
15	ROD; LINK 1ST SHIFT 10PE1N(61L) (E) L=440	1-33652-672-0	01	1	9906-
15	ROD; LINK 1ST SHIFT 10PE1S(60L) (A) L=490	1-33652-700-0	01	1	9606-9905
15	ROD; LINK 1ST SHIFT 10PE1N(61L) (A) L=490	1-33652-700-0	01	1	9906-
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (C) L=438	1-33652-682-0	01	1	9606-9706
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (C) L=438	1-33652-682-0	01	1	9707-9711
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (C) L=428	1-33652-781-0	01	1	9712-9905
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (C) L=428	1-33652-781-1	01	1	9906-
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (B) L=497	1-33652-716-0	01	1	9606-9706
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (B) L=497	1-33652-716-0	01	1	9707-9711
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (B) L=490	1-33652-780-0	01	1	9712-9905
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) L=490	1-33652-780-0	01	1	9906-
22	JOINT; BALL,SCREW,LINK ROD (A) SHIFT L=64.5	1-09760-111-0	01	1	9606-9710
22	JOINT; BALL,SCREW,LINK ROD 10PE1S(60L) (B) SELECT	1-09760-108-0	02	1	9606-9905
22	JOINT; BALL,SCREW,LINK ROD 10PE1N(61L) (B) SELECT	1-09760-108-0	02	1	9906-
22	JOINT; BALL,SCREW,LINK ROD 6WA1 TC-S(56L) (B) SELECT	1-09760-109-0	02	1	9606-9706
22	JOINT; BALL,SCREW,LINK ROD 6WA1 TC-S(56L) (B) SELECT	1-09760-109-0	02	1	9707-9905
22	JOINT; BALL,SCREW,LINK ROD L TYPE ENG<90L> (B) SELECT	1-09760-109-0	02	1	9906-
22	JOINT; BALL,SCREW,LINK ROD (A) SHIFT	1-09760-125-0	01	1	9711-9905
22	JOINT; BALL,SCREW,LINK ROD (A) SHIFT	1-09760-125-0	01	1	9906-
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-050-0	02	1	9606-9708
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-050-0	01	1	9709-9710
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-056-0	01	1	9709-9710
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-056-0	02	1	9711-9802
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	9803-9905
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	9906-0007
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	01	1	0008-
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	01	1	0008-
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	9-99111-412-0	02	1	9606-9708
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	9-99111-412-0	02	1	9709-9905
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	9-99111-412-0	02	1	9906-
25	NUT; LK,RIGHT SCREW,LINK ROD HONG KONG EQUIPMENT(PQ1) (C) M10 LH THREAD	9-09840-167-0	02	1	9606-9701
25	NUT; LK,RIGHT SCREW,LINK ROD HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) M10 LH THREAD	9-09840-167-0	02	1	9702-9905
25	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> (C) M10 LH THREAD	9-09840-167-0	02	1	9906-9906
25	NUT; LK,RIGHT SCREW,LINK ROD (C) M10 LH THREAD	9-09840-167-0	02	1	9907-
25	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L) (B) M8	9-09111-408-0	02	1	9606-9905
25	NUT; LK,RIGHT SCREW,LINK ROD 10PE1N(61L) (B) M8	9-09111-408-0	02	1	9906-
25	NUT; LK,RIGHT SCREW,LINK ROD 6WA1 TC-S(56L) (B) M10	9-09111-410-0	02	1	9606-9706
25	NUT; LK,RIGHT SCREW,LINK ROD 6WA1 TC-S(56L) (B) M10	9-09111-410-0	02	1	9707-9905
25	NUT; LK,RIGHT SCREW,LINK ROD L TYPE ENG<90L> (B) M10	9-09111-410-0	02	1	9906-
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-049-0	02	1	9606-9804
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	02	1	9805-9905
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	02	1	9906-0007
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	01	1	0008-
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	01	1	0008-
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-110-0	02	1	9606-9706
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-110-0	02	1	9707-9710
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	9711-9905
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	9906-
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-050-0	02	1	9606-9710
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-056-0	02	1	9711-9802
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	9803-9905
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	9906-
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9606-9706
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9707-9905
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9906-
36	JOINT; BALL,RIGHT SCREW,LINK ROD 10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM>	1-09760-109-0	02	1	9606-9609
36	JOINT; BALL,RIGHT SCREW,LINK ROD 6WA1 TC-S(56L)	1-09760-109-0	02	1	9610-9612
36	JOINT; BALL,RIGHT SCREW,LINK ROD 10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM>	1-09760-109-0	02	1	9610-9612
36	JOINT; BALL,RIGHT SCREW,LINK ROD 6WA1 TC-S(56L)	1-09760-109-0	02	1	9701-9706
36	JOINT; BALL,RIGHT SCREW,LINK ROD 10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM>	1-09760-109-0	02	1	9701-9706
36	JOINT; BALL,RIGHT SCREW,LINK ROD 6WA1 TC-S(56L)	1-09760-109-0	02	1	9707-9807
36	JOINT; BALL,RIGHT SCREW,LINK ROD 10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM>	1-09760-109-0	02	1	9707-9807
36	JOINT; BALL,RIGHT SCREW,LINK ROD 6WA1 TC-S(56L)	1-09760-109-0	02	1	9808-9905
36	JOINT; BALL,RIGHT SCREW,LINK ROD 10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM>	1-09760-109-0	02	1	9808-9905
36	JOINT; BALL,RIGHT SCREW,LINK ROD 10PE1N(61L) FRAME ENG MTG SEPARATE TYPE<SGM>	1-09760-109-0	02	1	9906-9906
36	JOINT; BALL,RIGHT SCREW,LINK ROD L TYPE ENG<90L> EXC. MIXER TRUCK<RA2>	1-09760-109-0	02	1	9906-9906
36	JOINT; BALL,RIGHT SCREW,LINK ROD 10PE1N(61L) FRAME ENG MTG SEPARATE TYPE<SGM> ASSISTER SHIFT CONTROL<WX8>	1-09760-109-0	02	1	9907-
36	JOINT; BALL,RIGHT SCREW,LINK ROD L TYPE ENG<90L> ASSISTER SHIFT CONTROL<WX8>	1-09760-109-0	02	1	9907-
36	JOINT; BALL,RIGHT SCREW,LINK ROD 10PE1S(60L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM>	1-09760-108-0	02	1	9606-9807
36	JOINT; BALL,RIGHT SCREW,LINK ROD 10PE1S(60L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM>	1-09760-108-0	02	1	9808-9905
36	JOINT; BALL,RIGHT SCREW,LINK ROD 10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM>	1-09760-108-0	02	1	9906-
38	NUT; 3RD LINK ROD M8 FLANGE	1-09440-049-0	02	1	9606-9804
38	NUT; 3RD LINK ROD M8 FLANGE	1-09440-062-0	02	1	9805-9807
38	NUT; 3RD LINK ROD M8 FLANGE	1-09440-062-1	02	1	0001-
38	NUT; 3RD LINK ROD M8 FLANGE	1-09440-062-1	02	1	9808-9905
38	NUT; 3RD LINK ROD M8 FLANGE	1-09440-062-1	02	1	9906-9912
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> M10	9-09111-410-0	02	1	9606-9609
44	NUT; LK,RIGHT SCREW,LINK ROD 6WA1 TC-S(56L) M10	9-09111-410-0	02	1	9610-9612
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> M10	9-09111-410-0	02	1	9610-9612
44	NUT; LK,RIGHT SCREW,LINK ROD 6WA1 TC-S(56L) M10	9-09111-410-0	02	1	9701-9706
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> M10	9-09111-410-0	02	1	9701-9706
44	NUT; LK,RIGHT SCREW,LINK ROD 6WA1 TC-S(56L) M10	9-09111-410-0	02	1	9707-9807
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> M10	9-09111-410-0	02	1	9707-9807
44	NUT; LK,RIGHT SCREW,LINK ROD 6WA1 TC-S(56L) M10	9-09111-410-0	02	1	9808-9905
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> M10	9-09111-410-0	02	1	9808-9905
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1N(61L) FRAME ENG MTG SEPARATE TYPE<SGM> M10	9-09111-410-0	02	1	9906-9906
44	NUT; LK,RIGHT SCREW,LINK ROD L TYPE ENG<90L> EXC. MIXER TRUCK<RA2> M10	9-09111-410-0	02	1	9906-9906
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1N(61L) FRAME ENG MTG SEPARATE TYPE<SGM> ASSISTER SHIFT CONTROL<WX8> M10	9-09111-410-0	02	1	9907-
44	NUT; LK,RIGHT SCREW,LINK ROD L TYPE ENG<90L> ASSISTER SHIFT CONTROL<WX8> M10	9-09111-410-0	02	1	9907-
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M8	9-09111-408-0	02	1	9606-9807
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M8	9-09111-408-0	02	1	9808-9905
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M8	9-09111-408-0	02	1	9906-
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-117-0	02	1	9606-9609
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-117-0	02	1	9610-9706
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-117-0	02	1	9707-9710
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-125-0	02	1	9711-9905
45	JOINT; BALL,RIGHT SCREW,LINK ROD ASSISTER SHIFT CONTROL<WX8>	1-09760-125-0	02	1	9906-
47	NUT; 4TH LINK ROD (A) M10 FLANGE	1-09440-050-0	02	1	9606-9710
47	NUT; 4TH LINK ROD (A) M10 FLANGE	1-09440-056-0	02	1	9711-9802
47	NUT; 4TH LINK ROD (A) M10 FLANGE	1-09440-061-0	02	1	9803-9905
47	NUT; 4TH LINK ROD (A) M10 FLANGE	1-09440-061-0	02	1	9906-
49	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L) M12	9-99111-412-0	02	1	9606-9609
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	9610-9706
49	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L) M12	9-99111-412-0	02	1	9707-9905
49	NUT; LK,RIGHT SCREW,LINK ROD ASSISTER SHIFT CONTROL<WX8> M12	9-99111-412-0	02	1	9906-
112	JOINT; RUBBER	1-33670-413-1	01	1	9606-9708
112	JOINT; RUBBER	1-33670-413-1	01	1	9606-9708
112	JOINT; RUBBER	1-33670-413-1	01	1	9709-9905
112	JOINT; RUBBER	1-33670-413-1	01	1	9709-9905
112	JOINT; RUBBER	1-33670-413-1	01	1	9906-
112	JOINT; RUBBER	1-33670-413-1	01	1	9906-

12 10 16 14 21 18 1 15 21 14 112 16 10 16 1 15 12 18 21 25 15 21 18 18 14 25 1 14 12 12 112 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ROD; LINK,1ST SHIFT HONG KONG EQUIPMENT(PQ1) (A) L=421	1-33652-738-0	01	1	9606-9701
1	ROD; LINK,1ST SHIFT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=421	1-33652-738-0	01	1	9702-9905
1	ROD; LINK,1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> (A) L=421	1-33652-738-0	01	1	9906-9906
1	ROD; LINK,1ST SHIFT (A) L=421	1-33652-738-0	01	1	9907-
1	ROD; LINK,1ST SHIFT HONG KONG EQUIPMENT(PQ1) (B) L=88	1-33652-740-0	01	1	9606-9701
1	ROD; LINK,1ST SHIFT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=88	1-33652-740-0	01	1	9702-9905
1	ROD; LINK,1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> (B) L=88	1-33652-740-0	01	1	9906-9906
1	ROD; LINK,1ST SHIFT (B) L=88	1-33652-740-0	01	1	9907-
1	ROD; LINK,1ST SHIFT EXC. HONG KONG EQUIPMENT(PQ1) (C) L=480	9-08401-248-0	01	1	9606-9701
1	ROD; LINK,1ST SHIFT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=480	9-08401-248-0	01	1	9702-9905
1	ROD; LINK,1ST SHIFT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=480	9-08401-248-0	01	1	9906-9906
10	JOINT ASM; BALL,SELECT ROD HONG KONG EQUIPMENT(PQ1)	1-09760-110-0	01	1	9606-9701
10	JOINT ASM; BALL,SELECT ROD HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-09760-110-0	01	1	9702-9710
10	JOINT ASM; BALL,SELECT ROD HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-09760-124-0	01	1	9711-9905
10	JOINT ASM; BALL,SELECT ROD PARKING BRAKE VALVE LEVER TYPE<W48>	1-09760-124-0	01	1	9906-9906
10	JOINT ASM; BALL,SELECT ROD	1-09760-124-0	01	1	9907-
10	JOINT ASM; BALL,SELECT ROD EXC. HONG KONG EQUIPMENT(PQ1)	1-09760-117-0	01	1	9606-9701
10	JOINT ASM; BALL,SELECT ROD EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-09760-117-0	01	1	9702-9710
10	JOINT ASM; BALL,SELECT ROD EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-09760-125-0	01	1	9711-9905
10	JOINT ASM; BALL,SELECT ROD EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-09760-125-0	01	1	9906-9906
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-050-0	02	1	9606-9708
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-056-0	02	1	9709-9802
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	9803-9905
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	9906-
14	NUT; LK,RIGHT SCREW,LINK ROD HONG KONG EQUIPMENT(PQ1) (A) M10	9-09111-410-0	01	1	9606-9701
14	NUT; LK,RIGHT SCREW,LINK ROD HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M10	9-09111-410-0	01	1	9702-9905
14	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> (A) M10	9-09111-410-0	01	1	9906-9906
14	NUT; LK,RIGHT SCREW,LINK ROD (A) M10	9-09111-410-0	01	1	9907-
14	NUT; LK,RIGHT SCREW,LINK ROD HONG KONG EQUIPMENT(PQ1) (B) M12	9-99111-412-0	01	1	9606-9701
14	NUT; LK,RIGHT SCREW,LINK ROD HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M12	9-99111-412-0	01	1	9702-9905
14	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> (B) M12	9-99111-412-0	01	1	9906-9906
14	NUT; LK,RIGHT SCREW,LINK ROD (B) M12	9-99111-412-0	01	1	9907-
14	NUT; LK,RIGHT SCREW,LINK ROD EXC. HONG KONG EQUIPMENT(PQ1) (C) M12	9-99111-412-0	02	1	9606-9701
14	NUT; LK,RIGHT SCREW,LINK ROD EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) M12	9-99111-412-0	02	1	9702-9905
14	NUT; LK,RIGHT SCREW,LINK ROD EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) M12	9-99111-412-0	02	1	9906-9906
15	ROD; LINK 1ST SHIFT HONG KONG EQUIPMENT(PQ1) (F) L=345	1-33652-736-0	01	1	9606-9701
15	ROD; LINK 1ST SHIFT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (F) L=345	1-33652-736-0	01	1	9702-9905
15	ROD; LINK 1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> (F) L=345	1-33652-736-0	01	1	9906-9906
15	ROD; LINK 1ST SHIFT (F) L=345	1-33652-736-0	01	1	9907-
15	ROD; LINK 1ST SHIFT HONG KONG EQUIPMENT(PQ1) (G) L=88	1-33652-740-0	01	1	9606-9701
15	ROD; LINK 1ST SHIFT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (G) L=88	1-33652-740-0	01	1	9702-9905
15	ROD; LINK 1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> (G) L=88	1-33652-740-0	01	1	9906-9906
15	ROD; LINK 1ST SHIFT (G) L=88	1-33652-740-0	01	1	9907-
15	ROD; LINK 1ST SHIFT EXC. HONG KONG EQUIPMENT(PQ1) (D) L=435	1-33652-696-0	01	1	9606-9701
15	ROD; LINK 1ST SHIFT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) L=435	1-33652-696-0	01	1	9702-9905
15	ROD; LINK 1ST SHIFT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D) L=435	1-33652-696-0	01	1	9906-9906
15	ROD; LINK 1ST SHIFT 10PE1S(60L) (E) L=440	1-33652-672-0	01	1	9606-9905
15	ROD; LINK 1ST SHIFT 10PE1N(61L) (E) L=440	1-33652-672-0	01	1	9906-
15	ROD; LINK 1ST SHIFT 10PE1S(60L) (A) L=490	1-33652-700-0	01	1	9606-9905
15	ROD; LINK 1ST SHIFT 10PE1N(61L) (A) L=490	1-33652-700-0	01	1	9906-
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (C) L=438	1-33652-682-0	01	1	9606-9706
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (C) L=438	1-33652-682-0	01	1	9707-9711
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (C) L=428	1-33652-781-0	01	1	9712-9905
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (C) L=428	1-33652-781-1	01	1	9906-
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (B) L=497	1-33652-716-0	01	1	9606-9706
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (B) L=497	1-33652-716-0	01	1	9707-9711
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (B) L=490	1-33652-780-0	01	1	9712-9905
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) L=490	1-33652-780-0	01	1	9906-
16	JOINT ASM; BALL,CONT ROD HONG KONG EQUIPMENT(PQ1) (A)	1-09760-109-0	02	1	9606-9701
16	JOINT ASM; BALL,CONT ROD HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-09760-109-0	02	1	9702-9905
16	JOINT ASM; BALL,CONT ROD PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-09760-109-0	02	1	9906-9906
16	JOINT ASM; BALL,CONT ROD (A)	1-09760-109-0	02	1	9907-
16	JOINT ASM; BALL,CONT ROD EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-09760-108-0	02	1	9606-9701
16	JOINT ASM; BALL,CONT ROD EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-09760-108-0	02	1	9702-9905
16	JOINT ASM; BALL,CONT ROD EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-09760-108-0	02	1	9906-9906
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-049-0	02	1	9606-9804
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	9805-9905
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	9906-
21	NUT; LK,RIGHT SCREW,LINK ROD HONG KONG EQUIPMENT(PQ1) (A) M10	9-09111-410-0	02	1	9606-9701
21	NUT; LK,RIGHT SCREW,LINK ROD HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M10	9-09111-410-0	02	1	9702-9905
21	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> (A) M10	9-09111-410-0	02	1	9906-9906
21	NUT; LK,RIGHT SCREW,LINK ROD (A) M10	9-09111-410-0	02	1	9907-
21	NUT; LK,RIGHT SCREW,LINK ROD EXC. HONG KONG EQUIPMENT(PQ1) (B) M8	9-09111-408-0	02	1	9606-9701
21	NUT; LK,RIGHT SCREW,LINK ROD EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M8	9-09111-408-0	02	1	9702-9905
21	NUT; LK,RIGHT SCREW,LINK ROD EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) M8	9-09111-408-0	02	1	9906-9906
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	9-99111-412-0	02	1	9606-9708
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	9-99111-412-0	02	1	9709-9905
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	9-99111-412-0	02	1	9906-
25	NUT; LK,RIGHT SCREW,LINK ROD HONG KONG EQUIPMENT(PQ1) (C) M10 LH THREAD	9-09840-167-0	02	1	9606-9701
25	NUT; LK,RIGHT SCREW,LINK ROD HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) M10 LH THREAD	9-09840-167-0	02	1	9702-9905
25	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> (C) M10 LH THREAD	9-09840-167-0	02	1	9906-9906
25	NUT; LK,RIGHT SCREW,LINK ROD (C) M10 LH THREAD	9-09840-167-0	02	1	9907-
25	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L) (B) M8	9-09111-408-0	02	1	9606-9905
25	NUT; LK,RIGHT SCREW,LINK ROD 10PE1N(61L) (B) M8	9-09111-408-0	02	1	9906-
25	NUT; LK,RIGHT SCREW,LINK ROD 6WA1 TC-S(56L) (B) M10	9-09111-410-0	02	1	9606-9706
25	NUT; LK,RIGHT SCREW,LINK ROD 6WA1 TC-S(56L) (B) M10	9-09111-410-0	02	1	9707-9905
25	NUT; LK,RIGHT SCREW,LINK ROD L TYPE ENG<90L> (B) M10	9-09111-410-0	02	1	9906-
112	JOINT; RUBBER	1-33670-413-1	01	1	9606-9708
112	JOINT; RUBBER	1-33670-413-1	01	1	9606-9708
112	JOINT; RUBBER	1-33670-413-1	01	1	9709-9905
112	JOINT; RUBBER	1-33670-413-1	01	1	9709-9905
112	JOINT; RUBBER	1-33670-413-1	01	1	9906-
112	JOINT; RUBBER	1-33670-413-1	01	1	9906-

57 39 58 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	GASKET; FLEX HOSE ASSISTER SHIFT CONTROL<WX8> ID=11 OD=18	9-09572-510-0	02	1	9606-9905
39	GASKET; FLEX HOSE ASSISTER SHIFT CONTROL<WX8> ID=11 OD=18	9-09572-510-0	02	1	9906-
57	NIPPLE; POWER ASSISTOR ASSISTER SHIFT CONTROL<WX8> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9606-9905
57	NIPPLE; POWER ASSISTOR ASSISTER SHIFT CONTROL<WX8> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9906-
58	HOSE; FLEX,POWER ASSISTOR ASSISTER SHIFT CONTROL<WX8> L=360	0-07150-360-0	01	1	9606-9905
58	HOSE; FLEX,POWER ASSISTOR ASSISTER SHIFT CONTROL<WX8> L=360	0-07150-360-0	01	1	9906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
