Isuzu WW
▶
TRUCKS
▶
NKR
▶
50943 - NKR55,66,69,71,77LHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-35 - CHARGE AIR COOLER
▶

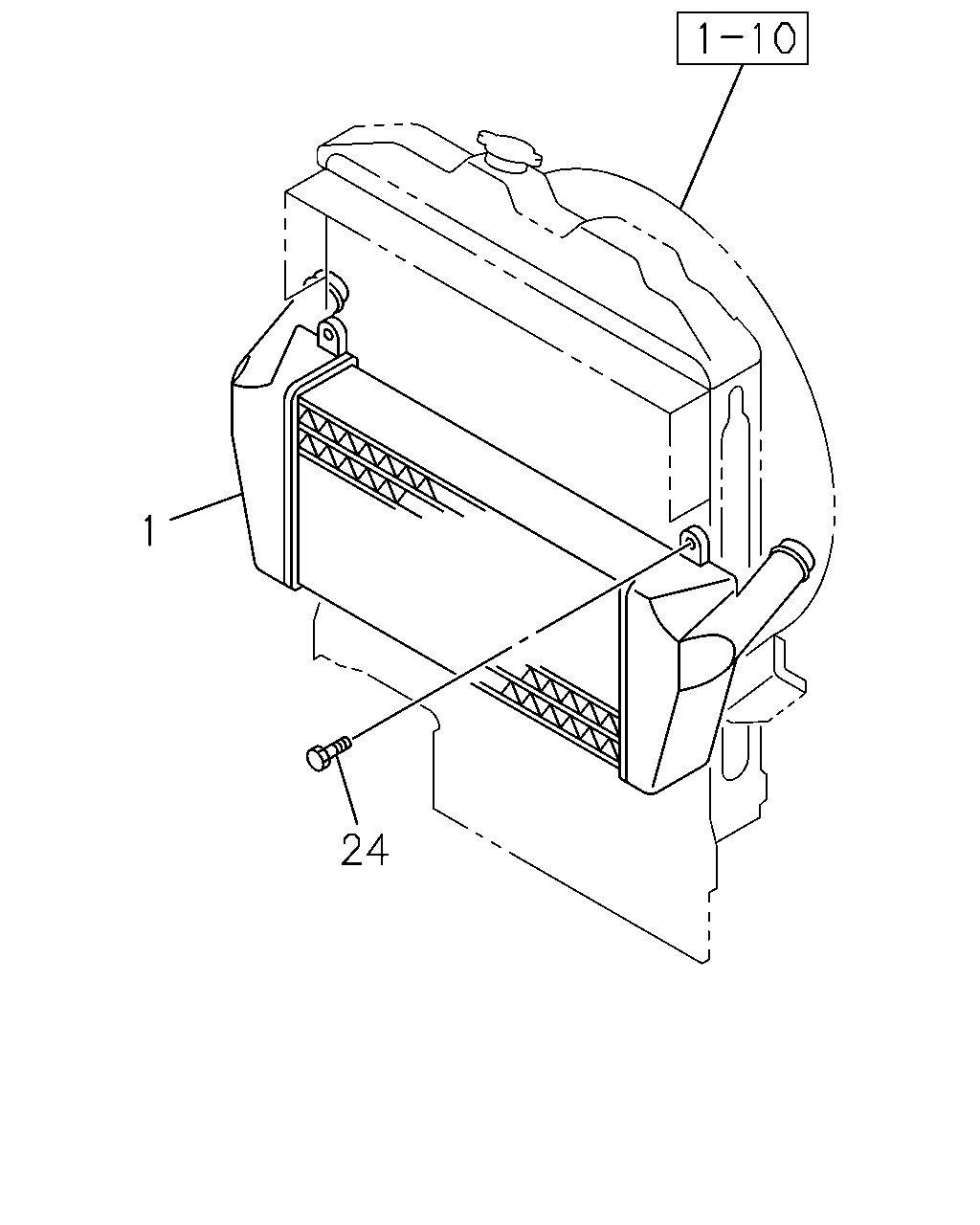

1-35 — CHARGE AIR COOLER
(#50764) — 11 parça
Tümü
A - NKC6SC
B - NKC6SF
C - NKB6SC
1
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
03.374 COOLER; CHARGE AIR
4JB1 NA ENG(RLF) CHARGE AIR COOLER<6PL>
8-97210-644-0
01
1
0211-0501
●
●
1
03.374 COOLER; CHARGE AIR
4JB1-TC ENG(RDT)
8-97210-644-0
01
1
0502-0910
●
1
03.374 COOLER; CHARGE AIR
4JB1-TC ENG(RDT)
8-97210-644-0
01
1
0911-
●
●
1
03.374 COOLER; CHARGE AIR
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>
8-97240-039-2
01
1
0211-0501
●
1
03.374 COOLER; CHARGE AIR
4JH1-TC ENG(RDM)
8-97240-039-2
01
1
0502-
●
24
03.374 BOLT; COOLER TO RAD
4JB1 NA ENG(RLF) CHARGE AIR COOLER<6PL> 01.531 M8X25 FLANGE
0-28080-825-0
04
1
0211-0501
●
24
03.374 BOLT; COOLER TO RAD
4JH1 ENG(RJX),4JB1 NA ENG(RLF) CHARGE AIR COOLER<6PL> 01.531 M8X25 FLANGE
0-28080-825-0
04
1
0211-0501
●
24
03.374 BOLT; COOLER TO RAD
4JB1-TC ENG(RDT) 01.531 M8X25 FLANGE
0-28080-825-0
04
1
0502-0910
●
24
03.374 BOLT; COOLER TO RAD
4JH1-TC ENG(RDM) 01.531 M8X25 FLANGE
0-28080-825-0
04
1
0502-0910
●
24
03.374 BOLT; COOLER TO RAD
4JB1-TC ENG(RDT) 01.531 M8X25 FLANGE
0-28080-825-0
04
1
0911-
●
●
24
03.374 BOLT; COOLER TO RAD
4JH1-TC ENG(RDM) 01.531 M8X25 FLANGE
0-28080-825-0
04
1
0911-
●
