Sayfa 1-01 - Isuzu EPC

1-01 — ACCELERATOR PEDAL AND CONTROL (#50759) — 569 parça

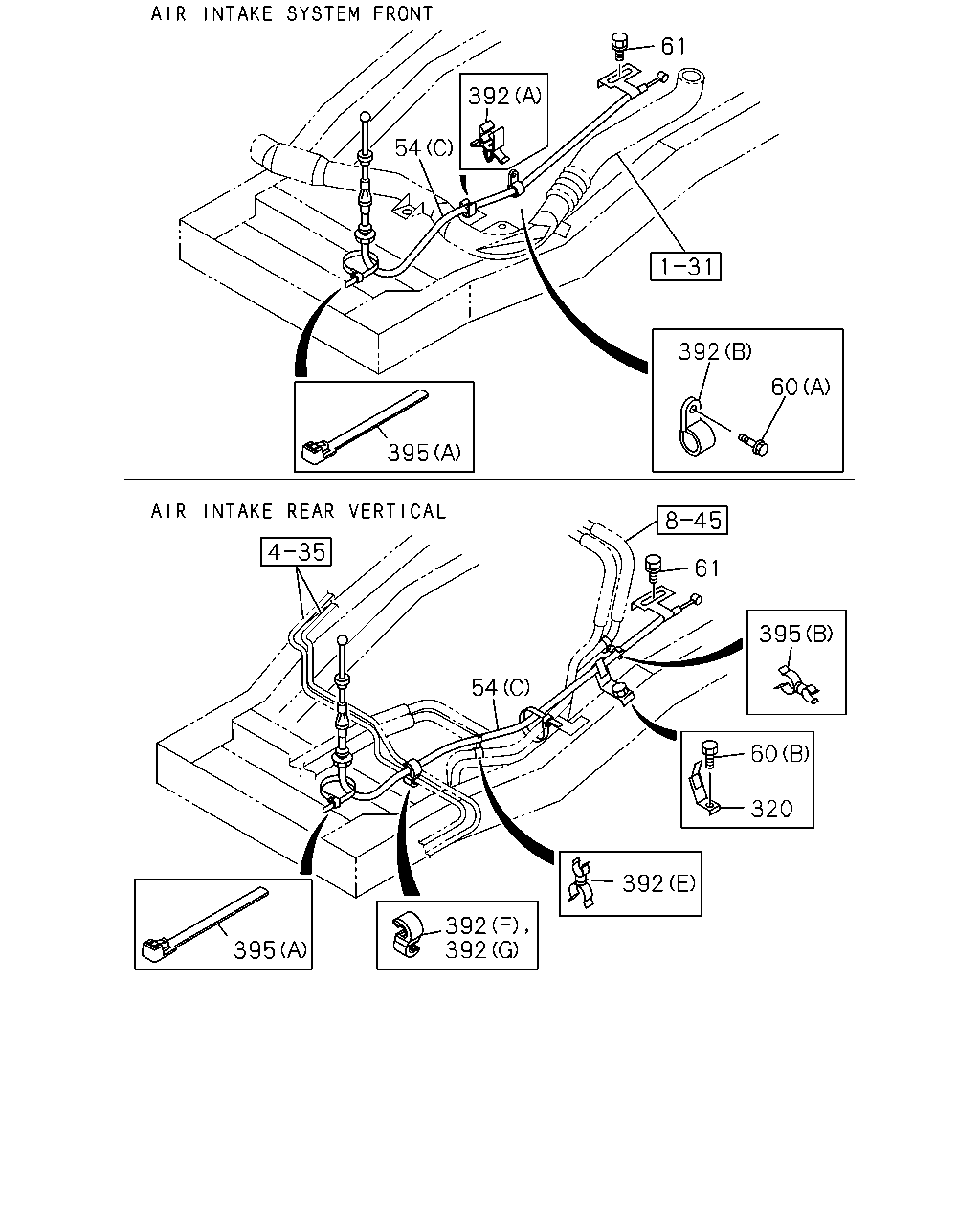

61 392 54 392 60 395 61 395 54 60 320 392 392 392 395

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP) (B) L=293	8-97115-730-0	01	1	1005-	●
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP) (A) L=2114	8-98170-164-0	01	1	1005-	●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (C) L=1701	8-97118-537-2	01	1	0211-0501	●
54	03.430 CABLE; ENG CONT (C) L=1701	8-97118-537-2	01	1	0211-0501		●	●
54	03.430 CABLE; ENG CONT 4JB1 NA ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (C) L=1701	8-97118-537-2	01	1	0211-0501				●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (C) L=1701	8-97118-537-2	01	1	0211-0501					●
54	03.430 CABLE; ENG CONT 4JB1 NA ENG(RLF) (C) L=1701	8-97118-537-3	01	1	0502-0504	●			●	●
54	03.430 CABLE; ENG CONT (C) L=1701	8-97118-537-3	01	1	0502-0504			●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (C) L=1701	8-97118-537-3	01	1	0505-	●				●
54	03.430 CABLE; ENG CONT 4JB1 NA ENG(RLF) (C) L=1701	8-97118-537-3	01	1	0505-				●
54	03.430 CABLE; ENG CONT (C) L=1701	8-97118-537-3	01	1	0505-			●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) (A) L=2011	8-97205-638-2	01	1	0211-0501	●			●	●
54	03.430 CABLE; ENG CONT (A) L=2011	8-97205-638-2	01	1	0211-0501						●
54	03.430 CABLE; ENG CONT 4HF1-N ENG(RJZ) (A) L=2011	8-97205-638-2	01	1	0502-	●			●	●
54	03.430 CABLE; ENG CONT (A) L=2011	8-97205-638-2	01	1	0502-						●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	0211-0501	●			●	●
54	03.430 CABLE; ENG CONT 4JB1-TC ENG(RDT) (B) L=1749	8-97228-819-3	01	1	0502-0910				●
54	03.430 CABLE; ENG CONT 4JB1-TC ENG(RDT) (B) L=1749	8-97228-819-3	01	1	0911-	●			●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (A) L=2114	8-97118-535-2	01	1	0211-0501	●			●	●
54	03.430 CABLE; ENG CONT 4JB1 NA ENG(RLF) CHARGE AIR COOLER<6PL> (C) L=1749	8-97228-819-2	01	1	0211-0501				●	●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL> 02.664 (B) M8X20 FLANGE	0-28680-820-0	01	1	0211-0501	●			●	●
60	08.155 BOLT; CABLE 4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 02.664 (B) M8X20 FLANGE	0-28680-820-0	01	1	0211-0501	●			●	●
60	08.155 BOLT; CABLE 4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 02.664 (B) M8X20 FLANGE	0-28680-820-0	01	1	0502-0504	●
60	08.155 BOLT; CABLE 4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. HEATER & DEFROSTER(C41) 02.664 (B) M8X20 FLANGE	0-28680-820-0	01	1	0502-0504				●	●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 02.664 (B) M8X20 FLANGE	0-28680-820-0	01	1	0505-0512	●
60	08.155 BOLT; CABLE 4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. HEATER & DEFROSTER(C41) 02.664 (B) M8X20 FLANGE	0-28680-820-0	01	1	0505-0512				●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) EXC. HEATER & DEFROSTER(C41) 02.664 (B) M8X20 FLANGE	0-28680-820-0	01	1	0505-0512					●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-1004	●
60	08.155 BOLT; CABLE 4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. HEATER & DEFROSTER(C41) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-1004				●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) EXC. HEATER & DEFROSTER(C41) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-1004					●
60	08.155 BOLT; CABLE 4HG1-T ENG(RDP),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1005-	●
60	08.155 BOLT; CABLE 4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. HEATER & DEFROSTER(C41) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1005-				●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) EXC. HEATER & DEFROSTER(C41) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1005-					●
60	08.155 BOLT; CABLE 4JB1 NA ENG(RLF) CHARGE AIR COOLER<6PL> 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	0211-0501				●	●
60	08.155 BOLT; CABLE 4JB1-TC ENG(RDT) 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	0502-0512				●
60	08.155 BOLT; CABLE 4JB1-TC ENG(RDT) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0601-0910				●
60	08.155 BOLT; CABLE 4JB1-TC ENG(RDT) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0911-	●			●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501	●				●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501		●	●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 4JB1 NA ENG(RLF) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501				●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 4JB1 NA ENG(RLF) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0502-0504	●				●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0502-0504				●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0502-0504			●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0505-0512	●				●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0505-0512				●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0505-0512			●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-0910	●				●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-0910				●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-0910			●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0911-	●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0911-				●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0911-					●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0911-			●
320	03.483 CLIP; FRAME 4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 06.672	8-94178-110-0	01	1	0211-0501	●
320	03.483 CLIP; FRAME 4HF1-S ENG(RLS) EXC. HEATER & DEFROSTER(C41) 06.672	8-94178-110-0	01	1	0211-0501				●	●
320	03.483 CLIP; FRAME 4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 06.672	8-94178-110-0	01	1	0502-1004	●
320	03.483 CLIP; FRAME 4HF1-N ENG(RJZ) EXC. HEATER & DEFROSTER(C41) 06.672	8-94178-110-0	01	1	0502-1004				●	●
320	03.483 CLIP; FRAME 4HG1-T ENG(RDP) 06.672	8-94178-110-0	01	1	1005-	●
320	03.483 CLIP; FRAME 4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 06.672	8-94178-110-0	01	1	1005-	●
320	03.483 CLIP; FRAME 4HF1-N ENG(RJZ) EXC. HEATER & DEFROSTER(C41) 06.672	8-94178-110-0	01	1	1005-				●	●
320	03.483 CLIP; FRAME 4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41)	8-94167-969-2	01	1	0211-0501	●
320	03.483 CLIP; FRAME 4JB1 NA ENG(RLF) EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL>	8-94167-969-2	01	1	0211-0501				●
320	03.483 CLIP; FRAME 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL>	8-94167-969-2	01	1	0211-0501					●
320	03.483 CLIP; FRAME 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41)	8-94167-969-2	01	1	0502-0504	●
320	03.483 CLIP; FRAME 4JB1 NA ENG(RLF) EXC. HEATER & DEFROSTER(C41)	8-94167-969-2	01	1	0502-0504				●	●
320	03.483 CLIP; FRAME 4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41)	8-94167-969-2	01	1	0505-	●
320	03.483 CLIP; FRAME 4JB1 NA ENG(RLF) EXC. HEATER & DEFROSTER(C41)	8-94167-969-2	01	1	0505-				●
320	03.483 CLIP; FRAME 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. HEATER & DEFROSTER(C41)	8-94167-969-2	01	1	0505-					●
392	03.483 CLIP; ACCEL CONT CABLE 4HG1-T ENG(RDP) (H) ID=6 & 10.5	1-09709-218-0	01	1	1005-	●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT) POWER STEERING<N40> 06.672 (G) ID=12 & 15	1-09709-281-1	01	1	0805-0910				●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT) POWER STEERING<N40> 06.672 (G) ID=12 & 15	1-09709-281-1	01	1	0911-	●			●
392	03.483 CLIP; ACCEL CONT CABLE 4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 04.342 (D) ID=9.5	5-09709-020-0	01	1	0211-0501	●
392	03.483 CLIP; ACCEL CONT CABLE 04.342 (D) ID=9.5	5-09709-020-0	01	1	0211-0501						●
392	03.483 CLIP; ACCEL CONT CABLE 4HF1-N ENG(RJZ) AIR INTAKE SYSTEM FRONT<6PC> 04.342 (D) ID=9.5	5-09709-020-0	01	1	0502-1404	●
392	03.483 CLIP; ACCEL CONT CABLE 04.342 (D) ID=9.5	5-09709-020-0	01	1	0502-1404						●
392	03.483 CLIP; ACCEL CONT CABLE 4HF1-N ENG(RJZ) AIR INTAKE SYSTEM FRONT<6PC> 04.342 (D) ID=9.5	5-09709-020-0	01	1	1405-	●
392	03.483 CLIP; ACCEL CONT CABLE 4HF1-N ENG(RJZ) JAPAN PRODUCTION<C1H> HEATER & DEFROSTER(C41) 04.342 (D) ID=9.5	5-09709-020-0	01	1	1405-				●	●
392	03.483 CLIP; ACCEL CONT CABLE 04.342 (D) ID=9.5	5-09709-020-0	01	1	1405-						●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	0211-0501	●
392	03.483 CLIP; ACCEL CONT CABLE 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	0211-0501		●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	0502-0504	●
392	03.483 CLIP; ACCEL CONT CABLE 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	0502-0504			●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	0505-0910	●
392	03.483 CLIP; ACCEL CONT CABLE 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	0505-0910			●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	0911-	●
392	03.483 CLIP; ACCEL CONT CABLE 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	0911-			●
392	03.483 CLIP; ACCEL CONT CABLE 4HF1-S ENG(RLS) (C) ID=6 & 10	8-94154-844-0	01	1	0211-0501	●			●	●
392	03.483 CLIP; ACCEL CONT CABLE (C) ID=6 & 10	8-94154-844-0	01	1	0211-0501						●
392	03.483 CLIP; ACCEL CONT CABLE 4HF1-N ENG(RJZ) (C) ID=6 & 10	8-94154-844-0	01	1	0502-	●			●	●
392	03.483 CLIP; ACCEL CONT CABLE (C) ID=6 & 10	8-94154-844-0	01	1	0502-						●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL> (F) ID=10 & 12	1-09709-278-1	01	1	0303-0501	●			●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> POWER STEERING<N40> (F) ID=10 & 12	1-09709-278-1	01	1	0502-0504	●			●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> POWER STEERING<N40> (F) ID=10 & 12	1-09709-278-1	01	1	0505-1404	●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1 NA ENG(RLF) POWER STEERING<N40> (F) ID=10 & 12	1-09709-278-1	01	1	0505-1404				●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) POWER STEERING<N40> (F) ID=10 & 12	1-09709-278-1	01	1	0505-1404					●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> POWER STEERING<N40> (F) ID=10 & 12	1-09709-278-1	01	1	1405-	●
392	03.483 CLIP; ACCEL CONT CABLE 4HF1-N ENG(RJZ) JAPAN PRODUCTION<C1H> (F) ID=10 & 12	1-09709-278-1	01	1	1405-				●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1 NA ENG(RLF) POWER STEERING<N40> (F) ID=10 & 12	1-09709-278-1	01	1	1405-				●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) POWER STEERING<N40> (F) ID=10 & 12	1-09709-278-1	01	1	1405-					●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> EXC. POWER STEERING<N40>,CHARGE AIR COOLER<6PL> 04.930 (E) ID=10 & 16.5	8-94360-745-0	01	1	0303-0501	●			●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> EXC. POWER STEERING<N40> 04.930 (E) ID=10 & 16.5	8-94360-745-0	01	1	0502-0504	●			●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> EXC. POWER STEERING<N40> 04.930 (E) ID=10 & 16.5	8-94360-745-0	01	1	0505-	●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. POWER STEERING<N40> 04.930 (E) ID=10 & 16.5	8-94360-745-0	01	1	0505-				●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. POWER STEERING<N40> 04.930 (E) ID=10 & 16.5	8-94360-745-0	01	1	0505-					●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1 NA ENG(RLF) CHARGE AIR COOLER<6PL> 02.334 (B) ID=16	9-09525-552-0	01	1	0211-0501				●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT) 02.334 (B) ID=16	9-09525-552-0	01	1	0502-0606				●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT) 04.785 (B) ID=16 L=28	0-95235-552-0	01	1	0607-0910				●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT) 04.785 (B) ID=16 L=28	0-95235-552-0	01	1	0911-	●			●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 03.162 (A) L=140	5-09707-031-1	01	1	0211-0501	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41) 03.162 (A) L=140	5-09707-031-1	01	1	0211-0501				●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 03.162 (A) L=140	5-09707-031-1	01	1	0502-1404	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) 03.162 (A) L=140	5-09707-031-1	01	1	0502-1404				●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 03.162 (A) L=140	5-09707-031-1	01	1	1405-	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) EXC. JAPAN PRODUCTION<C1H> 03.162 (A) L=140	5-09707-031-1	01	1	1405-				●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	0211-0501	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	0211-0501				●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	0211-0501					●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	0502-0504	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	0502-0504				●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	0505-	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	0505-				●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	0505-					●

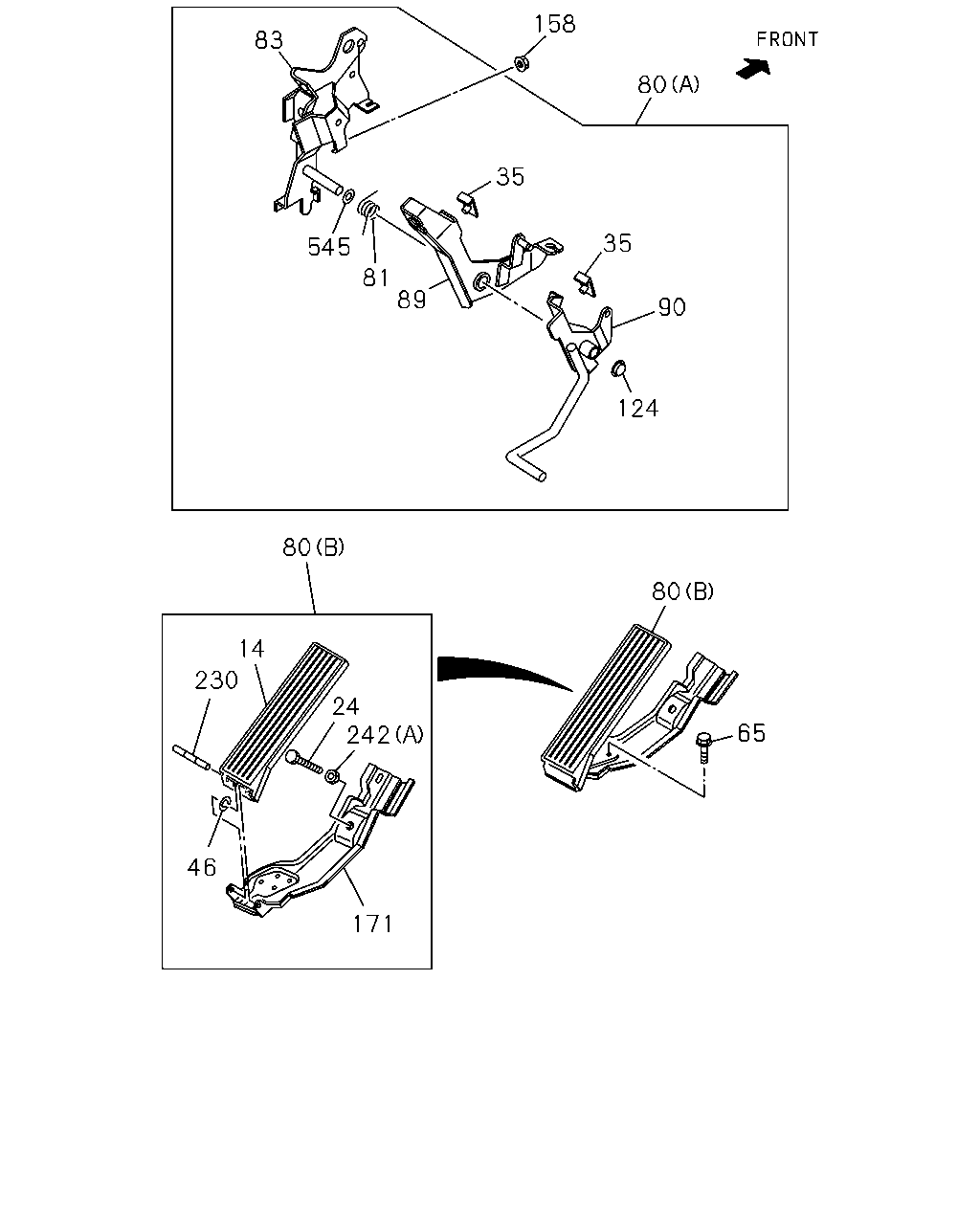

158 83 80 35 35 545 81 89 90 124 80 80 14 230 24 242 65 46 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	03.451 PAD; PEDAL,ACCEL	8-97859-101-0	01	1	0211-0501	●	●	●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97859-101-0	01	1	0502-	●		●	●	●	●
24	03.483 BOLT; BRKT 03.459	0-20800-840-0	01	1	0211-0501	●	●	●	●	●	●
24	03.483 BOLT; BRKT 03.459	0-20800-840-0	01	1	0502-	●		●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL 4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS)	8-97302-305-0	02	1	0211-0501	●	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF)	8-97302-305-0	02	1	0502-0504	●		●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL 4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF)	8-97302-305-0	02	1	0505-1004	●		●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF)	8-97302-305-0	02	1	1005-	●		●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0211-0501	●	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0502-0604	●		●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0605-	●		●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	0211-0501	●	●	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	0502-	●		●	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97859-100-0	01	1	0211-0501	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97859-100-0	01	1	0502-	●		●	●	●	●
80	03.452 LINK ASM; ENG CONT 4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) (A)	8-97859-518-3	01	1	0211-0501	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (A)	8-97859-518-3	01	1	0502-0504	●		●	●	●	●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (A)	8-97859-518-3	01	1	0505-1004	●		●	●	●	●
80	03.452 LINK ASM; ENG CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF) (A)	8-97859-518-3	01	1	1005-	●		●	●	●	●
80	03.452 LINK ASM; ENG CONT 4JH1 ENG(RJX) (C)	8-97994-589-4	01	1	0211-0501					●
80	03.452 LINK ASM; ENG CONT 4JH1-TC ENG(RDM) (C)	8-97994-589-6	01	1	0502-					●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS)	8-97853-205-1	01	1	0211-0501	●
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	0211-0501		●	●			●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JB1 NA ENG(RLF),4HF1-S ENG(RLS)	8-97853-205-1	01	1	0211-0501				●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS)	8-97853-205-1	01	1	0211-0501					●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HF1-N ENG(RJZ),4JB1 NA ENG(RLF)	8-97853-205-1	01	1	0502-0504	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF)	8-97853-205-1	01	1	0502-0504				●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF)	8-97853-205-1	01	1	0502-0504					●
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	0502-0504			●			●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF)	8-97853-205-1	01	1	0505-0910	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF)	8-97853-205-1	01	1	0505-0910				●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF)	8-97853-205-1	01	1	0505-0910					●
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	0505-0910			●			●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF)	8-97853-205-1	01	1	0911-1004	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF)	8-97853-205-1	01	1	0911-1004				●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF)	8-97853-205-1	01	1	0911-1004					●
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	0911-1004			●			●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF)	8-97853-205-1	01	1	1005-	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF)	8-97853-205-1	01	1	1005-				●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF)	8-97853-205-1	01	1	1005-					●
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	1005-			●			●
83	03.452 BRACKET; CONT LINK 4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS)	8-97859-519-0	01	1	0211-0501	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF)	8-97859-519-0	01	1	0502-0504	●		●	●	●	●
83	03.452 BRACKET; CONT LINK 4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF)	8-97859-519-0	01	1	0505-1004	●		●	●	●	●
83	03.452 BRACKET; CONT LINK 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF)	8-97859-519-0	01	1	1005-	●		●	●	●	●
83	03.452 BRACKET; CONT LINK 4JH1 ENG(RJX)	8-97994-592-2	01	1	0211-0501					●
83	03.452 BRACKET; CONT LINK 4JH1-TC ENG(RDM)	8-97994-592-4	01	1	0502-					●
89	03.454 LEVER; RELAY 4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS)	8-97857-617-4	01	1	0211-0501	●	●	●	●	●	●
89	03.454 LEVER; RELAY 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF)	8-97857-617-4	01	1	0502-0504	●		●	●	●	●
89	03.454 LEVER; RELAY 4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF)	8-97857-617-4	01	1	0505-1004	●		●	●	●	●
89	03.454 LEVER; RELAY 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF)	8-97857-617-4	01	1	1005-	●		●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT 4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS)	8-97857-613-6	01	1	0211-0501	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF)	8-97857-613-6	01	1	0502-0504	●		●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT 4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF)	8-97857-613-6	01	1	0505-1004	●		●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF)	8-97857-613-6	01	1	1005-	●		●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT 4JH1 ENG(RJX)	8-97994-590-2	01	1	0211-0501					●
90	03.454 LEVER; RELAY,ENG CONT 4JH1-TC ENG(RDM)	8-97994-590-4	01	1	0502-					●
124	03.463 NUT; LEVER 4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0211-0501	●
124	03.463 NUT; LEVER 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0211-0501		●	●			●
124	03.463 NUT; LEVER 4JB1 NA ENG(RLF),4HF1-S ENG(RLS) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0211-0501				●
124	03.463 NUT; LEVER 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0211-0501					●
124	03.463 NUT; LEVER 4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0502-0504	●
124	03.463 NUT; LEVER 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0502-0504				●
124	03.463 NUT; LEVER 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0502-0504					●
124	03.463 NUT; LEVER 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0502-0504			●			●
124	03.463 NUT; LEVER 4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0505-0910	●
124	03.463 NUT; LEVER 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0505-0910				●
124	03.463 NUT; LEVER 4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0505-0910					●
124	03.463 NUT; LEVER 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0505-0910			●			●
124	03.463 NUT; LEVER 4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0911-1004	●
124	03.463 NUT; LEVER 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0911-1004				●
124	03.463 NUT; LEVER 4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0911-1004					●
124	03.463 NUT; LEVER 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0911-1004			●			●
124	03.463 NUT; LEVER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	1005-	●
124	03.463 NUT; LEVER 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	1005-				●
124	03.463 NUT; LEVER 4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	1005-					●
124	03.463 NUT; LEVER 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	1005-			●			●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0211-0501	●	●	●	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0502-	●		●	●	●	●
171	03.483 BRACKET ASM; ACCEL PEDAL	8-97857-482-1	01	1	0211-0501	●	●	●	●	●	●
171	03.483 BRACKET ASM; ACCEL PEDAL	8-97857-482-1	01	1	0502-	●		●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0211-0501	●	●	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0502-	●		●	●	●	●
242	03.483 NUT; ACCEL PEDAL 02.559 (A) M8	9-09110-408-0	01	1	0211-0501	●	●	●	●	●	●
242	03.483 NUT; ACCEL PEDAL 02.559 (A) M8	9-09110-408-0	01	1	0502-0512	●		●	●	●	●
242	03.483 NUT; ACCEL PEDAL 02.334 (A) M8	0-91110-508-0	01	1	0601-	●		●	●	●	●
242	03.483 NUT; ACCEL PEDAL 4JH1 ENG(RJX) 10.147 (B) M6 W/DISHED WASHER	8-94423-325-0	01	1	0211-0501					●
242	03.483 NUT; ACCEL PEDAL 4JH1-TC ENG(RDM) 10.147 (B) M6 W/DISHED WASHER	8-94423-325-0	01	1	0502-0805					●
242	03.483 NUT; ACCEL PEDAL 4JH1-TC ENG(RDM) 04.115 (B) M6 W/DISHED WASHER	8-98029-921-0	01	1	0806-					●
545	03.463 WASHER; NYLON 4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) 12.242 ID=10.5 OD=16	9-09855-178-0	01	1	0211-0501	●	●	●	●	●	●
545	03.463 WASHER; NYLON 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) 12.242 ID=10.5 OD=16	9-09855-178-0	01	1	0502-0504	●		●	●	●	●
545	03.463 WASHER; NYLON 4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) 12.242 ID=10.5 OD=16	9-09855-178-0	01	1	0505-1004	●		●	●	●	●
545	03.463 WASHER; NYLON 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF) 12.242 ID=10.5 OD=16	9-09855-178-0	01	1	1005-	●		●	●	●	●

54 99 54 99 100 101 114 108 729 101 104 391 110 218

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP) (B) L=293	8-97115-730-0	01	1	1005-	●
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP) (A) L=2114	8-98170-164-0	01	1	1005-	●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (C) L=1701	8-97118-537-2	01	1	0211-0501	●
54	03.430 CABLE; ENG CONT (C) L=1701	8-97118-537-2	01	1	0211-0501		●	●
54	03.430 CABLE; ENG CONT 4JB1 NA ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (C) L=1701	8-97118-537-2	01	1	0211-0501				●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (C) L=1701	8-97118-537-2	01	1	0211-0501					●
54	03.430 CABLE; ENG CONT 4JB1 NA ENG(RLF) (C) L=1701	8-97118-537-3	01	1	0502-0504	●			●	●
54	03.430 CABLE; ENG CONT (C) L=1701	8-97118-537-3	01	1	0502-0504			●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (C) L=1701	8-97118-537-3	01	1	0505-	●				●
54	03.430 CABLE; ENG CONT 4JB1 NA ENG(RLF) (C) L=1701	8-97118-537-3	01	1	0505-				●
54	03.430 CABLE; ENG CONT (C) L=1701	8-97118-537-3	01	1	0505-			●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) (A) L=2011	8-97205-638-2	01	1	0211-0501	●			●	●
54	03.430 CABLE; ENG CONT (A) L=2011	8-97205-638-2	01	1	0211-0501						●
54	03.430 CABLE; ENG CONT 4HF1-N ENG(RJZ) (A) L=2011	8-97205-638-2	01	1	0502-	●			●	●
54	03.430 CABLE; ENG CONT (A) L=2011	8-97205-638-2	01	1	0502-						●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	0211-0501	●			●	●
54	03.430 CABLE; ENG CONT 4JB1-TC ENG(RDT) (B) L=1749	8-97228-819-3	01	1	0502-0910				●
54	03.430 CABLE; ENG CONT 4JB1-TC ENG(RDT) (B) L=1749	8-97228-819-3	01	1	0911-	●			●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (A) L=2114	8-97118-535-2	01	1	0211-0501	●			●	●
54	03.430 CABLE; ENG CONT 4JB1 NA ENG(RLF) CHARGE AIR COOLER<6PL> (C) L=1749	8-97228-819-2	01	1	0211-0501				●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HG1-T ENG(RDP)	8-97118-729-0	01	1	1005-	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	8-97118-729-0	01	1	0211-0501	●			●	●
100	03.463 SHAFT ASM; ENG CONT 4HG1-T ENG(RDP)	8-97118-737-0	01	1	1005-	●
100	03.463 SHAFT ASM; ENG CONT 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	8-97118-737-0	01	1	0211-0501	●			●	●
101	03.463 WASHER; ENG CONT 4HG1-T ENG(RDP) 01.276	8-94142-117-0	02	1	1005-	●
101	03.463 WASHER; ENG CONT 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 01.276	8-94142-117-0	02	1	0211-0501	●			●	●
104	03.463 NUT; ENG CONT 4HG1-T ENG(RDP) 01.062 M8 FLANGE	0-91180-108-0	01	1	1005-	●
104	03.463 NUT; ENG CONT 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●			●	●
108	03.463 BUSHING; ENG CONT 4HG1-T ENG(RDP)	8-97120-004-0	01	1	1005-	●
108	03.463 BUSHING; ENG CONT 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	8-97120-004-0	01	1	0211-0501	●			●	●
110	03.463 BOLT; BRKT TO HANGER 4HG1-T ENG(RDP) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1005-	●
110	03.463 BOLT; BRKT TO HANGER 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0211-0501	●			●	●
114	03.483 CLIP; HARNESS CONNECTOR 4HG1-T ENG(RDP) 02.559 ID=7-10	8-94472-578-0	01	1	1005-	●
114	03.483 CLIP; HARNESS CONNECTOR 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 02.559 ID=7-10	8-94472-578-0	01	1	0211-0501	●			●	●
218	03.452 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0211	●	●	●	●	●	●
218	03.452 NUT; BRKT M/T MYY5T(RSM) 07.633 M8 FLANGE	0-91150-108-0	02	1	0212-0501	●			●	●
218	03.452 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0212-0501						●
218	03.452 NUT; BRKT 4HF1-N ENG(RJZ) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602	●			●	●
218	03.452 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602						●
218	03.452 NUT; BRKT 4HF1-N ENG(RJZ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-1004	●			●	●
218	03.452 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-1004						●
218	03.452 NUT; BRKT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1005-	●			●	●
218	03.452 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1005-						●
218	03.452 NUT; BRKT 4HF1-S ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●			●	●
218	03.452 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501						●
218	03.452 NUT; BRKT 4HF1-N ENG(RJZ) 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602	●			●
218	03.452 NUT; BRKT 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602					●
218	03.452 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602						●
218	03.452 NUT; BRKT 4HF1-N ENG(RJZ) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-1004	●			●
218	03.452 NUT; BRKT 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-1004					●
218	03.452 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-1004						●
218	03.452 NUT; BRKT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1005-	●
218	03.452 NUT; BRKT 4HF1-N ENG(RJZ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1005-				●
218	03.452 NUT; BRKT 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1005-					●
218	03.452 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1005-						●
391	03.452 BRACKET; ENG CONT 4JB1 NA ENG(RLF) EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) 02.483 (B)	8-97068-801-1	01	1	0211-0501	●
391	03.452 BRACKET; ENG CONT 02.483 (B)	8-97068-801-1	01	1	0211-0501		●	●
391	03.452 BRACKET; ENG CONT 4JB1 NA ENG(RLF) EXC. TURBOCHARGER<K51> 02.483 (B)	8-97068-801-1	01	1	0211-0501				●	●
391	03.452 BRACKET; ENG CONT 4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.483 (B)	8-97068-801-1	01	1	0502-0504	●
391	03.452 BRACKET; ENG CONT 4JB1 NA ENG(RLF) 02.483 (B)	8-97068-801-1	01	1	0502-0504				●	●
391	03.452 BRACKET; ENG CONT 02.483 (B)	8-97068-801-1	01	1	0502-0504			●
391	03.452 BRACKET; ENG CONT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.483 (B)	8-97068-801-1	01	1	0505-0506	●
391	03.452 BRACKET; ENG CONT 4JB1 NA ENG(RLF) 02.483 (B)	8-97068-801-1	01	1	0505-0506				●
391	03.452 BRACKET; ENG CONT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 02.483 (B)	8-97068-801-1	01	1	0505-0506					●
391	03.452 BRACKET; ENG CONT 02.483 (B)	8-97068-801-1	01	1	0505-0506			●
391	03.452 BRACKET; ENG CONT 4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.483 (B)	8-97068-801-1	01	1	0507-	●
391	03.452 BRACKET; ENG CONT 4JB1 NA ENG(RLF) 02.483 (B)	8-97068-801-1	01	1	0507-				●	●
391	03.452 BRACKET; ENG CONT 02.483 (B)	8-97068-801-1	01	1	0507-			●
391	03.452 BRACKET; ENG CONT 4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) (C)	8-97357-141-0	01	1	0211-0211	●	●	●	●	●	●
391	03.452 BRACKET; ENG CONT 4HF1-S ENG(RLS) (C)	8-97357-141-0	01	1	0212-0501	●			●	●
391	03.452 BRACKET; ENG CONT (C)	8-97357-141-0	01	1	0212-0501						●
391	03.452 BRACKET; ENG CONT 4HF1-N ENG(RJZ) (C)	8-97357-141-0	01	1	0502-1004	●			●	●
391	03.452 BRACKET; ENG CONT (C)	8-97357-141-0	01	1	0502-1004						●
391	03.452 BRACKET; ENG CONT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) (C)	8-97357-141-0	01	1	1005-	●			●	●
391	03.452 BRACKET; ENG CONT (C)	8-97357-141-0	01	1	1005-						●
391	03.452 BRACKET; ENG CONT 4HF1-S ENG(RLS) (A)	8-97172-882-0	01	1	0211-0501	●			●	●
391	03.452 BRACKET; ENG CONT (A)	8-97172-882-0	01	1	0211-0501						●
391	03.452 BRACKET; ENG CONT 4HF1-N ENG(RJZ) (A)	8-97172-882-0	01	1	0502-1004	●			●	●
391	03.452 BRACKET; ENG CONT (A)	8-97172-882-0	01	1	0502-1004						●
391	03.452 BRACKET; ENG CONT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) (A)	8-97172-882-0	01	1	1005-	●			●	●
391	03.452 BRACKET; ENG CONT (A)	8-97172-882-0	01	1	1005-						●
391	03.452 BRACKET; ENG CONT 4JH1 ENG(RJX) (D)	8-97352-772-0	01	1	0211-0501					●
391	03.452 BRACKET; ENG CONT 4JH1-TC ENG(RDM) (D)	8-97352-772-0	01	1	0502-					●
729	03.451 COLLAR; JOINT 4HG1-T ENG(RDP)	8-97118-760-0	01	1	1005-	●
729	03.451 COLLAR; JOINT 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	8-97118-760-0	01	1	0211-0501	●			●	●

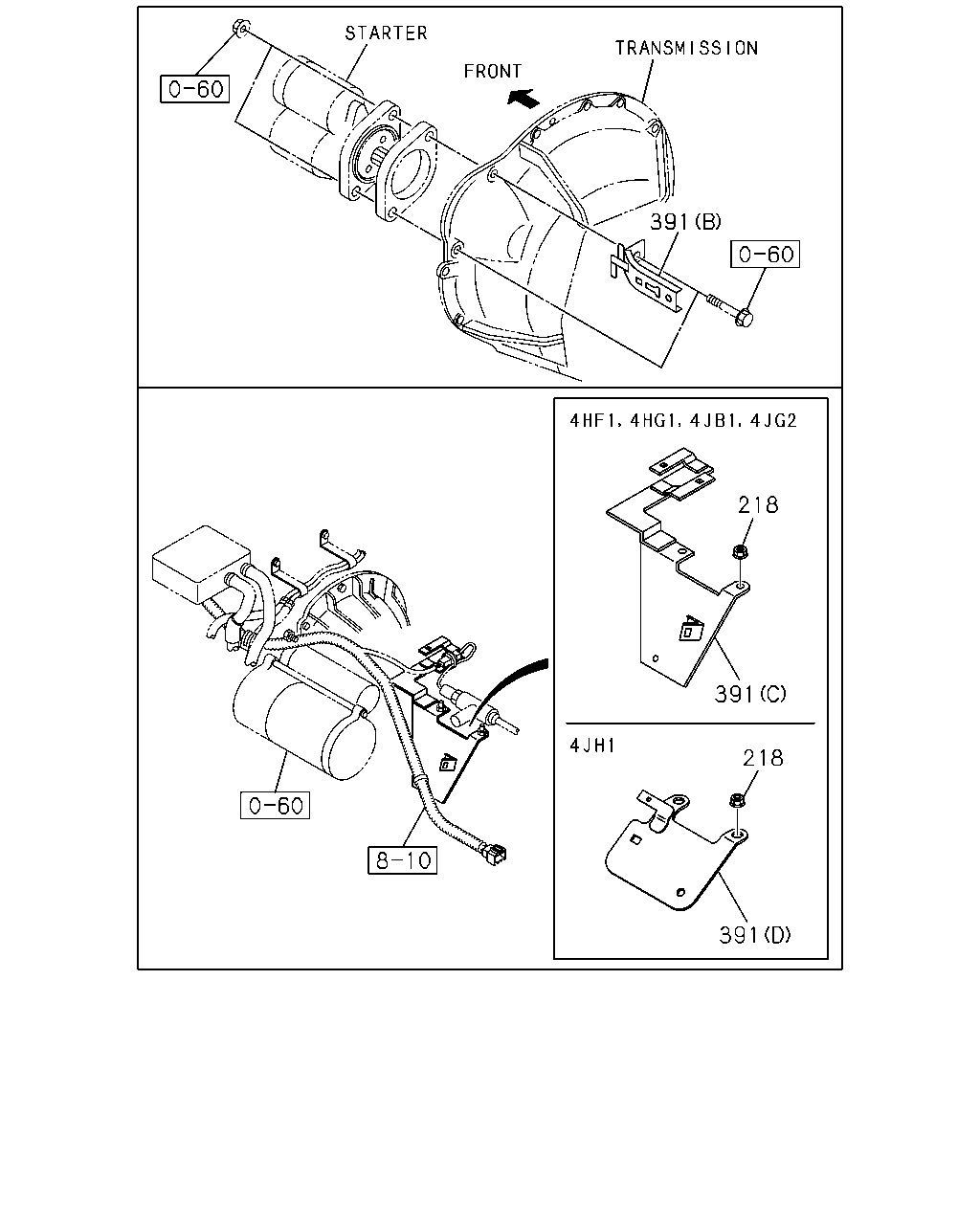

391 218 391 218 391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
218	03.452 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0211	●	●	●	●	●	●
218	03.452 NUT; BRKT M/T MYY5T(RSM) 07.633 M8 FLANGE	0-91150-108-0	02	1	0212-0501	●			●	●
218	03.452 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0212-0501						●
218	03.452 NUT; BRKT 4HF1-N ENG(RJZ) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602	●			●	●
218	03.452 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602						●
218	03.452 NUT; BRKT 4HF1-N ENG(RJZ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-1004	●			●	●
218	03.452 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-1004						●
218	03.452 NUT; BRKT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1005-	●			●	●
218	03.452 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1005-						●
218	03.452 NUT; BRKT 4HF1-S ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●			●	●
218	03.452 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501						●
218	03.452 NUT; BRKT 4HF1-N ENG(RJZ) 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602	●			●
218	03.452 NUT; BRKT 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602					●
218	03.452 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602						●
218	03.452 NUT; BRKT 4HF1-N ENG(RJZ) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-1004	●			●
218	03.452 NUT; BRKT 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-1004					●
218	03.452 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-1004						●
218	03.452 NUT; BRKT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1005-	●
218	03.452 NUT; BRKT 4HF1-N ENG(RJZ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1005-				●
218	03.452 NUT; BRKT 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1005-					●
218	03.452 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1005-						●
391	03.452 BRACKET; ENG CONT 4JB1 NA ENG(RLF) EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) 02.483 (B)	8-97068-801-1	01	1	0211-0501	●
391	03.452 BRACKET; ENG CONT 02.483 (B)	8-97068-801-1	01	1	0211-0501		●	●
391	03.452 BRACKET; ENG CONT 4JB1 NA ENG(RLF) EXC. TURBOCHARGER<K51> 02.483 (B)	8-97068-801-1	01	1	0211-0501				●	●
391	03.452 BRACKET; ENG CONT 4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.483 (B)	8-97068-801-1	01	1	0502-0504	●
391	03.452 BRACKET; ENG CONT 4JB1 NA ENG(RLF) 02.483 (B)	8-97068-801-1	01	1	0502-0504				●	●
391	03.452 BRACKET; ENG CONT 02.483 (B)	8-97068-801-1	01	1	0502-0504			●
391	03.452 BRACKET; ENG CONT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.483 (B)	8-97068-801-1	01	1	0505-0506	●
391	03.452 BRACKET; ENG CONT 4JB1 NA ENG(RLF) 02.483 (B)	8-97068-801-1	01	1	0505-0506				●
391	03.452 BRACKET; ENG CONT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 02.483 (B)	8-97068-801-1	01	1	0505-0506					●
391	03.452 BRACKET; ENG CONT 02.483 (B)	8-97068-801-1	01	1	0505-0506			●
391	03.452 BRACKET; ENG CONT 4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.483 (B)	8-97068-801-1	01	1	0507-	●
391	03.452 BRACKET; ENG CONT 4JB1 NA ENG(RLF) 02.483 (B)	8-97068-801-1	01	1	0507-				●	●
391	03.452 BRACKET; ENG CONT 02.483 (B)	8-97068-801-1	01	1	0507-			●
391	03.452 BRACKET; ENG CONT 4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) (C)	8-97357-141-0	01	1	0211-0211	●	●	●	●	●	●
391	03.452 BRACKET; ENG CONT 4HF1-S ENG(RLS) (C)	8-97357-141-0	01	1	0212-0501	●			●	●
391	03.452 BRACKET; ENG CONT (C)	8-97357-141-0	01	1	0212-0501						●
391	03.452 BRACKET; ENG CONT 4HF1-N ENG(RJZ) (C)	8-97357-141-0	01	1	0502-1004	●			●	●
391	03.452 BRACKET; ENG CONT (C)	8-97357-141-0	01	1	0502-1004						●
391	03.452 BRACKET; ENG CONT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) (C)	8-97357-141-0	01	1	1005-	●			●	●
391	03.452 BRACKET; ENG CONT (C)	8-97357-141-0	01	1	1005-						●
391	03.452 BRACKET; ENG CONT 4HF1-S ENG(RLS) (A)	8-97172-882-0	01	1	0211-0501	●			●	●
391	03.452 BRACKET; ENG CONT (A)	8-97172-882-0	01	1	0211-0501						●
391	03.452 BRACKET; ENG CONT 4HF1-N ENG(RJZ) (A)	8-97172-882-0	01	1	0502-1004	●			●	●
391	03.452 BRACKET; ENG CONT (A)	8-97172-882-0	01	1	0502-1004						●
391	03.452 BRACKET; ENG CONT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) (A)	8-97172-882-0	01	1	1005-	●			●	●
391	03.452 BRACKET; ENG CONT (A)	8-97172-882-0	01	1	1005-						●
391	03.452 BRACKET; ENG CONT 4JH1 ENG(RJX) (D)	8-97352-772-0	01	1	0211-0501					●
391	03.452 BRACKET; ENG CONT 4JH1-TC ENG(RDM) (D)	8-97352-772-0	01	1	0502-					●

537 537 70 68 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
67	03.480 CABLE ASM; IDLE CONT 4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) L=945	8-97856-223-4	01	1	0211-0501	●	●	●	●	●	●
67	03.480 CABLE ASM; IDLE CONT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) L=945	8-97856-223-4	01	1	0502-0504	●		●	●	●	●
67	03.480 CABLE ASM; IDLE CONT 4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) L=945	8-97856-223-4	01	1	0505-1004	●		●	●	●	●
67	03.480 CABLE ASM; IDLE CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF) L=945	8-97856-223-4	01	1	1005-	●		●	●	●	●
68	03.480 KNOB; IDLE CONT 4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS)	8-97853-765-1	01	1	0211-0501	●	●	●	●	●	●
68	03.480 KNOB; IDLE CONT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF)	8-97853-765-1	01	1	0502-0504	●		●	●	●	●
68	03.480 KNOB; IDLE CONT 4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF)	8-97853-765-1	01	1	0505-1004	●		●	●	●	●
68	03.480 KNOB; IDLE CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF)	8-97853-765-1	01	1	1005-	●		●	●	●	●
70	03.483 NUT; CONT CABLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) M18	8-97853-233-0	01	1	0211-0501	●	●	●	●	●	●
70	03.483 NUT; CONT CABLE 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) M18	8-97853-233-0	01	1	0502-0504	●		●	●	●	●
70	03.483 NUT; CONT CABLE 4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) M18	8-97853-233-0	01	1	0505-1004	●		●	●	●	●
70	03.483 NUT; CONT CABLE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF) M18	8-97853-233-0	01	1	1005-	●		●	●	●	●
537	03.483 CLIP; IDLING CONT CABLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) 04.342 ID=7	5-09707-053-0	02	1	0211-0501	●	●	●	●	●	●
537	03.483 CLIP; IDLING CONT CABLE 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) 04.342 ID=7	5-09707-053-0	02	1	0502-0504	●		●	●	●	●
537	03.483 CLIP; IDLING CONT CABLE 4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) 04.342 ID=7	5-09707-053-0	02	1	0505-1004	●		●	●	●	●
537	03.483 CLIP; IDLING CONT CABLE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF) 04.342 ID=7	5-09707-053-0	02	1	1005-	●		●	●	●	●

389 392 54 404 60 320 658 392 395 392

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP) (B) L=293	8-97115-730-0	01	1	1005-	●
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP) (A) L=2114	8-98170-164-0	01	1	1005-	●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (C) L=1701	8-97118-537-2	01	1	0211-0501	●
54	03.430 CABLE; ENG CONT (C) L=1701	8-97118-537-2	01	1	0211-0501		●	●
54	03.430 CABLE; ENG CONT 4JB1 NA ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (C) L=1701	8-97118-537-2	01	1	0211-0501				●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (C) L=1701	8-97118-537-2	01	1	0211-0501					●
54	03.430 CABLE; ENG CONT 4JB1 NA ENG(RLF) (C) L=1701	8-97118-537-3	01	1	0502-0504	●			●	●
54	03.430 CABLE; ENG CONT (C) L=1701	8-97118-537-3	01	1	0502-0504			●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (C) L=1701	8-97118-537-3	01	1	0505-	●				●
54	03.430 CABLE; ENG CONT 4JB1 NA ENG(RLF) (C) L=1701	8-97118-537-3	01	1	0505-				●
54	03.430 CABLE; ENG CONT (C) L=1701	8-97118-537-3	01	1	0505-			●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) (A) L=2011	8-97205-638-2	01	1	0211-0501	●			●	●
54	03.430 CABLE; ENG CONT (A) L=2011	8-97205-638-2	01	1	0211-0501						●
54	03.430 CABLE; ENG CONT 4HF1-N ENG(RJZ) (A) L=2011	8-97205-638-2	01	1	0502-	●			●	●
54	03.430 CABLE; ENG CONT (A) L=2011	8-97205-638-2	01	1	0502-						●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	0211-0501	●			●	●
54	03.430 CABLE; ENG CONT 4JB1-TC ENG(RDT) (B) L=1749	8-97228-819-3	01	1	0502-0910				●
54	03.430 CABLE; ENG CONT 4JB1-TC ENG(RDT) (B) L=1749	8-97228-819-3	01	1	0911-	●			●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (A) L=2114	8-97118-535-2	01	1	0211-0501	●			●	●
54	03.430 CABLE; ENG CONT 4JB1 NA ENG(RLF) CHARGE AIR COOLER<6PL> (C) L=1749	8-97228-819-2	01	1	0211-0501				●	●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL> 02.664 (B) M8X20 FLANGE	0-28680-820-0	01	1	0211-0501	●			●	●
60	08.155 BOLT; CABLE 4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 02.664 (B) M8X20 FLANGE	0-28680-820-0	01	1	0211-0501	●			●	●
60	08.155 BOLT; CABLE 4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 02.664 (B) M8X20 FLANGE	0-28680-820-0	01	1	0502-0504	●
60	08.155 BOLT; CABLE 4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. HEATER & DEFROSTER(C41) 02.664 (B) M8X20 FLANGE	0-28680-820-0	01	1	0502-0504				●	●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 02.664 (B) M8X20 FLANGE	0-28680-820-0	01	1	0505-0512	●
60	08.155 BOLT; CABLE 4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. HEATER & DEFROSTER(C41) 02.664 (B) M8X20 FLANGE	0-28680-820-0	01	1	0505-0512				●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) EXC. HEATER & DEFROSTER(C41) 02.664 (B) M8X20 FLANGE	0-28680-820-0	01	1	0505-0512					●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-1004	●
60	08.155 BOLT; CABLE 4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. HEATER & DEFROSTER(C41) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-1004				●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) EXC. HEATER & DEFROSTER(C41) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-1004					●
60	08.155 BOLT; CABLE 4HG1-T ENG(RDP),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1005-	●
60	08.155 BOLT; CABLE 4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. HEATER & DEFROSTER(C41) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1005-				●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) EXC. HEATER & DEFROSTER(C41) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1005-					●
60	08.155 BOLT; CABLE 4JB1 NA ENG(RLF) CHARGE AIR COOLER<6PL> 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	0211-0501				●	●
60	08.155 BOLT; CABLE 4JB1-TC ENG(RDT) 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	0502-0512				●
60	08.155 BOLT; CABLE 4JB1-TC ENG(RDT) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0601-0910				●
60	08.155 BOLT; CABLE 4JB1-TC ENG(RDT) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0911-	●			●
320	03.483 CLIP; FRAME 4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 06.672	8-94178-110-0	01	1	0211-0501	●
320	03.483 CLIP; FRAME 4HF1-S ENG(RLS) EXC. HEATER & DEFROSTER(C41) 06.672	8-94178-110-0	01	1	0211-0501				●	●
320	03.483 CLIP; FRAME 4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 06.672	8-94178-110-0	01	1	0502-1004	●
320	03.483 CLIP; FRAME 4HF1-N ENG(RJZ) EXC. HEATER & DEFROSTER(C41) 06.672	8-94178-110-0	01	1	0502-1004				●	●
320	03.483 CLIP; FRAME 4HG1-T ENG(RDP) 06.672	8-94178-110-0	01	1	1005-	●
320	03.483 CLIP; FRAME 4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 06.672	8-94178-110-0	01	1	1005-	●
320	03.483 CLIP; FRAME 4HF1-N ENG(RJZ) EXC. HEATER & DEFROSTER(C41) 06.672	8-94178-110-0	01	1	1005-				●	●
320	03.483 CLIP; FRAME 4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41)	8-94167-969-2	01	1	0211-0501	●
320	03.483 CLIP; FRAME 4JB1 NA ENG(RLF) EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL>	8-94167-969-2	01	1	0211-0501				●
320	03.483 CLIP; FRAME 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL>	8-94167-969-2	01	1	0211-0501					●
320	03.483 CLIP; FRAME 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41)	8-94167-969-2	01	1	0502-0504	●
320	03.483 CLIP; FRAME 4JB1 NA ENG(RLF) EXC. HEATER & DEFROSTER(C41)	8-94167-969-2	01	1	0502-0504				●	●
320	03.483 CLIP; FRAME 4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41)	8-94167-969-2	01	1	0505-	●
320	03.483 CLIP; FRAME 4JB1 NA ENG(RLF) EXC. HEATER & DEFROSTER(C41)	8-94167-969-2	01	1	0505-				●
320	03.483 CLIP; FRAME 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. HEATER & DEFROSTER(C41)	8-94167-969-2	01	1	0505-					●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HF1-S ENG(RLS) 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0501	●			●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0501						●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HF1-N ENG(RJZ) 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602	●			●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602						●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HF1-N ENG(RJZ) 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-1004	●			●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-1004						●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) 01.062 M6 FLANGE	0-91180-106-0	01	1	1005-	●			●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 01.062 M6 FLANGE	0-91180-106-0	01	1	1005-						●
392	03.483 CLIP; ACCEL CONT CABLE 4HG1-T ENG(RDP) (H) ID=6 & 10.5	1-09709-218-0	01	1	1005-	●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT) POWER STEERING<N40> 06.672 (G) ID=12 & 15	1-09709-281-1	01	1	0805-0910				●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT) POWER STEERING<N40> 06.672 (G) ID=12 & 15	1-09709-281-1	01	1	0911-	●			●
392	03.483 CLIP; ACCEL CONT CABLE 4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 04.342 (D) ID=9.5	5-09709-020-0	01	1	0211-0501	●
392	03.483 CLIP; ACCEL CONT CABLE 04.342 (D) ID=9.5	5-09709-020-0	01	1	0211-0501						●
392	03.483 CLIP; ACCEL CONT CABLE 4HF1-N ENG(RJZ) AIR INTAKE SYSTEM FRONT<6PC> 04.342 (D) ID=9.5	5-09709-020-0	01	1	0502-1404	●
392	03.483 CLIP; ACCEL CONT CABLE 04.342 (D) ID=9.5	5-09709-020-0	01	1	0502-1404						●
392	03.483 CLIP; ACCEL CONT CABLE 4HF1-N ENG(RJZ) AIR INTAKE SYSTEM FRONT<6PC> 04.342 (D) ID=9.5	5-09709-020-0	01	1	1405-	●
392	03.483 CLIP; ACCEL CONT CABLE 4HF1-N ENG(RJZ) JAPAN PRODUCTION<C1H> HEATER & DEFROSTER(C41) 04.342 (D) ID=9.5	5-09709-020-0	01	1	1405-				●	●
392	03.483 CLIP; ACCEL CONT CABLE 04.342 (D) ID=9.5	5-09709-020-0	01	1	1405-						●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	0211-0501	●
392	03.483 CLIP; ACCEL CONT CABLE 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	0211-0501		●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	0502-0504	●
392	03.483 CLIP; ACCEL CONT CABLE 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	0502-0504			●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	0505-0910	●
392	03.483 CLIP; ACCEL CONT CABLE 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	0505-0910			●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	0911-	●
392	03.483 CLIP; ACCEL CONT CABLE 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	0911-			●
392	03.483 CLIP; ACCEL CONT CABLE 4HF1-S ENG(RLS) (C) ID=6 & 10	8-94154-844-0	01	1	0211-0501	●			●	●
392	03.483 CLIP; ACCEL CONT CABLE (C) ID=6 & 10	8-94154-844-0	01	1	0211-0501						●
392	03.483 CLIP; ACCEL CONT CABLE 4HF1-N ENG(RJZ) (C) ID=6 & 10	8-94154-844-0	01	1	0502-	●			●	●
392	03.483 CLIP; ACCEL CONT CABLE (C) ID=6 & 10	8-94154-844-0	01	1	0502-						●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL> (F) ID=10 & 12	1-09709-278-1	01	1	0303-0501	●			●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> POWER STEERING<N40> (F) ID=10 & 12	1-09709-278-1	01	1	0502-0504	●			●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> POWER STEERING<N40> (F) ID=10 & 12	1-09709-278-1	01	1	0505-1404	●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1 NA ENG(RLF) POWER STEERING<N40> (F) ID=10 & 12	1-09709-278-1	01	1	0505-1404				●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) POWER STEERING<N40> (F) ID=10 & 12	1-09709-278-1	01	1	0505-1404					●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> POWER STEERING<N40> (F) ID=10 & 12	1-09709-278-1	01	1	1405-	●
392	03.483 CLIP; ACCEL CONT CABLE 4HF1-N ENG(RJZ) JAPAN PRODUCTION<C1H> (F) ID=10 & 12	1-09709-278-1	01	1	1405-				●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1 NA ENG(RLF) POWER STEERING<N40> (F) ID=10 & 12	1-09709-278-1	01	1	1405-				●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) POWER STEERING<N40> (F) ID=10 & 12	1-09709-278-1	01	1	1405-					●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> EXC. POWER STEERING<N40>,CHARGE AIR COOLER<6PL> 04.930 (E) ID=10 & 16.5	8-94360-745-0	01	1	0303-0501	●			●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> EXC. POWER STEERING<N40> 04.930 (E) ID=10 & 16.5	8-94360-745-0	01	1	0502-0504	●			●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> EXC. POWER STEERING<N40> 04.930 (E) ID=10 & 16.5	8-94360-745-0	01	1	0505-	●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. POWER STEERING<N40> 04.930 (E) ID=10 & 16.5	8-94360-745-0	01	1	0505-				●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. POWER STEERING<N40> 04.930 (E) ID=10 & 16.5	8-94360-745-0	01	1	0505-					●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1 NA ENG(RLF) CHARGE AIR COOLER<6PL> 02.334 (B) ID=16	9-09525-552-0	01	1	0211-0501				●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT) 02.334 (B) ID=16	9-09525-552-0	01	1	0502-0606				●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT) 04.785 (B) ID=16 L=28	0-95235-552-0	01	1	0607-0910				●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT) 04.785 (B) ID=16 L=28	0-95235-552-0	01	1	0911-	●			●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 03.162 (A) L=140	5-09707-031-1	01	1	0211-0501	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41) 03.162 (A) L=140	5-09707-031-1	01	1	0211-0501				●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 03.162 (A) L=140	5-09707-031-1	01	1	0502-1404	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) 03.162 (A) L=140	5-09707-031-1	01	1	0502-1404				●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 03.162 (A) L=140	5-09707-031-1	01	1	1405-	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) EXC. JAPAN PRODUCTION<C1H> 03.162 (A) L=140	5-09707-031-1	01	1	1405-				●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	0211-0501	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	0211-0501				●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	0211-0501					●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	0502-0504	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	0502-0504				●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	0505-	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	0505-				●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	0505-					●
404	03.483 CLIP; CABLE 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> ID=20.2 & 6	8-94472-577-0	01	1	0211-0501	●
404	03.483 CLIP; CABLE 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41) ID=20.2 & 6	8-94472-577-0	01	1	0211-0501				●	●
404	03.483 CLIP; CABLE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> ID=20.2 & 6	8-94472-577-0	01	1	0502-	●
404	03.483 CLIP; CABLE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) ID=20.2 & 6	8-94472-577-0	01	1	0502-				●	●
658	03.430 CLIP; ENG CONT CABLE 4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 04.930 ID=10 H=40	8-94462-219-0	01	1	0211-0501	●
658	03.430 CLIP; ENG CONT CABLE 4HF1-S ENG(RLS) 04.930 ID=10 H=40	8-94462-219-0	01	1	0211-0501				●	●
658	03.430 CLIP; ENG CONT CABLE 4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> 04.930 ID=10 H=40	8-94462-219-0	01	1	0502-1004	●
658	03.430 CLIP; ENG CONT CABLE 4HF1-N ENG(RJZ) 04.930 ID=10 H=40	8-94462-219-0	01	1	0502-1004				●	●
658	03.430 CLIP; ENG CONT CABLE 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> 04.930 ID=10 H=40	8-94462-219-0	01	1	1005-1404	●
658	03.430 CLIP; ENG CONT CABLE 4HF1-N ENG(RJZ) 04.930 ID=10 H=40	8-94462-219-0	01	1	1005-1404				●	●
658	03.430 CLIP; ENG CONT CABLE 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> 04.930 ID=10 H=40	8-94462-219-0	01	1	1405-	●
658	03.430 CLIP; ENG CONT CABLE 4HF1-N ENG(RJZ) EXC. JAPAN PRODUCTION<C1H> 04.930 ID=10 H=40	8-94462-219-0	01	1	1405-				●	●

80 243 528 158 242 83 528 227 32 124 79 264 90 80 14 230 24 242 333 46 65 80 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	03.451 PAD; PEDAL,ACCEL	8-97859-101-0	01	1	0211-0501	●	●	●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97859-101-0	01	1	0502-	●		●	●	●	●
24	03.483 BOLT; BRKT 03.459	0-20800-840-0	01	1	0211-0501	●	●	●	●	●	●
24	03.483 BOLT; BRKT 03.459	0-20800-840-0	01	1	0502-	●		●	●	●	●
32	03.459 SPRING; RETURN,ACCEL PEDAL 4JH1 ENG(RJX)	8-97997-917-0	01	1	0211-0501					●
32	03.459 SPRING; RETURN,ACCEL PEDAL 4JH1-TC ENG(RDM)	8-97997-917-0	01	1	0502-					●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0211-0501	●	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0502-0604	●		●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0605-	●		●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	0211-0501	●	●	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	0502-	●		●	●	●	●
79	03.451 SWITCH; ACCEL PEDAL 4JH1 ENG(RJX)	8-97224-056-0	01	1	0211-0501					●
79	03.451 SWITCH; ACCEL PEDAL 4JH1-TC ENG(RDM)	8-97224-056-0	01	1	0502-					●
80	03.452 LINK ASM; ENG CONT (B)	8-97859-100-0	01	1	0211-0501	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97859-100-0	01	1	0502-	●		●	●	●	●
80	03.452 LINK ASM; ENG CONT 4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) (A)	8-97859-518-3	01	1	0211-0501	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (A)	8-97859-518-3	01	1	0502-0504	●		●	●	●	●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (A)	8-97859-518-3	01	1	0505-1004	●		●	●	●	●
80	03.452 LINK ASM; ENG CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF) (A)	8-97859-518-3	01	1	1005-	●		●	●	●	●
80	03.452 LINK ASM; ENG CONT 4JH1 ENG(RJX) (C)	8-97994-589-4	01	1	0211-0501					●
80	03.452 LINK ASM; ENG CONT 4JH1-TC ENG(RDM) (C)	8-97994-589-6	01	1	0502-					●
83	03.452 BRACKET; CONT LINK 4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS)	8-97859-519-0	01	1	0211-0501	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF)	8-97859-519-0	01	1	0502-0504	●		●	●	●	●
83	03.452 BRACKET; CONT LINK 4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF)	8-97859-519-0	01	1	0505-1004	●		●	●	●	●
83	03.452 BRACKET; CONT LINK 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF)	8-97859-519-0	01	1	1005-	●		●	●	●	●
83	03.452 BRACKET; CONT LINK 4JH1 ENG(RJX)	8-97994-592-2	01	1	0211-0501					●
83	03.452 BRACKET; CONT LINK 4JH1-TC ENG(RDM)	8-97994-592-4	01	1	0502-					●
90	03.454 LEVER; RELAY,ENG CONT 4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS)	8-97857-613-6	01	1	0211-0501	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF)	8-97857-613-6	01	1	0502-0504	●		●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT 4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF)	8-97857-613-6	01	1	0505-1004	●		●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF)	8-97857-613-6	01	1	1005-	●		●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT 4JH1 ENG(RJX)	8-97994-590-2	01	1	0211-0501					●
90	03.454 LEVER; RELAY,ENG CONT 4JH1-TC ENG(RDM)	8-97994-590-4	01	1	0502-					●
124	03.463 NUT; LEVER 4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0211-0501	●
124	03.463 NUT; LEVER 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0211-0501		●	●			●
124	03.463 NUT; LEVER 4JB1 NA ENG(RLF),4HF1-S ENG(RLS) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0211-0501				●
124	03.463 NUT; LEVER 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0211-0501					●
124	03.463 NUT; LEVER 4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0502-0504	●
124	03.463 NUT; LEVER 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0502-0504				●
124	03.463 NUT; LEVER 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0502-0504					●
124	03.463 NUT; LEVER 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0502-0504			●			●
124	03.463 NUT; LEVER 4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0505-0910	●
124	03.463 NUT; LEVER 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0505-0910				●
124	03.463 NUT; LEVER 4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0505-0910					●
124	03.463 NUT; LEVER 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0505-0910			●			●
124	03.463 NUT; LEVER 4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0911-1004	●
124	03.463 NUT; LEVER 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0911-1004				●
124	03.463 NUT; LEVER 4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0911-1004					●
124	03.463 NUT; LEVER 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0911-1004			●			●
124	03.463 NUT; LEVER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	1005-	●
124	03.463 NUT; LEVER 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	1005-				●
124	03.463 NUT; LEVER 4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	1005-					●
124	03.463 NUT; LEVER 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	1005-			●			●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0211-0501	●	●	●	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0502-	●		●	●	●	●
171	03.483 BRACKET ASM; ACCEL PEDAL	8-97857-482-1	01	1	0211-0501	●	●	●	●	●	●
171	03.483 BRACKET ASM; ACCEL PEDAL	8-97857-482-1	01	1	0502-	●		●	●	●	●
227	03.430 CABLE ASM; RETURN,ACCEL PEDAL 4JH1 ENG(RJX)	8-97892-203-5	01	1	0211-0501					●
227	03.430 CABLE ASM; RETURN,ACCEL PEDAL 4JH1-TC ENG(RDM)	8-97892-203-5	01	1	0502-					●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0211-0501	●	●	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0502-	●		●	●	●	●
242	03.483 NUT; ACCEL PEDAL 02.559 (A) M8	9-09110-408-0	01	1	0211-0501	●	●	●	●	●	●
242	03.483 NUT; ACCEL PEDAL 02.559 (A) M8	9-09110-408-0	01	1	0502-0512	●		●	●	●	●
242	03.483 NUT; ACCEL PEDAL 02.334 (A) M8	0-91110-508-0	01	1	0601-	●		●	●	●	●
242	03.483 NUT; ACCEL PEDAL 4JH1 ENG(RJX) 10.147 (B) M6 W/DISHED WASHER	8-94423-325-0	01	1	0211-0501					●
242	03.483 NUT; ACCEL PEDAL 4JH1-TC ENG(RDM) 10.147 (B) M6 W/DISHED WASHER	8-94423-325-0	01	1	0502-0805					●
242	03.483 NUT; ACCEL PEDAL 4JH1-TC ENG(RDM) 04.115 (B) M6 W/DISHED WASHER	8-98029-921-0	01	1	0806-					●
243	03.425 SENSOR; ACCEL 4JH1 ENG(RJX)	8-97305-922-0	01	1	0211-0501					●
243	03.425 SENSOR; ACCEL 4JH1-TC ENG(RDM)	8-97305-922-0	01	1	0502-					●
264	03.425 SCREW; ACCEL SW 4JH1 ENG(RJX) 03.451 M3X16 TAPPING	0-71280-316-0	02	1	0211-0501					●
264	03.425 SCREW; ACCEL SW 4JH1-TC ENG(RDM) 03.451 M3X16 TAPPING	0-71280-316-0	02	1	0502-0603					●
264	03.425 SCREW; ACCEL SW 4JH1-TC ENG(RDM) M3X16 TAPPING	0-71340-316-0	02	1	0604-					●
333	03.671 GROMMET; HOLE,CABLE 4JH1 ENG(RJX) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0211-0501					●
333	03.671 GROMMET; HOLE,CABLE 4JH1-TC ENG(RDM) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0502-					●
528	03.463 NUT; ACCEL SENSOR 4JH1 ENG(RJX) 10.147 M6 W/DISHED WASHER	8-94423-325-0	02	1	0211-0501					●
528	03.463 NUT; ACCEL SENSOR 4JH1-TC ENG(RDM) 10.147 M6 W/DISHED WASHER	8-94423-325-0	02	1	0502-0805					●
528	03.463 NUT; ACCEL SENSOR 4JH1-TC ENG(RDM) 04.115 M6 W/DISHED WASHER	8-98029-921-0	02	1	0806-1205					●
528	03.463 NUT; ACCEL SENSOR 4JH1-TC ENG(RDM) 12.183 M5	8-94169-022-0	02	1	1206-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
