◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50943 - NKR55,66,69,71,77LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-85B - AUTO TIMER; INJECTION PUMP ▶
0-85B — AUTO TIMER; INJECTION PUMP (#50755) — 36 parça

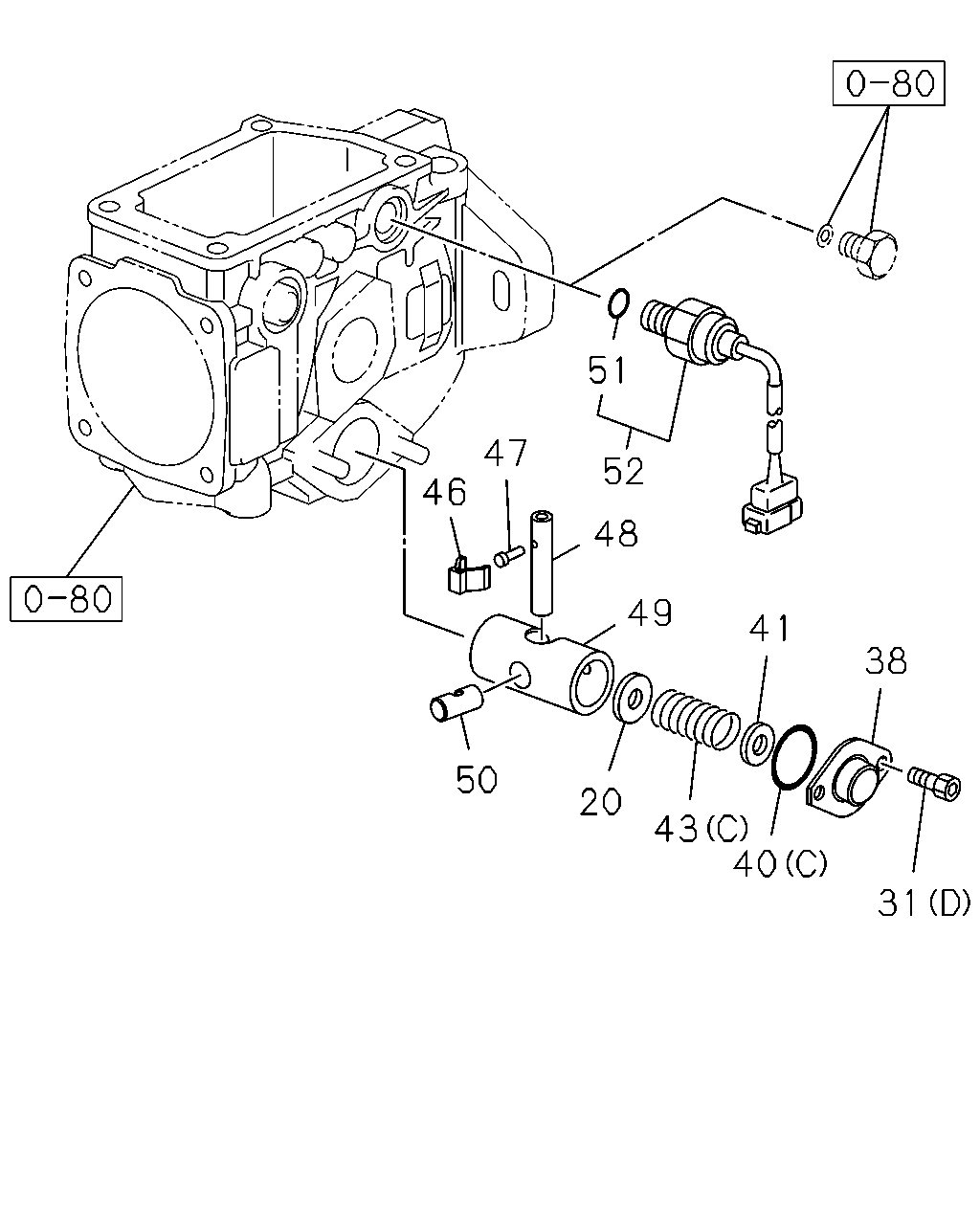

çizim 45040
51 47 52 46 48 49 41 38 50 20 43 40 31
BalonParca AdiParca NoAdetTipApplied Date
20 03.330 SHIM; INNER SPRING,TIMER,INJ PUM
T=0.60 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366, F = 8-97263-086-3, 97263086 		8-94227-495-0 01 1 -
31 03.330 SCREW; TIMER COVER,INJ PUMP
(D) ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366 		8-94313-276-0 02 1 -
31 03.330 SCREW; TIMER COVER,INJ PUMP
(D) ASM PART: F = 8-97263-086-3, 97263086 		8-97231-933-0 02 1 -
38 03.318 COVER; TIMER,INJ PUMP
ASM PART: F = 8-97263-086-3, 97263086 		8-94227-500-0 01 1 -
38 03.318 COVER; TIMER,INJ PUMP
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366 		8-94473-120-0 01 1 -
40 03.330 GASKET; TIMER COVER,INJ PUMP
03.306, (C) ASM PART: D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366 		8-94227-491-0 01 1 -
40 03.330 GASKET; TIMER COVER,INJ PUMP
(C) ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181 		8-94433-763-0 01 1 -
40 03.330 GASKET; TIMER COVER,INJ PUMP
03.306, (C) ASM PART: F = 8-97263-086-3, 97263086 		8-97224-532-0 01 1 -0406
40 03.330 GASKET; TIMER COVER,INJ PUMP
03.306, (C) ASM PART: F = 8-97263-086-3, 97263086 		8-97383-765-0 01 1 0407-
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
03.320, T=2.40 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366, F = 8-97263-086-3, 97263086 		8-94121-620-0 AR 1 -
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=0.60 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366, F = 8-97263-086-3, 97263086 		8-94227-495-0 AR 1 -
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=0.70 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366, F = 8-97263-086-3, 97263086 		8-94227-496-0 AR 1 -
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=0.90 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366, F = 8-97263-086-3, 97263086 		8-94227-497-0 AR 1 -
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=1.00 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366, F = 8-97263-086-3, 97263086 		8-94227-498-0 AR 1 -
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=1.20 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366, F = 8-97263-086-3, 97263086 		8-94227-499-0 AR 1 -
43 03.340 SPRING; PISTON,TIMER,INJ PUMP
(C), L=40.0 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181 		8-97045-508-0 01 1 -
43 03.340 SPRING; PISTON,TIMER,INJ PUMP
(C), L=40.2 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181 		8-97047-719-0 01 1 -
43 03.340 SPRING; PISTON,TIMER,INJ PUMP
(C), L=39.8 ASM PART: D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366 		8-97125-521-0 01 1 -
43 03.340 SPRING; PISTON,TIMER,INJ PUMP
(C), L=42.7 ASM PART: D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366 		8-97125-522-0 01 1 -
43 03.340 SPRING; PISTON,TIMER,INJ PUMP
(C), L=41.3 ASM PART: D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366 		8-97125-523-0 01 1 -
43 03.340 SPRING; PISTON,TIMER,INJ PUMP
(C), L=40.6 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181 		8-97125-524-0 01 1 -
43 03.340 SPRING; PISTON,TIMER,INJ PUMP
(C), L=44.0 ASM PART: F = 8-97263-086-3, 97263086 		8-97231-929-0 01 1 -
43 03.340 SPRING; PISTON,TIMER,INJ PUMP
(C), L=41.7 ASM PART: F = 8-97263-086-3, 97263086 		8-97231-930-0 01 1 -
43 03.340 SPRING; PISTON,TIMER,INJ PUMP
(C), L=42.0 ASM PART: F = 8-97263-086-3, 97263086 		8-97231-931-0 01 1 -
46 03.330 CLIP; HOLDER PIN,TIMER,INJ PUMP
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366, F = 8-97263-086-3, 97263086 		8-94227-488-0 01 1 -
47 03.340 PIN; HOLDER PIN,TIMER,INJ PUMP
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366, F = 8-97263-086-3, 97263086 		8-94227-487-0 01 1 -
48 03.340 PIN; ROLLER HOLDER,TIMER,INJ PUM
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366 		8-94227-486-0 01 1 -
48 03.340 PIN; ROLLER HOLDER,TIMER,INJ PUM
ASM PART: F = 8-97263-086-3, 97263086 		8-97214-493-0 01 1 -
49 03.330 PISTON; TIMER,INJ PUMP
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181 		8-94174-739-0 01 1 -
49 03.330 PISTON; TIMER,INJ PUMP
ASM PART: D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366 		8-94426-069-0 01 1 -
49 03.330 PISTON; TIMER,INJ PUMP
ASM PART: F = 8-97263-086-3, 97263086 		8-97231-928-0 01 1 -
50 03.340 SLIDER; TIMER PISTON,INJ PUMP
ASM PART: D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366 		8-94227-493-0 01 1 -
50 03.340 SLIDER; TIMER PISTON,INJ PUMP
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181 		8-97119-163-0 01 1 -
50 03.340 SLIDER; TIMER PISTON,INJ PUMP
ASM PART: F = 8-97263-086-3, 97263086 		8-97218-961-0 01 1 -
51 03.340 GASKET; TIMING SENSOR,INJ PUMP
03.306 ASM PART: B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, E = 8-97216-366-0, 97216366, F = 8-97263-086-3, 97263086 		8-94227-671-0 01 1 -
52 03.340 SENSOR; TIMING,TACHOMETER,INJ PU
ASM PART: B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, E = 8-97216-366-0, 97216366, F = 8-97263-086-3, 97263086 		8-94343-307-0 01 1 -
