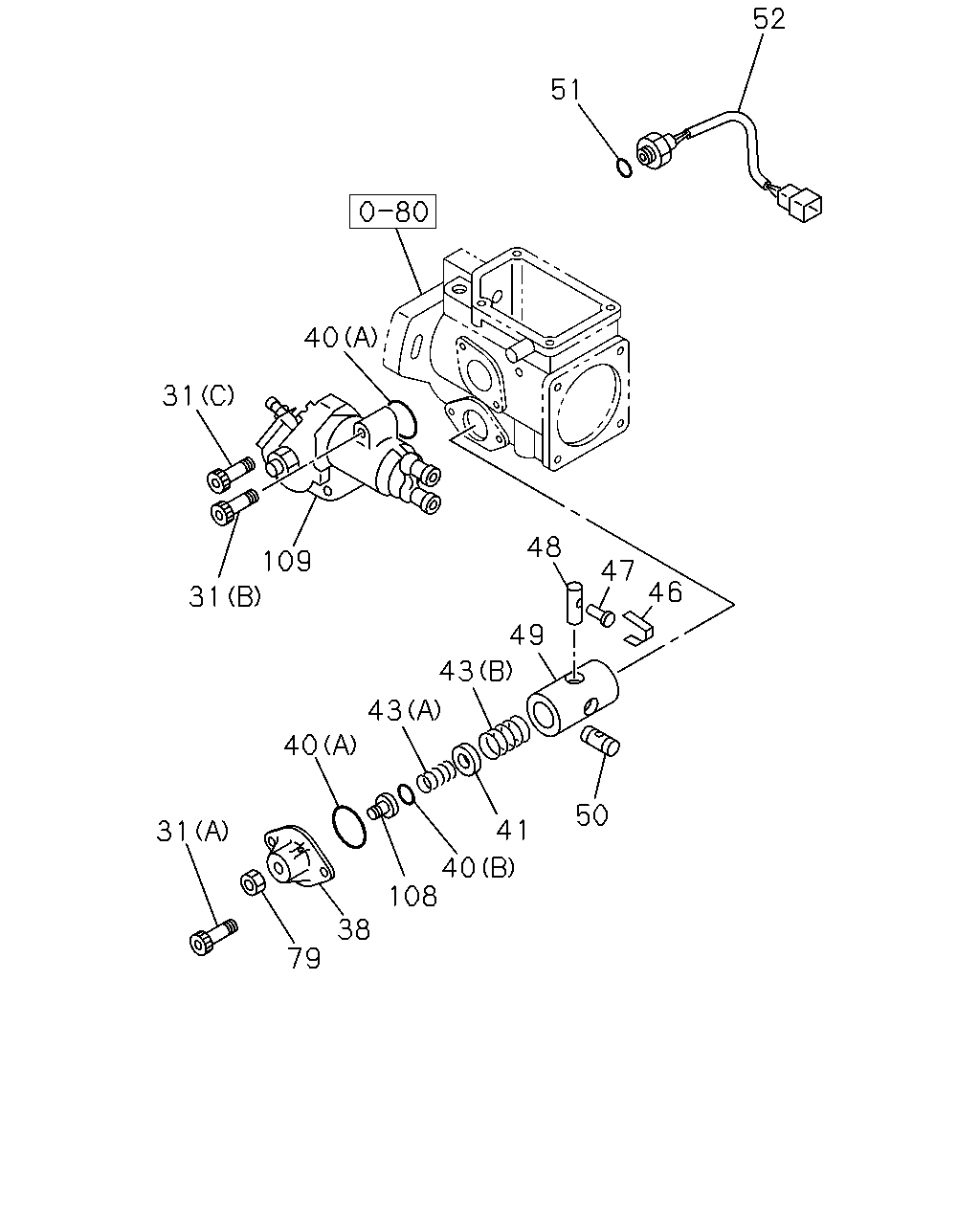

0-85A — AUTO TIMER; INJECTION PUMP (#50754) — 21 parça

52 51 40 31 48 109 47 46 31 49 43 43 40 50 41 31 40 108 38 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	03.330 SCREW; TIMER COVER,INJ PUMP (A), M6X16 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97140-853-0	02	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP (B), M6X45 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-258-0	01	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP (C), M6X10 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-456-0	02	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-886-0	01	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP (A), ID=27.5 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97140-980-0	02	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP (B), ID=8.8 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-897-0	01	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.5 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-954-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (A), L=33.6 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-899-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (A), L=32.7 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-900-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (A), L=33.1 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-901-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (B) ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-961-0	01	1	-
46	03.330 CLIP; HOLDER PIN,TIMER,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97140-961-0	01	1	-
47	03.340 PIN; HOLDER PIN,TIMER,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97140-952-0	01	1	-
48	03.340 PIN; ROLLER HOLDER,TIMER,INJ PUM ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97140-951-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-881-0	01	1	-
50	03.340 SLIDER; TIMER PISTON,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97140-944-0	01	1	-
51	03.340 GASKET; TIMING SENSOR,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-962-0	01	1	-
52	03.340 SENSOR; TIMING,TACHOMETER,INJ PU ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-903-0	01	1	-
79	03.340 NUT; CAP,TIMER COVER,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-898-0	01	1	-
108	03.330 STOPPER; TIMER,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-896-0	01	1	-
109	03.330 COVER SUB ASM; TIMER ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-963-0	01	1	-
