Sayfa 2-36B - Isuzu EPC

2-36B — MANUAL TRANSMISSION CONT LINK AND CABLE (#5075) — 216 parça

496 465 192 509 468

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
192	COVER 6WA1 TC-S(56L) ELECTRONIC GOV RED3(KG5)	1-79907-081-0	01	1	9610-9903
192	COVER 6WA1 TC-S(56L) ELECTRONIC GOV RED3(KG5)	1-79907-090-0	01	1	9904-9905
192	COVER ELECTRONIC GOV RED3(KG5)	1-79907-090-0	01	1	9906-0001
192	COVER ELECTRONIC GOV RED3(KG5)	1-79907-090-0	01	1	0002-
192	COVER ENG CONTROL TICS(Q3P) EXC. ELECTRONIC GOV RED3(KG5)	1-79907-090-0	01	1	0002-
465	BRACKET; CONNECTOR 6WA1 TC-S(56L) ELECTRONIC GOV RED3(KG5)	1-47477-823-0	01	1	9610-9905
465	BRACKET; CONNECTOR ELECTRONIC GOV RED3(KG5)	1-47477-823-1	01	1	9906-0001
465	BRACKET; CONNECTOR ELECTRONIC GOV RED3(KG5)	1-47477-823-2	01	1	0002-
465	BRACKET; CONNECTOR ENG CONTROL TICS(Q3P) EXC. ELECTRONIC GOV RED3(KG5)	1-47477-823-2	01	1	0002-
468	NUT; BRKT 6WA1 TC-S(56L) ELECTRONIC GOV RED3(KG5) M8 FLANGE	8-94279-517-0	02	1	9610-9611
468	NUT; BRKT 6WA1 TC-S(56L) ELECTRONIC GOV RED3(KG5) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	9612-9905
468	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	9906-0001
468	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0002-
468	NUT; BRKT ENG CONTROL TICS(Q3P) EXC. ELECTRONIC GOV RED3(KG5) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0002-
468	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0002-
496	FASTENER 6WA1 TC-S(56L) ELECTRONIC GOV RED3(KG5) ID=6X6 OD=8	1-09987-194-0	02	1	9610-9610
496	FASTENER 6WA1 TC-S(56L) ELECTRONIC GOV RED3(KG5) D8X13.5	1-09987-248-1	02	1	9611-9905
496	FASTENER ELECTRONIC GOV RED3(KG5) D8X13.5	1-09987-248-1	02	1	9906-0001
496	FASTENER ELECTRONIC GOV RED3(KG5) D8X13.5	1-09987-248-1	02	1	0002-
496	FASTENER ENG CONTROL TICS(Q3P) EXC. ELECTRONIC GOV RED3(KG5) D8X13.5	1-09987-248-1	02	1	0002-
509	SEAL; BRKT 6WA1 TC-S(56L) ELECTRONIC GOV RED3(KG5)	1-47477-825-1	01	1	9610-9905
509	SEAL; BRKT ELECTRONIC GOV RED3(KG5)	1-47477-825-2	01	1	9906-0001
509	SEAL; BRKT ELECTRONIC GOV RED3(KG5)	1-47477-825-2	01	1	0002-
509	SEAL; BRKT ENG CONTROL TICS(Q3P) EXC. ELECTRONIC GOV RED3(KG5)	1-47477-825-2	01	1	0002-

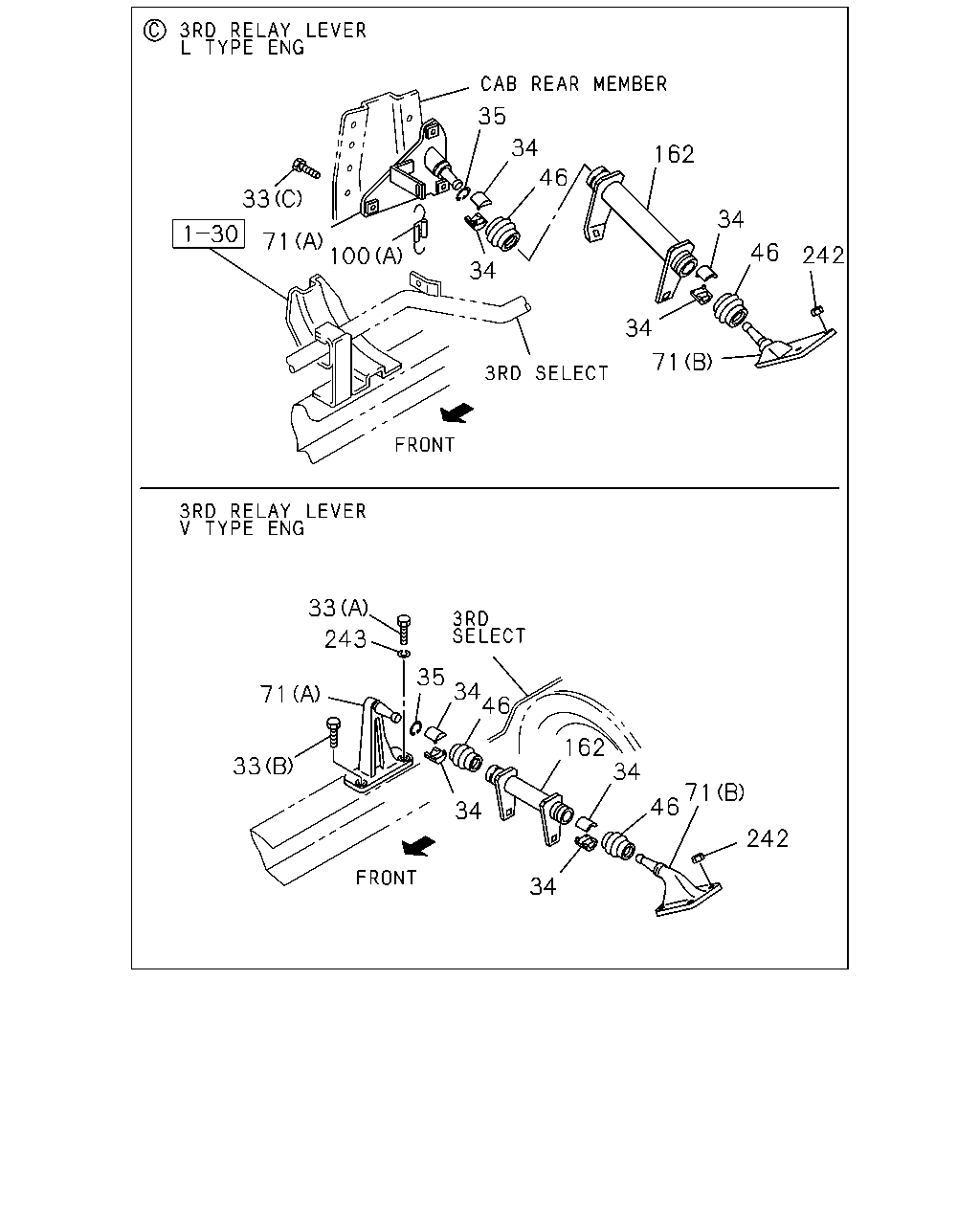

35 34 162 46 33 34 71 100 46 242 34 34 71 33 243 35 34 46 71 162 34 33 71 46 34 242 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	BOLT; BRKT,3RD RELAY LEVER 10PE1S(60L) (A) M14X45	0-20801-445-0	01	1	9606-9905
33	BOLT; BRKT,3RD RELAY LEVER 10PE1S(60L) (B) M10X40 W/LK WASHER	0-50041-040-0	01	1	9606-9905
33	BOLT; BRKT,3RD RELAY LEVER 6WA1 TC-S(56L) (C) M10X30 W/LK WASHER	0-50041-030-0	03	1	9606-9606
33	BOLT; BRKT,3RD RELAY LEVER 6WA1 TC-S(56L) (C) M10X30 FLANGE	0-28681-030-0	03	1	9607-9706
33	BOLT; BRKT,3RD RELAY LEVER L TYPE ENG<90L> (C) M10X30 FLANGE	0-28681-030-0	03	1	9707-9905
33	BOLT; BRKT,3RD RELAY LEVER L TYPE ENG<90L> (C) M10X30 FLANGE	0-28681-030-0	03	1	9906-
34	SEAT; BALL,RELAY LEVER 10PE1S(60L)	1-33659-118-0	04	1	9606-9905
34	SEAT; BALL,RELAY LEVER 6WA1 TC-S(56L)	1-33659-165-0	04	1	9701-9706
34	SEAT; BALL,RELAY LEVER 6WA1 TC-S(56L)	1-33659-165-0	04	1	9707-9905
34	SEAT; BALL,RELAY LEVER	1-33659-165-0	04	1	9906-
35	RING; SNAP,RELAY LEVER 10PE1S(60L) OD=23.5	9-09180-122-0	01	1	9606-9905
35	RING; SNAP,RELAY LEVER 6WA1 TC-S(56L) OD=34.4	9-09180-132-0	01	1	9701-9706
35	RING; SNAP,RELAY LEVER 6WA1 TC-S(56L) OD=34.4	9-09180-132-0	01	1	9707-9905
35	RING; SNAP,RELAY LEVER OD=34.4	9-09180-132-0	01	1	9906-
46	SEAL; DUST,RELAY LEVER 10PE1S(60L)	1-33659-172-0	02	1	9606-9905
46	SEAL; DUST,RELAY LEVER 6WA1 TC-S(56L)	1-33659-166-0	02	1	9701-9706
46	SEAL; DUST,RELAY LEVER 6WA1 TC-S(56L)	1-33659-166-0	02	1	9707-9905
46	SEAL; DUST,RELAY LEVER	1-33659-166-0	02	1	9906-
71	BRACKET; 3RD RELAY LEVER,FRAME 10PE1S(60L) (B)	1-33657-478-0	01	1	9606-9905
71	BRACKET; 3RD RELAY LEVER,FRAME 10PE1S(60L) (A)	1-33657-569-0	01	1	9606-9905
71	BRACKET; 3RD RELAY LEVER,FRAME MIXER TRUCK<RA2> (A)	1-33657-791-0	01	1	0006-
71	BRACKET; 3RD RELAY LEVER,FRAME 6WA1 TC-S(56L) (B)	1-33657-481-0	01	1	9701-9706
71	BRACKET; 3RD RELAY LEVER,FRAME 6WA1 TC-S(56L) (B)	1-33657-481-0	01	1	9707-9905
71	BRACKET; 3RD RELAY LEVER,FRAME (B)	1-33657-481-0	01	1	9906-
71	BRACKET; 3RD RELAY LEVER,FRAME 6WA1 TC-S(56L) (A)	1-33657-512-0	01	1	9701-9702
71	BRACKET; 3RD RELAY LEVER,FRAME 6WA1 TC-S(56L) (A)	1-33657-512-0	01	1	9703-9706
71	BRACKET; 3RD RELAY LEVER,FRAME 6WA1 TC-S(56L) (A)	1-33657-512-0	01	1	9707-9905
71	BRACKET; 3RD RELAY LEVER,FRAME (A)	1-33657-512-0	01	1	9906-0005
71	BRACKET; 3RD RELAY LEVER,FRAME EXC. MIXER TRUCK<RA2> (A)	1-33657-512-0	01	1	0006-
100	SPRING 6WA1 TC-S(56L) (B)	1-09583-218-0	01	1	9606-9905
100	SPRING L TYPE ENG<90L> (B)	1-09583-319-0	01	1	9906-
100	SPRING 6WA1 TC-S(56L) (A)	1-09583-319-0	01	1	9606-9706
100	SPRING L TYPE ENG<90L> (A)	1-09583-319-0	01	1	9707-9905
100	SPRING L TYPE ENG<90L> (A)	1-09583-351-0	01	1	9906-
162	LEVER; RELAY 10PE1S(60L)	1-33651-678-1	01	1	9606-9905
162	LEVER; RELAY 6WA1 TC-S(56L)	1-33651-679-0	01	1	9701-9905
162	LEVER; RELAY	1-33651-679-0	01	1	9906-
242	NUT; FLANGE 3RD RELAY LEVER 10PE1S(60L) M8 FLANGE	5-09440-005-0	04	1	9606-9905
242	NUT; FLANGE 3RD RELAY LEVER 6WA1 TC-S(56L) M12 FLANGE	0-91150-212-0	03	1	9606-9706
242	NUT; FLANGE 3RD RELAY LEVER L TYPE ENG<90L> M12 FLANGE	0-91150-212-0	03	1	9707-9905
242	NUT; FLANGE 3RD RELAY LEVER L TYPE ENG<90L> M12 FLANGE	0-91150-212-0	03	1	9906-
243	WASHER; LK,BRKT 10PE1S(60L) ID=14.2	9-09150-614-0	01	1	9606-9905

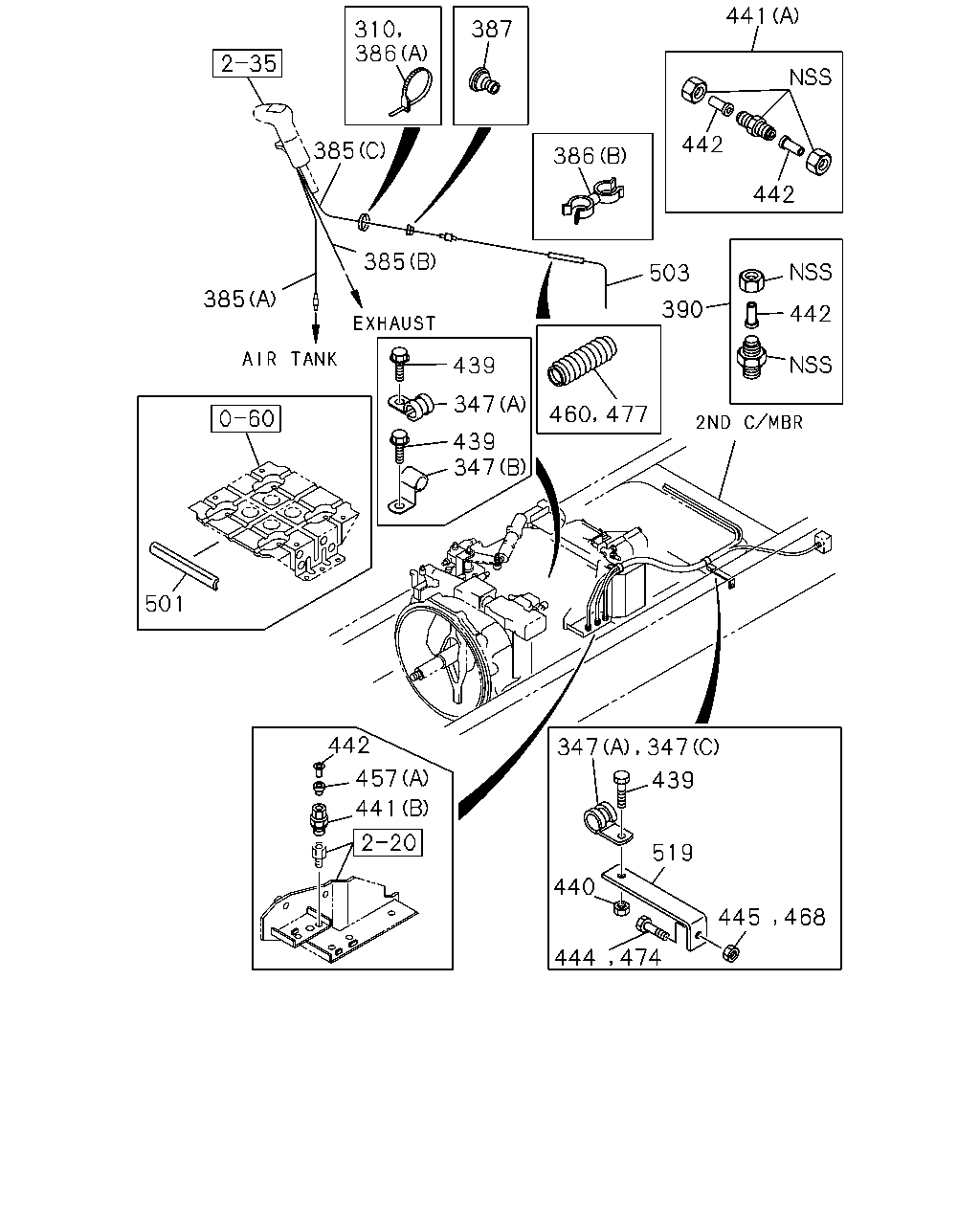

441 387 310 386 385 442 386 442 385 503 385 390 442 439 347 439 347 501 442 347 457 439 441 519 440 445 468 474 444 460 477 347

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
310	CLIP; TUBE L=250	5-09707-030-1	02	1	9606-9910
310	CLIP; TUBE L=250	5-09707-030-1	02	1	9911-
310	CLIP; TUBE 10PE1S(60L) L=250	1-09707-126-0	05	1	9606-9905
310	CLIP; TUBE V TYPE ENG<91L> ZF M/T<X9E> L=250	1-09707-126-0	05	1	9906-9910
310	CLIP; TUBE 10PE1S(60L) L=140	5-09707-031-0	09	1	9606-9608
310	CLIP; TUBE 10PE1S(60L) L=140	5-09707-031-1	10	1	9609-9905
310	CLIP; TUBE V TYPE ENG<91L> ZF M/T<X9E> L=140	5-09707-031-1	10	1	9906-9910
310	CLIP; TUBE 6WA1 TC-S(56L) L=250	1-09707-126-0	07	1	9606-9905
310	CLIP; TUBE L TYPE ENG<90L> L=250	1-09707-126-0	07	1	9906-9910
310	CLIP; TUBE L=250	1-09707-126-0	16	1	9911-
310	CLIP; TUBE 6WA1 TC-S(56L) L=140	5-09707-031-1	07	1	9606-9905
310	CLIP; TUBE L TYPE ENG<90L> L=140	5-09707-031-1	07	1	9906-9910
310	CLIP; TUBE L=140	5-09707-031-1	01	1	9911-
347	CLIP; AIR PIPE POWER TAKE OFF-ZF TRANSMISSION<BDM> (C) ID=28 L=40	1-09701-261-0	01	1	9906-
347	CLIP; AIR PIPE EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) ID=24 L=27	1-09700-809-0	02	1	9906-
347	CLIP; AIR PIPE (A) ID=24 L=27	1-09700-809-0	02	1	9906-9906
347	CLIP; AIR PIPE (A) ID=24 L=27	1-09700-809-0	01	1	9906-
347	CLIP; AIR PIPE POWER TAKE OFF-ZF TRANSMISSION<BDM> (B) ID=14.5 H=23 L=30	1-09700-859-0	01	1	9906-
385	TUBE; NYLON (A) L=1750 SERVICED BY L=8000	1-09369-762-0	01	1	9606-9704
385	TUBE; NYLON (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	9606-9905
385	TUBE; NYLON (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	9906-
385	TUBE; NYLON (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	9606-9905
385	TUBE; NYLON (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	9906-
385	TUBE; NYLON (C) L=1650 SERVICED BY L=8000	1-09369-762-0	01	1	9610-
386	CLIP; CONT CABLE & TUBE (A) L=250	5-09707-030-1	02	1	9606-9905
386	CLIP; CONT CABLE & TUBE (A) L=250	5-09707-030-1	02	1	9906-
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-1	01	1	9606-9905
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-1	01	1	9906-
386	CLIP; CONT CABLE & TUBE (B) ID=8.3 & 8.3	8-94426-175-0	01	1	9610-9905
386	CLIP; CONT CABLE & TUBE (B) ID=8.3 & 8.3	8-94426-175-0	01	1	9906-
387	GROMMET; CONT TUBE,FULLER	1-09332-102-0	01	1	9606-9905
387	GROMMET; CONT TUBE,FULLER	1-09332-102-0	01	1	9906-
390	CONNECTOR; STRAIGHT,TRANS SIDE DIN4 & PT1/8 STRAIGHT	1-09660-765-0	01	1	9606-9905
390	CONNECTOR; STRAIGHT,TRANS SIDE DIN4 & PT1/8 STRAIGHT	1-09660-765-0	01	1	9906-
439	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28680-825-0	02	1	9906-9906
439	BOLT; CLIP,AIR PIPE POWER TAKE OFF-ZF TRANSMISSION<BDM> M8X25 FLANGE	0-28680-825-0	03	1	9906-
439	BOLT; CLIP,AIR PIPE EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> M8X25 FLANGE	0-28680-825-0	02	1	9906-
440	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	9906-9906
440	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	9906-
441	CONNECTOR; NYLON TUBE (A) DIN4 STRAIGHT	1-09660-512-0	02	1	9606-9910
441	CONNECTOR; NYLON TUBE (A) DIN4 STRAIGHT	1-09660-512-0	02	1	9911-
441	CONNECTOR; NYLON TUBE (B)	1-09660-466-0	01	1	9906-
442	INSERT; NYLON TUBE ID=1.4 OD=2.0 L=18	1-09669-100-0	05	1	9606-9905
442	INSERT; NYLON TUBE ID=1.4 OD=2.0 L=18	1-09669-100-0	04	1	9906-9910
442	INSERT; NYLON TUBE ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	9906-9910
442	INSERT; NYLON TUBE ID=1.4 OD=2.0 L=18	1-09669-100-0	06	1	9911-0007
442	INSERT; NYLON TUBE ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	0008-
442	INSERT; NYLON TUBE ID=1.4 OD=2.0 L=18	1-09669-100-0	05	1	0008-
444	BOLT; BRKT,NIPPLE M8X30 FLANGE	0-28680-830-0	01	1	9906-0001
445	NUT; BRKT,NIPPLE M8 FLANGE	0-91150-108-0	01	1	9906-0001
457	GASKET (B)	1-09623-594-0	04	1	9606-9706
457	GASKET (B)	1-09623-594-0	04	1	9707-9905
457	GASKET (B)	1-09623-594-0	04	1	9906-
457	GASKET (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	9906-
460	TUBE; CORRUGATE L=800	1-83129-031-1	01	1	9606-9905
460	TUBE; CORRUGATE L=800	1-83129-031-1	01	1	9906-
460	TUBE; CORRUGATE L=900 SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	9606-9905
460	TUBE; CORRUGATE L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	9906-
460	TUBE; CORRUGATE L=1300 SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	9606-9905
460	TUBE; CORRUGATE L=1300 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	9906-
468	NUT; BRKT 6WA1 TC-S(56L) ELECTRONIC GOV RED3(KG5) M8 FLANGE	8-94279-517-0	02	1	9610-9611
468	NUT; BRKT 6WA1 TC-S(56L) ELECTRONIC GOV RED3(KG5) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	9612-9905
468	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	9906-0001
468	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0002-
468	NUT; BRKT ENG CONTROL TICS(Q3P) EXC. ELECTRONIC GOV RED3(KG5) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0002-
468	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0002-
474	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0002-
477	TUBE; CORRUGATE MIXER TRUCK<RA2> SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0004-
477	TUBE; CORRUGATE L TYPE ENG<90L> SERVICED BY L=4000 ID=7	1-87410-086-0	01	1	9906-9910
477	TUBE; CORRUGATE V TYPE ENG<91L> SERVICED BY L=4000 OD=4	1-87410-078-0	01	1	9906-9910
477	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	9911-0003
477	TUBE; CORRUGATE EXC. MIXER TRUCK<RA2> SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	0004-
477	TUBE; CORRUGATE SERVICED BY L=4000 ID=7	1-87410-086-0	01	1	9911-
501	SEAL; HARNESS PROTECTOR 100X30	1-72498-014-1	04	1	9606-9903
501	SEAL; HARNESS PROTECTOR 100X40	1-72498-022-0	04	1	9904-9905
503	TUBE; NYLON MIXER TRUCK<RA2> SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	0004-
503	TUBE; NYLON L TYPE ENG<90L> SERVICED BY L=4000 OD=4	1-87410-078-0	01	1	9906-9910
503	TUBE; NYLON V TYPE ENG<91L> SERVICED BY L=4000 ID=7	1-87410-086-0	01	1	9906-9910
503	TUBE; NYLON SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9911-0003
503	TUBE; NYLON EXC. MIXER TRUCK<RA2> SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0004-
503	TUBE; NYLON SERVICED BY L=4000 OD=4	1-87410-078-0	01	1	9911-
519	BRACKET; FRAME L=125	1-47475-897-0	01	1	0002-

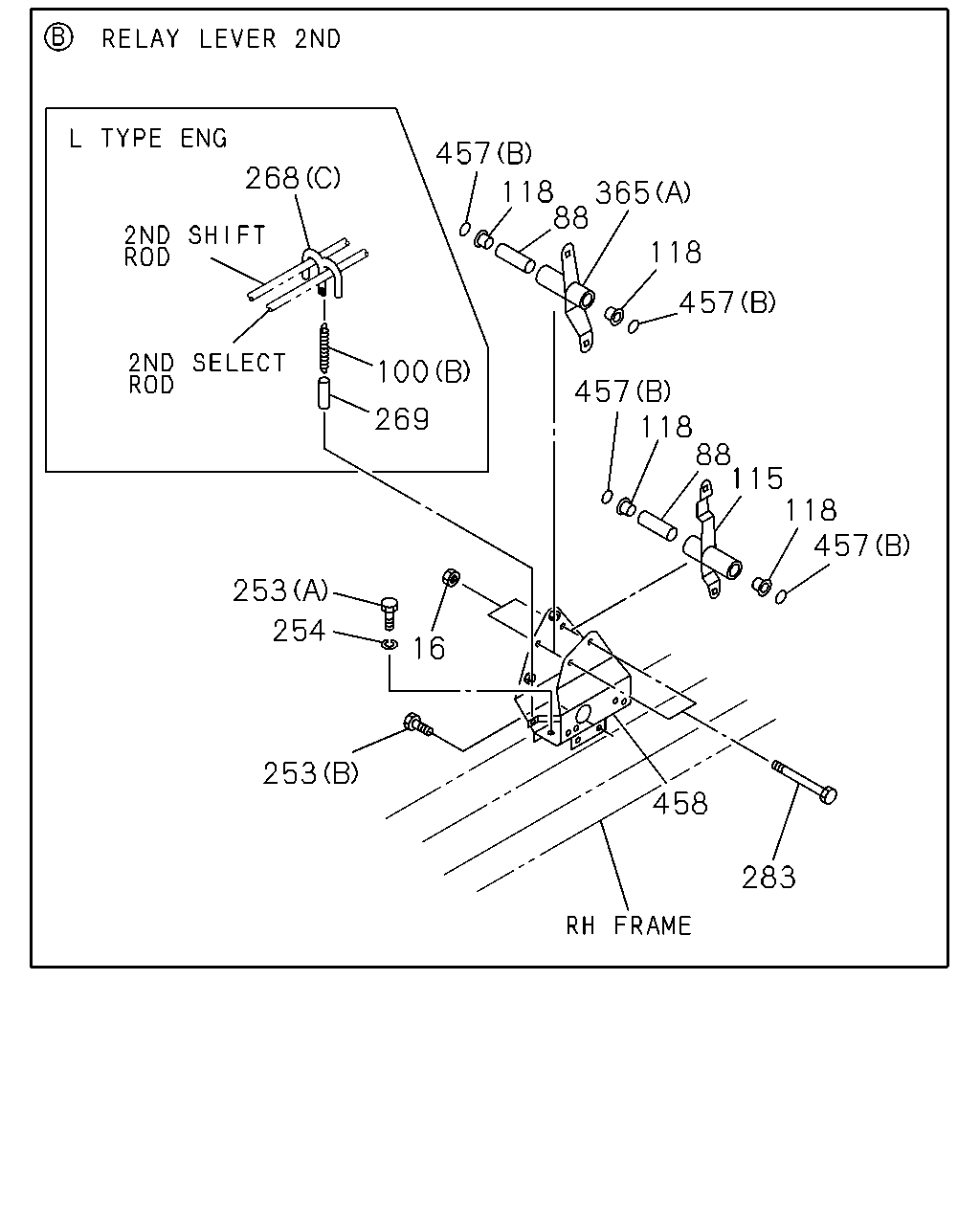

457 268 88 118 457 100 457 118 88 115 118 457 269 253 254 16 253 458 283 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	9606-9706
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	9707-9905
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	9906-
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	9606-9706
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	9707-9905
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	9906-
100	SPRING 6WA1 TC-S(56L) (B)	1-09583-218-0	01	1	9606-9905
100	SPRING L TYPE ENG<90L> (B)	1-09583-319-0	01	1	9906-
100	SPRING 6WA1 TC-S(56L) (A)	1-09583-319-0	01	1	9606-9706
100	SPRING L TYPE ENG<90L> (A)	1-09583-319-0	01	1	9707-9905
100	SPRING L TYPE ENG<90L> (A)	1-09583-351-0	01	1	9906-
115	LEVER; RELAY,2ND SHIFT	1-33651-626-0	01	1	9606-9706
115	LEVER; RELAY,2ND SHIFT	1-33651-626-0	01	1	9707-9905
115	LEVER; RELAY,2ND SHIFT	1-33651-626-0	01	1	9906-
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	9606-9706
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	9707-9905
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	9906-
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	9606-9905
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	9906-
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9606-9606
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28681-035-0	02	1	9607-9905
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28681-035-0	02	1	9906-
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	9606-9905
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	9906-
268	BRACKET; LINK ROD 6WA1 TC-S(56L) (C)	1-33657-216-0	01	1	9606-9905
268	BRACKET; LINK ROD L TYPE ENG<90L> (C)	1-33657-216-0	01	1	9906-
269	COVER; SPR 6WA1 TC-S(56L)	1-15669-002-0	01	1	9606-9905
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	9606-9706
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	9707-9905
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	9906-
457	GASKET (B)	1-09623-594-0	04	1	9606-9706
457	GASKET (B)	1-09623-594-0	04	1	9707-9905
457	GASKET (B)	1-09623-594-0	04	1	9906-
457	GASKET (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	9906-
458	BRACKET; 2ND RELAY LEVER L TYPE ENG<90L> EXC. CAB UP +110MM<TGG>	1-33657-583-1	01	1	9906-
458	BRACKET; 2ND RELAY LEVER 10PE1S(60L)	1-33657-572-2	01	1	9606-9905
458	BRACKET; 2ND RELAY LEVER 6WA1 TC-S(56L)	1-33657-573-2	01	1	9606-9706
458	BRACKET; 2ND RELAY LEVER L TYPE ENG<90L>	1-33657-573-2	01	1	9707-9905

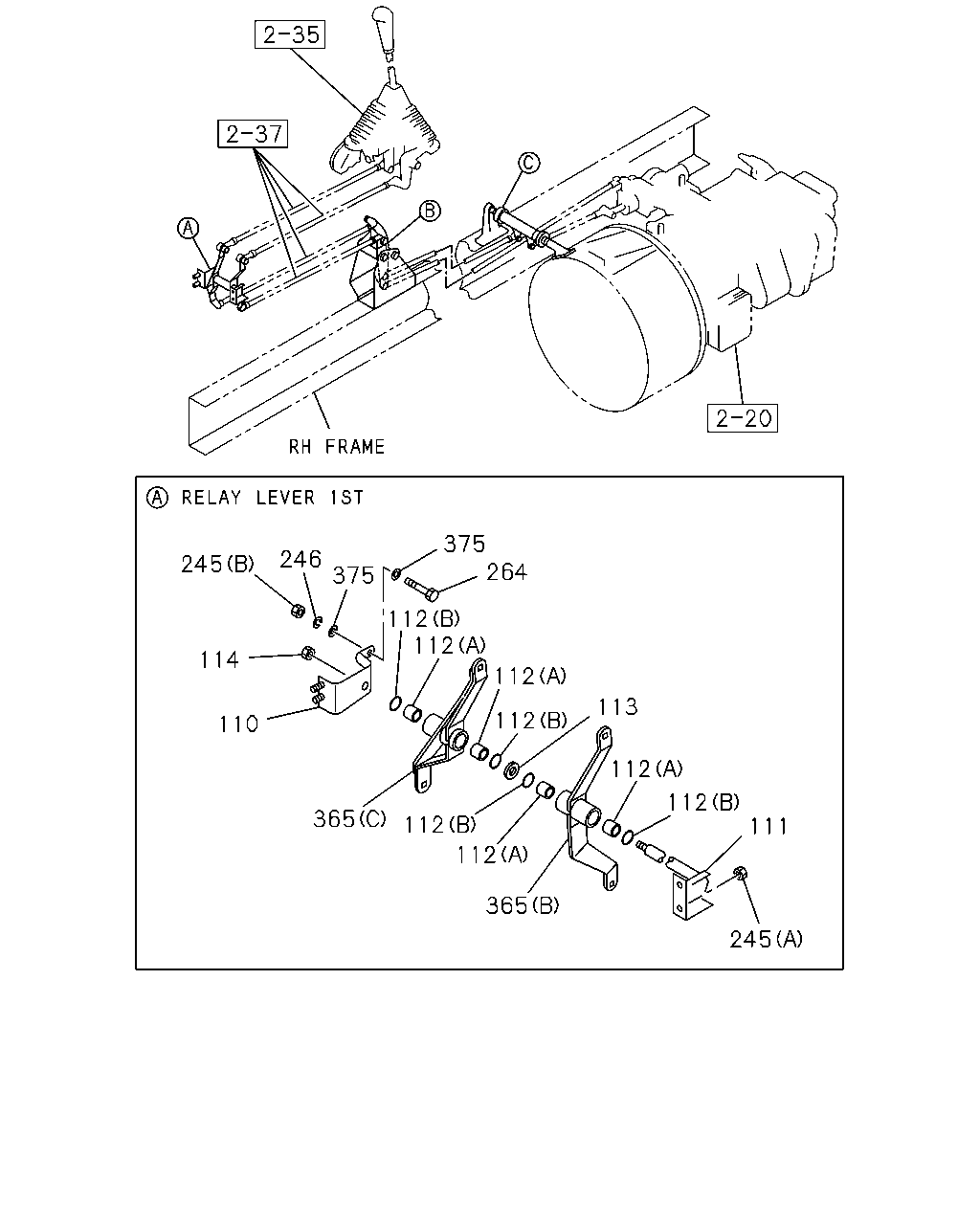

375 264 246 245 375 112 112 114 112 113 112 110 112 112 365 112 111 112 365 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
110	BRACKET; RELAY LEVER,1ST	1-33657-598-0	01	1	9606-9905
110	BRACKET; RELAY LEVER,1ST	1-33657-598-0	01	1	9906-
111	SHAFT; RELAY LEVER,1ST	1-33619-468-0	01	1	9606-9905
111	SHAFT; RELAY LEVER,1ST	1-33619-468-0	01	1	9906-
112	BUSHING; RELAY LEVER (A)	1-09330-119-0	04	1	9606-9905
112	BUSHING; RELAY LEVER (A)	1-09330-119-0	04	1	9906-
112	BUSHING; RELAY LEVER (B)	1-09623-594-0	04	1	9606-9905
112	BUSHING; RELAY LEVER (B)	1-09623-594-0	04	1	9906-
113	WASHER; RELAY LEVER ID=17	9-09160-516-0	01	1	9606-9905
113	WASHER; RELAY LEVER ID=17	9-09160-516-0	01	1	9906-
114	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	01	1	9606-9905
114	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	01	1	9906-
245	NUT; BRKT,RELAY LEVER (A) M10 FLANGE	0-91150-210-0	02	1	9606-9905
245	NUT; BRKT,RELAY LEVER (A) M10 FLANGE	0-91150-210-0	02	1	9906-
245	NUT; BRKT,RELAY LEVER (B) M10	1-09984-142-0	01	1	9606-9905
245	NUT; BRKT,RELAY LEVER (B) M10	1-09984-142-0	01	1	9906-
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	01	1	9606-9905
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	01	1	9906-
264	BOLT; BRKT,RELAY LEVER M10X100	1-09980-547-0	01	1	9606-9905
264	BOLT; BRKT,RELAY LEVER M10X100	1-09980-547-0	01	1	9906-
365	LEVER; RELAY,SELECT (B)	1-33651-638-0	01	1	9606-9905
365	LEVER; RELAY,SELECT (B)	1-33651-638-0	01	1	9906-
365	LEVER; RELAY,SELECT (C)	1-33651-649-0	01	1	9606-9905
365	LEVER; RELAY,SELECT (C)	1-33651-649-0	01	1	9906-
365	LEVER; RELAY,SELECT 10PE1S(60L) (A)	1-33651-627-1	01	1	9606-9905
365	LEVER; RELAY,SELECT 6WA1 TC-S(56L) (A)	1-33651-628-1	01	1	9606-9706
365	LEVER; RELAY,SELECT L TYPE ENG<90L> (A)	1-33651-628-1	01	1	9707-9905
365	LEVER; RELAY,SELECT L TYPE ENG<90L> (A)	1-33651-628-1	01	1	9906-
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	9606-9905
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	9906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
